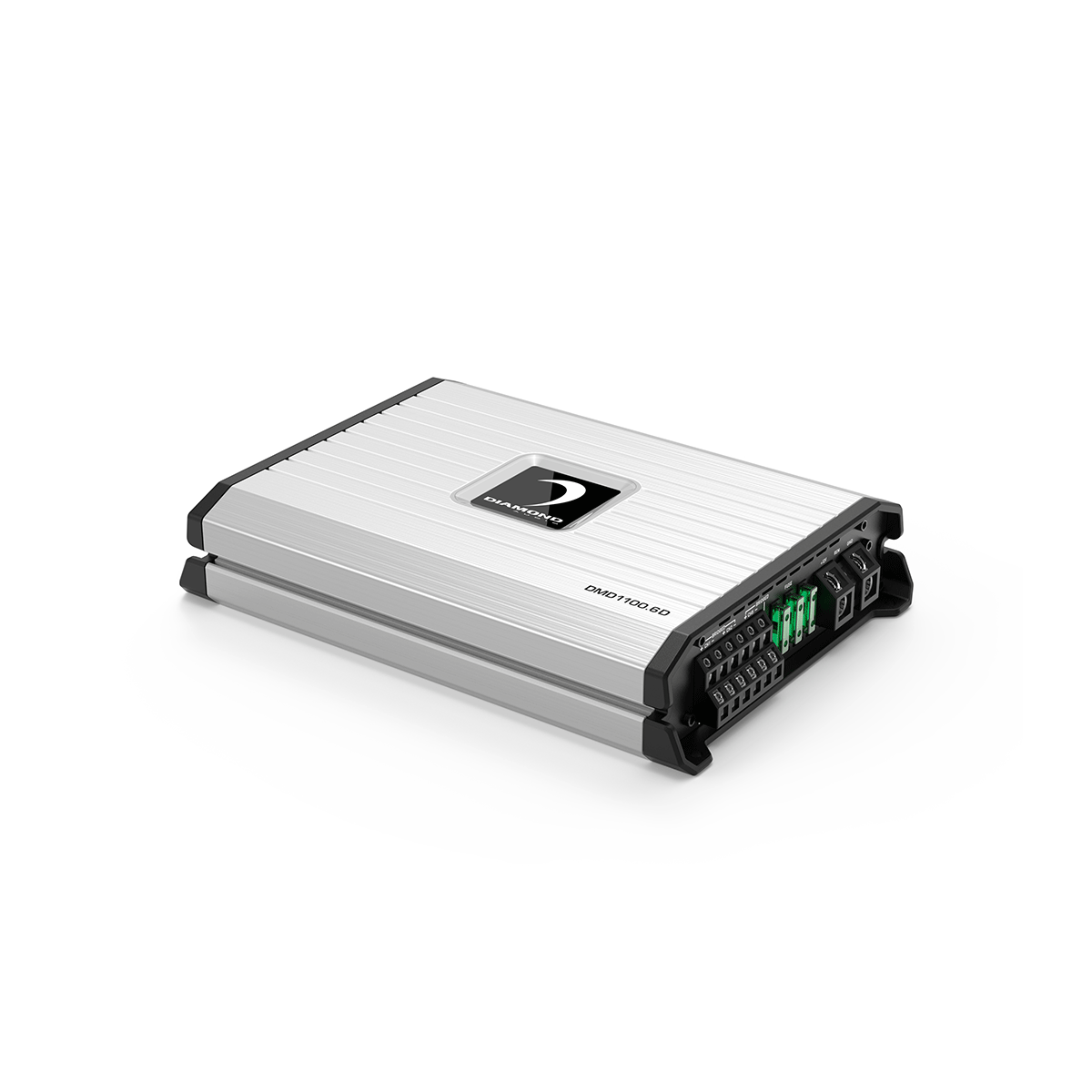

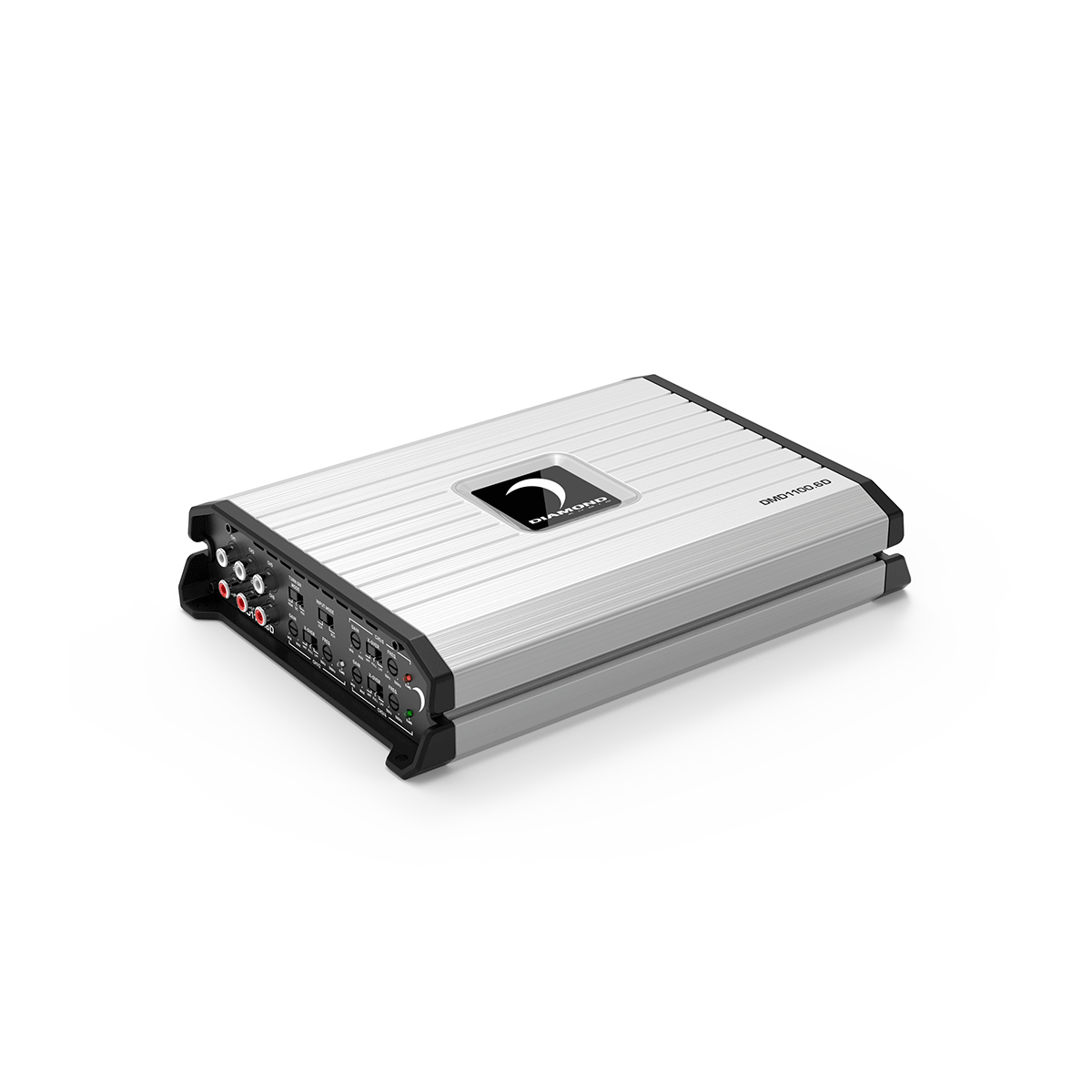

DMD Series 6-Channel Full Range Digital Amplifier - DMD1100.6D

DMD1100.6D- DMD Series 6-Channel Full Range Digital Amplifier

Introducing the DMD Series Amplifiers from Diamond Audio - delivering best-in-class performance and unbeatable value! Designed with substantial power in a compact heat sink, the DMD Series is the perfect solution for any budget-friendly mobile audio system.

The DMD Series features five amplifier models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier. Powered by the latest IR chipset technology and utilizing innovative SMD technology and circuit design on 4-layer FR4 PC boards, these amplifiers offer advanced performance in a small footprint.

Enjoy noise-free operation with balanced differential inputs, and take advantage of features like a subsonic filter, bass boost, and an LED-lit logo indicating power/protection status. With audio precision quality control verification, the DMD Series ensures high performance and reliability that competitors can't match.

Upgrade to the DMD Series Amplifiers from Diamond Audio and experience the perfect blend of power, technology, and value. Transform your mobile audio system with these exceptional amplifiers and hear the difference today!

Features

Specifications

The DMD Series features five amplifier models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier. Powered by the latest IR chipset technology and utilizing innovative SMD technology and circuit design on 4-layer FR4 PC boards, these amplifiers offer advanced performance in a small footprint.
The DMD Series features five amplifier models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier. Powered by the latest IR chipset technology and utilizing innovative SMD technology and circuit design on 4-layer FR4 PC boards, these amplifiers offer advanced performance in a small footprint.
700W X 1 @ 2 ohm  (Bridged: CH.5 & CH.6 Only)
Power Supply: Full WPM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
THD 4 (1KHZ @4 ohm ): 0.03%
Low Level Input: 0.2mV-10.0V
High Level Input: Up to 25W RMS
Low Level Input: 22K ohm
Output Impedance:
Damping Factor (50Hz@4 ohm ):
Bandwidth (-3db):
Variable High-Pass: 50Hz-500Hz
Variable low-Pass: 50Hz-500Hz
Length x Width x Height: 9.76"x6.85"x1.9" (248.1mm x 174mm x 48.4 mm)
Input Sensitity: 0.2-10 VOLT
Frequency Response: 10-20kHz
Signal to Noise Ratio: >90dB
Overall Operation Efficiency: >86%
