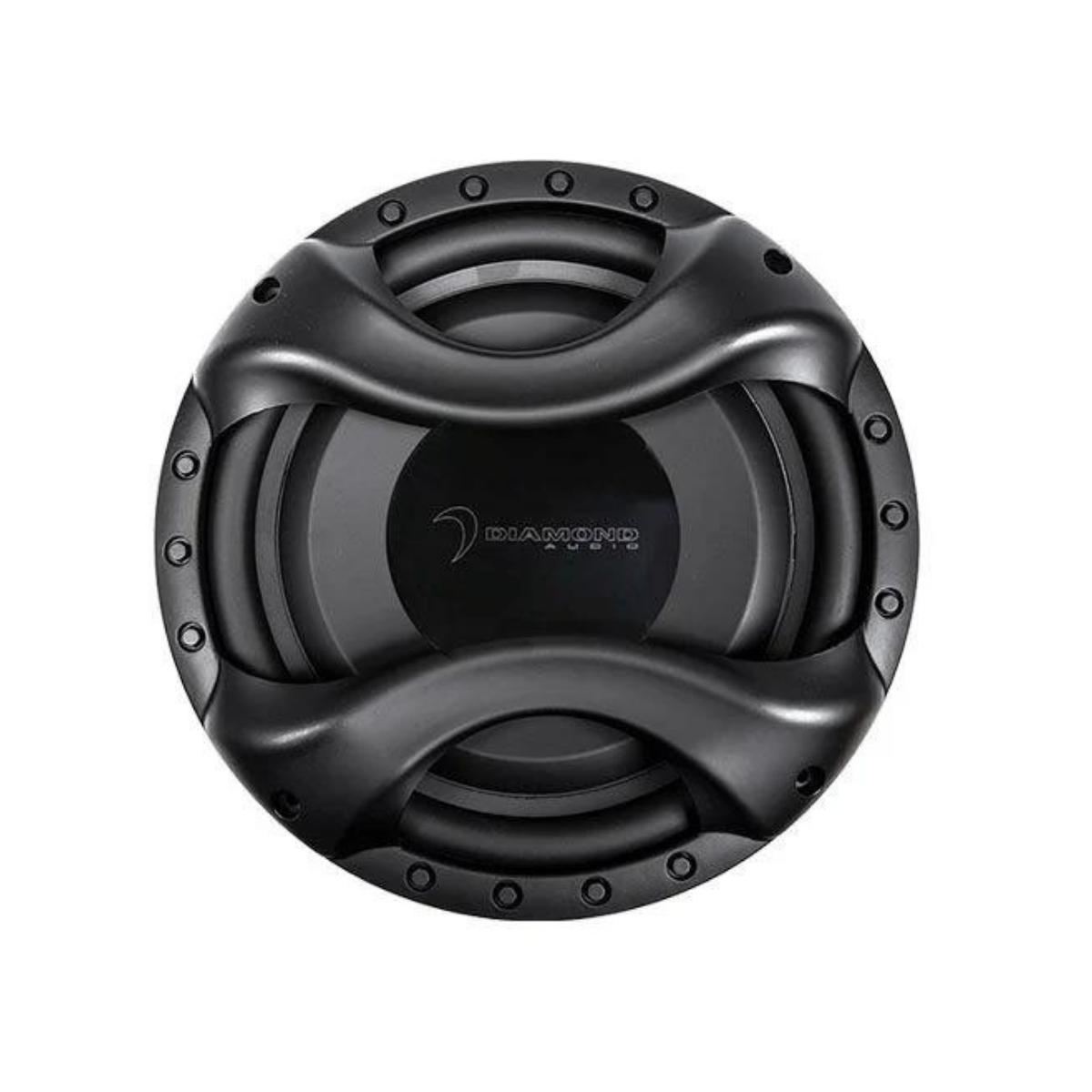

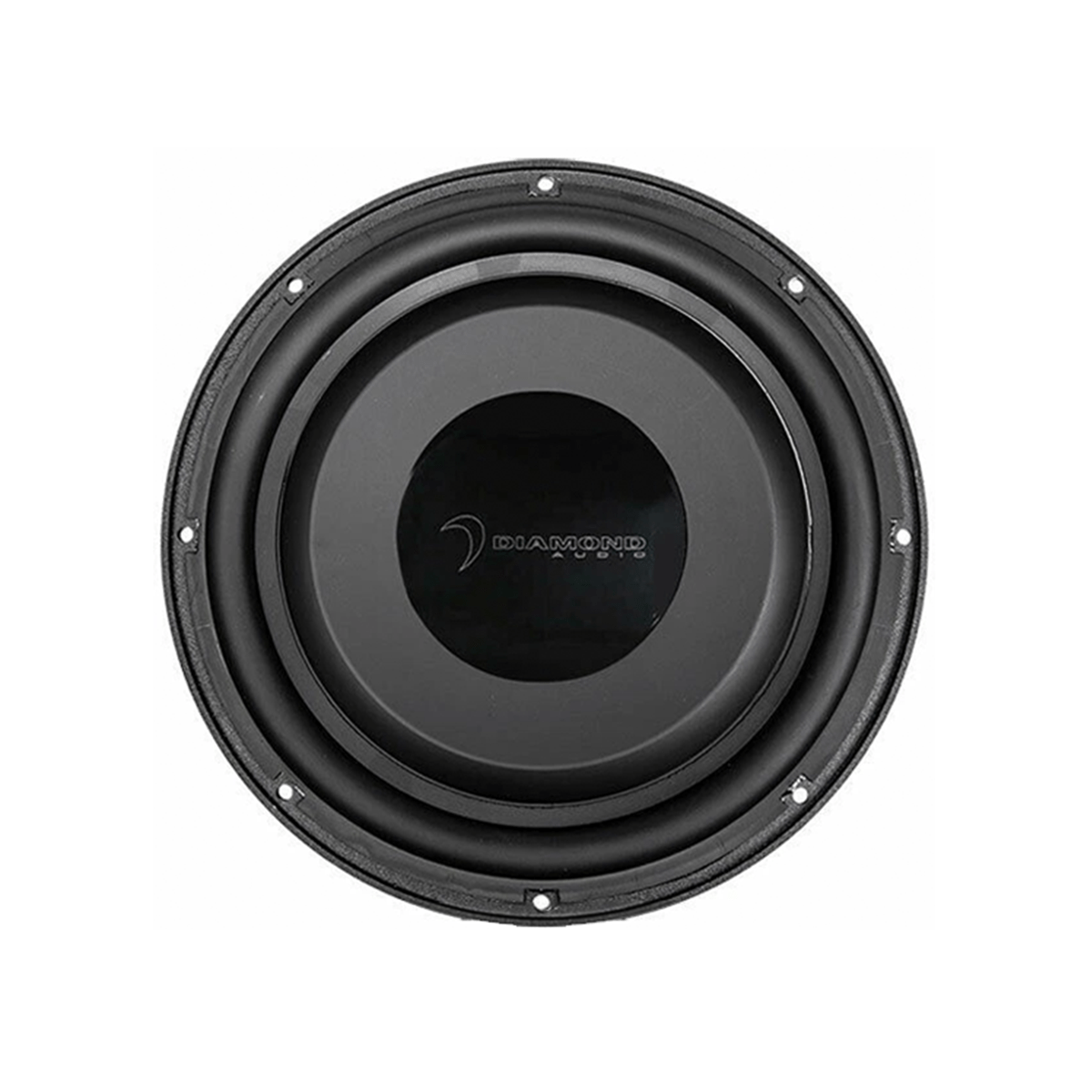

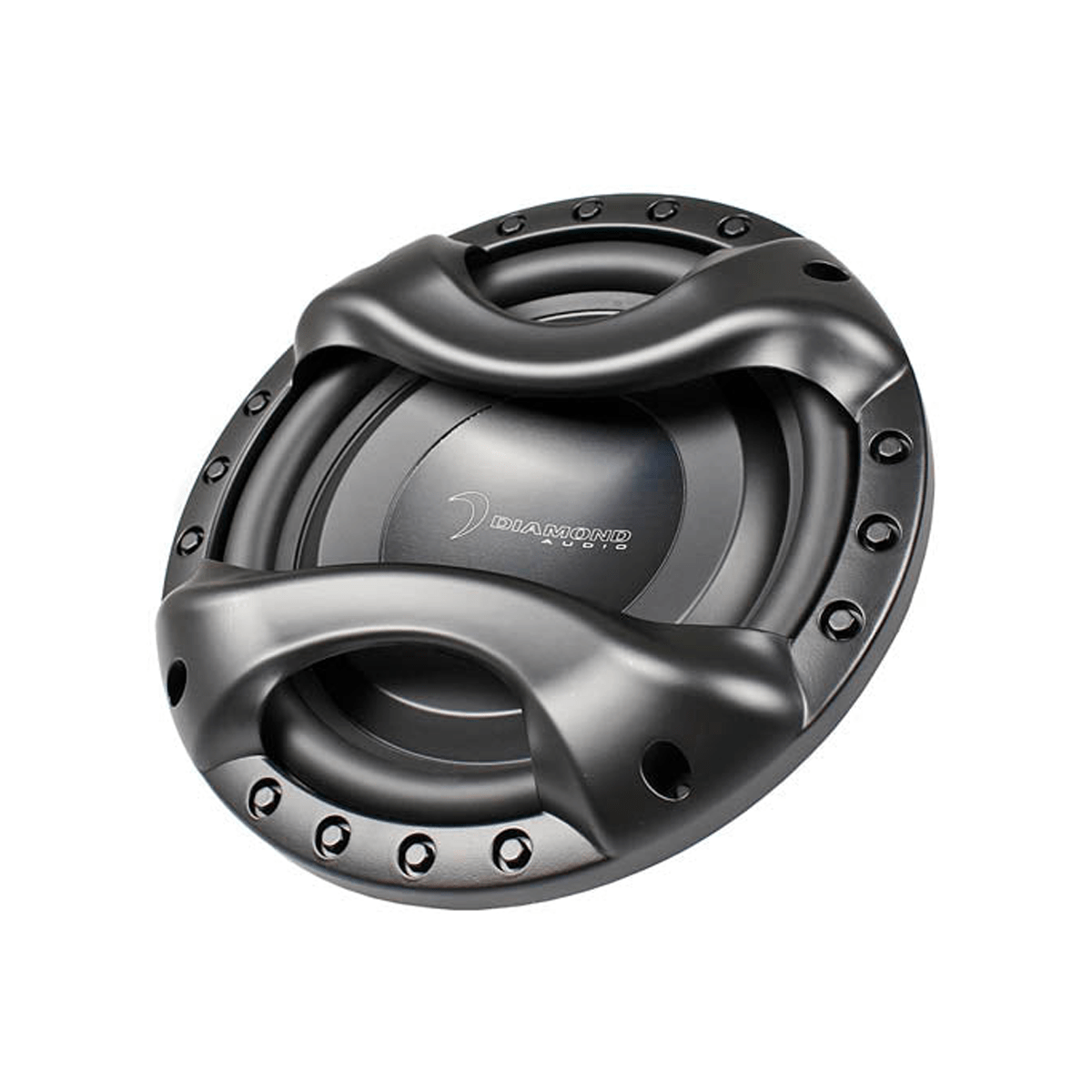

DMD104SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (4 ohm )

DMD104SH - DMD Series 10" Shallow Dual Voice Coil Subwoofer (4 ohm )

The DMD104SH Shallow Mount Subwoofer from Diamond Audio is the ideal solution for car audio systems where space is limited but powerful bass is still a priority. Designed for tight installations in trucks, cars, and custom enclosures, this 10-inch shallow subwoofer delivers impressive low-frequency performance with an ultra-slim mounting depth of just 3 inches.

Part of the proven DMD Series, the DMD104SH is engineered to perform best in sealed enclosures, delivering tight, controlled bass that rivals traditional full-size subwoofers while taking up significantly less space. Its dual 4-ohm voice coil configuration provides wiring flexibility, making it easy to match with a wide range of amplifiers for optimal power delivery.

For maximum bass output and efficiency, Diamond Audio recommends using two DMD shallow subwoofers in a compact 1-cubic-foot enclosure. This setup allows you to achieve deep, impactful bass without sacrificing valuable cargo or interior room.

Whether upgrading a daily driver or building a custom space-saving system, the DMD104SH offers big bass performance in an ultra-shallow, installer-friendly design built for modern vehicles.

Features

Specifications

Power: 250W RMS/500W MAX
SPL(dB): 85.2
Re( ohm ): 6.0
Qms: 8.0
Qes: 0.84
Qts: 0.77
Fs(Hz): 48.5
Vas(L): 15.8
Cms(mm/N): 0.086
Mms(g): 125.0
Sd(cm): 0.0359
BL(T*M): 16.4
Xmax(mm): 8.8
Diameter: 10.87" (276.0mm)
Mounting Diameter: 9.13" (232.0mm)

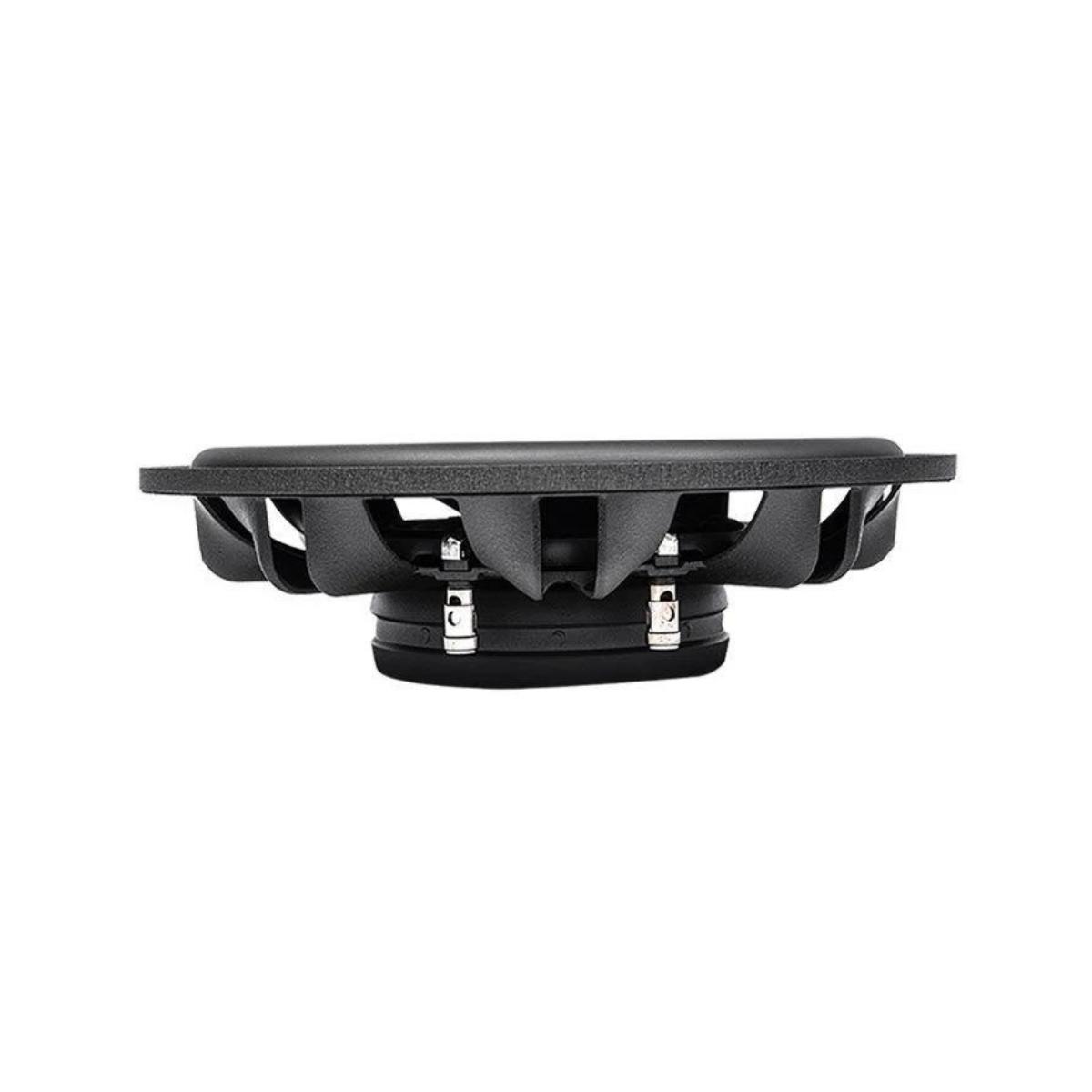

Mounting Depth: 3.0" (76.0mm)
Magnet Diameter: 5.69" (144.5mm)
Vb (ft3): 0.45
F3 (Hz): 60
QTC: 88
Pe (W): 250
Vb (ft3): 1.00
Fb(Hz): 44
F3(Hz): 37
Port (Diameter x Length): 3.54"(89.916mm) x 10"(254mm)
Pe (W):
