DS18 JKSBAR22LOADED Jeep JK/JKU Plug & Play Sound Bar Package
Product Overview DS18 JKSBAR22LOADED Jeep JK/JKU Plug & Play Sound Bar Package Now the little brother of the...
- $1,121.95
- $1,121.95
- Unit price
- per
Subtotal:
$1,121.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

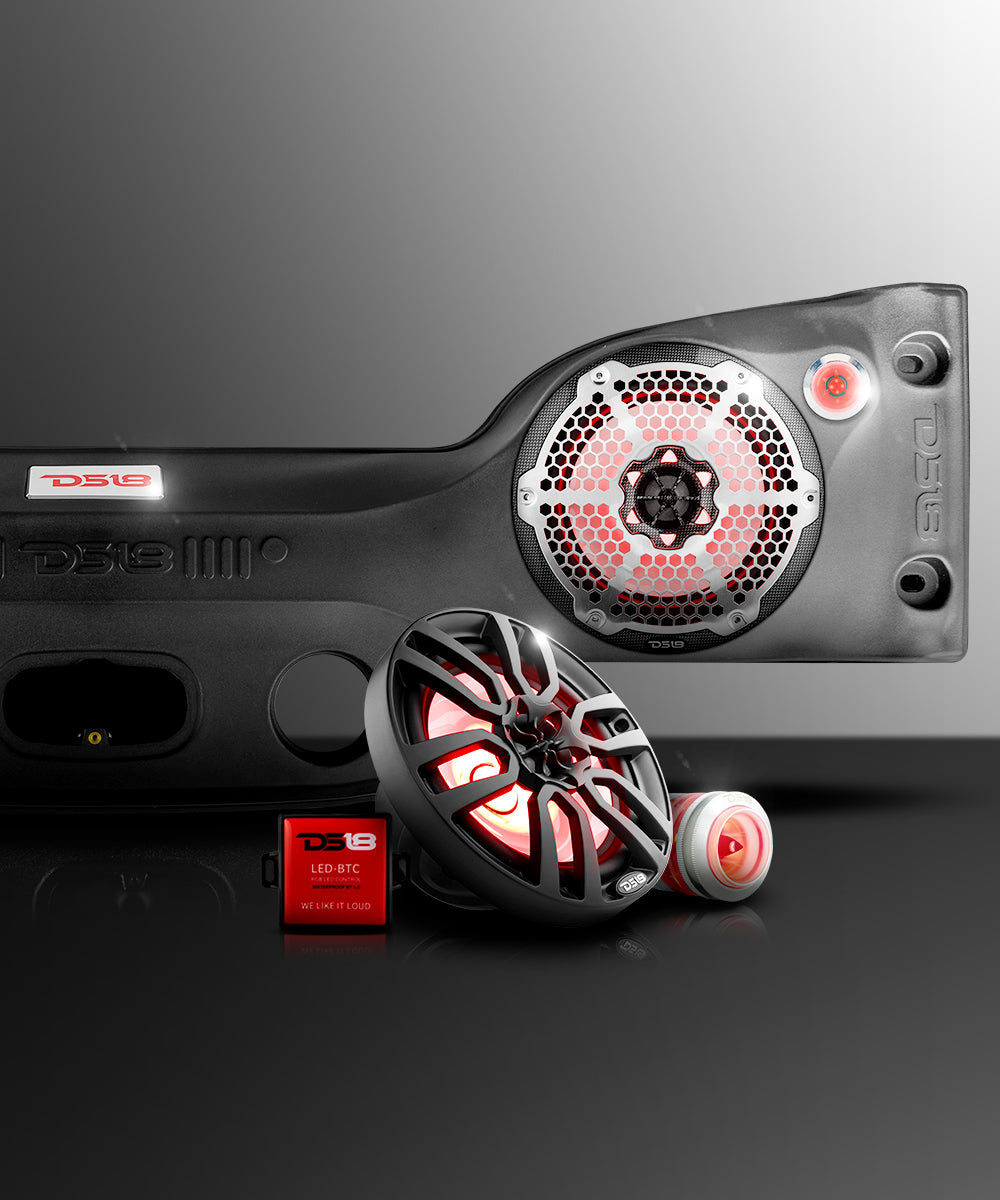

DS18 JKSBAR22LOADED Jeep JK/JKU Plug & Play Sound Bar Package

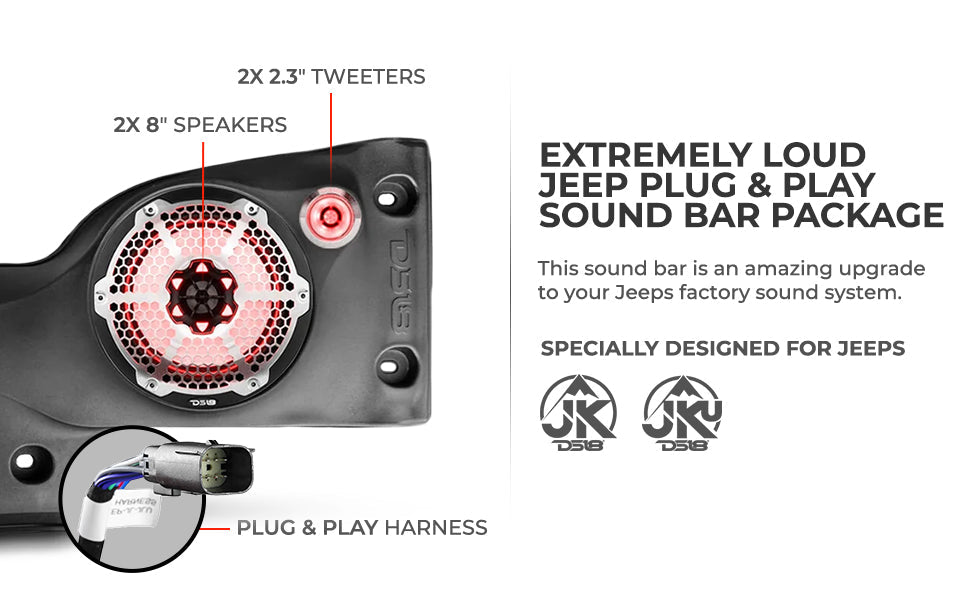

Now the little brother of the world famous DS18 jeep sound bar has arrived, the Sbar22 series. This sound bar is an amazing upgrade to your jeeps factory sound system. Included are plug and play options for your speakers that integrate into your factory wiring and amplifier or you can use an external amplifier for even more volume. This sound bar completely replaces your existing sound bar with DS18's world renowned products.
Highlights
- High Density Plastic Molded with Color Injected
- UV Protected and All Elements Ready

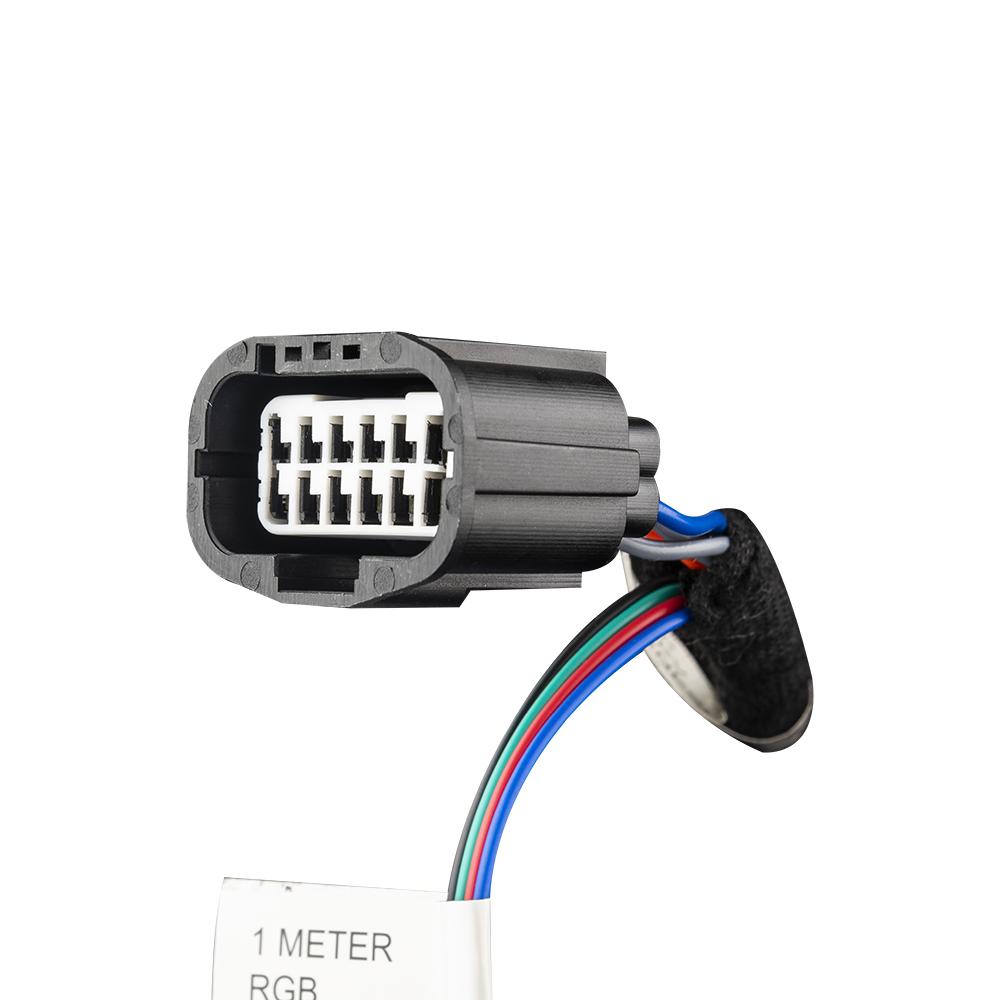

- Harness with factory plug n play included
- 1m RGB wire to connect with a LED controller module
- Jeeps without the basic sound system need slight plug harness modification.
- Assembly Required

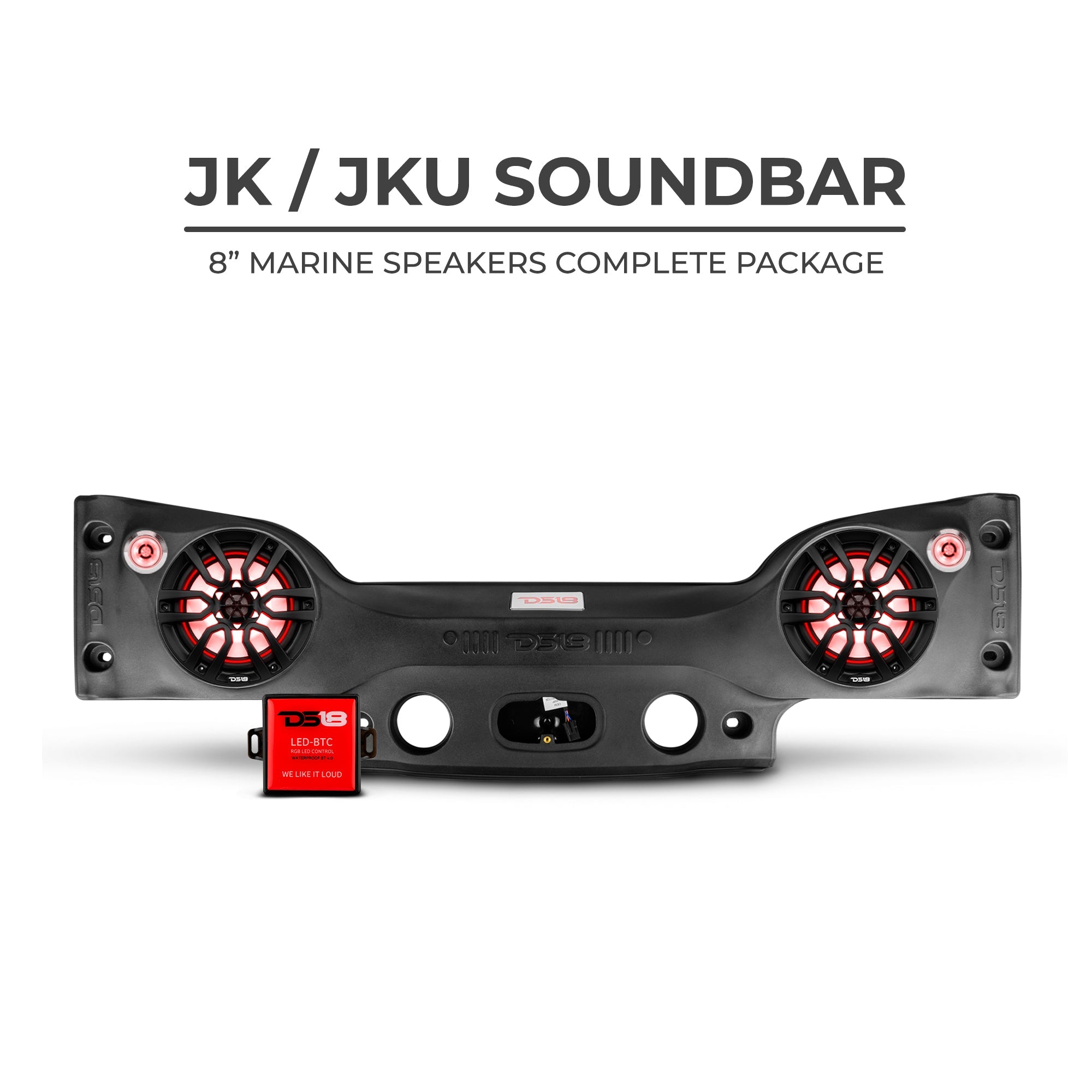

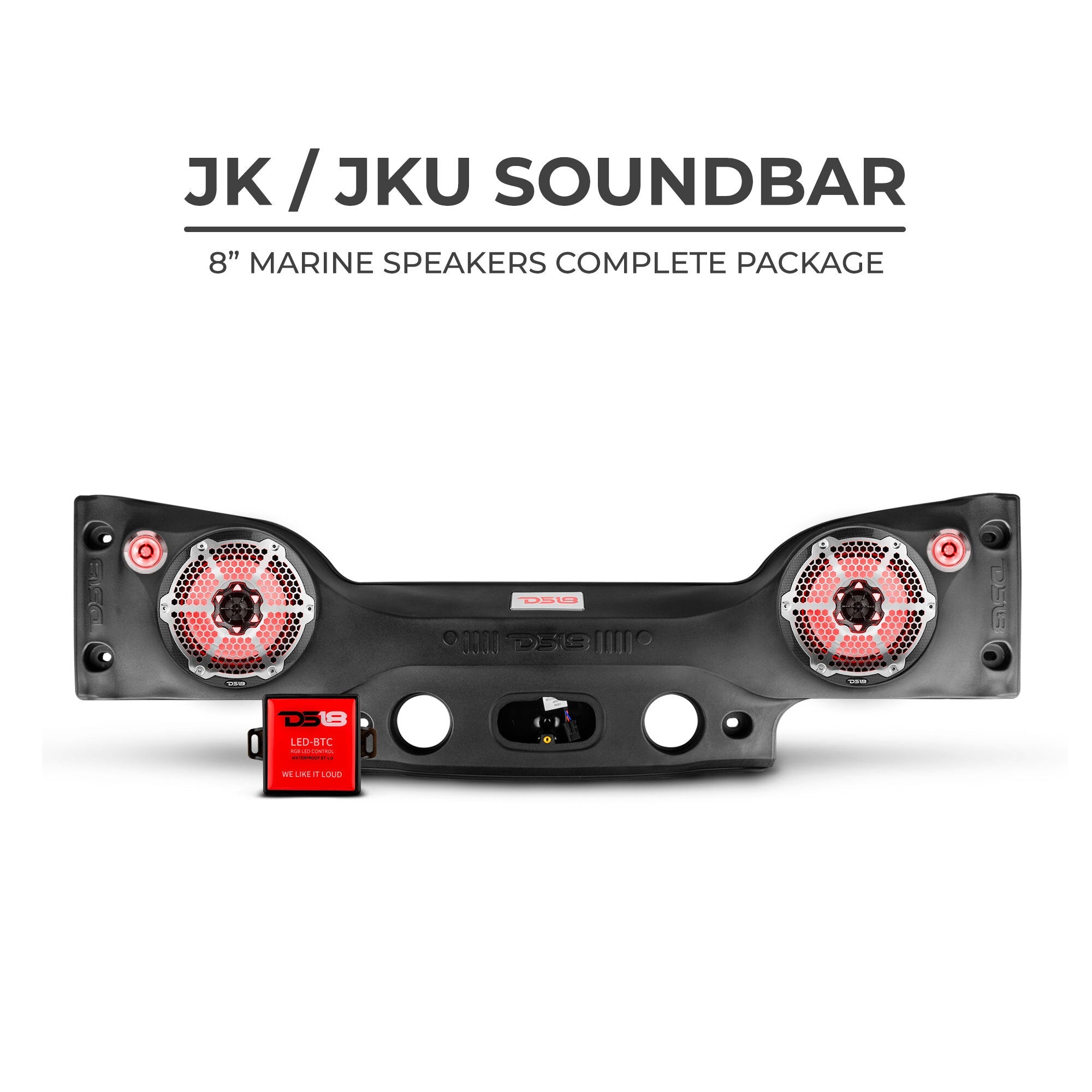

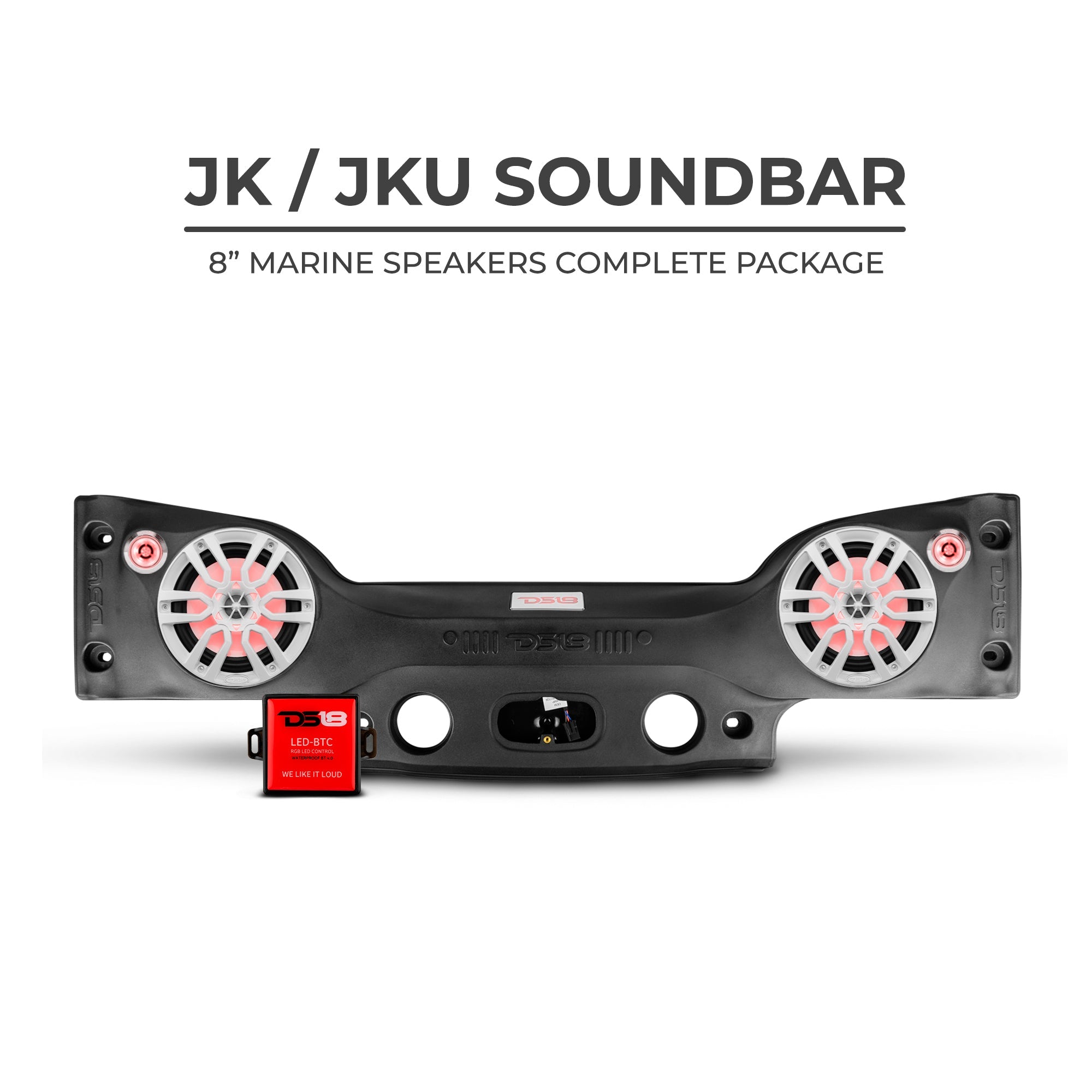

Package Includes

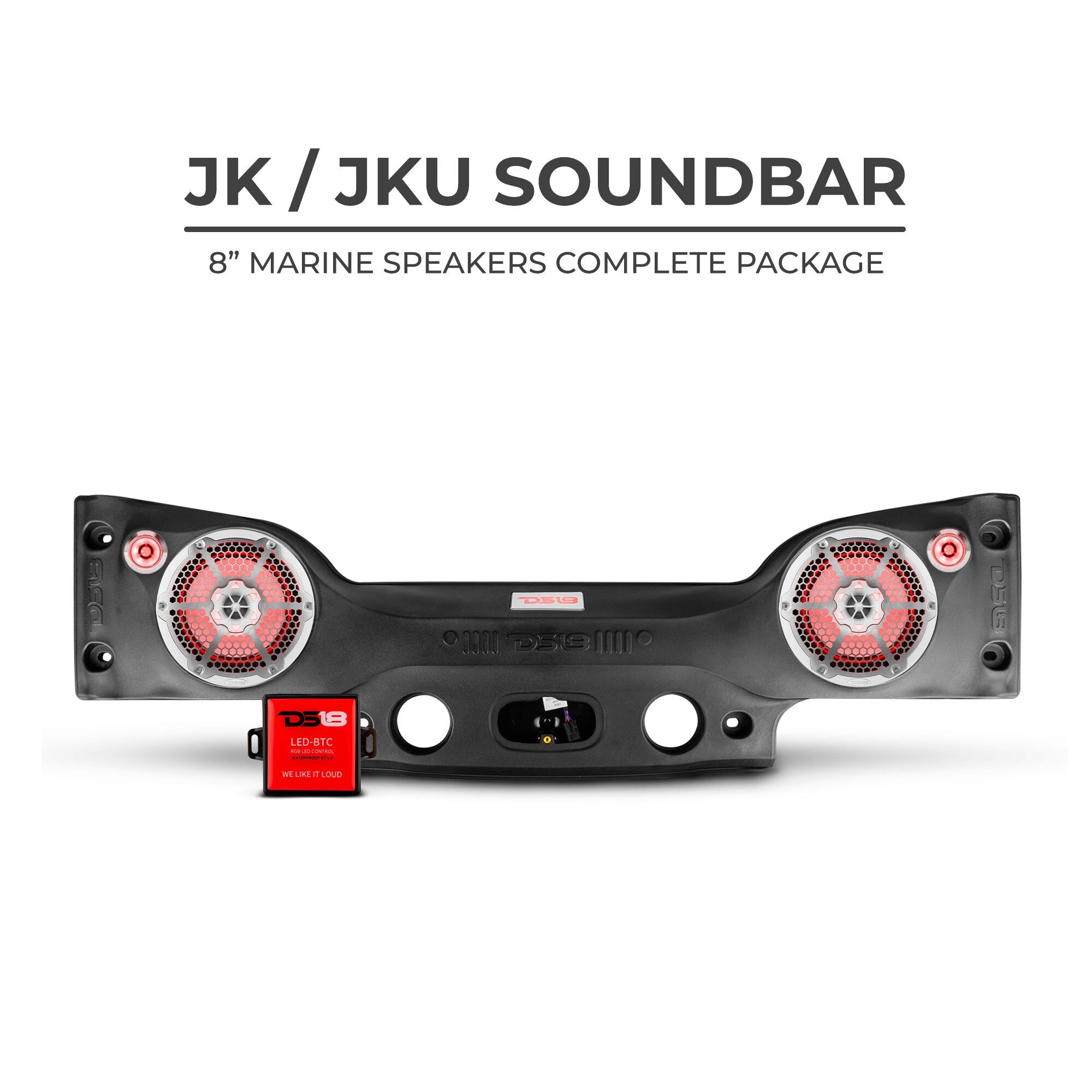

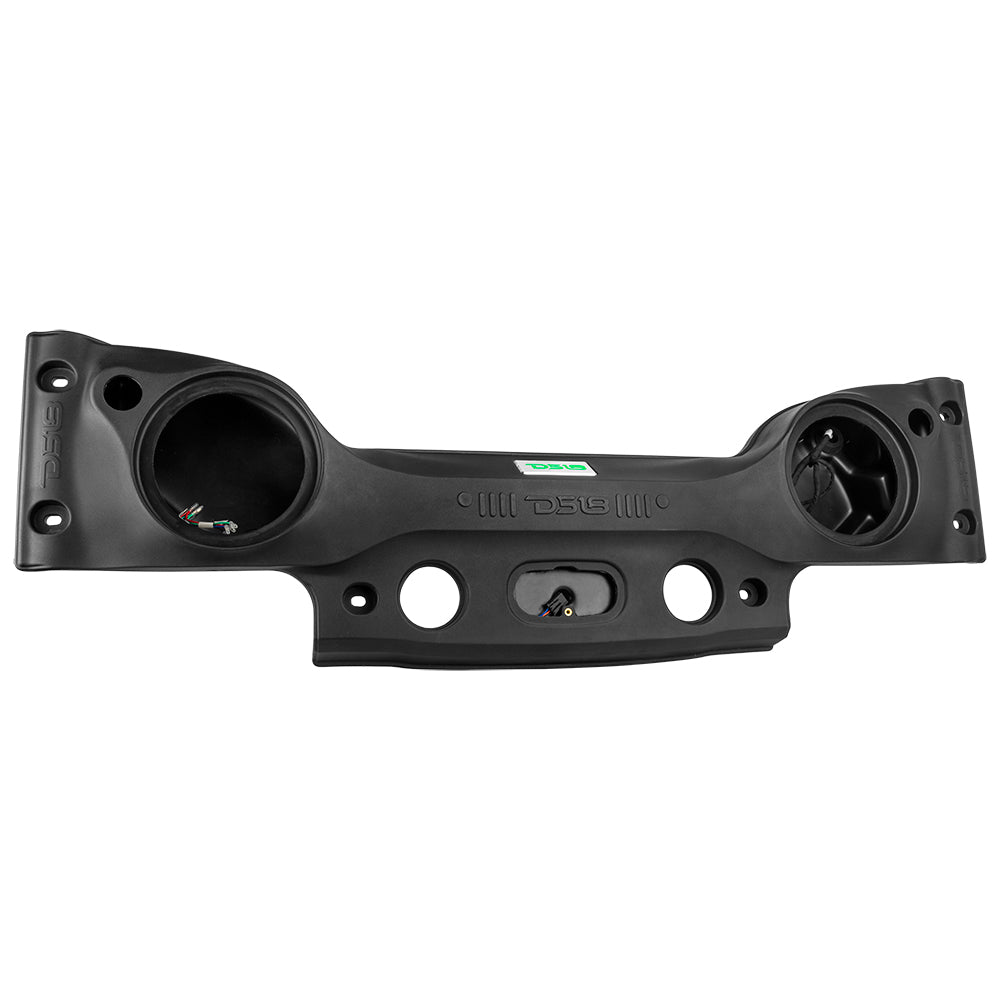

1 x JK-SBAR22/BK
- Overhead Bar System for JK/JKU Jeeps
- 2 x 8" Speakers
- 2 x 2.3" Tweeters

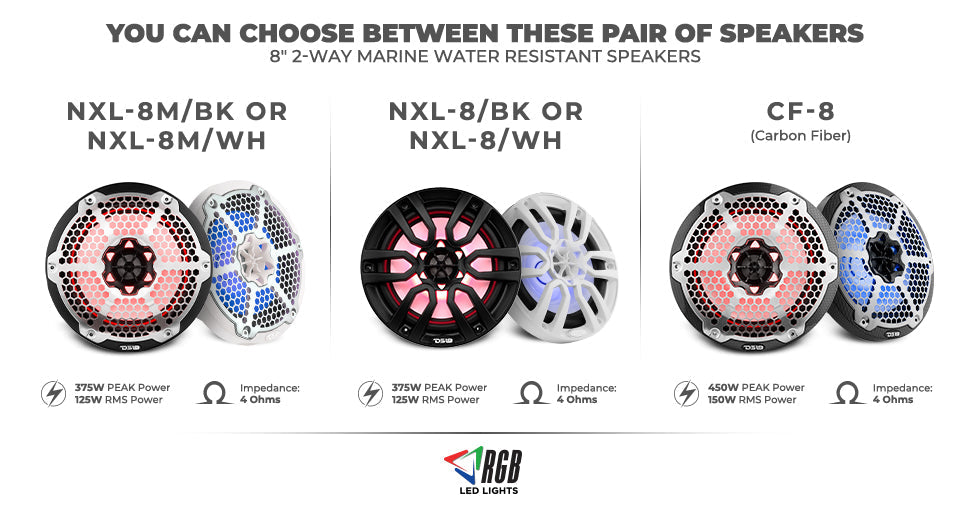

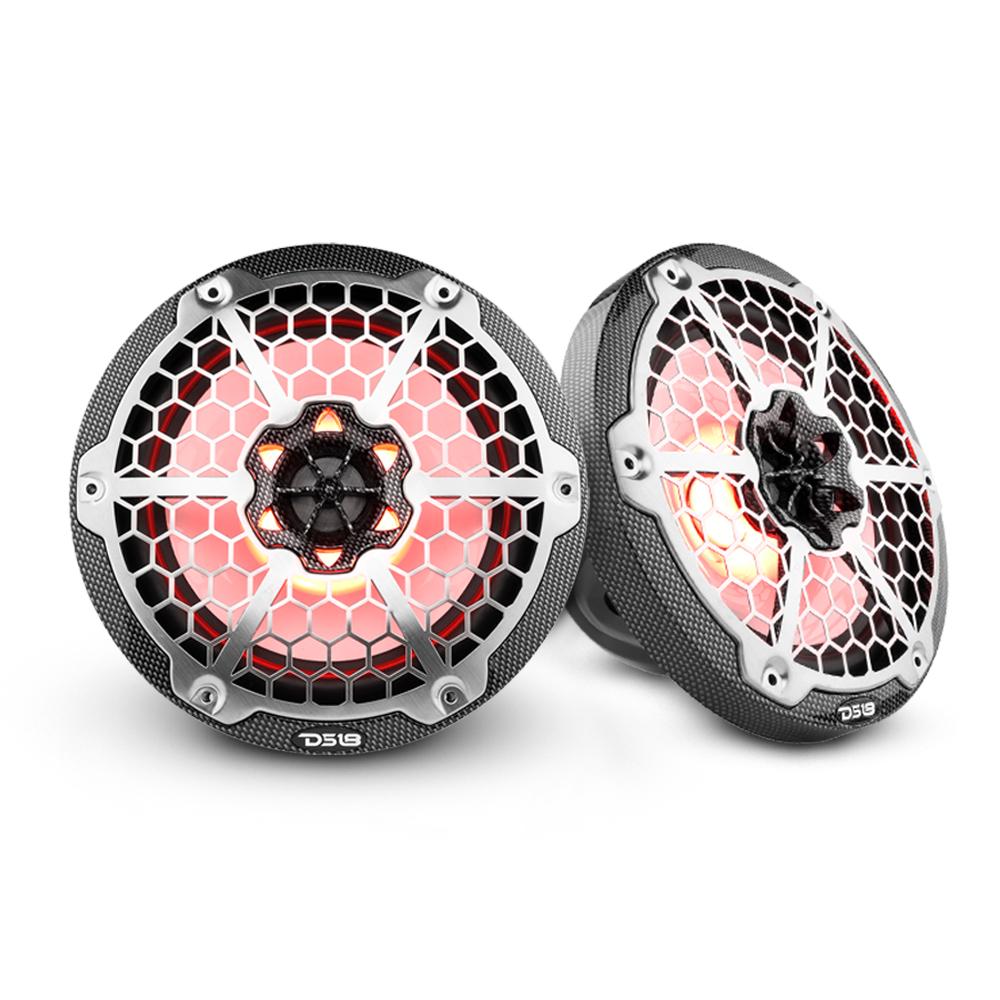

2 x NXL-8 or CF-8
- NXL-8 2-Way Speaker System with RGB Led Lights
- IP65 Marine Grade Compliant Specs
- 375w Max

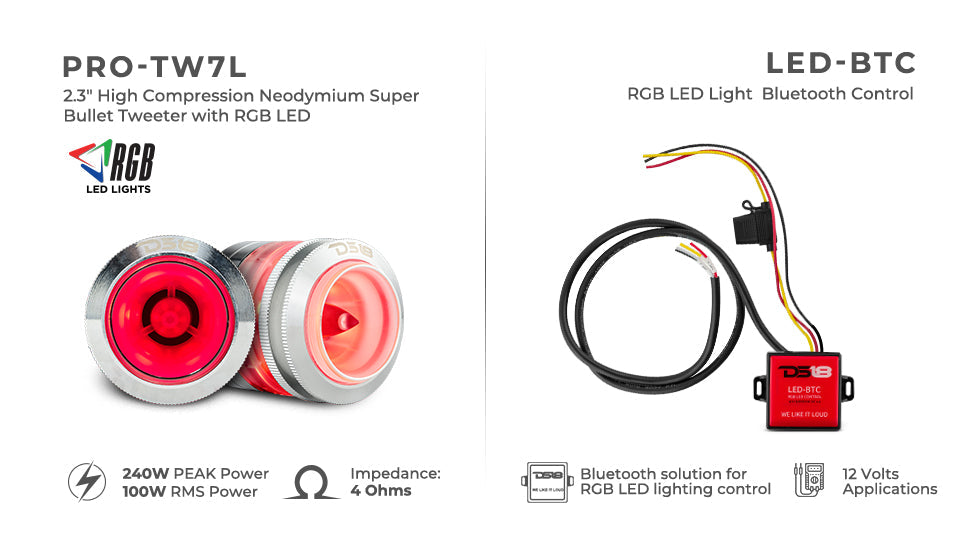

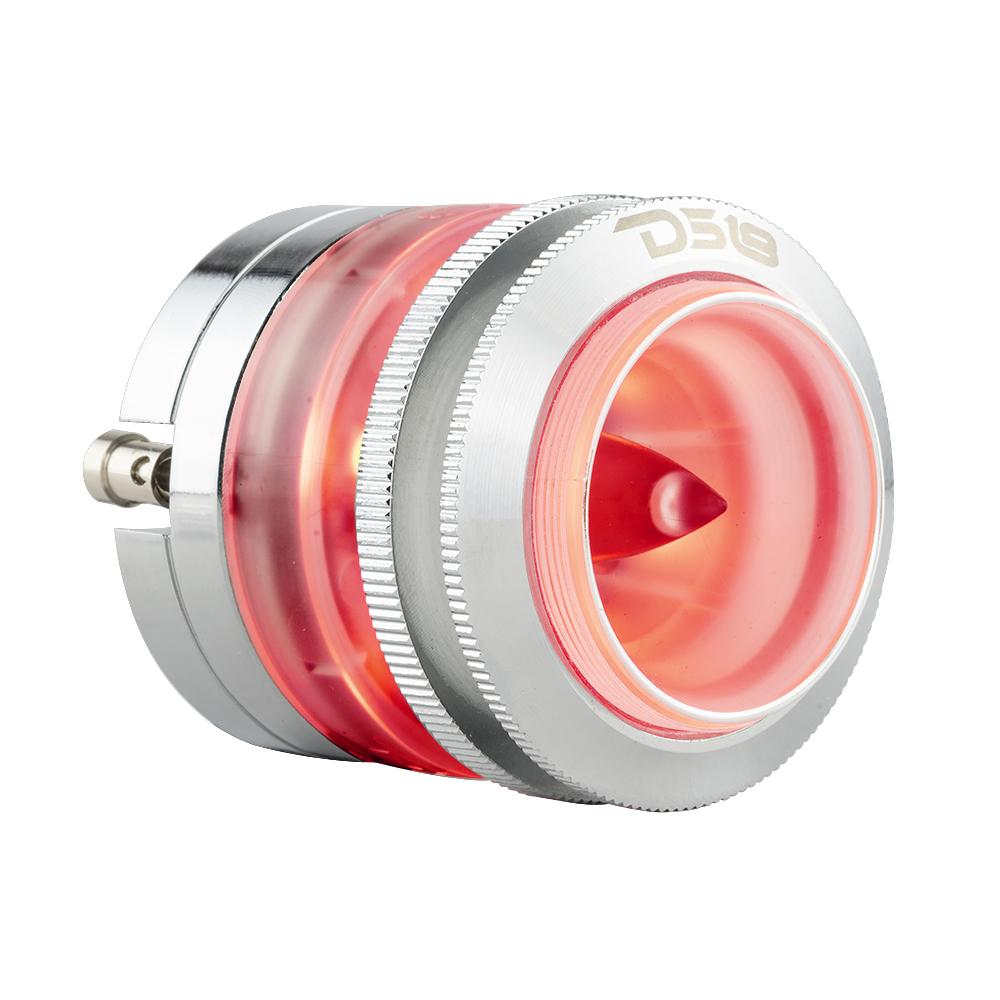

2 x PRO-TW7L
- RGB Super Bullet Tweeter
- 200w Max
- 4 Ohms

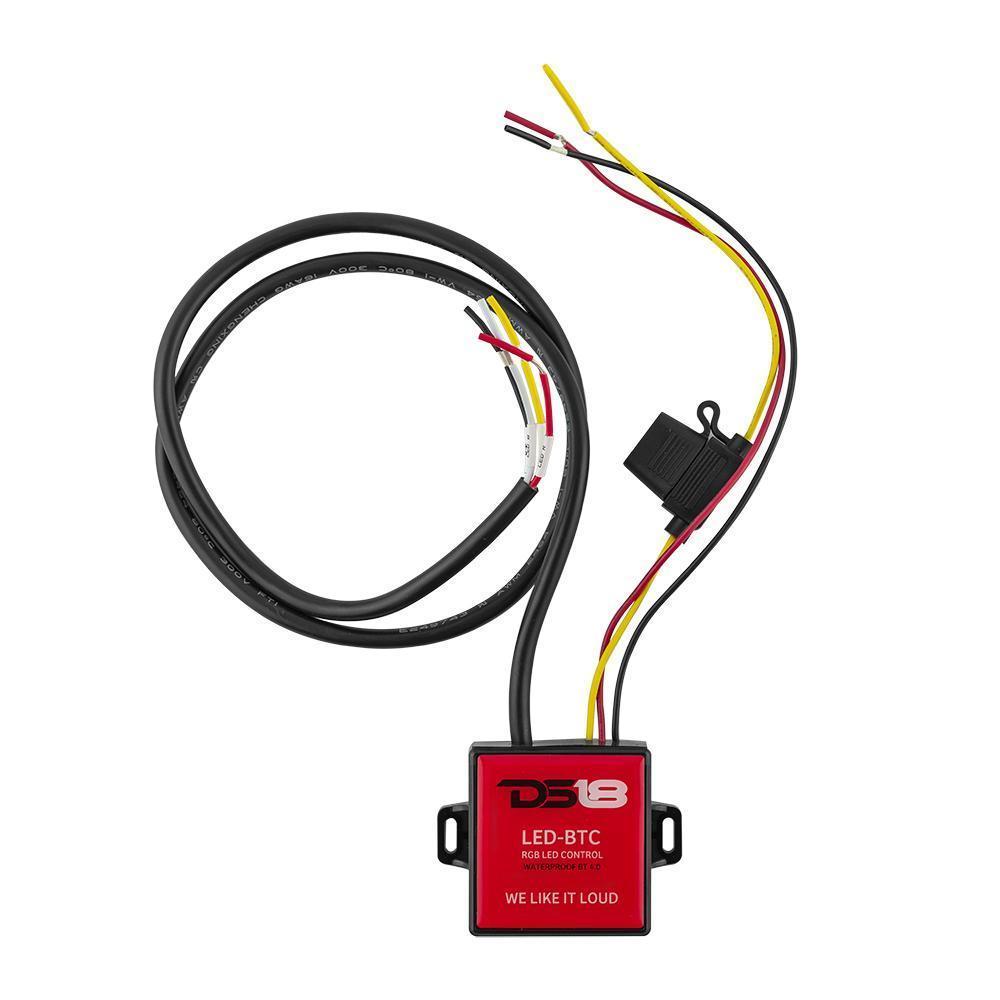

1 x LED-BTC
- Module that will allow you to control lights via Bluetooth
- RGB lights will allow you to make any color
Key Features
- JK/JKU Loaded Sound Bar Package (2006-2018)
- 2 X 8" Marine Speakers
- 2 X 2.3" Tweeters
- Harness
- LED Module
- Black
Specifications
| Compatible with | Jeep JK/JKU |
|---|---|
| Houses | 2 x 8" Speakers / 2 x 2.3" Tweeters |
| Control lights via Bluetooth | Yes, LED-BTC Included |
| Size | 8" |
| RMS Power | 150 Watts / 100 Watts |
| MAX Power | 450 Watts |
| Magnet Type | Y35 Ferrite Main Magnet & Reverse Neodymium |
| Sensitivity | 93dB at 1 w/m / 102dB |
| Nominal Impedance | 4 Ohm |
| Frequency Response | 35Hz - 23KHz / 4KHz - 20KHz |
| Mounting Depth | 3.09"/79mm |
| Cut-out Diameter | 7.09"/180mm |
| Overall Diameter | 8.58"/218mm |
| Overall Height | 4.45"/113mm |
| Tweeter Size | 25mm Titanium Dome PEI Surround |
| Features | Integrated RGB LED lighting, IP65 Marine Grade Compliant Specifications, 100% UV Stable, High Temp Injection molded composite, High gloss injection molded composite, High gloss basket with UV coating, mesh grills for protection / Transparent Polycarbonate Frame, Built-in RGB LED |
| Peak Power Handling | 200 Watts |
| Magnet | High Strength Neodymium |
| Diaphragm Material | Aluminum |
| Impedance | 4 Ohm |
| Voice Coil | 1" High-Temperature Kapton with capacitor crossover (included) |
