Built for Can-Am X3

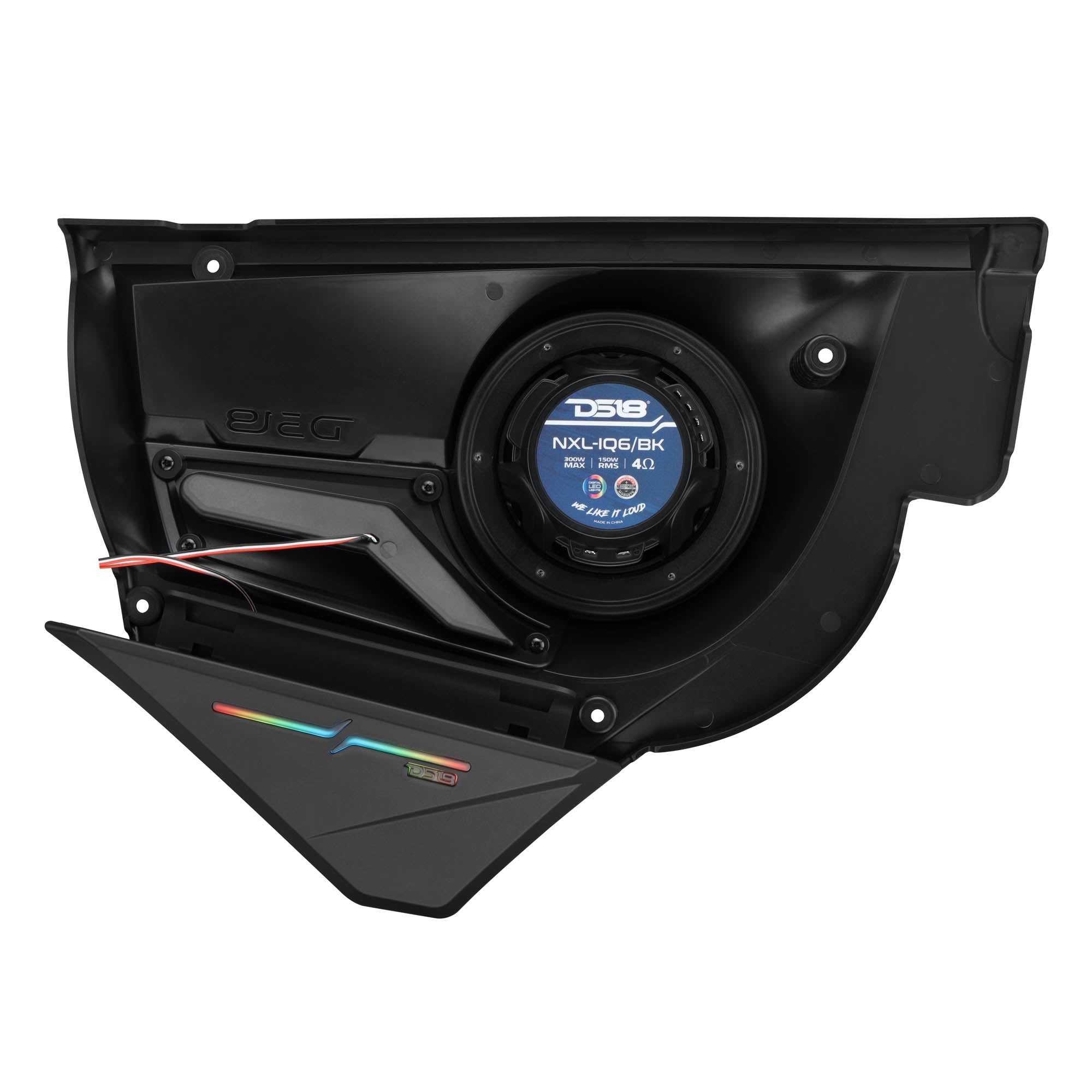

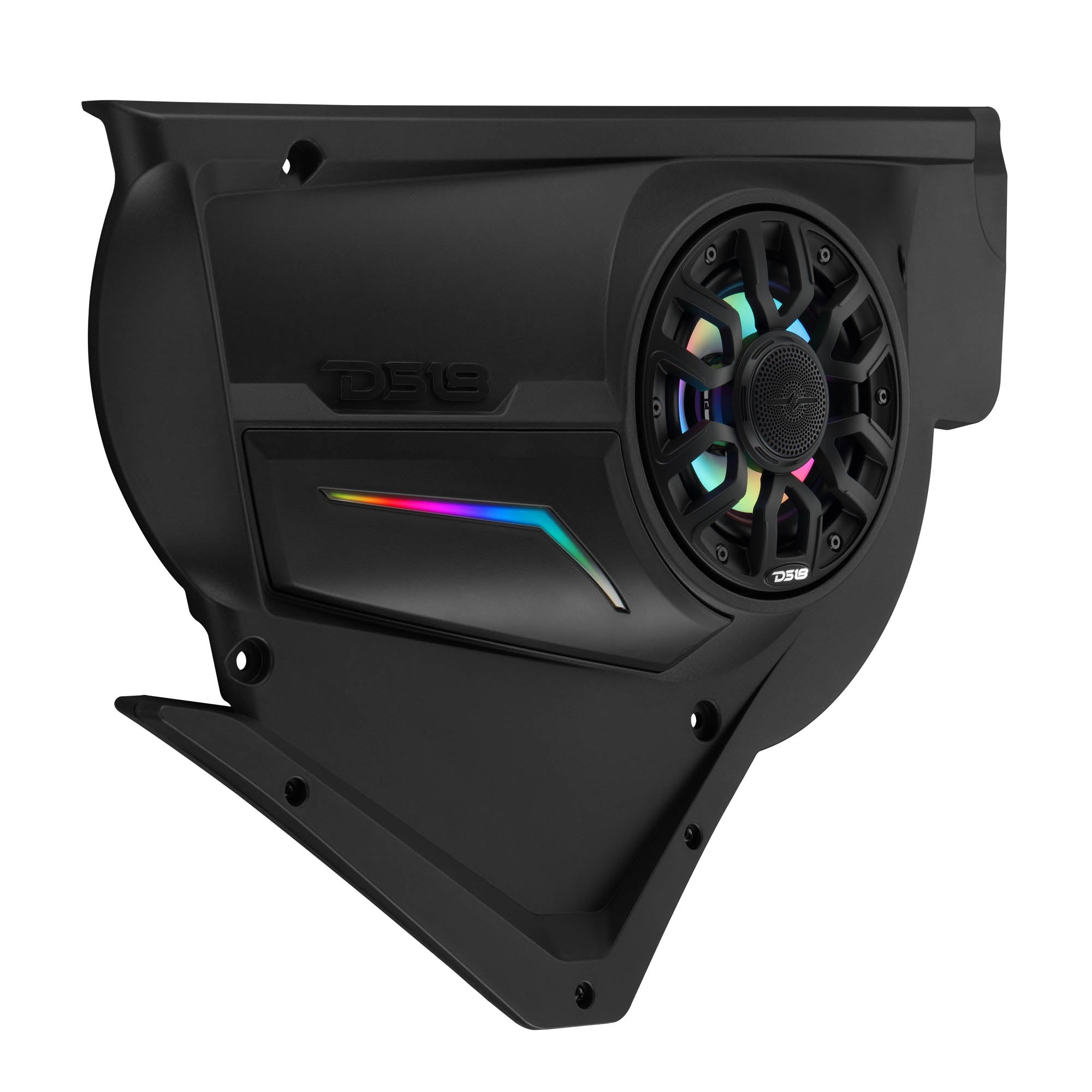

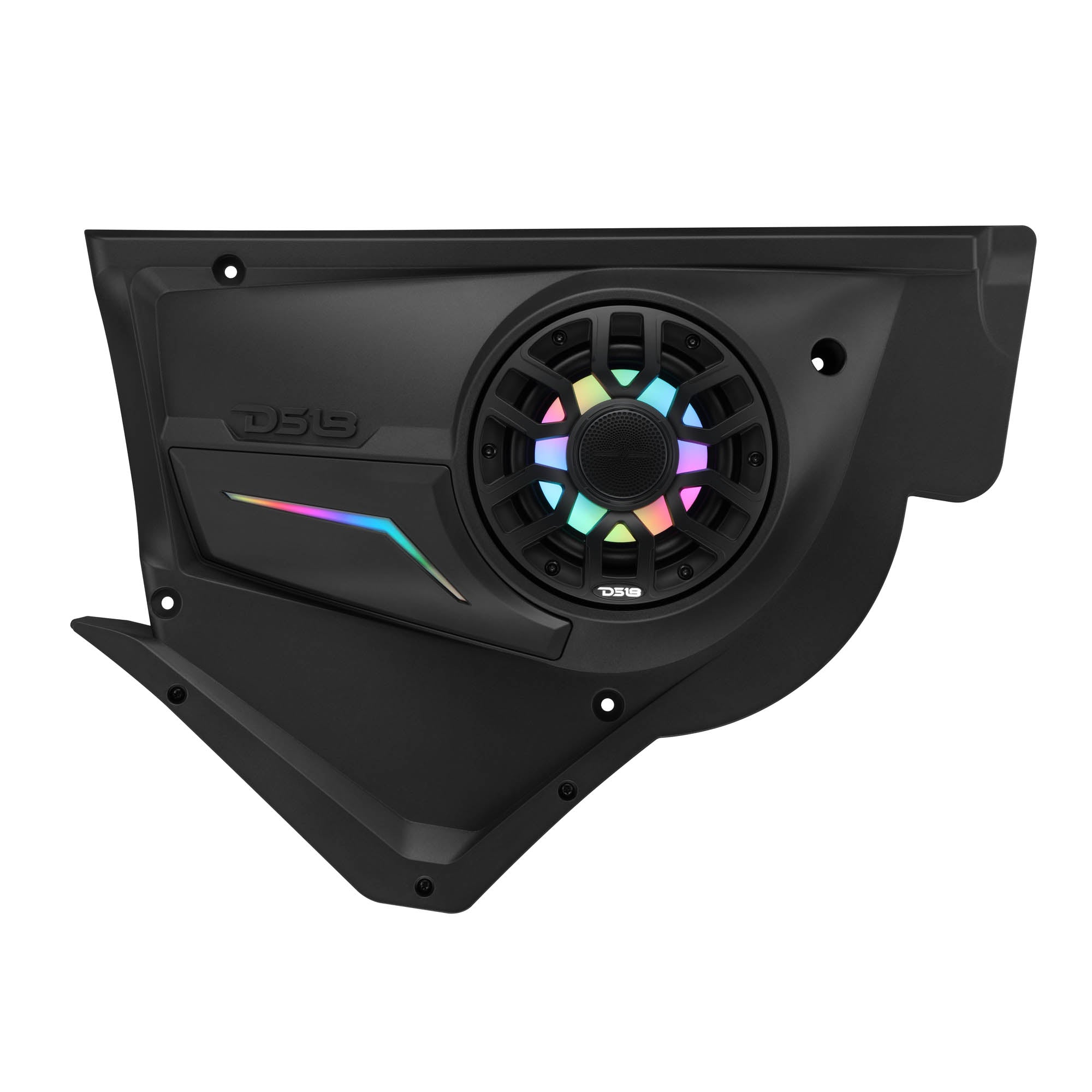

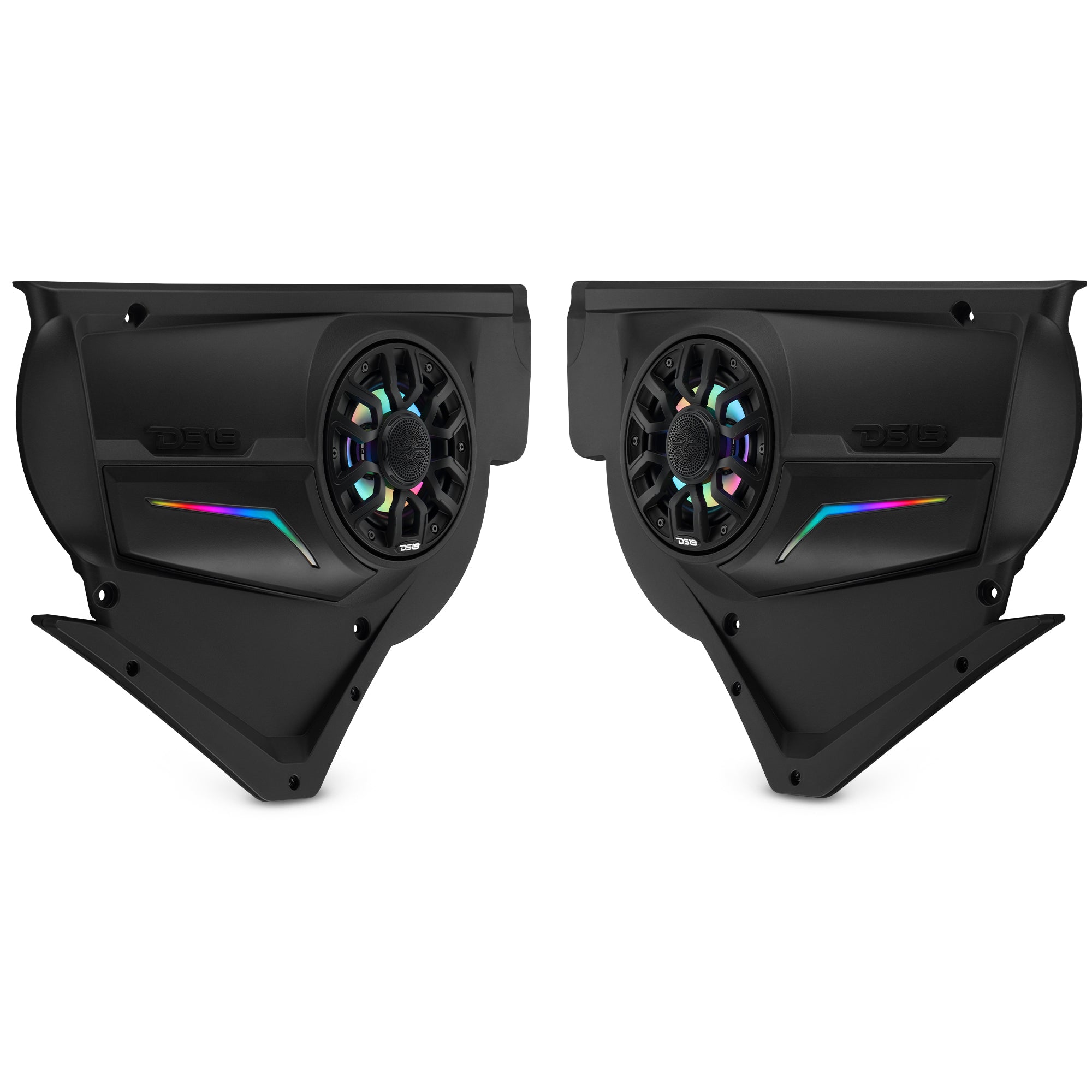

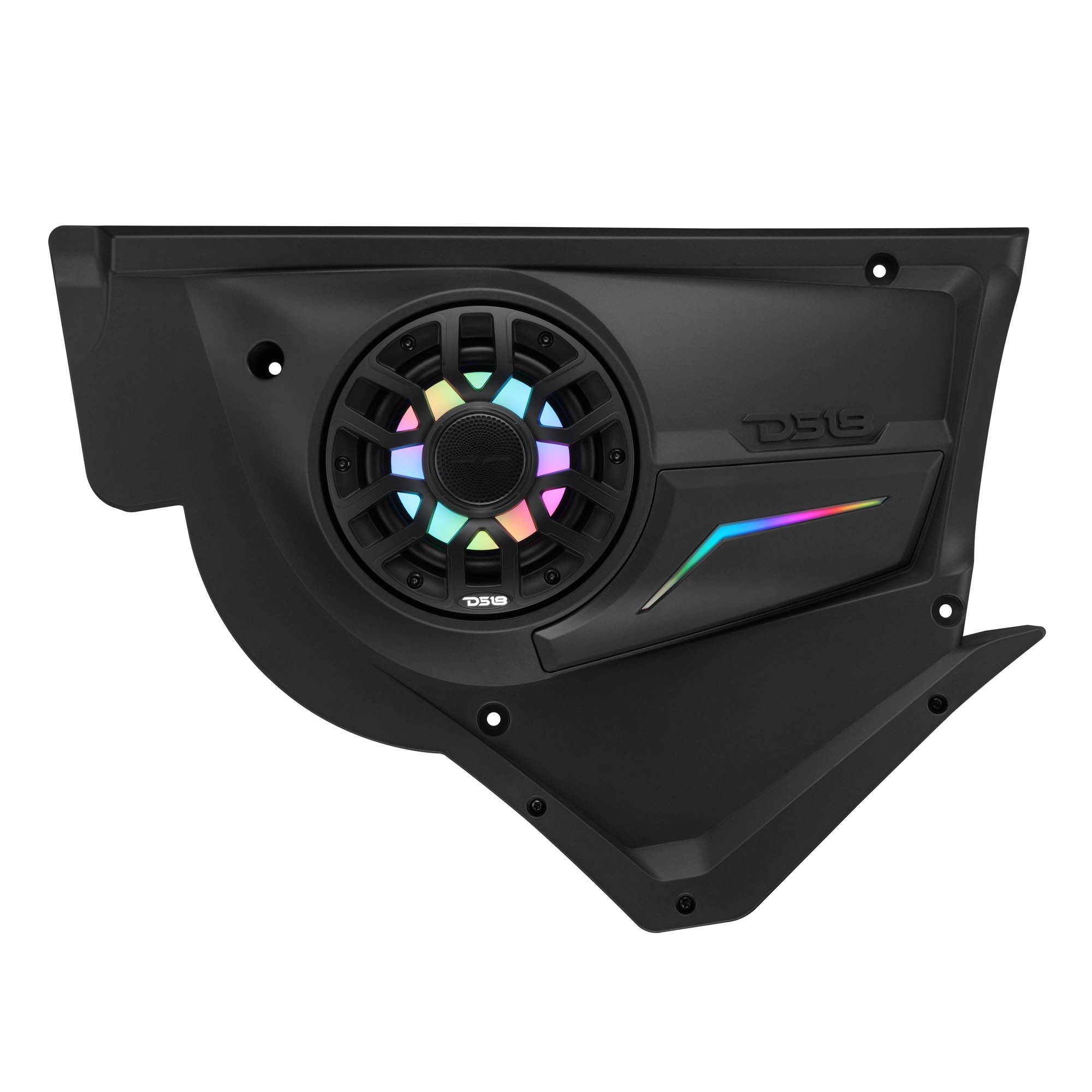

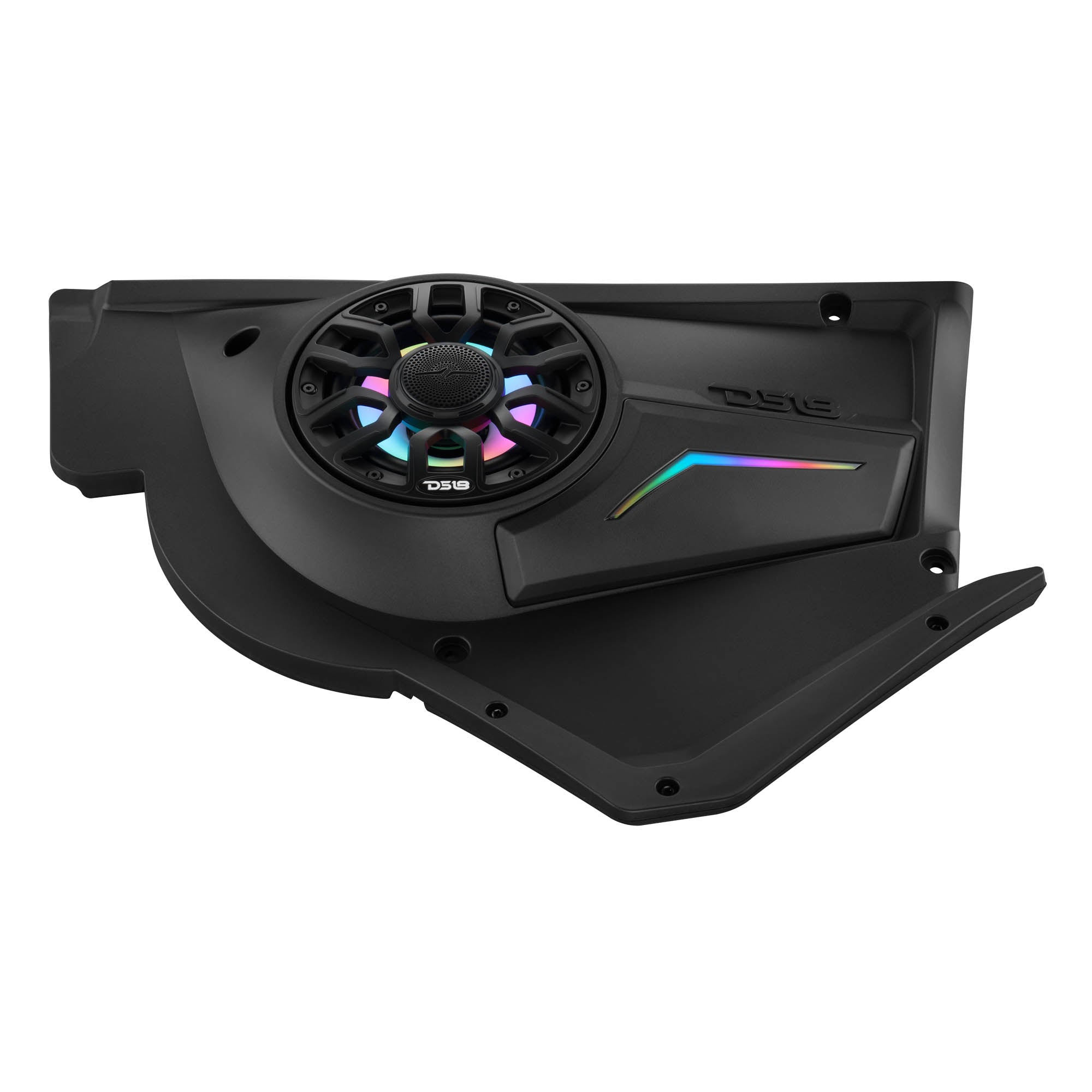

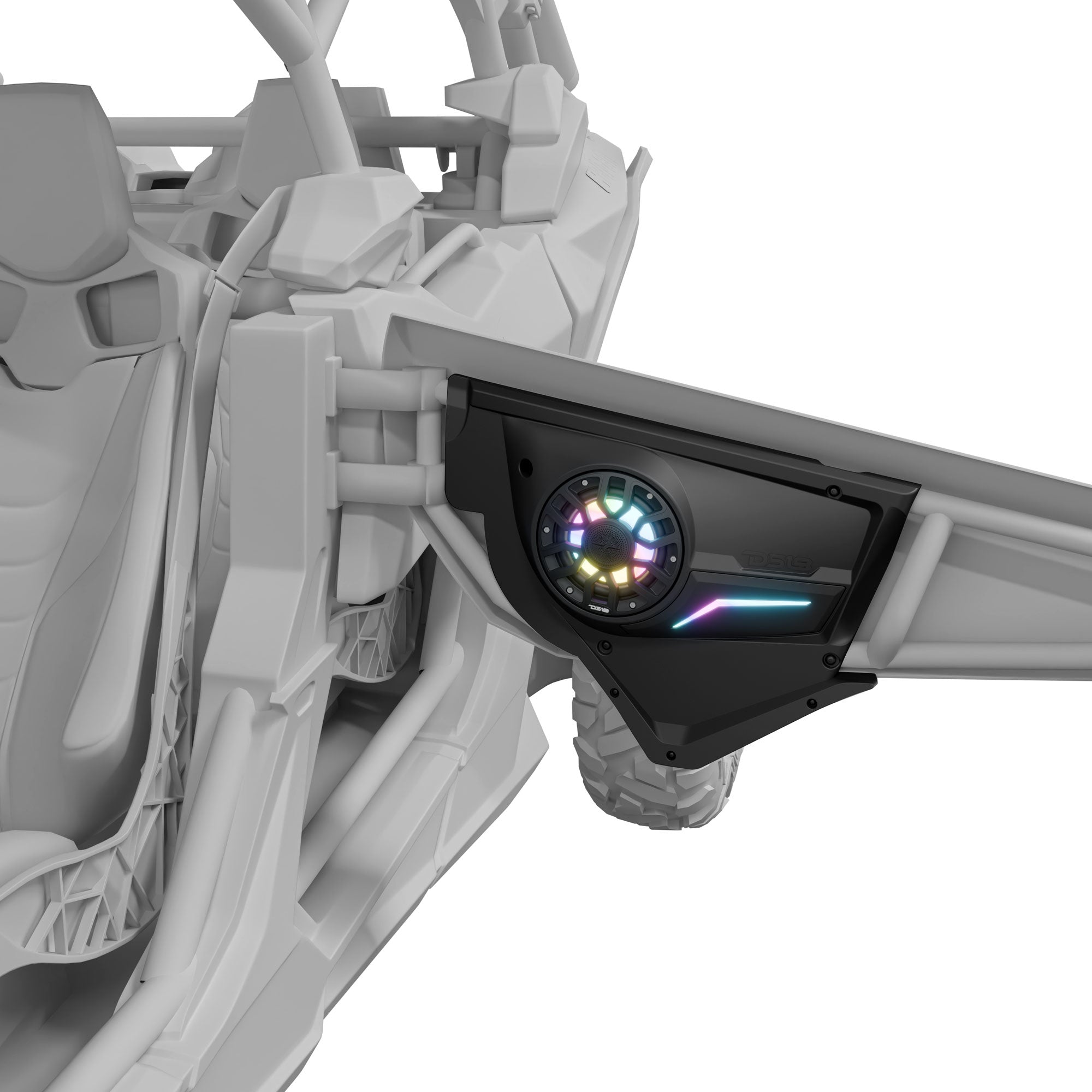

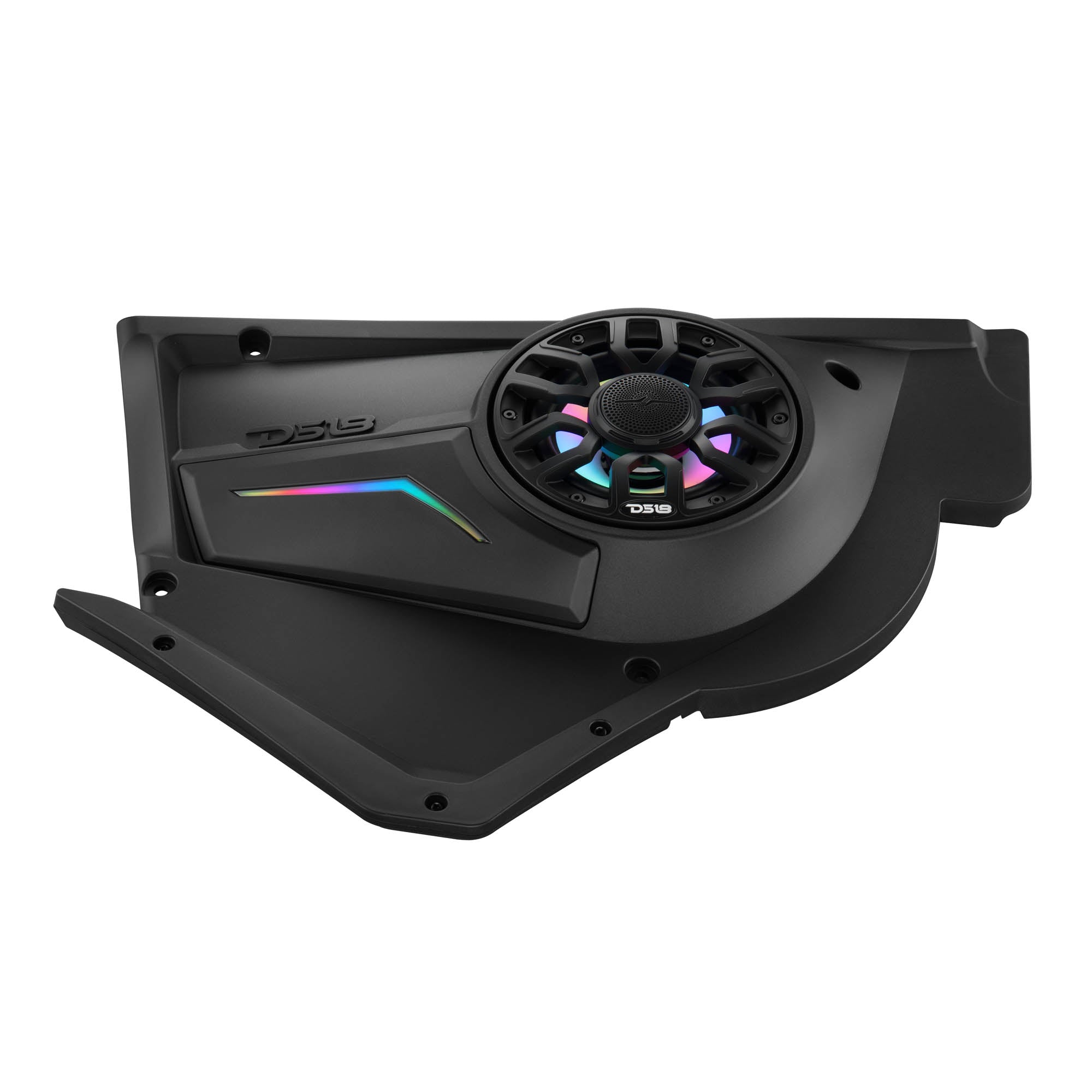

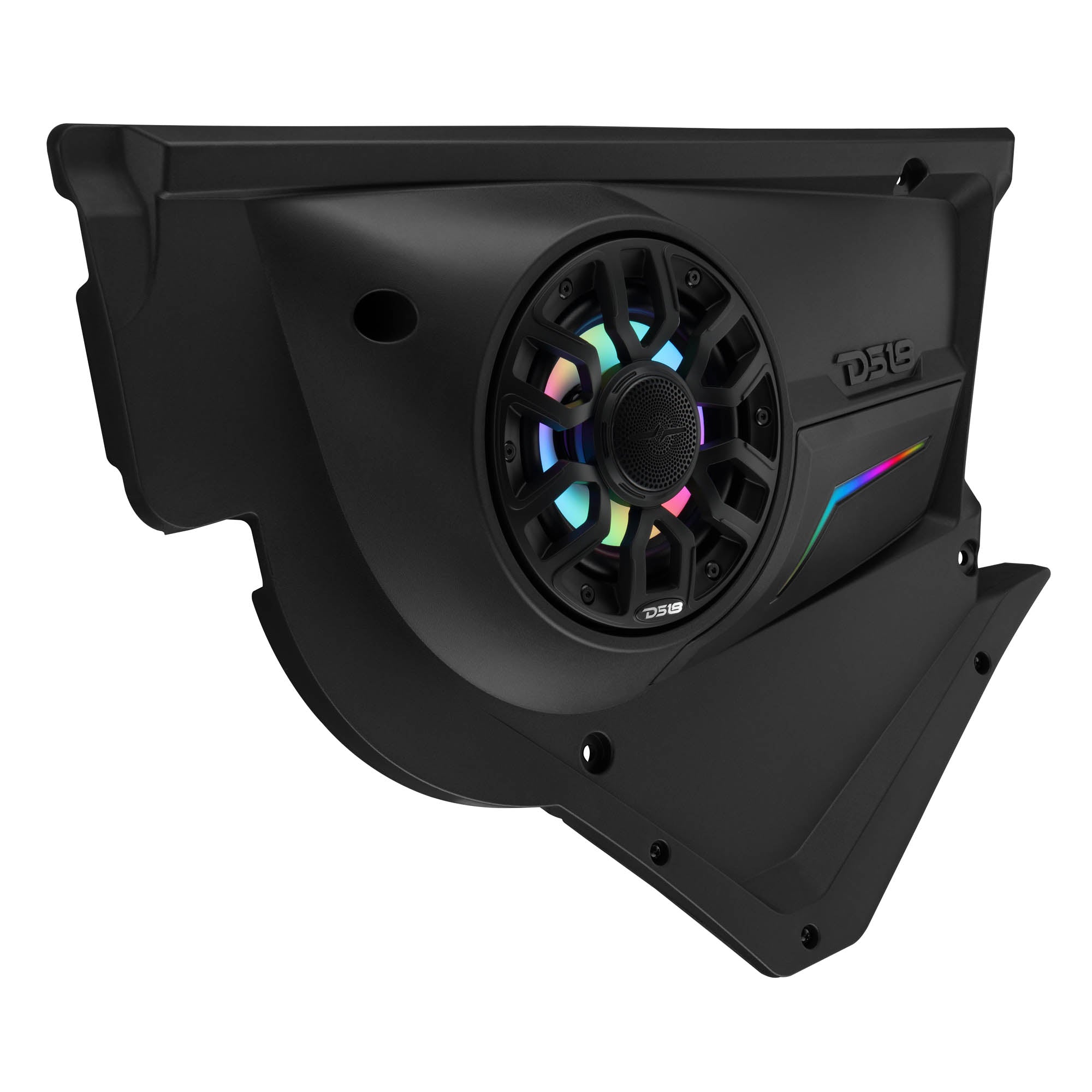

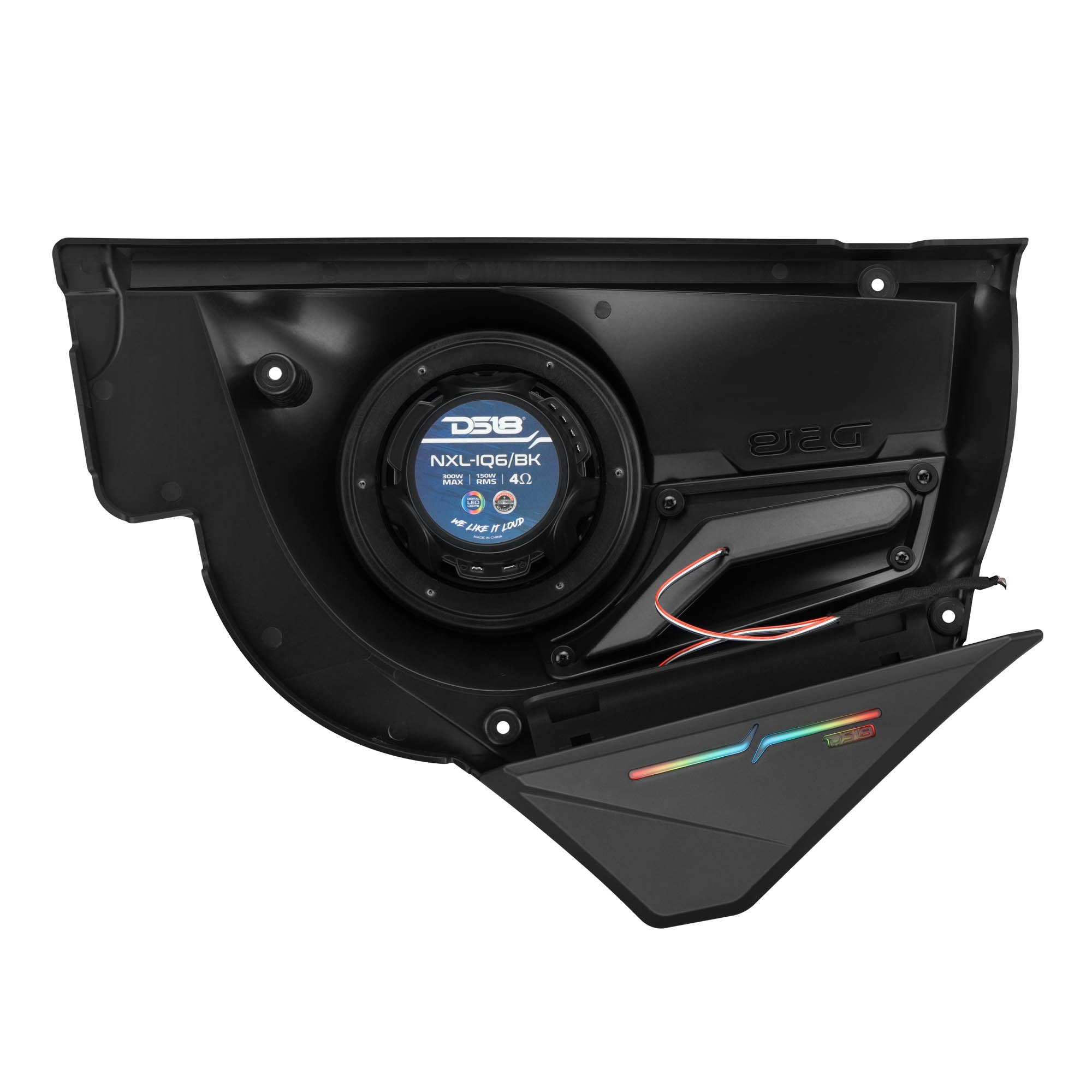

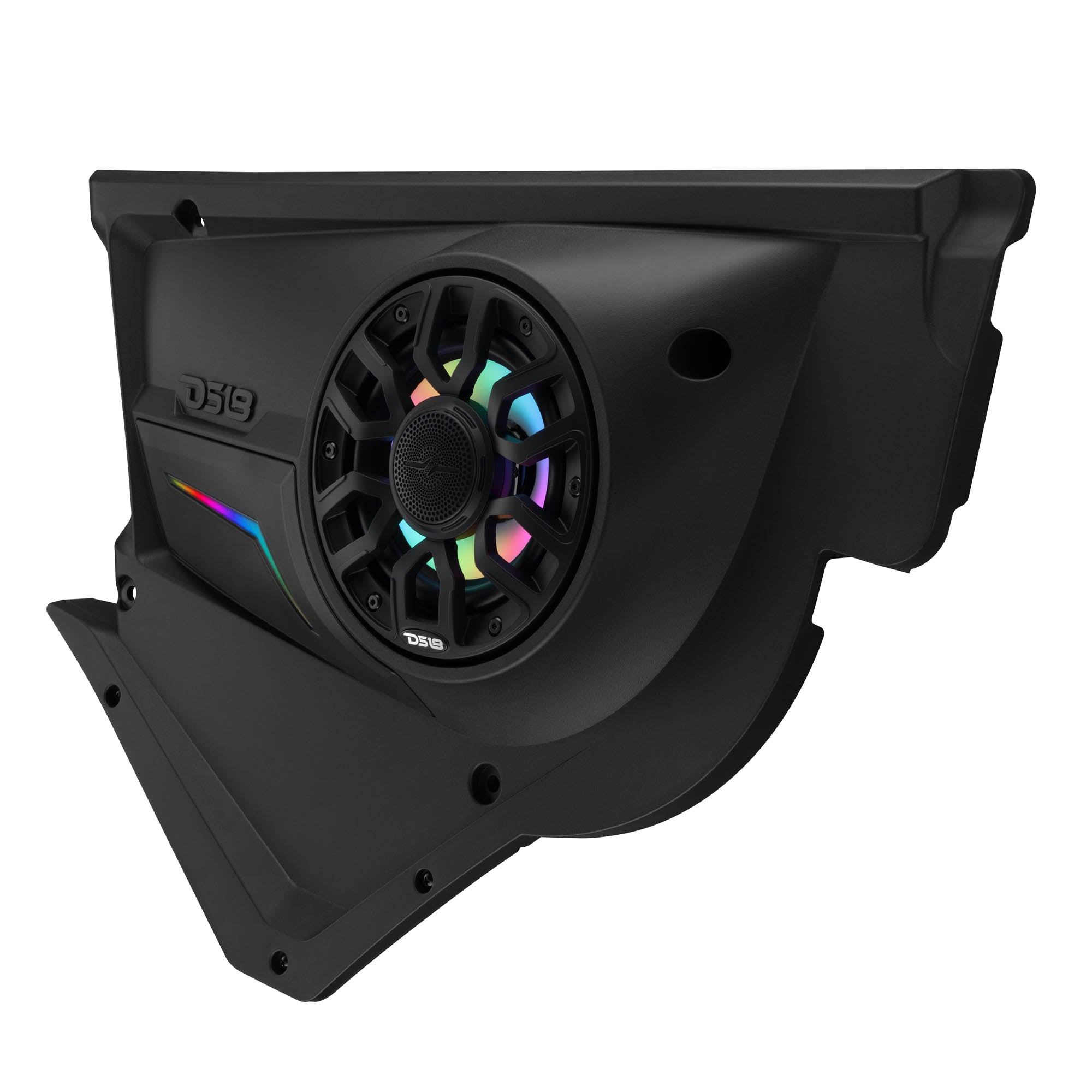

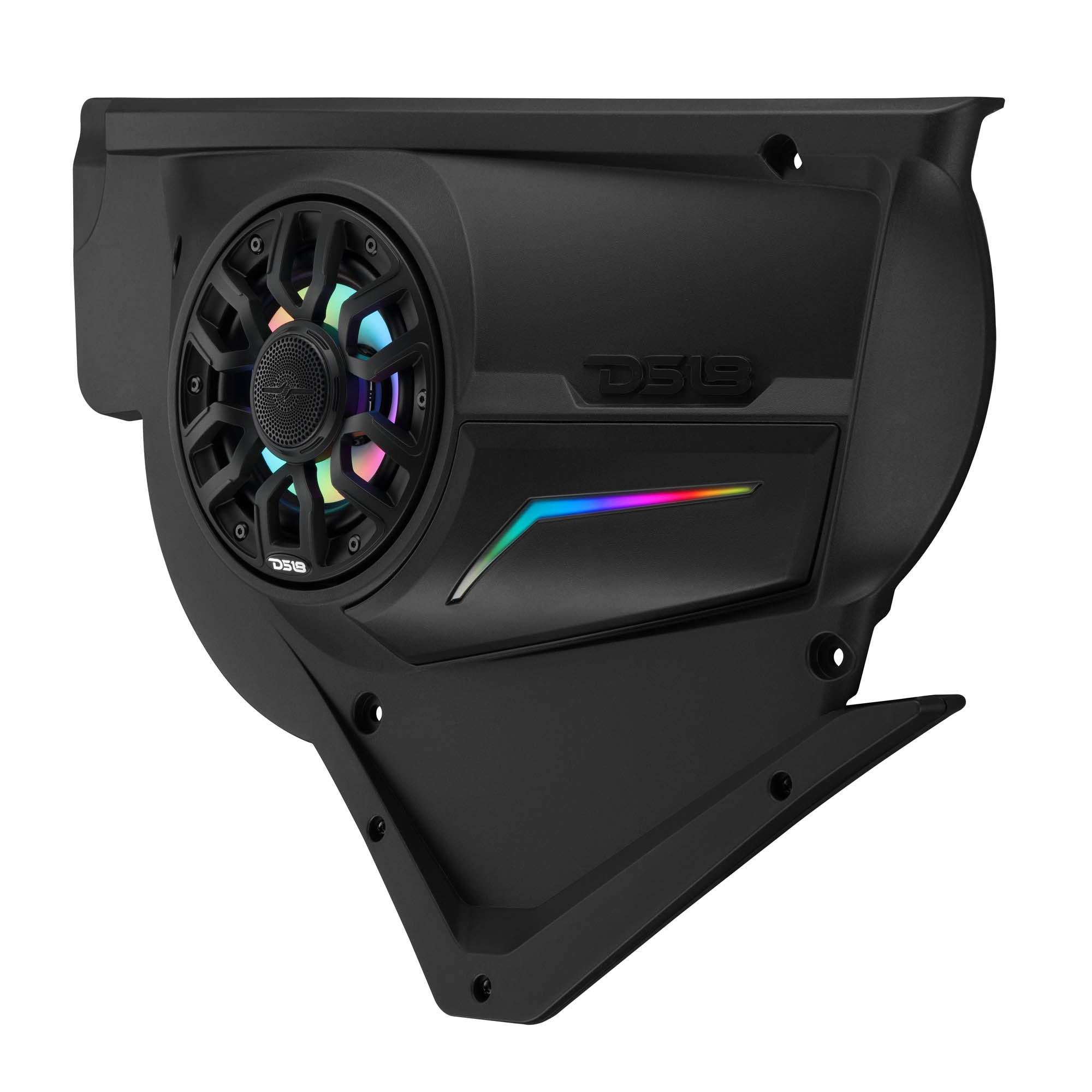

Upgrading your Can-Am X3’s sound system has never been easier than with the CA-X3FD6LD front door speaker panels, loaded with NXL-IQ6/BK speakers. These panels are designed to integrate seamlessly into your X3’s front doors, allowing you to add 6.5” coaxial speakers to your sound system. They come as a pair: one for the driver-side door and one for the passenger-side door. Compatible with 2-door and 4-door models (2020-Up).
Light Up the Trail

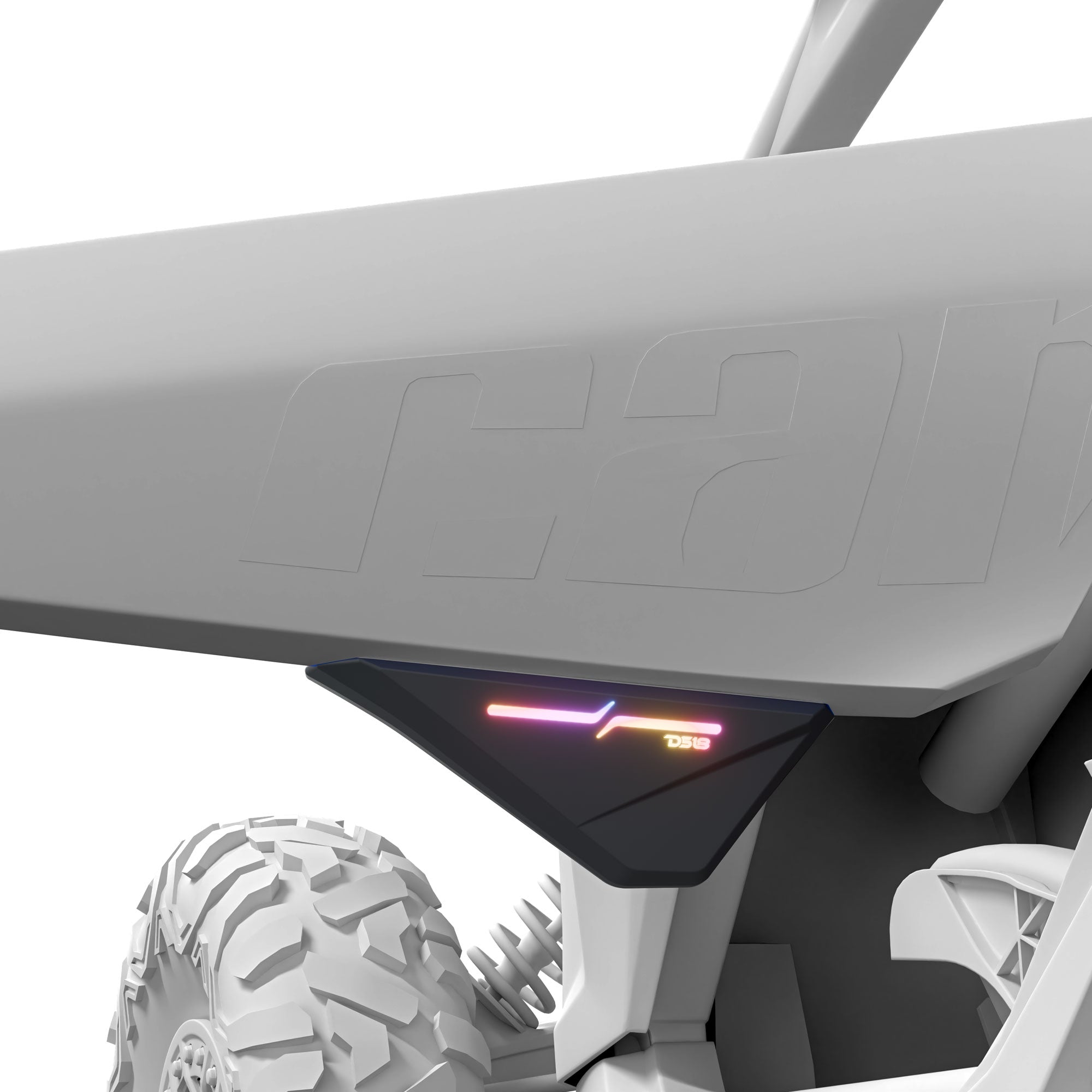

An integrated digital LED badge adds a subtle illuminated accent to your doors. The NXL-IQ6/BK speakers also feature built-in digital LED lighting behind the cone for added style. All lighting is controlled with the LC-DRM Bluetooth controller (sold separately) using the DS18 LC App, available for iPhone and Android.
All-Elements Audio
These panels are UV-protected and IP65-rated and come loaded with water-resistant coaxial speakers, making them perfect for the trail. Whether you encounter mud, rain, or other harsh elements, your audio system will be ready.
Factory Look

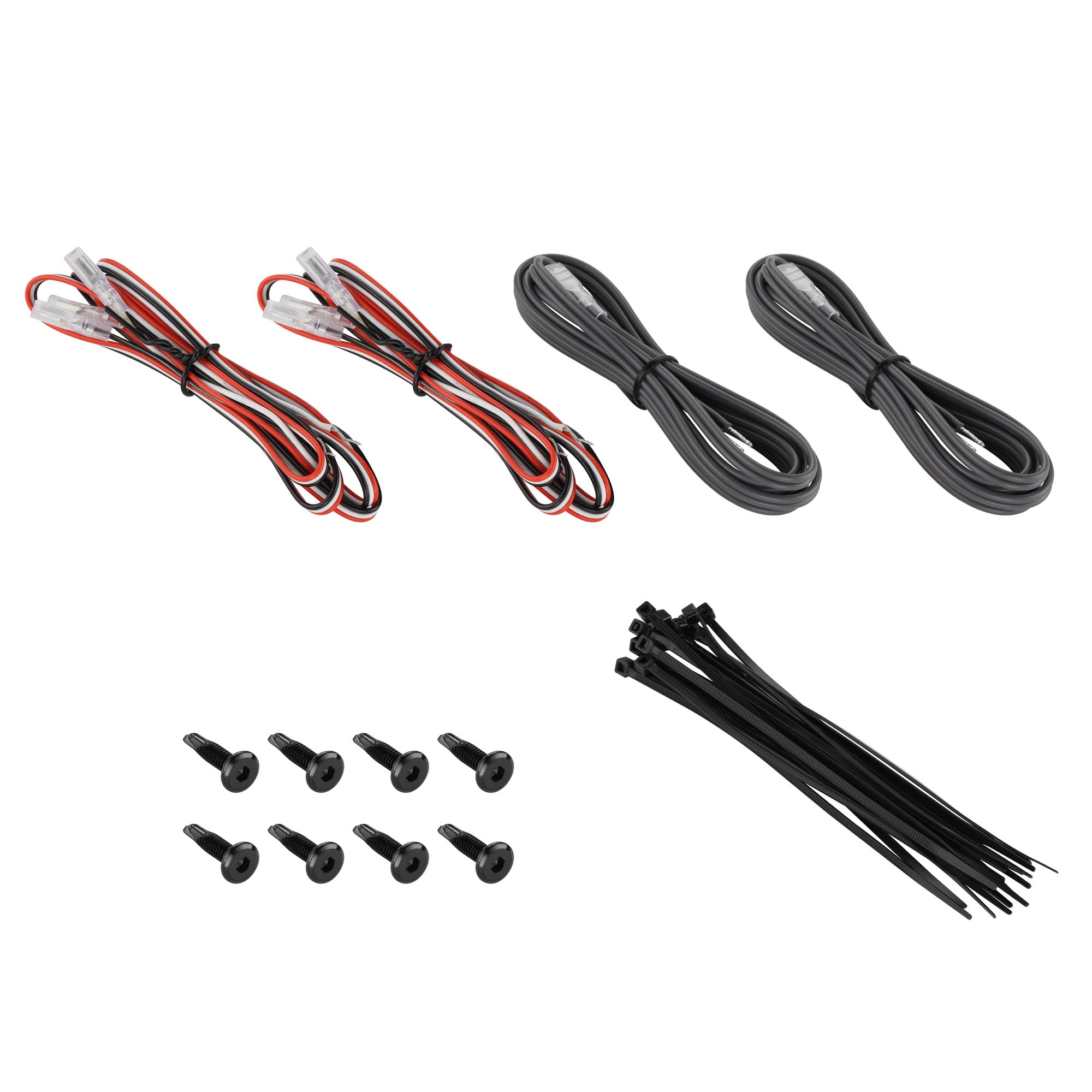

These panels are designed to look like they came straight from the factory, featuring a black finish that blends seamlessly with your X3’s interior. Beneath the sleek OEM-style finish is everything needed for a clean and long-lasting installation, including wiring and mounting screws for both the speakers and LED lighting.
The DS18 CA-X3 Series
At DS18, we understand the desire to take the party everywhere. With the CA-X3 Series, you have everything you need to upgrade your Can-Am X3’s sound system with products built to integrate easily into your vehicle. Each product is all-elements ready, so you can hit the trails knowing your audio system can keep up with the conditions.
| Total Impedance | 4-Ohm |
|---|---|
| Load Configuration | Individual |
| Input Wire | 5 Core OFC Tinned (SPK+D-LED) |
| Compatibility | Maverick X3 / 2020-Up 2 & 4 Door models |
| Speaker Type / Size | 6.5" Water-Resistant Coaxial with Digital LED / Floating Bullet Tweeter |
| RMS Power Handling | 150W (Each) |
| MAX Power Handling | 300W (Each) |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 45Hz - 20KHz |
| Recommended Hi Pass Crossover | 60Hz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite + Neodymium / Neodymium (N35H) |
| Magnet Weight | 13oz + 1.1oz / 0.4 oz |
| LED Lights | Yes, Digital LED integrated (behind cone) |
| LED Connection Type | 12V & Digital IN/OUT terminal |
| Digital LED Chip Type | 1815S |
| Diaphragm Material | Aluminium |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |
| Panel Type | Front Bafle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | YES |
| Waterproof Rating | IP65 |
| LED Badge / Lighting | Yes, 12V / Digital 1815S Chip |
| Overall Height | 16.1" / 409mm |
| Overall Width | 22.83" / 578mm |
| Overall Depth | 4.39" / 111mm |
