Product Overview
DS18 CA-X3DS6LDV2

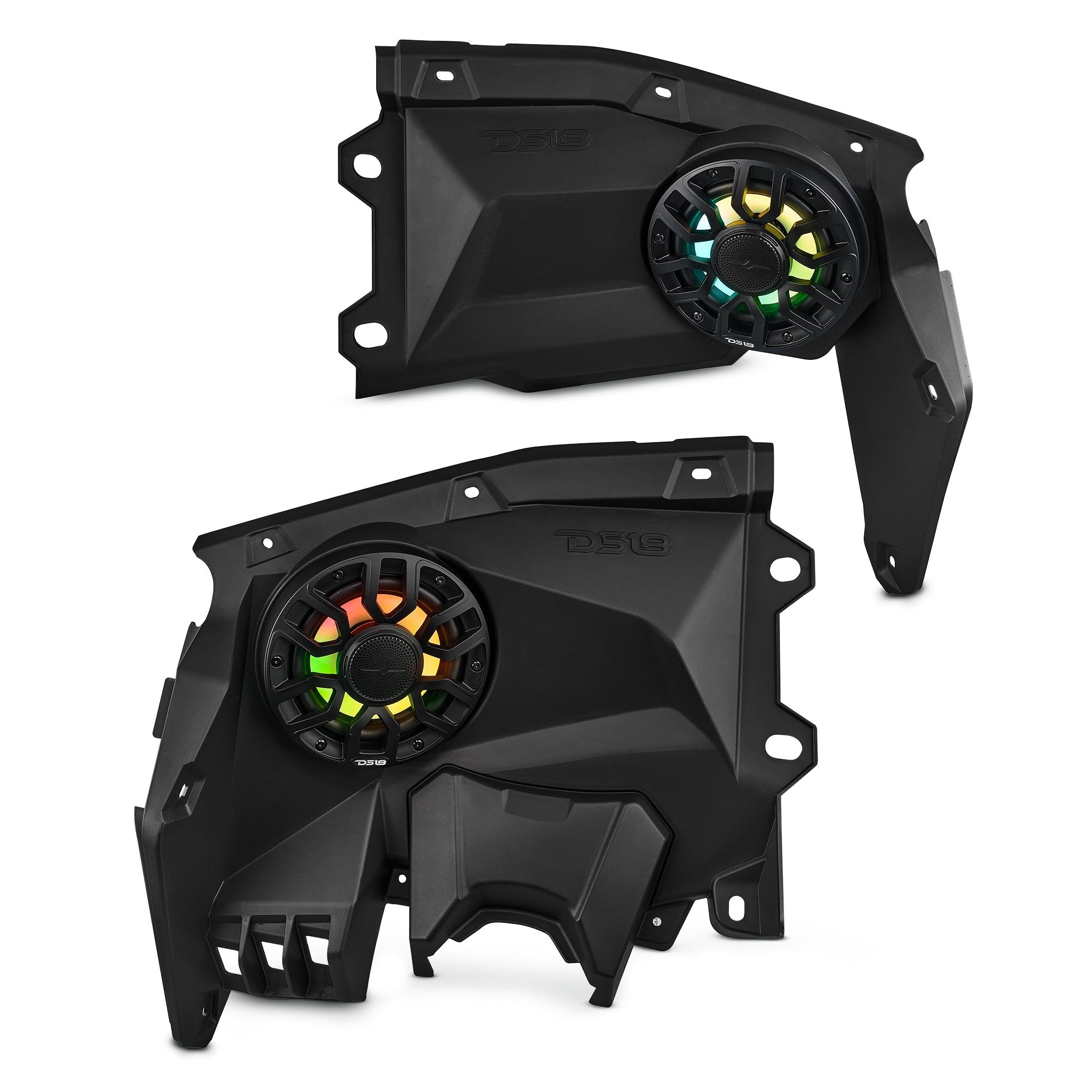

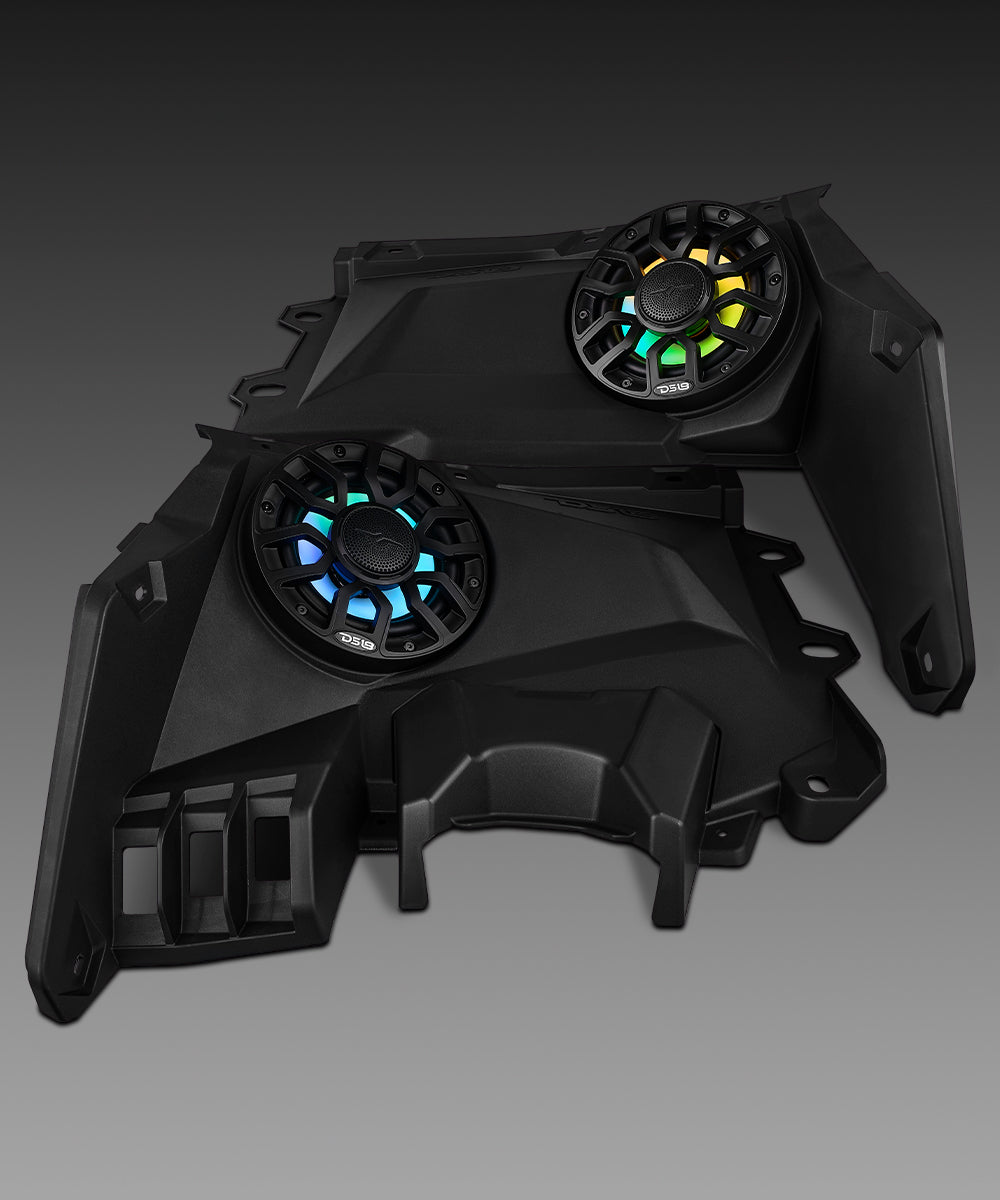

CAN-AM X3 6.5” Dashboard Panels Loaded With NXL-IQ6/BK Speakers

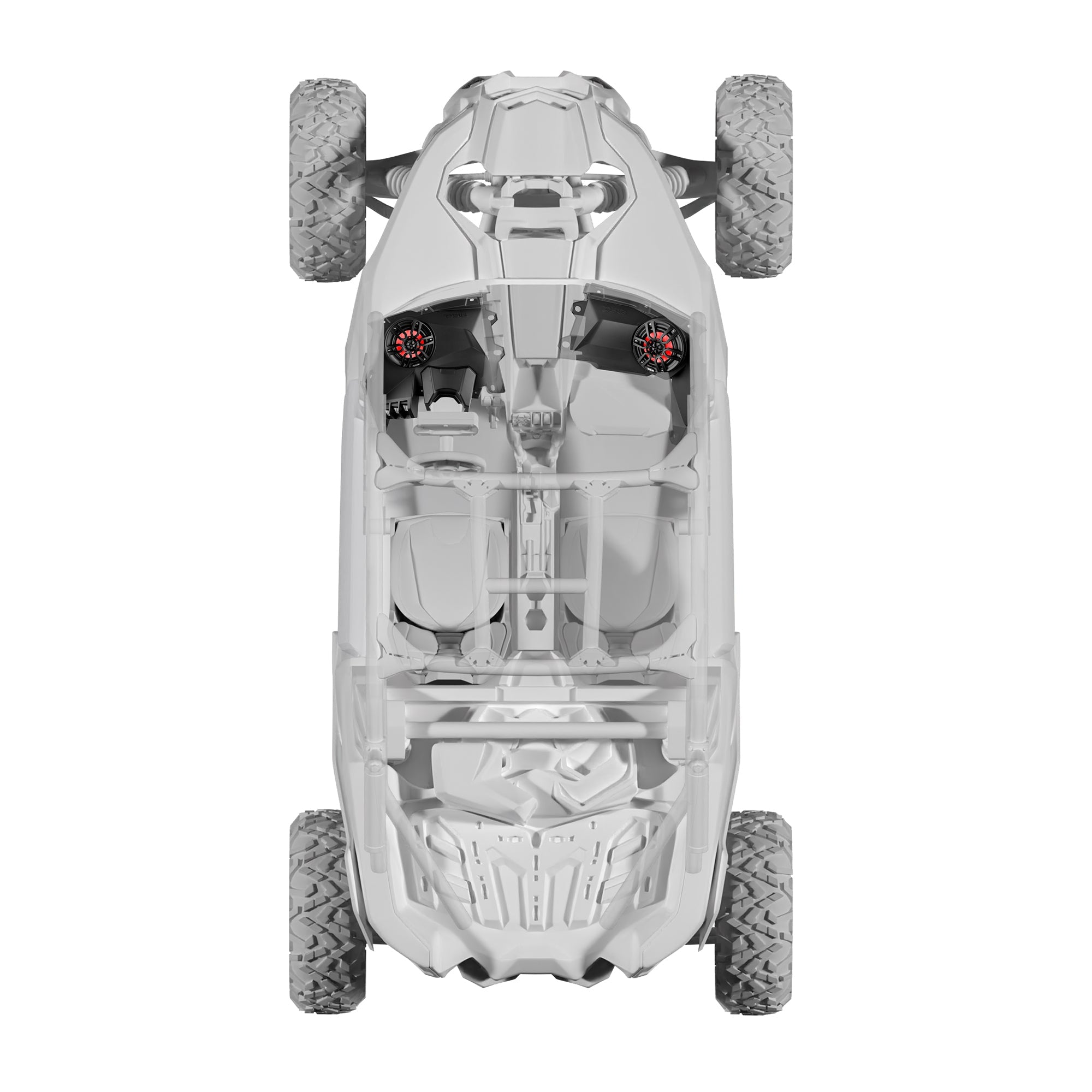

Crank up the volume on the trails with DS18’s CA-X3DS6LDV2—the ultimate off-road audio upgrade for CAN-AM X3’s (2017-2023). This setup takes your adventure to the next level by fitting 6.5-inch waterproof speakers and Digital LED lighting right into your dashboard.
Sound For Every Terrain

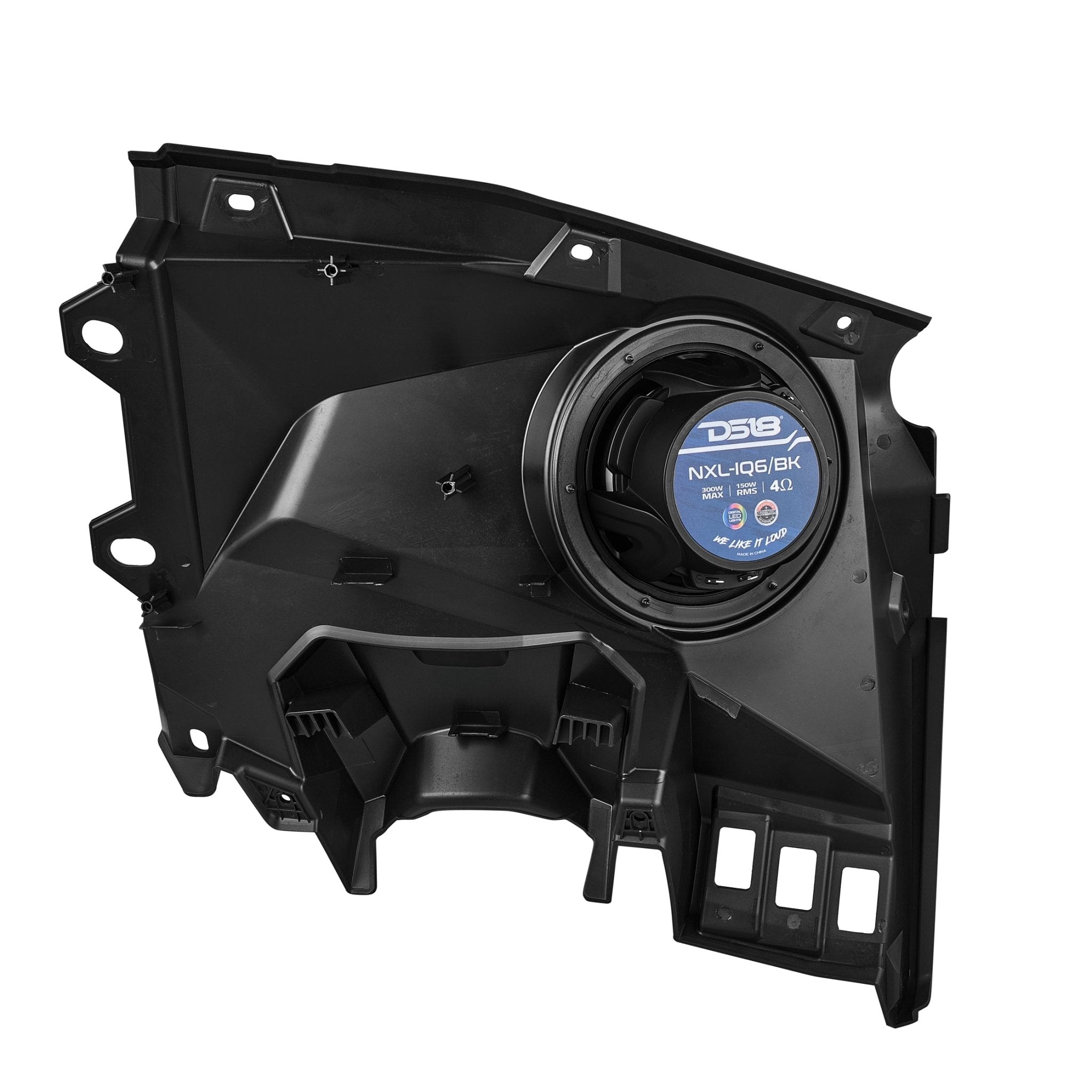

Built to handle the elements, these speaker pods house two IP65-rated DS18 NXL-IQ6/BK coaxial speakers: designed to resist water, dust, and dirt while delivering crisp highs and punchy bass. Each speaker has an RMS power rating of 150W and peak power rating of 300W at a nominal impedance of 4 ohms. The open baffle design improves airflow and sound projection.
Custom Fit, Easy Install

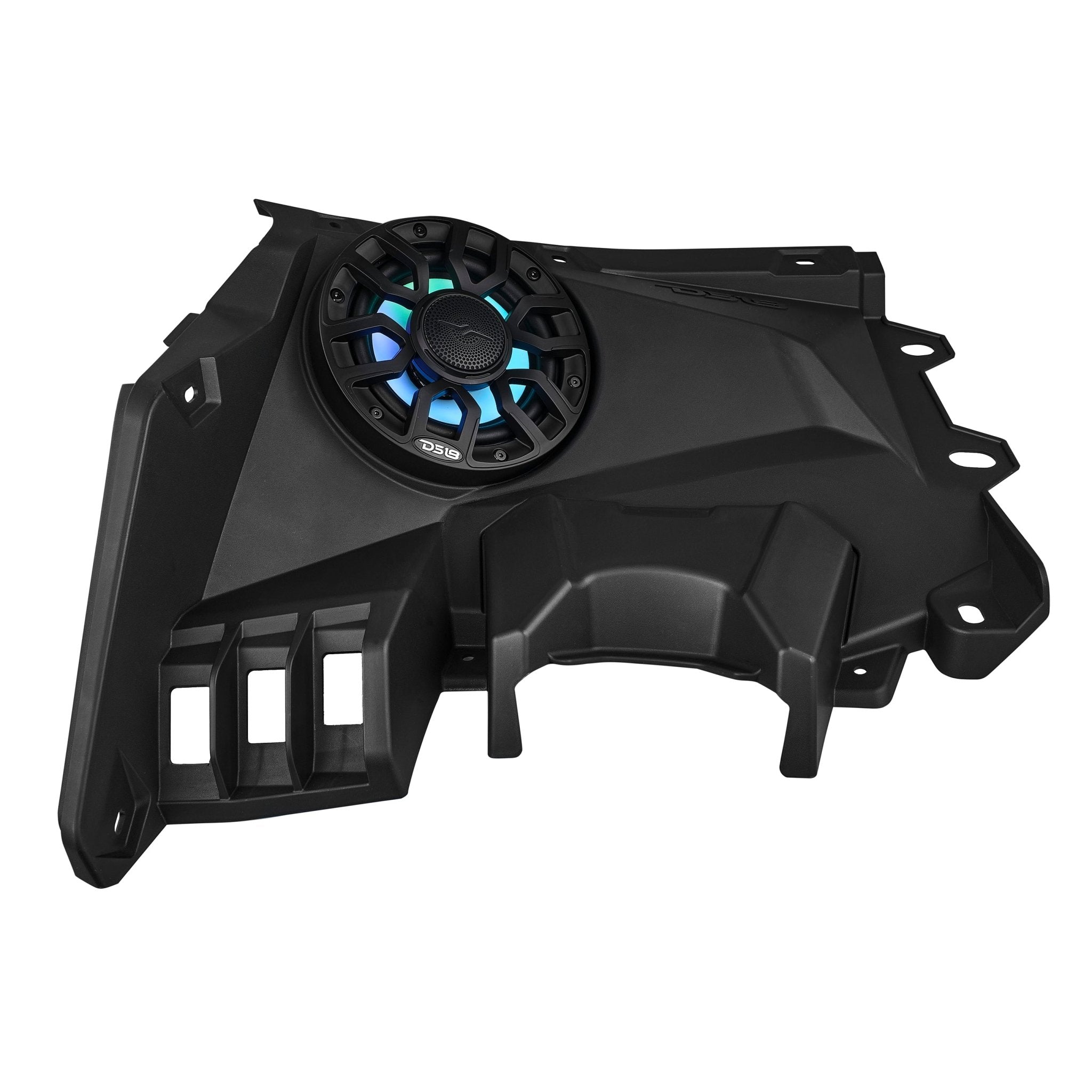

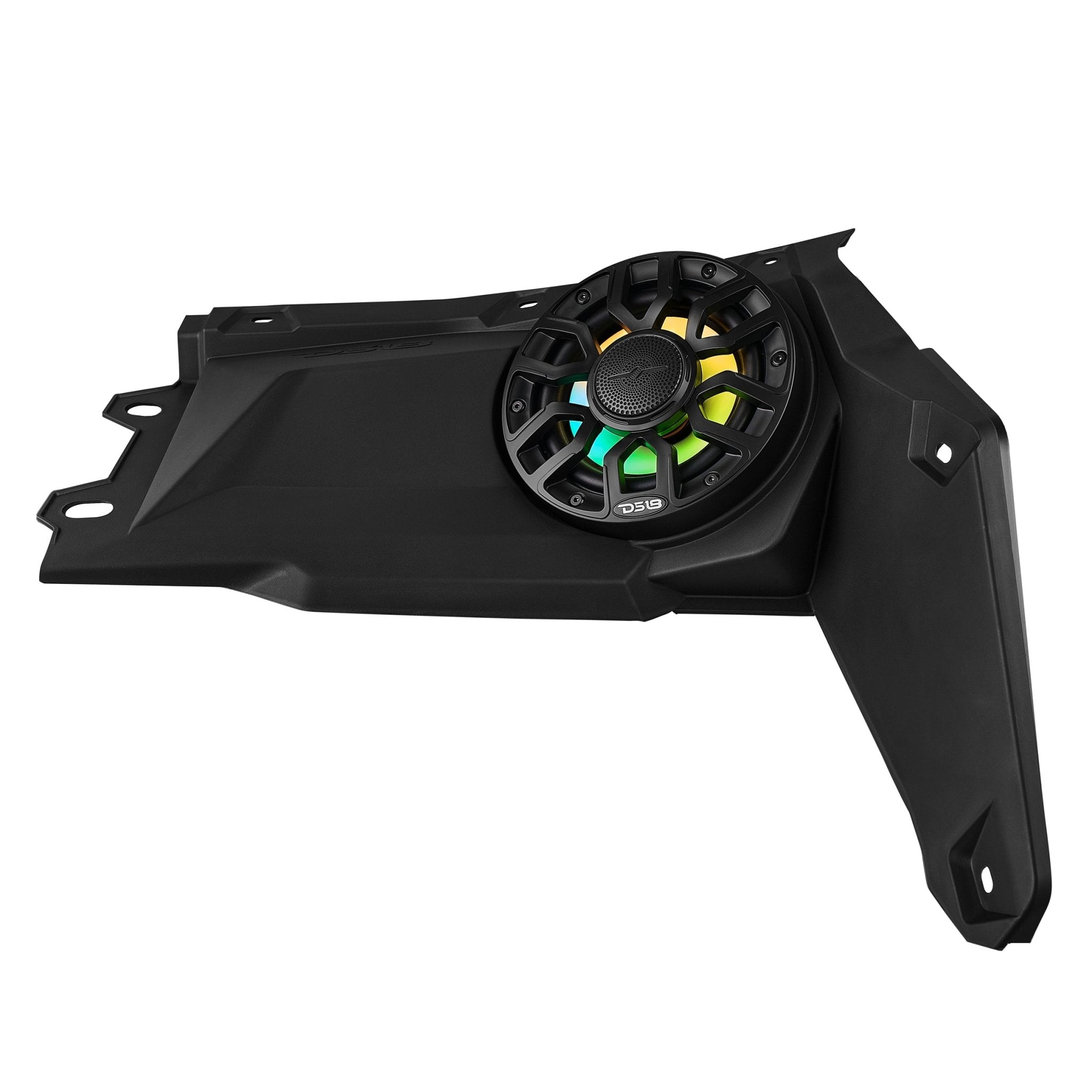

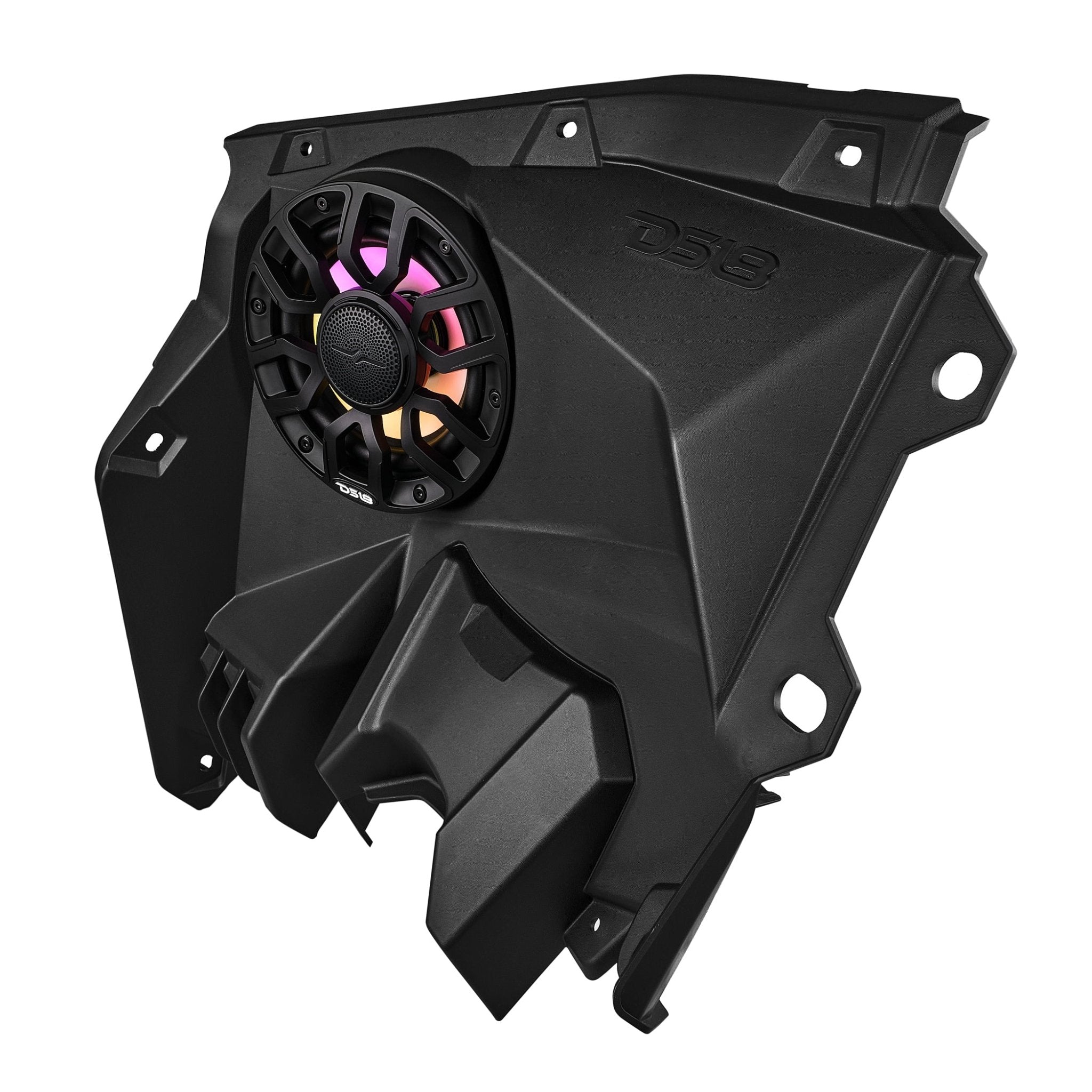

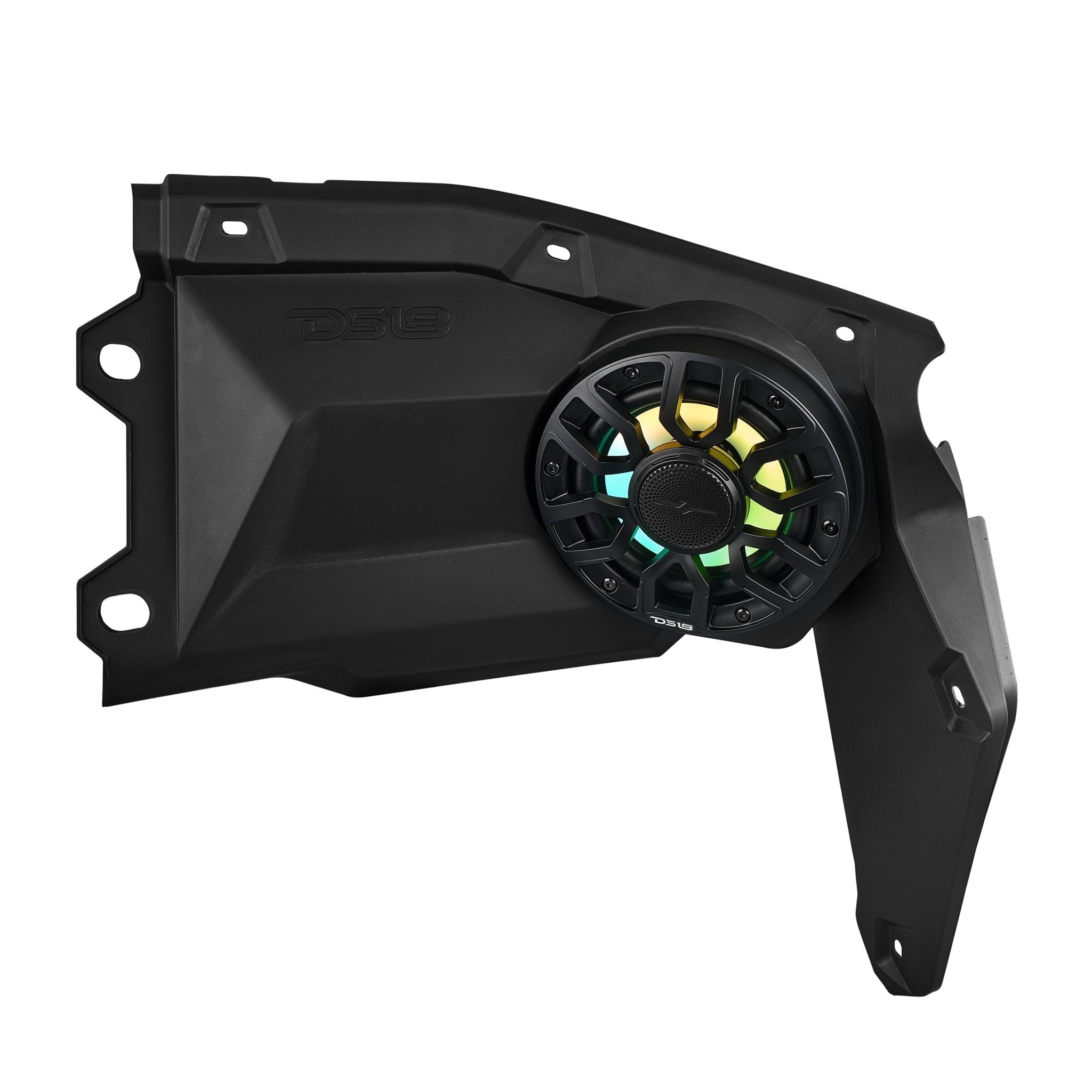

Designed for plug-and-play compatibility, these panels bolt directly into your CAN-AM X3’s factory dash locations—no cutting or modifications required. The rugged polyethylene panels feature a UV-resistant black textured finish, seamlessly blending with your vehicle’s OEM styling.
Light Up the Night
You can customize the Digital LED’s in the speakers with the LC-DRM (sold separately), a Bluetooth controller that allows you to set the tone from your smartphone with the DS18 LC App!
Smart-Lok ready
If your Can-Am X3 is equipped with Smart-Lok, DS18 provides relocation instructions to ensure everything fits properly while keeping all your vehicle’s key features functional.
If you want bold, high-performance audio with a factory-fit look, DS18’s CA-X3DS6LDV2 is an easy and stylish upgrade.
Key Features
- OEM Fit CAN-AM X3 (2017-2026)
- 2 X 6.5" NXL-IQ6/BK Coaxial Speakers
- Dash Panel Loaded Enclosure - Smart-Lok Compatible
- Digital LED Lights
- Pair (R&L)
- Water Resistant IP65
Specifications
| SKU | CA-X3DS6LDV2 |
|---|---|
| Box Type | Front Bafle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Total Impedance | 4+4 Ohms (Left & Right) |

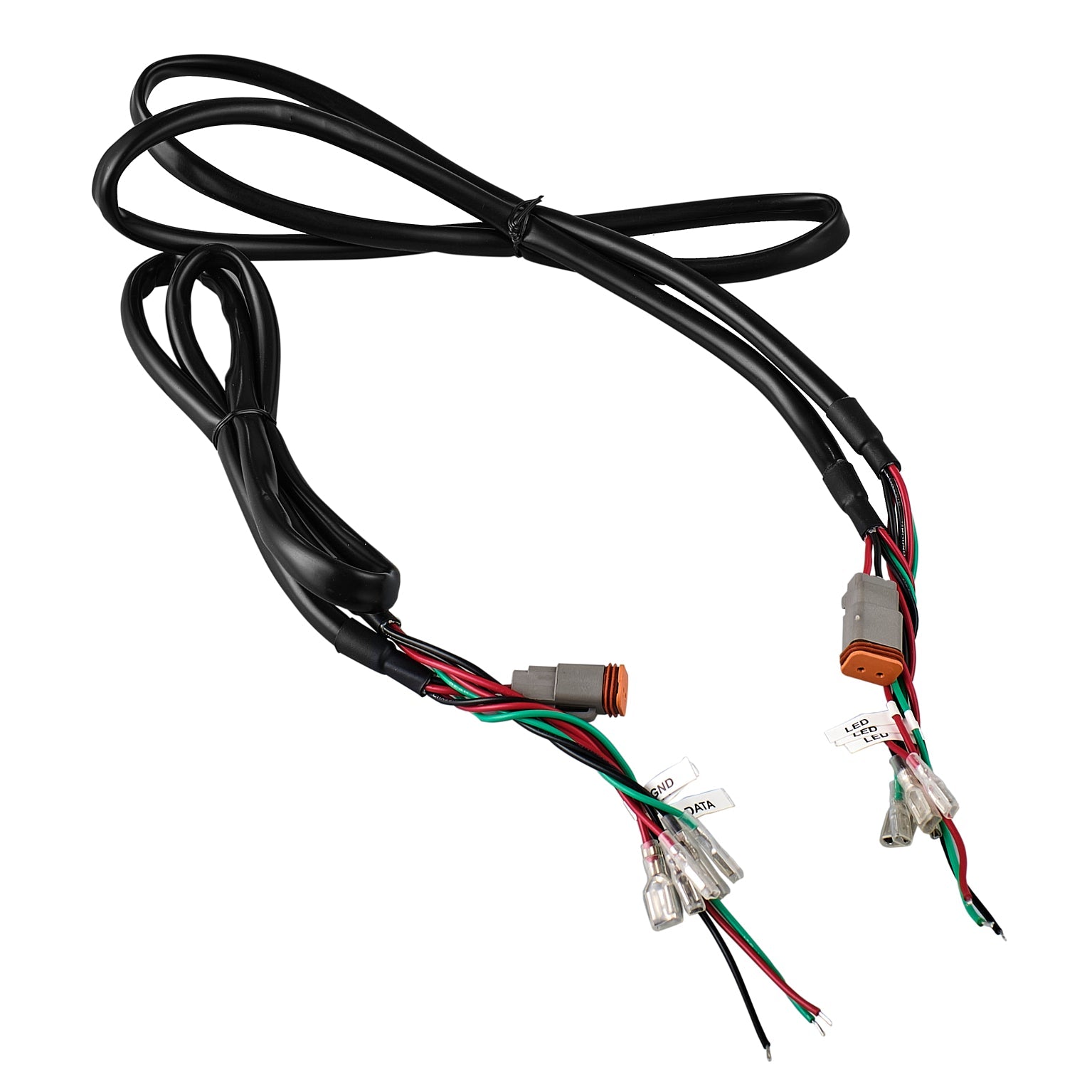

| Input Wire (Harness) | 2 x 6 Core OFC Tinned (2ft / 0.6m) |

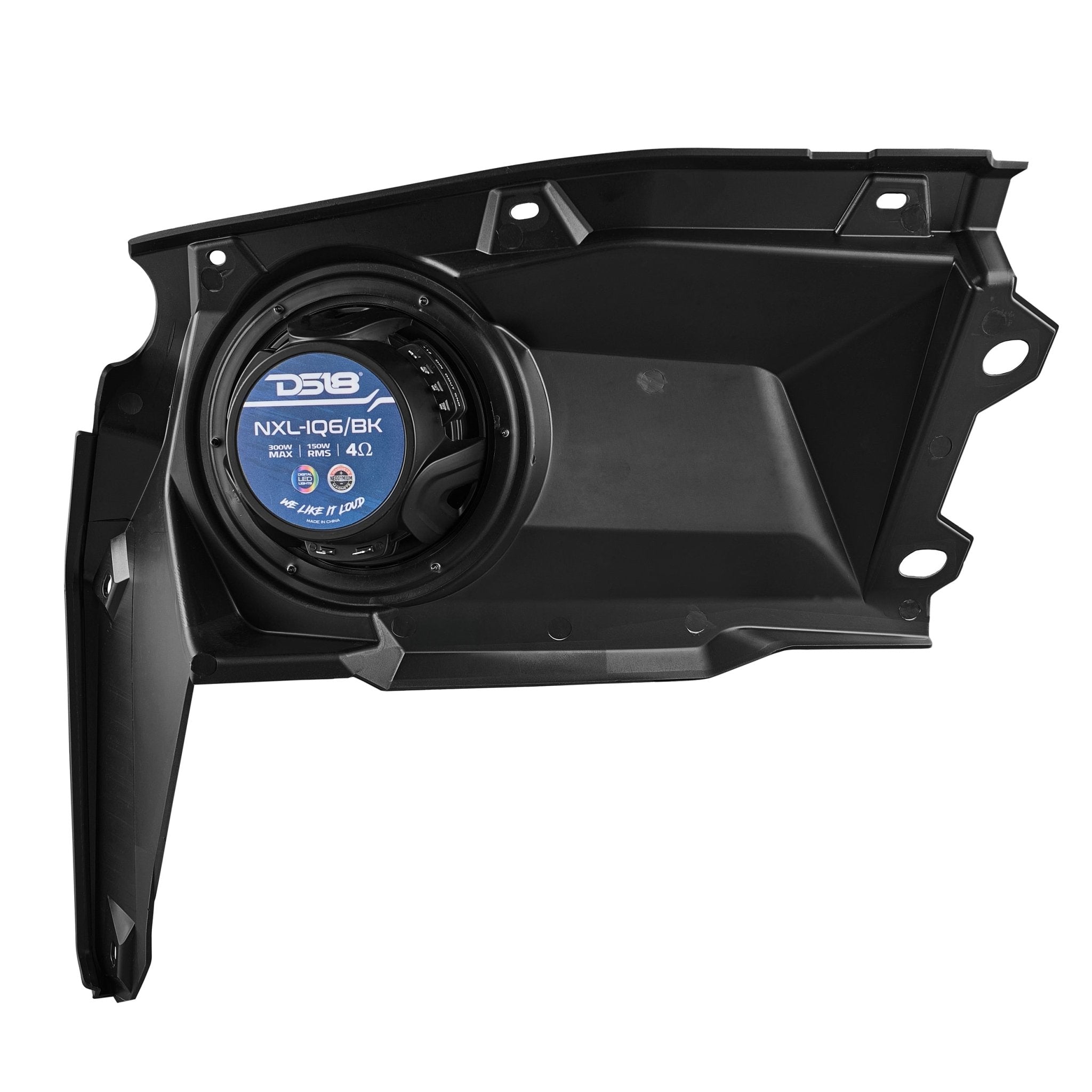

| Model | NXL-IQ6/BK |
| Speaker Type / Size | 6.5" Waterproof Coaxial with Digital LED |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 45Hz-20KHz |
| Recommended Hi Pass Crossover | 60Hz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N35H) |
| Magnet Weight | 13 oz + 1.1oz / 0.4 oz |
| Type | Floating Bullet Tweeter |
| Diaphragm Material | Aluminium |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |

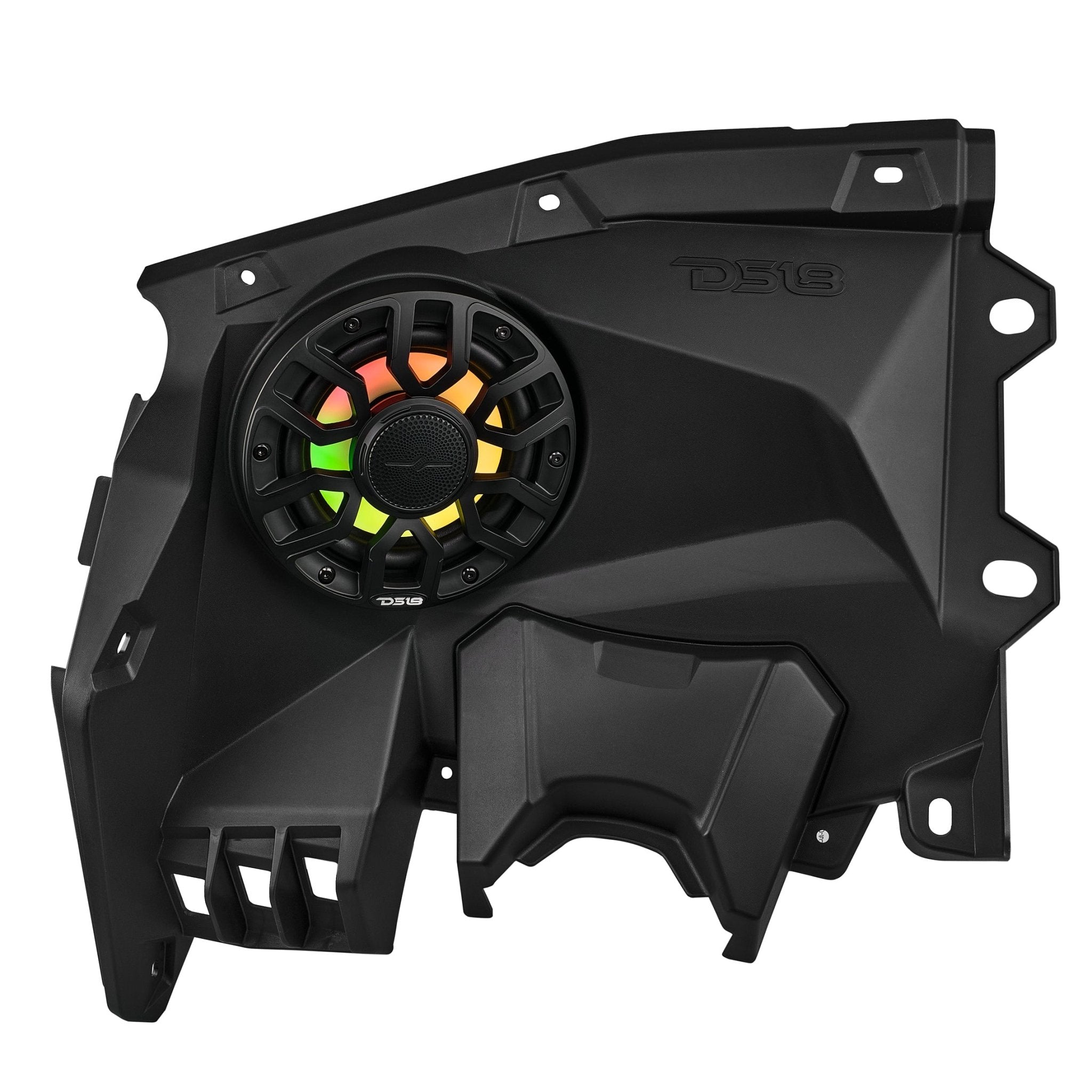

| Overall Height (Driver Side) | 5.86" / 149mm |
| Overall Width (Driver Side) | 20" / 506mm |
| Overall Depth (Driver Side) | 20.4" / 520mm |

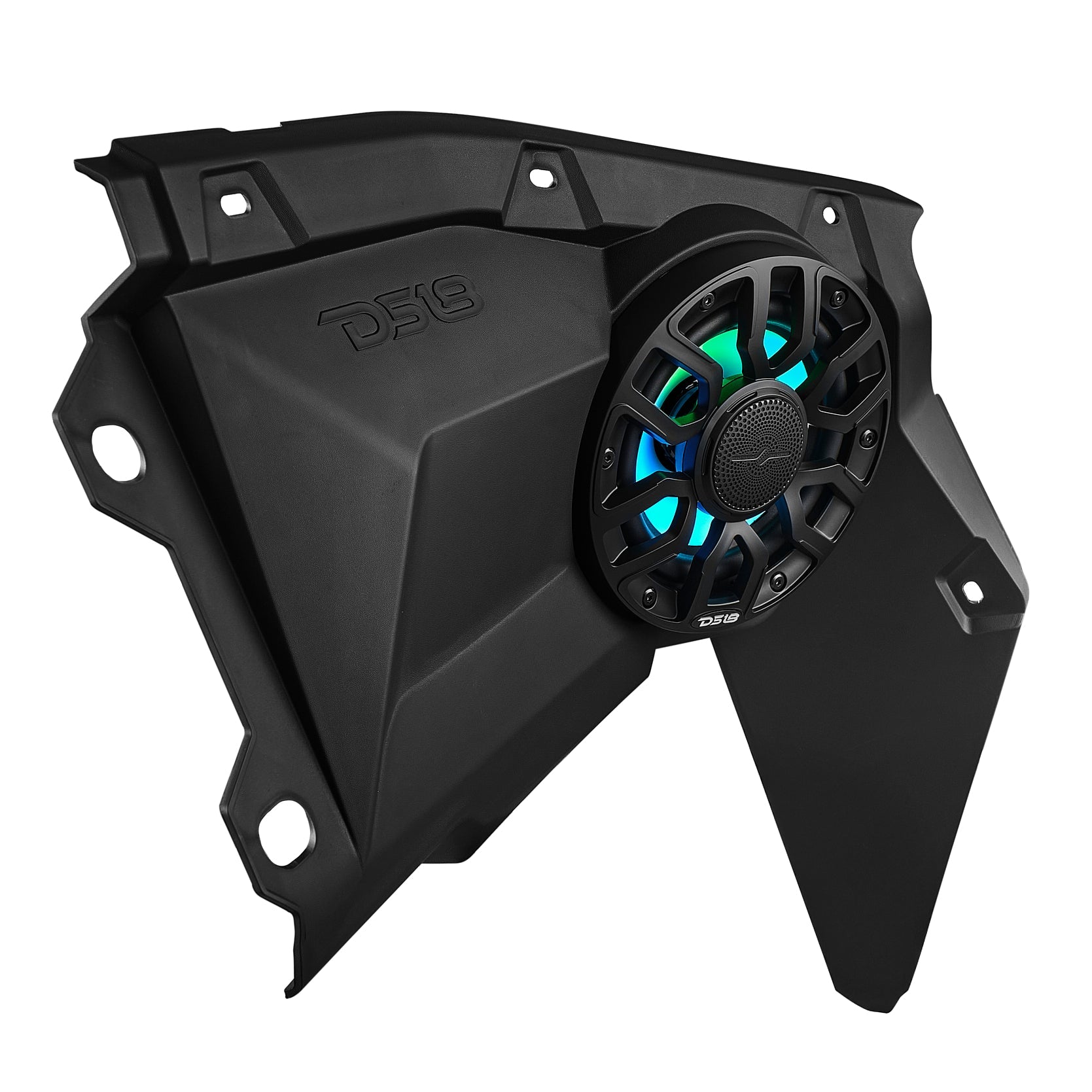

| Overall Height (Passenger Side) | 6.1" / 155mm |
| Overall Width (Passenger Side) | 20" / 518mm |
| Overall Depth (Passenger Side) | 19.3" / 490mm |
| Speaker Mounting Hole | 5.7" / 145mm |
