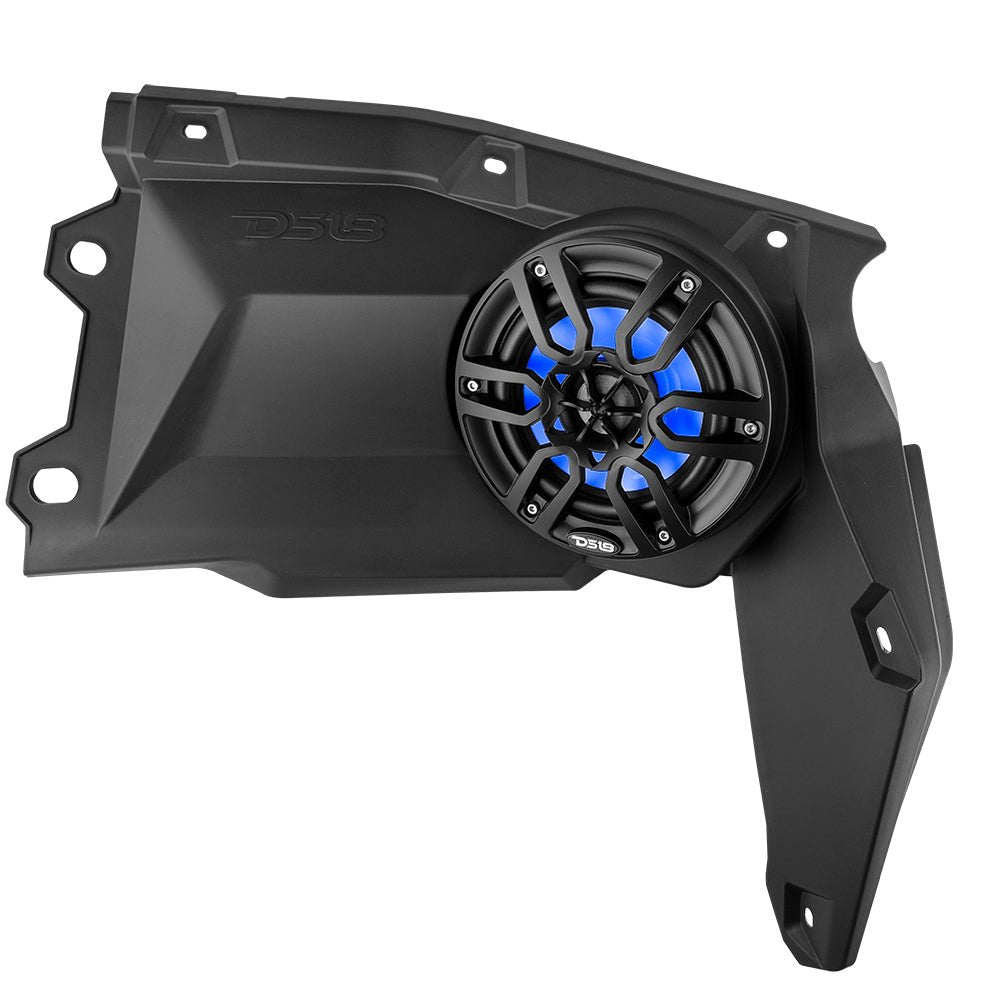

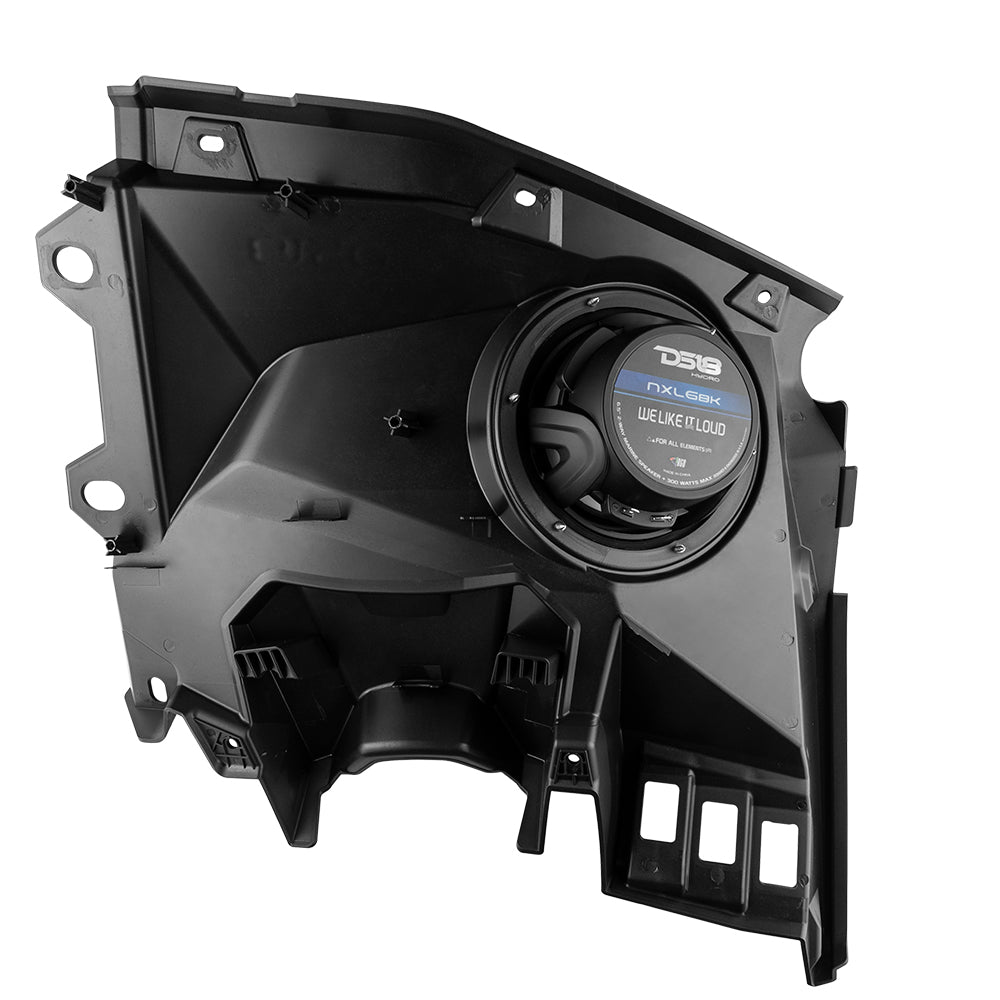

Can-Am Maverick X3 Dashboard Panel Loaded with 6.5" Speaker and RGB Lights
Product Overview Unleash the true power of your CAN-AM X3's stereo system with a revolutionary upgrade that...
Vendor:
DS18
Manufacturer SKU
CA-X3DS6LD
Availability:
Out Of Stock
Product Type:
Speaker Enclosures & Pods
- $539.95
- $539.95
- Unit price
- per
Subtotal:
$539.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
Unleash the true power of your CAN-AM X3's stereo system with a revolutionary upgrade that will redefine your Side-By-Side experience. DS18’s CA-X3DS6 was designed to immerse you in the world of audio excellence.

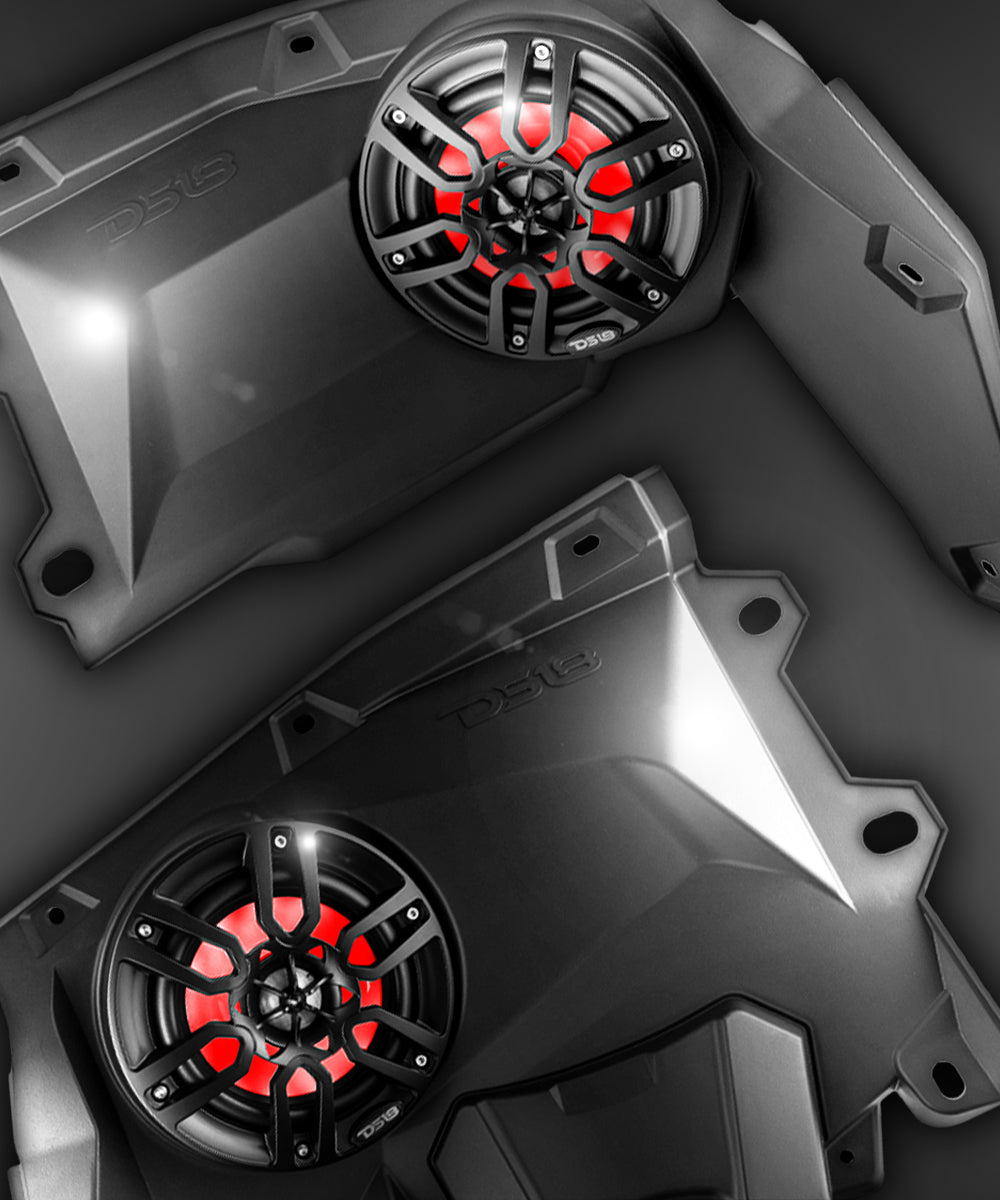

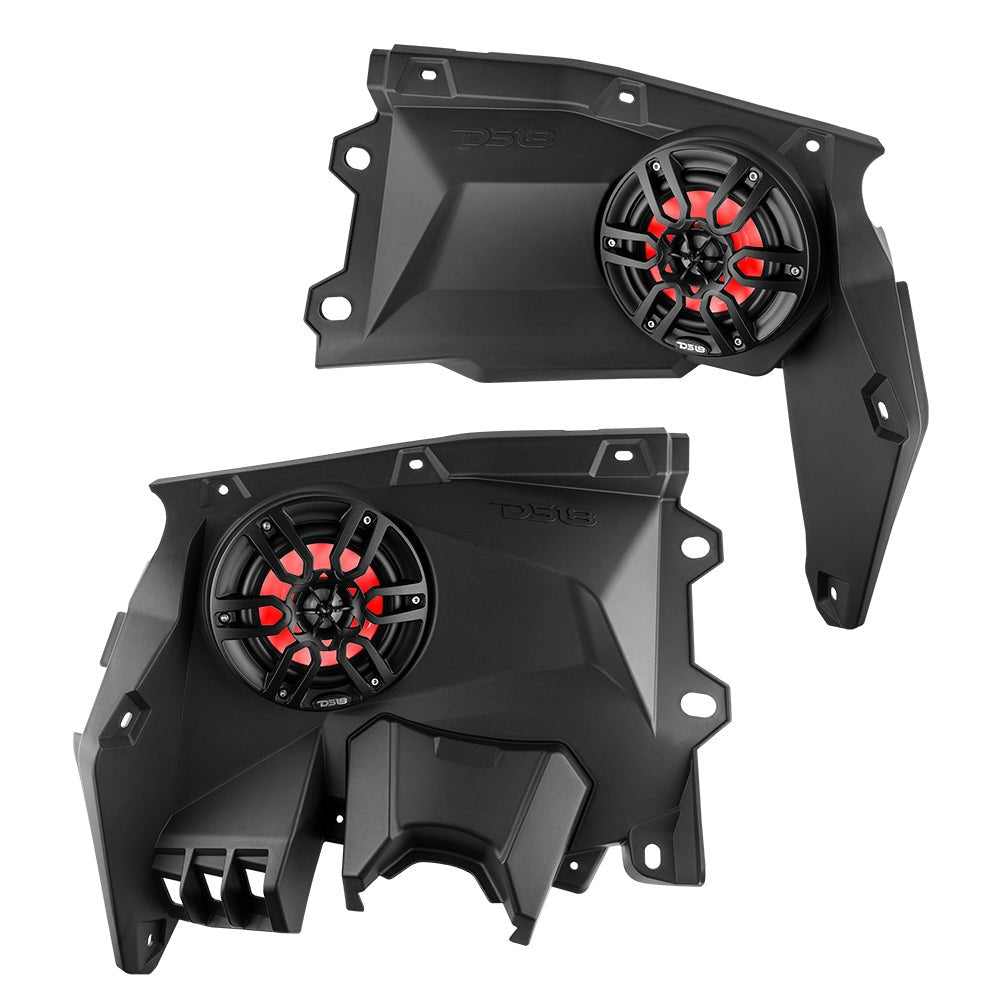

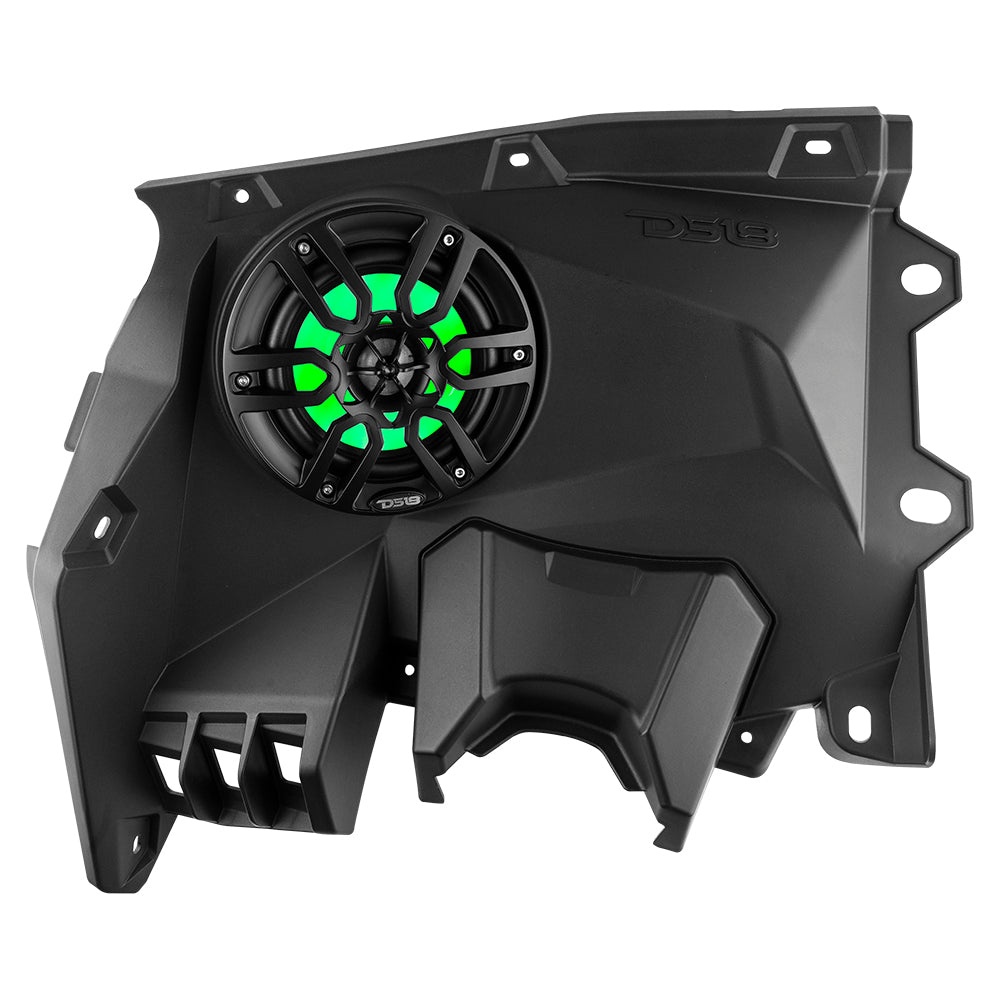

Crafted specifically for 6.5" speakers, these panels boast a smart, open-baffle design that transforms your vehicle into a concert hall on wheels. The panels come in pairs—Driver and Passenger—ensuring that everyone enjoys the session.

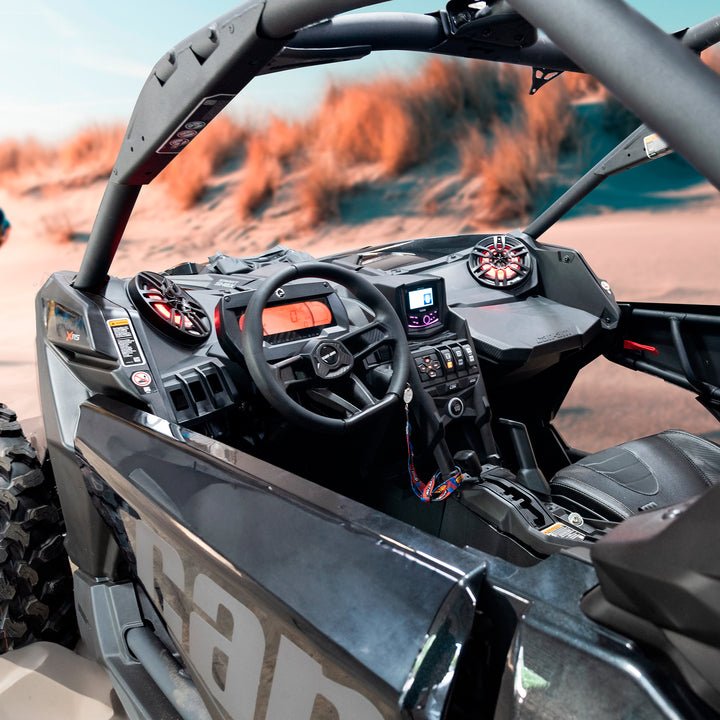

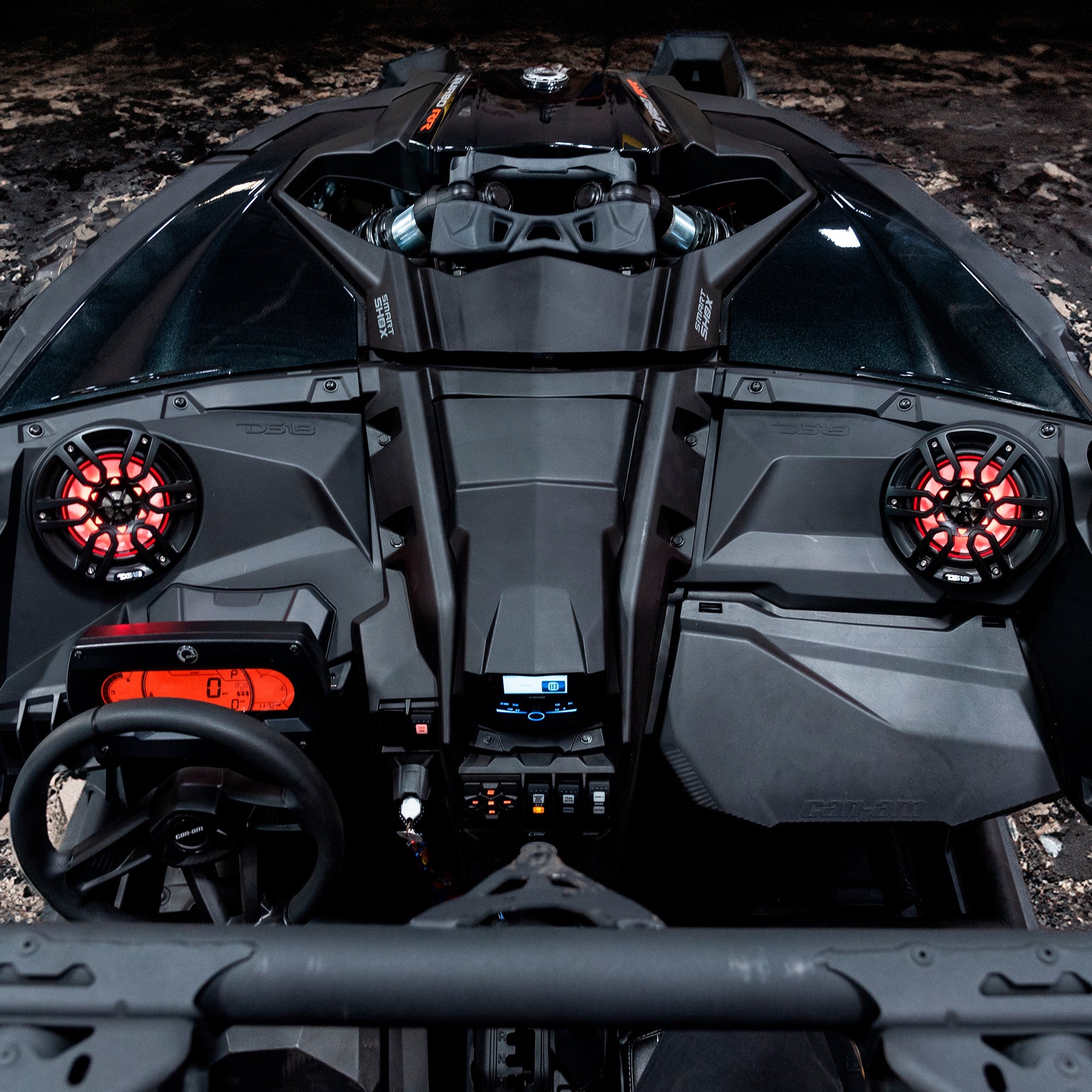

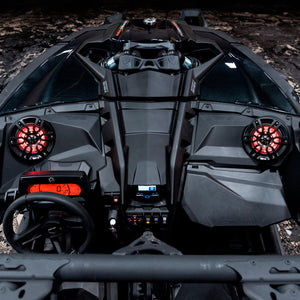

DS18 understands the importance of seamless upgrades. These dashboard panels are engineered to slide right into place using your Can-Am's factory bolts. No need for complex modifications or time-consuming installations. With the DS18 CA-X3DS6, elevating your audio is a breeze.

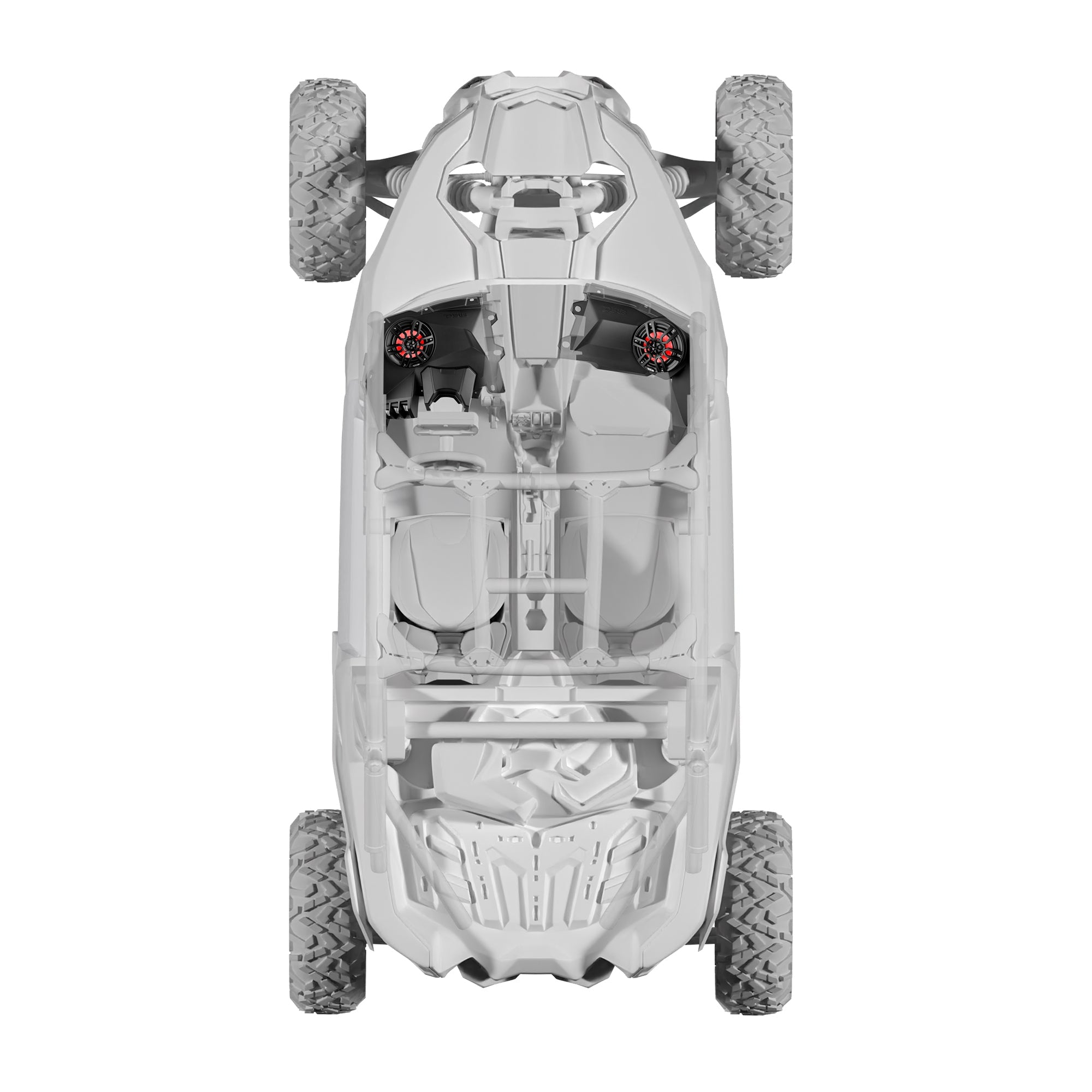

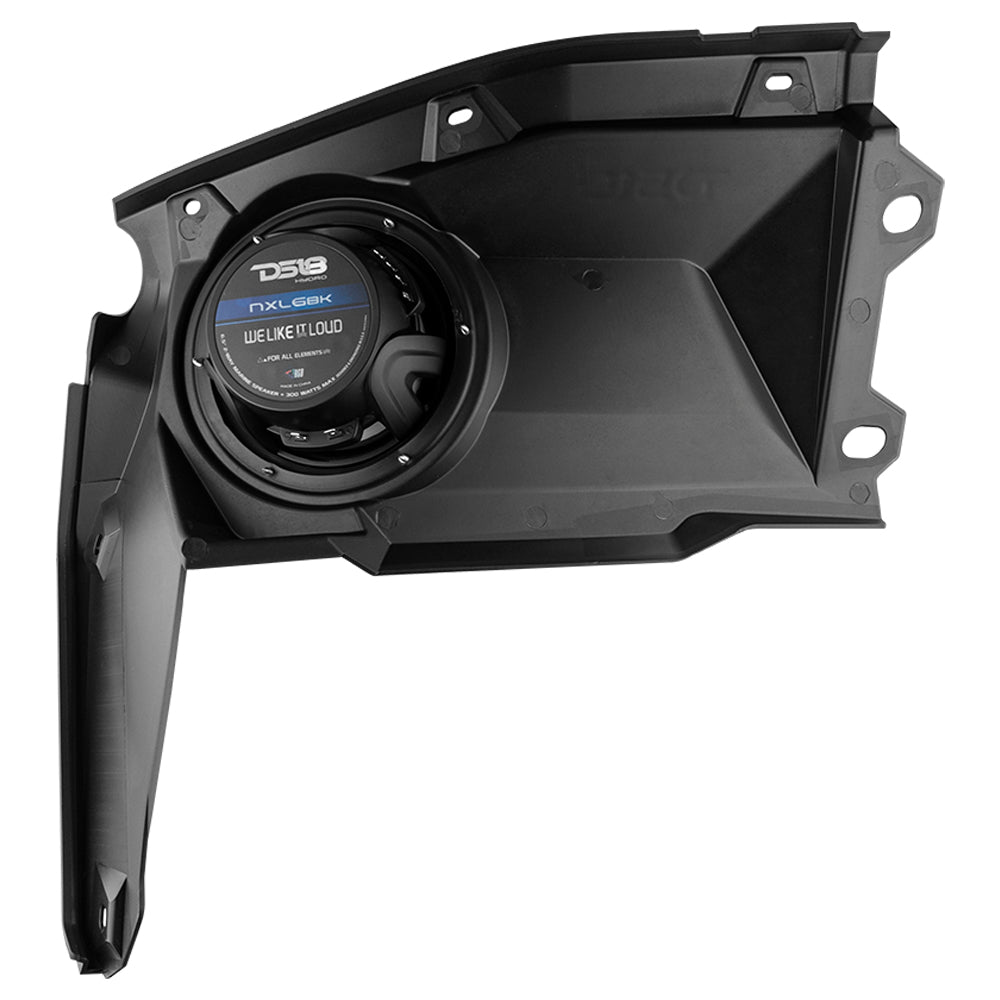

Every element of DS18’s CA-X3DS6 is designed to enhance your audio experience. The speaker mounting hole, measuring 5.7", and a mounting depth of up to 3", ensure that the panels seamlessly accommodate a range of 6.5” DS18 speakers. This commitment to precision extends to the overall measurements, which have been optimized to fit Can-Am X3 vehicles produced between 2017 and 2023

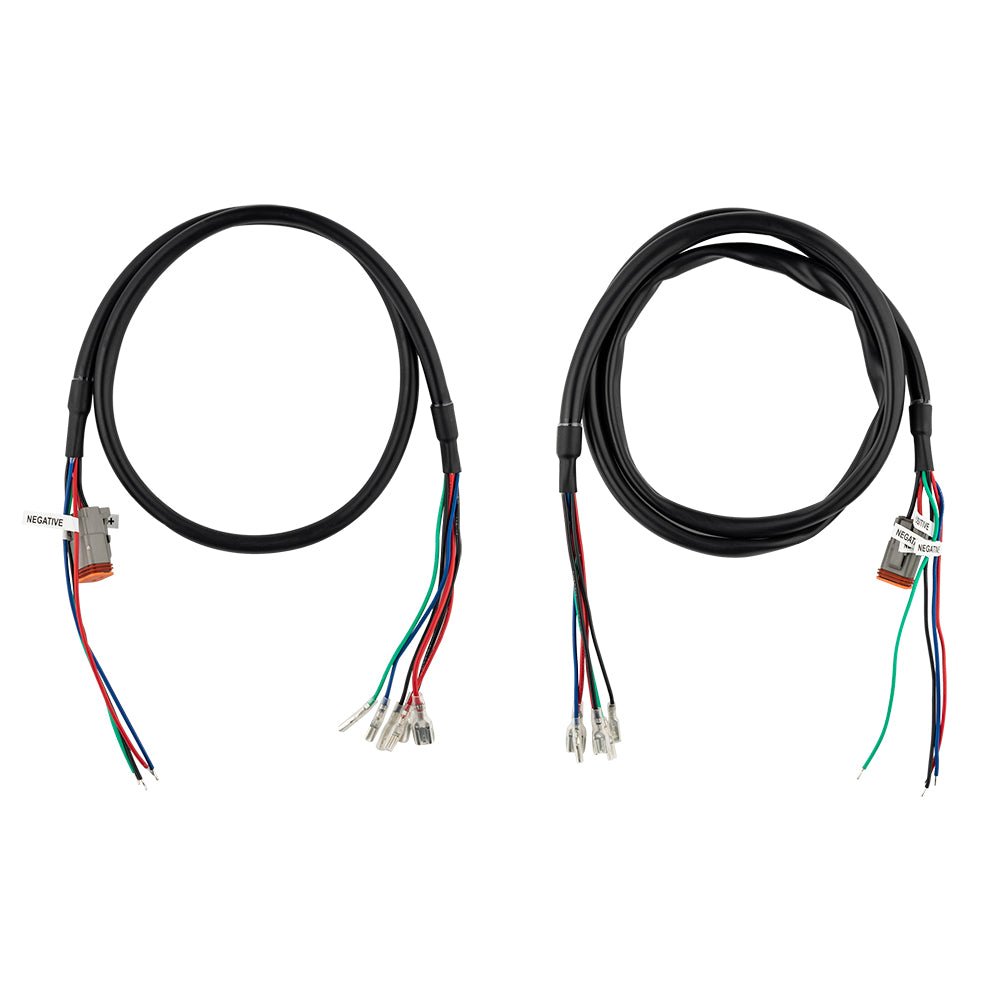

Underneath its sleek black OEM finish lies everything you need for a perfect long-lasting installation. The OFC tinned wiring guarantees superior power handling, so you can pump up the volume without missing a beat. The 6-core 0.6M input wires for speakers and RGB lighting ensure your setup is future-proof, accommodating any audio enhancements you might dream of. Plus, these panels are built to weather the elements, with a waterproof (IP65) and UV-protected construction that can withstand the harshest conditions.
Key Features
- Dash Panel Loaded Enclosure
- OEM Fit ~ X3 (2017-2023)
- 2 X 6.5" NXL-6/BK ~ 91dB
- LED RGB Lights
- Pair (R&L) ~ Black
- Water Resistant IP65
Specifications
| SKU | CA-X3DS6LD |
|---|---|
| Box Type | Front Baffle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| Total Impedance | 4+4 Ohms (Left & Right) |
| Input Wire (Harness) | 6 Core OFC Tinned (2ft / 0.6m) |
| Speaker Type/Size | 6.5" Waterproof Coaxial with RGB LED |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz-20KHz |
| Recommended Hi Pass Crossover | 65Hz |
| Voice Coil Diameter | 1.2" / 30.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Magnet Material | Ferrite+Neodymium |
| Magnet Weight | 14oz + 0.32 oz |
| Overall Height (Driver Side) | 5.86" / 149mm |
| Overall Width (Driver Side) | 20" / 506mm |
| Overall Depth (Driver Side) | 20.47" / 520mm |
| Overall Height (Passenger Side) | 6.1" / 155mm |
| Overall Width (Passenger Side) | 20.4" / 518mm |
| Overall Depth (Passenger Side) | 19.3" / 490mm |
| Speaker Mounting Hole | 5.7" / 145mm |
