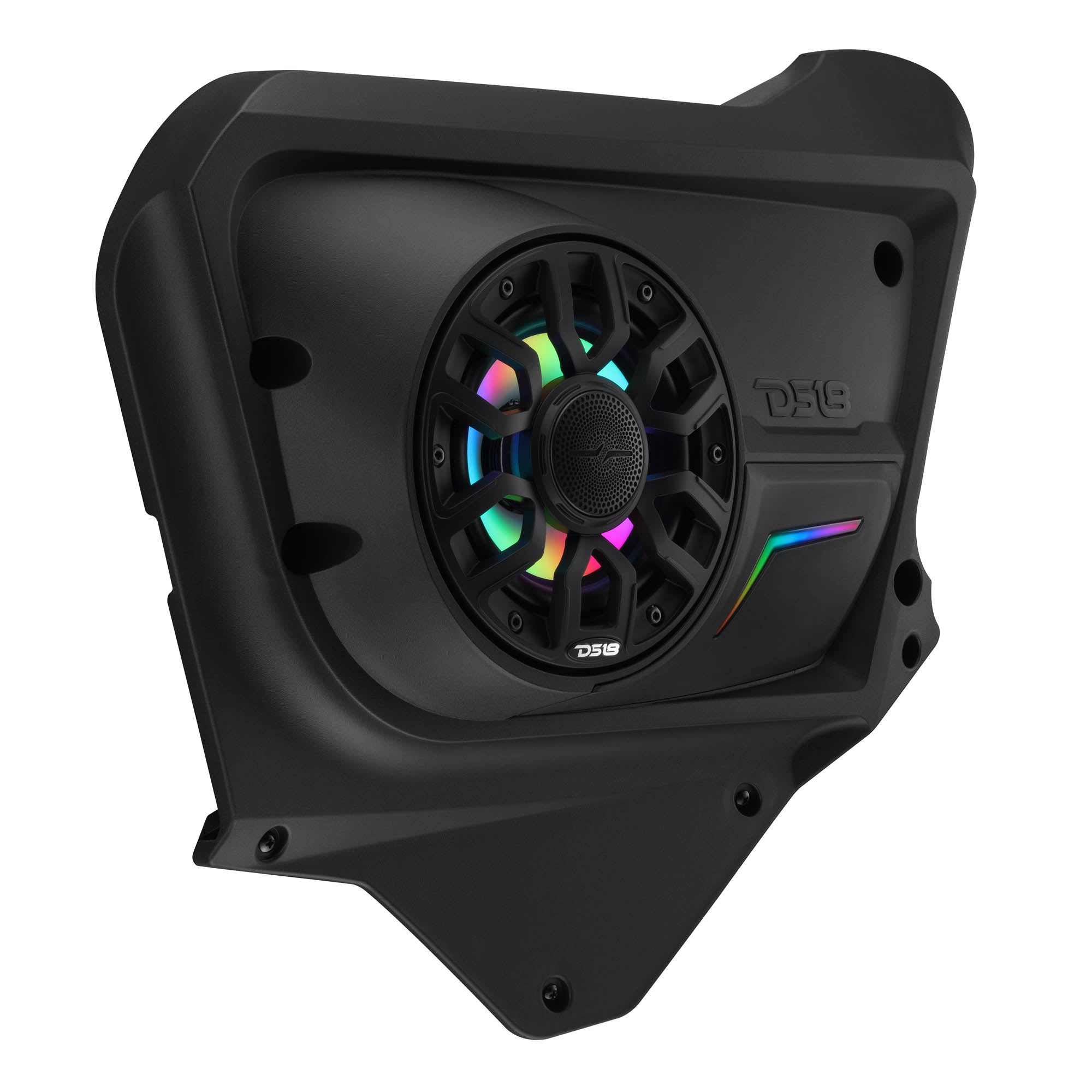

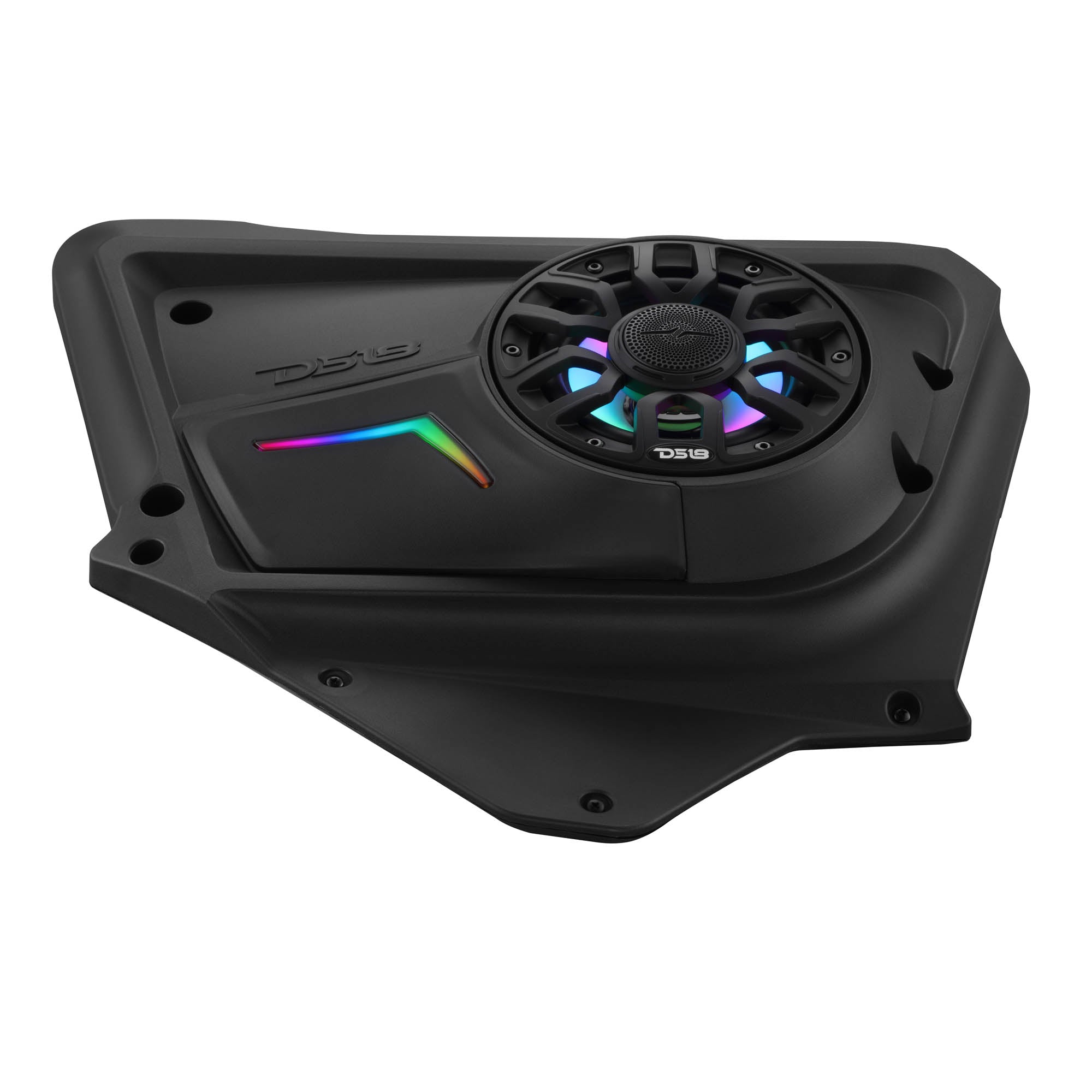

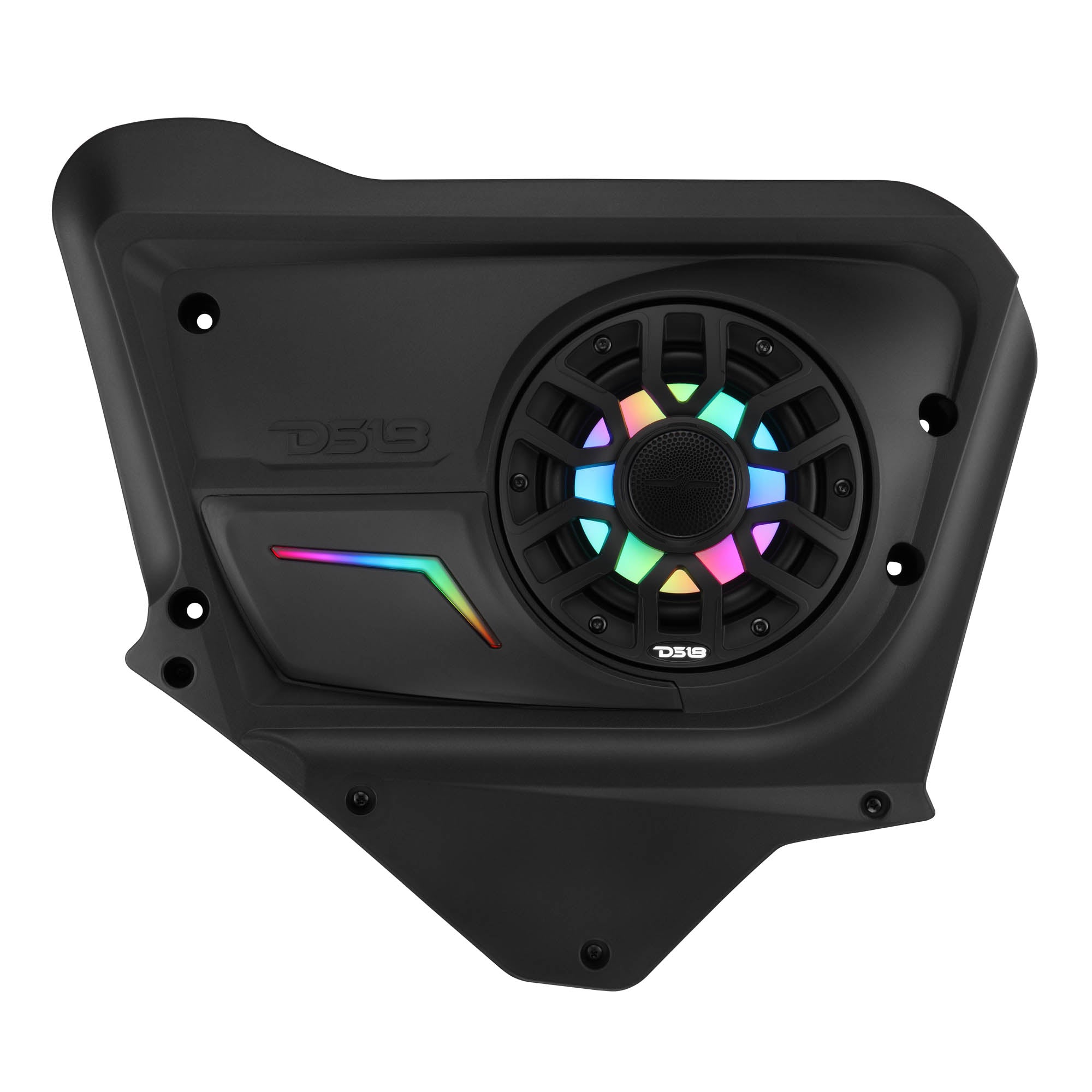

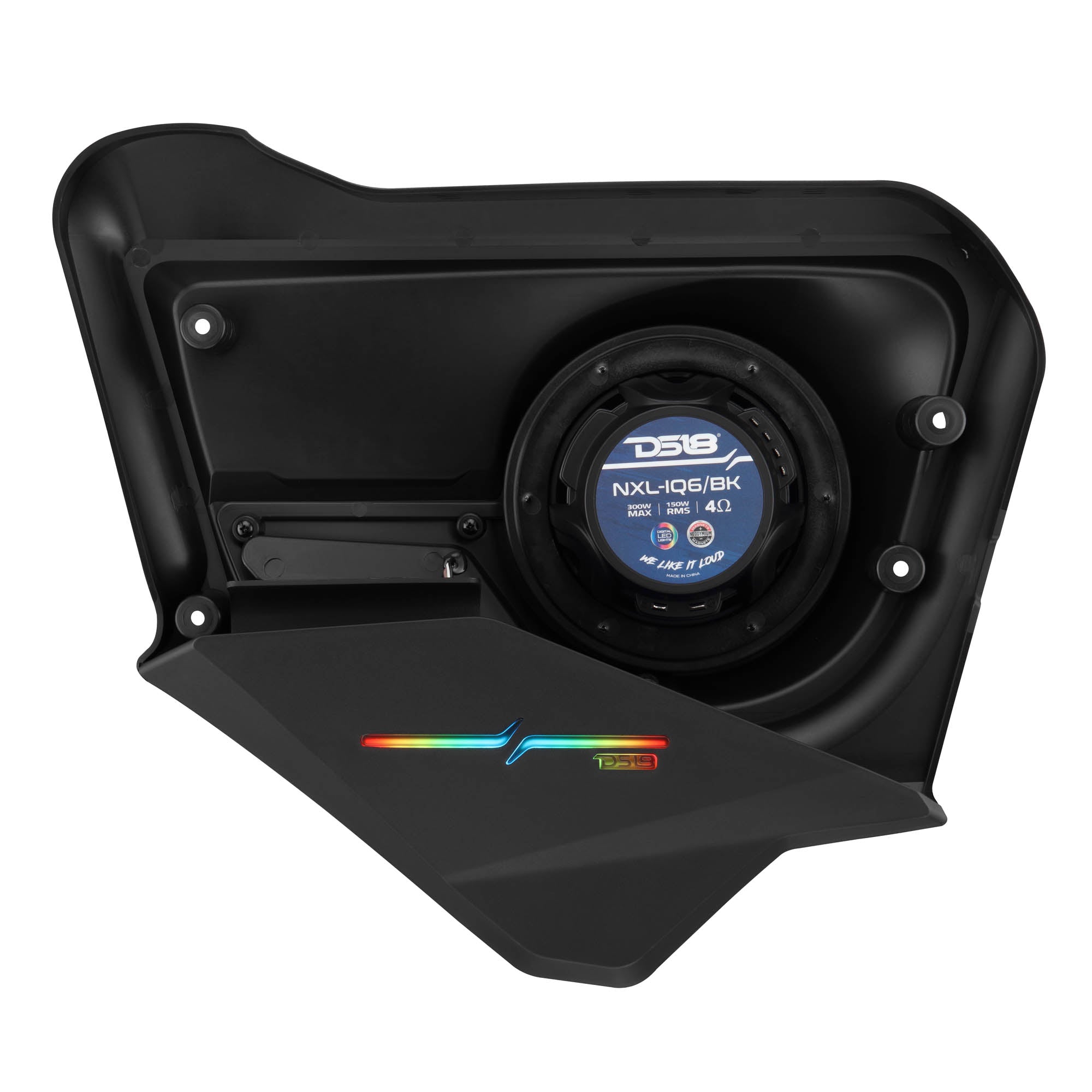

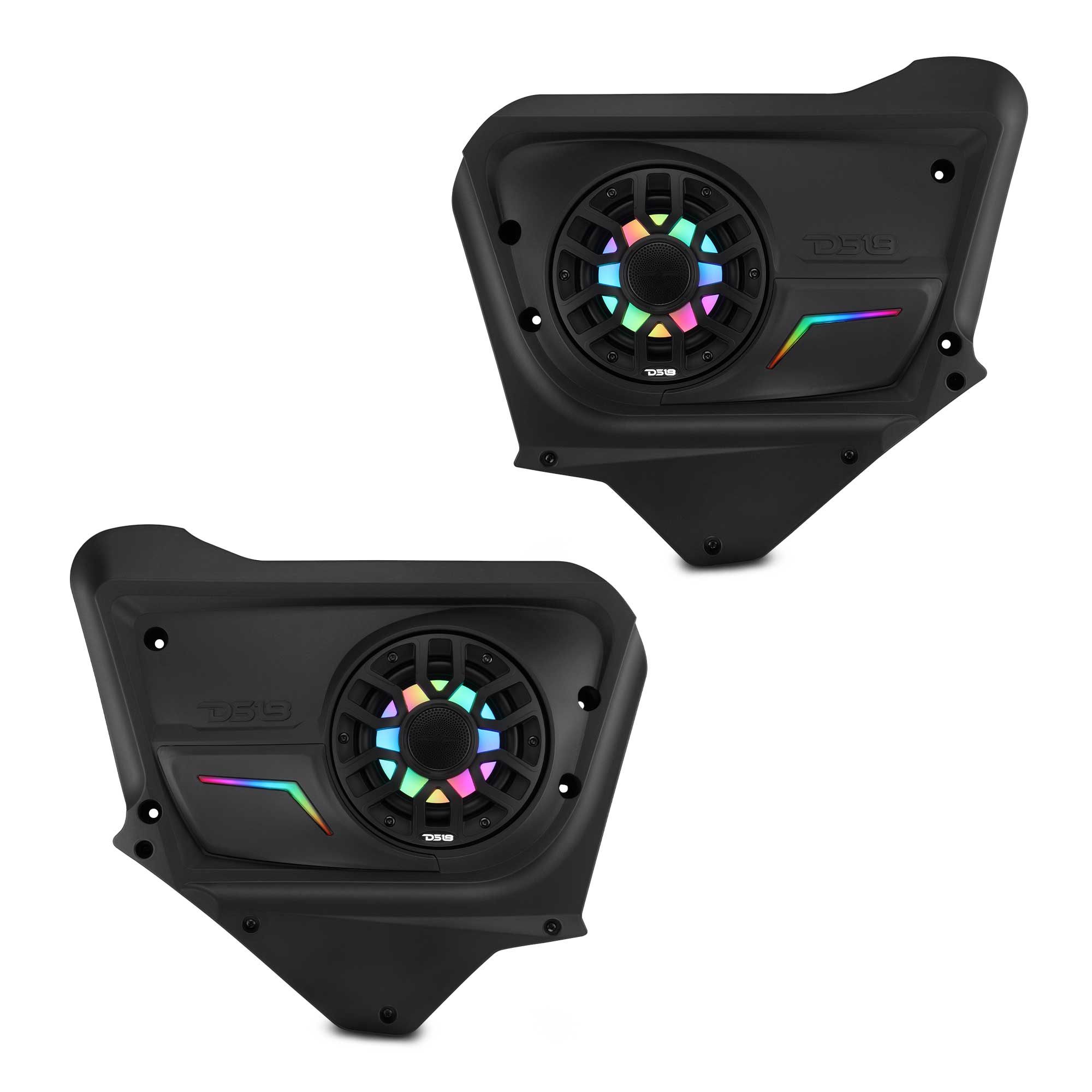

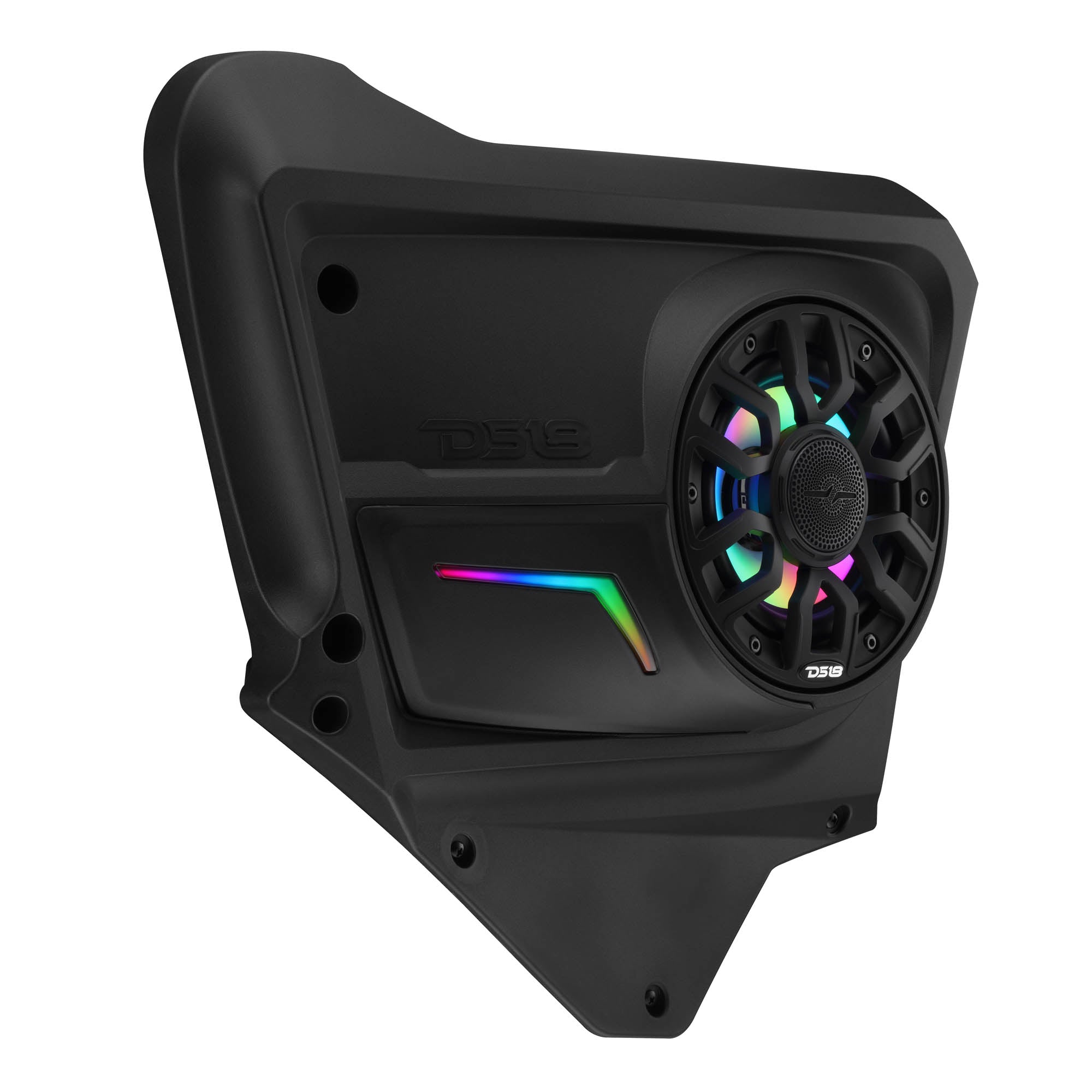

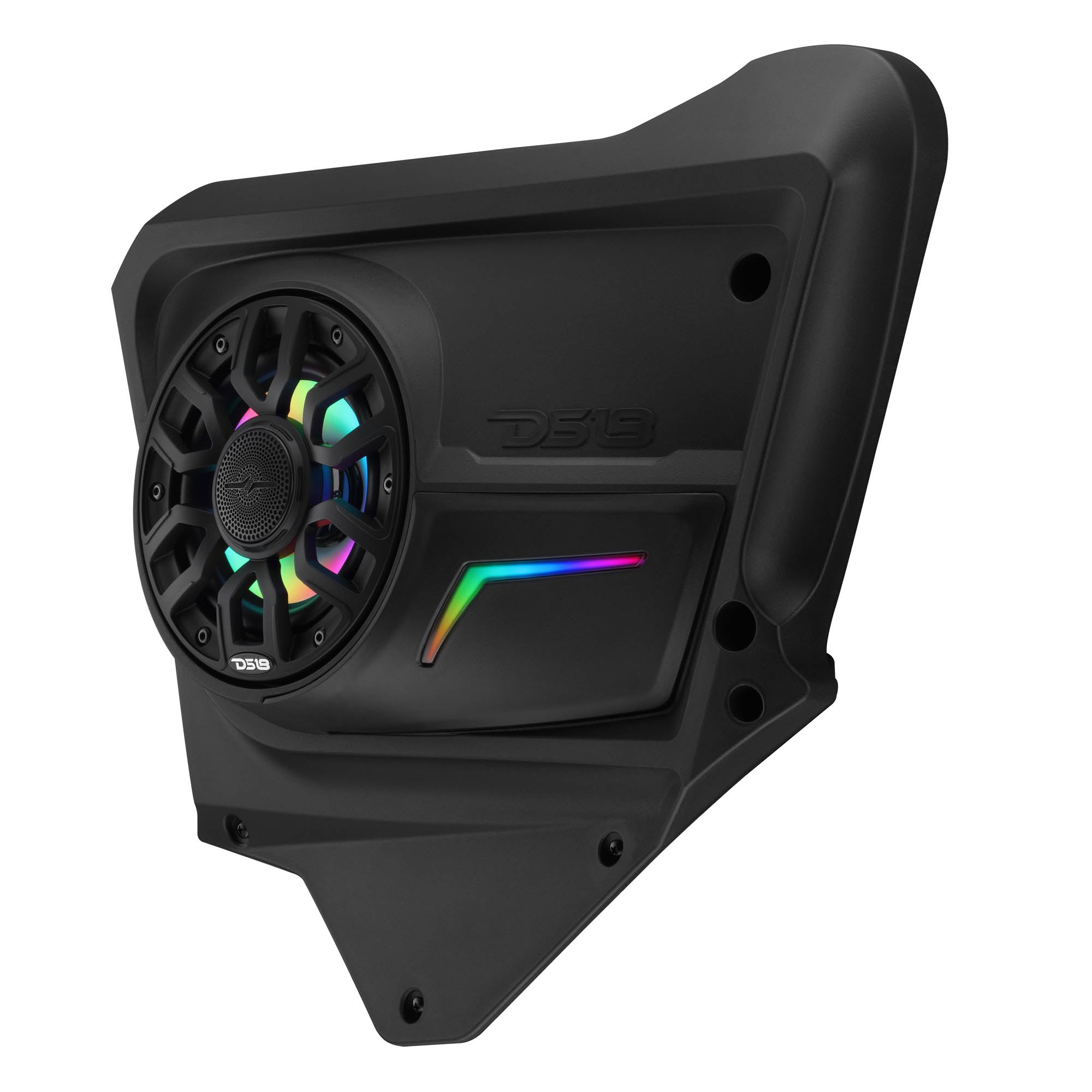

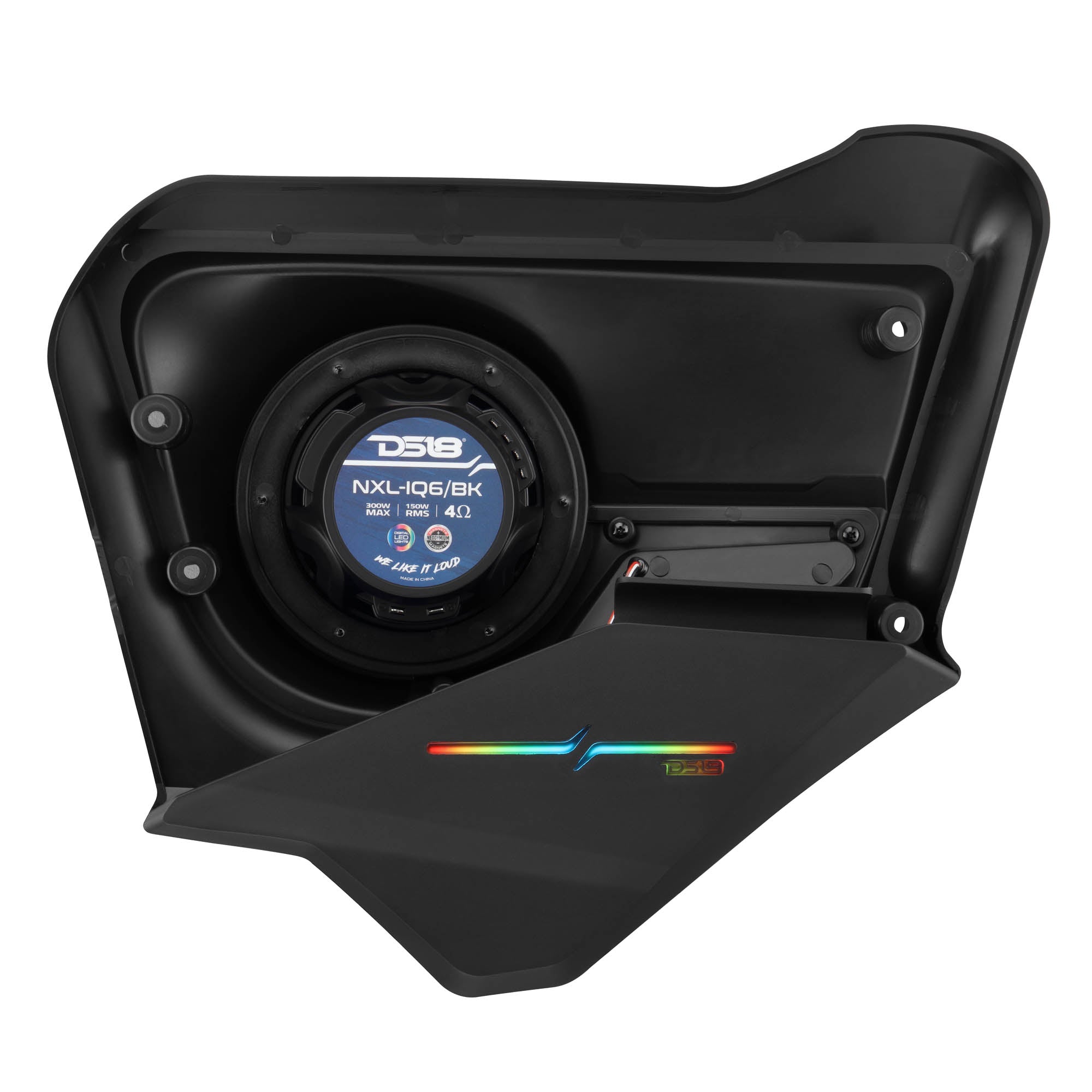

Can-Am Maverick X3 Max (2017-Up) Rear Door Speaker Panels Loaded with NXL-IQ 6.5" 2-Way Coaxial Marine Speakers and Digital LED Badge
Product Overview CA-X3BD6LD Rear Door Speaker Panels with NXL-IQ6/BK Digital LED Badge Ride It Loud Take your...
Vendor:
DS18
Manufacturer SKU
CA-X3BD6LD
Availability:
In Stock
Product Type:
Speaker Enclosures & Pods
- $579.95
- $579.95
- Unit price
- per
Subtotal:
$579.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

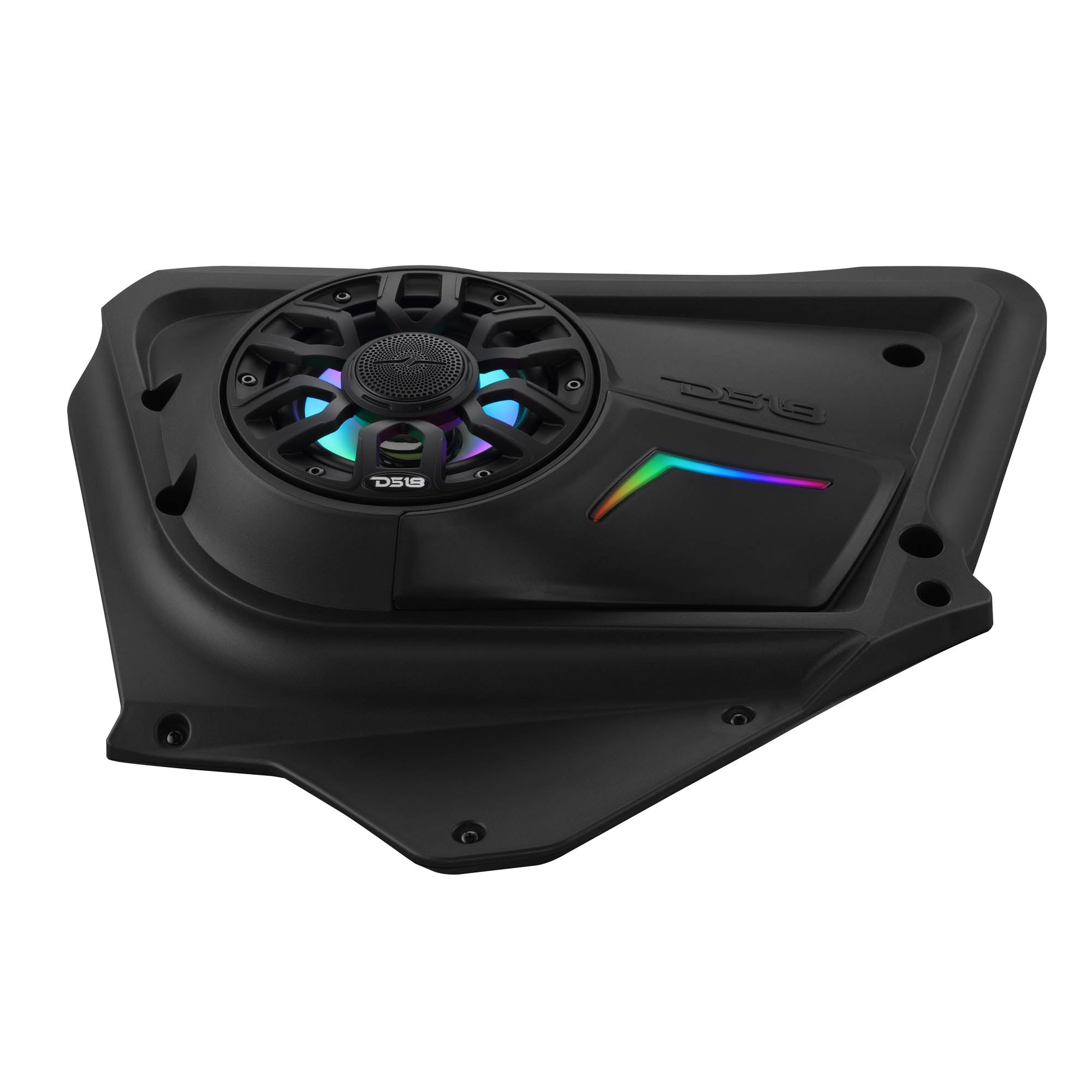

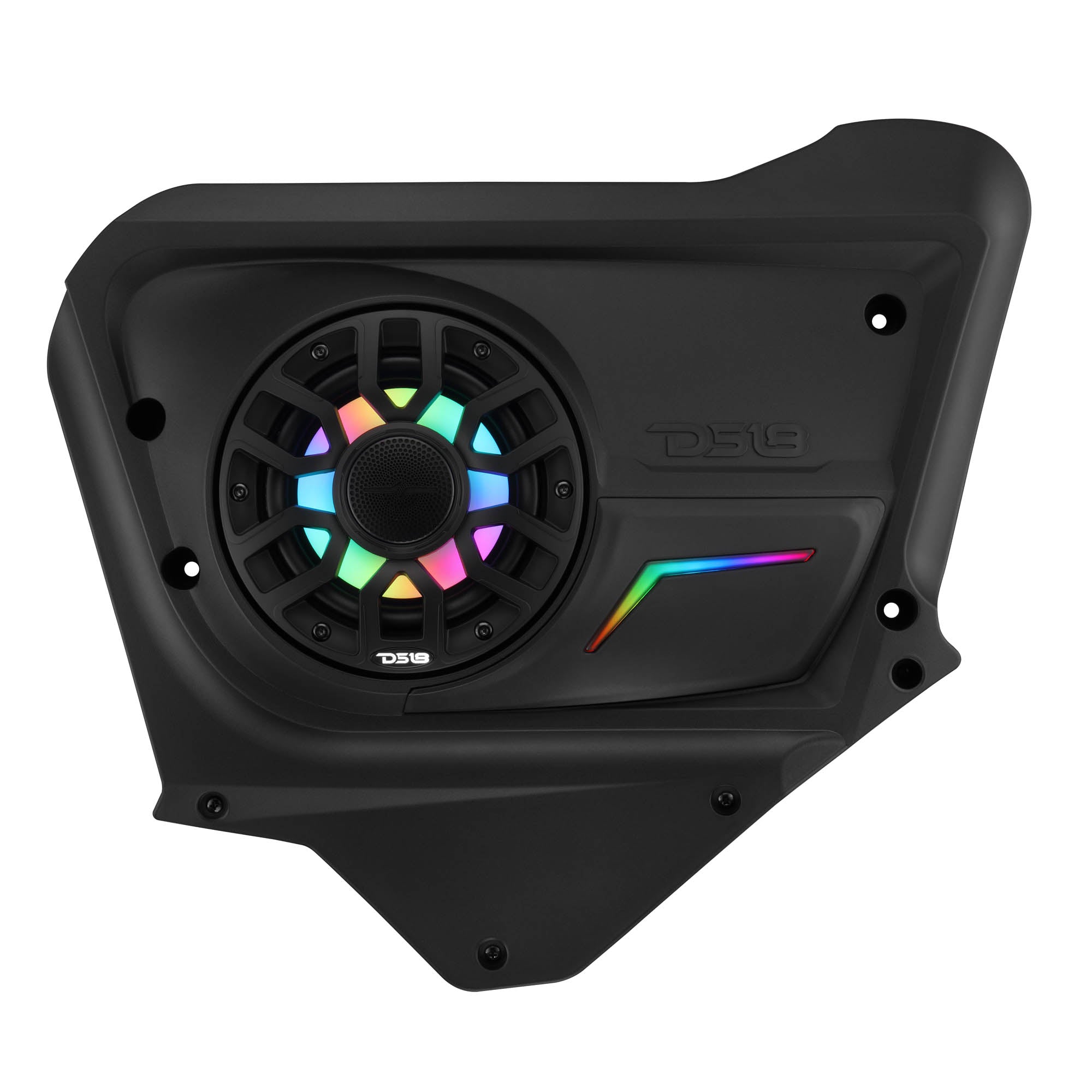

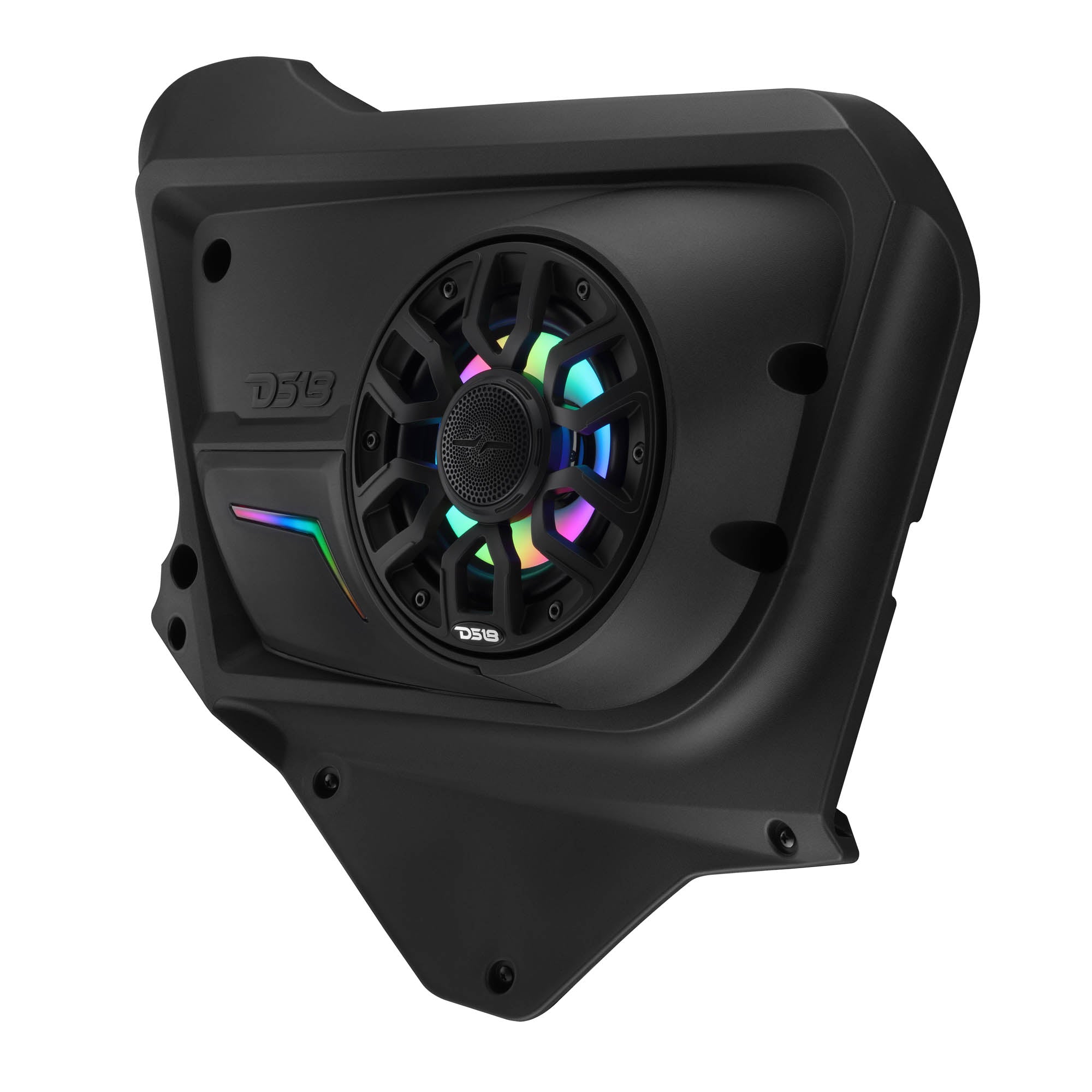

CA-X3BD6LD Rear Door Speaker Panels with NXL-IQ6/BK Digital LED Badge
Ride It Loud
Take your sound to the next level with the loaded CA-X3BD6LD front door panel, featuring the NXL-IQ6/BK 2-way coaxial speaker. Designed for 4-door 2017-up Can-Am Maverick X3s, these loaded front panels keep the volume pumping wherever you go.
Protection On the Off-Road
These front door panels use polyethylene with a black finish, along with a water resistance level of IP65, to give you a durable and stylish OEM fit and texture to your Maverick X3.
Real Deal Sound
The NXL-IQ6/BK coaxial speakers give your Maverick X3 a real boost with a power rating of 150W RMS / 300W MAX and a frequency response of 45Hz-20kHz. A floating bullet tweeter balances out the booming sounds with clear and crisp highs, courtesy of an aluminum diaphragm and neodymium magnets.
Let the Lights Match Your Music
Digital LED lights give both your panels and speakers extra flair with changeable lights and colors to match your mood and vibe. The LED lights are controlled with the LC-DRM (sold separately) via the LC app (available on Android and iOS).
Designed for Can-Am
The CA series provides you with speakers, racks, subwoofers, and packages specifically for Can-Am vehicles. Take on the road and every element with DS18.
Key Features
- Fits 4-Door Can-Am Maverick X3 Max 2017-Up
- Loaded with NXL-iQ6/BK 6.5" Speakers: 150W RMS / 300W MAX
- Digital LED Badge Lighting
- IP65 Water-Resistant Construction
- OEM-Style Fit and Texture
Specifications
| Panel Type | Front Bafle |
|---|---|
| Panel Material | Polyethylene (PE) |
| Finish Material | Black / OEM Texture |
| UV Protection | Yes |
| IP Rating | IP65 |
| Input Wire | LED + SPK 5 Core OFC Tinned (2ft / 0.6m) |
| Sold in Pairs | Left & Right |
| OEM Fit | Yes |
| Compatible Model / Year | Maverick X3 Max / 2017-Up 4 Door models |
| Compatible Speaker Model | NXL-IQ6/BK Included |
| Speaker Type / Size | 6.5" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter |
| Total Impedance | 4 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 45Hz - 20KHz |
| Recommended High-Pass Crossover | 60Hz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite + Neodymium / Neodymium (N35H) |
| Magnet Weight | 13 oz + 1.1oz / 0.4 Oz |
| Speaker Type | Floating Bullet Tweeter |
| Diaphragm Material | Aluminum |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |
| Panel Overall Height | 19.5" / 495mm |
| Panel Overall Width | 17" / 435mm |
| Panel Overall Depth | 5.6" / 142mm |
