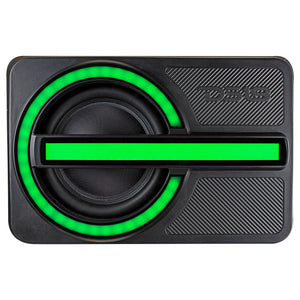

Bronco 6th Gen Loaded Tailgate Enclosure with 12” Subwoofer and RGB LED Lighting
Bronco 6th Gen Loaded Tailgate Enclosure with 12” Subwoofer and RGB LED Lighting
Product Overview

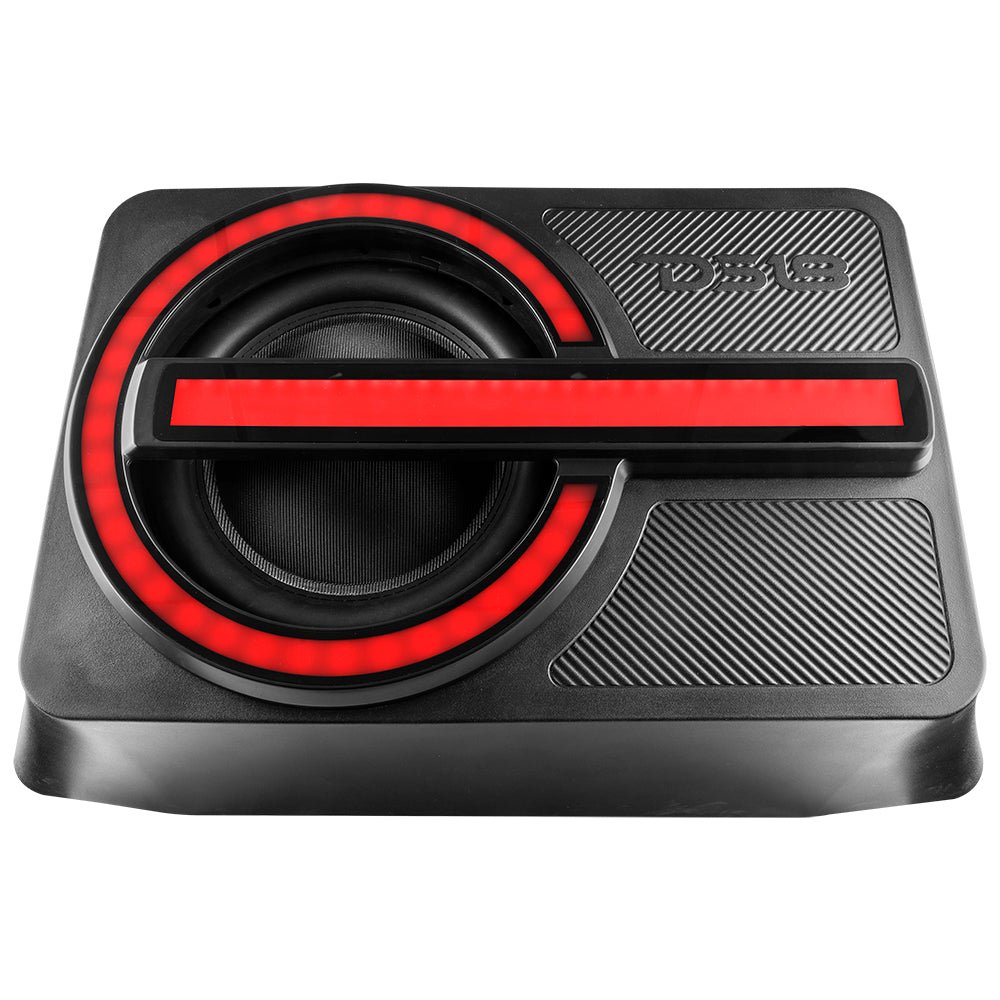

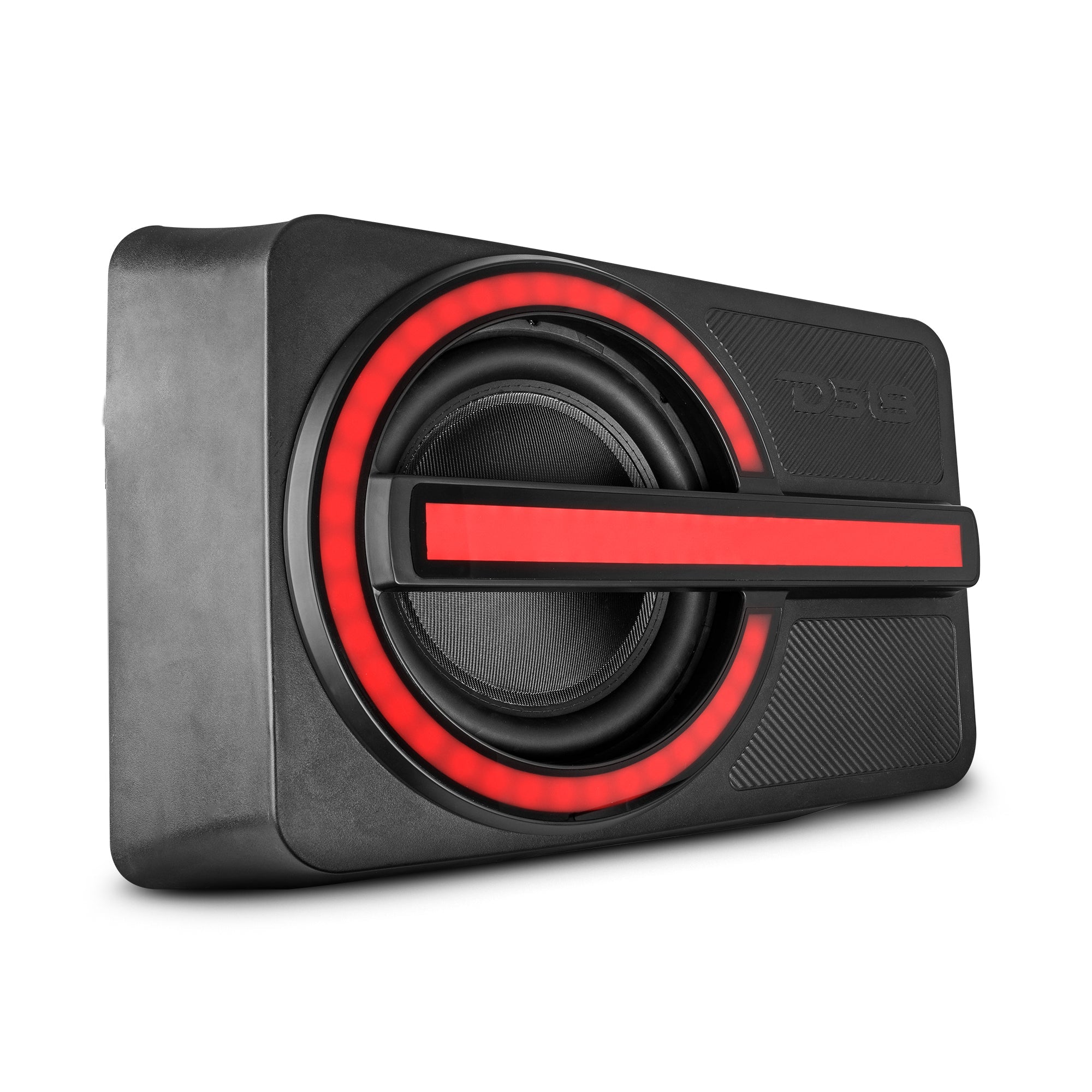

DS18 BRO-BASS Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure
with IXS12.4D
Bring the Boom to your Bronco 6th Gen with DS18’s BRO-BASS!
The BRO-BASS comes with DS18’s IXS12.4D: a shallow subwoofer made for ported boxes and guaranteed to output heavy bass every session! The BRO-BASS was designed to maximize bass response and output without requiring a lot of rear cargo space – the IXS12.4D’s minimized mounting depth (4.33”) makes it the perfect speaker for this enclosure.
These speakers reproduce frequencies as low as 30 Hz and play insanely well in this ported enclosure tuned to 45 Hz.
If you enjoy riding trails with the top down, your speaker is protected! The IPX1 Water Resistance Material used in the BRO-BASS protect it from light rain or moisture damage!
However, this does not mean the BRO-BASS is WATERPROOF!

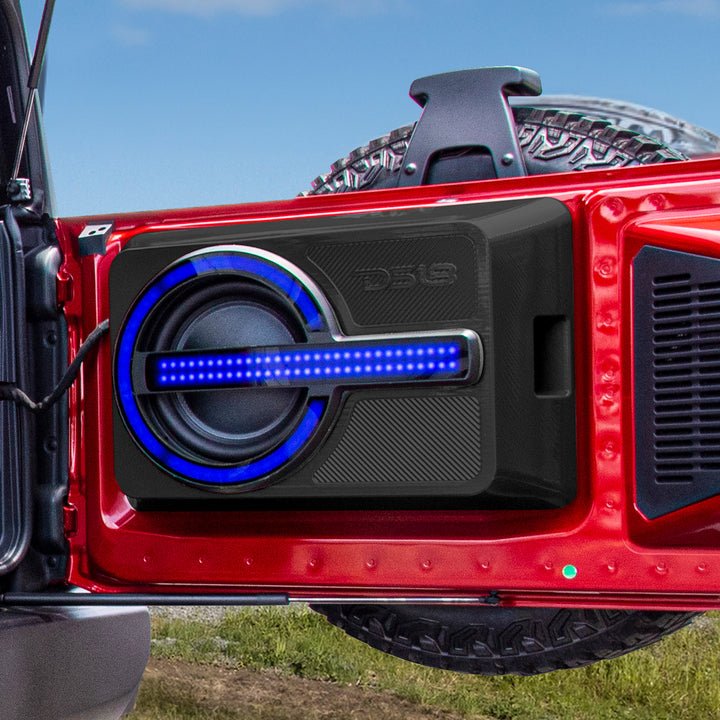

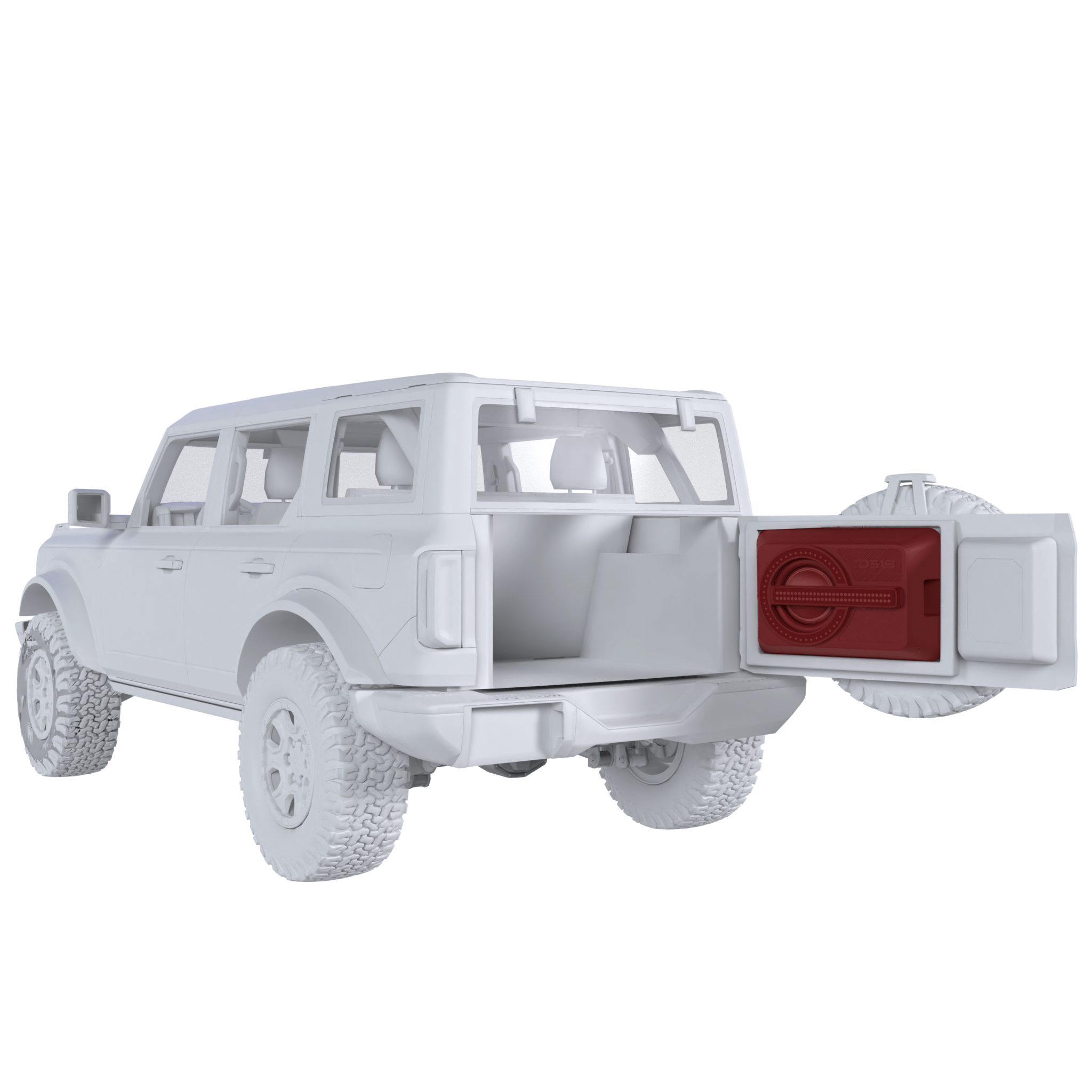

This easy to install ported subwoofer enclosure fits perfectly over the rear paneling in 6th Generation Ford Bronco Tailgates! The detailed instructions in the manual will ensure a seamless installation.
Amplifier Required!
Highlights

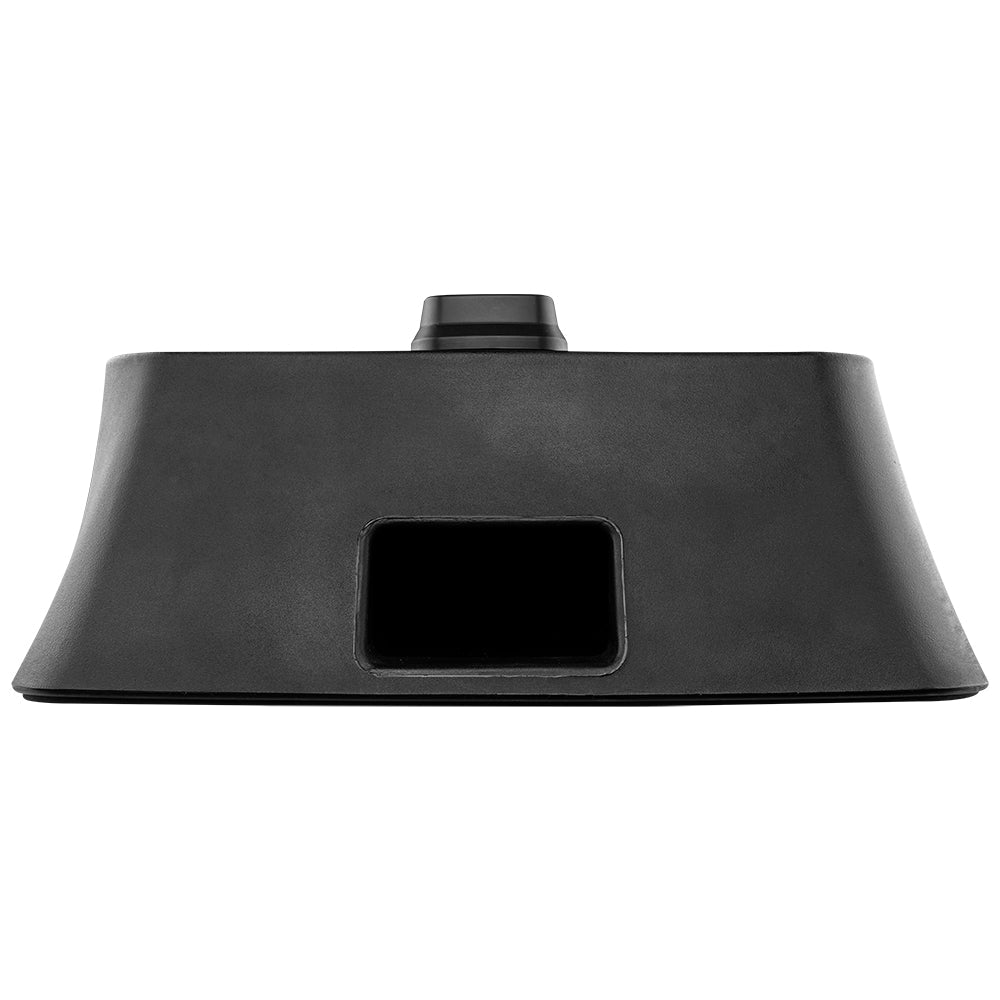

- Ported / Ventilated Box Design For High Output Tuned to 45Hz and an internal volume of 1.2 Cf
- IP11 Water Resistant Material for Light Rain

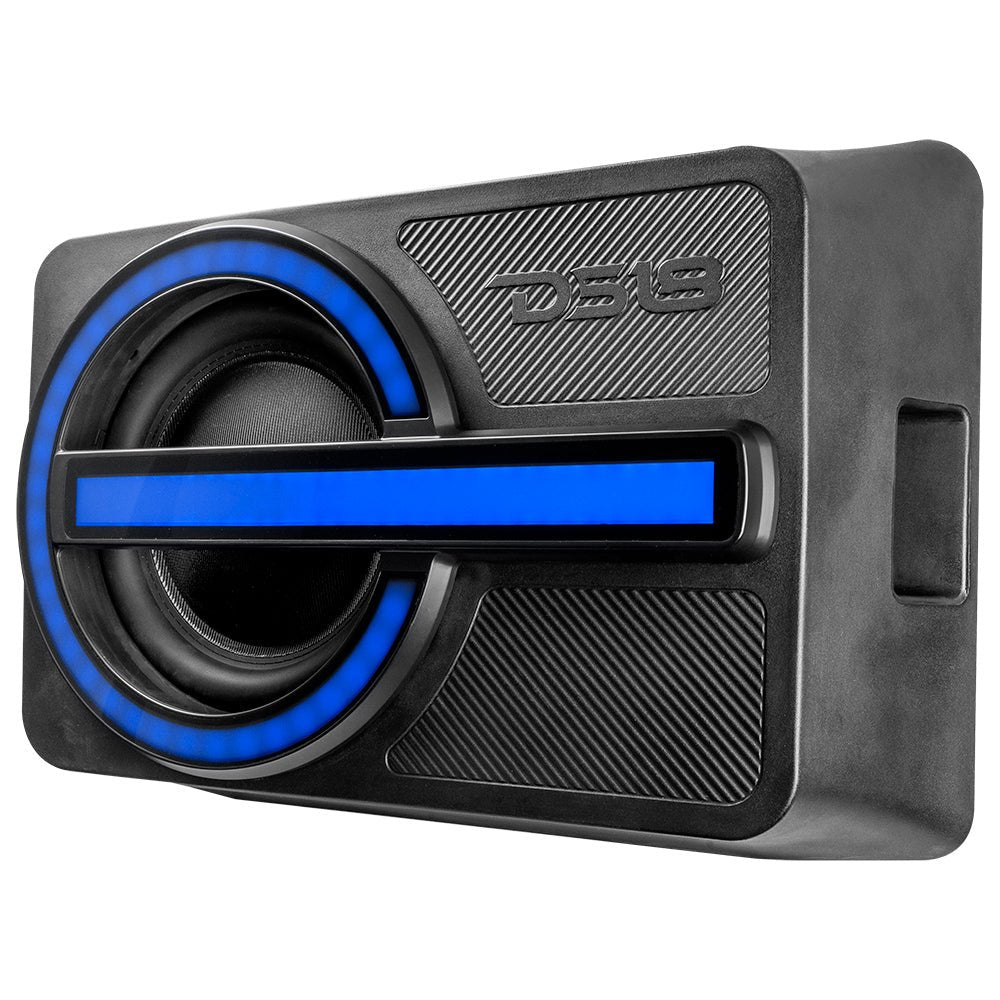

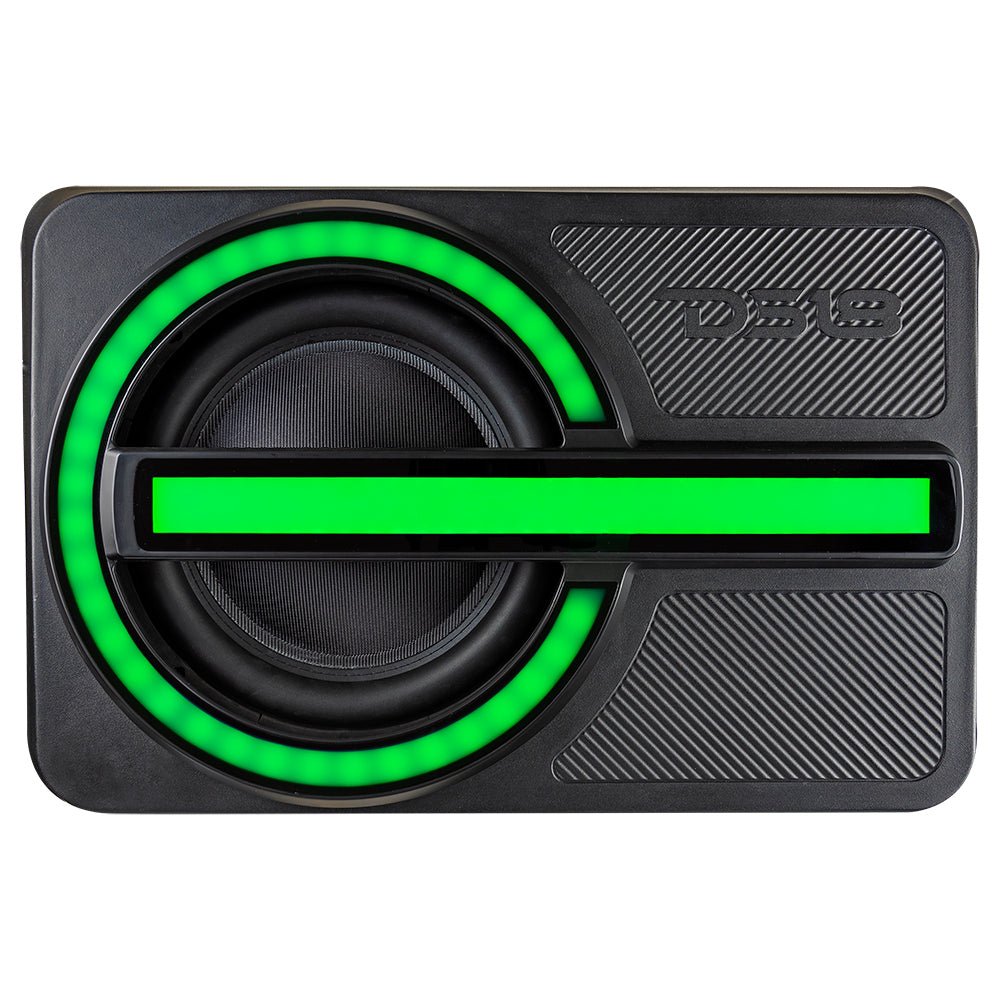

- Exclusive DS18 Design with RGB LED Lighting
- Wiring Included for Speaker and RGB LED
- 12” DS18 IXS 12.4D Subwoofer Included
- Easy-to-Install with Hardware Included
- 4 x 27.4 x 17.8 = L x W x H
Great For
- Ford Bronco 6TH GEN
Technical Details
Key Features
- Loaded Tailgate Subwoofer Enclosure
- 6th Gen Bronco
- 1 X 12" IXS12.4D(800 Watts RMS)
- LED RGB Lights
- Water Resistant Housing IP11
- Installation Hardware Included
Specifications
| SKU | BRO-BASS |
|---|---|
| Speaker Size | 12" / 304mm |
| Total Impedance | 2 Ohms |
| Total RMS Power Handling | 800W |
| Total MAX Power Handling | 1600W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 30Hz-200Hz |
| Recommended Lo Pass Crossover | 80Hz |
| Ported Box for High Output | Yes |
| Water Resistant Materials for Light Rain | Yes (IP11) |
| Exclusive Ford Bronco Design | Yes |
| Injected Molded ABS Grill with Built-in RGB LED lighting | Yes |
| Input Wires for RGB LED and Subwoofer | Yes, 5ft / 1.5m (6 Cores) |
| Subwoofer Included | Yes, 12" (IXS12.4D) |
| Installation Hardware Included | Yes, 3 x 6M screws / 3 x 6M rivet nut |
| Easy to Install | Yes, fits on the tailgate and secures using the factory bolt location |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched rubber |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Internal Volume | 34L / 1.2ft3 |
| Port Tune Fb | 45Hz |
| Load Configuration | Parallel |
| Box Type | Front Loaded Ported |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| -3Db Dropping Point F3 | 36Hz |
| Overall Height | 17.81" / 452.3mm |
| Overall Width | 27.4" / 695.6mm |
| Overall Depth | 7.4" / 188mm |
