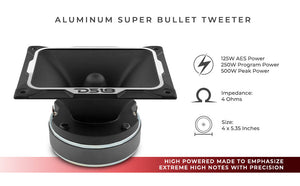

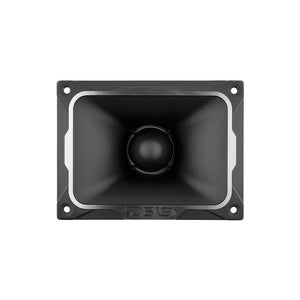

Product Overview

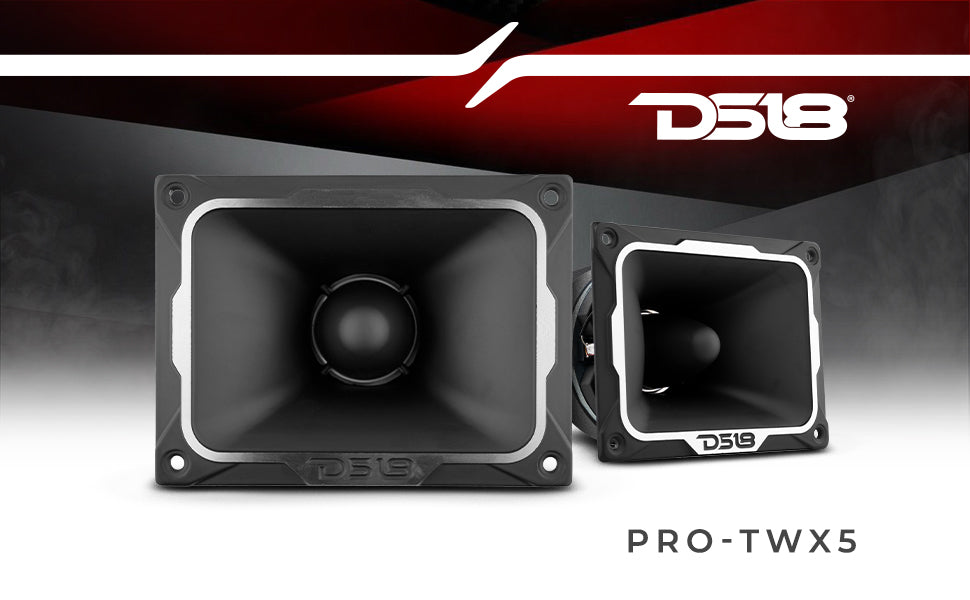

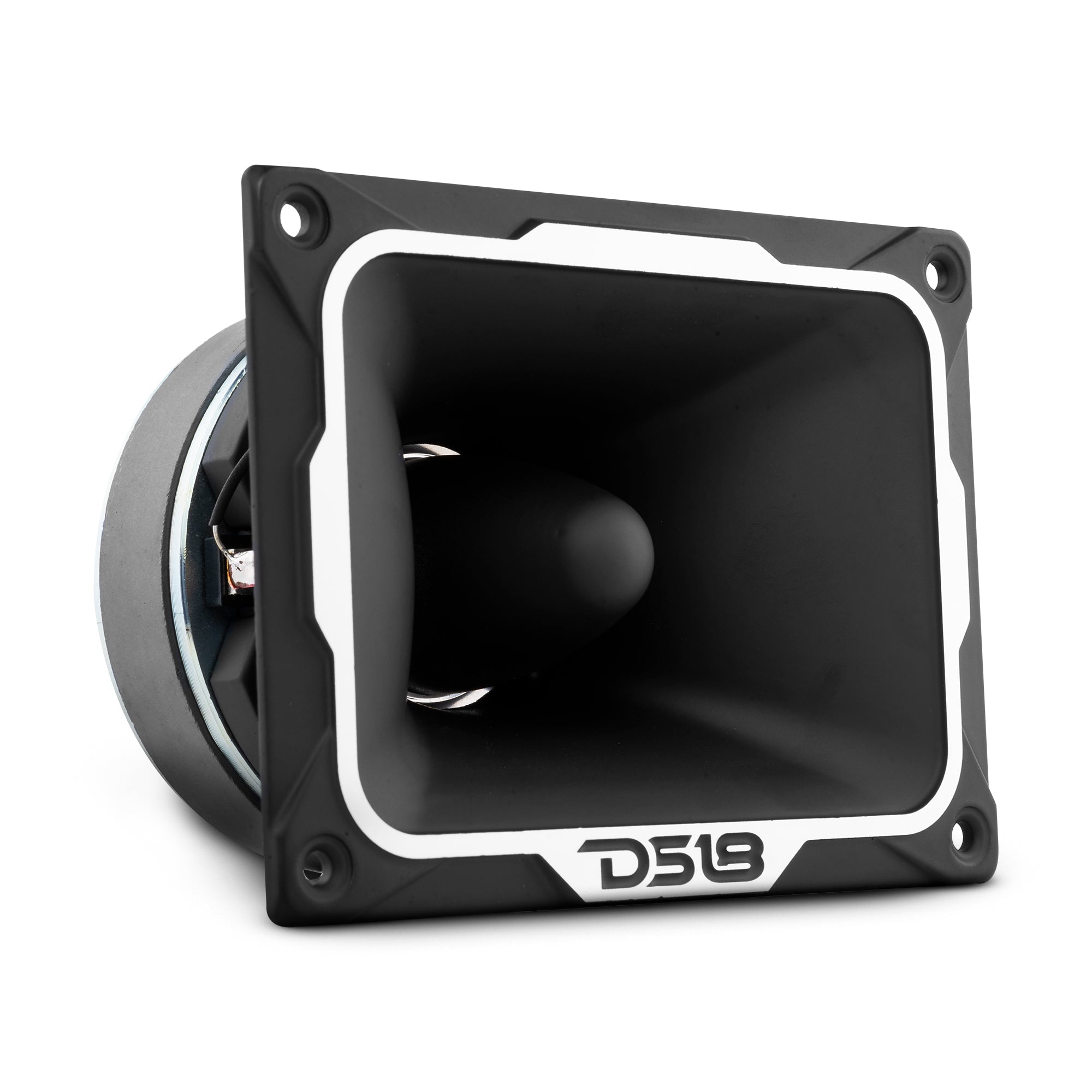

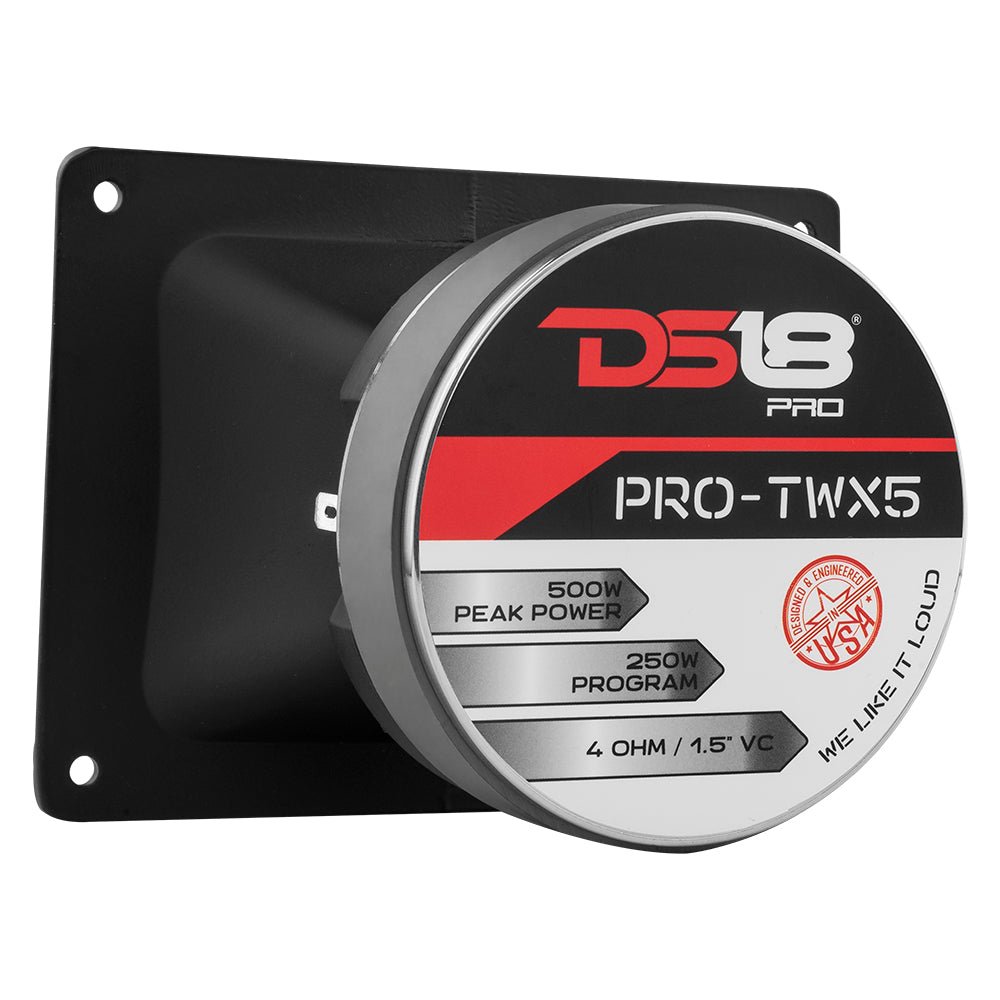

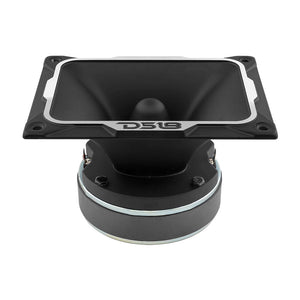

DS18 PRO-TWX5 4 x 5.35" Super Bullet Tweeter 500 Watts 1.5" Aluminum 4-Ohm Vc

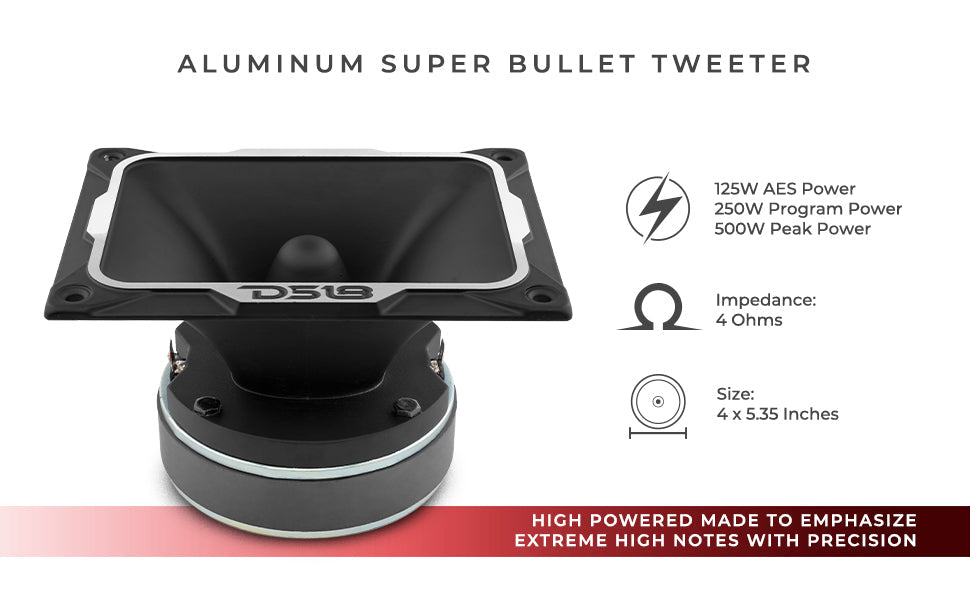

DS18's new 4 ohms super tweeter is sleek and refined after many years of testing and development. These aluminum housings hold a titanium 1.5 inch voice coil rated for 250w RMS and 500w Max power with a ferrite motor structure. With a 107dB sensitivity rating, these tweeters do not need a lot of power to get extremely loud. These tweets have a range of 3KHz to 20KHz so you will be sure you wont miss one crack of the high hat!
Highlights
- Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.

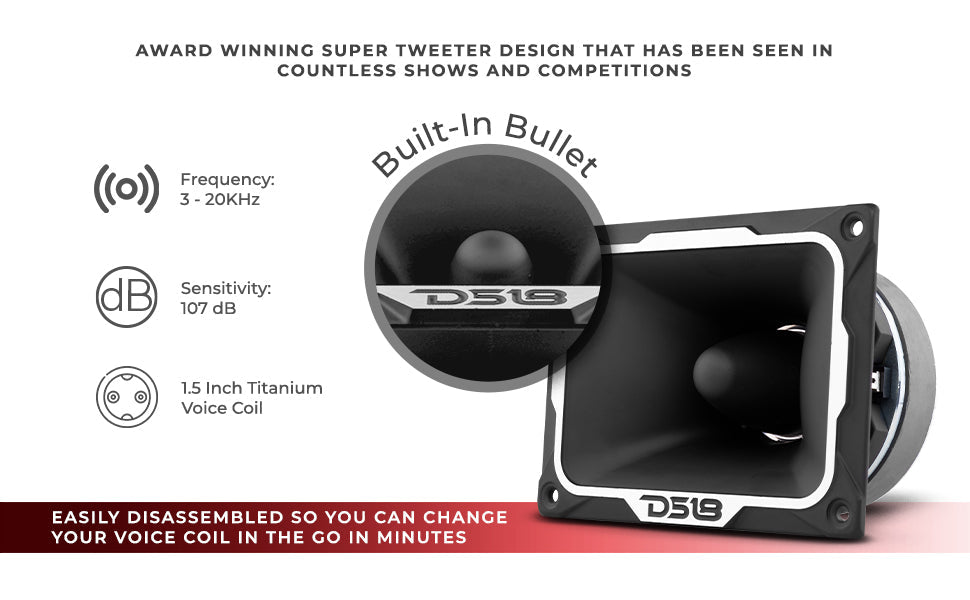

- Easily disassembled so you can change your voice coil in the go in minutes.
- Various sizes signified by their respective model number so you can fit the largest tweeter you can in the space you have available for the loudest volume.
Technical Details
| Model: | PRO-TWX5 |
| Type: | Super Bullet Tweeter |
| Nominal Diameter | 4x5.35" |
| Peak Power Handling | 500 Watts |
| Program Power Handling | 250 Watts |
| AES Power Handling | 125 Watts |
| Voice Coil Diameter: | 1.5" |
| Sensitivity: | 107 dB |
| Impedance: | 4 Ohms |

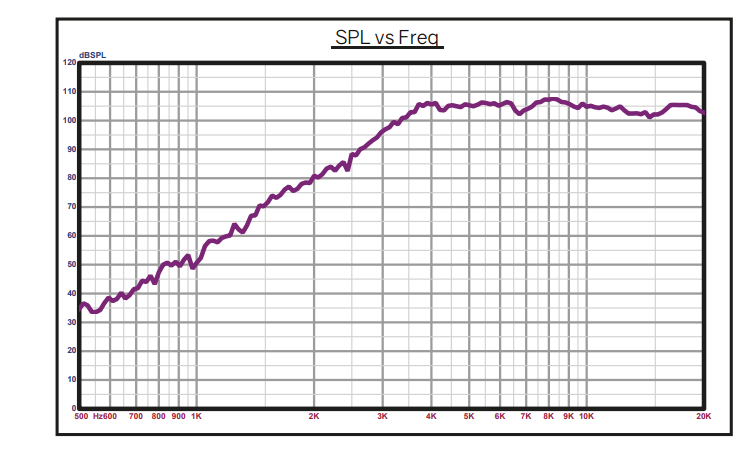

| Frequency Response: | 3KHz - 20KHz |
| Package Quantity: | 1 |
| Magnet | Ferrite |

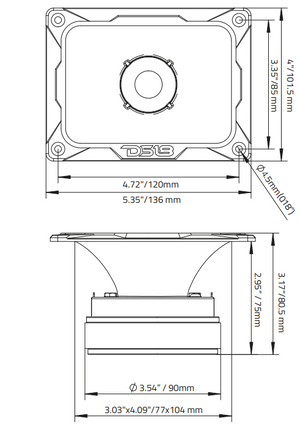

| Measurement | |

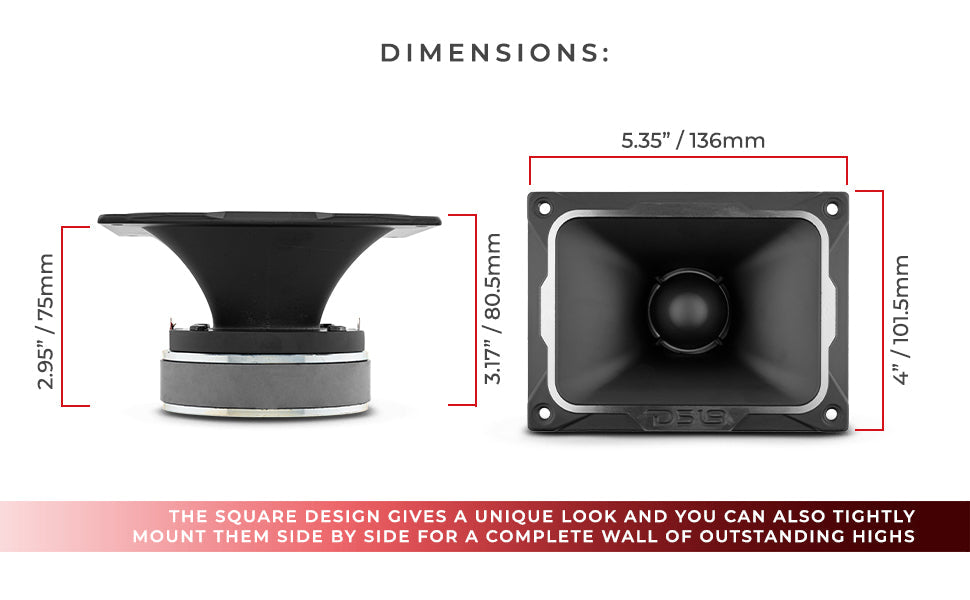

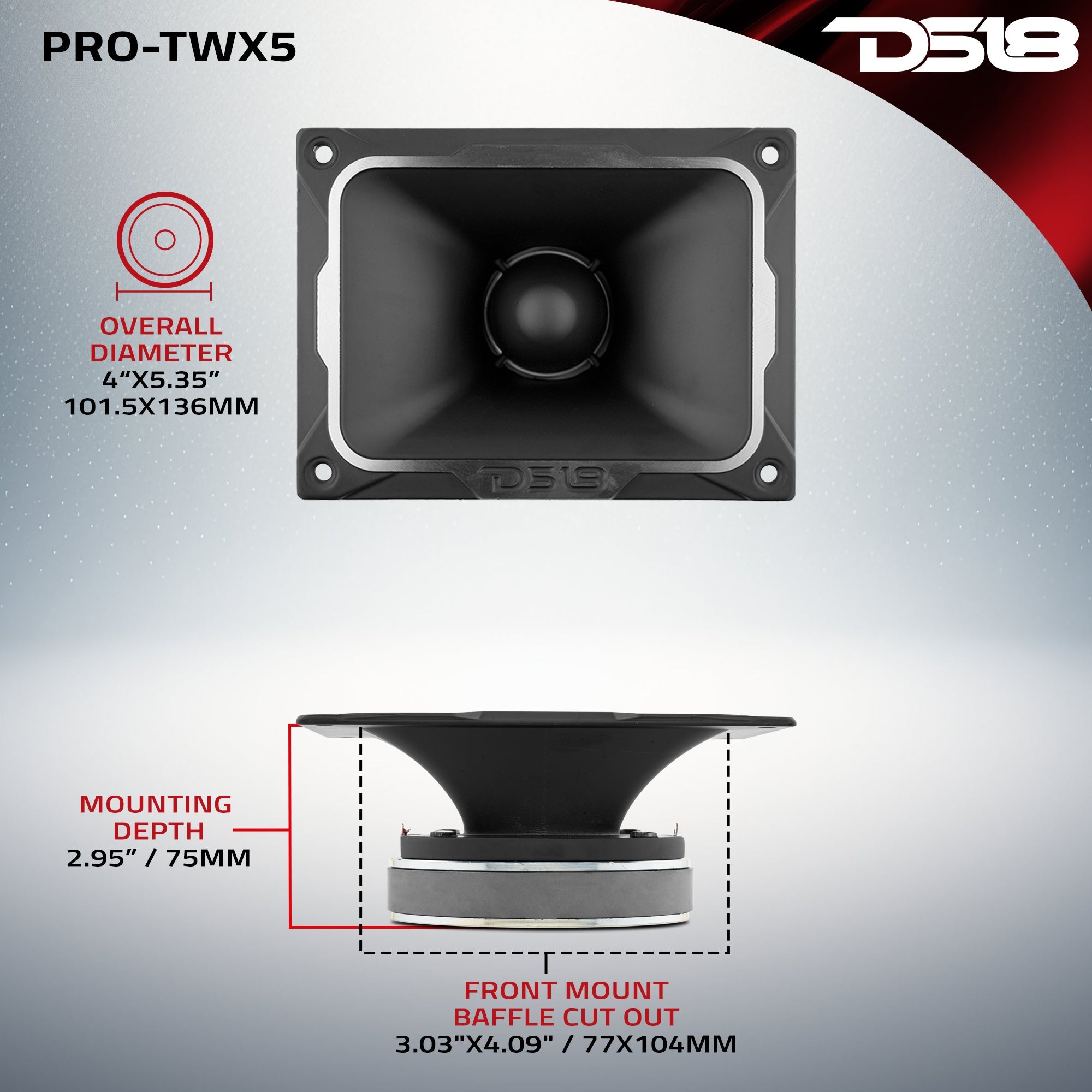

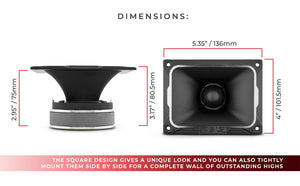

| Overall Width | 4" x 5.35" |
| Overall Depth | 3.17" |
| Front Mount Baffle Cutout | 3.03"x4.09" |
| Mounting Depth | 2.95" |
Key Features
- 4 x 5.35" Super Bullet Tweeter
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4 Ohm ~ 107dB
- Ferrite Magnet
- Easily Repaired With The PRO-TW5.8VC
Specifications
| SKU | PRO-TWX5 |
|---|---|
| Nominal Diameter | 4" x 5.35" / 101.5 x 136mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 107 dB |
| Frequency Response | 3K-20Khz |
| Recommended Hi Pass Crossover | 3Khz |
| Sold In Pair or Single | Single |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black / Silver Trim |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 14 Oz |

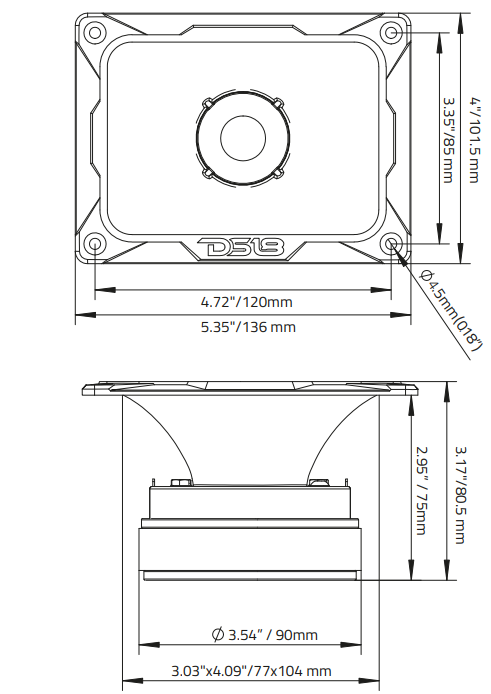

| Overall Diameter | 4" x 5.35" / 101.5 x 136mm |
| Overall Depth | 3.17" / 80.5mm |
| Front Mount Baffle Cutout | 3" x 4" / 77 x 104mm |
| Mounting Depth | 2.95" / 75mm |
| Motor Diameter | 3.5" / 90mm |
| Gross Single Unit Weight (lb) | 3 |
| Single Unit Box Dimensions W x L x H (Inches) | 6.25 x 4.5 x 3.5 |
| Quantity of Units in Master Carton | 12 |
| Gross Master Carton Weight (lb) | 34 |
| Master Carton Dimensions W x L x H (Inches) | 13 x 9 x 11.25 |
