3" Die Cast Compression Neodymium Super Bullet Tweeter 1" Titanium | 120W RMS 4-Ohm
Product Overview DS18 GTX1 3" Die Cast Compression Neodymium Super Bullet Tweeter 240 Watts 1" Titanium 4-Ohm...
- $41.95
- $41.95
- Unit price
- per
Subtotal:
$41.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 GTX1 3" Die Cast Compression Neodymium Super Bullet Tweeter 240 Watts 1" Titanium 4-Ohm Vc
The new standard of neodymium tweeters have broken onto the audio scene like a freight train! These large tweeters come with high precision 1 inch Titanium voice coils that are sure to leave your ears tingling. The housing is cast out of high strength aluminum with DS18 stamped on the front. The high quality mesh grill will look amazing while also protecting your investments! These tweeters have an RMS rating of 120w at 4 ohms and are your solution to crispy clean highs in your audio system!
Highlights
- Highly powerful and extremely loud super tweeter for its size.
- High versatility as these super tweeters can be mounted anywhere you have space for them.
- Easily disassembled and can be repaired on the spot in 60 seconds if you find yourself pushing them past their limits.
Technical Details
| Model: | GTX1 |
| Peak Power Handling | 240 Watts |
| Program Power Handling | 120 Watts |
| AES Power Handling | 60 Watts |
| Sensitivity: | 98dB |

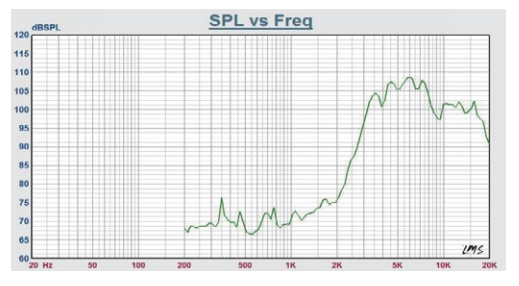

| Frequency Response: | 3KHz - 20KHz |
| Impedance: | 4 Ohms |
| Voice Coil Diameter: | 1" (25mm) |
| Magnet: | Neodymium |
| Package Quantity: | 1 |

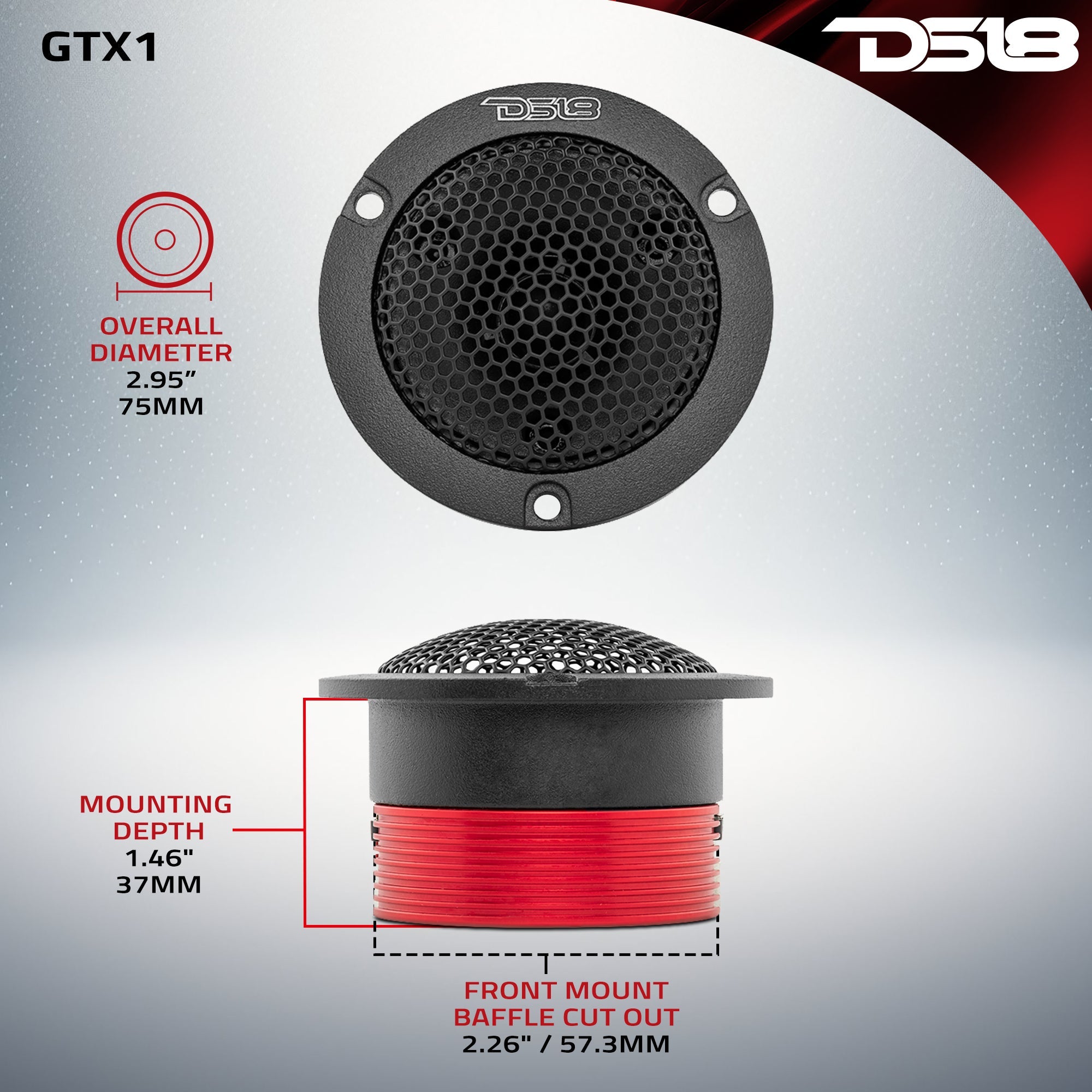

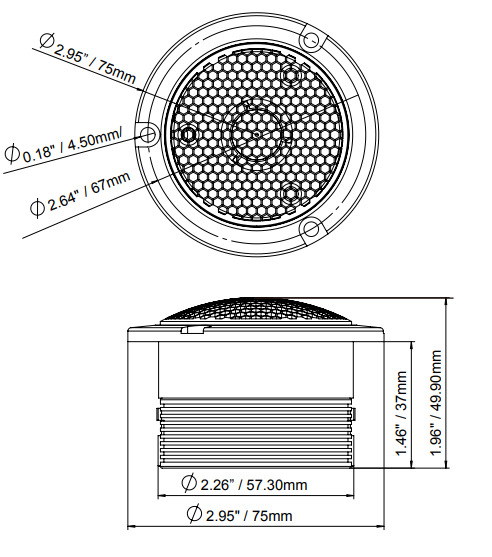

| Measurements | |
| Overall Depth | 1.96" |
| Mounting Depth | 1.46" |
| Overall With | 2.95" |
| Cutout Diameter | 2.26" |
Key Features
- 3" Compression Super Bullet Tweeter
- RMS Power: 120 Watts(240 Watts Peak)
- Impedance: 4 Ohm ~ 98dB
- Flush Mount with Grill
- Neodymium Magnet
- Easily Repaired With The GTX1VC
Specifications
| SKU | GTX1 |
|---|---|
| Nominal Diameter | 3" |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 3KHz - 20KHz |
| Recommended Hi Pass Crossover | 3 KHz |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | KSV |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Body Material | Aluminum |
| Overall Diameter | 2.95" / 75mm |
| Overall Depth | 1.96" / 49.9mm |
| Front Mount Baffle Cutout | 2.26" / 57.3mm |
| Mounting Depth | 1.46" / 37 mm |
| Product Weight | 1 lbs |
| Product Dimensions | 4 x 3.5 x 2.5 |
| M/C Weight | 23.5 lbs |
| M/C Dimensions | 18 x 8.75 x 8.5 |
| M/C QTY | 30 |
| Sold In | Piece |
