Product Overview
DS18 AHDRC
Universal Camera for Front/Rear Position Selectable with Adjustable AHD/CVBS System

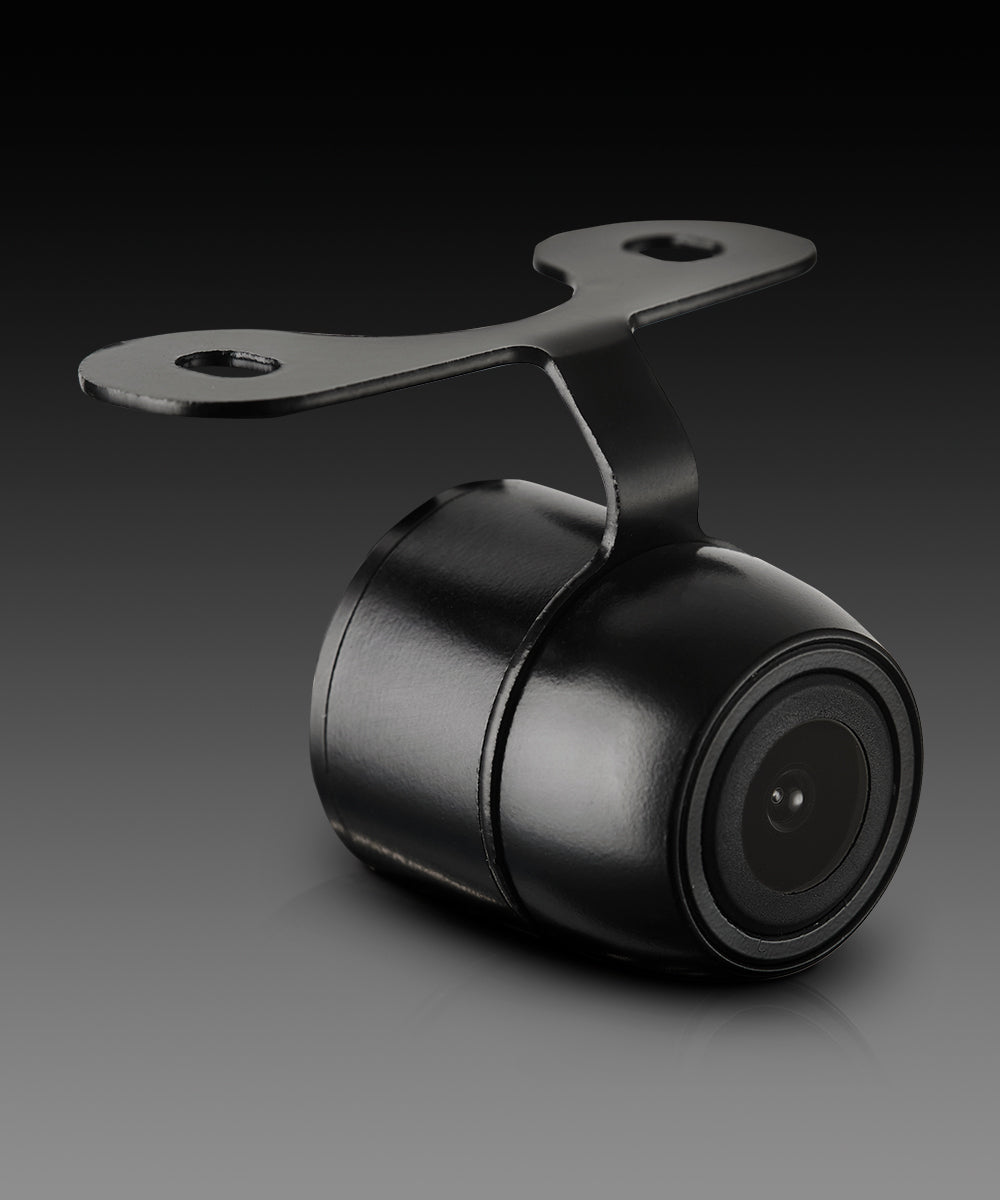

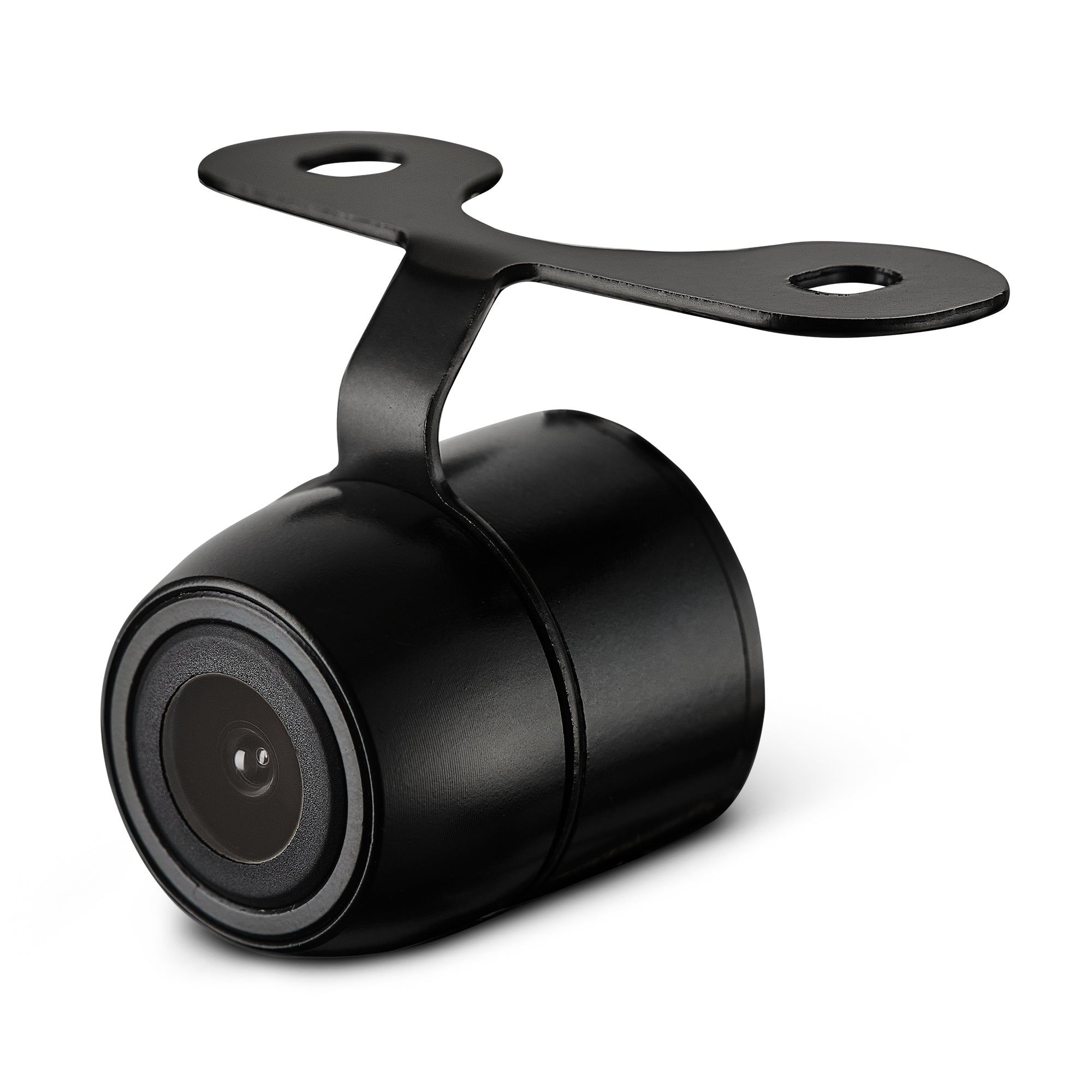

DS18’s AHDRC is the ultimate solution for vehicle safety and convenience. This universal camera can be used as a front, rear, or interior view camera, featuring a selectable AHD/CVBS system for flawless compatibility across a broad range of devices.
Designed with precision, the AHDRC features a 150° wide-angle lens that captures an expansive view of your surroundings, while advanced night vision capabilities provide superior clarity and confidence on the road.
Crafted from durable aluminum with a sleek black finish and a robust IP68 waterproof rating, the AHDRC ensures performance even in the harshest conditions. The glass-plastic hybrid lens guarantees optimal image quality, while adjustable parking guide lines offer customizable assistance tailored to your preferences. The universal flush and surface mount options make installation straightforward and adaptable to various vehicle types.

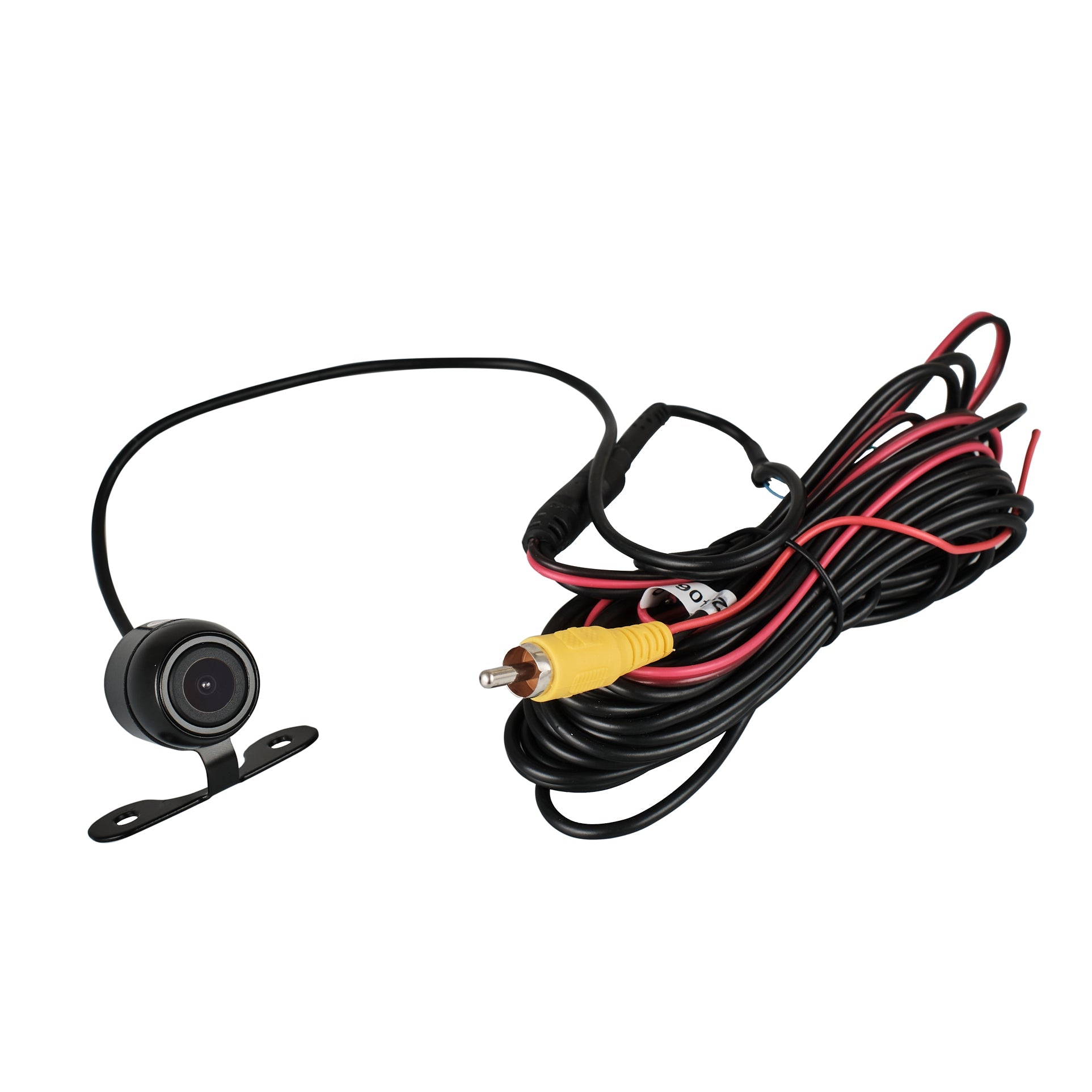

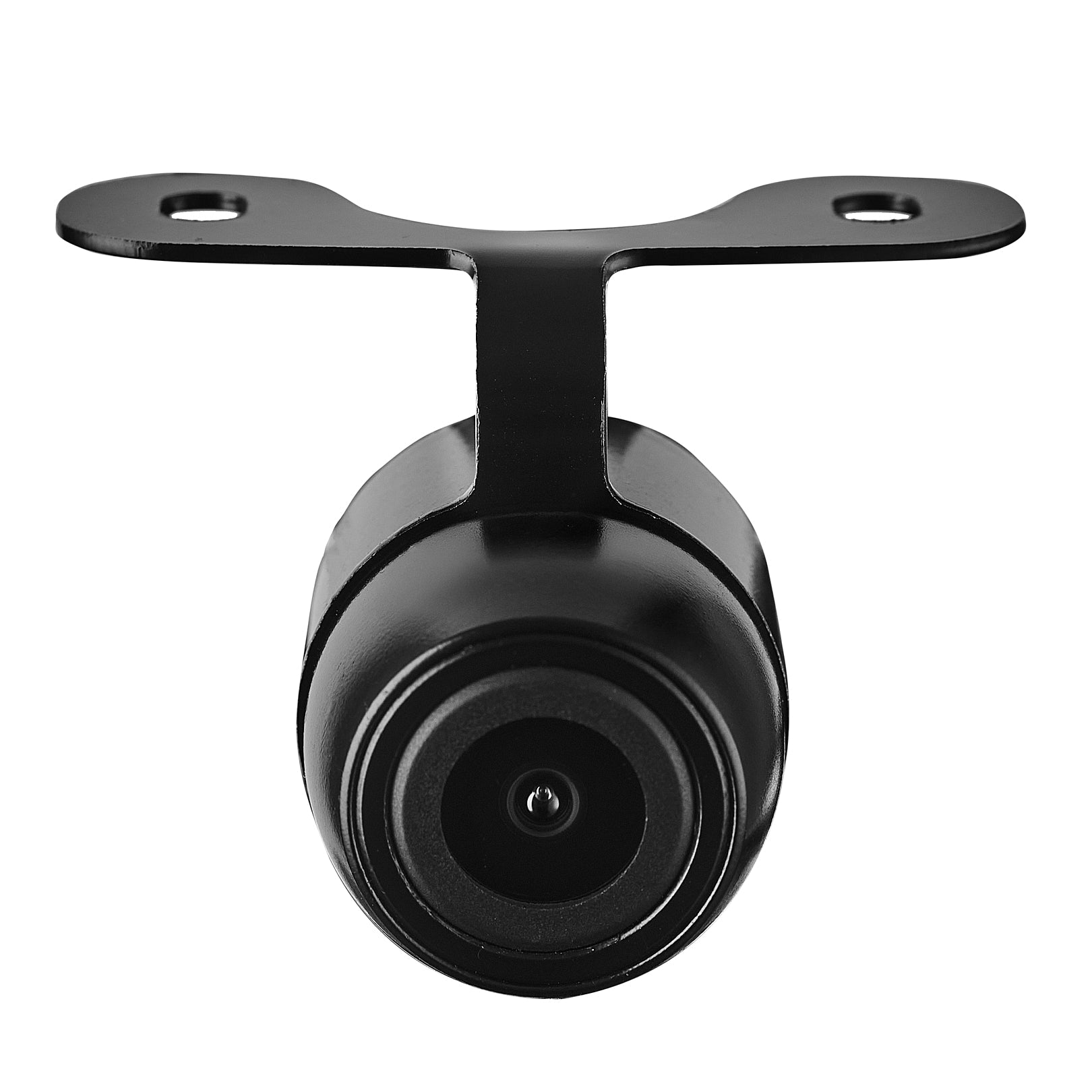

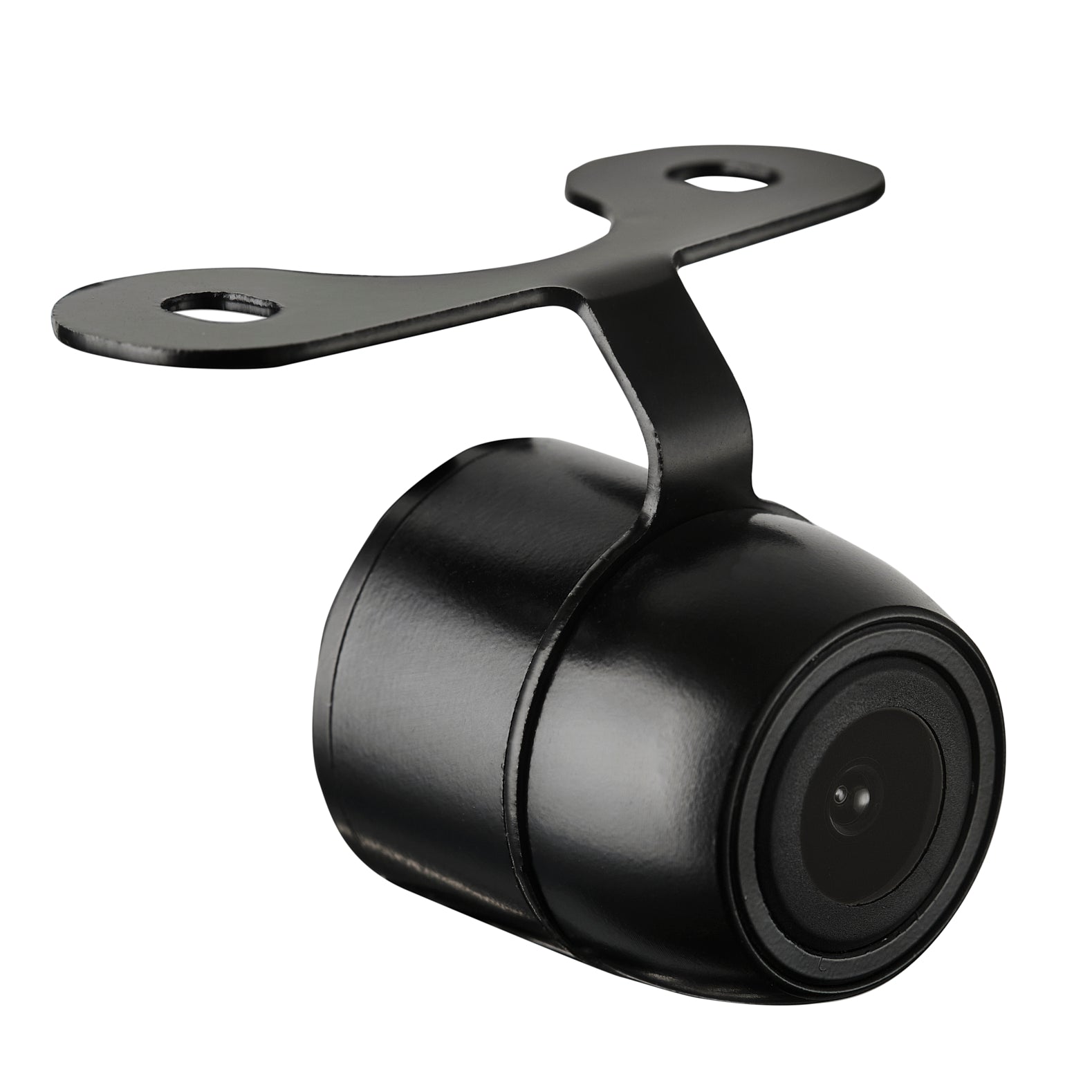

The AHDRC comes fully equipped with everything you need for a seamless setup: a surface mount bracket, flush mount ring, RCA wire harness, and more. Its adjustable viewing angle of up to 45° allows for perfect positioning to suit any application.
Key Features
- Back Up Camera
- Surface Mount ~ Front or Rear
- High Resolution / Low Illumination
- Full Color, Parking Guide
- AHD / CVBS Systems
- Water Proof IP68
Specifications
| SKU | AHDRC |
|---|---|
| Camera Type | 12V AHD/CVBS |
| Mounting Type | Universal Surface or Flush mount |
| Location Mode (Front/Rear) | Front or Rear |
| Adjustable Modes | Front/Rear, Parking Lines ON/OFF, AHD/CVBS |
| Parking Guide Lines | Selectable (ON-OFF) |
| Night Vision | Yes |
| Lens Material | Glass-Plastic Hybrid (1G3P) |
| Housing Material / Color | Aluminum / Black |
| Adjustable Mount Angle | Yes up to 45° |
| Waterproof Rating | IP68 |
| Wiring Length (Video) | 20ft / 6m |
| Wiring Length (Power) | 3ft / 1m |
| Lens Viewing Angle | 150° |
| Image Sensor Size | 1/4.5" |
| TV System | AHD 25 / NTSC |
| Effective Pixels | 1080x720 (AHD) / 640x480 (CVBS) |
| Resolution | Up to 720P |
| Minimum Illumination | 0.1 lux |
| Video Output | 1.0 Vp-p / 75 ohms |
| Auto Gain Control (AGC) | Yes |
| Black Light Compensation (BLC) | Yes |
| S/N Ratio | >48dB |
| White Balance | Yes |
| Electronic Shutter | Electronic Rolling Shutter |
| Current Consumption | 80mA |
| Operating Voltage | 8-15V |
| Operating Temperature | -4°F~140°F / -20°C~60°C |
| Storage Temperature | -22°F~158°F / -30°C~70°C |
| Overall Length | 1" / 27mm |
| Overall Diameter | 0.88" / 22.5mm |
| Mounting Hole Diameter | 0.7" / 18mm |

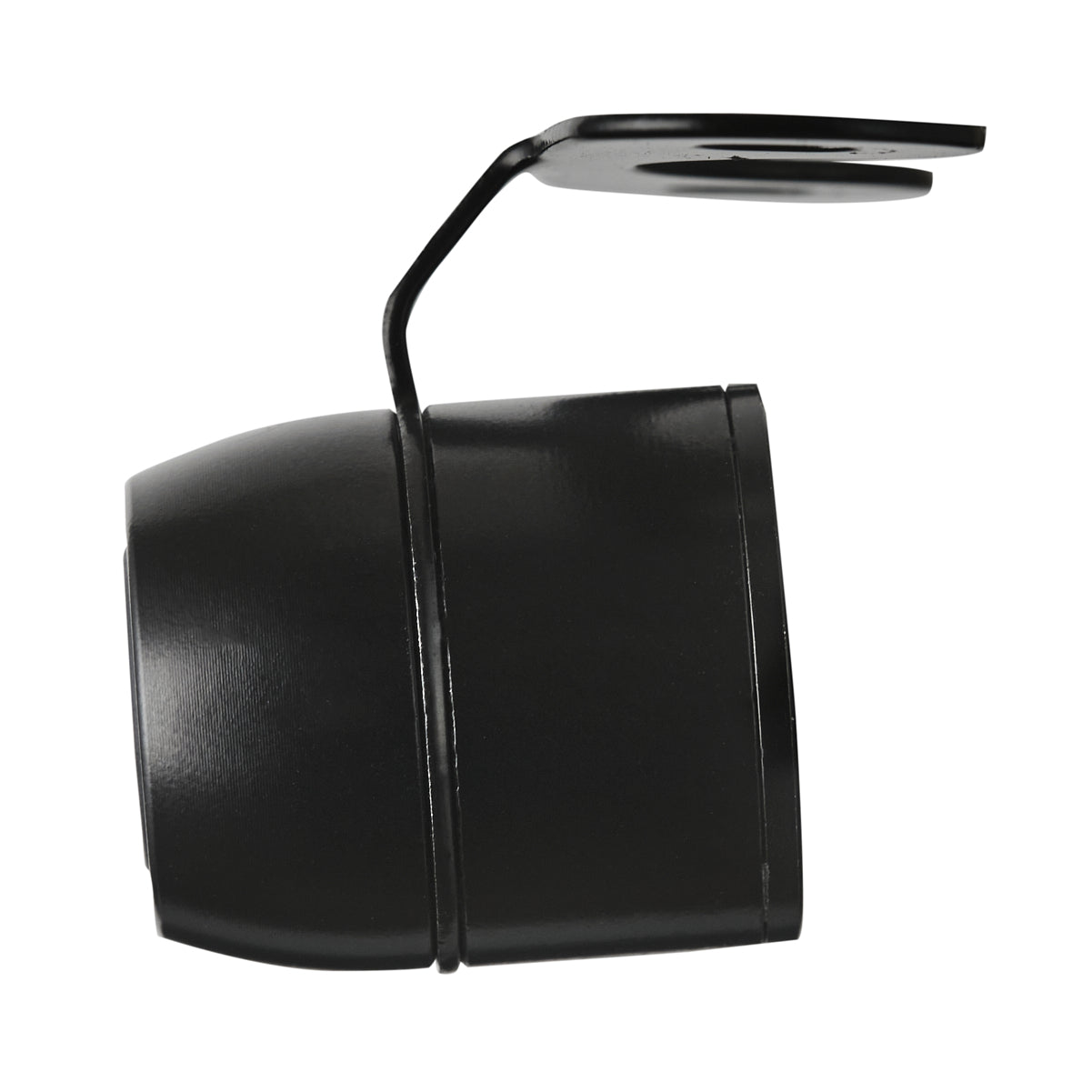

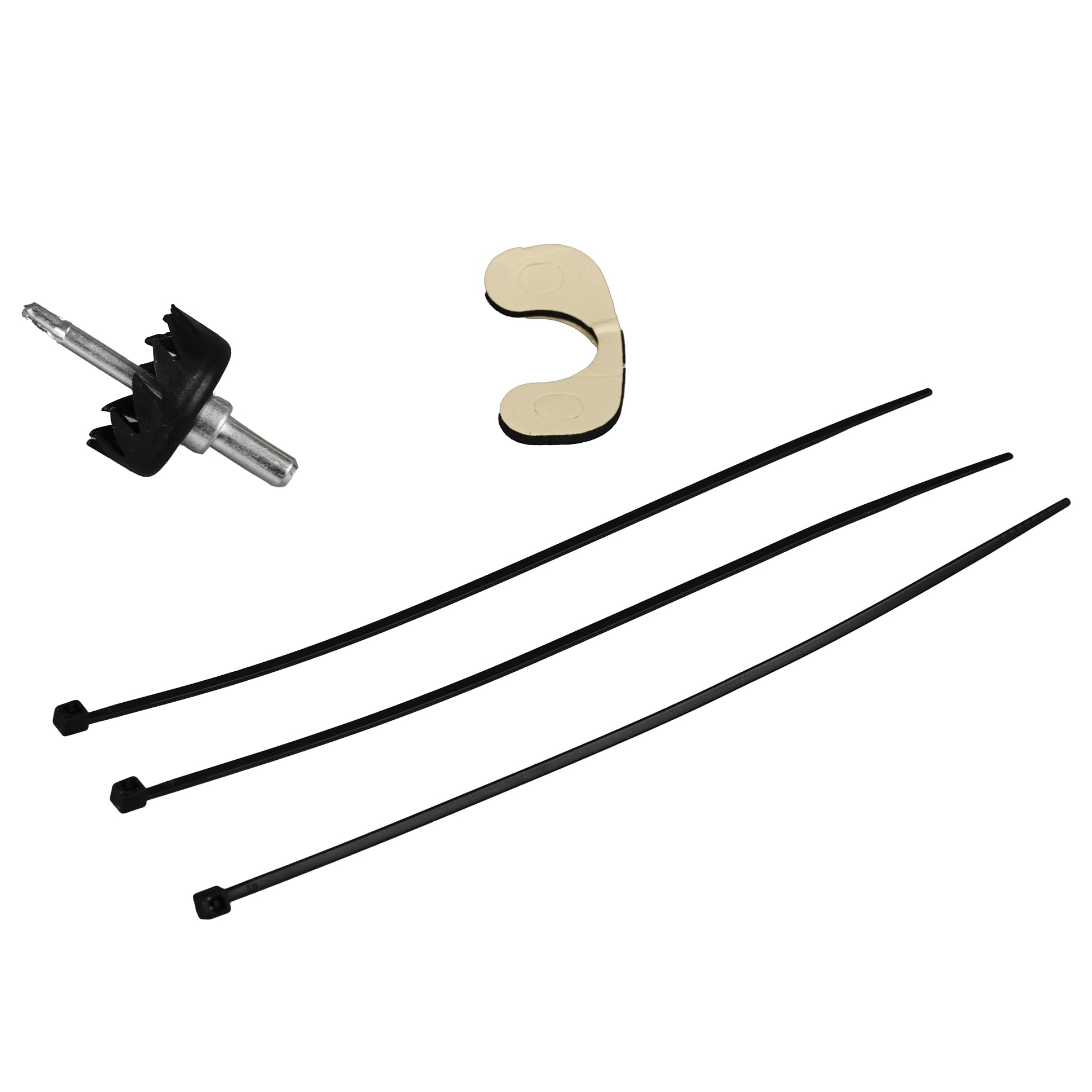

| Bracket for Surface Mounting | 1pc |
| Double-Side Foam Tape for Surface Mounting | 1pc |
| Screws for Surface Mounting | 2pcs (PWA 3x10mm) |
| Hole Saw for Flush Mounting | 1pc (22.5mm) |

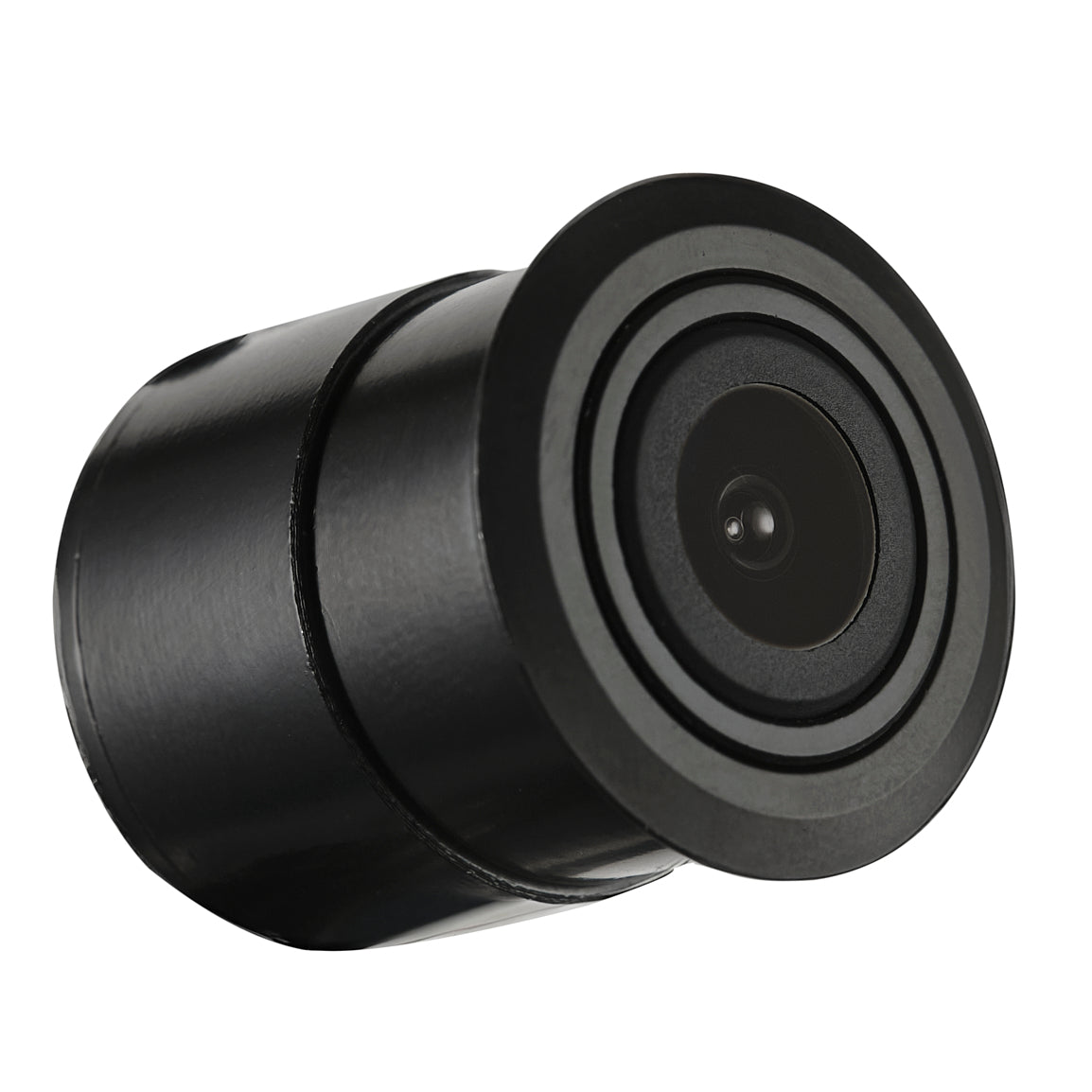

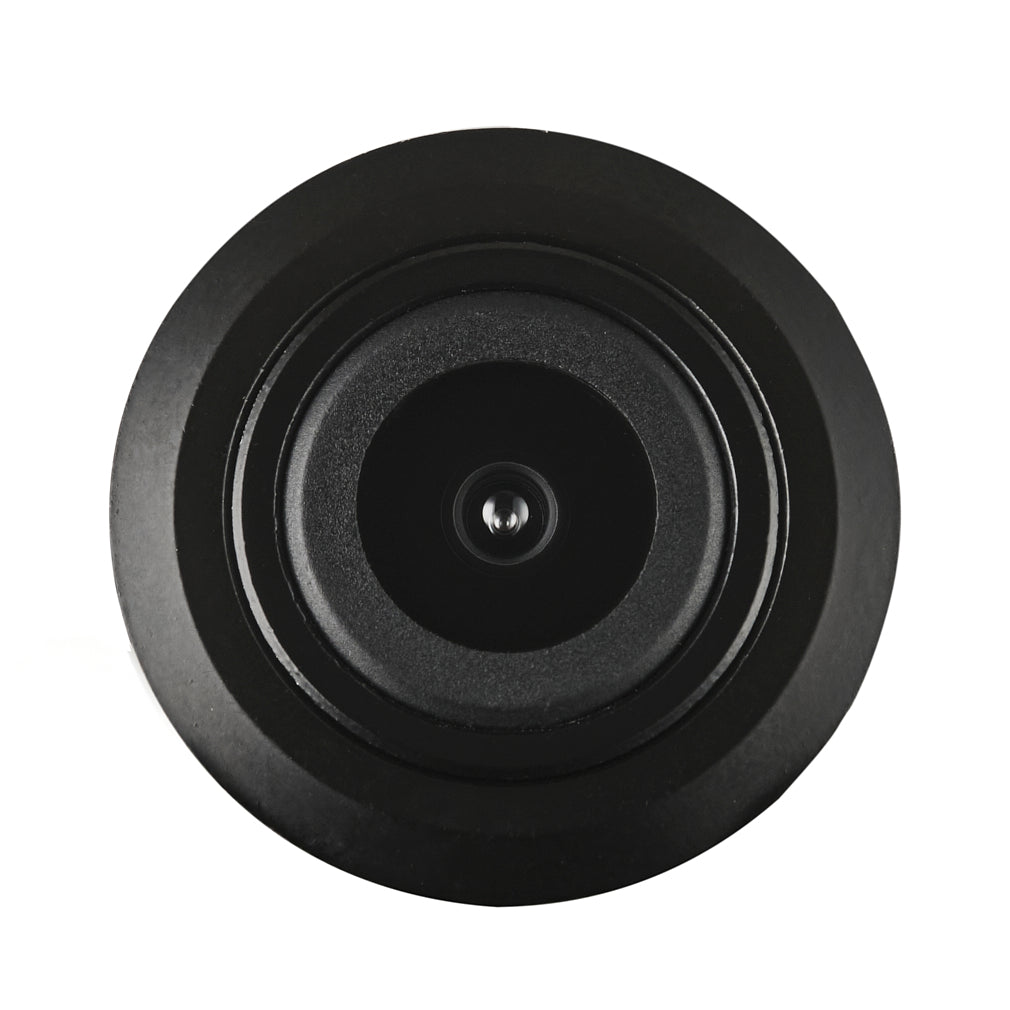

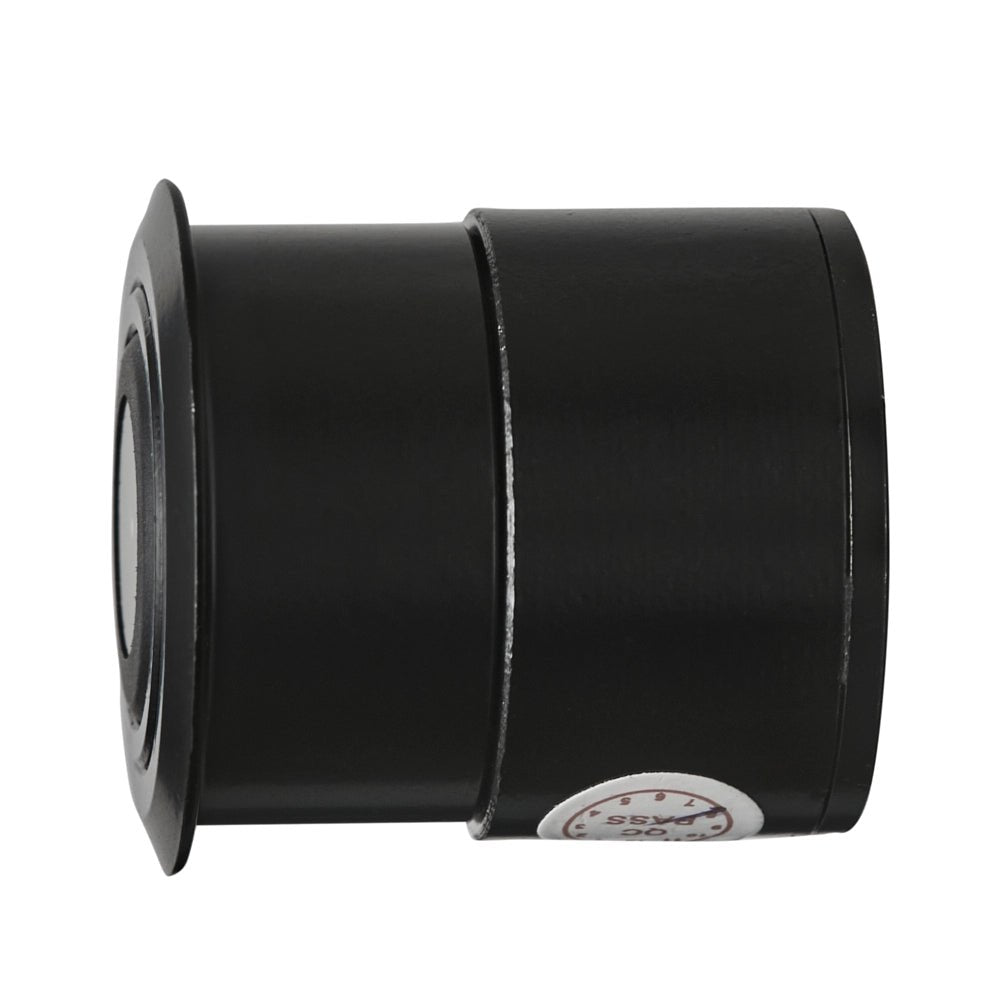

| Ring for Flush Mounting | 1pc |
| RCA Wire | 1pc (20ft/6M) |
| Cable Ties | 4pcs (3x150mm) |
