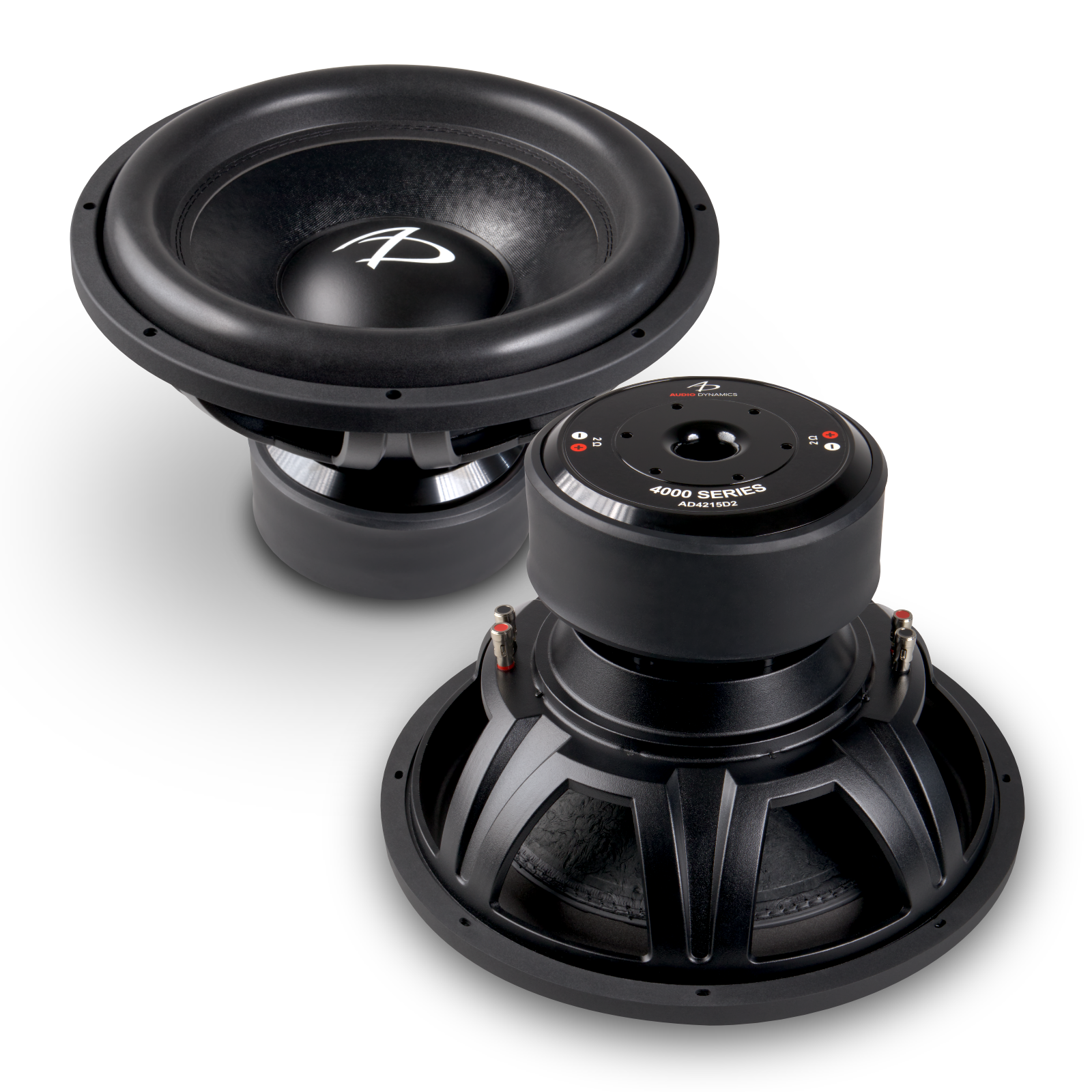

15" Subwoofer
The 4000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 32.270 Hz
Qms 5.779
Vas 43.730 liters
Cms 0.051 mm/N
Mms 471.000 g
Rms 16.705 kg/s
Dia 314.400 mm
Sd 776.345 sq cm
Qes 0.527
Re 4.298 ohms
Le 2.738 mH
Z 5.158 ohms
BL 27.897 Tm
BL^2/Re 181.075 N^2/W
Qts 0.483
no 0.269 %
SPL 86.439 dB
EBP 61.187
Xmax 23.5 mm
Nominal Diameter 15in
Overall Diameter in / mm
Mounting Hole Diameter 14.17in / 359.92mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.72 in / 196 mm
Mounting Depth in / mm
Required Pole Vent Clearance
Driver Displacement 0.157 cu ft / 4.47 l
Minimum Sealed Volume N/A
Minimum Vented Volume 1.82 cu ft / l net*
