AUDIO DYNAMICS

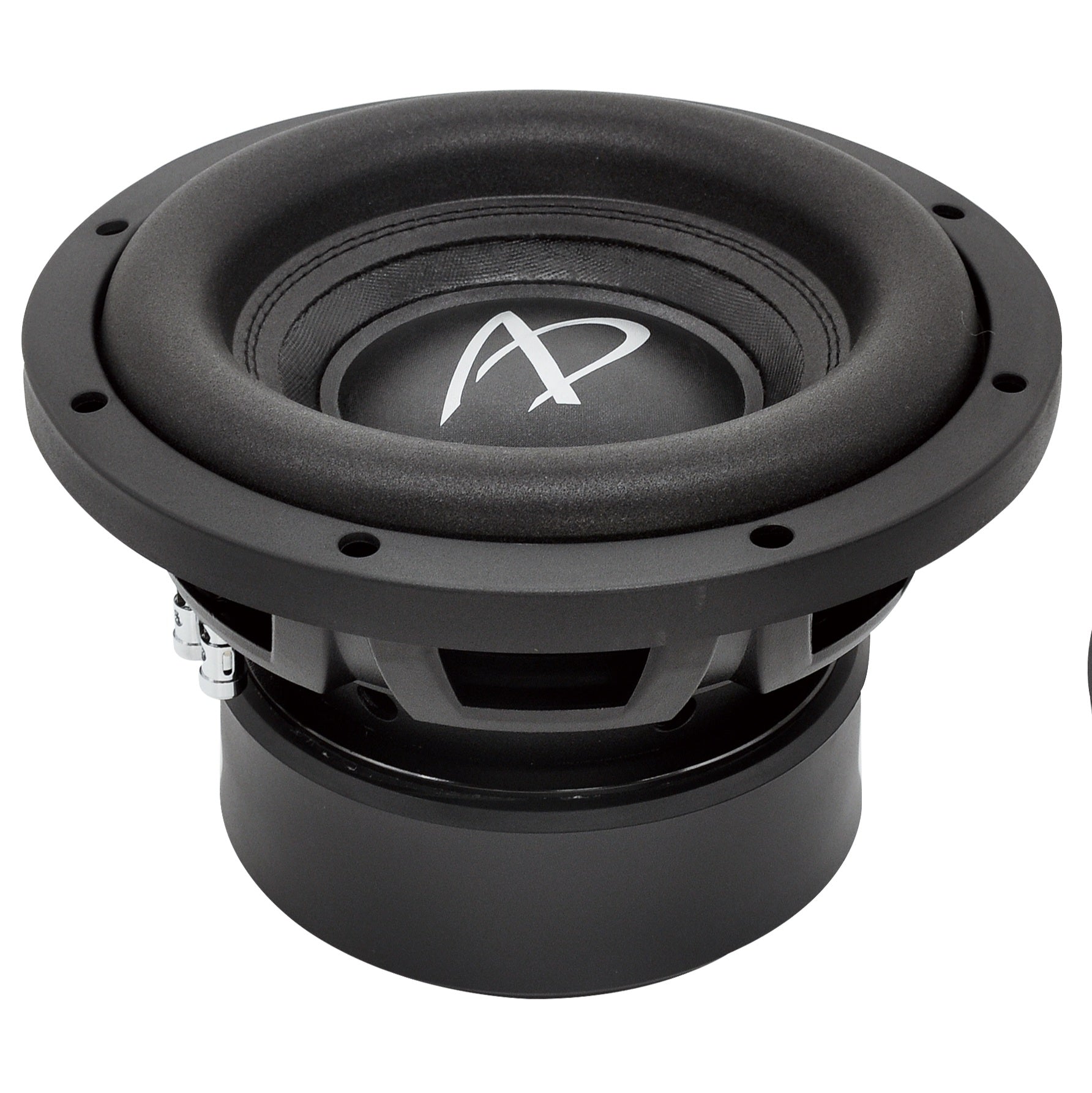

10" Subwoofer
The 3000 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 33.86 Hz
Qms 6.086
Vas 12.41 liters
Cms 0.0787 mm/N
Mms 280.9 g
Rms 9.812 kg/s
Dia 206 mm
Sd 333.3 sq cm
Qes 0.48
Re 4 ohms
Le 2.77 mH
Z ohms
BL 22.31 Tm
BL^2/Re N^2/W
Qts 0.445
no %
SPL 82.9 dB
EBP
XMax 16.5mm
Nominal Diameter 10in
Overall Diameter 11.02in / 280mm
Mounting Hole Diameter 9 3/16in / 233mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.08in / 180mm
Mounting Depth 6.4in / 163mm
Required Pole Vent Clearance
Driver Displacement 0.087 cu ft / 2.465 l
Minimum Sealed Volume
Minimum Vented Volume cu ft / l net*
* Tune for desired response
