AUDIO DYNAMICS

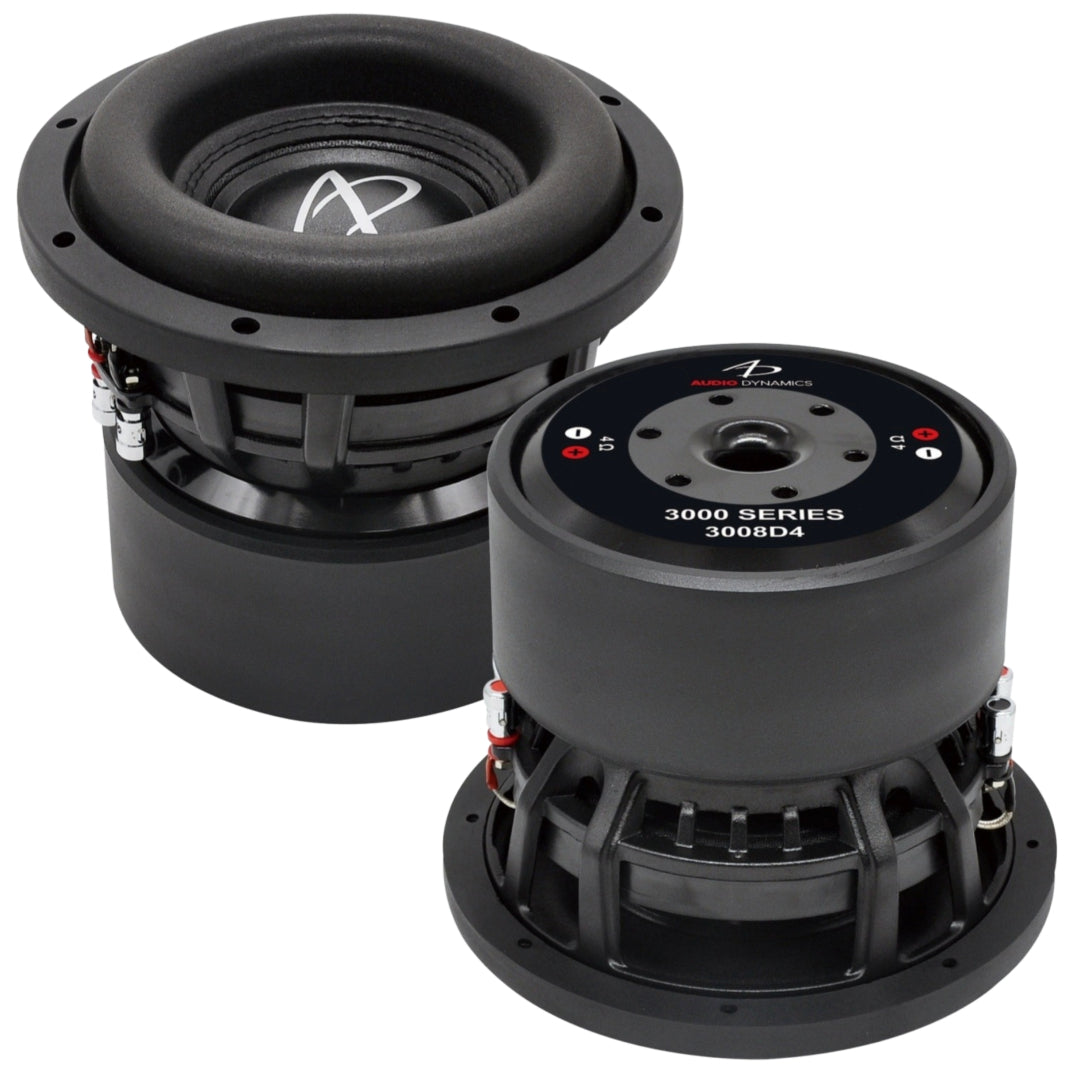

8" Subwoofer
The 3000 series 8 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 47 Hz
Qms 4.033
Vas 4.162 liters
Cms 0.0802 mm/N
Mms 142.5 g
Rms 10.47 kg/s
Dia 156.000 mm
Sd 191.1 sq cm
Qes 0.686
Re 6.40 ohms
Le 2.44 mH
Z ohms
BL 19.83 Tm
BL^2/Re N^2/W
Qts 0.586
no %
SPL 79.9 dB
EBP
XMax 17.5mm
Nominal Diameter 8in
Overall Diameter 8.030in / 204mm
Mounting Hole Diameter 7.5in / 190mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.69in / 170mm
Mounting Depth 5.9in / 150mm
Required Pole Vent Clearance
Driver Displacement 0.085 cu ft / 2.465 l
Minimum Sealed Volume
Minimum Vented Volume cu ft / l net*
