AUDIO DYNAMICS

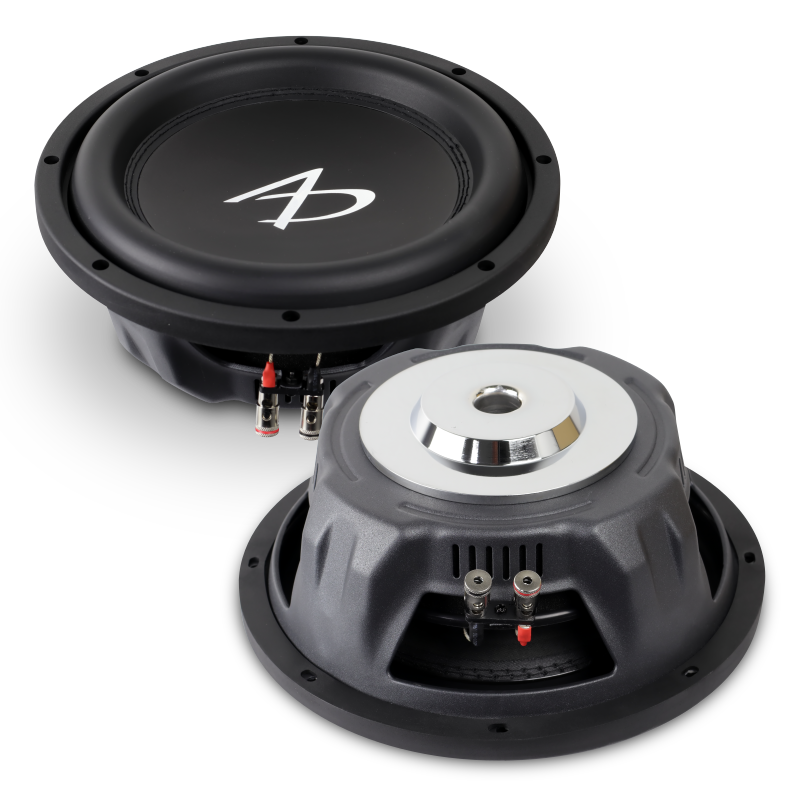

10" Subwoofer
The 1200 series 10″ is optimized for linear performance and versatility in small to medium size sealed and vented enclosures with mounting depth of only 3.81″. It performs well in 4th and 6th order bass-reflex arrangements, achieving virtually any desired response shape.
Fs 29.470 Hz Qms 4.130 Vas 42.010 l Cms 0.280 mm/N Mms 105.590 g Rms 4.730 kg/s Xmax 15 mm (One-Way) Dia 204.140 mm Sd 327.300 cm² Qes 0.650 Re 3.200 Ω Le 1.500 mH Z 3.840 Ω Bl 9.830 Tm Bl²/Re 30.200 N²/W Qts 0.560 no 0.160 % SPL 84.190 dB EBP 45.520 Nominal Diameter 10.0in Overall Diameter 10.35in / 263mm Mounting Hole Diameter 9.25in / 235mm Motor Outer Diameter 5.11in / 130mm Mounting Depth 3.81in / 97mm Driver Displacement 0.04 cu ft / 1.2l Minimum Sealed Volume 0.6 cu ft / 17l net Minimum Vented Volume 1.05 cu ft / 30l net* * Tune for desired response
