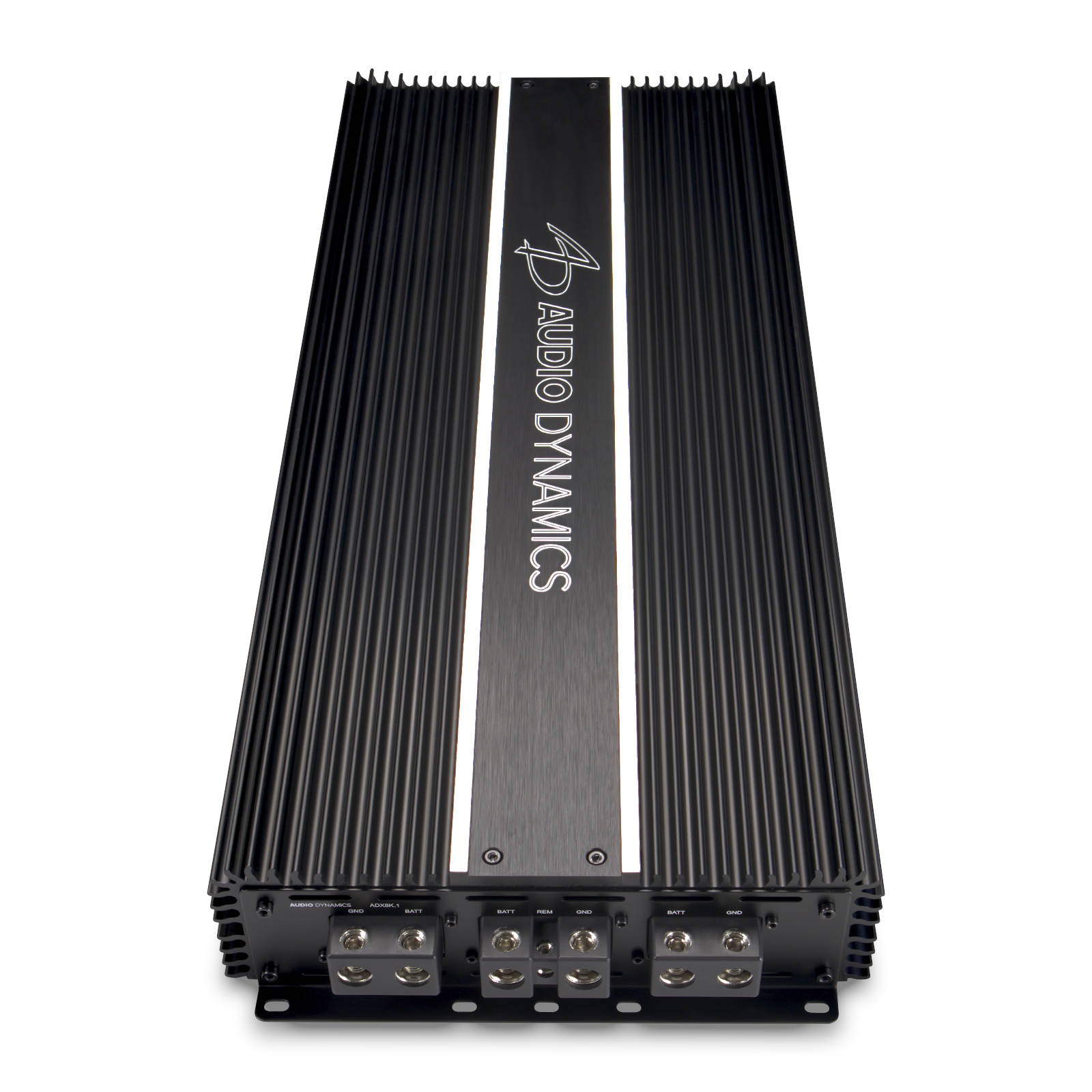

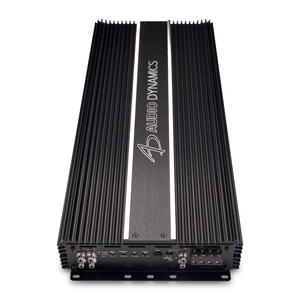

X8K.1
In Store Pick Up OnlyHighlights 8,000 Watt Class D Mono Block Upgraded with Larger Package Mosfets for...
- $2,199.00
- $2,199.00
- Unit price
- per
Subtotal:
$2,199.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 8,000 Watt Class D Mono Block
- Upgraded with Larger Package Mosfets for Increased Avalanche Current
- Upgraded with Lower ESR Capacitors
- Upgraded Heatsink to Industry Leading Surface Area and Weight
- Linkable Master / Slave Configurable
- Dual MOS-FET PWM power supply
- Click-in-Place Crossover Controls
- Subsonic and Low Pass Filters
- Variable Phase Control
- Tiffany Style RCA Connectors
- Remote Bass Control w/ Clip Indicator and Thermal / Voltage Display
- Damping Factor >400
- 88dB Signal to Noise Ratio
- Engineered in U.S.A. and South Korea
- Triple 0 AWG Power Terminals
- Made in South Korea

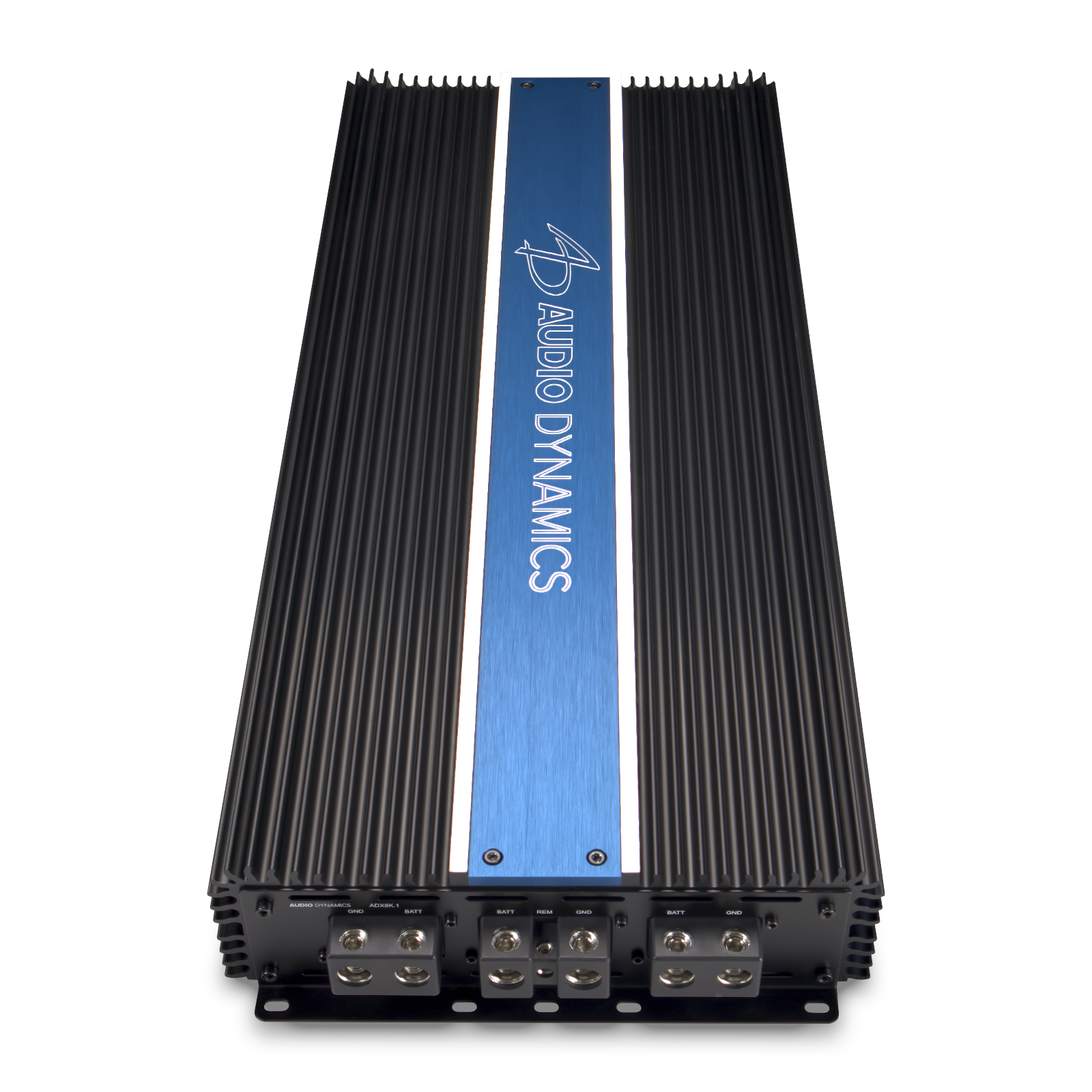

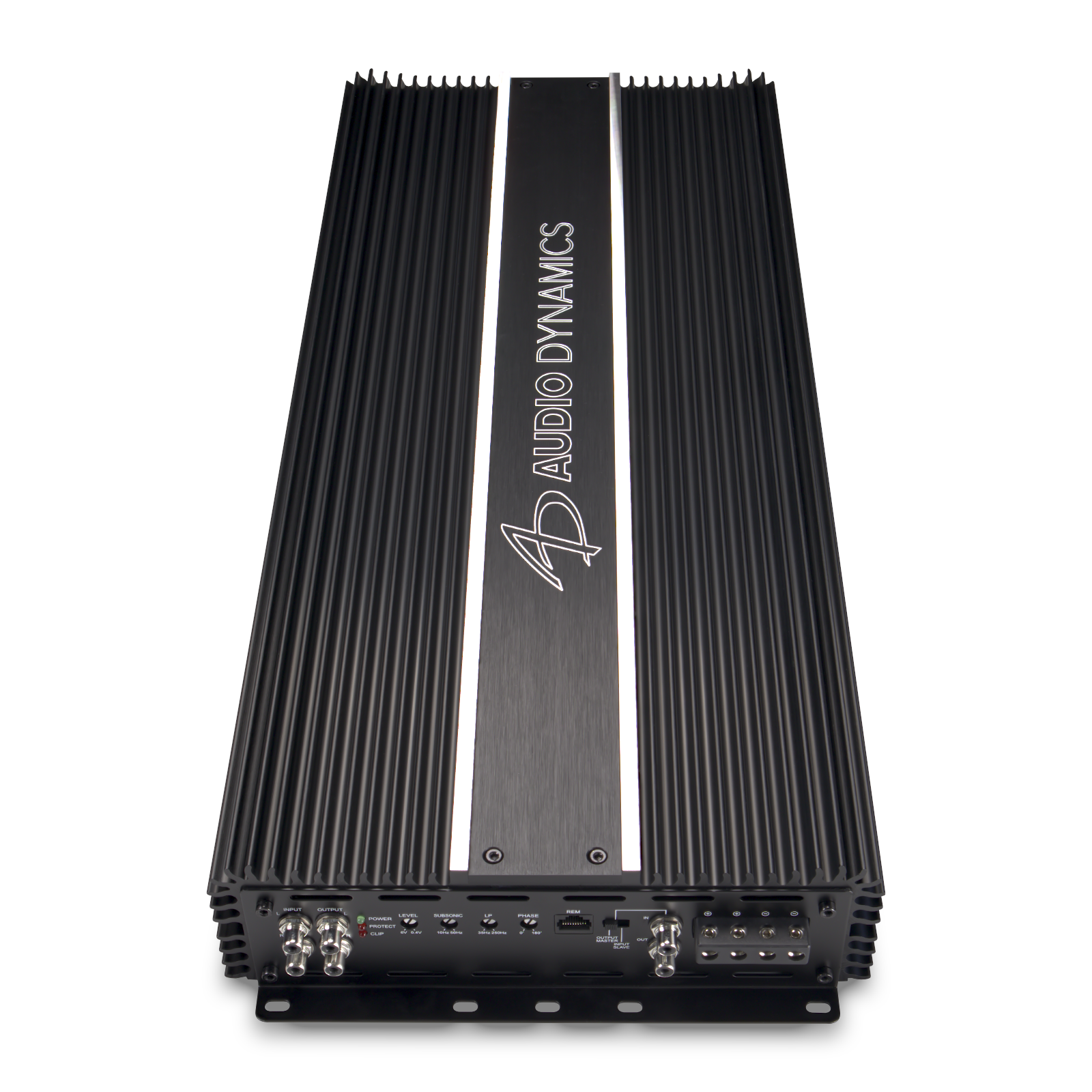

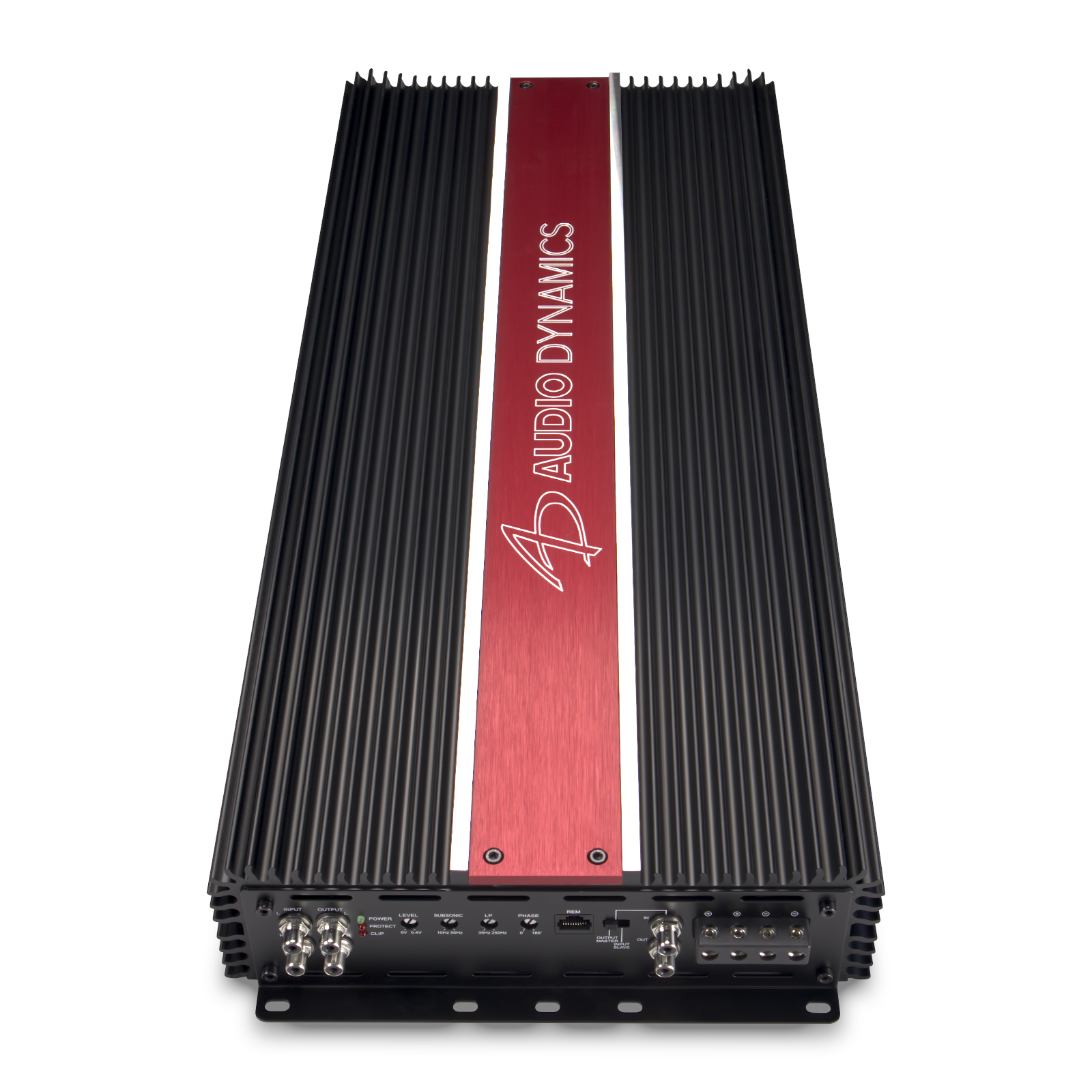

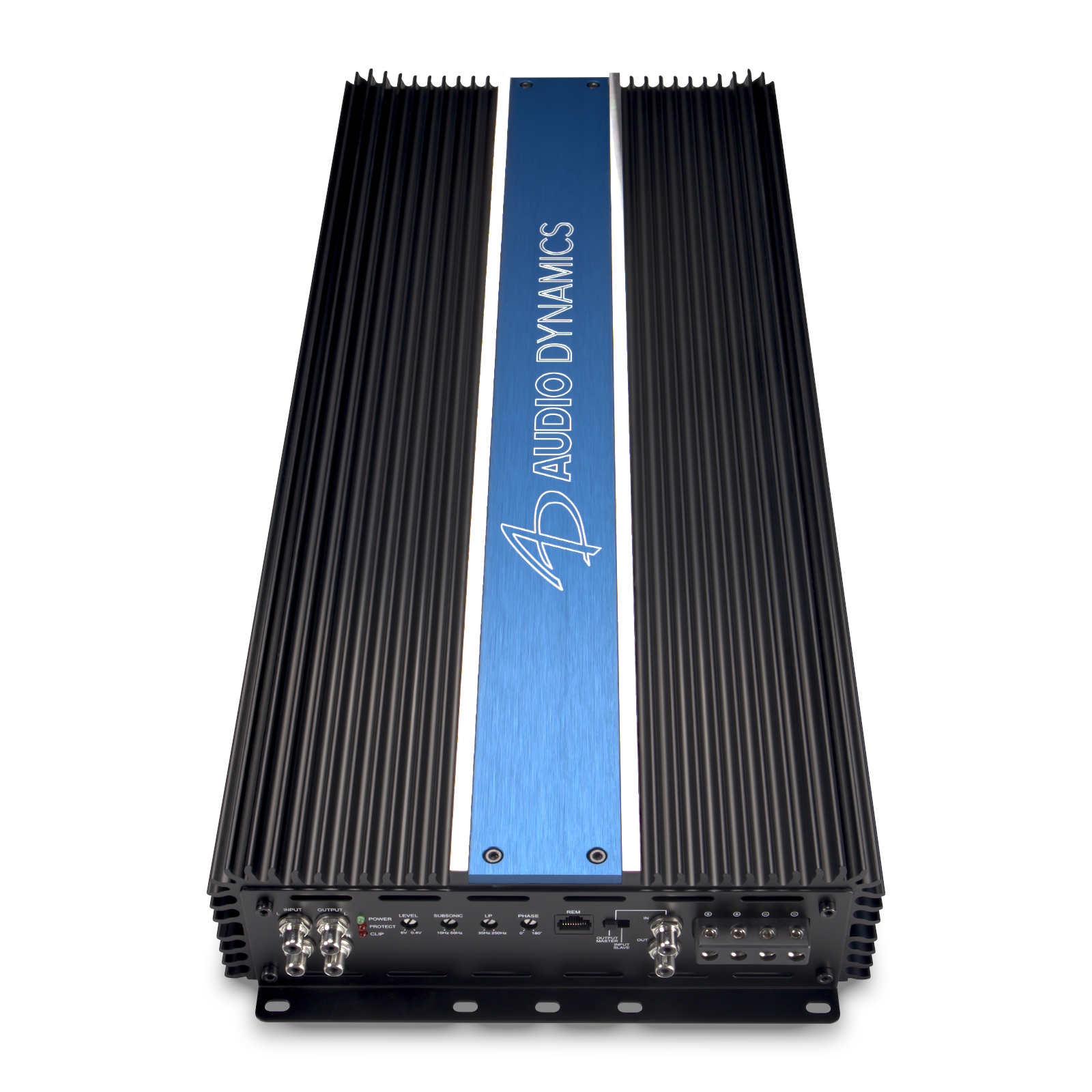

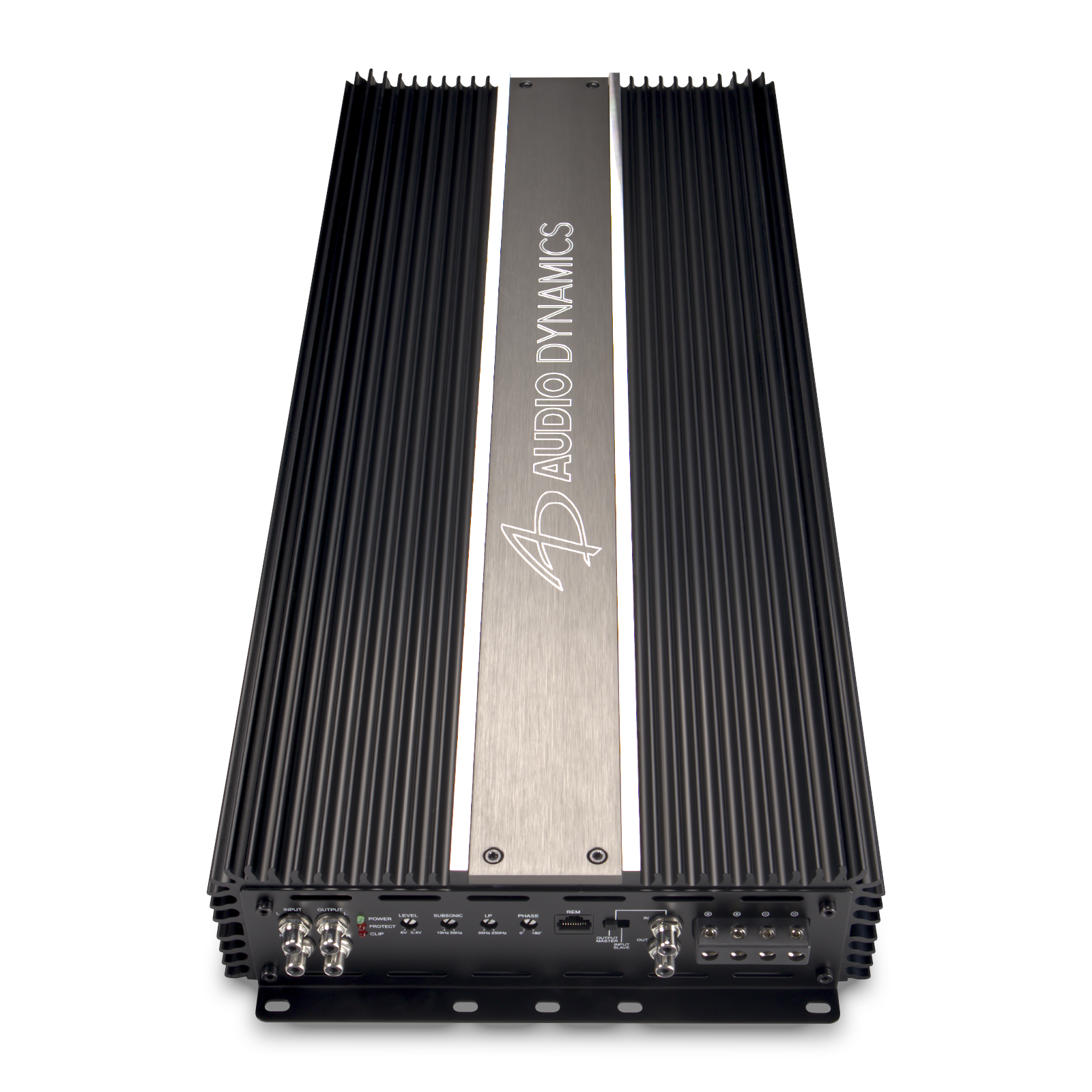

Removable / Reversible Top Plate Available in Different Colors (See pics for colors and contact us directly @ 573-756-2049 to purchase)
Description
Description
Every X Series amplifier undergoes testing before it is packaged to confirm they work as intended. First, the crossover functions and a clean high output sine wave are confirmed to be within specification. Then, the amplifier is wired to a resistor bank and driven with a very high signal to drive the amp into thermal protection. The amp is cycled back on and is again tested for a clean high output sine wave.
| Continuous Power | 2900W x 1 @ 4 ohms |
| At 14.4V Supply Voltage | 5300W x 1 @ 2 ohms |
| 8000W x 1 @ 1 ohm | |
| Frequency Response | 13Hz - 269Hz |
| Input Sensitivity | 0.4V to 6V |
| Fuse Ratings | 250A @ 4 ohms / 500A @ 2 ohms / 720A @ 1 ohm |
| Filter Modes | Subsonic and Low Pass |
| Subsonic Filter @ 24dB/Oct | 10Hz - 50Hz |
 Linkwitz-Riley
|
|
| Low Pass Filter @ 24dB/Oct | 35Hz - 250Hz |
|
Linkwitz-Riley
|
|
| Detented Filter Potentiometers | 41 Click-in-Place Frequencies |
| Remote Level Control w/ Clip Indicator / Thermal / Voltage | Included |
| Pass-Through Output | Yes |
| Height | 3.12 in / 79.3 mm |
| Width | 10.59 in / 269 mm |
| Length (Heat Sink) | 23.62 in / 600 mm |
| Net Weight | 38 lb /17.24 kg |

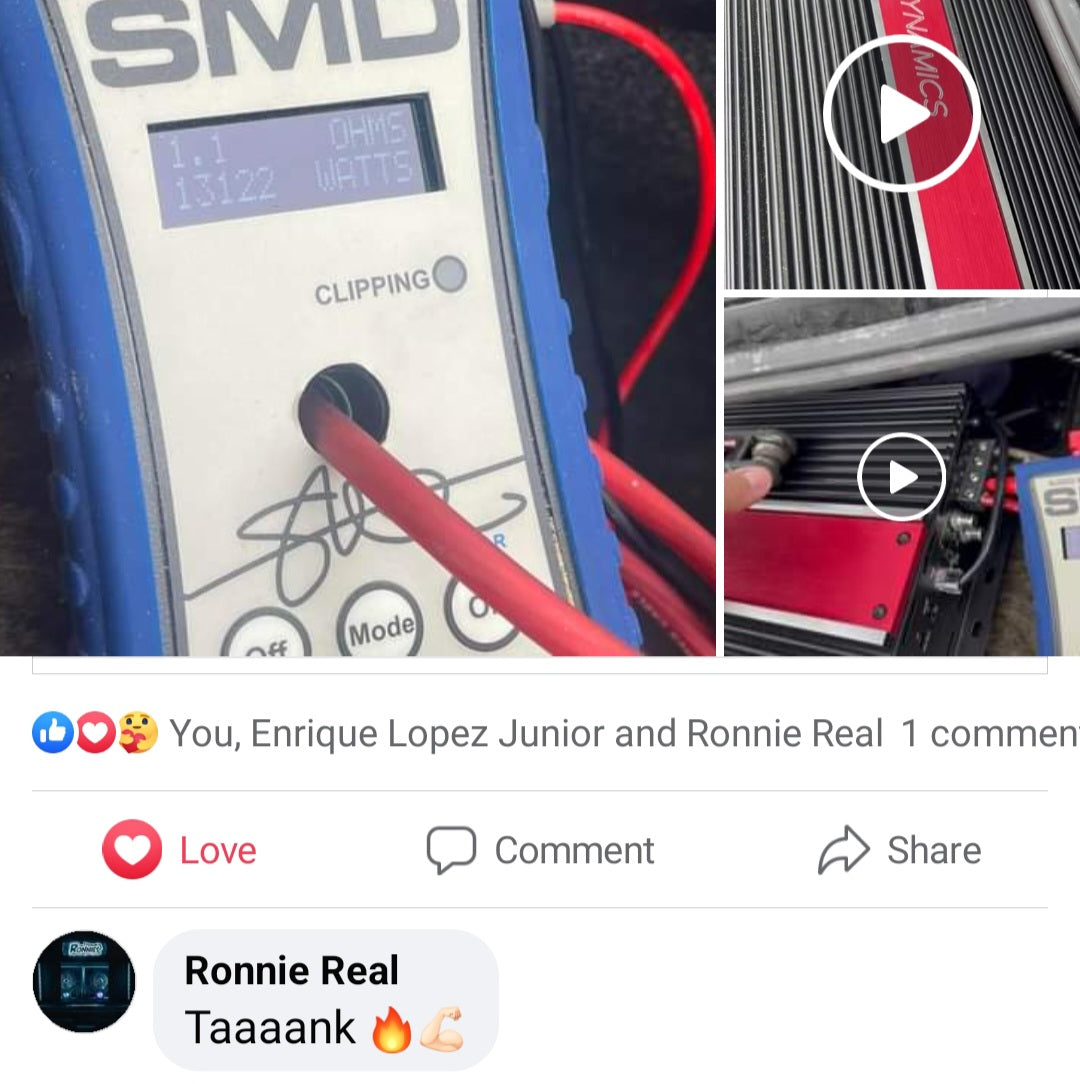

Amp Dyno Numbers
Amp Dyno Numbers
Amp Dyno Numbers
Amp Dyno Numbers
