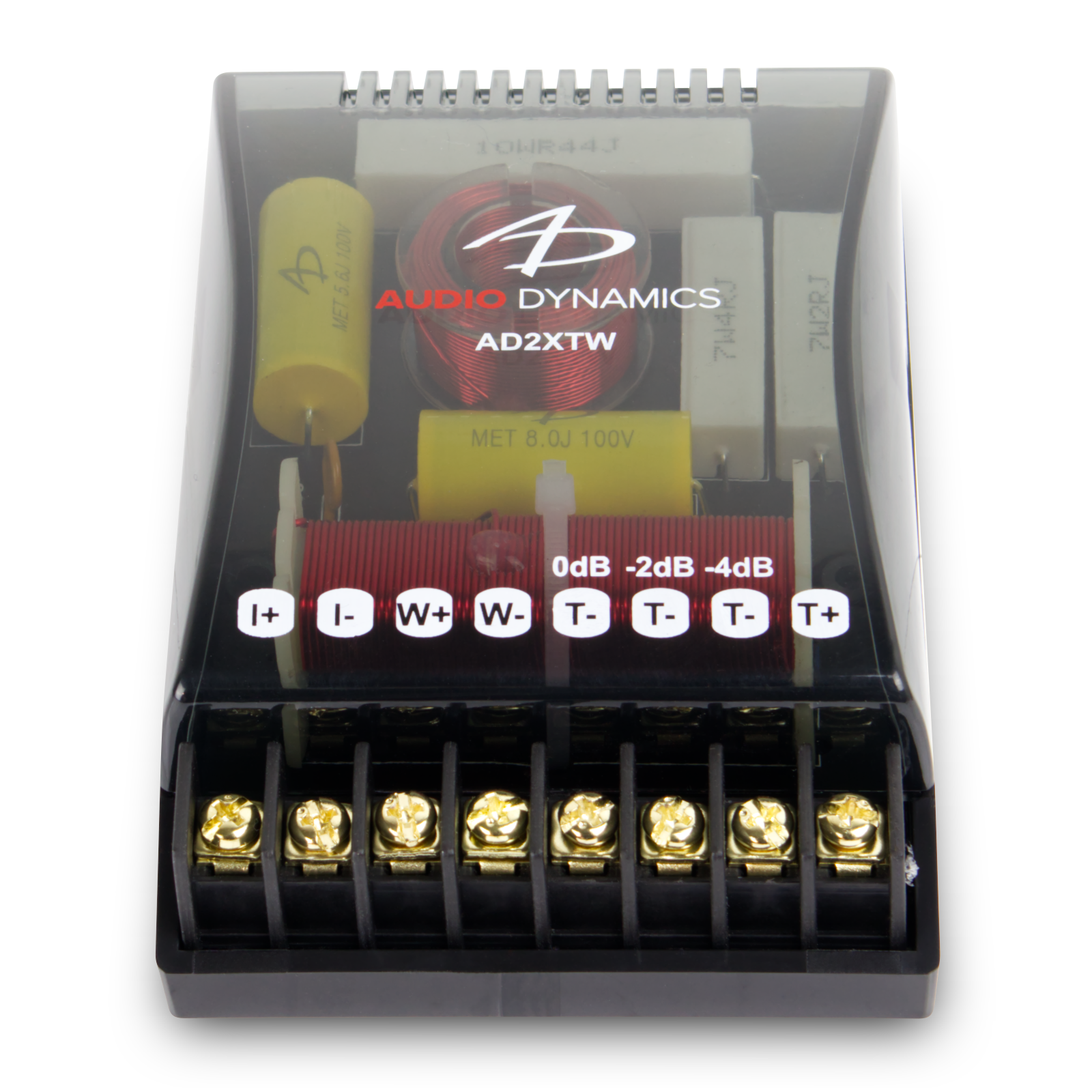

All power ratings are figured using an electronic high pass crossover with a minimum crossover point of 70 Hz at 24 dB/Octave, 80 Hz at 18 dB/Octave, or 100 Hz at 12 dB/Octave.
Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.

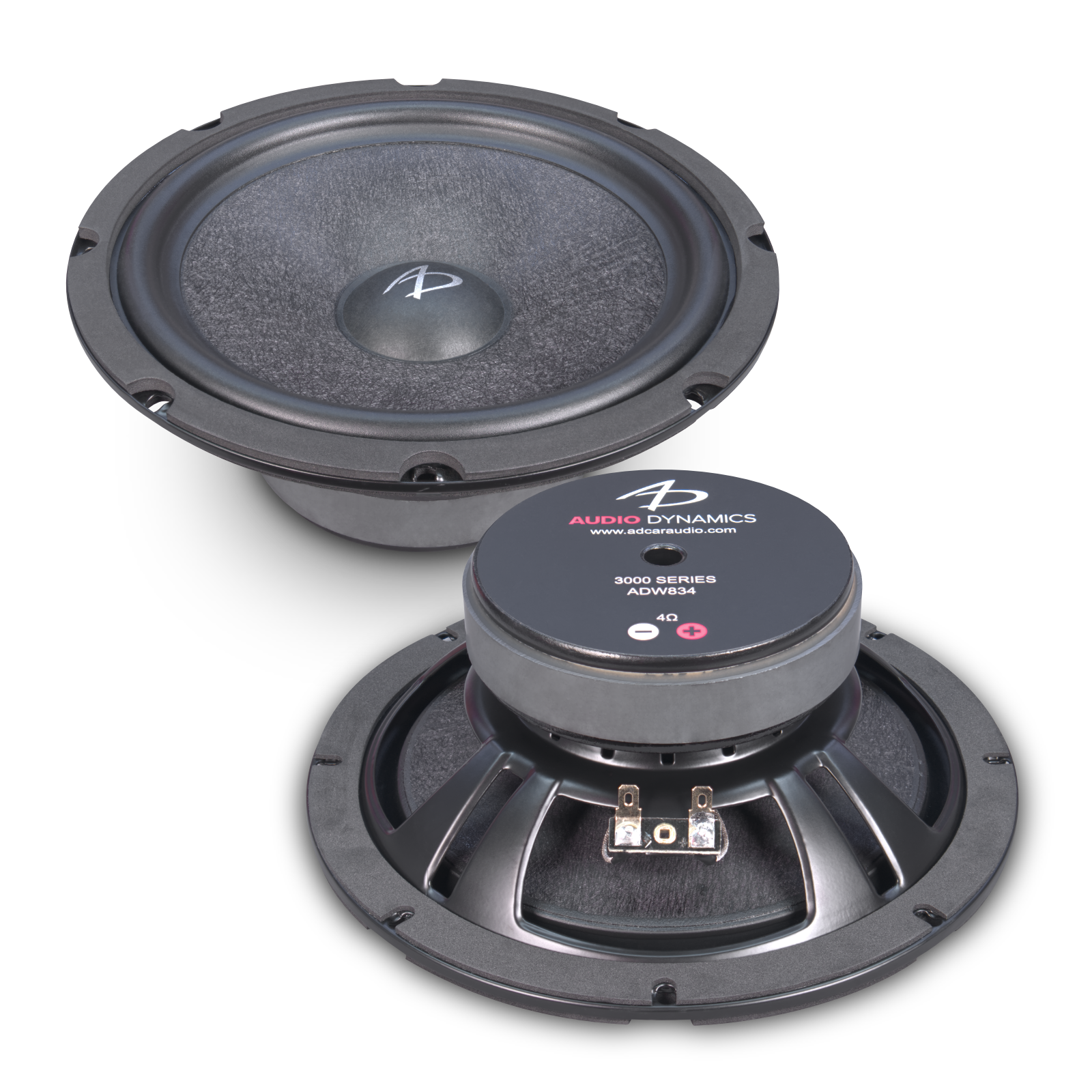

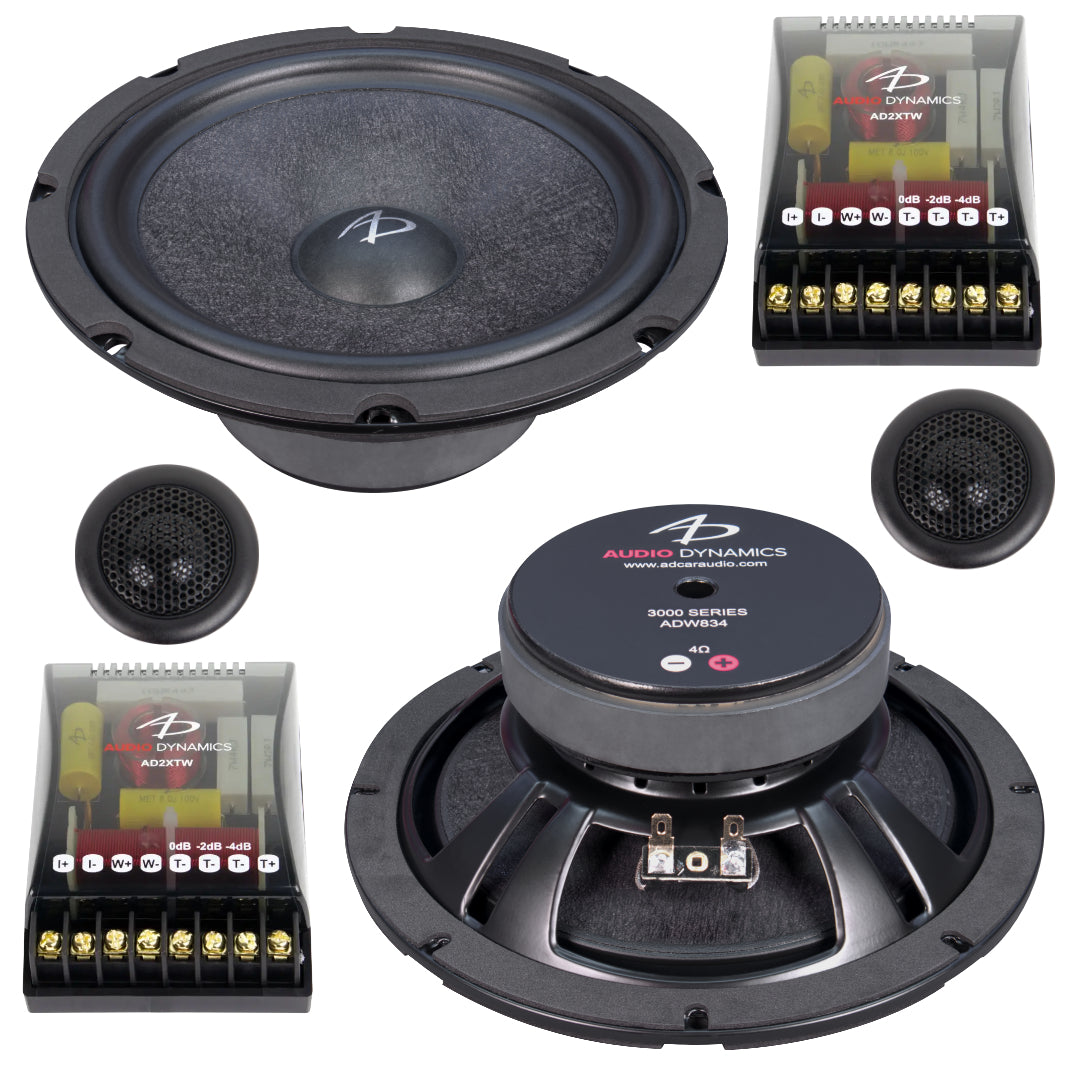

The 3000 series 8" uses our new Basalt paper cone and then we added an acoustically-transparent chemical to help the soft parts resist moisture. We've gone to similar lengths in developing our tweeter components which use a high grade of transparent silk dome and a powerful neodymium motor to produce clear and effortless highs.
Our speakers will pull you into the musical performance and breath new life into your music collection.

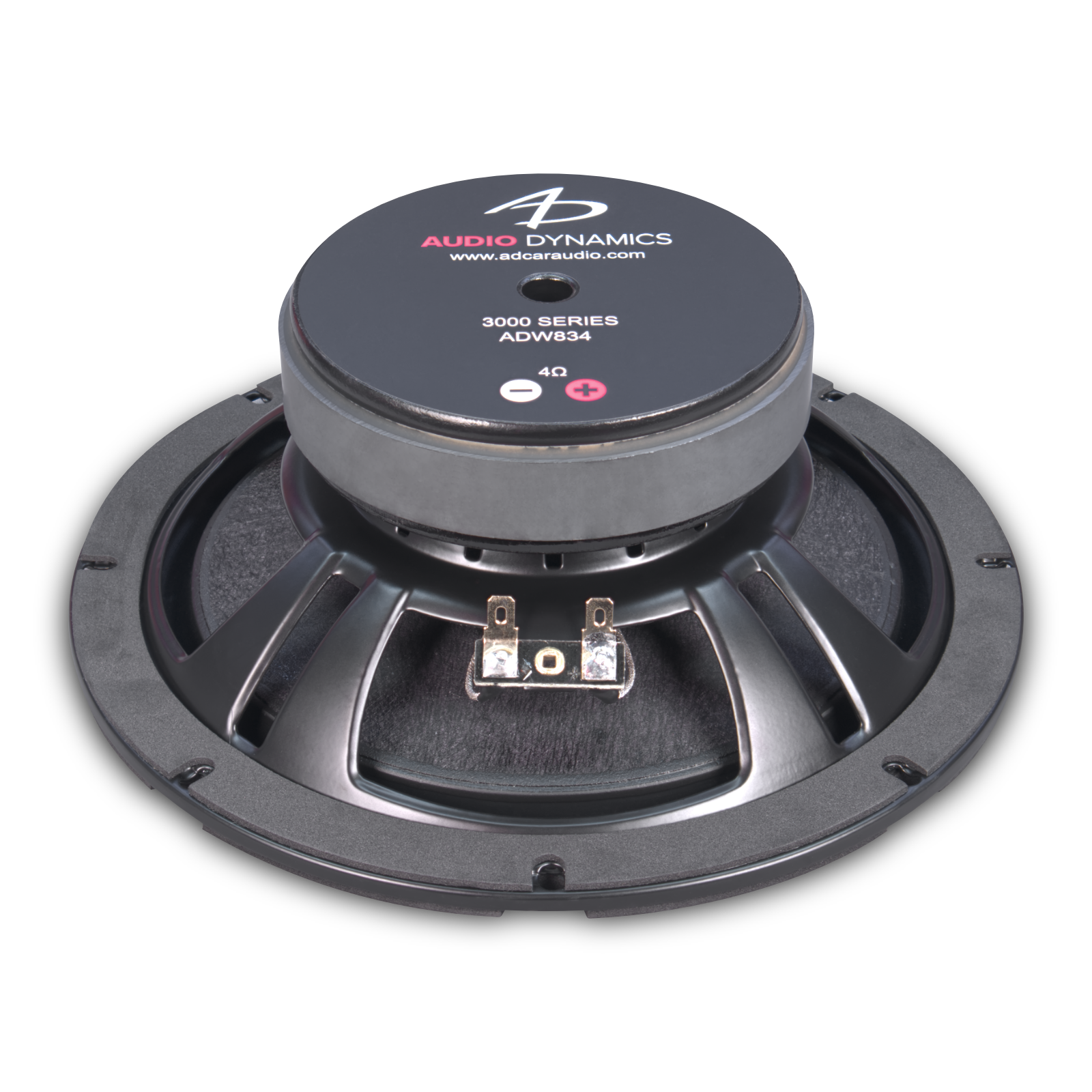

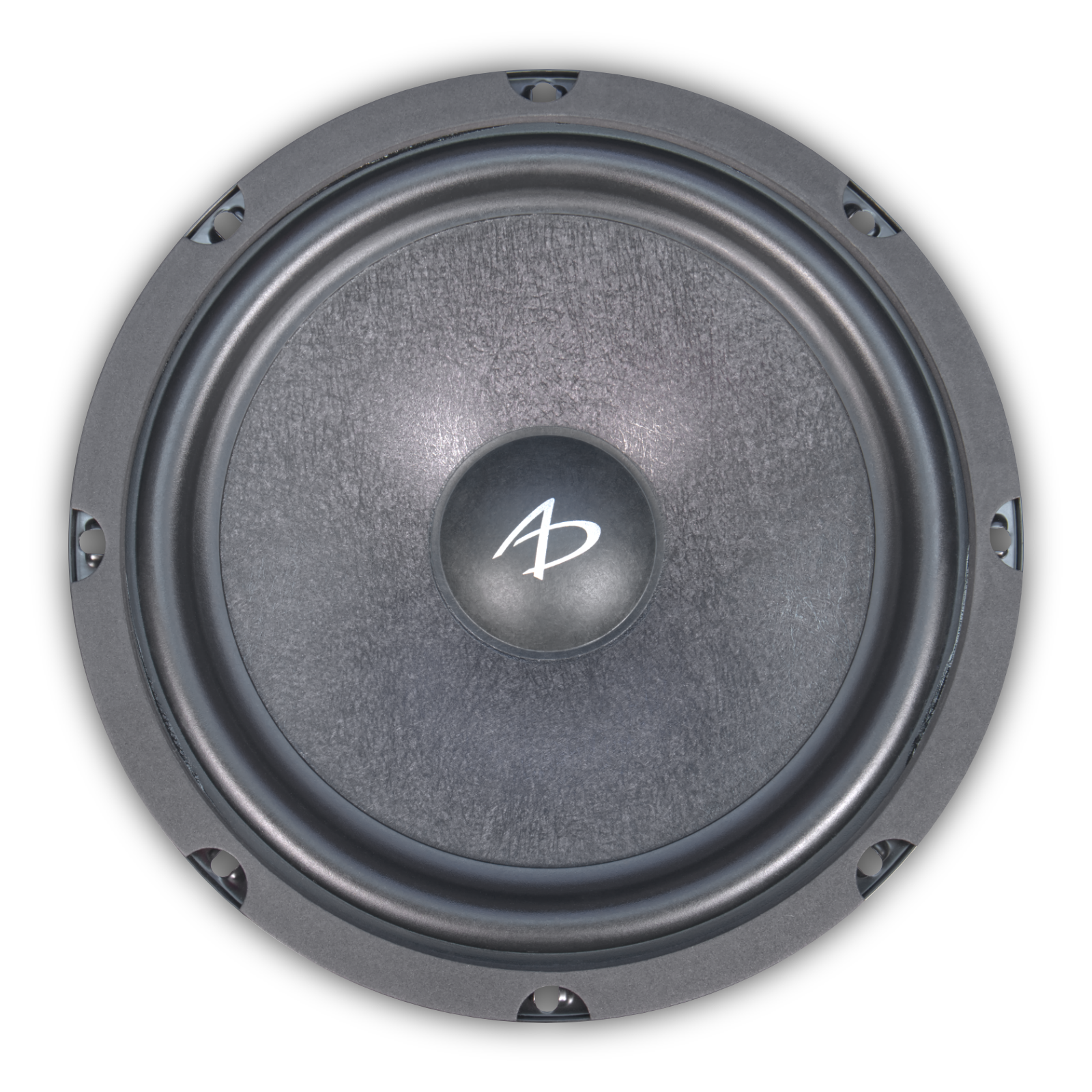

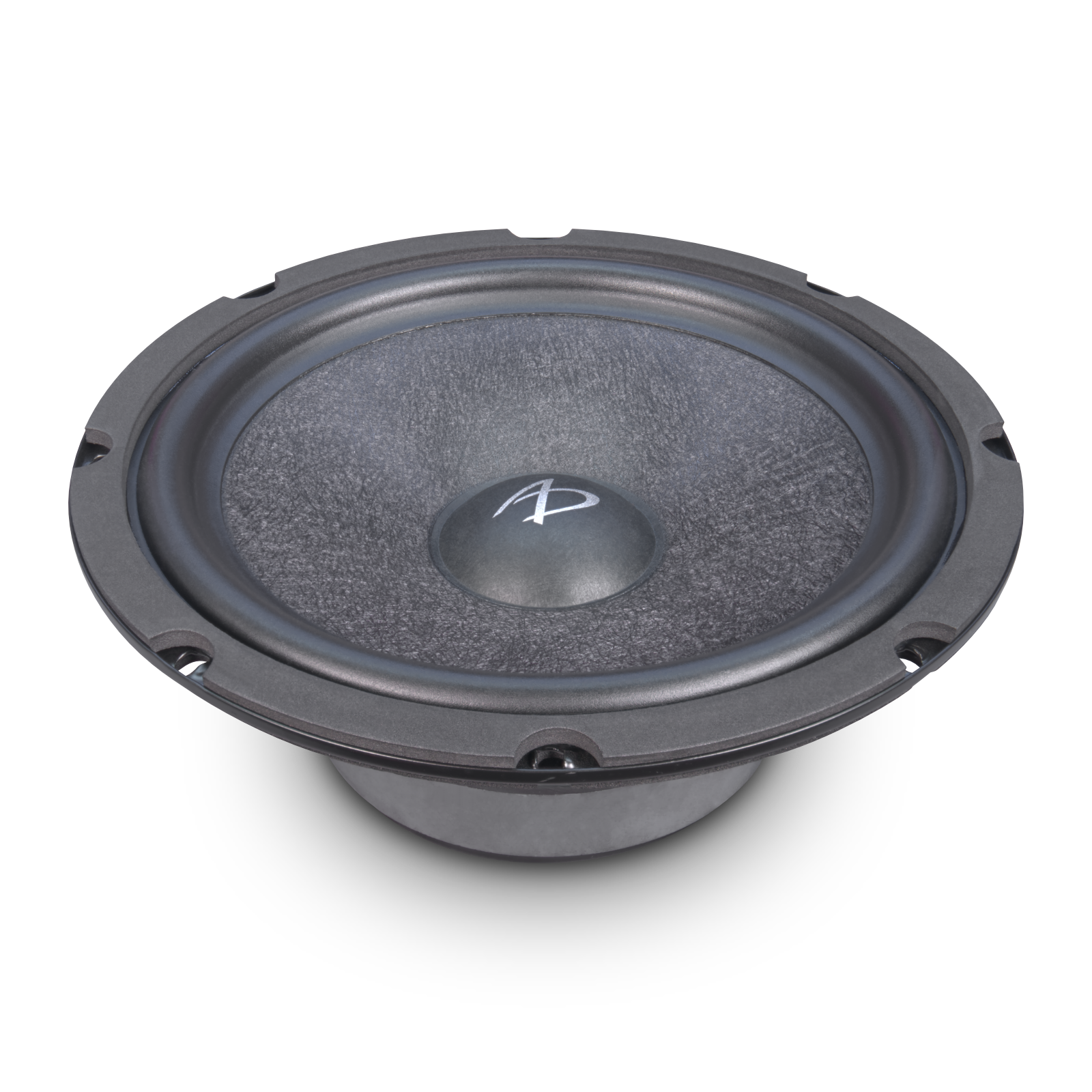

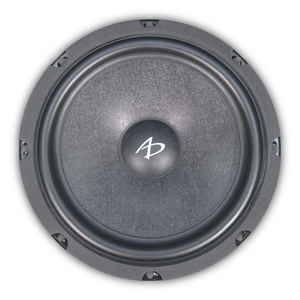

Mid Woofer: Fs 53.13 Hz
Qms 3.391 Vas 30.35 l Cms 0.464 mm/N Mms 19.36 g Rms 1.904 kg/s Dia 165.8 mm Sd 214.6 cm² Qes 0.5376 Re 3.252 ohm Le 0.3312 mH Z 23.77 ohm Bl 6.253 Tm Qts 0.464 no 0.8071 % SPL 91.17 dB 1W/1m SPL 95.17 dB 2.83V/1m
Frame Outer Diameter 8 3/16" (208mm) Grille Outer Diameter 8 25/32" (223mm) Motor Outer Diameter 4 11/32" (110mm) Grille Protrusion 29/32" (23mm) Mounting Hole Diameter 7" (177mm) Mounting Depth 2 13/16" (72mm)

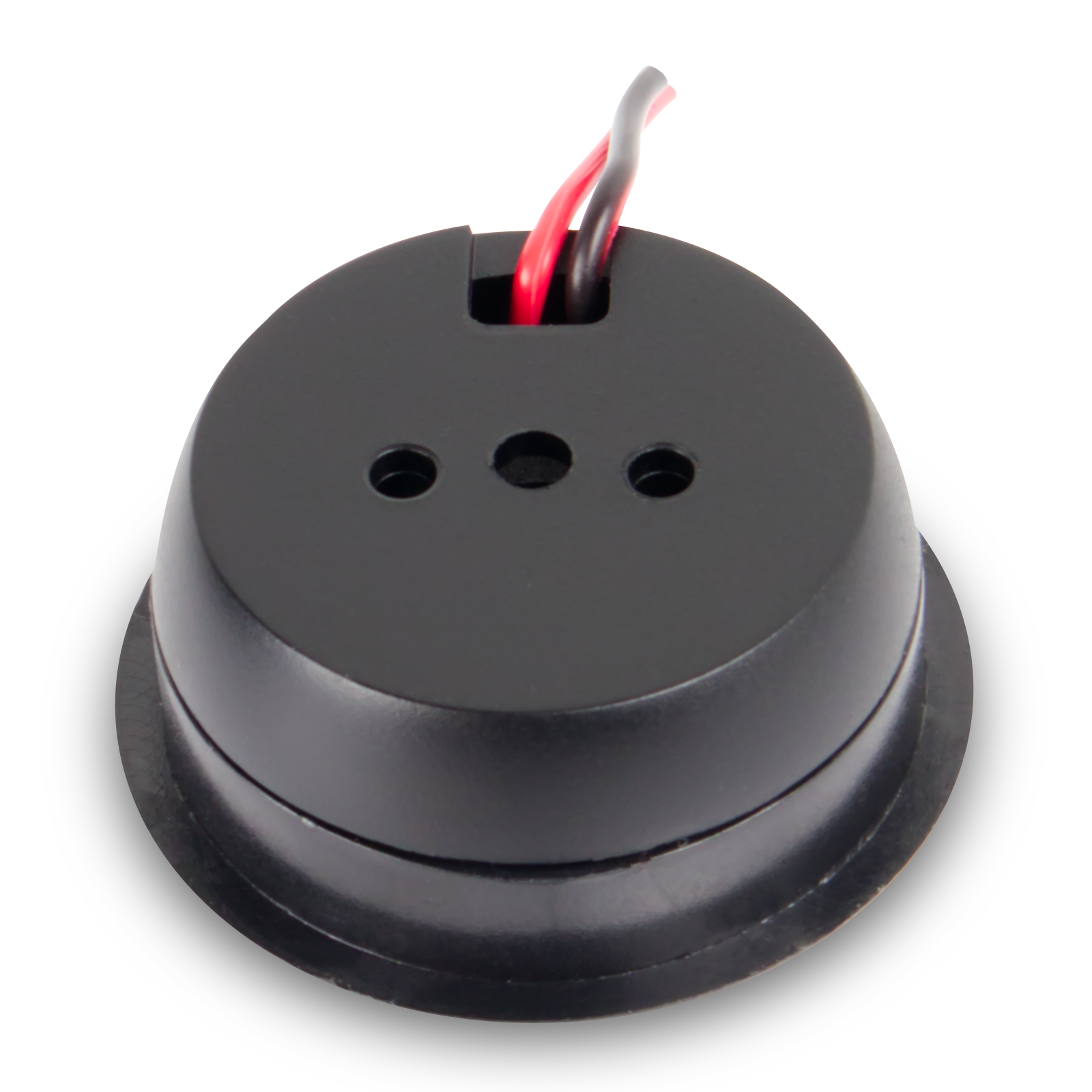

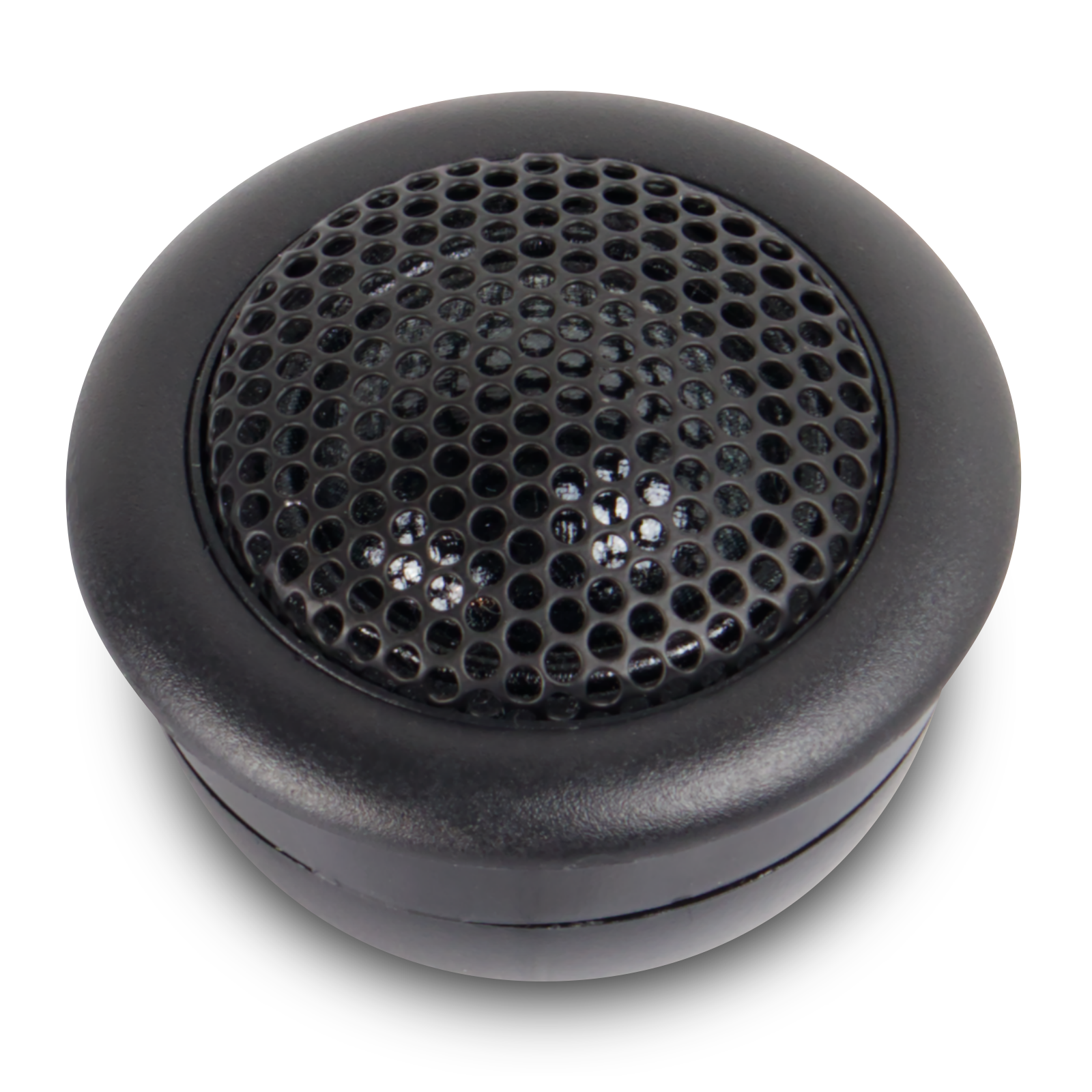

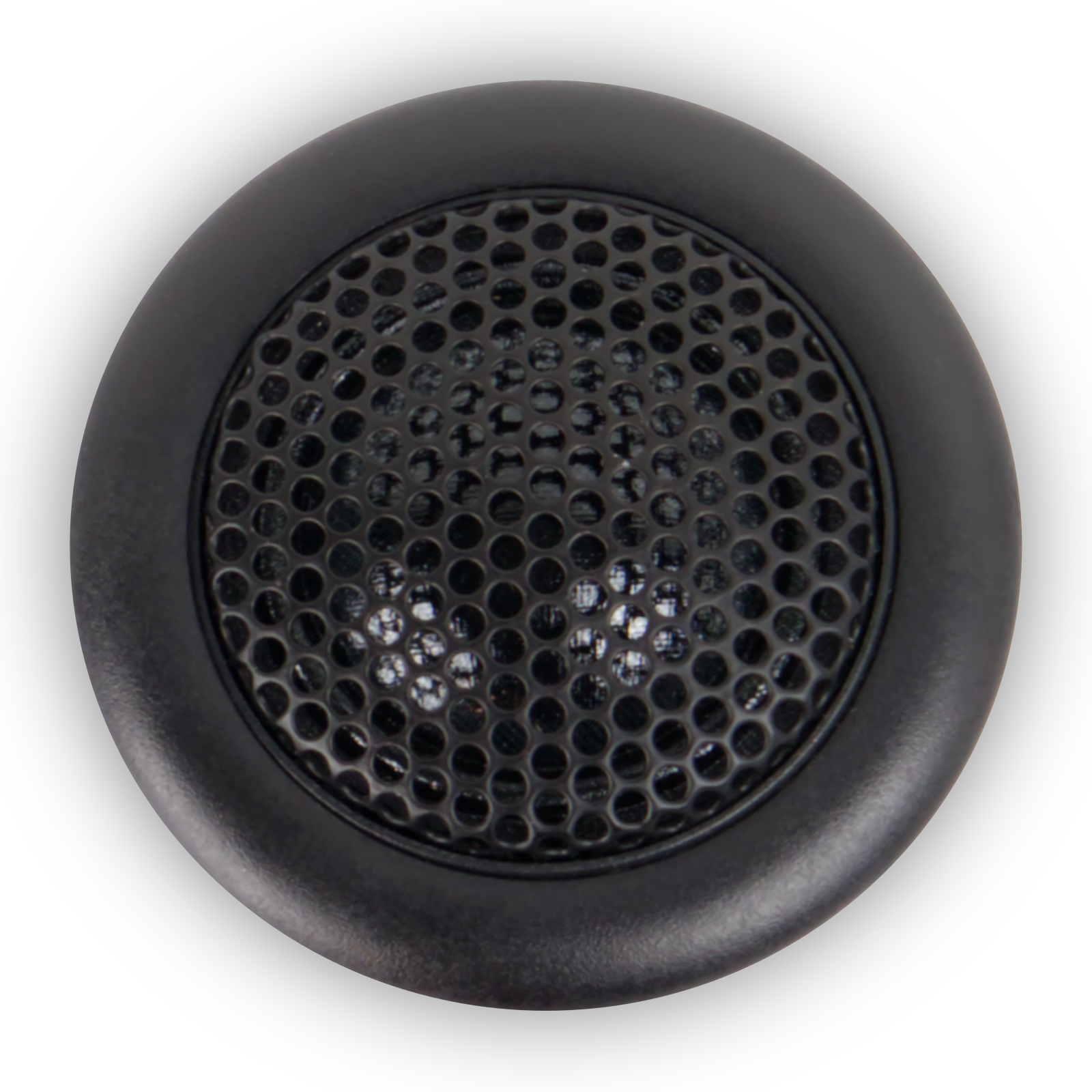

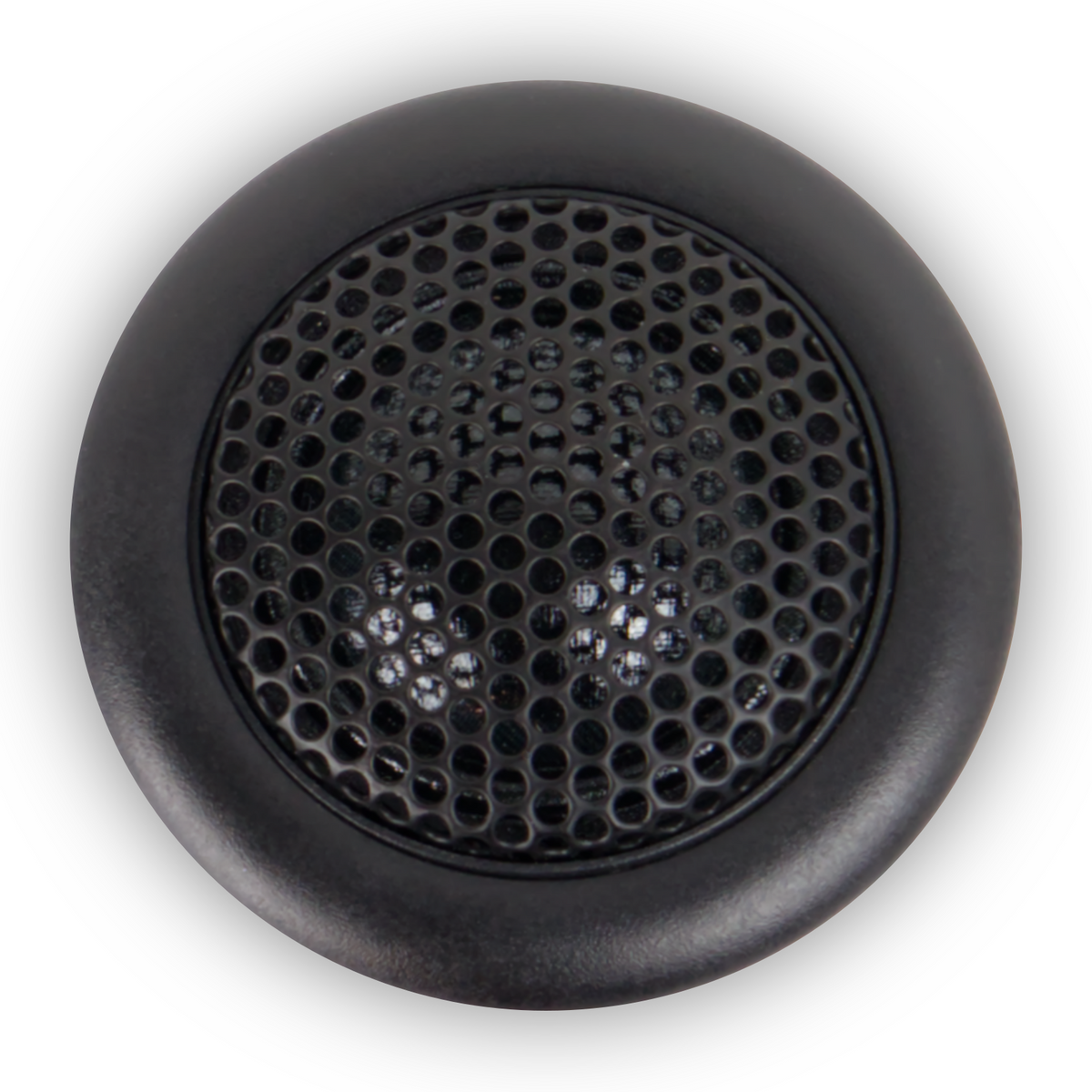

Tweeter: Fs 1811.000 Hz Qms 2.220 Qes 2.610 Re 3.582 ohm Le 0.03308 mH Z 4.298 ohm Qts 1.200
Flush Mount Hole Diameter 1 7/8" (47mm) Flush Mount Depth 13/16" (21mm) Flush Mount Diameter 2 1/8" (53mm) Flush Mount Protrusion 3/8" (10mm)
