3000+4000 Series 8" Set - CS834PS

Highlights

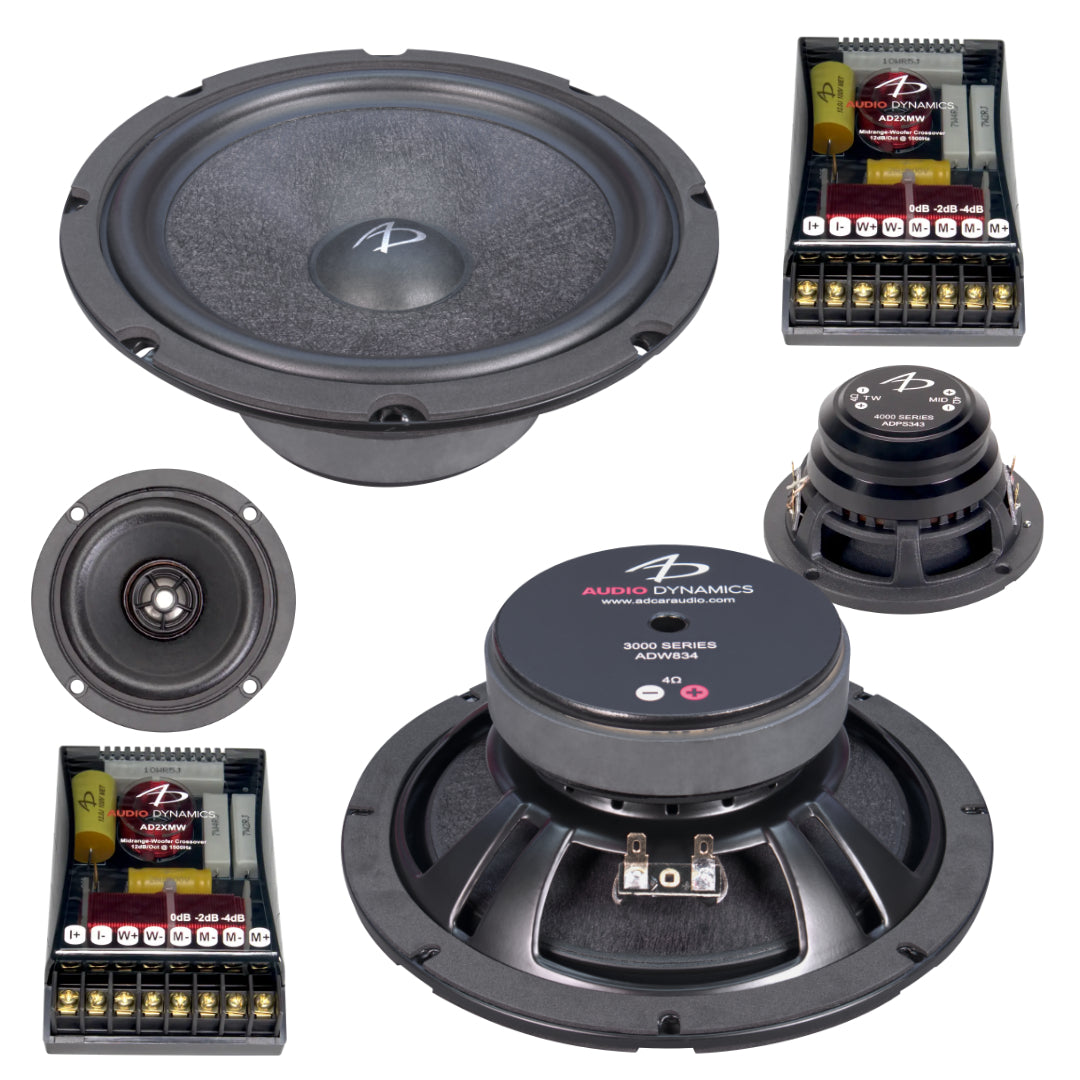

• Set consists of 8" model W834, 3" point source model PS343, and crossover model 2XMW
• Basalt pulp cone mid/woofer for realistic tonal accuracy
• 8" (200 mm) Mid-woofer
• Thick steel frame
• Basalt paper cone
• Santoprene rubber surround
• 1 3/8" (35 mm) voice coil
• Shorting ring for extended response
• Gold plated terminals
• 150 Watts RMS power handling*

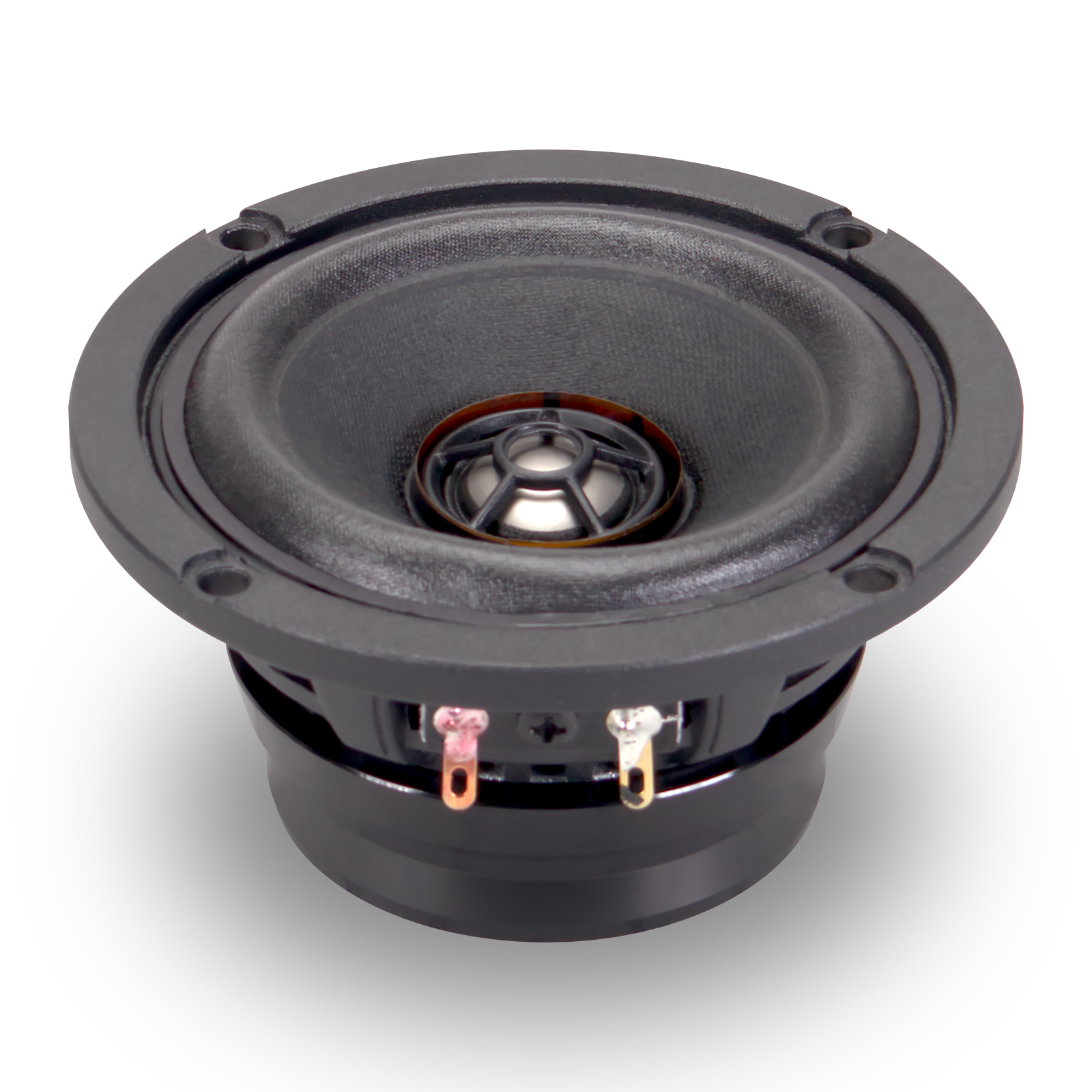

• 3" wool pulp cone midrange and 5/8" titanium tweeter point source

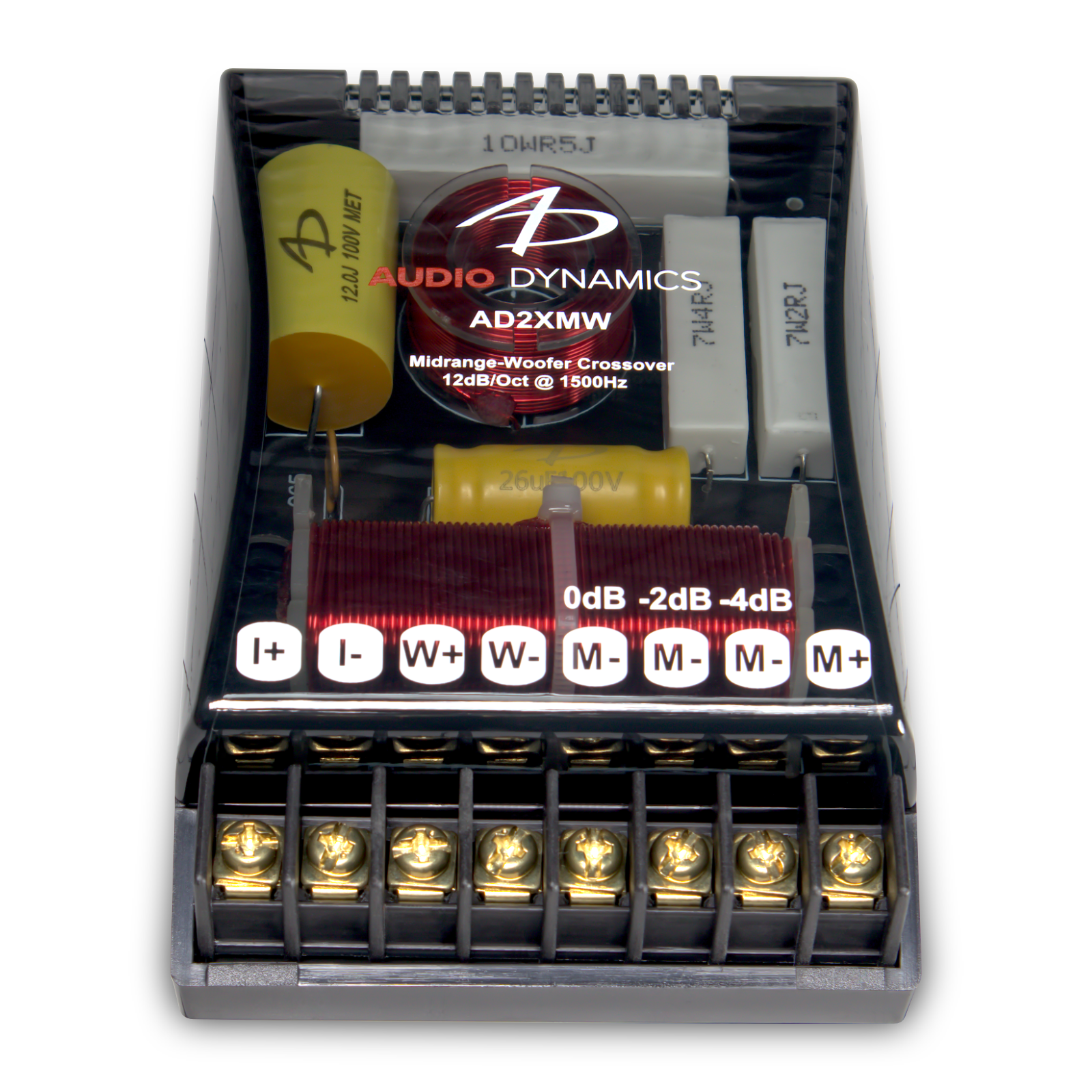

• Polypropylene capacitor and air core inductor in tweeter crossover circuit
• -4, -2, 0 dB direct wire tweeter attenuation
• 100 Watts RMS power handling*

8" Mid-woofer power ratings are figured using an electronic high pass crossover with a minimum crossover point of 70 Hz at 24 dB/Octave, 80 Hz at 18 dB/Octave, or 100 Hz at 12 dB/Octave.

3" Point-source power ratings are figured using an electronic high pass crossover with a minimum crossover point of 400 Hz at 24 dB/Octave, 500 Hz at 18 dB/Octave, or 600 Hz at 12 dB/Octave. Use the included passive crossover for the point-source tweeter in both passive and active crossover configurations.

Description

Description

Audio Dynamics speakers were designed to reproduce music with ultimate accuracy.
The 3000 series 8" uses our new Basalt paper cone and then we added an acoustically-transparent chemical to help the soft parts resist moisture. We've gone to similar lengths in developing our tweeter components which use a high grade of transparent silk dome and a powerful neodymium motor to produce clear and effortless highs.
Our speakers will pull you into the musical performance and breath new life into your music collection.

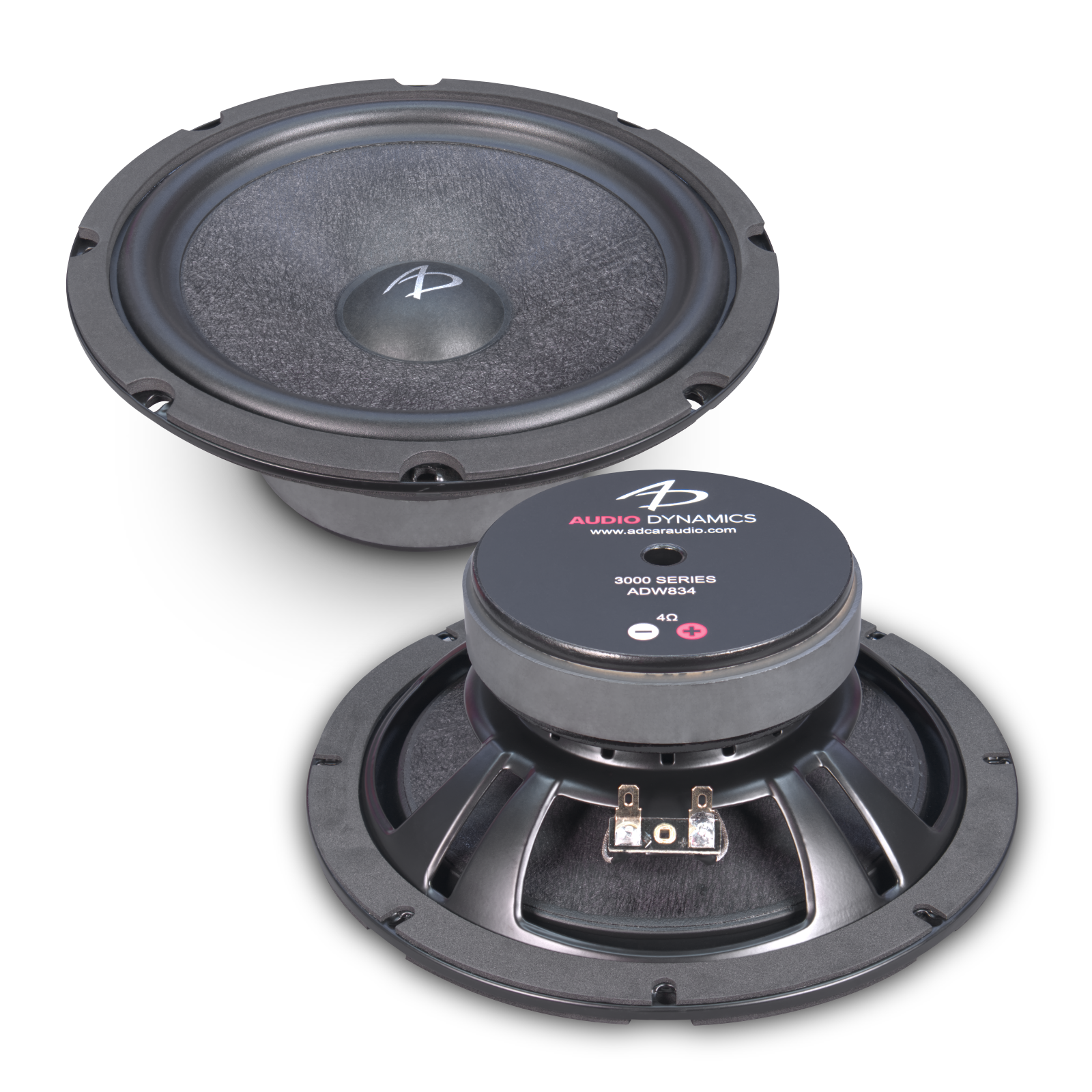

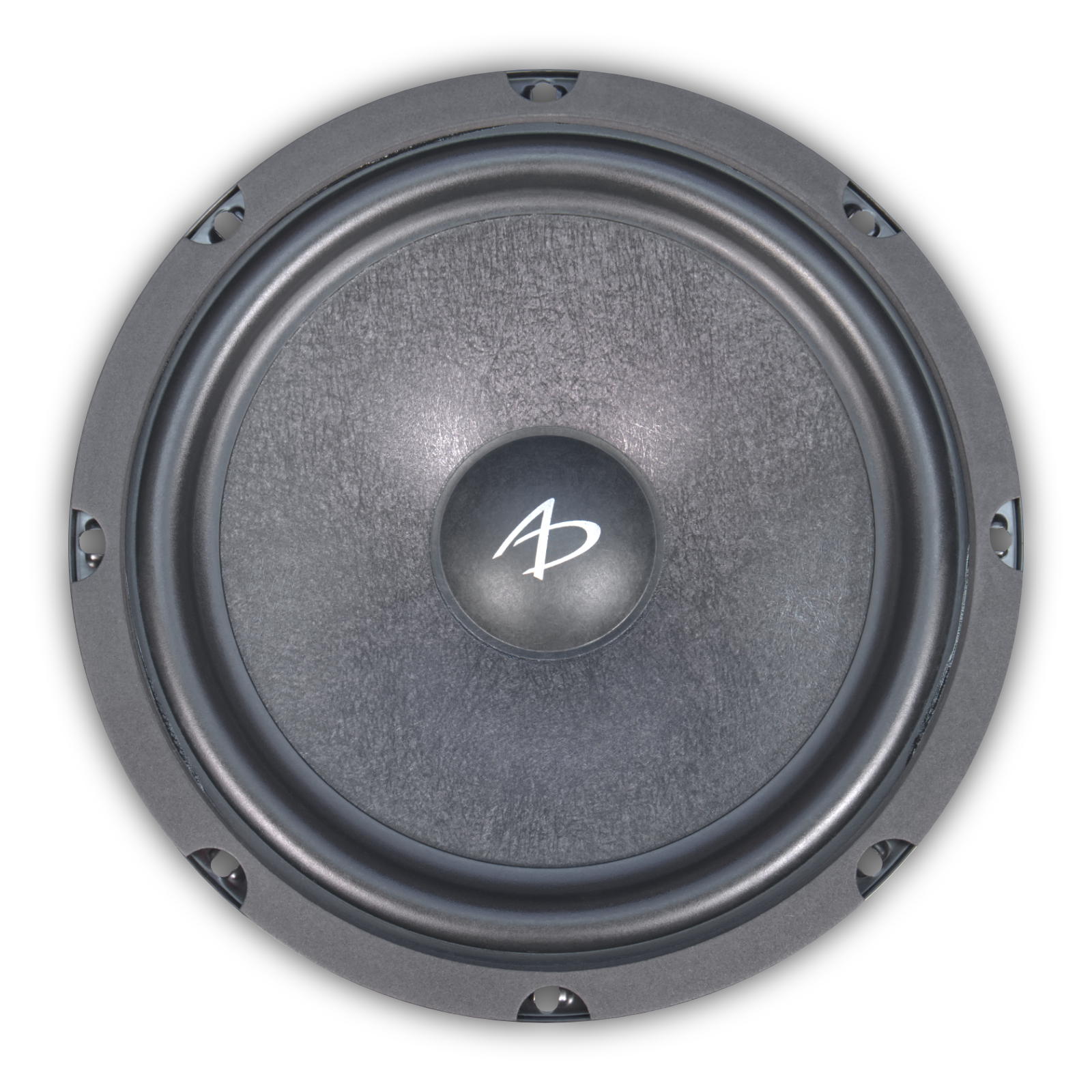

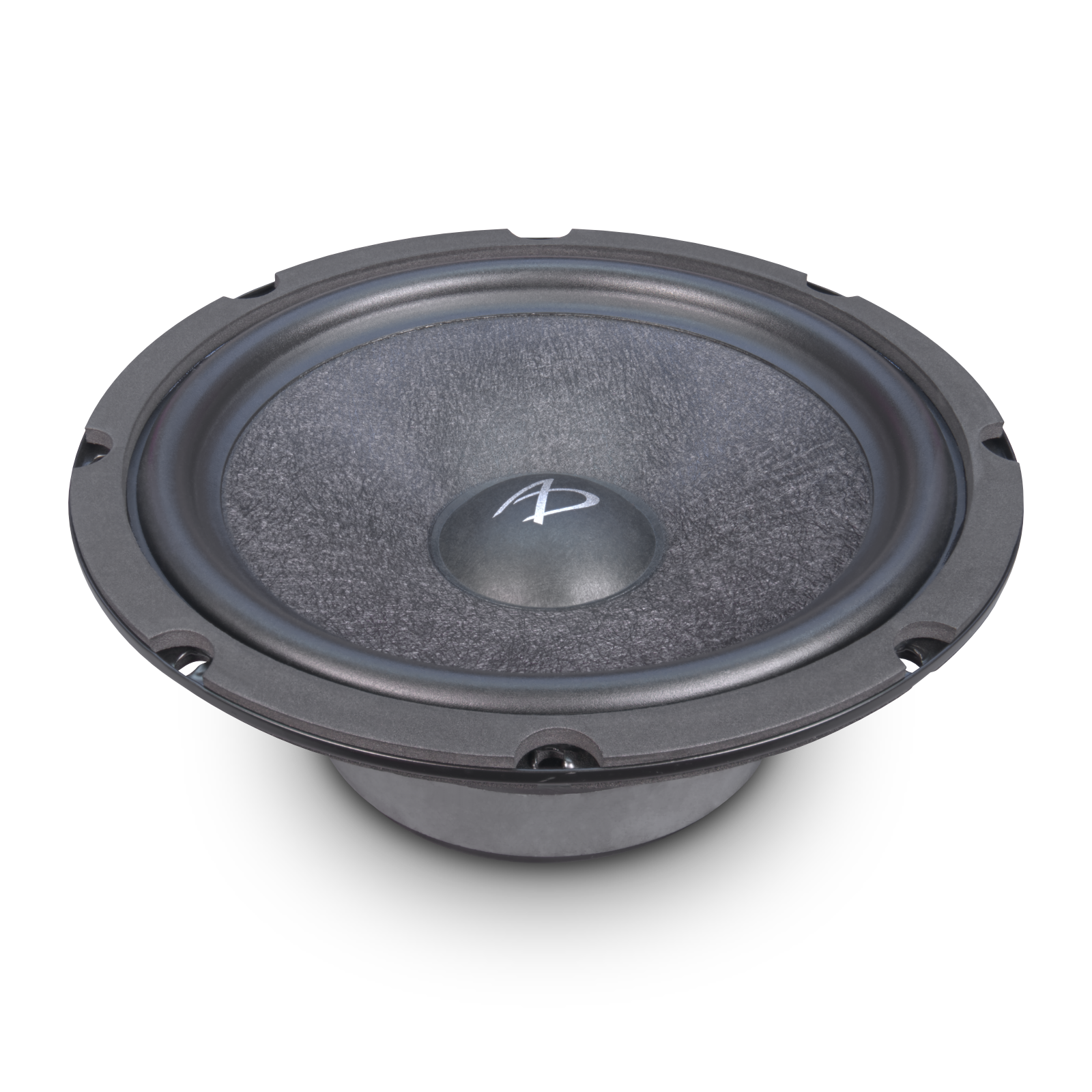

8" Mid-woofer:
Fs	53.13 Hz
Qms	3.391
Vas	30.35 l
Cms	0.464 mm/N
Mms	19.36 g
Rms	1.904 kg/s
Dia	165.8 mm
Sd	214.6 cm²

Qes	0.5376
Re	3.252  ohm
Le	0.3312 mH
Z	23.77  ohm
Bl	6.253 Tm

Qts	0.464
no	0.8071 %
SPL	91.17 dB 1W/1m
SPL     95.17 dB 2.83V/1m

Frame Outer Diameter	8 3/16" (208mm)
Grille Outer Diameter	8 25/32" (223mm)
Motor Outer Diameter	4 11/32"  (110mm)

Grille Protrusion	  29/32"  (23mm)
Mounting Hole Diameter	      7"  (177mm)
Mounting Depth		2 13/16" (72mm)

3" Midrange:
Fs	140.5 Hz
Qms	6.709
Qes	1.199
Re	3.240  ohm
Le	0.077 mH
Z	3.888  ohm
Qts	1.017

5/8" Tweeter:Fs      2402.0 Hz
Qms     0.740
Qes     5.285
Re      3.527  ohm
Le      0.028 mH
Z       4.232  ohm

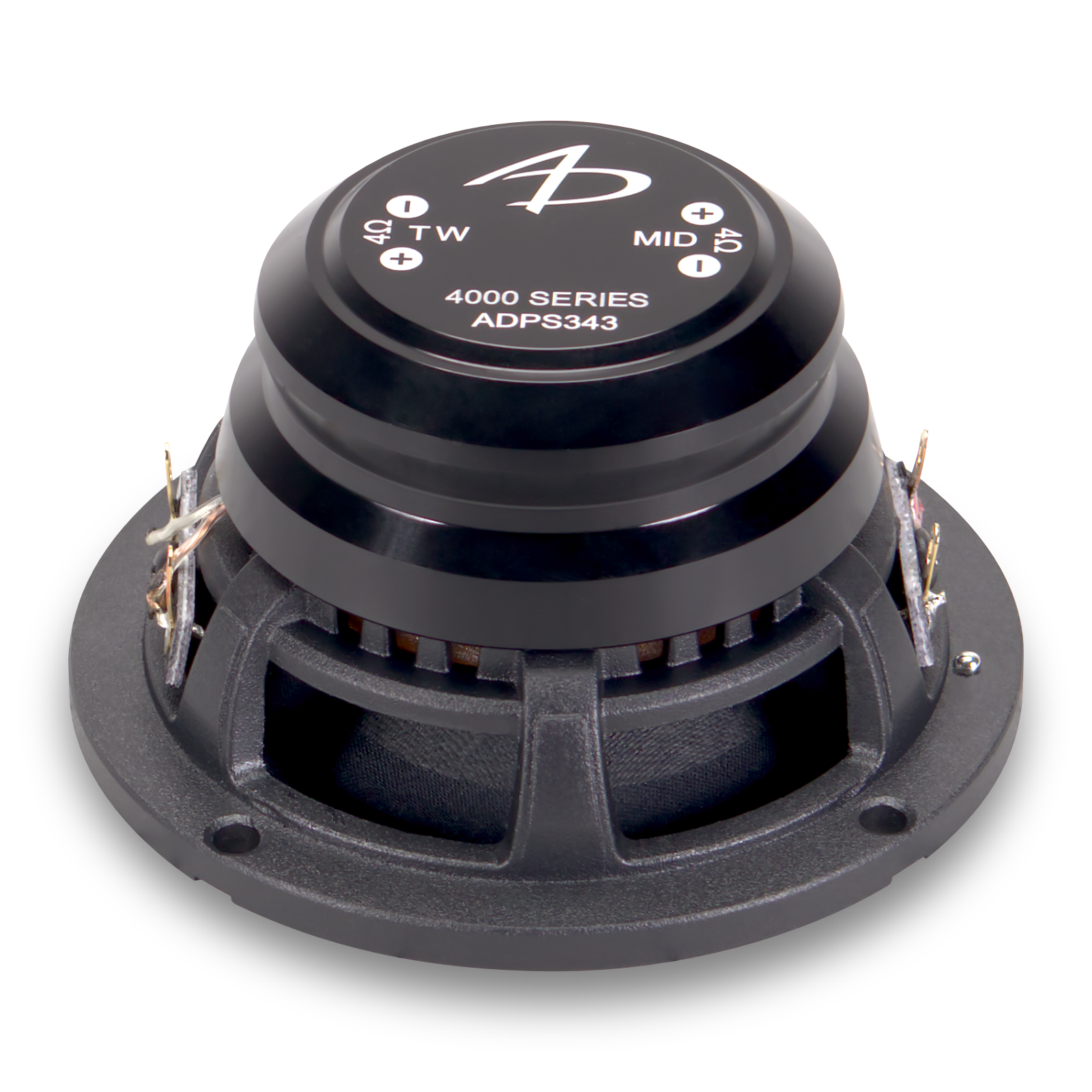

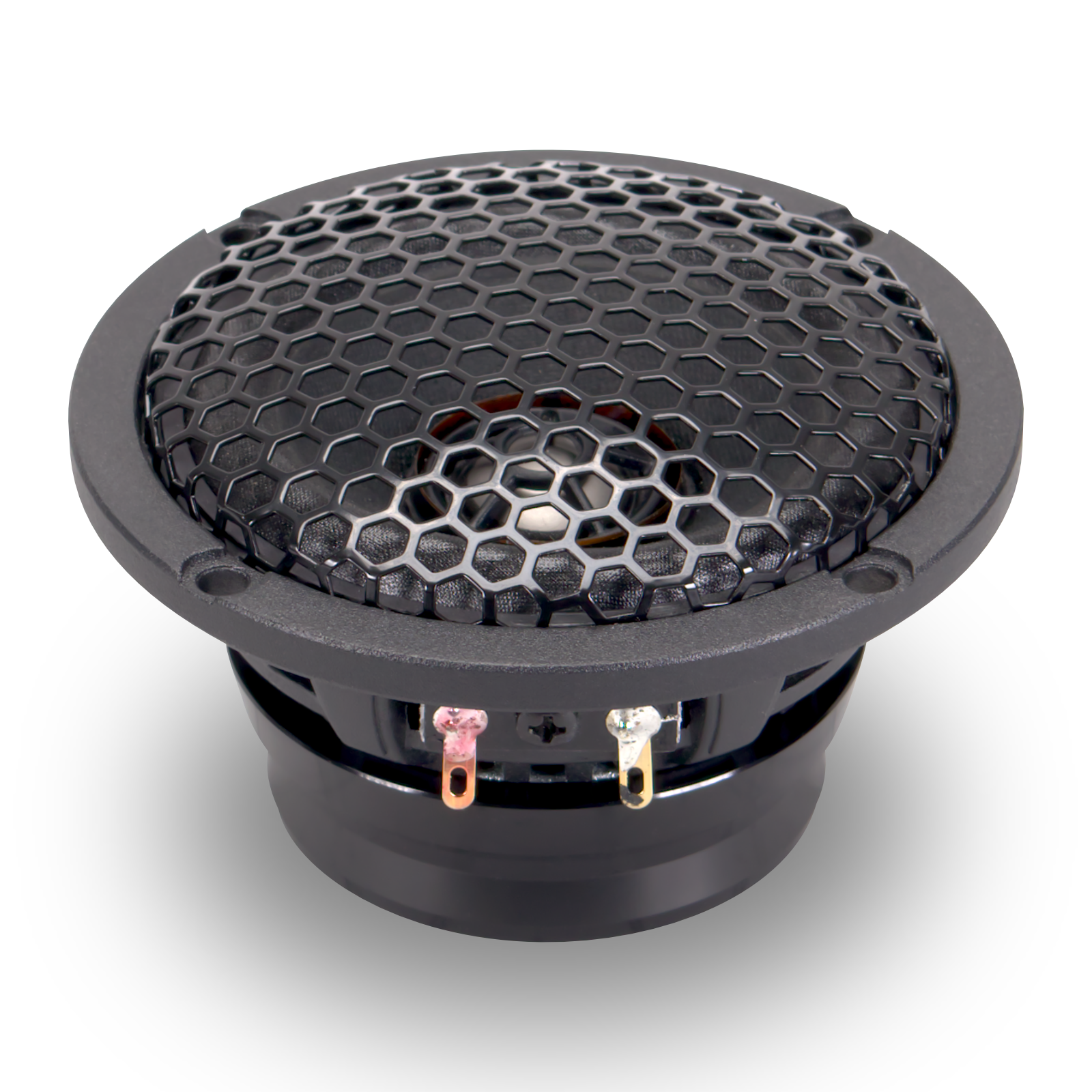

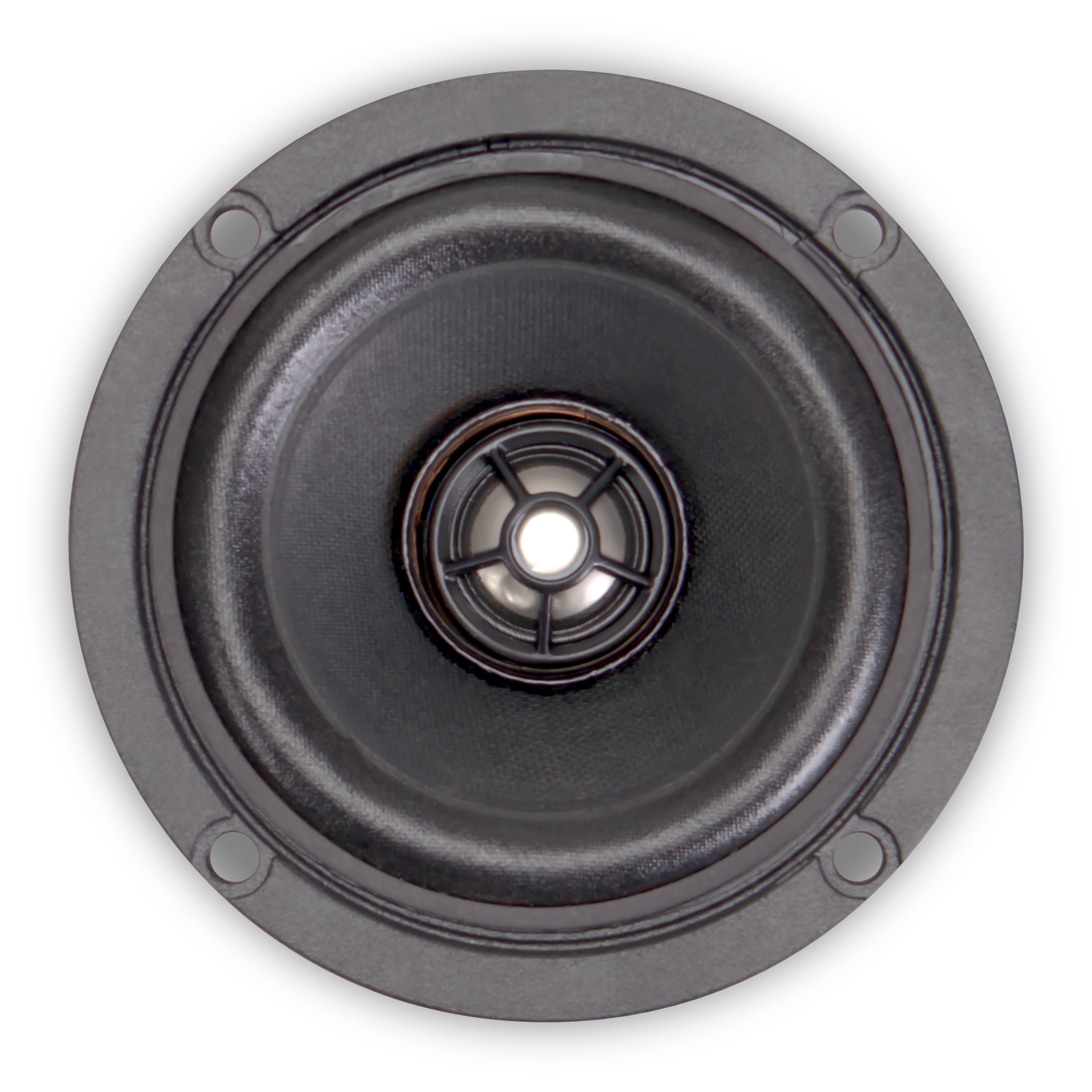

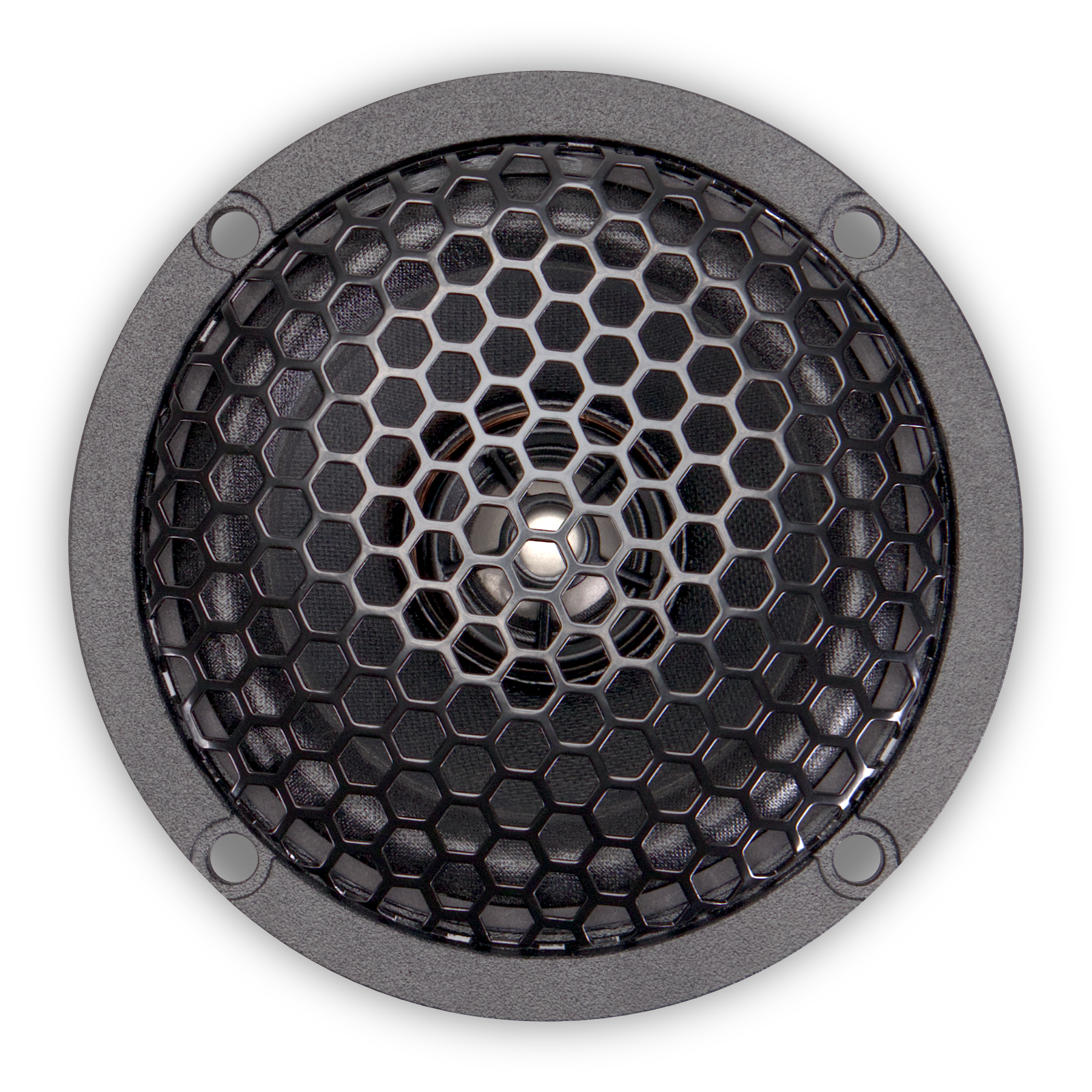

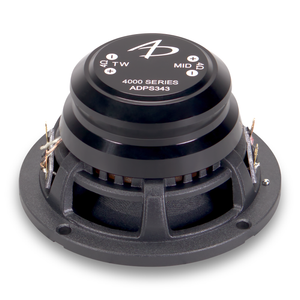

3" Point source:
Frame Outer Diameter	          3 5/8"    (92mm)
Motor Outer Diameter		  2 1/2"    (63mm)
Mounting Hole Diameter		  3 1/16"   (78mm)
Mounting Depth		          1 13/16"  (36mm)
