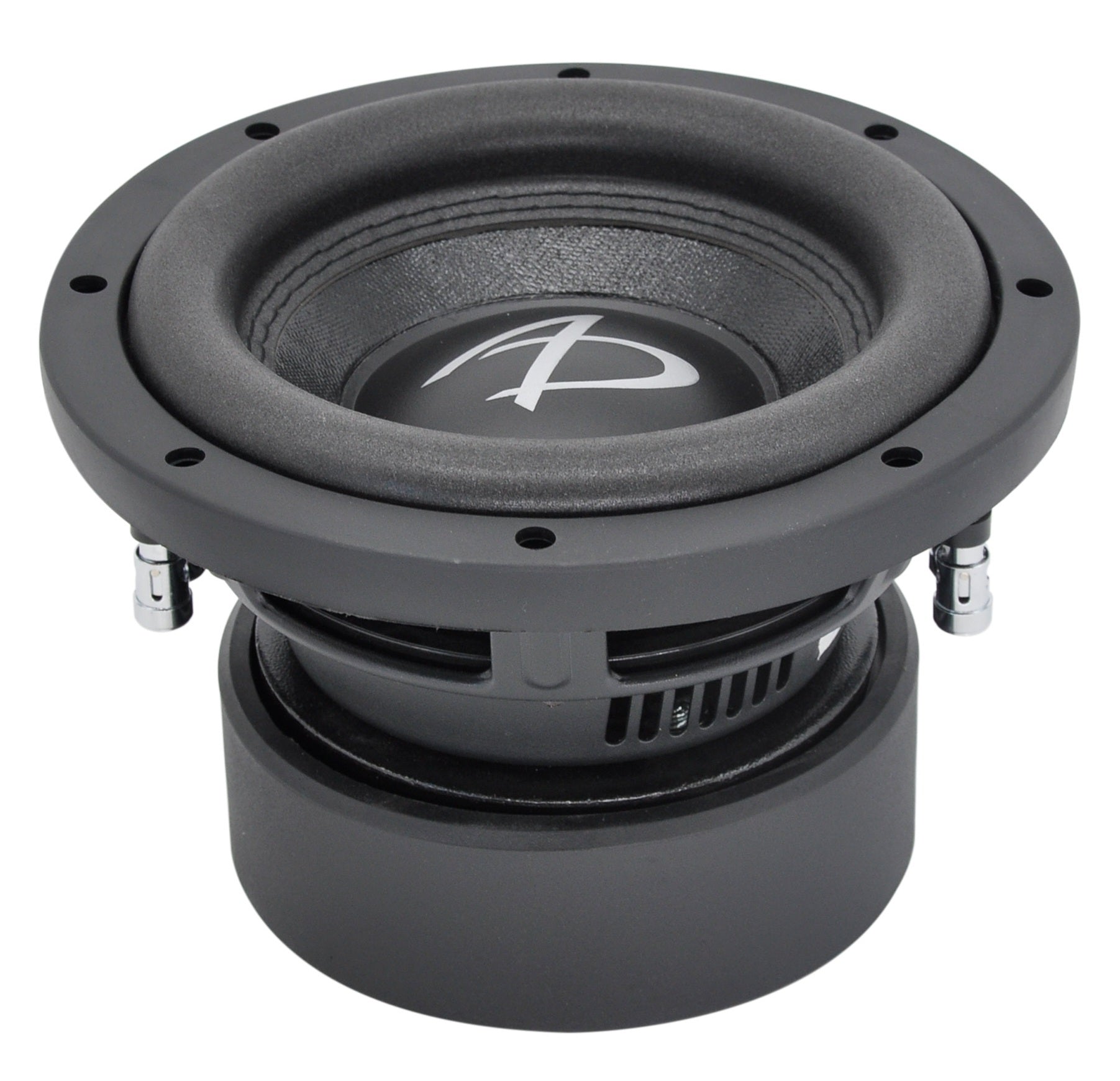

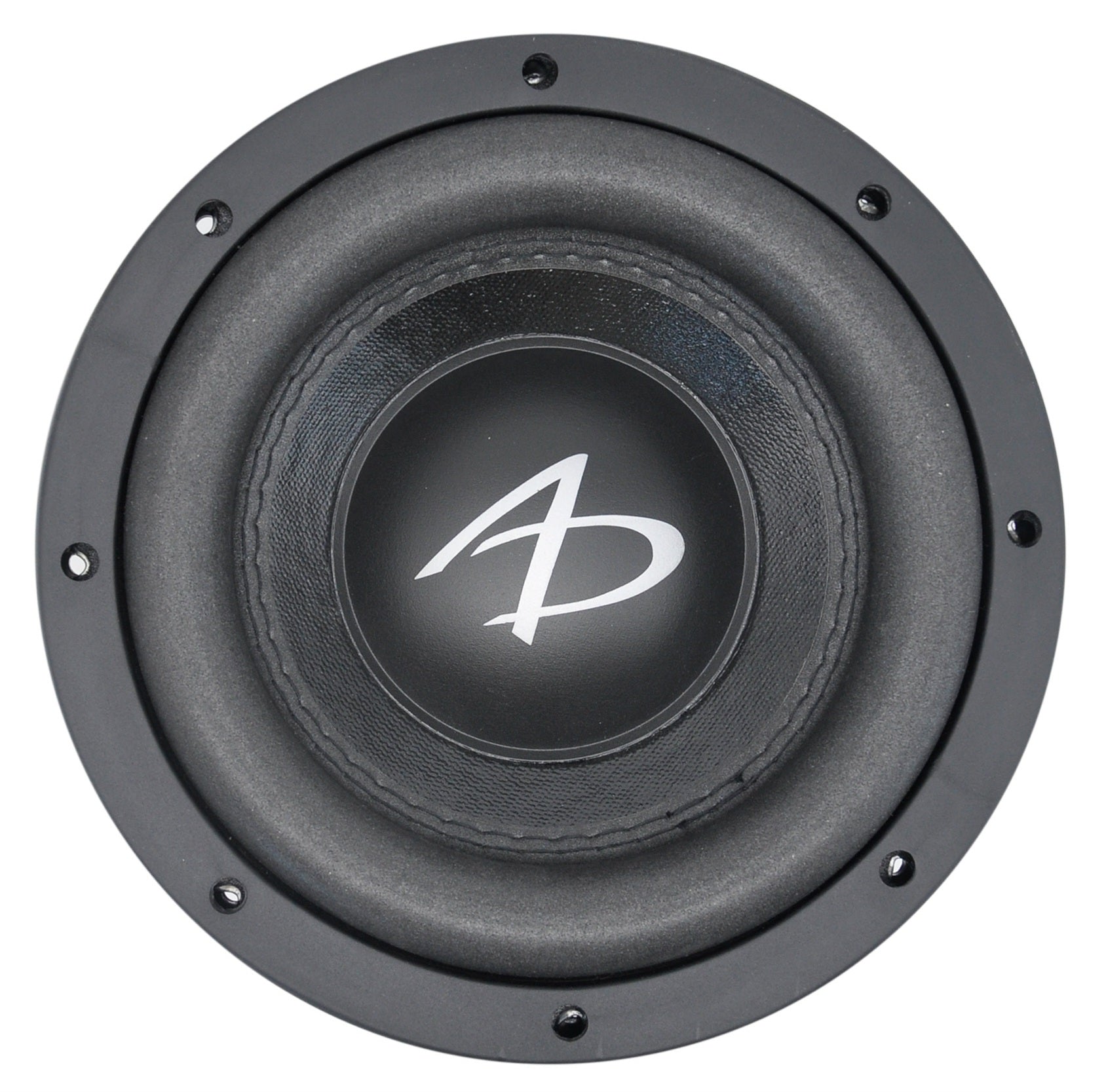

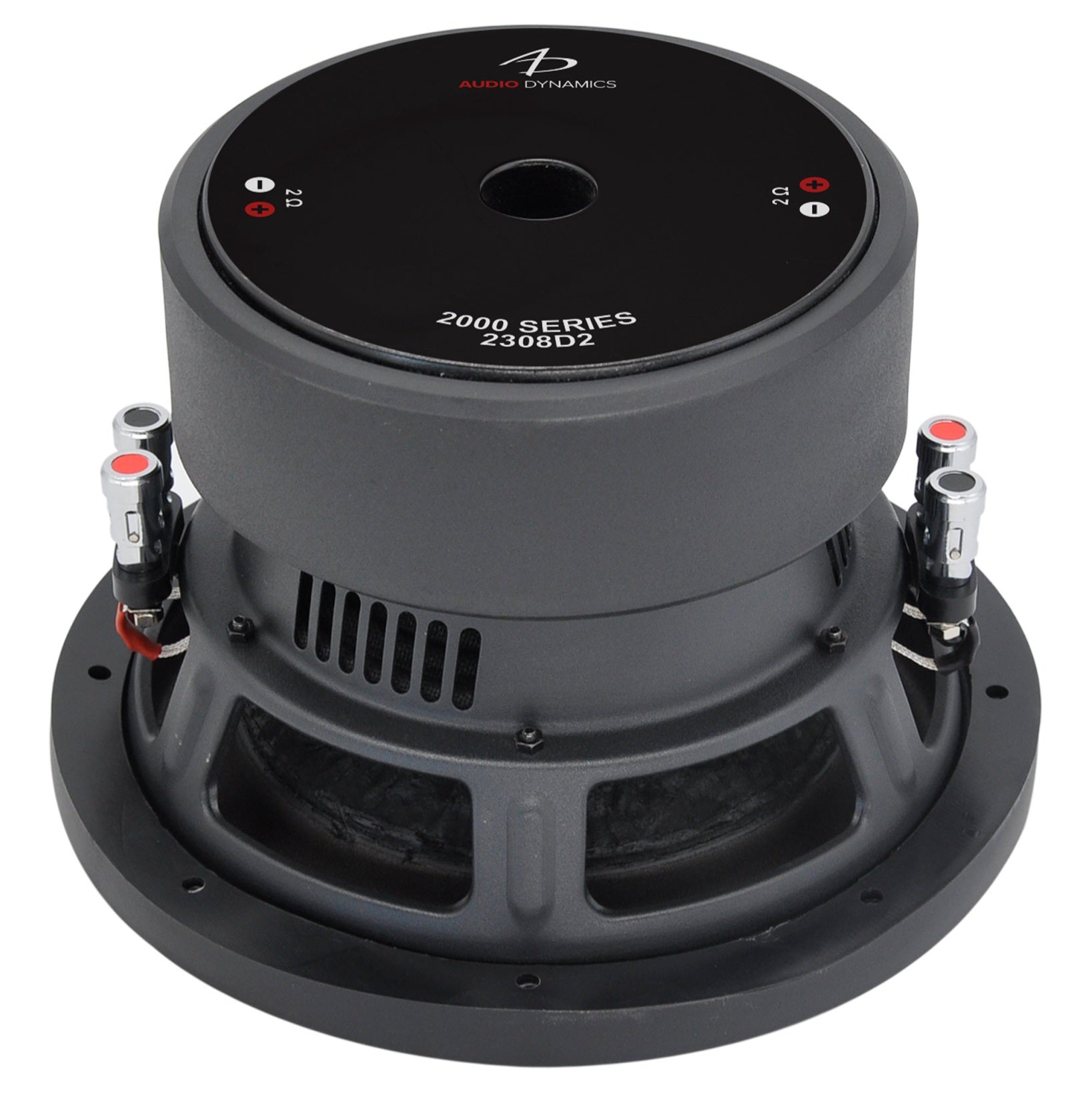

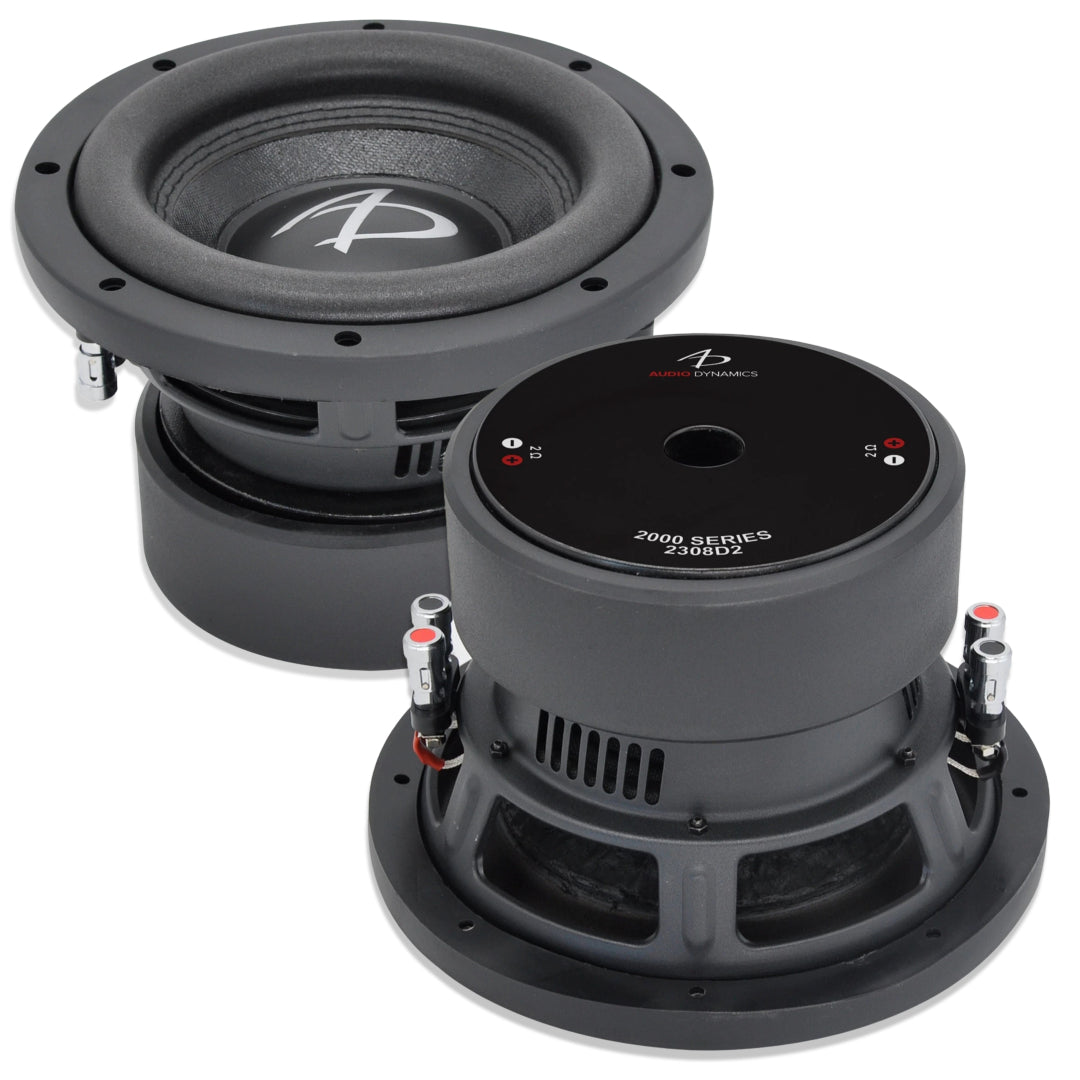

AD2308 D4
In Store Pick Up OnlyHighlights 8" Dual 4 ohm subwoofer 150W - 400W optimal power range 2"...
- $189.00
- $189.00
- Unit price
- per
Subtotal:
$189.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 8" Dual 4 ohm subwoofer
- 150W - 400W optimal power range
- 2" voice coil diameter
- Designed for use in small vented enclosures.
- Engineered in the USA.
Description
Description
The 2300 series 8" employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer's output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 50.44 Hz Qms 7.534 Vas 4.226 l Cms 0.079 mm/N Mms 125.3 g Rms 5.301 kg/s Dia 157.2 mm Sd 194.1 cm² Qes 0.5702 Re 6.771 ohm Le 4.602 mH Z 8.1252 ohm Bl 21.72 Tm Qts 0.5301 no 0.0917 % SPL 81.77 dB EBP 88.46 Nominal Diameter 8 in Overall Diameter 8.39 in / 213 mm Mounting Hole Diameter 7.13 in / 181 mm Bolt Hole Circle DiameterMotor Outer Diameter 5.70 in / 145 mm Mounting Depth 4.92 in / 125 mm Required Pole Vent ClearanceDriver Displacement 0.048 cu ft / 1.37 l Minimum Sealed Volume N/A Minimum Vented Volume 0.42 cu ft / 12 l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
