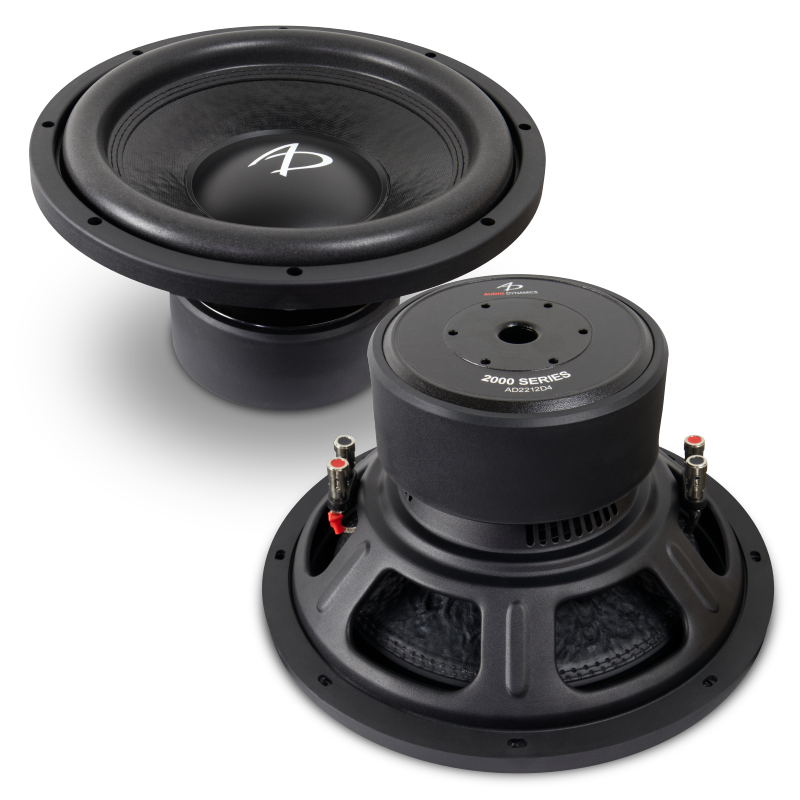

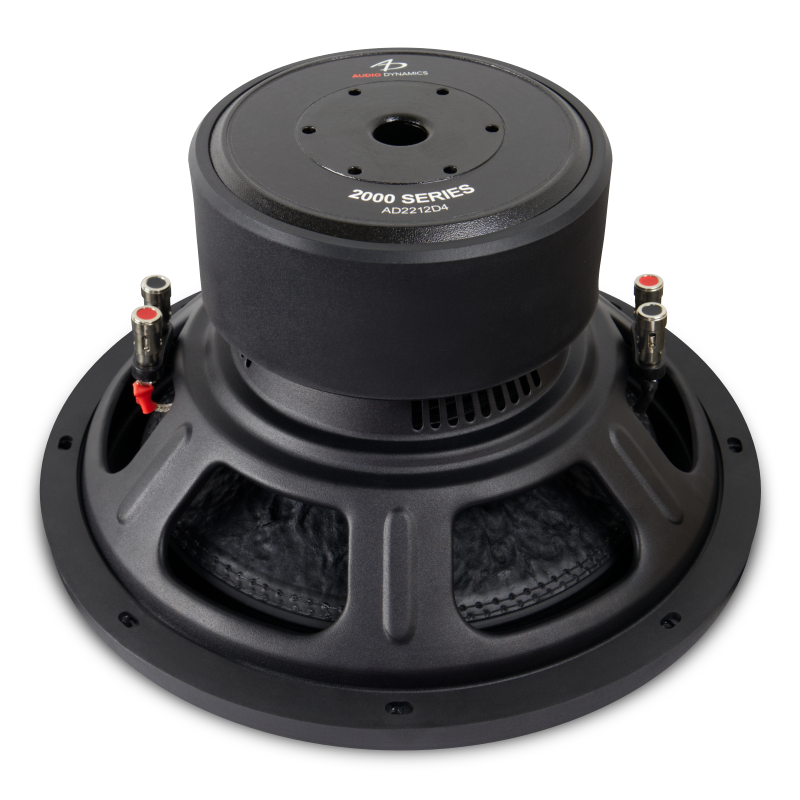

AD2212 D4
In Store Pick Up OnlyHighlights 200W - 600W optimal power range 2.5" voice coil diameter Designed for...
- $269.00
- $269.00
- Unit price
- per
Subtotal:
$269.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 200W - 600W optimal power range
- 2.5" voice coil diameter
- Designed for use in vented enclosures.
- Engineered in the USA.
Description
Description
The 2200 series 12" employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer's output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 34.32 Hz Qms 6.06 Vas 33.68 l Cms 0.09 mm/N Mms 234.00 g Rms 8.40 kg/s Dia 269.56 mm Sd 510.70 cm² Qes 0.67 Re 7.41 ohm Le 2.66 mH Z 8.00 ohm Bl 23.55 Tm Bl²/Re 74.85 N²/W Qts 0.60 no 0.19 % SPL 85.04 dB EBP 50.91 Nominal Diameter 12 in Overall Diameter 12.45 in / 316 mm Mounting Hole Diameter 11 in / 279 mm Bolt Hole Circle DiameterMotor Outer Diameter 6.30 in / 160 mm Mounting Depth 6.30 in / 160 mm Required Pole Vent ClearanceDriver Displacement 0.136 cu ft / 3.87 l Minimum Sealed Volume N/A Minimum Vented Volume 1.32 cu ft / 38 l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
