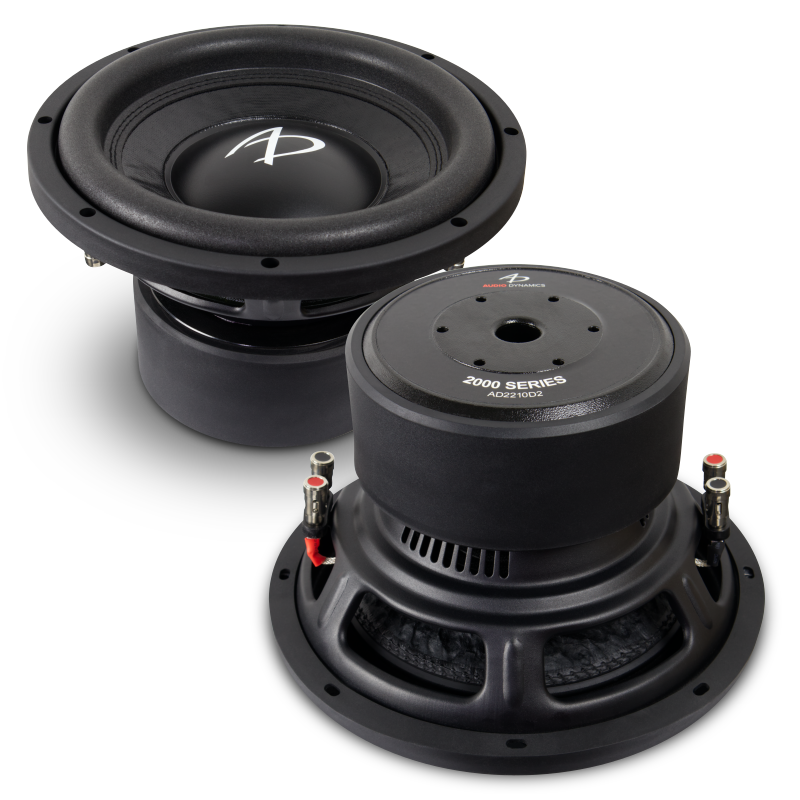

AD2210 D4
In Store Pick Up OnlyHighlights 200W - 600W optimal power range 2.5" voice coil diameter Designed for...
- $259.00
- $259.00
- Unit price
- per
Subtotal:
$259.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 200W - 600W optimal power range
- 2.5" voice coil diameter
- Designed for use in small vented enclosures.
- Engineered in the USA.
Description
Description
The 2200 series 10" employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer's output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 31.63 Hz Qms 5.23 Vas 17.09 l Cms 0.10 mm/N Mms 231.20 g Rms 8.87 kg/s Dia 206 mm Sd 333.29 cm² Qes 0.52 Re 7.43 ohm Le 2.65 mH Z 8.00 ohm Bl 8.92 Tm Bl²/Re 10.70 N²/W Qts 0.47 no 0.09 % SPL 82.14 dB EBP 60.58 Nominal Diameter 10 in Overall Diameter 10.30 in / 262 mm Mounting Hole Diameter 9.06 in / 230 mm Bolt Hole Circle DiameterMotor Outer Diameter 6.30 in / 160 mm Mounting Depth 5.77 in / 147 mm Required Pole Vent ClearanceDriver Displacement 0.071 cu ft / 2.02 l Minimum Sealed Volume N/A Minimum Vented Volume 0.75 cu ft / 21.33 l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
