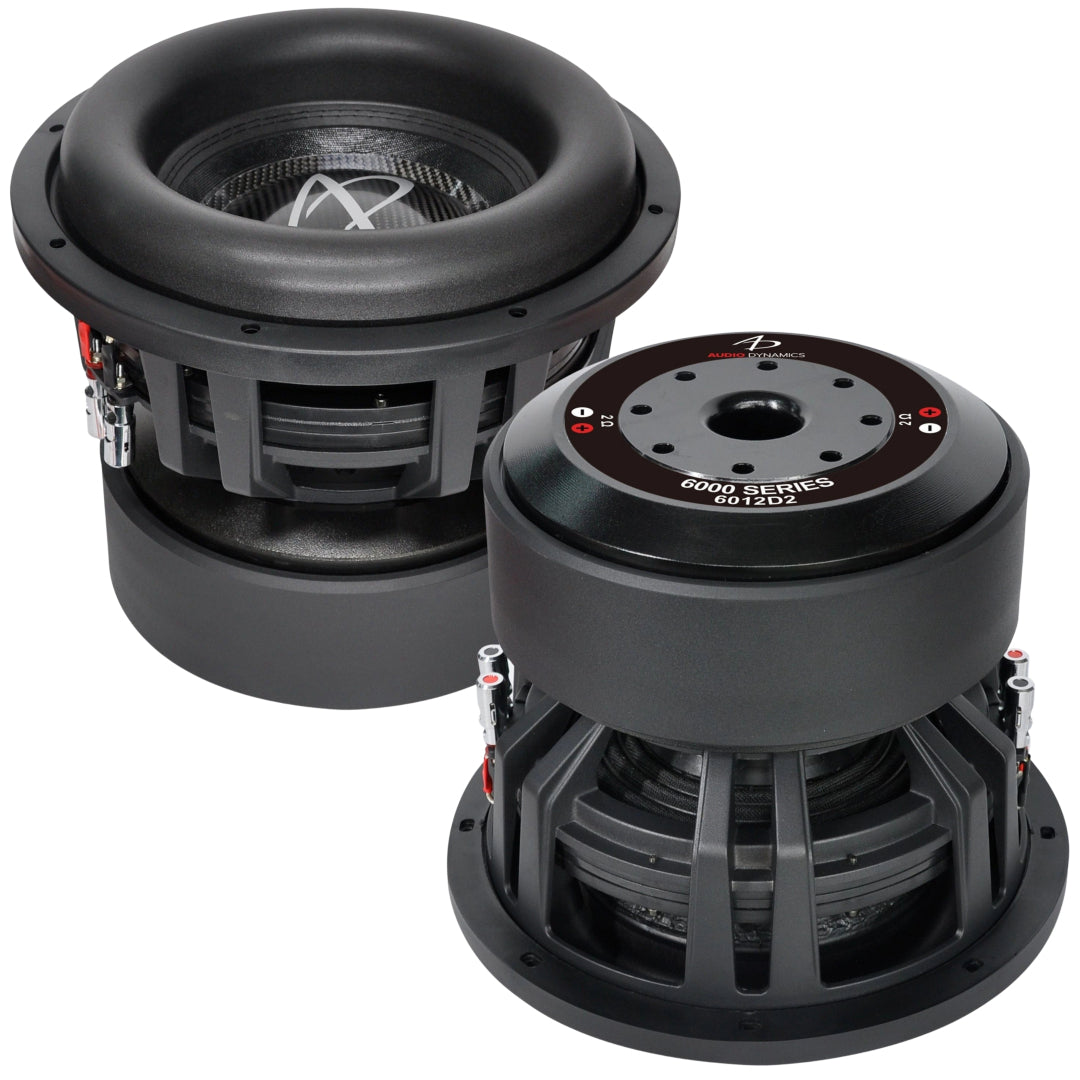

This is an SPL driver. Rather than broad (musical) range, it is optimized for high "one note" performance in small to medium size competition-style vented enclosures.
Dual 1ohm
Fs 32.9 Hz
Qms 5.401
Vas 12.23 liters
Cms 0.0407 mm/N
Mms 575 g
Rms 22.01 kg/s
Dia 242 mm
Sd 460 sq cm
Qes 0.591
Re 2.00 ohms
Le mH
Z ohms
BL 20.05 Tm
BL^2/Re N^2/W
Qts 0.533
no 0.071 %
SPL 80.5 dB
EBP
Dual 2ohm
Fs 34.54 Hz
Qms 4.591
Vas 12.61 liters
Cms 0.042 mm/N
Mms 505.8 g
Rms 23.91 kg/s
Dia 242.000 mm
Sd 460.00 sq cm
Qes 0.738
Re 4.00 ohms
Le mH
Z ohms
BL 24.39 Tm
BL^2/Re N^2/W
Qts 0.636
no 0.0679 %
SPL 80.3 dB
EBP
XMax 23.5mm
Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.33in / 288mm
Bolt Hole Circle Diameter
Motor Outer Diameter 9.8in / 250mm
Mounting Depth 9.44in / 240mm
Required Pole Vent Clearance
Driver Displacement 0.257 cu ft / 7.27 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
