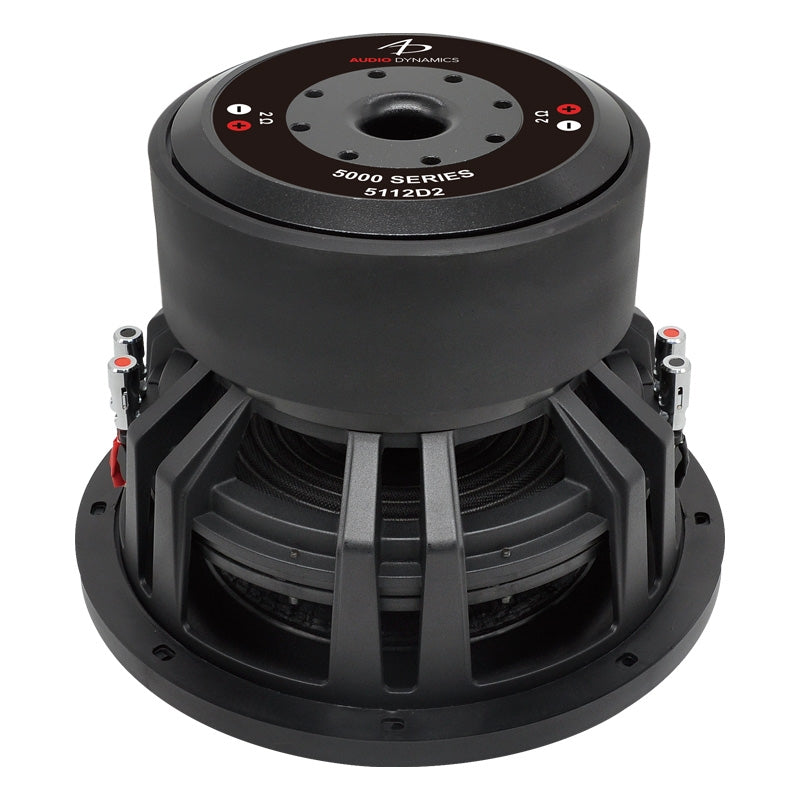

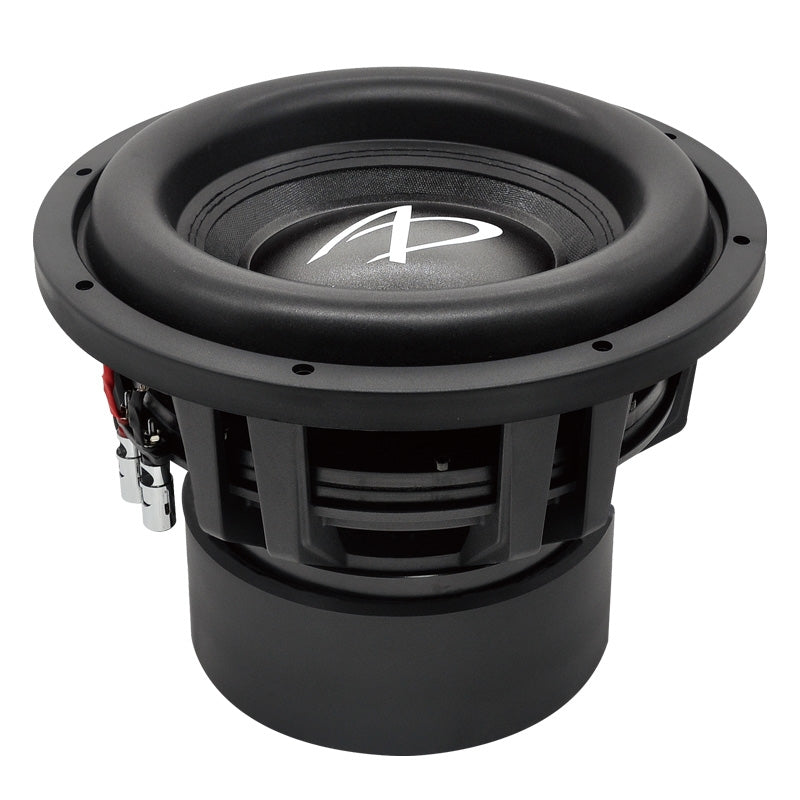

AD5112 D2
In Store Pick Up OnlyHighlights 1,500W - 2,500W optimal power range 3.3 inch high temp voice coil...
- $849.00
- $849.00
- Unit price
- per
Subtotal:
$849.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 1,500W - 2,500W optimal power range
- 3.3 inch high temp voice coil
- Triple stack 378oz motor
- 58lb total weight
- 23.5mm Xmax
- Double high current tinsel leads
- Double blend material spider
- Designed for use in sealed enclosures.
- Engineered in the USA.
- Also available in D4
Description
Description
The 5000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 33.04 Hz
Qms 7.12
Vas 13.99 liters
Cms 0.047 mm/N
Mms 492.8 g
Rms 14.39 kg/s
Dia 241.4 mm
Sd 457.8 sq cm
Qes 0.587
Re 4.29 ohms
Le 4.931 mH
Z 56.35 ohms
BL 27.35 Tm
Qts 0.542
no 0.0829%
SPL 81.24 dB
EBP 56.31
XMax 23.5mm
Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.33in / 288mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.87in / 220mm
Mounting Depth 8.9in / 228mm
Required Pole Vent Clearance
Driver Displacement 0.174 cu ft / 4.927 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
