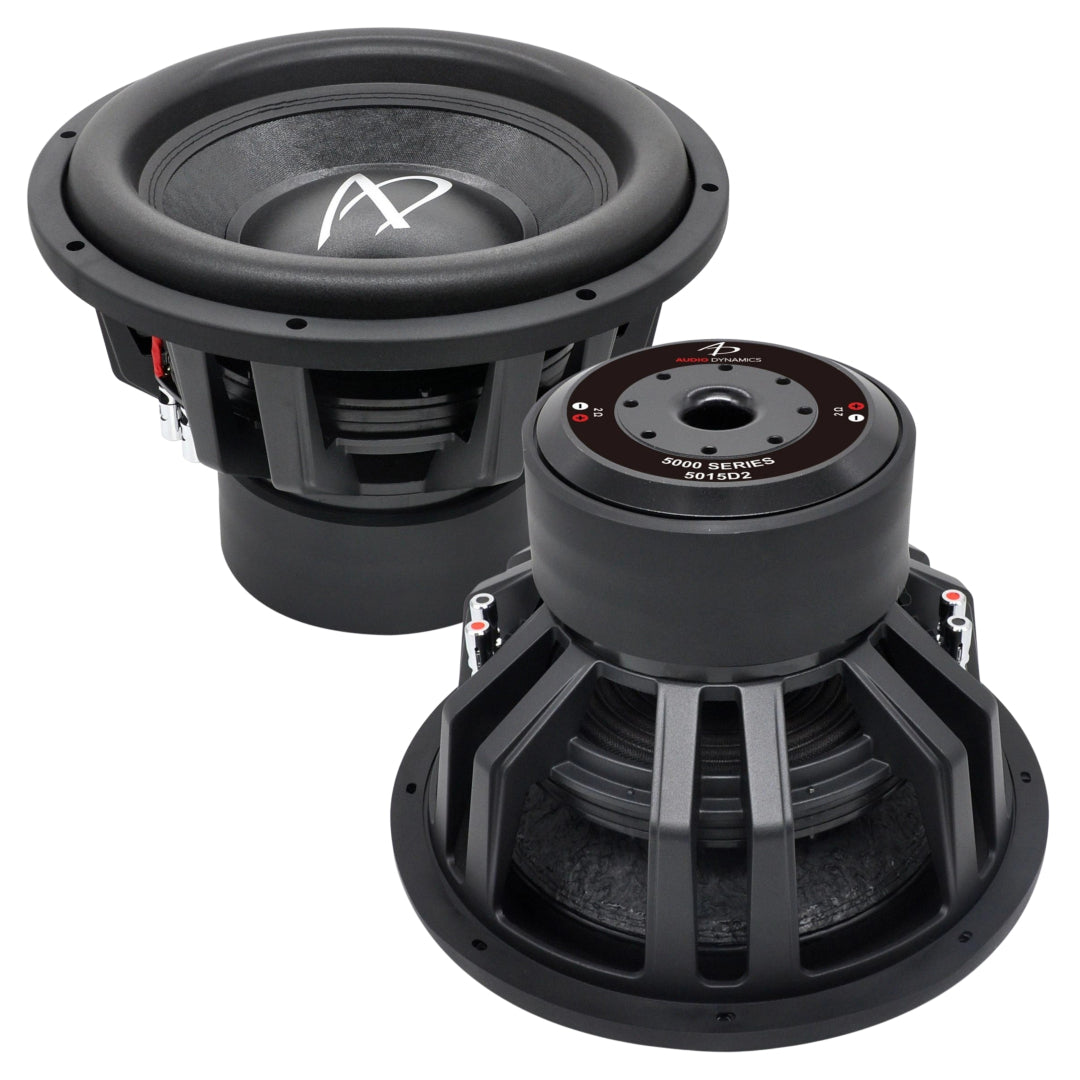

AD5015 D4
In Store Pick Up OnlyHighlights 1,500W - 2,000W optimal power range 3.3 inch high temp voice coil...
- $739.00
- $739.00
- Unit price
- per
Subtotal:
$739.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 1,500W - 2,000W optimal power range
- 3.3 inch high temp voice coil
- Triple stack 332oz motor
- 48.5lb total weight
- 23.5mm Xmax
- Double high current tinsel leads
- Double blend material spider
- Designed for use in sealed enclosures.
- Engineered in the USA.
- Also available in D2
Description
Description
The 5000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 35.66 Hz
Qms 9.068
Vas 31.39 liters
Cms 0.038 mm/N
Mms 530.2 g
Rms 12.95 kg/s
Dia 313.400 mm
Sd 762.70 sq cm
Qes 0.9868
Re 6.235 ohms
Le 6.141 mH
Z 7.482 ohms
BL 27.4 Tm
BL^2/Re 120.411 N^2/W
Qts 0.89
no 0.1376 %
SPL 83.49 dB
EBP 36.137
XMax 23.5mm
Nominal Diameter 15in
Overall Diameter 15.5in / 395mm
Mounting Hole Diameter 13.77in / 350mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.87in / 200mm
Mounting Depth 10in / 255mm
Required Pole Vent Clearance
Driver Displacement 0.196 cu ft / 5.537 l
Minimum Sealed Volume N/A
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
