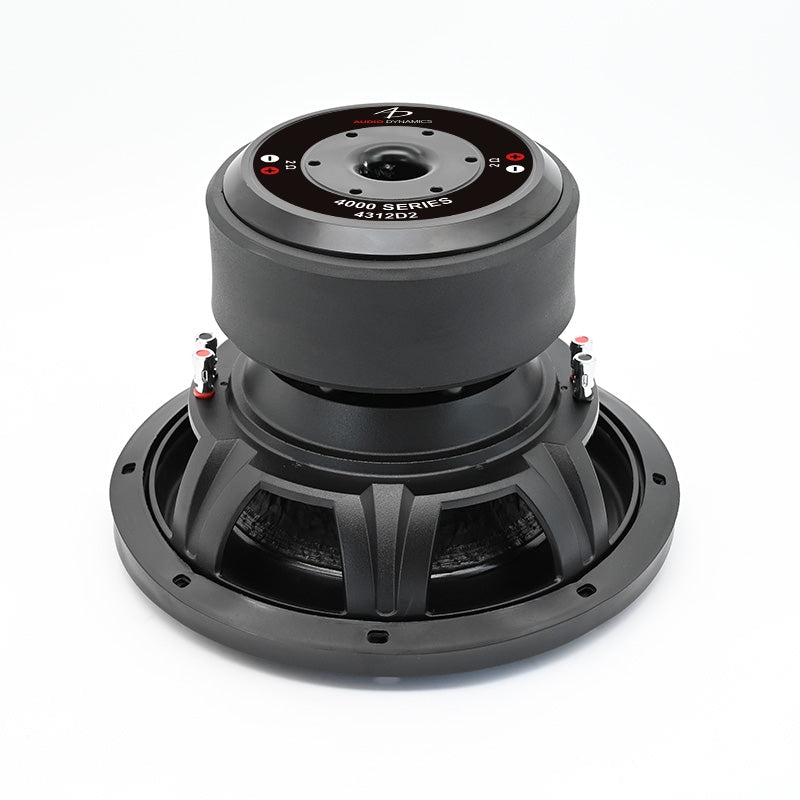

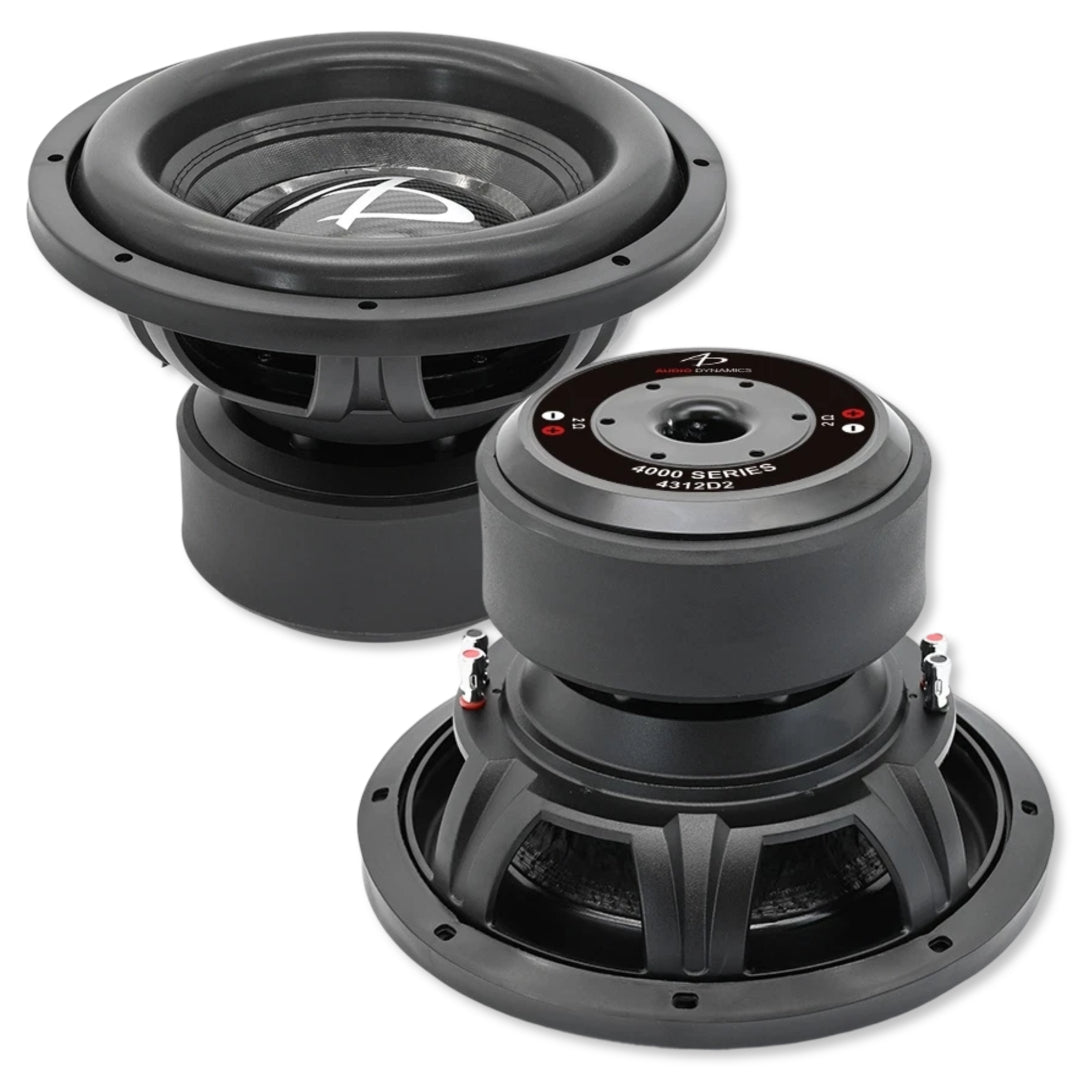

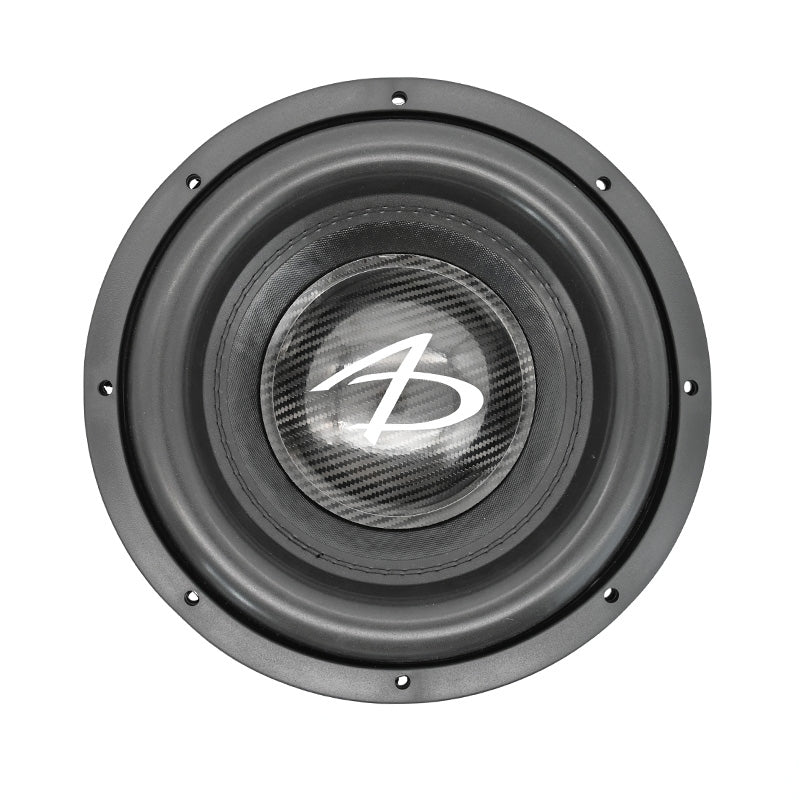

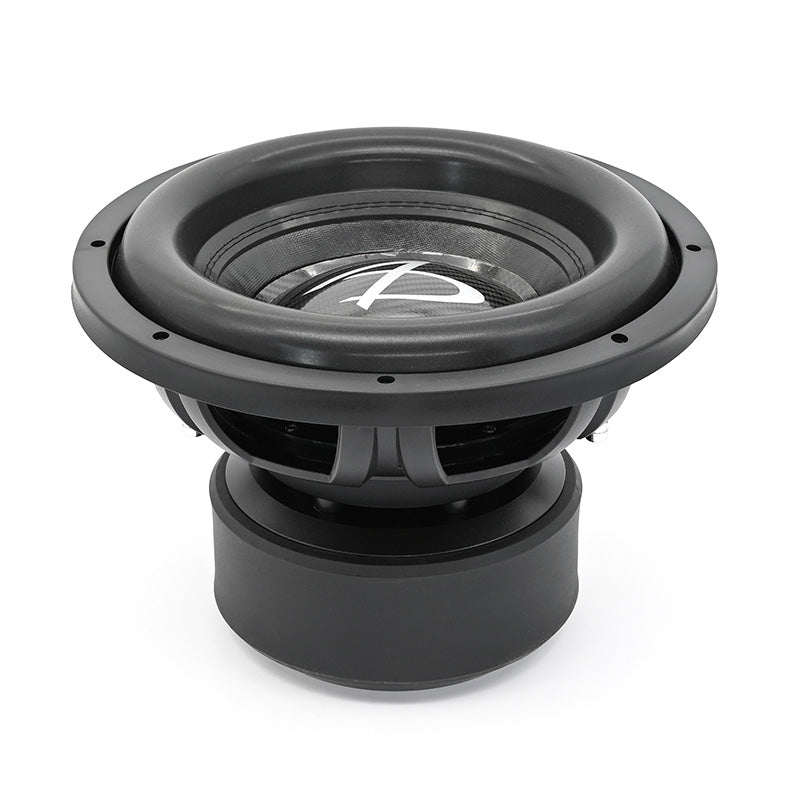

AD4312 D2
In Store Pick Up OnlyHighlights 500W - 1,500W optimal power range 3 inch voice coil Triple stack...
- $549.00
- $549.00
- Unit price
- per
Subtotal:
$549.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 500W - 1,500W optimal power range
- 3 inch voice coil
- Triple stack 225oz motor
- 23.5mm Xmax
- Double high current tinsel leads
- Nomex spider
- Designed for use in small vented enclosures.
- Engineered in the USA.
Description
Description
The 4000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 33.04 Hz
Qms 7.346
Vas 17.17 liters
Cms 0.055 mm/N
Mms 420.5 g
Rms 11.92 kg/s
Dia 244.8 mm
Sd 468.8 sq cm
Qes 0.565
Re 4.158 ohms
Le 5.907mH
Z 58.20ohms
BL 25.34 Tm
BL^2/Re
Qts 0.525
no 0.106 %
SPL 82.38 dB
EBP 58.48
Xmax 23.5 mm
Nominal Diameter 12in
Overall Diameter 12.60in / 320mm
Mounting Hole Diameter 11.12in / 282.5mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.72in / 196mm
Mounting Depth 7.64in / 194mm
Required Pole Vent Clearance
Driver Displacement 0.114 cu ft / 3.24 l
Minimum Sealed Volume N/A
Minimum Vented Volume 1.30 cu ft / l net*
* Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
