AD4212 D4
In Store Pick Up OnlyHighlights 500W - 1,500W optimal power range 3 inch voice coil Triple stack...
- $549.00
- $549.00
- Unit price
- per
Subtotal:
$549.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 500W - 1,500W optimal power range
- 3 inch voice coil
- Triple stack 225oz motor
- 23.5mm Xmax

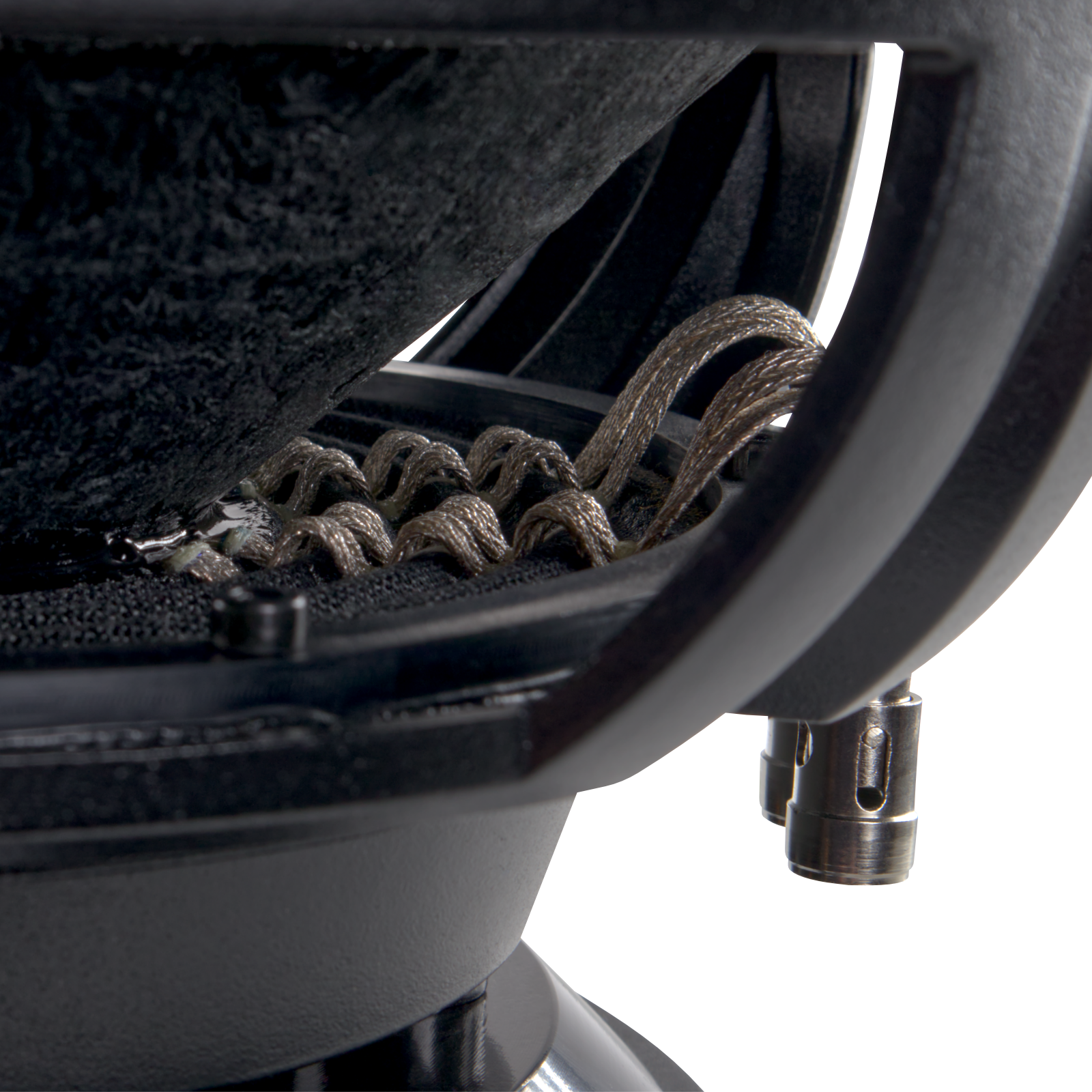

- Double high current tinsel leads
- Nomex spider
- Designed for use in small vented enclosures.
- Engineered in the USA.
Description
Description
The 4000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 32.100 Hz
Qms 5.234
Vas 21.950 liters
Cms 0.072 mm/N
Mms 338.400 g
Rms 13.183 kg/s
Dia 243.000 mm
Sd 463.770 sq cm
Qes 0.472
Re 7.540 ohms
Le 4.071 mH
Z 9.048 ohms
BL 33.009 Tm
BL^2/Re 144.510 N^2/W
Qts 0.433
no 0.148 %
SPL 83.856 dB
EBP 67.965
XMax 23.5mm
Nominal Diameter 12in
Overall Diameter 12.60in / 320mm
Mounting Hole Diameter 11.12in / 282.5mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.72in / 196mm
Mounting Depth 7.64in / 194mm
Required Pole Vent Clearance
Driver Displacement 0.114 cu ft / 3.24 l
Minimum Sealed Volume N/A
Minimum Vented Volume 1.17 cu ft / l net*
* Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
