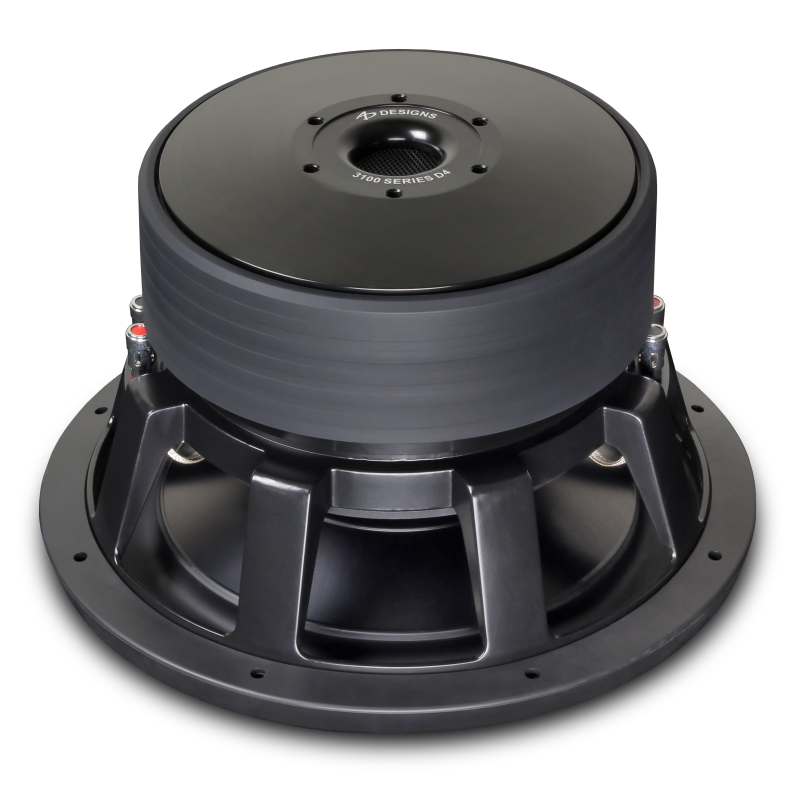

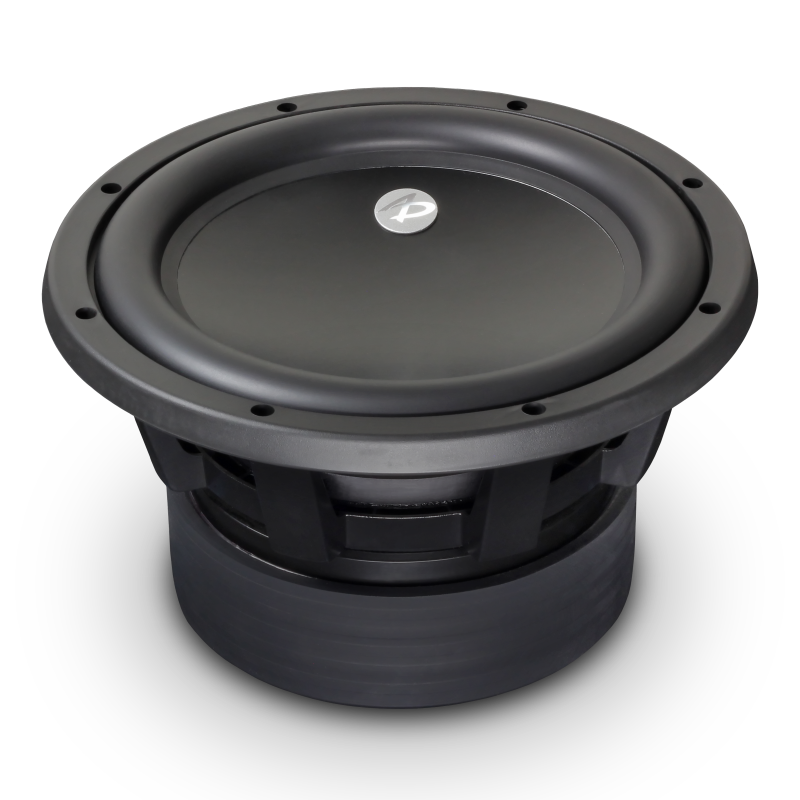

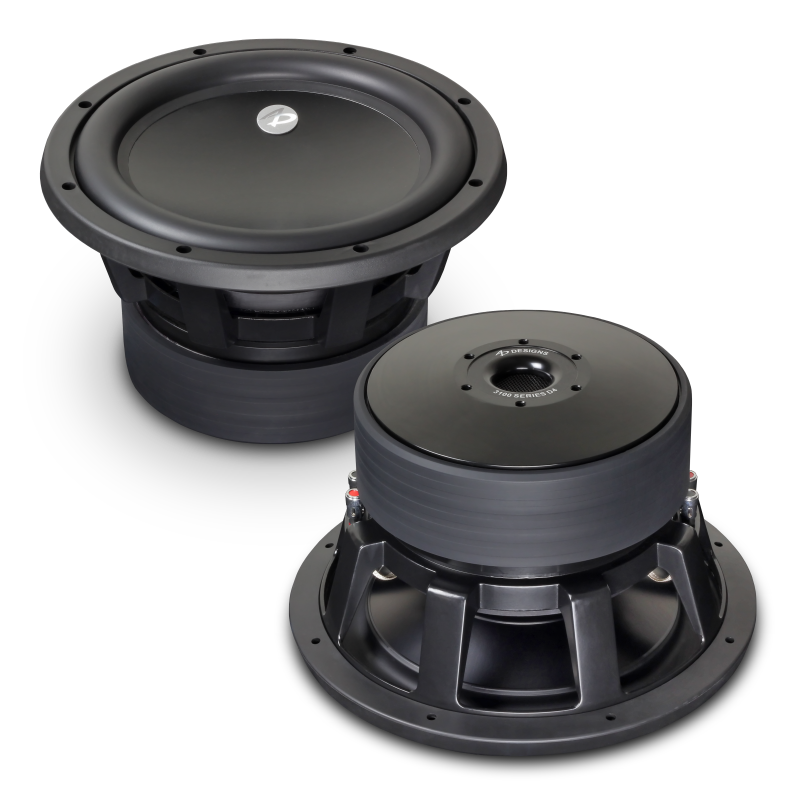

AD3112 D2
In Store Pick Up OnlyHighlights 500W - 1,200W optimal power range Thermally-coupled aluminum cone & dustcap. Designed...
- $699.00
- $699.00
- Unit price
- per
Subtotal:
$699.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 500W - 1,200W optimal power range
- Thermally-coupled aluminum cone & dustcap.
- Designed for use in small vented enclosures.
- Engineered in the USA.
Description
Description
The 3100 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions:
Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer's output can be focused along a narrow bandwidth for use in extreme loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.
Fs 30.280 Hz Qms 3.960 Vas 39.100 l Cms 0.110 mm/N Mms 239.100 g Rms 11.590 kg/s Dia 250.000 mm Sd 490.870 cm² Qes 0.250 Re 3.780 ohm Le 1.730 mH Z 4.530 ohm Bl 25.880 Tm Bl²/Re 177.140 N²/W Qts 0.240 no 0.400 % SPL 88.240 dB EBP 118 Nominal Diameter 12in Overall Diameter 12.33in / 313.25mm Mounting Hole Diameter 11.11in / 282.25mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 7.02in / 178.4mm Required Pole Vent ClearanceDriver Displacement 0.15 cu ft / 4.38l New WeightMinimum Sealed Volume N/A Minimum Vented Volume 1.5 cu ft / 42.47l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
