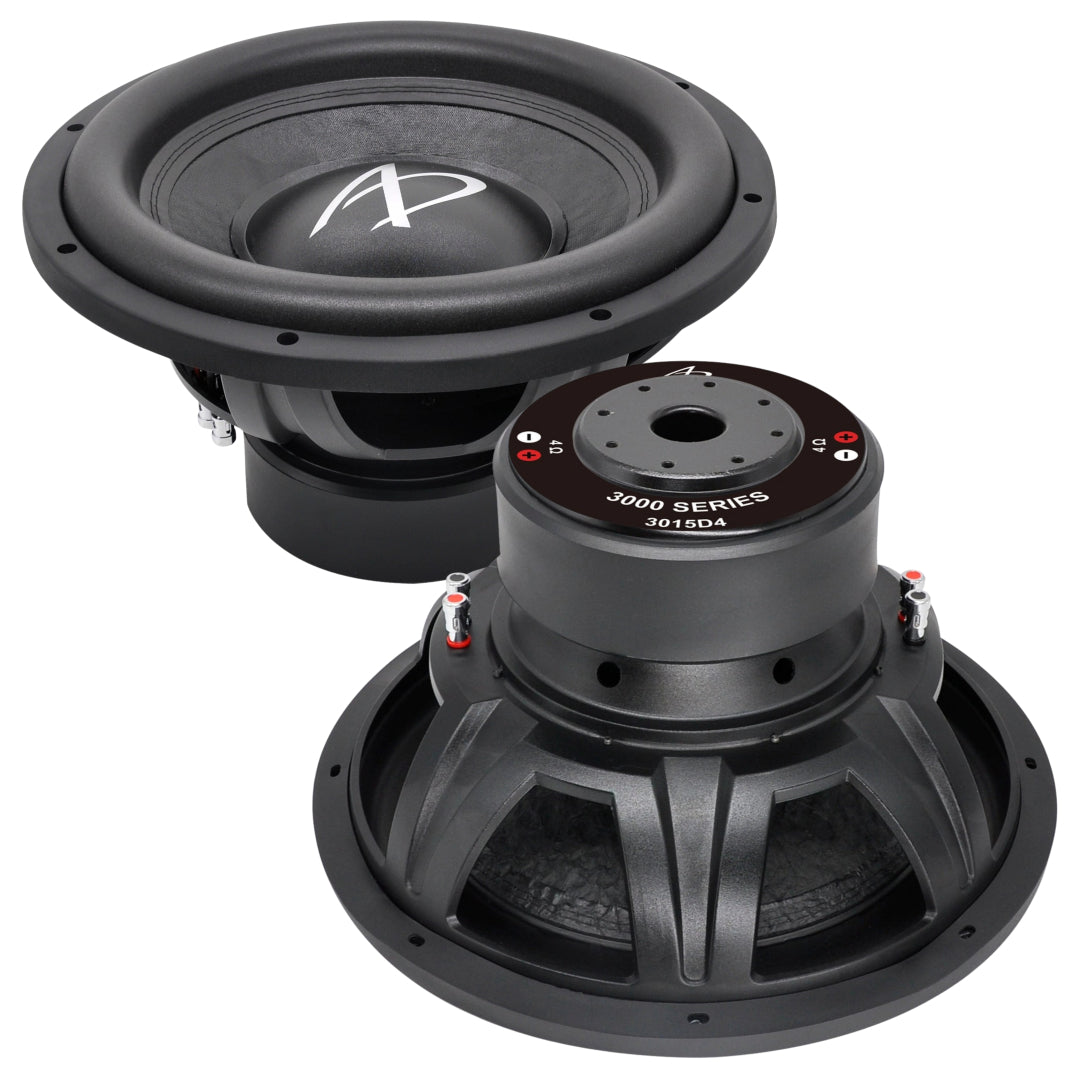

AD3015 D4
In Store Pick Up OnlyHighlights 600W - 1,000W optimal power range 3 inch Copper voice coil Double...
- $429.00
- $429.00
- Unit price
- per
Subtotal:
$429.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 600W - 1,000W optimal power range
- 3 inch Copper voice coil
- Double stack 169oz motor
- 16.5mm Xmax
- Double high current tinsel leads
- Double blend material spider
- Designed for medium-sized vented enclosures
- Engineered in the USA.
- Also available in D2
- Sold individually
Description
Description
The 3000 series 15 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 31.76 Hz
Qms 7.284
Vas 53.09 liters
Cms 0.058 mm/N
Mms 429.6 g
Rms 11.862 kg/s
Dia 320 mm
Sd 802.624 sq cm
Qes 0.769
Re 6.82 ohms
Le 6.002 mH
Z 8.184 ohms
BL 27.57 Tm
BL^2/Re N^2/W
Qts 0.696
no %
SPL 85.434 dB
EBP 41.284
XMax 16.5mm
Nominal Diameter 15in
Overall Diameter 15.6in / 396mm
Mounting Hole Diameter 14.12in / 358.65mm
Motor Outer Diameter 7.08in / 180mm
Mounting Depth 8.06in / 205mm
Driver Displacement 0.151 cu ft / 4.273 l
Minimum Sealed Volume
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback and an SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
