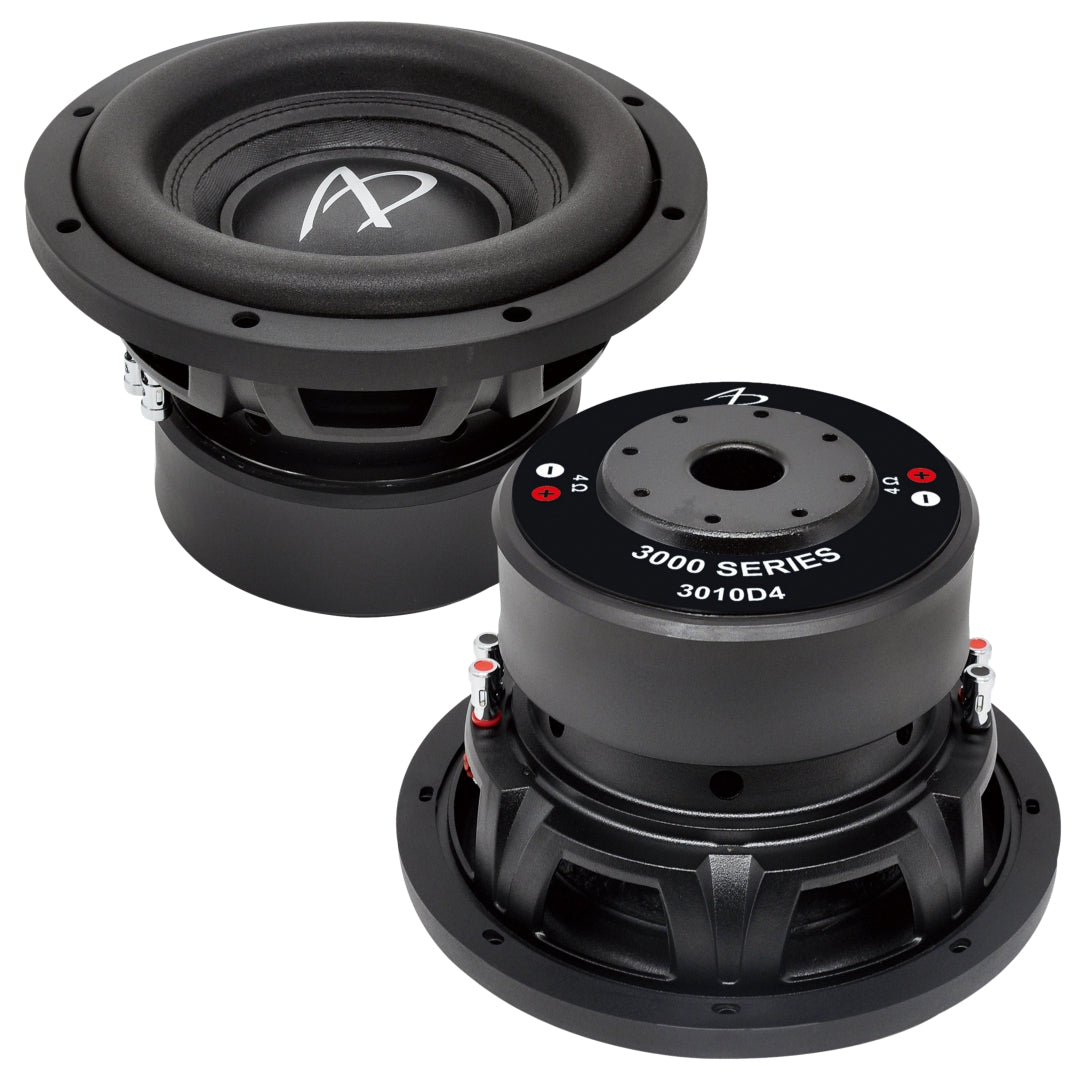

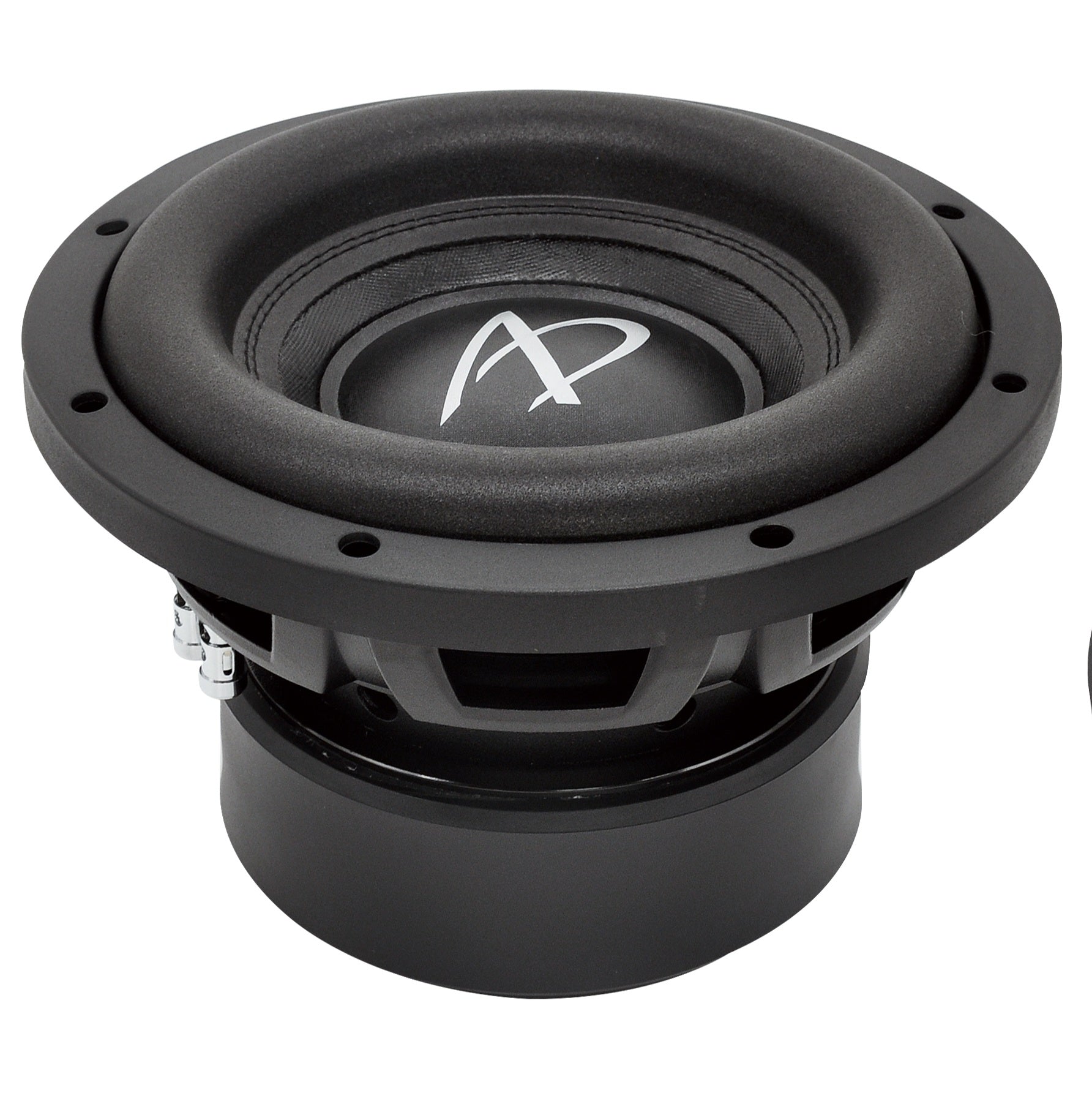

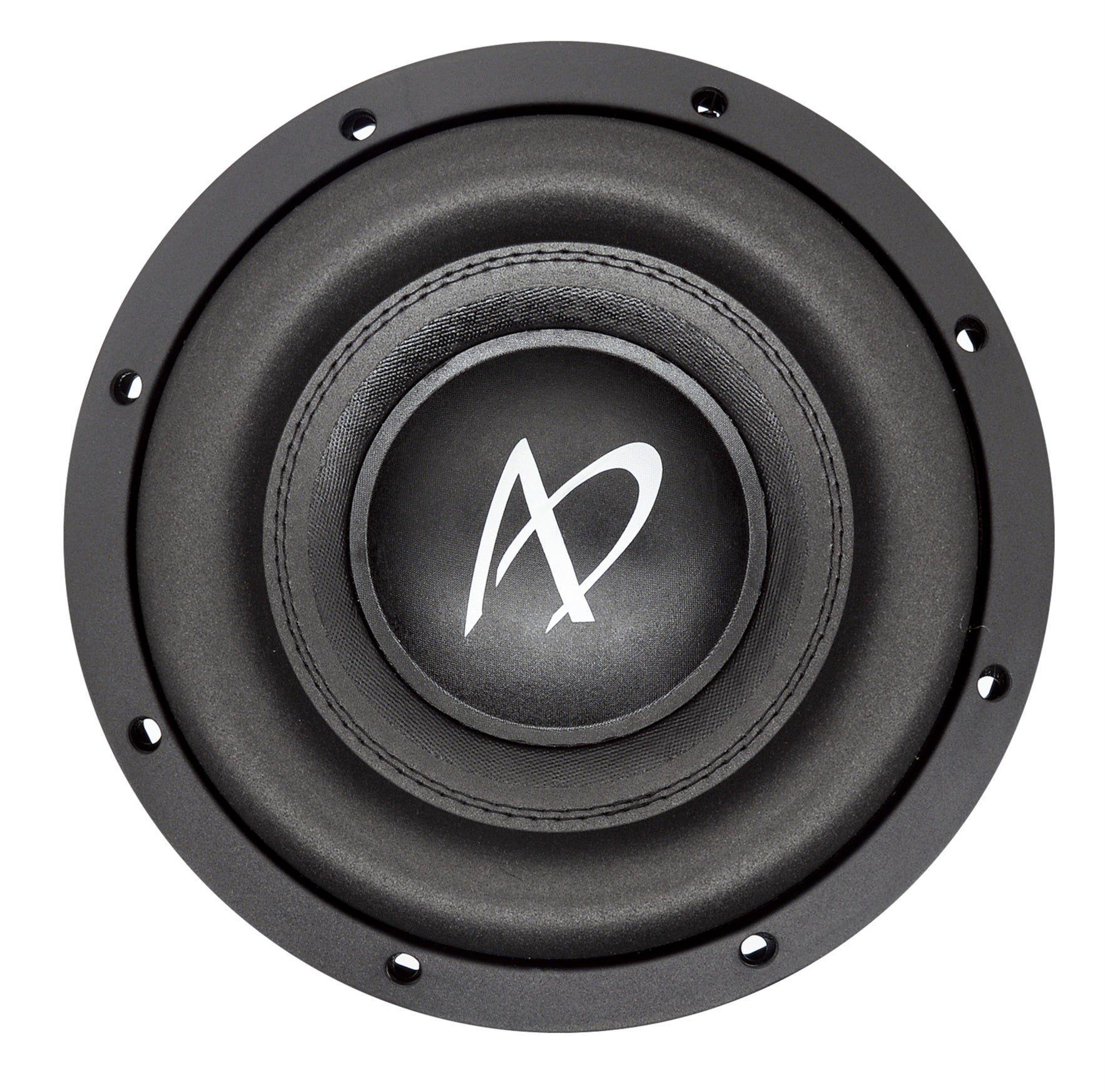

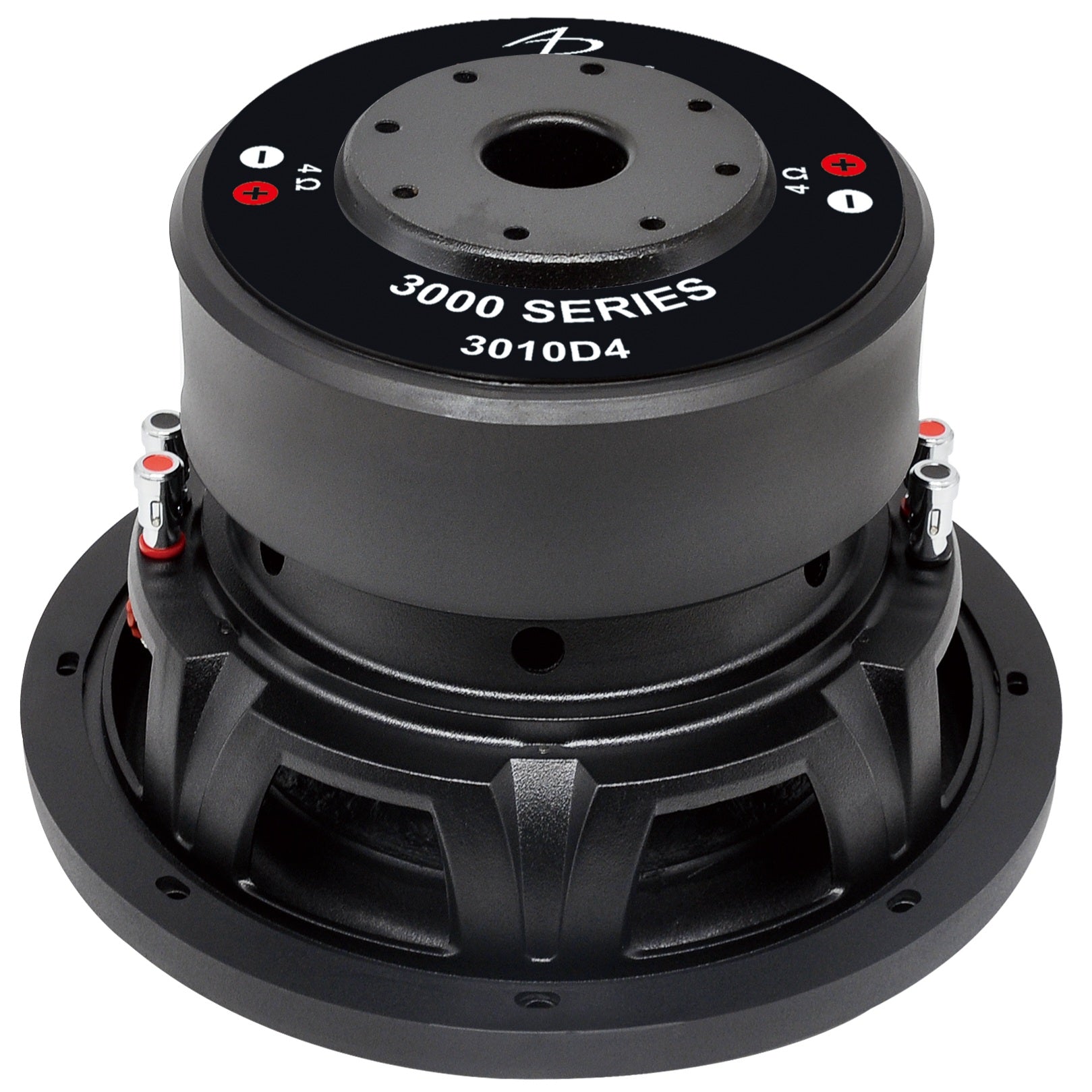

AD3010 D4
In Store Pick Up OnlyHighlights 600W - 1,000W optimal power range 3 inch high temp voice coil...
- $379.00
- $379.00
- Unit price
- per
Subtotal:
$379.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 600W - 1,000W optimal power range
- 3 inch high temp voice coil
- Double stack 169oz motor
- 16.5mm Xmax
- Double high current tinsel leads
- Double blend material spider
- Designed for vented enclosures
- Engineered in the USA.
- Also available in D2
- Sold Individually
Description
Description
The 3000 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 35.87 Hz
Qms 3.943
Vas 10.32 liters
Cms 0.0654 mm/N
Mms 300.9 g
Rms 17.23 kg/s
Dia 206.000 mm
Sd 333.3 sq cm
Qes 0.559
Re 6.80 ohms
Le 4.23 mH
Z ohms
BL 28.73 Tm
BL^2/Re N^2/W
Qts 0.489
no %
SPL 82.2 dB
EBP
XMax 16.5mm
Nominal Diameter 10in
Overall Diameter 11.02in / 280mm
Mounting Hole Diameter 9 3/16in / 233mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.08in / 180mm
Mounting Depth 6.4in / 163mm
Required Pole Vent Clearance
Driver Displacement 0.087 cu ft / 2.465 l
Minimum Sealed Volume
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback, and SUV were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
