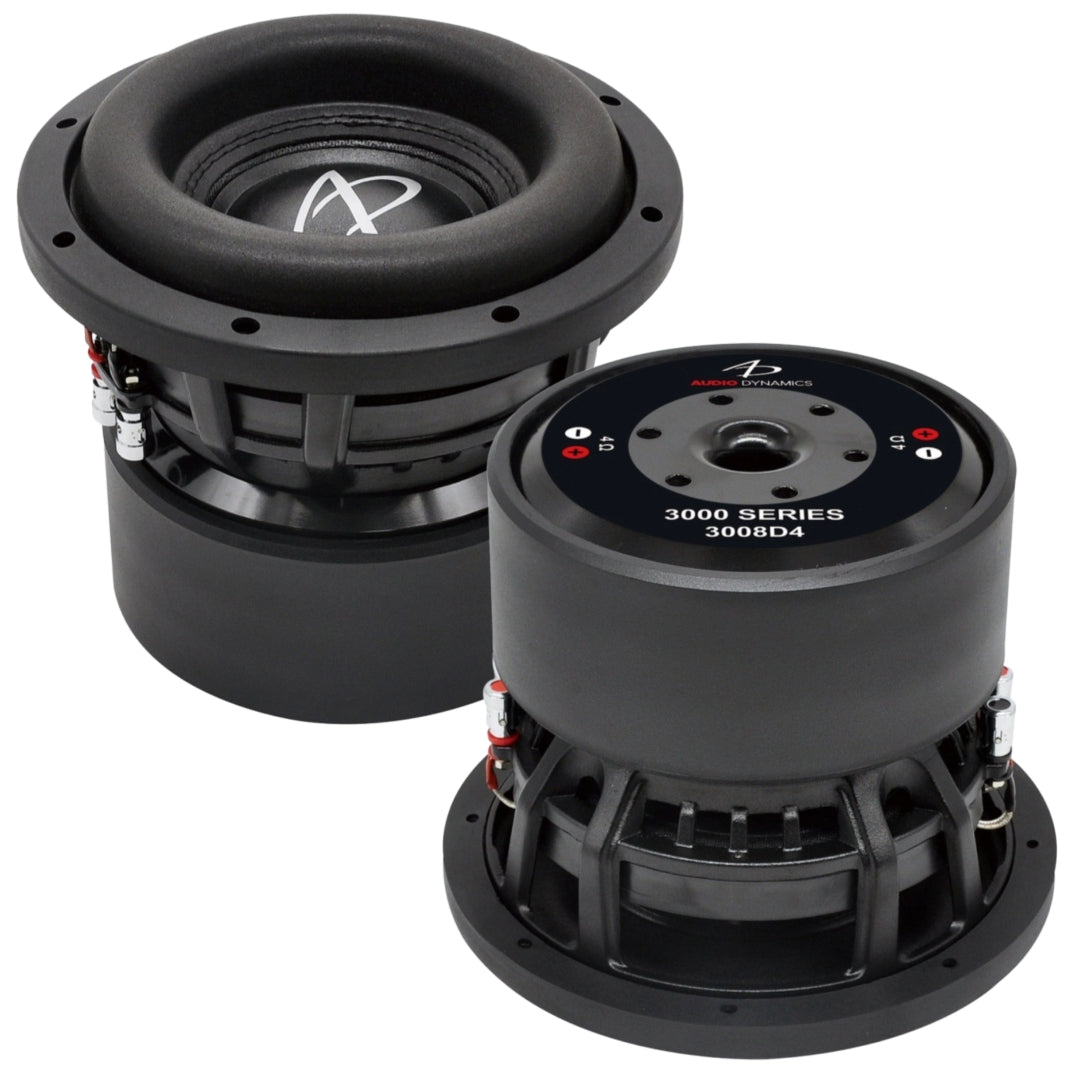

This is an SPL driver. Rather than broad (musical) range, it is optimized for high "one note" performance in small to medium size competition-style vented enclosures.
Fs 47 Hz
Qms 4.033
Vas 4.162 liters
Cms 0.0802 mm/N
Mms 142.5 g
Rms 10.47 kg/s
Dia 156.000 mm
Sd 191.1 sq cm
Qes 0.686
Re 6.40 ohms
Le 2.44 mH
Z ohms
BL 19.83 Tm
BL^2/Re N^2/W
Qts 0.586
no %
SPL 79.9 dB
EBP
XMax 17.5mm
Nominal Diameter 8in
Overall Diameter 8.7in / 221mm
Mounting Hole Diameter 7.454in / 190mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.69in / 170mm
Mounting Depth 6.14 in / 156.23mm
Required Pole Vent Clearance
Driver Displacement 0.085 cu ft / 2.465 l
Minimum Sealed Volume
Minimum Vented Volume cu ft / l net*
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback, SUV, and quad cab truck were part of the formula to ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
