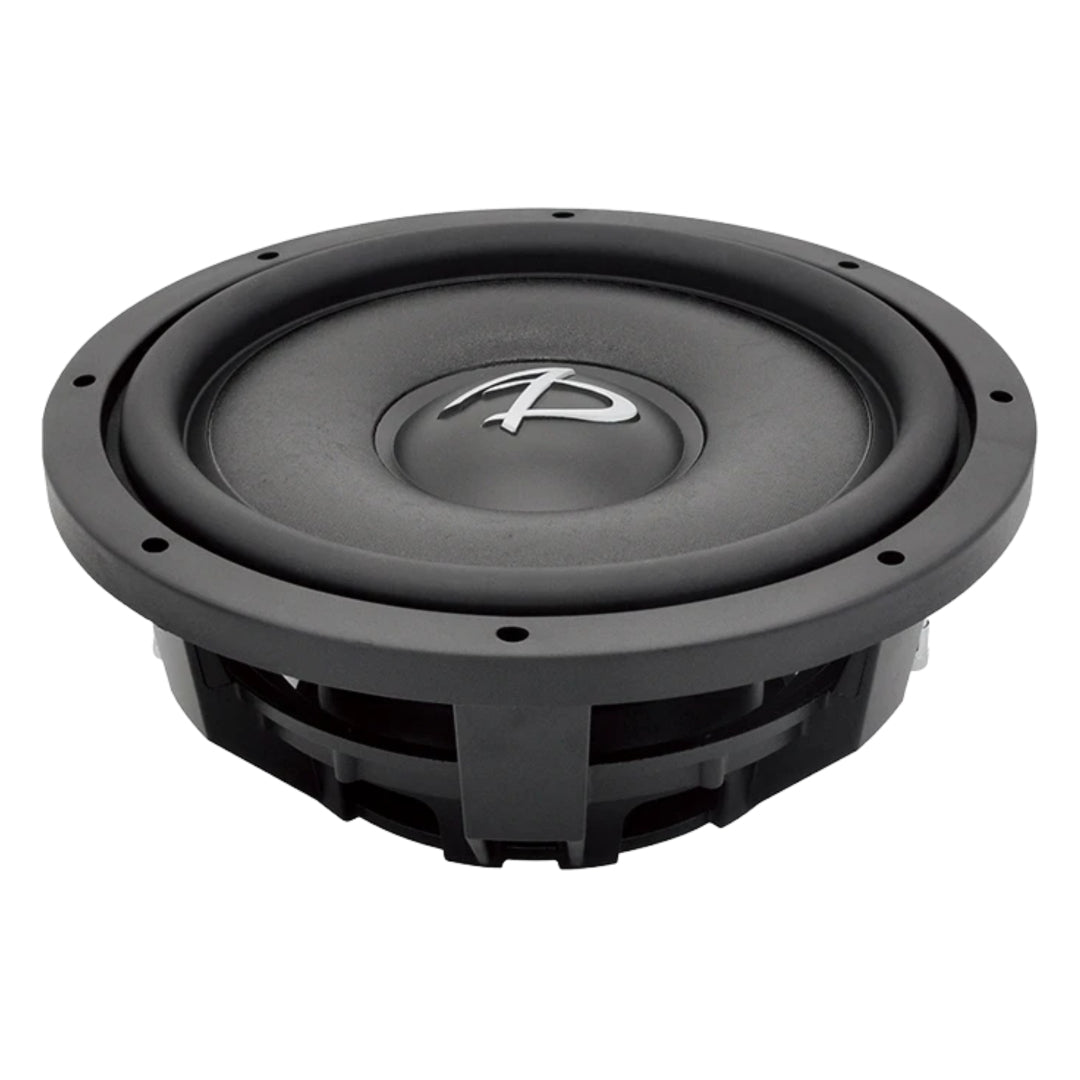

AD2512 D2
In Store Pick Up OnlyHighlights 300W - 600W optimal power range Dual 2 ohm voice coil 2.5...
- $279.00
- $279.00
- Unit price
- per
Subtotal:
$279.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 300W - 600W optimal power range
- Dual 2 ohm voice coil
- 2.5 inch Copper voice coil
- 160oz motor
- +/- 10mm X-max
- Double high current tinsel leads
- PC spider
- Designed for use in vented enclosures.
- Engineered in the USA.
- Also available in D4
Description
Description
The 2500 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 34.02 Hz
Qms 6.747
Vas 28.27 liters
Cms 0.078 mm/N
Mms 281.2 g
Rms 8.89 kg/s
Dia 254.4 mm
Sd 505.2 sq cm
Qes 0.6463
Re 3.876 ohms
Le 3.335 mH
BL 18.98 Tm
Qts 0.5898
no 0.1641 %
SPL 84.35 dB
EBP 52.64
Xmax +/- 10mm
Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.37in / 287mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.14in / 156mm
Mounting Depth 4.33in / 110mm
Required Pole Vent Clearance
Driver Displacement 0.099 cu ft / 2.823 l
Sealed Volume 0.750 - 1.0 cu.ft.
Vented Volume 0.80 - 3.0 cu.ft. net
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback, SUV, and under seat truck placement were part of the formula to ensure a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
