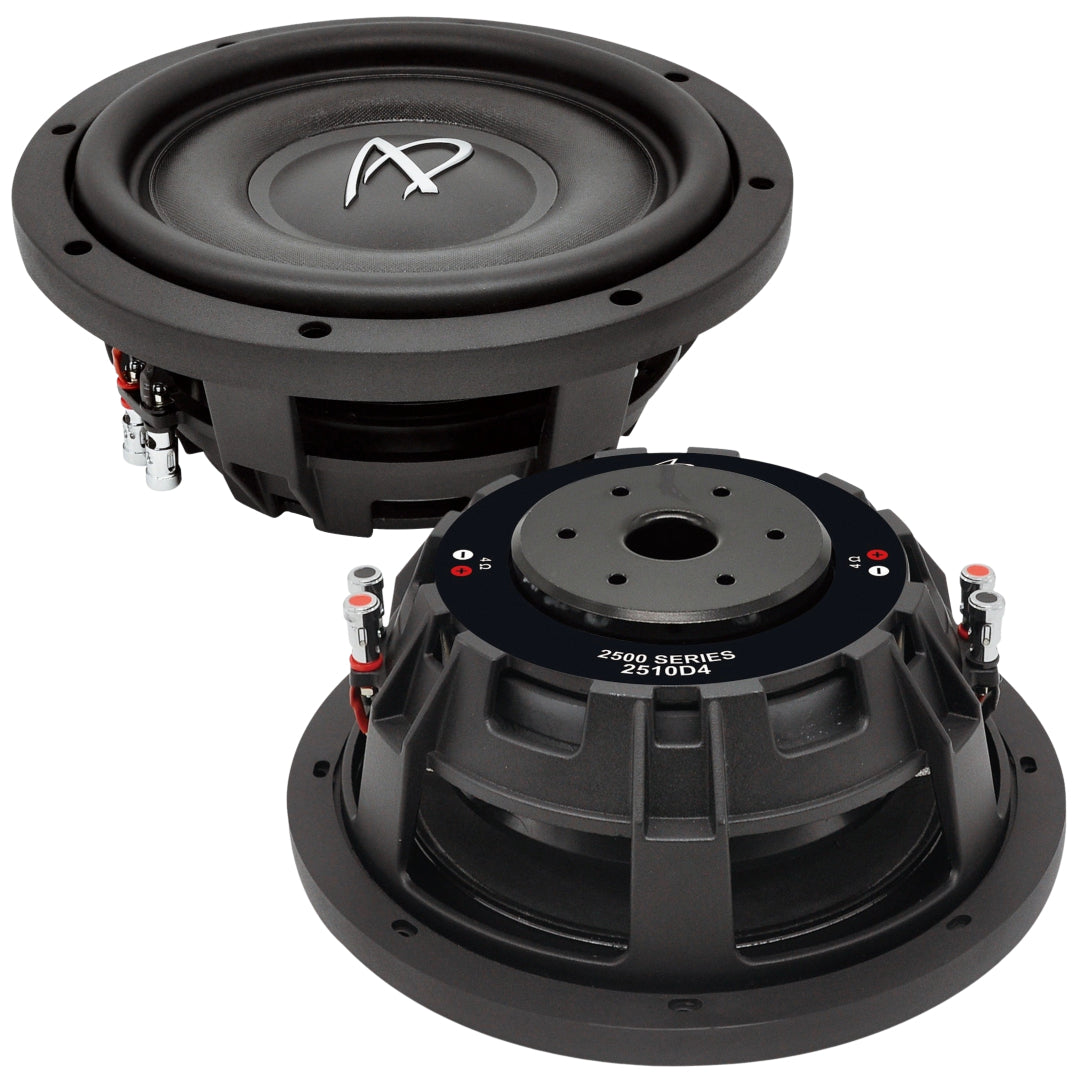

AD2510 D4
In Store Pick Up OnlyHighlights 300W - 600W optimal power range 2.5 inch Copper voice coil 160oz...
- $249.00
- $249.00
- Unit price
- per
Subtotal:
$249.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 300W - 600W optimal power range
- 2.5 inch Copper voice coil
- 160oz motor
- +/- 10mm X-max
- Double high current tinsel leads
- PC spider
- Designed for use in vented enclosures.
- Engineered in the USA.
- Also available in D2
Description
Description
The 2500 series 10 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.
Fs 37.04 Hz
Qms 5.487
Vas 14.6 liters
Cms 0.083 mm/N
Mms 222.3 g
Rms 9.429 kg/s
Dia 212.2 mm
Sd 351.8 sq cm
Qes 0.8981
Re 7.91 ohms
Le mH
Z ohms
BL 21.35 Tm
BL^2/Re N^2/W
Qts 0.7718
no %
SPL 81.06 dB
EBP
Xmax +/- 10mm
Nominal Diameter 10in
Overall Diameter 10.845in / 275mm
Mounting Hole Diameter 9.33in / 237mm
Bolt Hole Circle Diameter
Motor Outer Diameter 6.29in / 160mm
Mounting Depth 3.862in / 98mm
Required Pole Vent Clearance
Driver Displacement 0.049 cu ft / 1.392 l
Sealed Volume 0.50 - 0.60 cu.ft.
Vented Volume 0.60 - 1.25 cu.ft. net
* Tune for desired response
Vehicle body style specific enclosure designs coming soon
The above designs have been engineered for a particular vehicle body style. The cabin acoustics of a sedan, hatchback, SUV, and under seat truck placement were part of the formula to ensure a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for one off custom designs.
