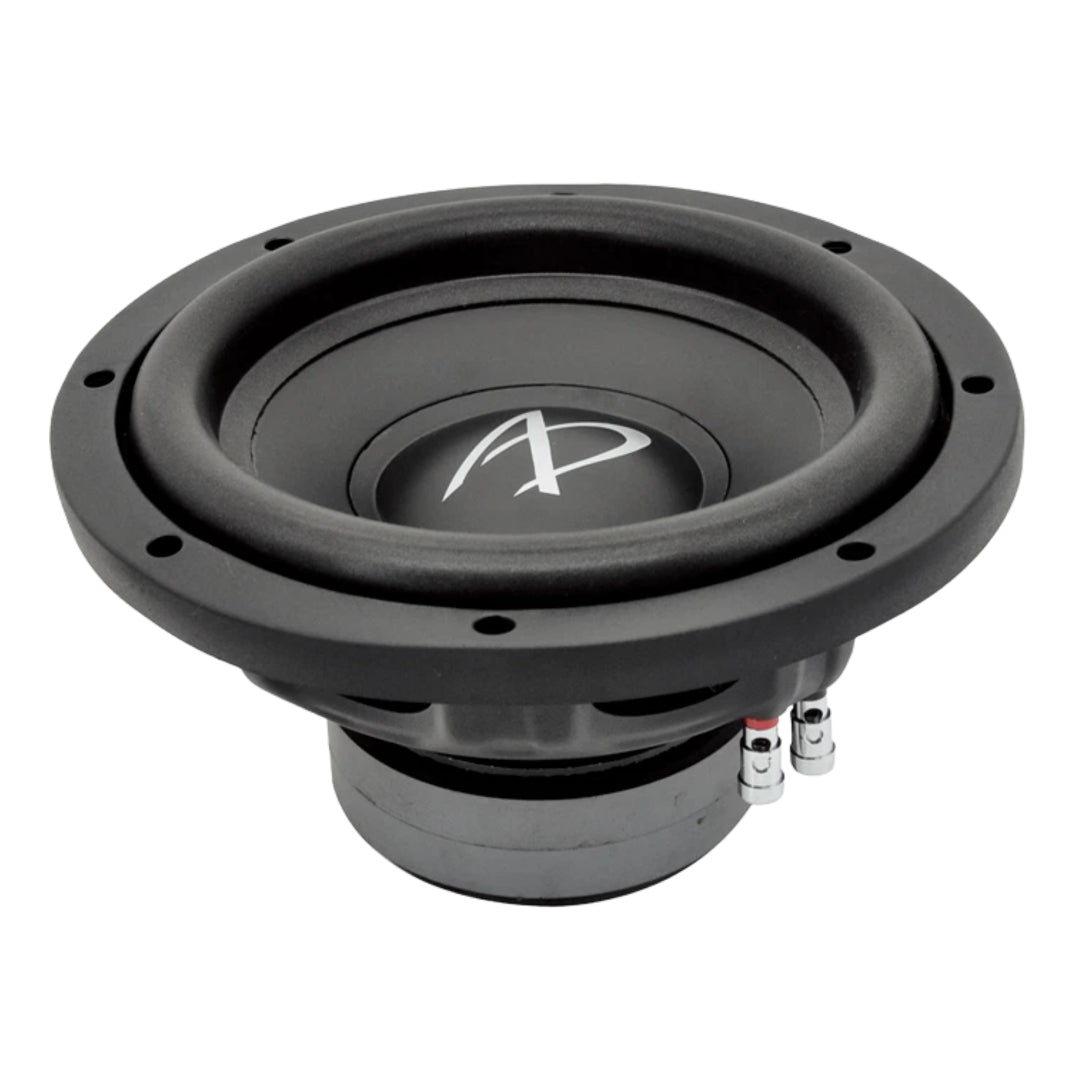

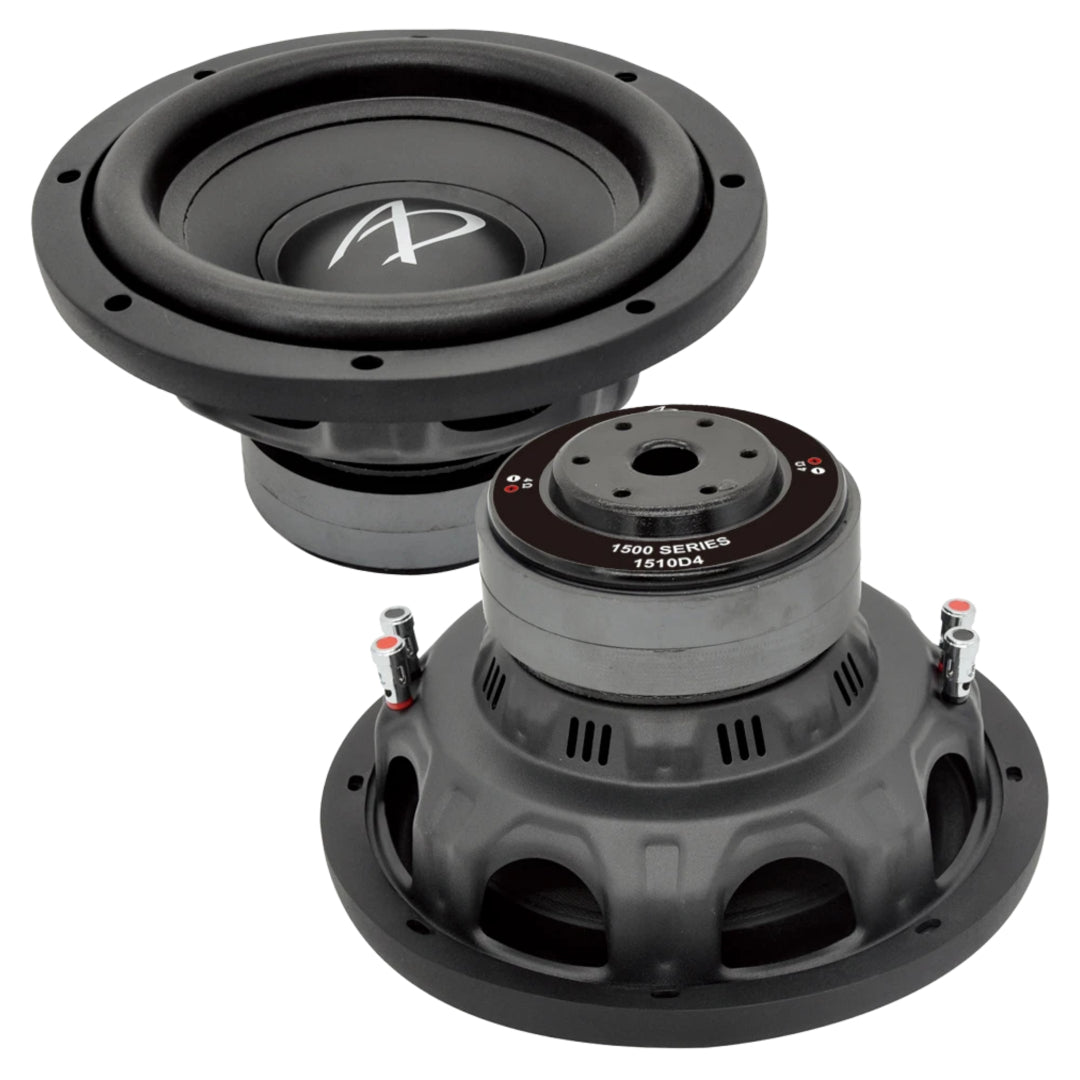

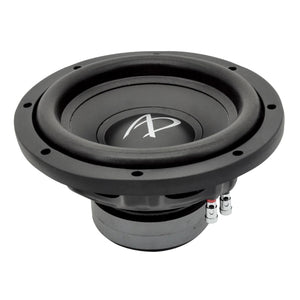

The 1500 series 10 is optimized for linear performance and versatility in medium size sealed and vented enclosures and infinite baffle alignments.
Single 4ohm Fs 39.5 Hz Qms 7.642 Vas 14.23 l Cms 0.0902 mm/N Mms 178 g Rms 5.845 kg/s Dia 206 mm Sd 333.3 cm² Qes 0.6751 Re 3.061 ohm Le 2.34 mH Bl 14.15 Tm Qts 0.6203 no 0.125 % SPL 83.03 dB EBP 58.51 Dual 4ohmFs 41.09 Hz Qms 4.074 Vas 16.31 l Cms 0.103 mm/N Mms 145.10 g Rms 9.231 kg/s Dia 206.500 mm Sd 333.9 cm² Qes 0.762 Re 7.2 ohm Le mH Bl 18.81 Tm Bl²/Re N²/W Qts 0.642 no 0.281 % SPL 83.71 dB EBP 53.92 Nominal Diameter 10in Overall Diameter 10in / 256mm Mounting Hole Diameter 9.17in / 233mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.31in / 135mm Required Pole Vent ClearanceDriver Displacement 0.044 cu. ft. / 1.25 l Minimum Sealed Volume 0.5 cu. ft. / 14 l net Minimum Vented Volume 1.0 cu. ft. / 28 l net* Infinite Baffle Approved * Tune for desired response
