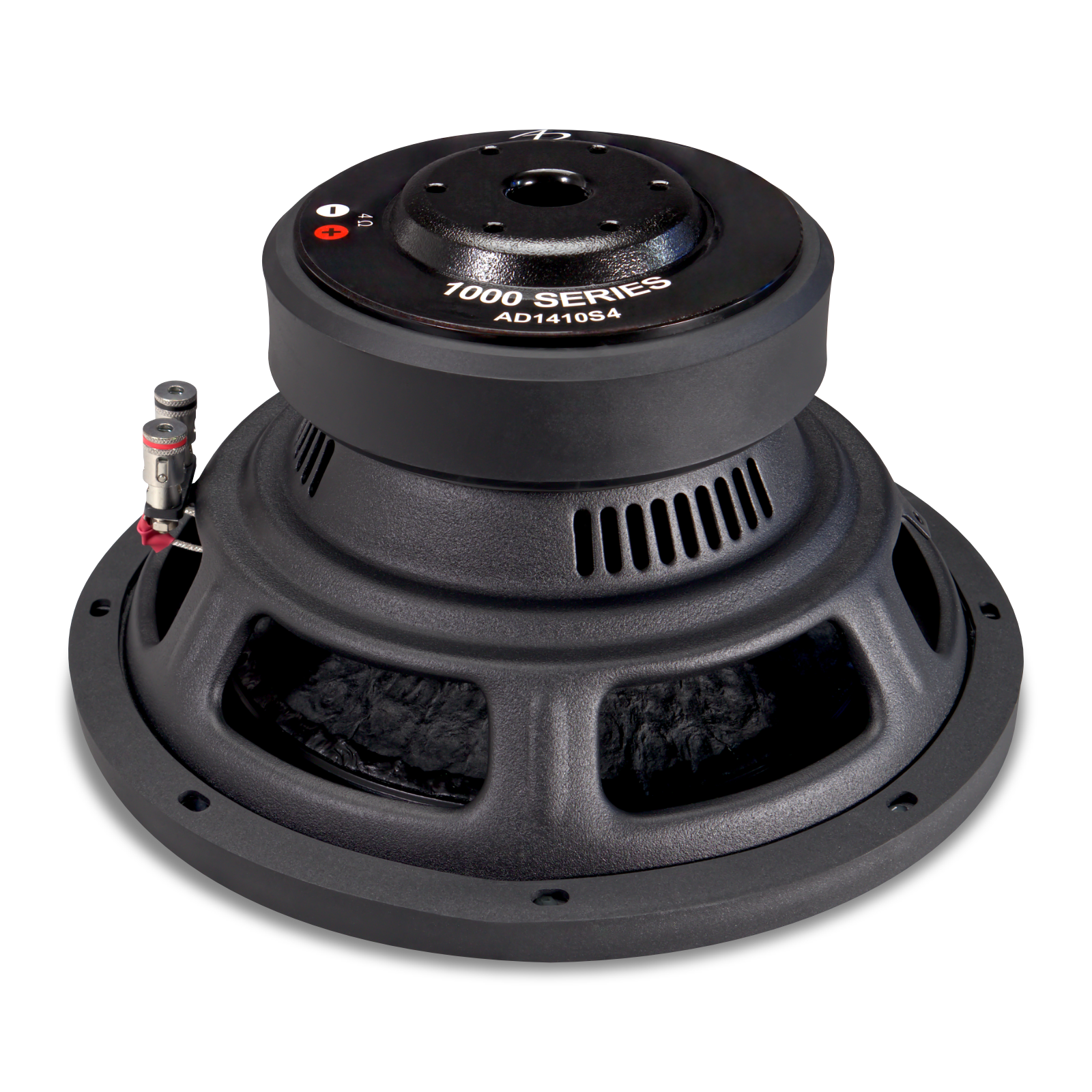

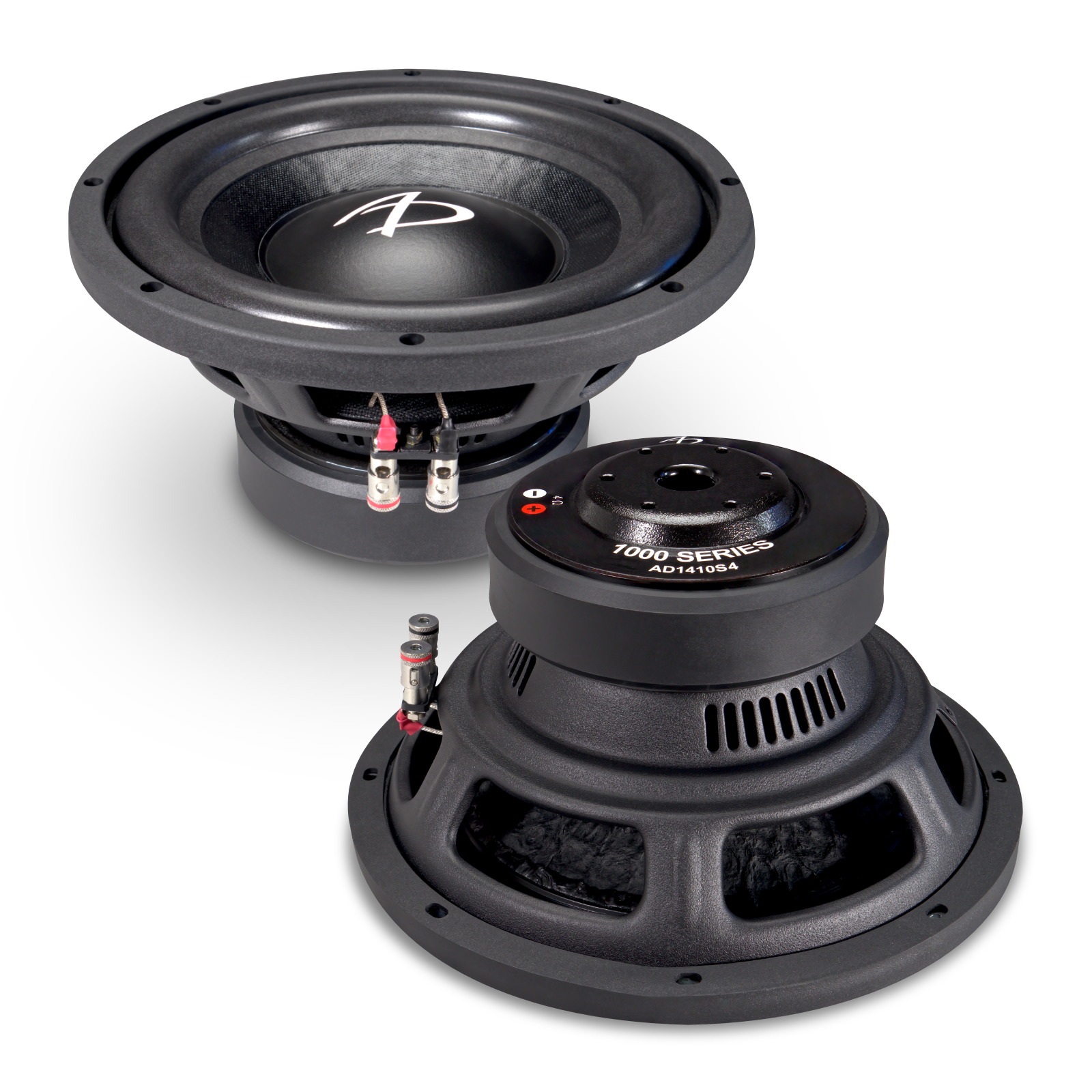

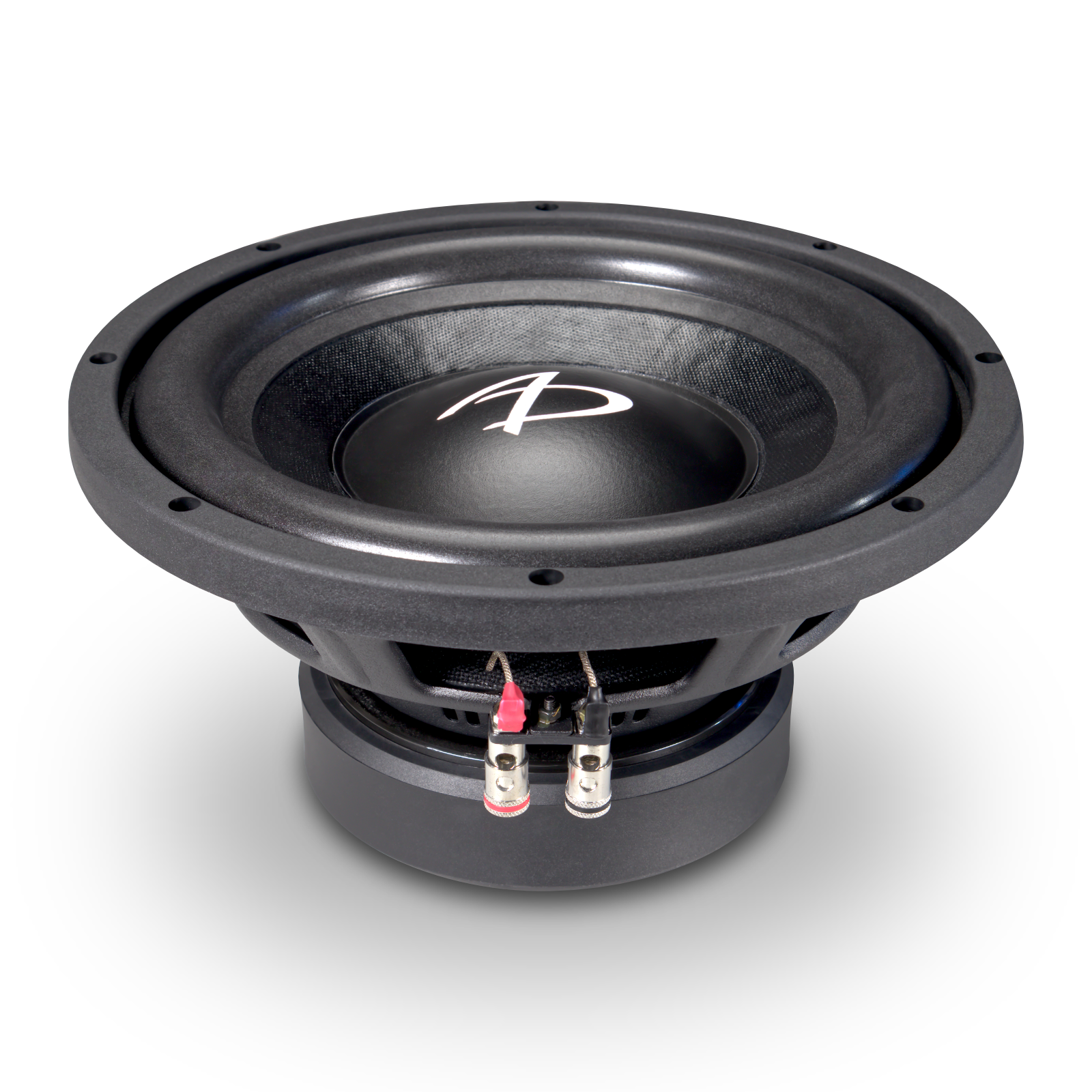

AD1410 S4
In Store Pick Up OnlyHighlights 10" single 4 ohm subwoofer 75W - 300W optimal power range Designed...
- $149.00
- $149.00
- Unit price
- per
Subtotal:
$149.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 10" single 4 ohm subwoofer
- 75W - 300W optimal power range
- Designed for use in medium size sealed and vented enclosures and infinite baffle
- Engineered in the USA.
Description
Description
The 1400 series 10 is optimized for linear performance and versatility in medium size sealed and vented enclosures and infinite baffle alignments.
Fs 48.79 Hz Qms 8.678 Vas 14.35 l Cms 0.10 mm/N Mms 106.8 g Rms 3.541 kg/s Dia 202.500 mm Sd 322.062 cm² Qes 0.7264 Re 3.617 ohm Le 2.589 mH Z 46.83 ohm Bl 12.77 Tm Bl²/Re N²/W Qts 0.6703 no 0.2187 % SPL 85.5 dB EBPNominal Diameter 10in Overall Diameter 10.20in / 259mm Mounting Hole Diameter 8.94in / 227mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.04in / 128mm Required Pole Vent ClearanceDriver Displacement 0.044 cu ft / 1.25 l Minimum Sealed Volume cu ft / l net Minimum Vented Volume cu ft / l net* Infinite Baffle Approved * Tune for desired response
Single trunk enclosure:
Dual trunk enclosure:
Single SUV enclosure:
Dual SUV enclosure:
Single truck enclosure:
Dual truck enclosure:
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
