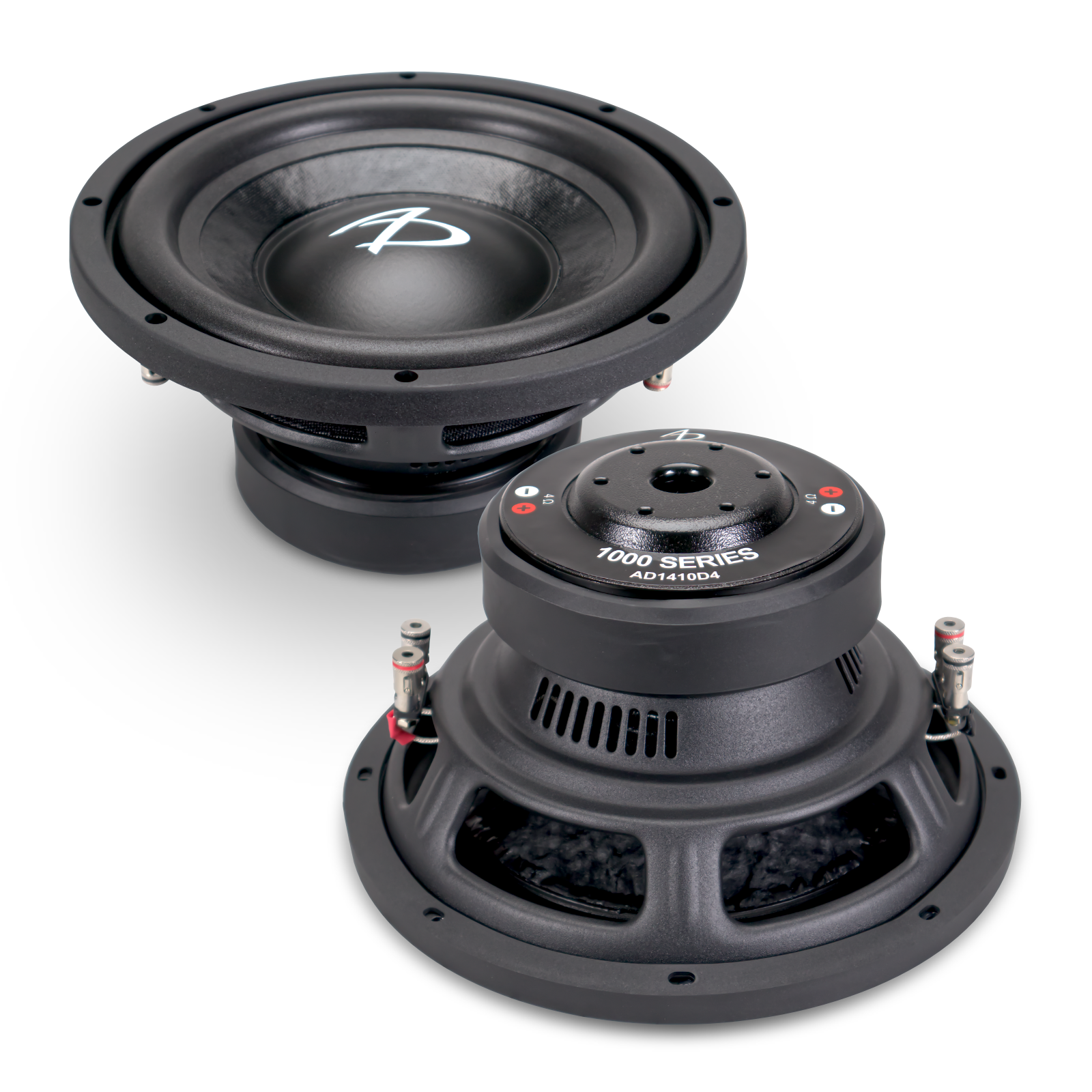

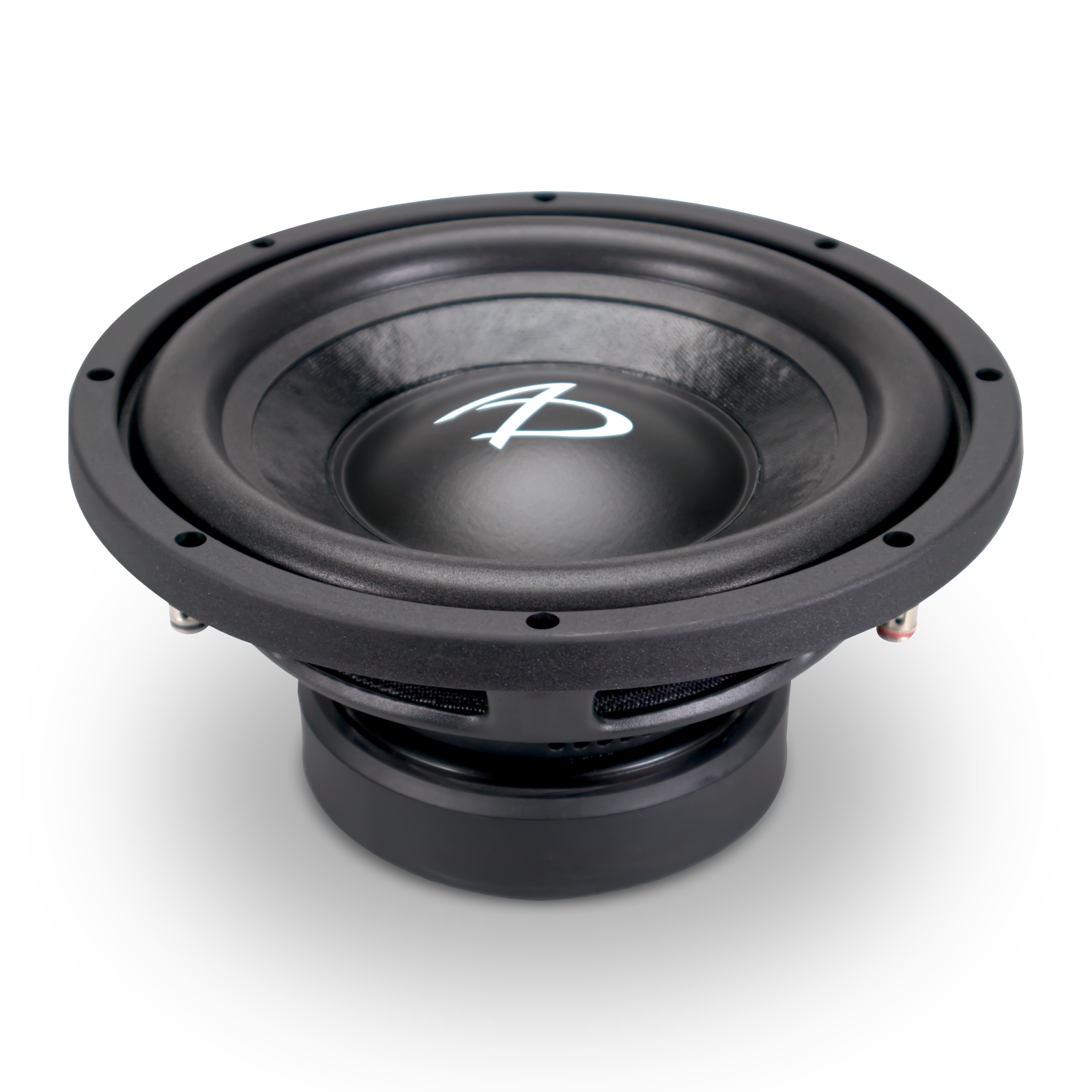

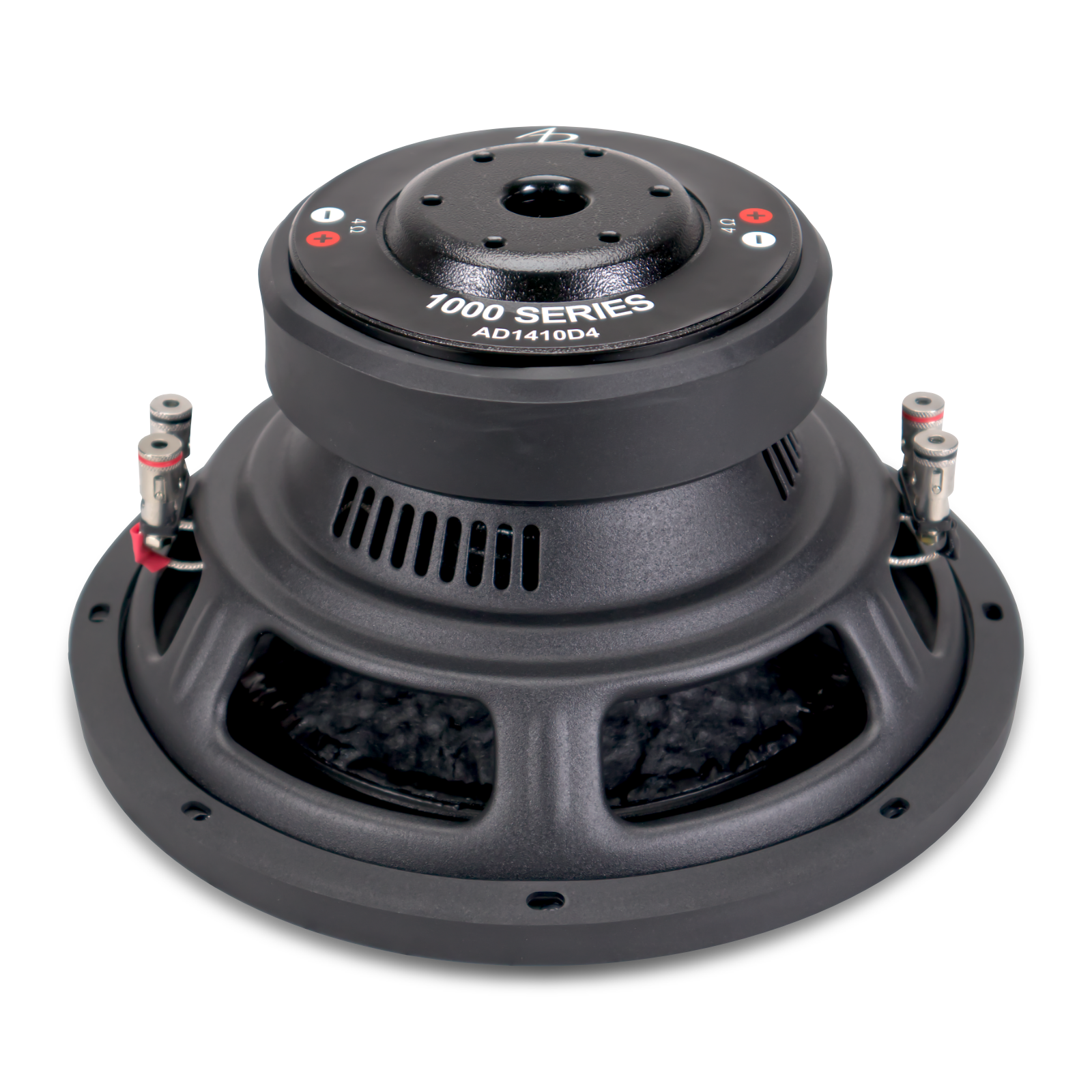

AD1410 D4
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Designed for use in medium size...
- $149.00
- $149.00
- Unit price
- per
Subtotal:
$149.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Designed for use in medium size sealed and vented enclosures and infinite baffle
- Engineered in the USA.
Description
Description
The 1400 series 10 is optimized for linear performance and versatility in medium size sealed and vented enclosures and infinite baffle alignments.
Fs 49.730 Hz Qms 7.433 Vas 17.910 l Cms 0.122 mm/N Mms 83.300 g Rms 3.541 kg/s Dia 202.500 mm Sd 322.062 cm² Qes 0.756 Re 7.153 ohm Le 1.857 mH Z 8.584 ohm Bl 15.697 Tm Bl²/Re 34.447 N²/W Qts 0.686 no 0.281 % SPL 86.635 dB EBP 65.815 Nominal Diameter 10in Overall Diameter 10.20in / 259mm Mounting Hole Diameter 8.94in / 227mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.04in / 128mm Required Pole Vent ClearanceDriver Displacement 0.044 cu ft / 1.25 l Minimum Sealed Volume cu ft / l net Minimum Vented Volume cu ft / l net* Infinite Baffle Approved * Tune for desired response
Single trunk enclosure:
Dual trunk enclosure:
Single SUV enclosure:
Dual SUV enclosure:
Single truck enclosure:
Dual truck enclosure:
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
