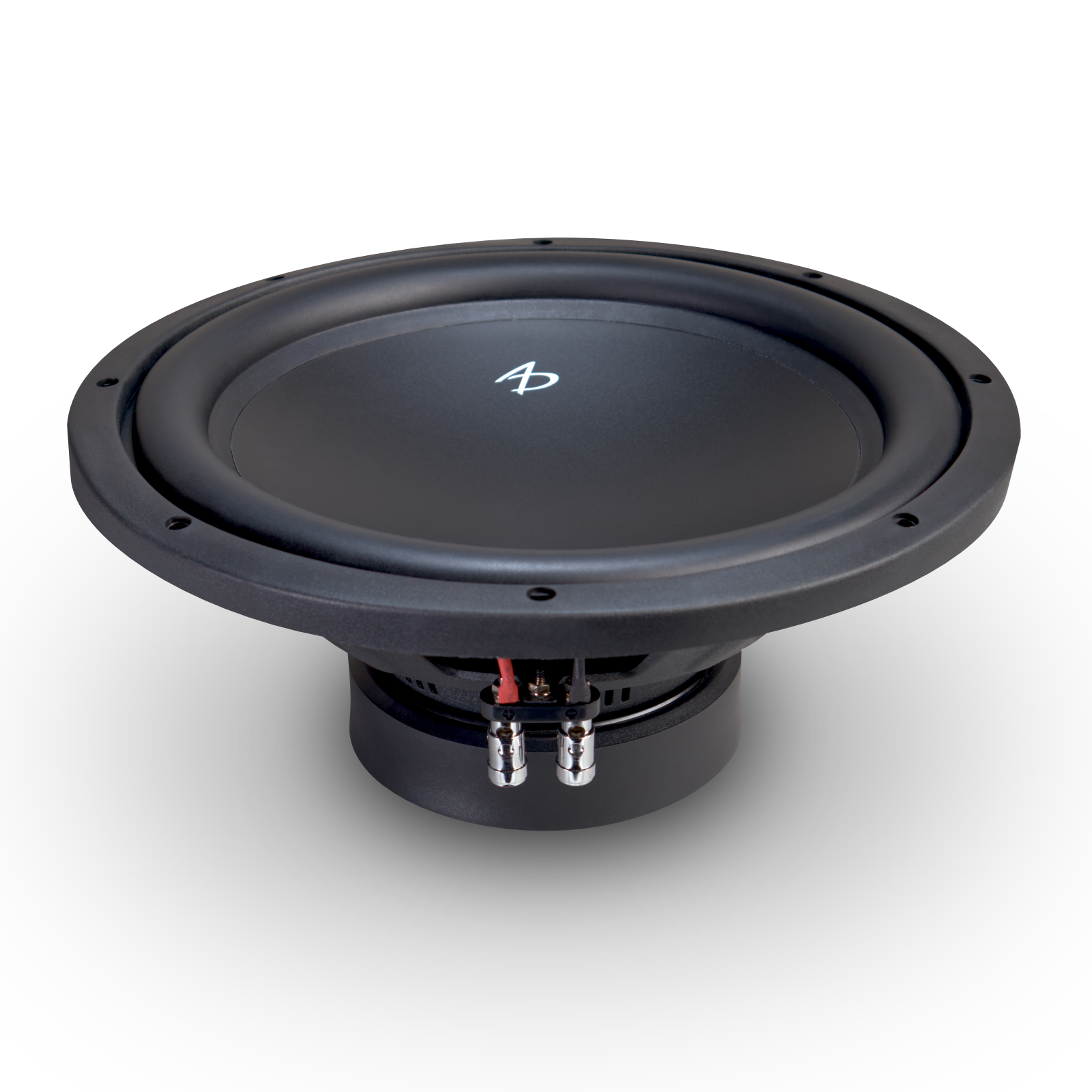

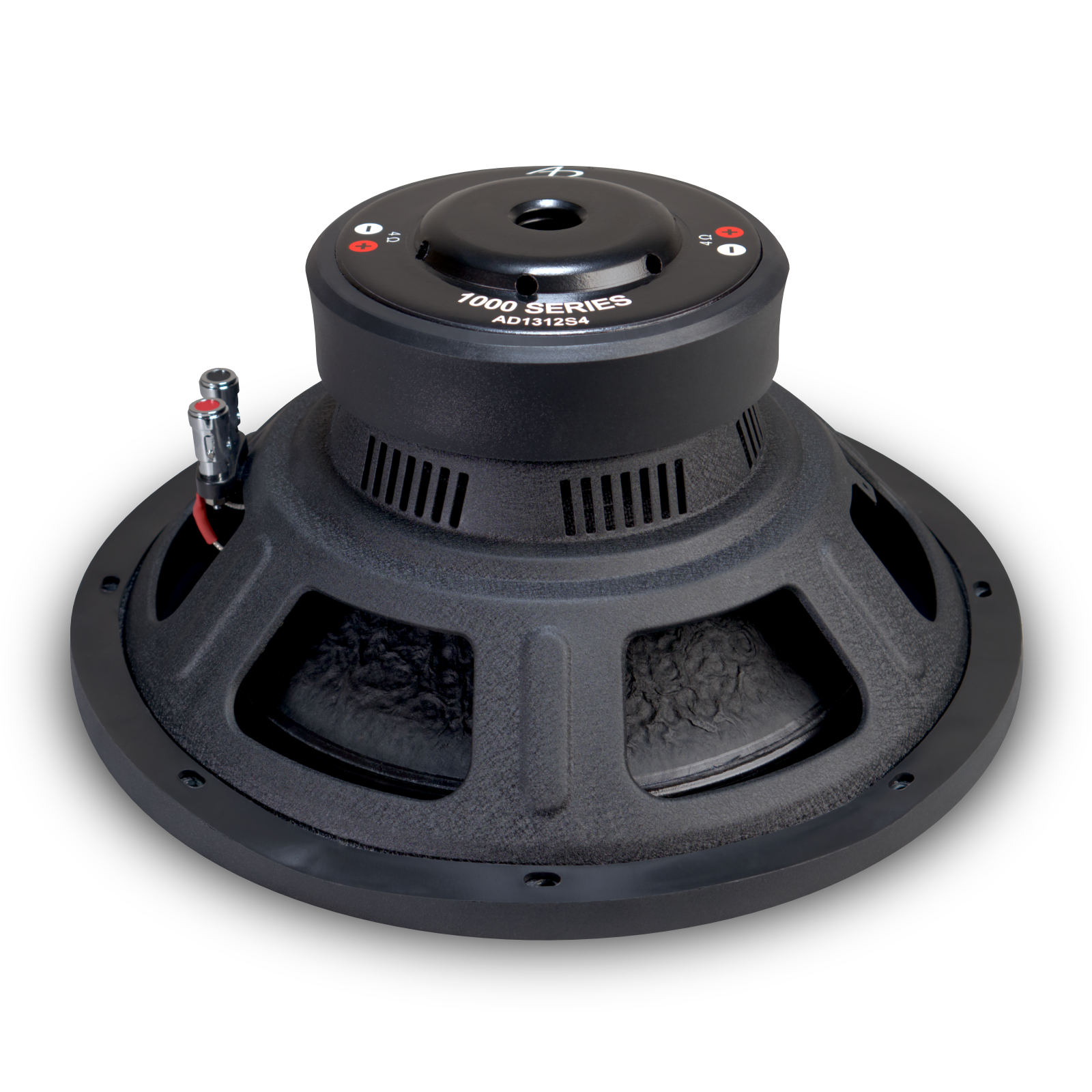

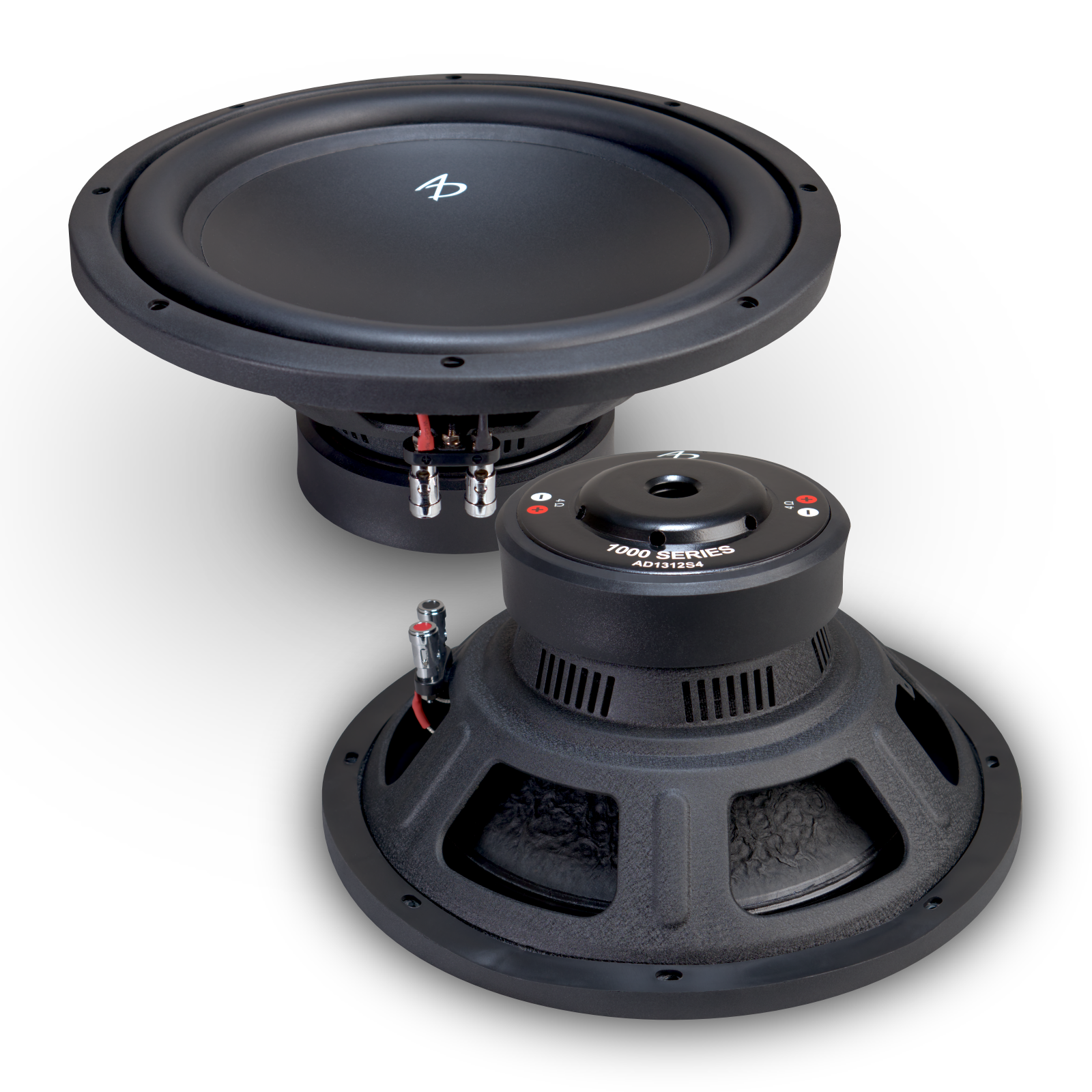

AD1312 S4
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Single 4 ohm Designed for use...
- $159.00
- $159.00
- Unit price
- per
Subtotal:
$159.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Single 4 ohm
- Designed for use vented enclosures.
- Engineered in the USA.
Description
Description
The 1100 series 12 is optimized for linear performance in small to medium size vented enclosures. It performs well in 4th and 6th order bass-reflex arrangements for achieving virtually any desired response shape.
Fs 37.31 Hz Qms 7.308 Vas 27.56 l Cms 0.079 mm/N Mms 228.700 g Rms 7.423 kg/s Dia 251.500 mm Sd 496.782 cm² Qes 0.742 Re 3.888 ohm Le 1.334 mH Z 4.666 ohm Bl 16.756 Tm Bl²/Re 72.216 N²/W Qts 0.674 no 0.186 % SPL 84.840 dB EBP 50 Nominal Diameter 12in Overall Diameter 12.4in / 315mm Mounting Hole Diameter 11in / 279.4mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.25in / 133.4mm Required Pole Vent ClearanceDriver Displacement 0.06 cu ft / 1.78l Minimum Sealed Volume NA cu ft / NA net Minimum Vented Volume 1.48 cu ft / 45l net* * Tune for desired response
Please visit our Enclosure Design Service page for custom designs.
