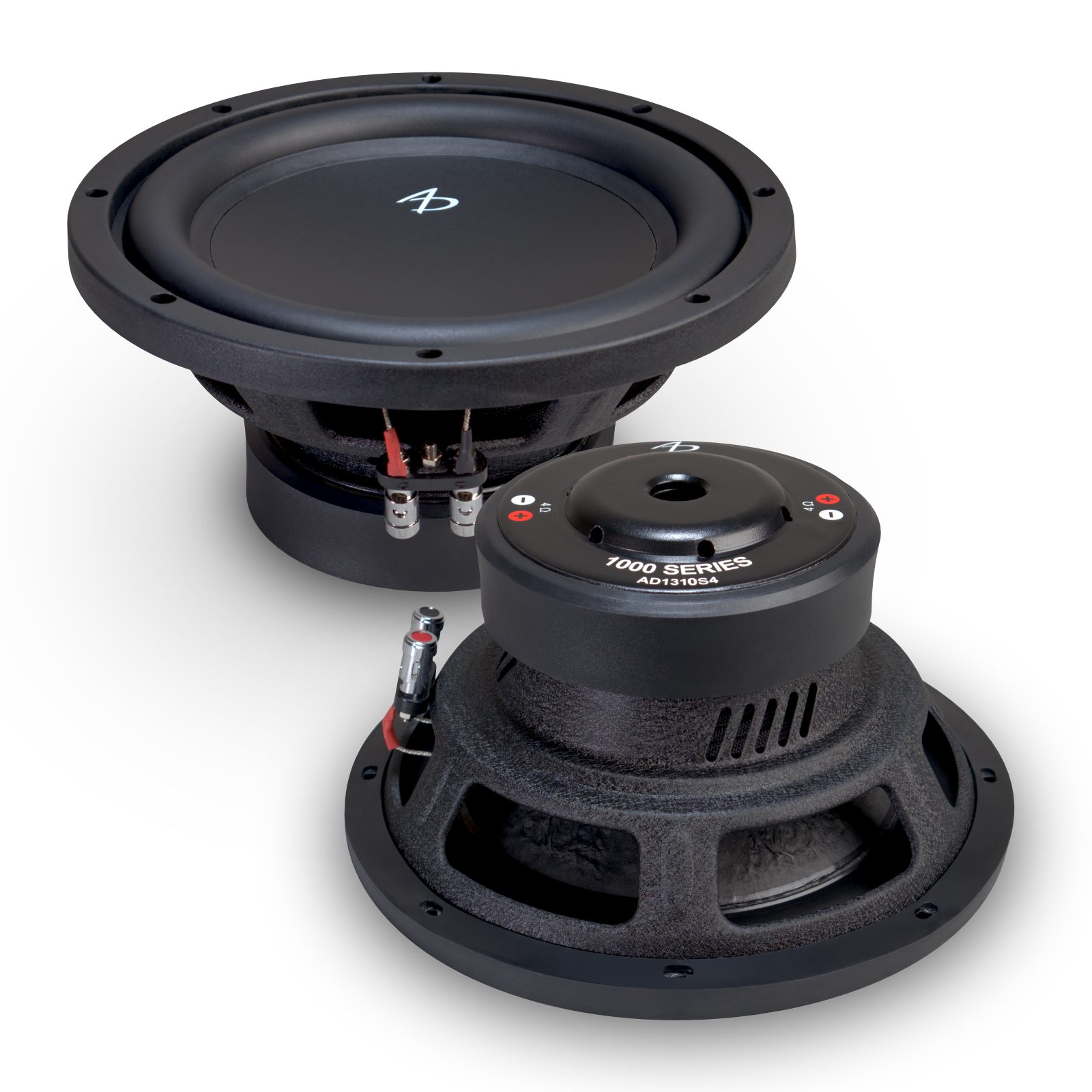

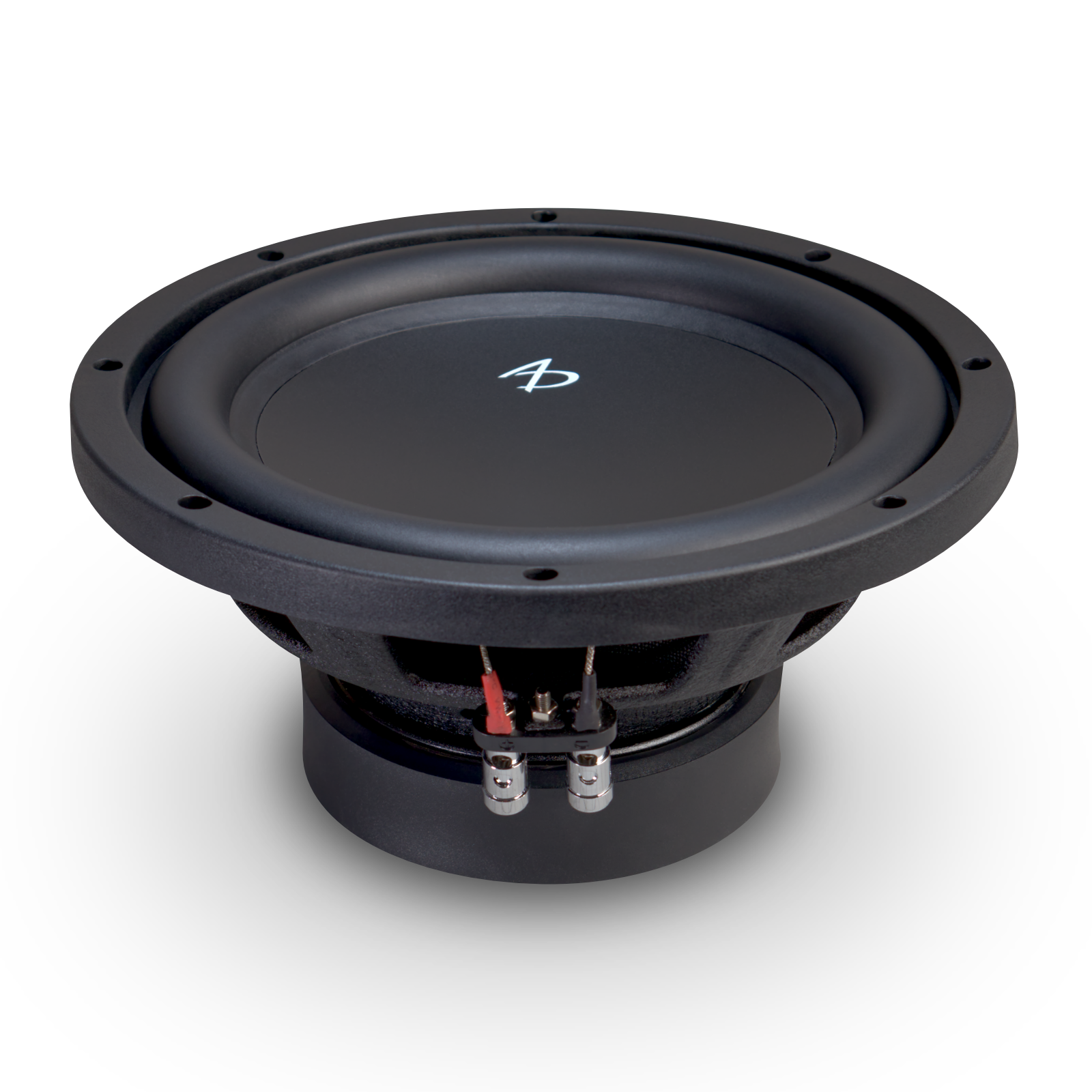

AD1310 S4
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Single 4 Ohm Designed for use...
- $149.00
- $149.00
- Unit price
- per
Subtotal:
$149.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Single 4 Ohm
- Designed for use in vented enclosures.
- Engineered in the USA.
Description
Description
The 1100 series 10 is optimized for linear performance in small to medium size vented enclosures. It performs well in 4th and 6th order bass-reflex arrangements for achieving virtually any desired response shape.
Fs 44.68 Hz Qms 5.907 Vas 13.520 l Cms 0.097 mm/N Mms 131.200 g Rms 6.235 kg/s Dia 200.4 mm Sd 313.740 cm² Qes 0.617 Re 3.839 ohm Le 1.315 mH Z 4.607 ohm Bl 15.143 Tm Bl²/Re 59.734 N²/W Qts 0.558 no 0.189 % SPL 84.902 dB EBP 72
Nominal Diameter 10in Overall Diameter 10.28in / 261mm Mounting Hole Diameter 9.12in / 231mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 4.9in / 124.5mm Required Pole Vent ClearanceDriver Displacement 0.04 cu ft / 1.32l Minimum Sealed Volume NA cu ft / NA net Minimum Vented Volume 0.81 cu ft / 26l net* * Tune for desired response
Please visit our Enclosure Design Service page for custom designs.
