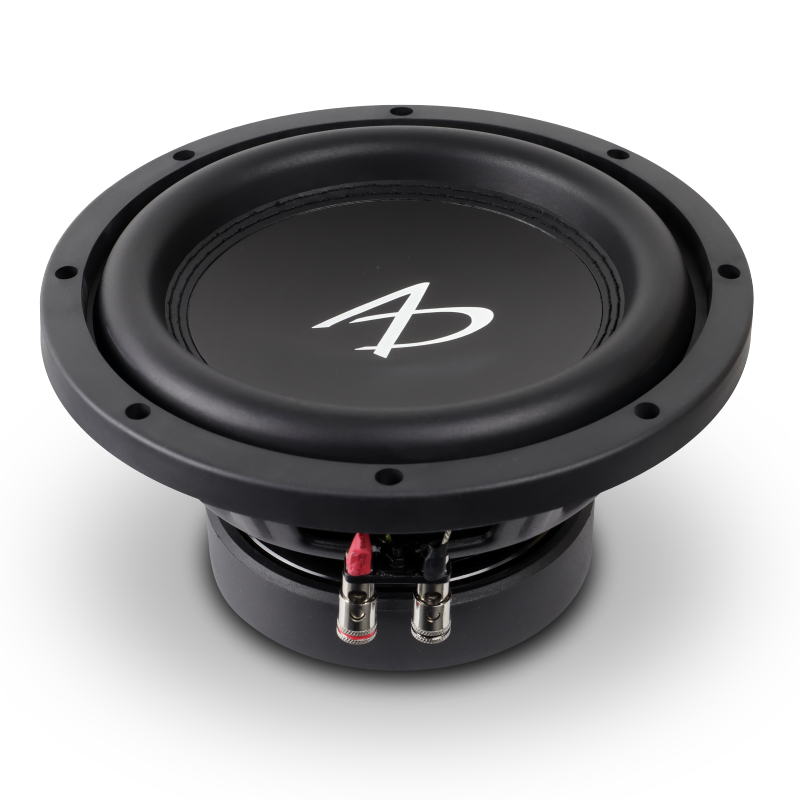

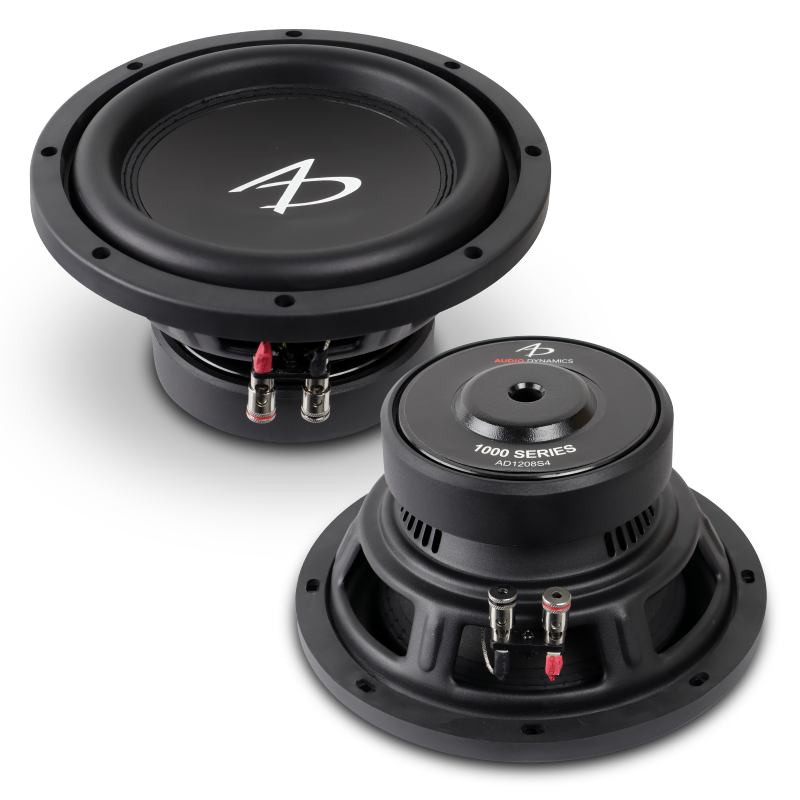

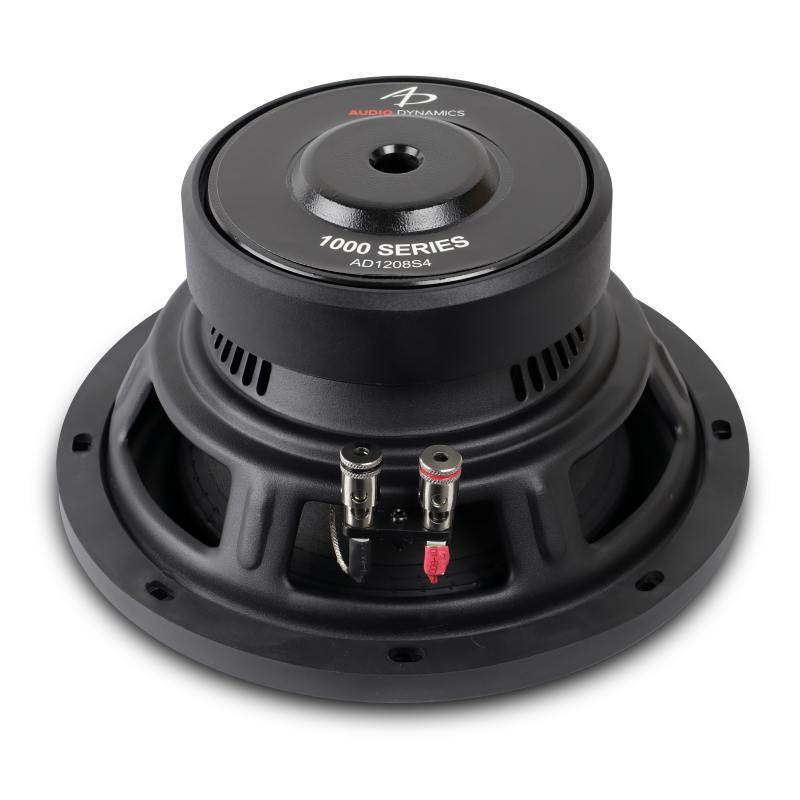

1208 - 1000 Series 8" Subwoofer
In Store Pick Up OnlyHighlights 8" Subwoofer Available in Single and Dual 4ohm 50W - 200W optimal...
- $119.00
- $119.00
- Unit price
- per
Subtotal:
$119.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 8" Subwoofer
- Available in Single and Dual 4ohm
- 50W - 200W optimal power range
- 1.5" voice coil diameter
- Designed for use in small sealed & vented enclosures.
- Engineered in the USA.
Description
Description
The 1200 series 8" is optimized for linear performance and versatility in small to medium size sealed and vented enclosures with mounting clearance as low as 4". It performs well in 4th and 6th order bass-reflex arrangements, achieving virtually any desired response shape.
Single 4ohm Fs 44.290 Hz Qms 5.510 Vas 12.320 l Cms 0.220 mm/N Mms 59.160 g Rms 2.990 kg/s Xmax 10 mm (One-Way) Dia 159.330 mm Sd 199.380 cm² Qes 0.640 Re 3.200 ohm Le 1.500 mH Z 3.840 ohm Bl 9.070 Tm Bl²/Re 25.730 N²/W Qts 0.570 no 0.160 % SPL 84.220 dB EBP 69.230 Dual 4ohmFs 45.001 Hz Qms 4.875 Vas 12.303 l Cms 0.218 mm/N Mms 57.380 g Rms 3.328 kg/s Xmax 10 mm (One-Way) Dia 159.315 mm Sd 201.000 cm² Qes 0.763 Re 7.600 ohm Le 1.500 mH Z 9.120 ohm Bl 12.715 Tm Bl²/Re 21.271 N²/W Qts 0.660 no 0.142 % SPL 83.662 dB EBP 58.995
Nominal Diameter 8.0in Overall Diameter 8.4in / 213mm Mounting Hole Diameter 7.16in / 181mm Motor Outer Diameter 4.69in / 119mm Mounting Depth 3.93in / 99mm Driver Displacement 0.02 cu ft / 0.68l Minimum Sealed Volume NOT RECOMMENDED Minimum Vented Volume 0.67 cu ft / 19l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
