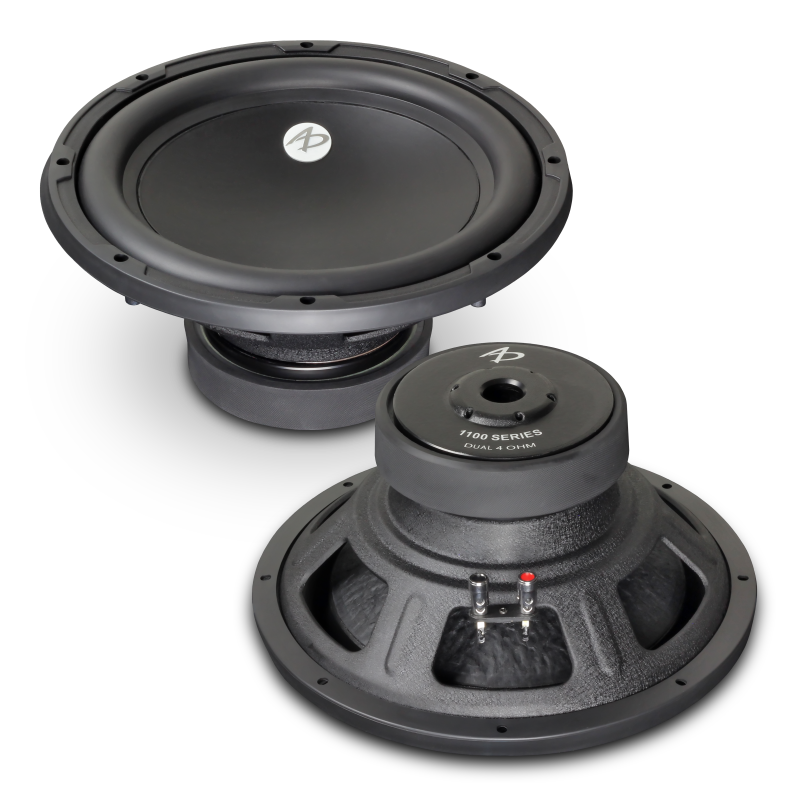

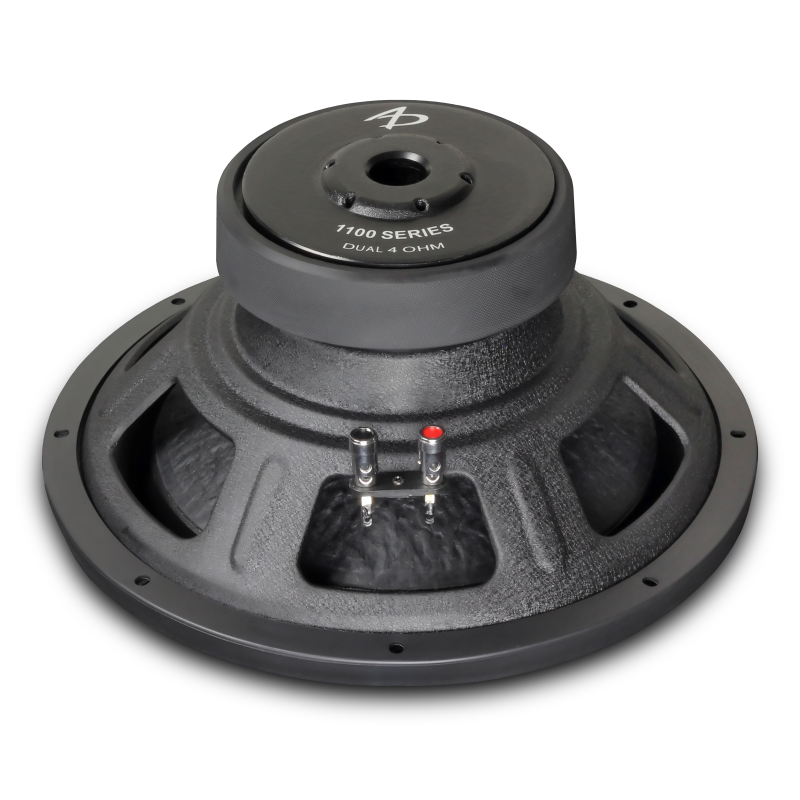

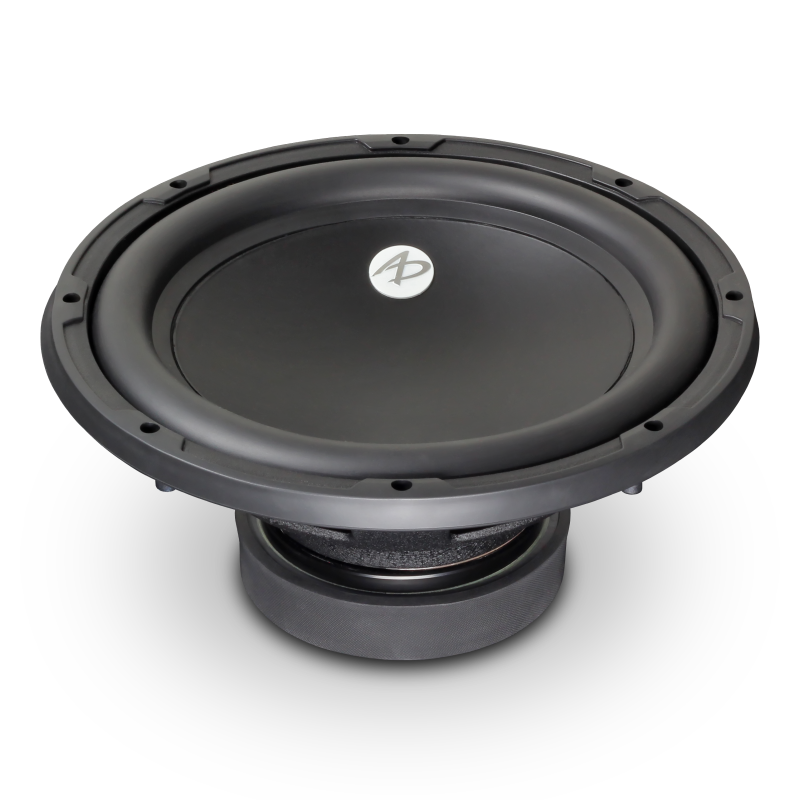

AD1112 S4
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Designed for use in small sealed...
- $159.00
- $159.00
- Unit price
- per
Subtotal:
$159.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Designed for use in small sealed & vented enclosures.
- Engineered in the USA.
Description
Description
The 1100 series 12 is optimized for linear performance and versatility in small to medium size sealed and vented enclosures. It performs well in 4th and 6th order bass-reflex arrangements for achieving virtually any desired response shape.
Fs 37.010 Hz Qms 4.590 Vas 32.530 l Cms 0.140 mm/N Mms 122.300 g Rms 6.250 kg/s Dia 223.220 mm Sd 391.340 cm² Qes 0.640 Re 3.680 ohm Le 1.090 mH Z 4.410 ohm Bl 12.780 Tm Bl²/Re 44.390 N²/W Qts 0.560 no 0.240 % SPL 86.090 dB EBP 58 Nominal Diameter 12in Overall Diameter 12.4in / 315mm Mounting Hole Diameter 11.12in / 282.5mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.50in / 139.7mm Required Pole Vent ClearanceDriver Displacement 0.06 cu ft / 1.78l Minimum Sealed Volume 1.09 cu ft / 31l net Minimum Vented Volume 1.58 cu ft / 45l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
