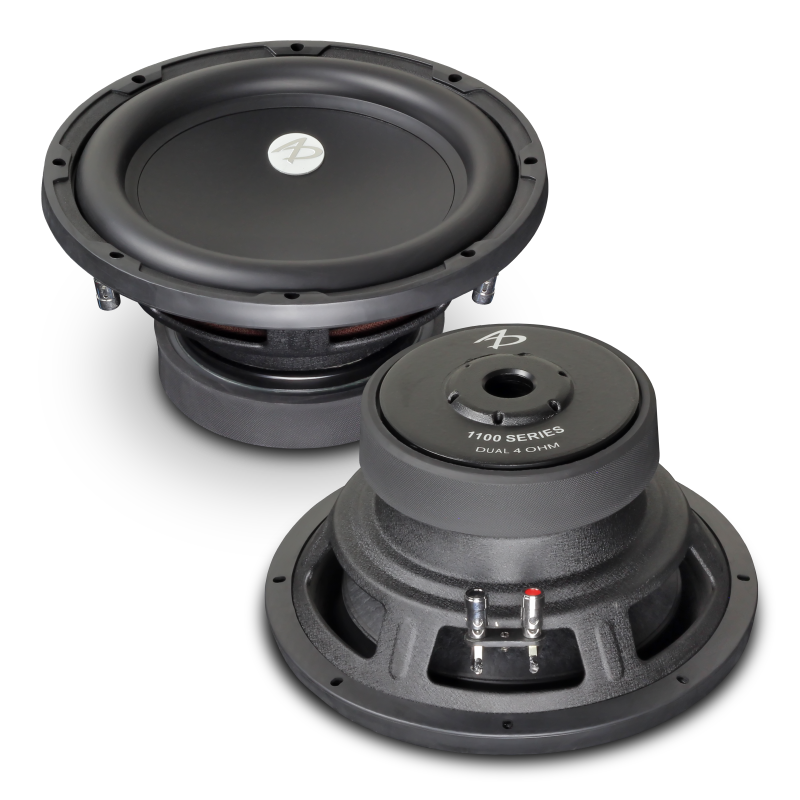

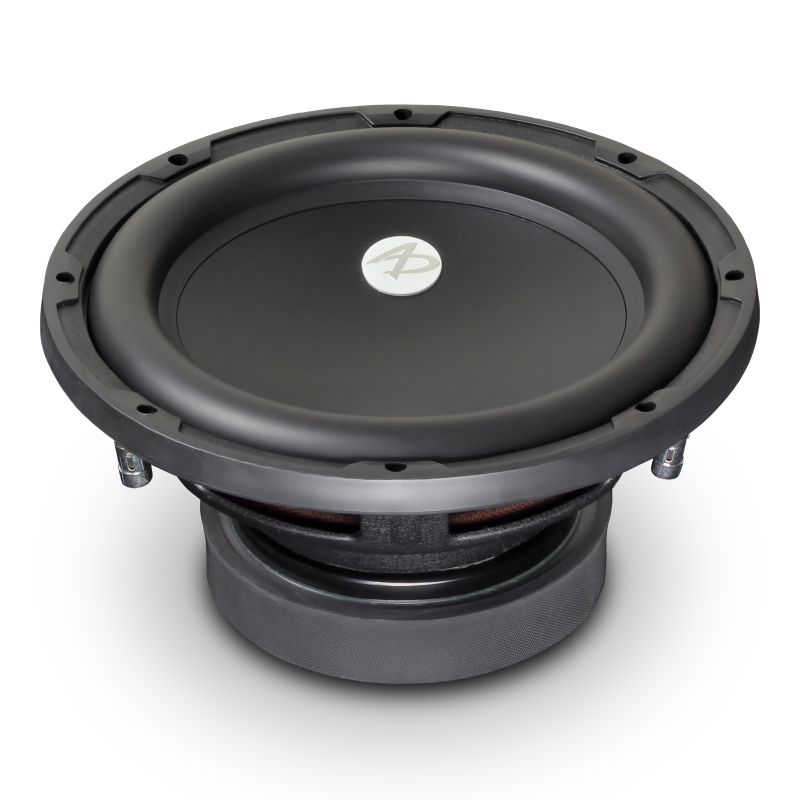

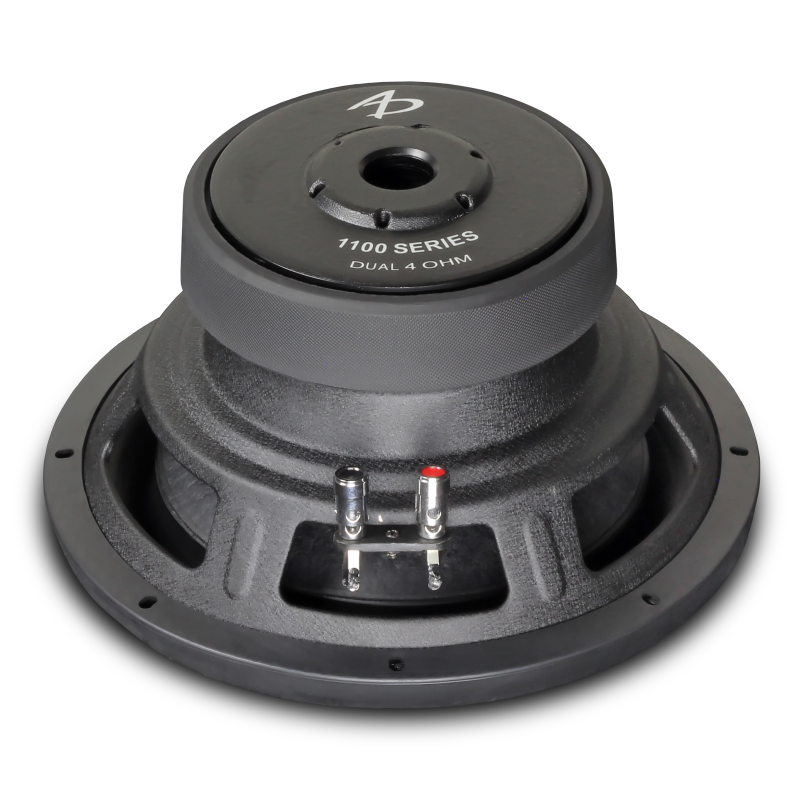

AD1110 D4
In Store Pick Up OnlyHighlights 75W - 300W optimal power range Designed for use in small sealed...
- $149.00
- $149.00
- Unit price
- per
Subtotal:
$149.00
Couldn't load pickup availability
In Store Pick Up Only
Highlights
- 75W - 300W optimal power range
- Designed for use in small sealed & vented enclosures.
- Engineered in the USA.
Description
Description
The 1100 series 10 is optimized for linear performance and versatility in small to medium size sealed and vented enclosures. It performs well in 4th and 6th order bass-reflex arrangements for achieving virtually any desired response shape.
Fs 42.390 Hz Qms 3.720 Vas 15.380 l Cms 0.170 mm/N Mms 80.220 g Rms 5.790 kg/s Dia 178.290 mm Sd 249.650 cm² Qes 0.600 Re 7.390 ohm Le 1.790 mH Z 8.860 ohm Bl 16.170 Tm Bl²/Re 35.390 N²/W Qts 0.510 no 0.180 % SPL 84.860 dB EBP 70
Nominal Diameter 10in Overall Diameter 10.28in / 261mm Mounting Hole Diameter 9.12in / 231mm Bolt Hole Circle DiameterMotor Outer DiameterMounting Depth 5.00in / 127mm Required Pole Vent ClearanceDriver Displacement 0.04 cu ft / 1.32l Minimum Sealed Volume 0.54 cu ft / 15.5l net Minimum Vented Volume 0.91 cu ft / 26l net* * Tune for desired response
The above designs have been engineered for a "two tier" balance of compatibility: First, between the cabin acoustics of a sedan, hatchback and an SUV, and second, between the two available voice coil configurations, for a total of six balance points. This ensures a linear response and optimal power handling for listening purposes under most circumstances. Please visit our Enclosure Design Service page for custom designs.
