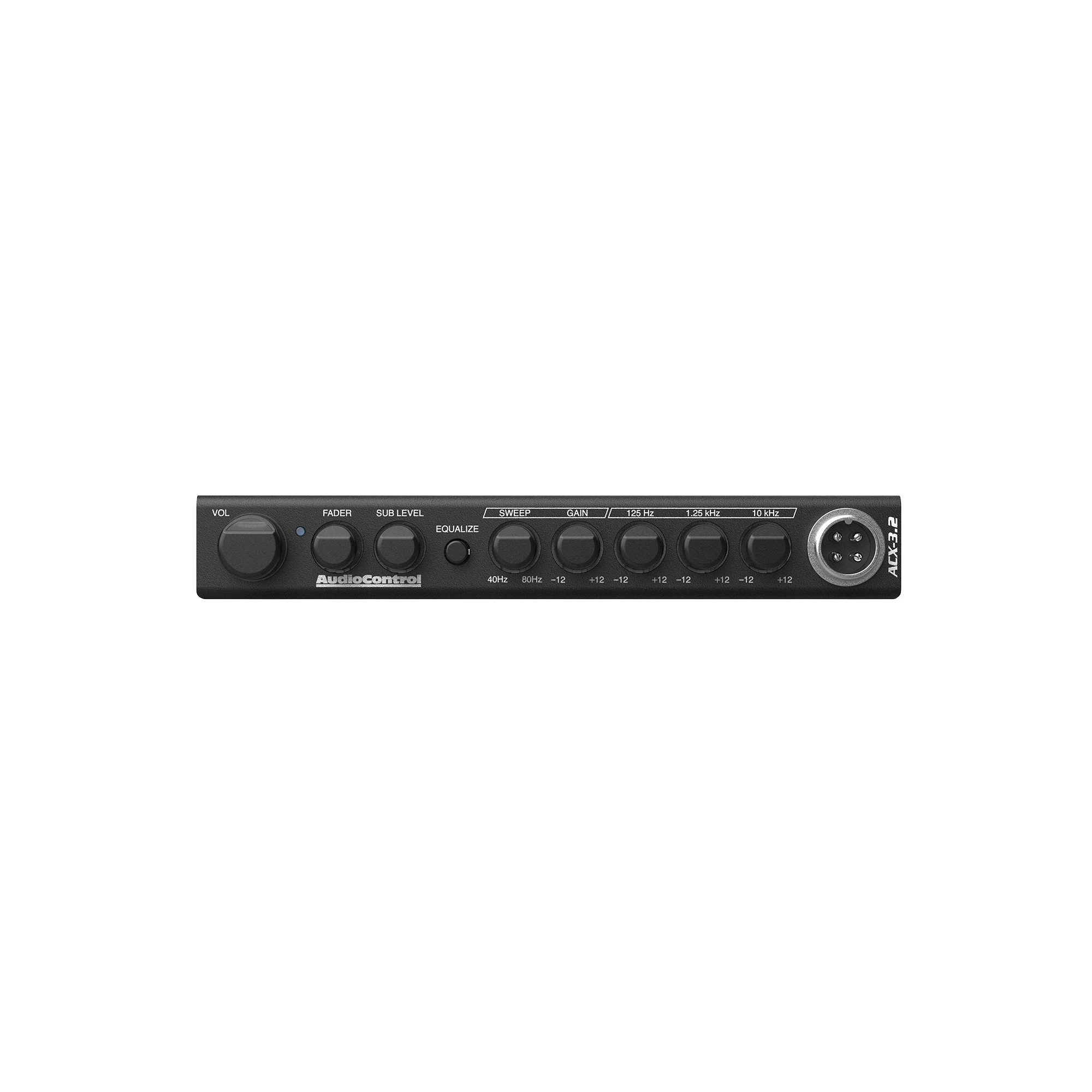

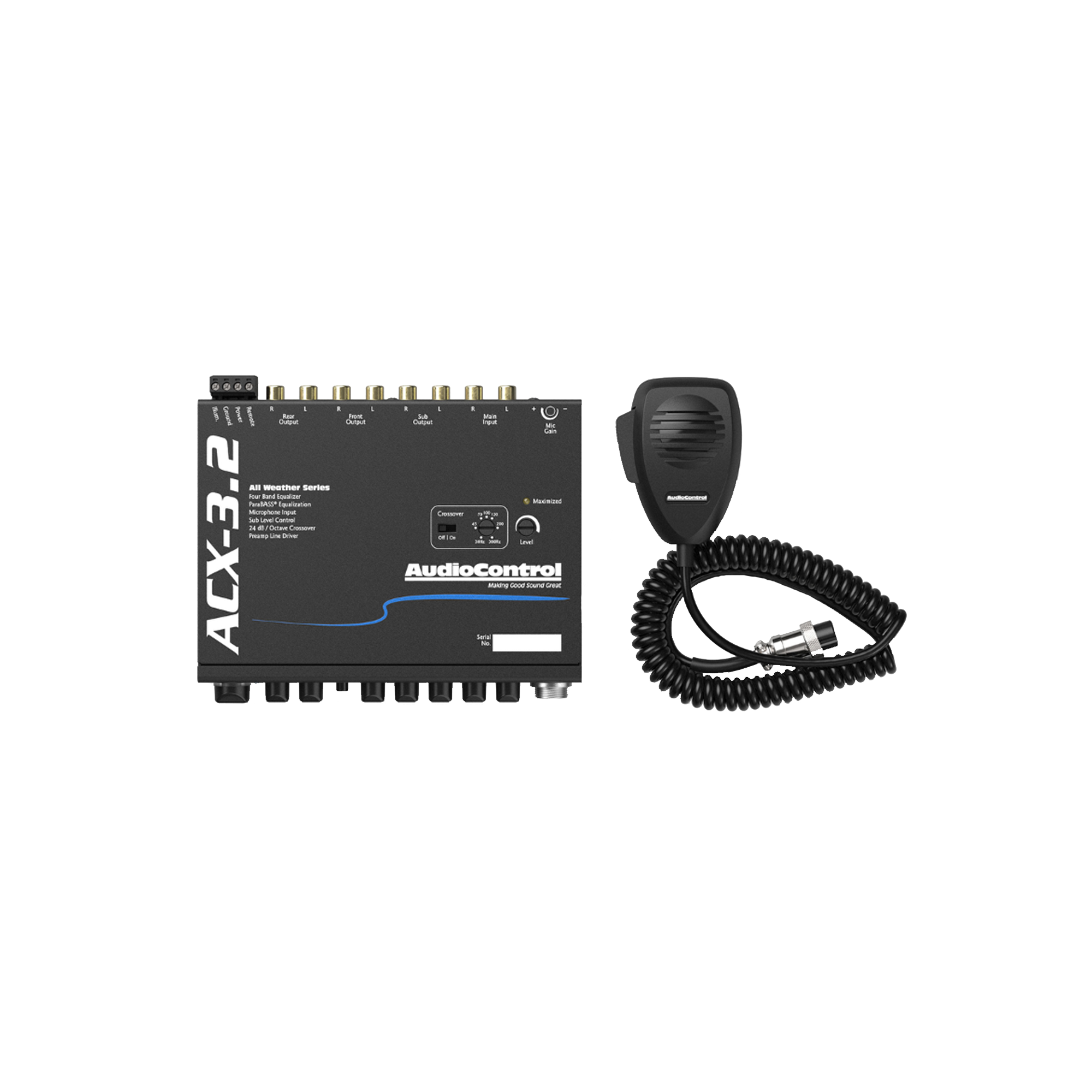

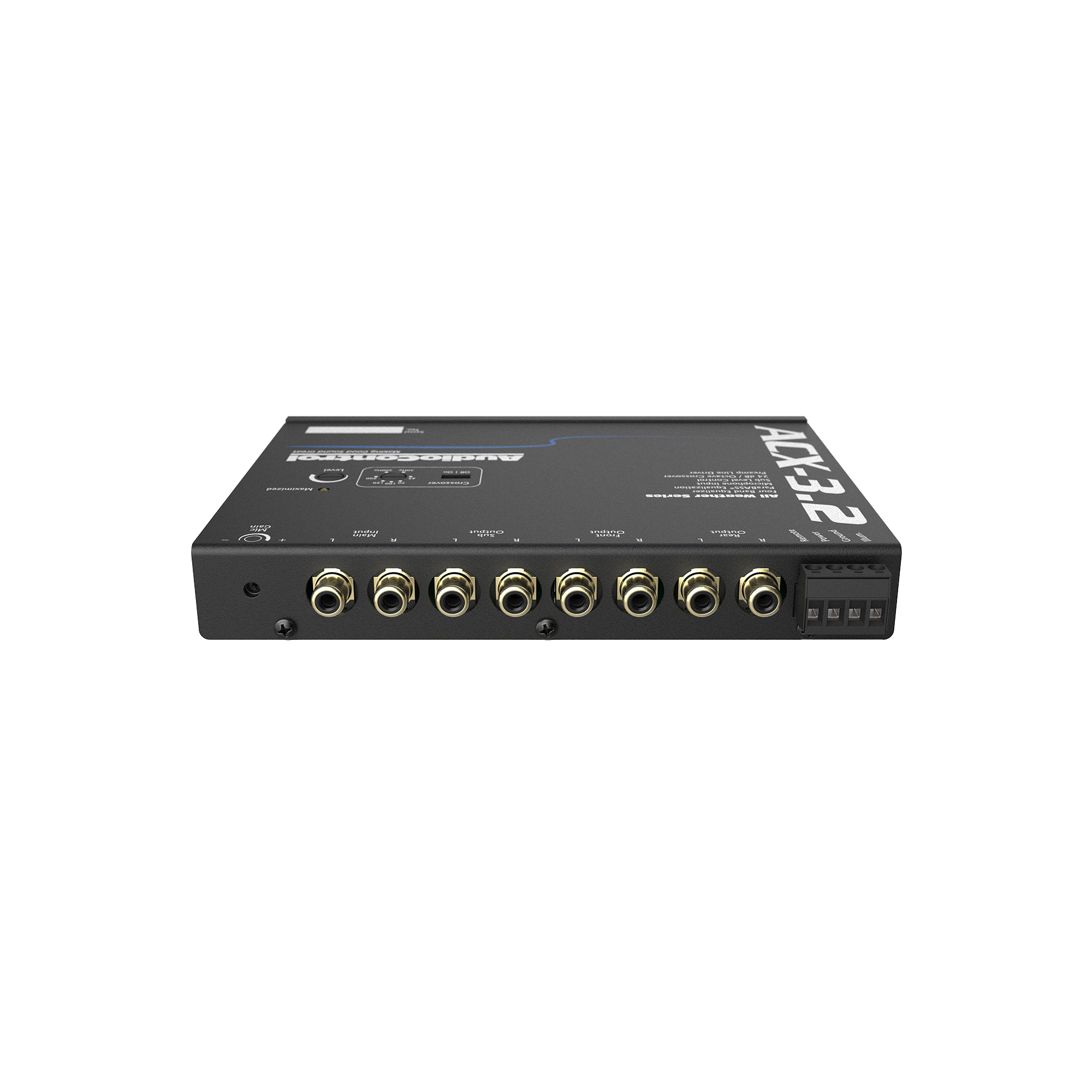

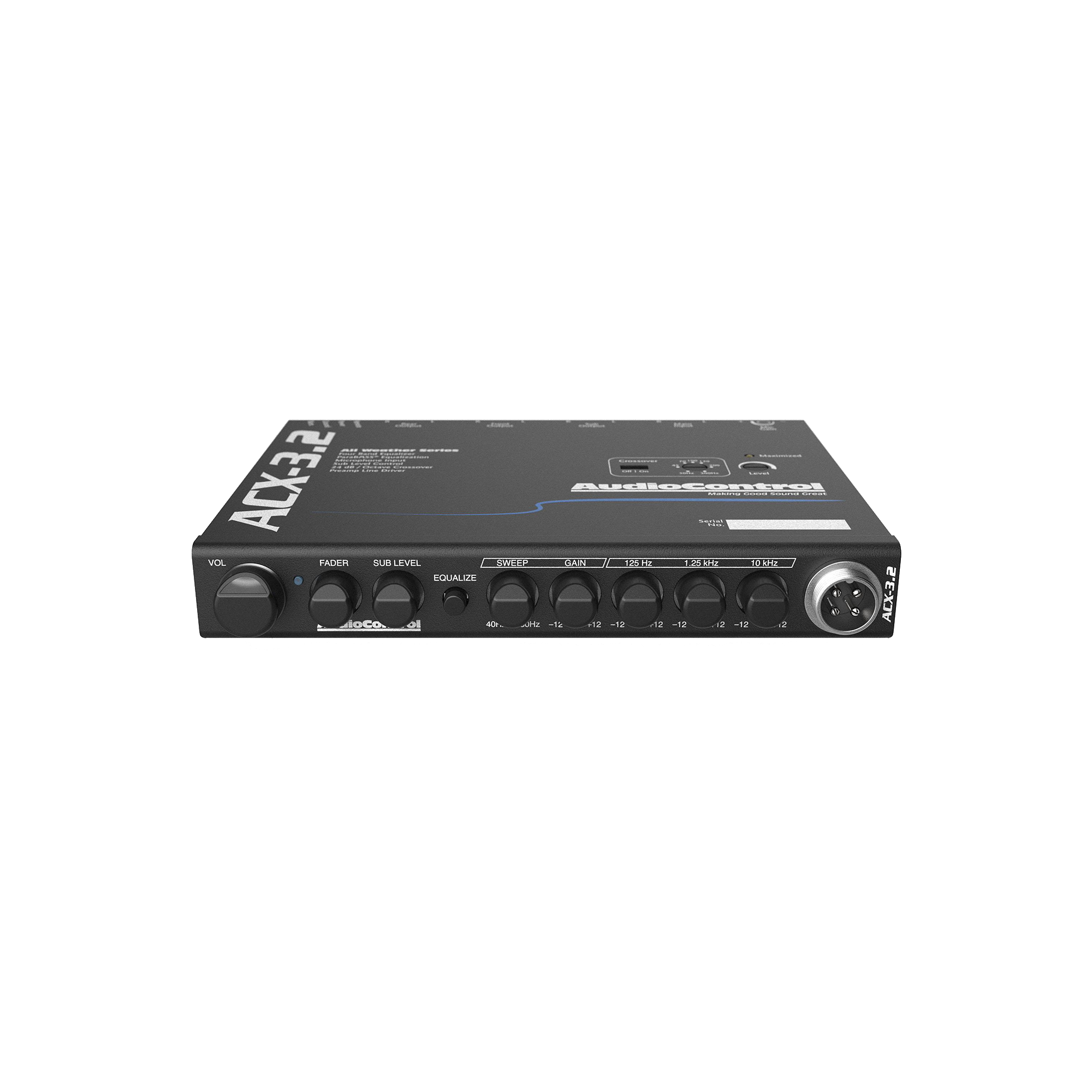

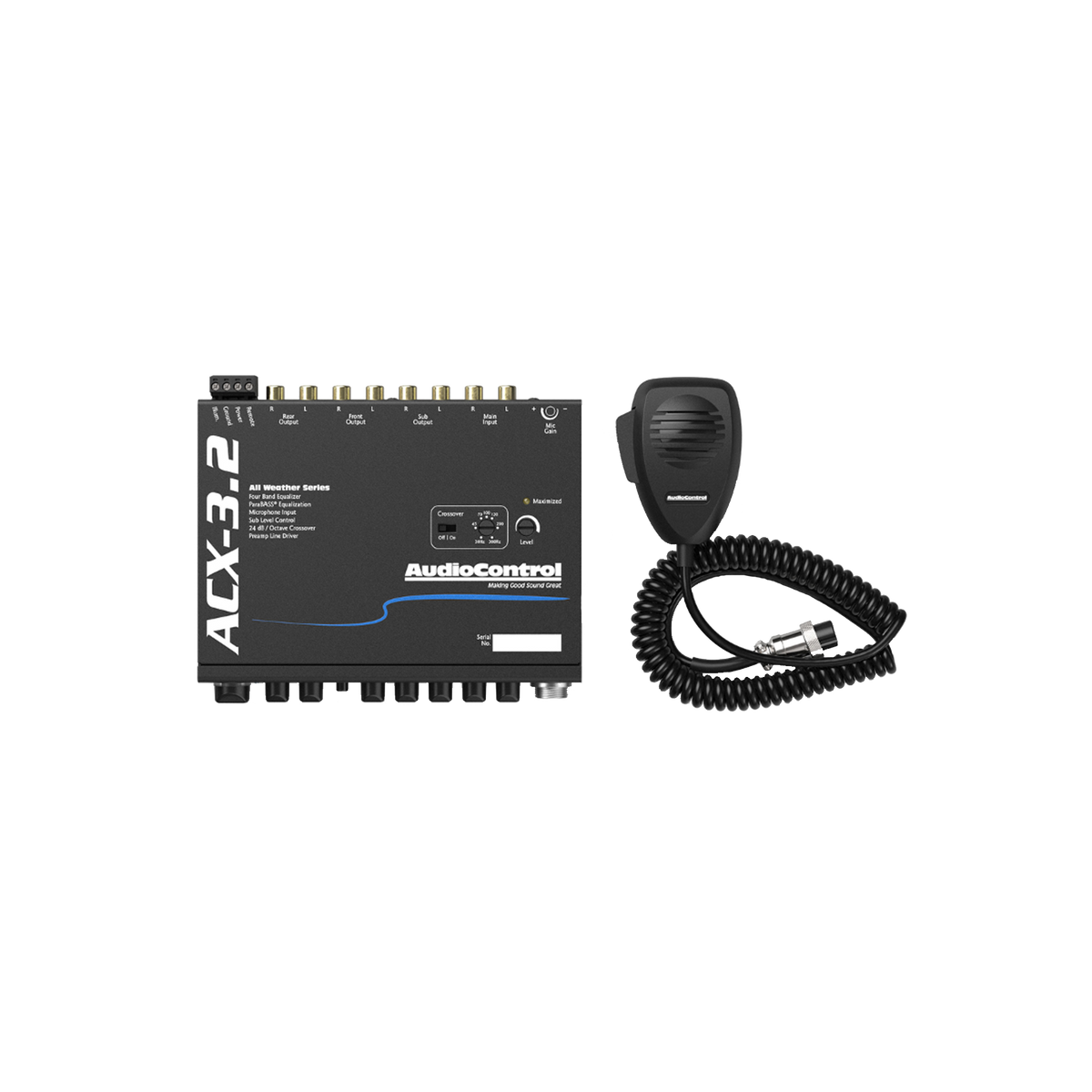

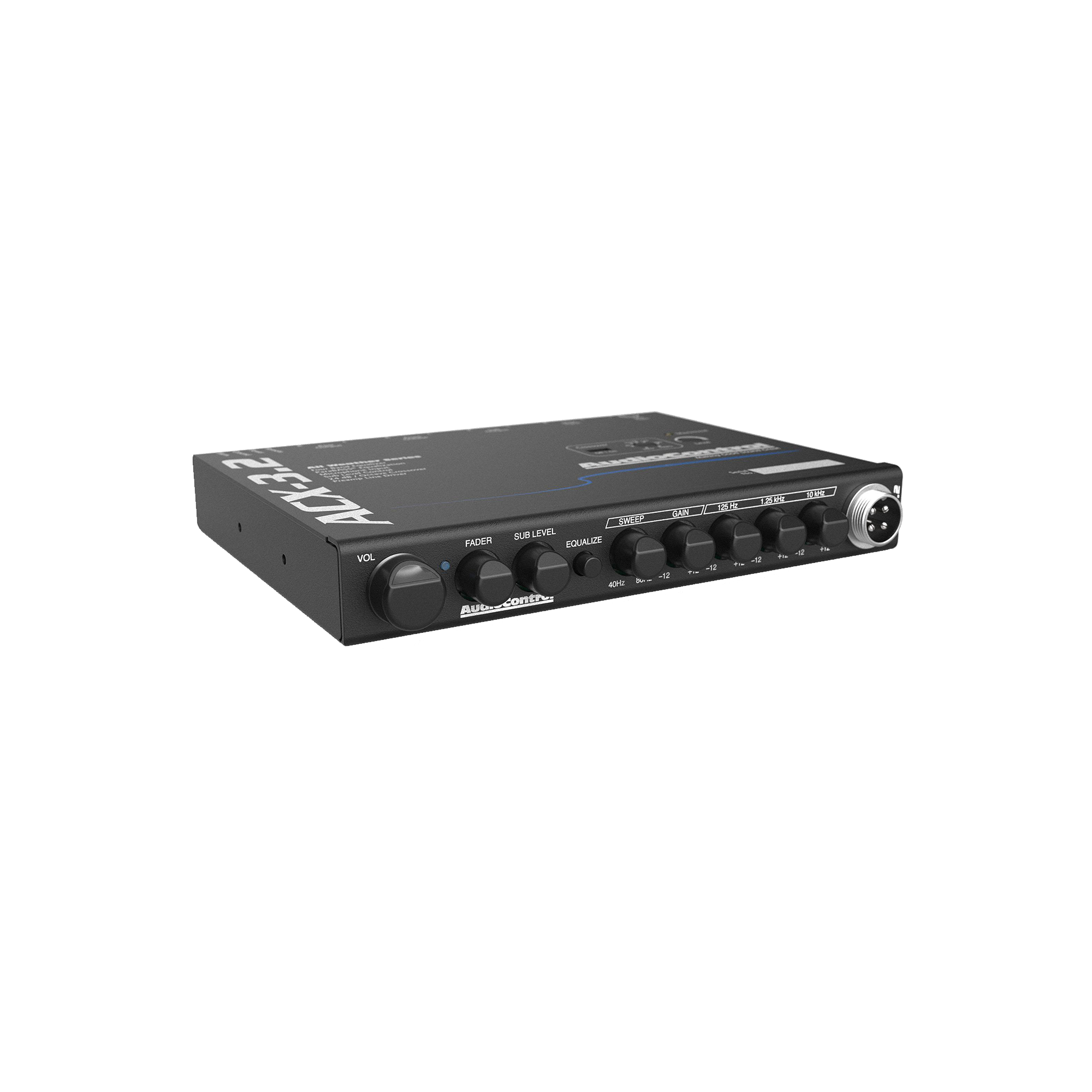

The ACX-3.2 all-weather sound processor is a high-output pre-amp, for all systems on-road, off-road, or off-shore. The ACX-3.2 can serve as the main control unit in your audio system allowing you to control the output to all of your amplifiers. It features a 4-band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection. The built-in crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system. Adding an ACX-3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner with less distortion.
The low-profile ACX-3.2 takes your experience to another level by combining all of its audio features with a PA microphone!
If you are out on your boat ACX-3.2 allows you to play music and communicate with the person wakeboarding or tubing behind you. Own a food truck? This is great for playing music inside for the cooks, outside for the patrons, and allowing you the ability to call out an order number for a waiting customer.
The ACX-3.2 is a game changer, by offering a quality real-world solution for all of those unique installation needs. This multi-functional piece is part of our all-weather line-up making it the perfect solution for any adventure.
| Part Number | ACX-3.2 |
|---|---|
| UPC | 851523007966 |
| Specification | INPUTS |
| Preamp Inputs | 1 (2 channels) |
| Input Gain | 0-20 dB |
| Input Impedance | 20 kΩ |
| Specification | OUTPUTS |
| Preamp Outputs | 6 |
| Maximum Output Level | 7.5 Vrms / 9.5 V Peak |
| Output Impedance | 150 Ω |
| Specification | PERFORMANCE |
| Frequency Response | 20Hz-20kHz ±.01dB |
| Total Harmonic Distortion | 0.03% |
| Signal to Noise | 123 dB (inputs set to Balanced) |
| EQ Frequencies | 40 Hz – 80 Hz (parametric), 125 Hz, 1.25 kHz, 10 kHz |
| EQ Cut/Boost | ±10 dB |
| Crossover type | 24 dB/octave Linkwitz-Riley |
| Factory Crossover Setting | 100 Hz |
| Microphone Frequency Response | 100 Hz – 6 kHz |
| Microphone Maximum SPL | 123 dB |
| Specification | CONTROL |
| Specification | Remote In |
| Specification | GENERAL |
| Power Supply | High Headroom PWM Switching |
| Current Draw | 300mA |
| Recommended Fuse Rating | 1A |
| Dimensions | 6.75”W x 5”D x 1”H |
| Weight | 1.6lbs |
| IN THE BOX | ACX-3.2, Paging Mic, Mounting Brackets, Power Connector, Manual, Warranty |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
