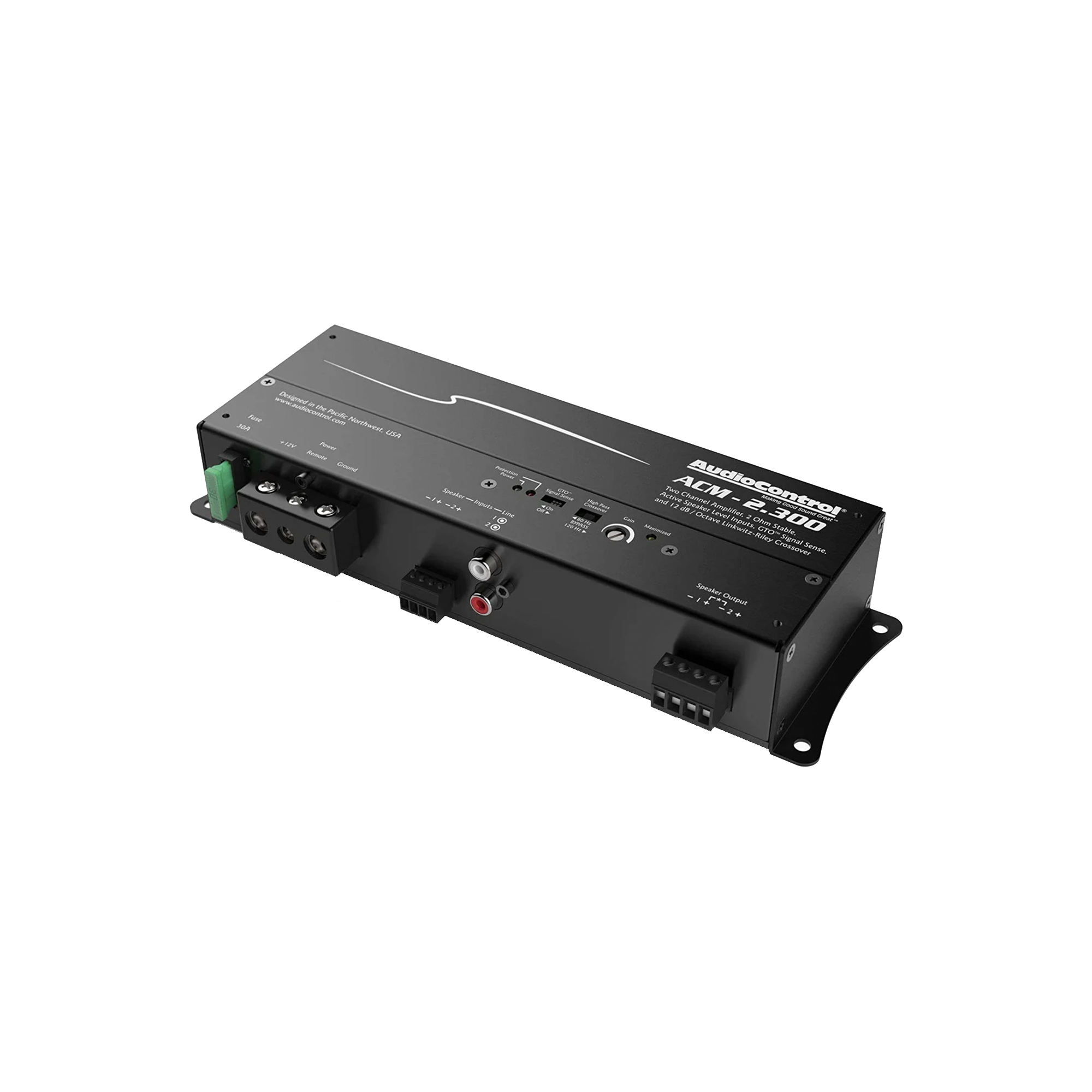

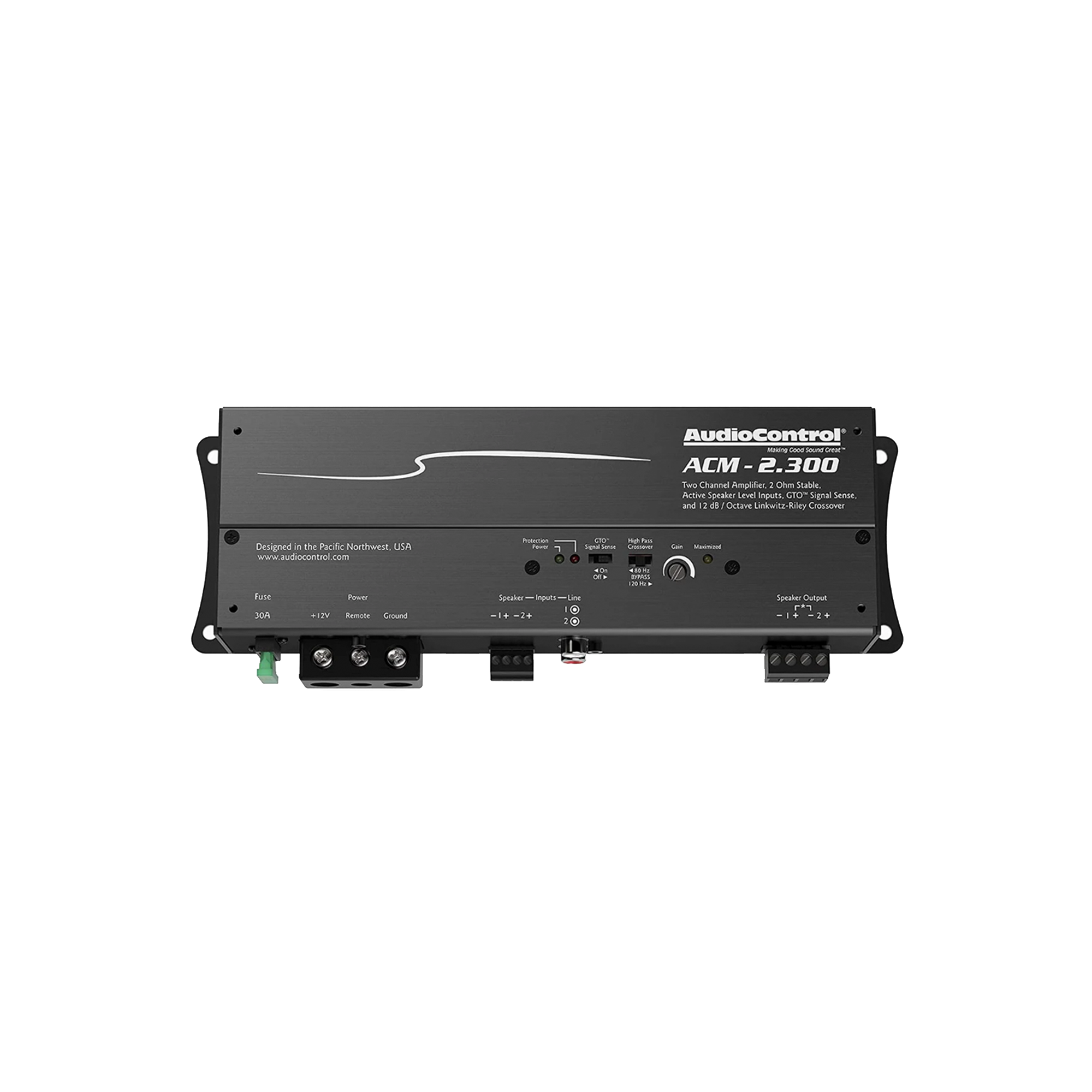

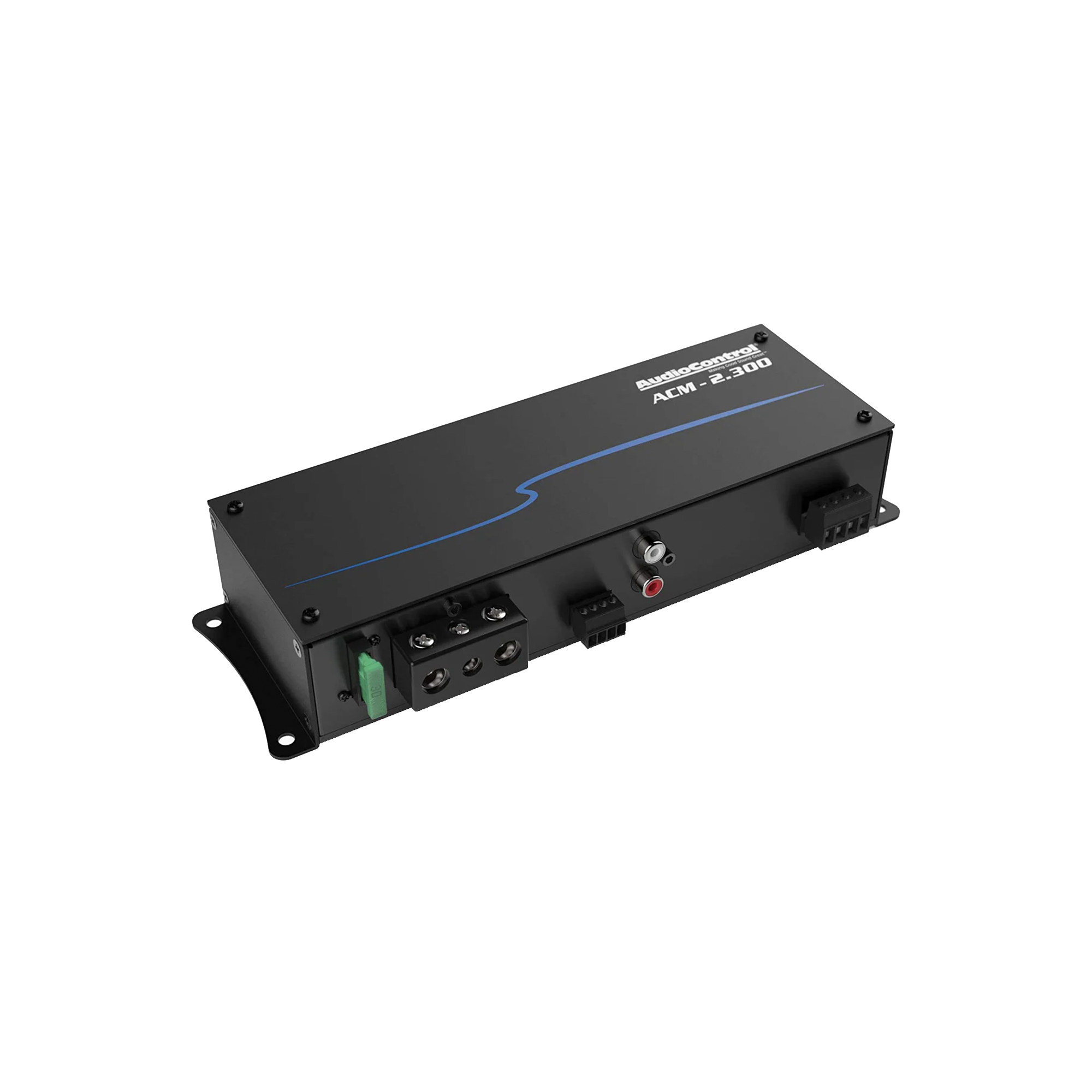

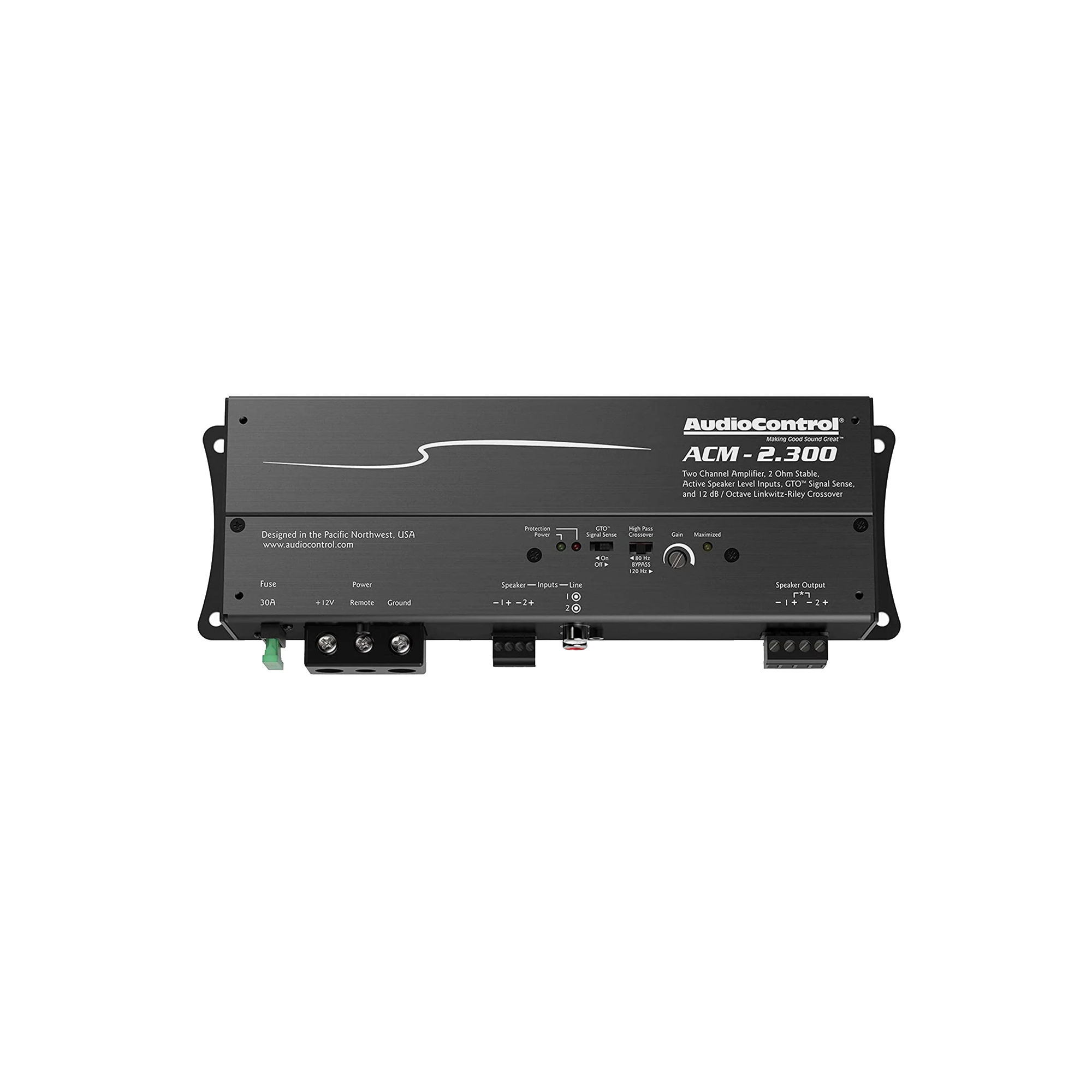

ACM-2.300 2-Channel Micro Amplifier, 300W RMS
Description ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio...
Vendor:
AudioControl
Manufacturer SKU
ACM-2.300
Availability:
Available Online — Not Stocked In Store
Product Type:
Amplifier
- $329.00
- $329.00
- Unit price
- per
Subtotal:
$329.00
Couldn't load pickup availability
Description
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
Features
- 2 x 150 watts @ 2 ohms
- 2 x 75 watts @ 4 ohms
- 300 watts @ 4 ohms bridged
- GTOTM Signal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Reversible Cover Plate
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
The Kaos Run Down
| Part Number | ACM-2.300 |
|---|---|
| UPC | 851523007478 |
| Specification | INPUTS |
| Preamp Inputs | 2 Balanced |
| Preamp Input Voltage Range | 500 mV – 6 Vrms |
| Speaker Level Inputs | 2 |
| Speaker Level Input Voltage Range | 3 V – 40 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 75 W x 2 RMS |
| Specification | 2 Ω – 150 W x 2 RMS |
| Specification | Bridged 4 Ω – 300 W RMS |
| Specification | PERFORMANCE |
| Frequency Response | 10 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 50 W @ 4 Ohm |
| THD+N | < 0.01% |
| Power / Ground Wire Gauge | 10 to 4 AWG wire |
| Fuse Rating | 1 x 30 A |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| PFM Subsonic Filter | 32 Hz |
| Dimensions | 9.4″W x 3.0″D x 1.75″H |
| Weight | 2.1 lbs. (0.95 kg) |
| IN THE BOX | ACM-2.300, Speaker Connectors, Fuse, Manual, Warranty |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
