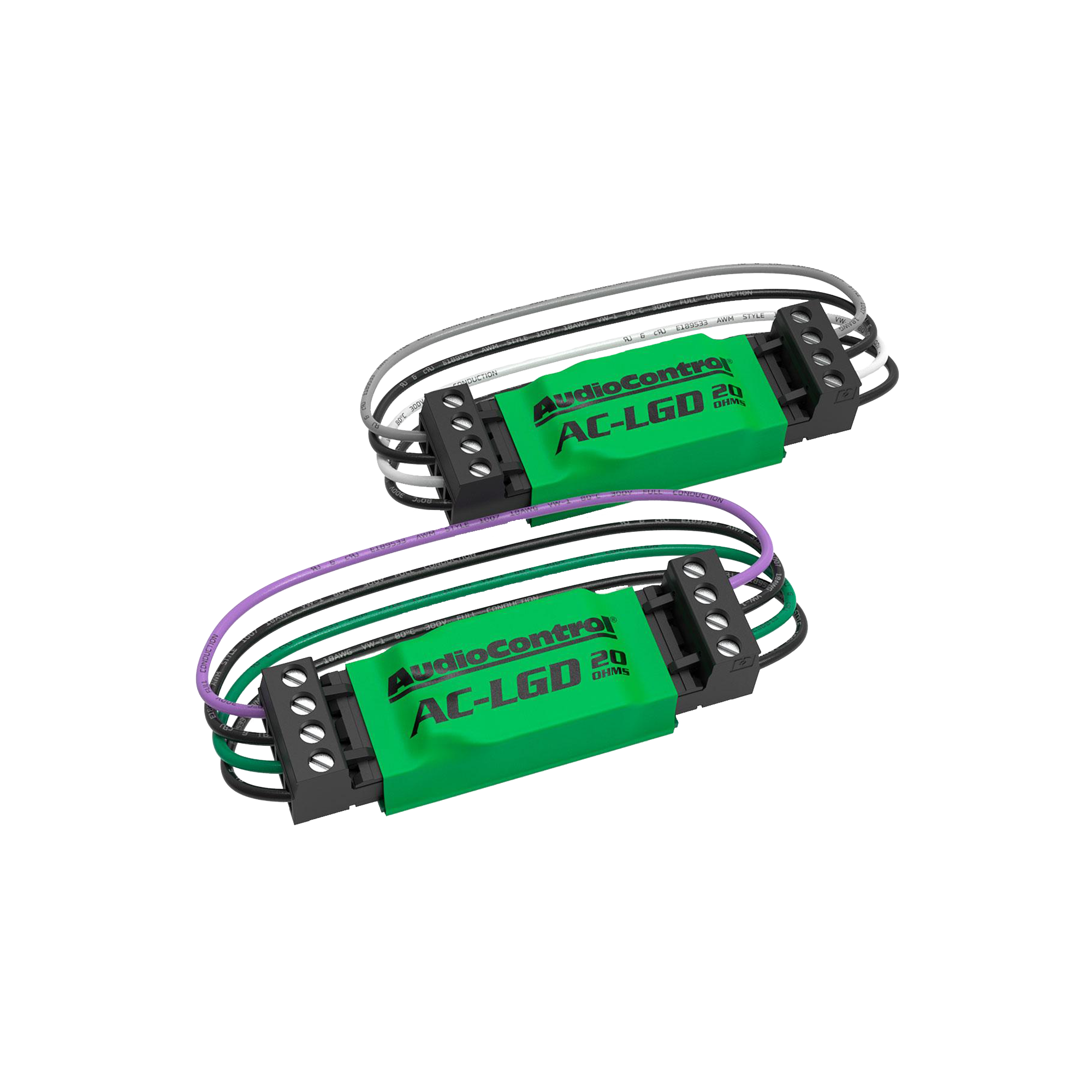

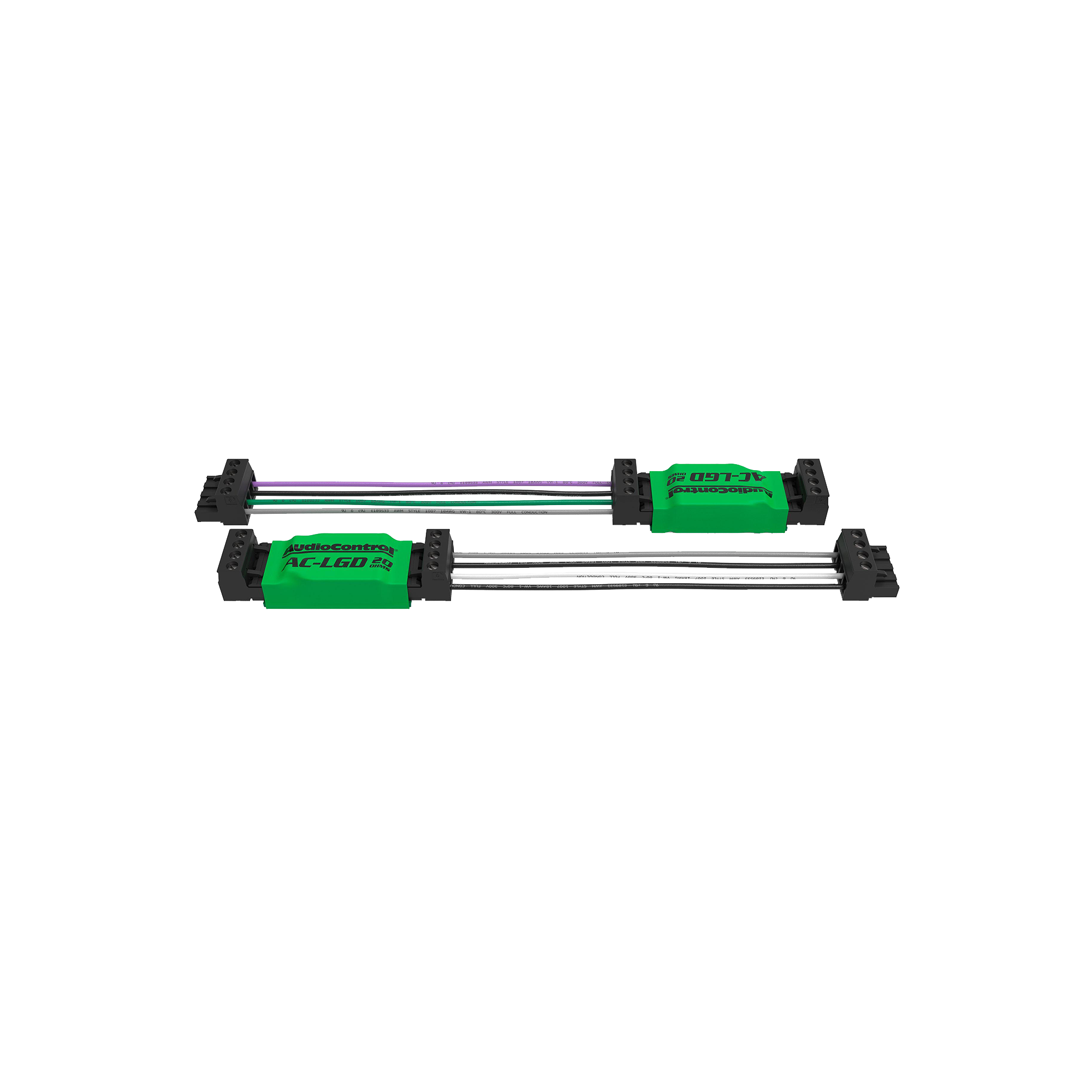

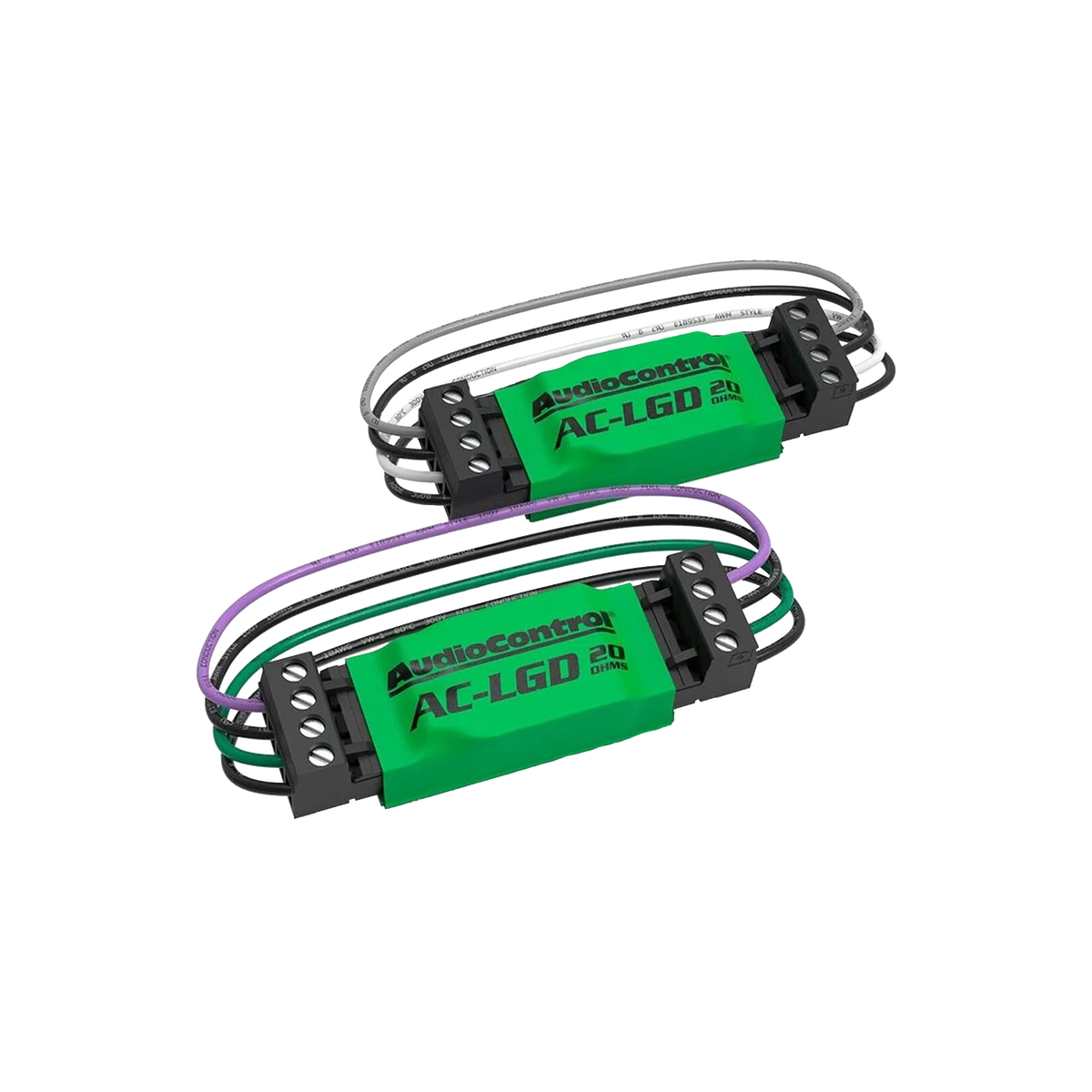

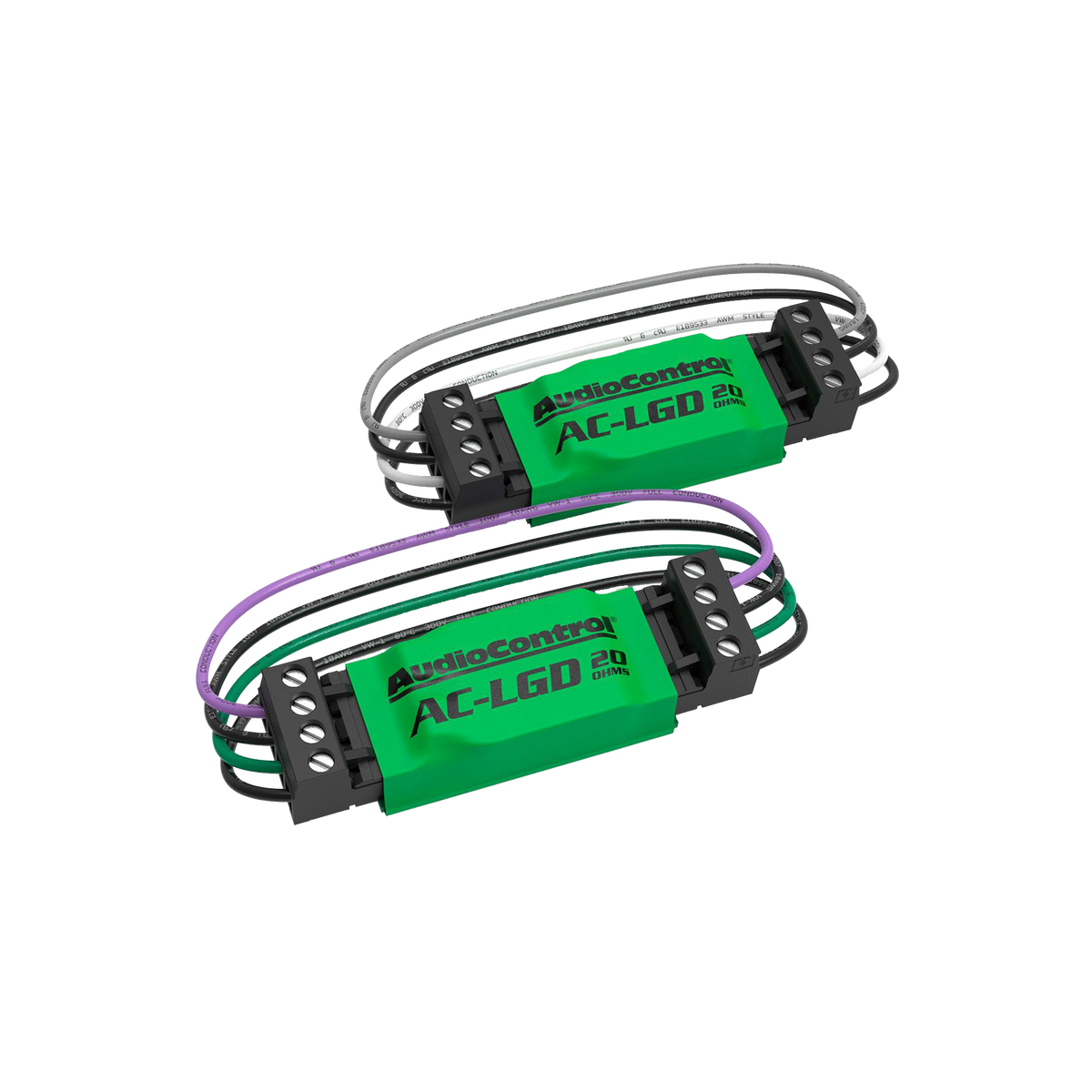

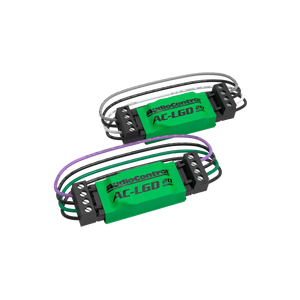

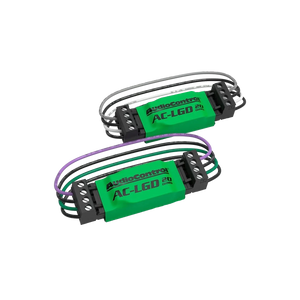

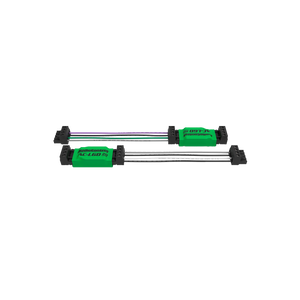

AC-LGD-20 Load Generating Device
AC-LGD-20 Load Generating Device
Description
IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS
Today’s factory amplifiers feature built-in protection circuits that can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from the amplified factory system to ensure the best possible audio.
The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.
The Kaos Run Down
| Part Number | AC-LGD-20 |
|---|---|
| UPC | 851523007713 |
| Specification | GENERAL |
| Maximum Input Voltage | 15 Vrms (50 watts) |
| Input Impedance | 20 Ohms |
| Dimensions (without wires/connectors) | 2.3″L x 1.0″W x .06″H |
| Dimensions (with wires/connectors) | 9.75″L x 1.0″D x .06″H |
| Weight (single LGD) | 1.4oz (39g) |
| IN THE BOX | One pair of prewired AC-LGD 20s |
