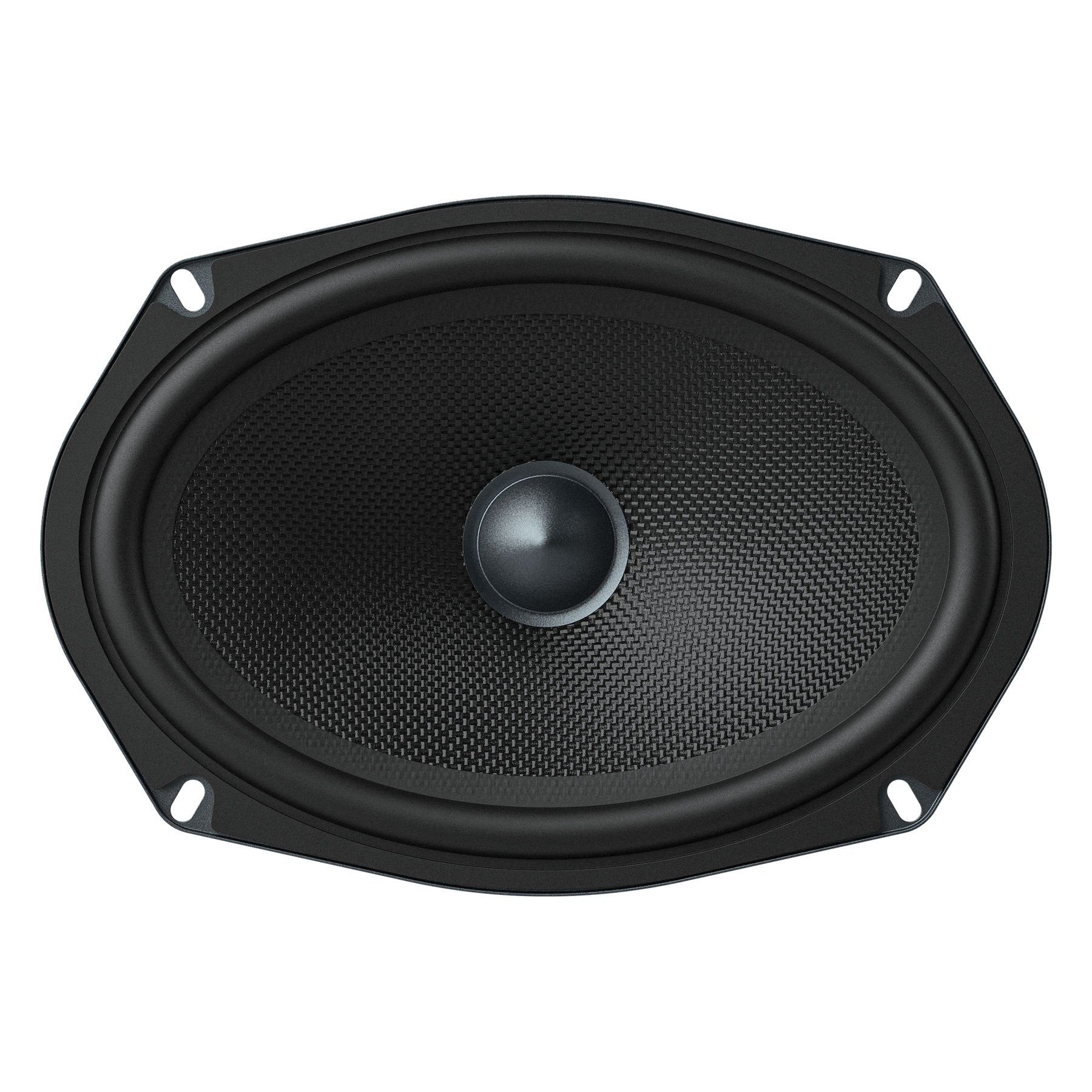

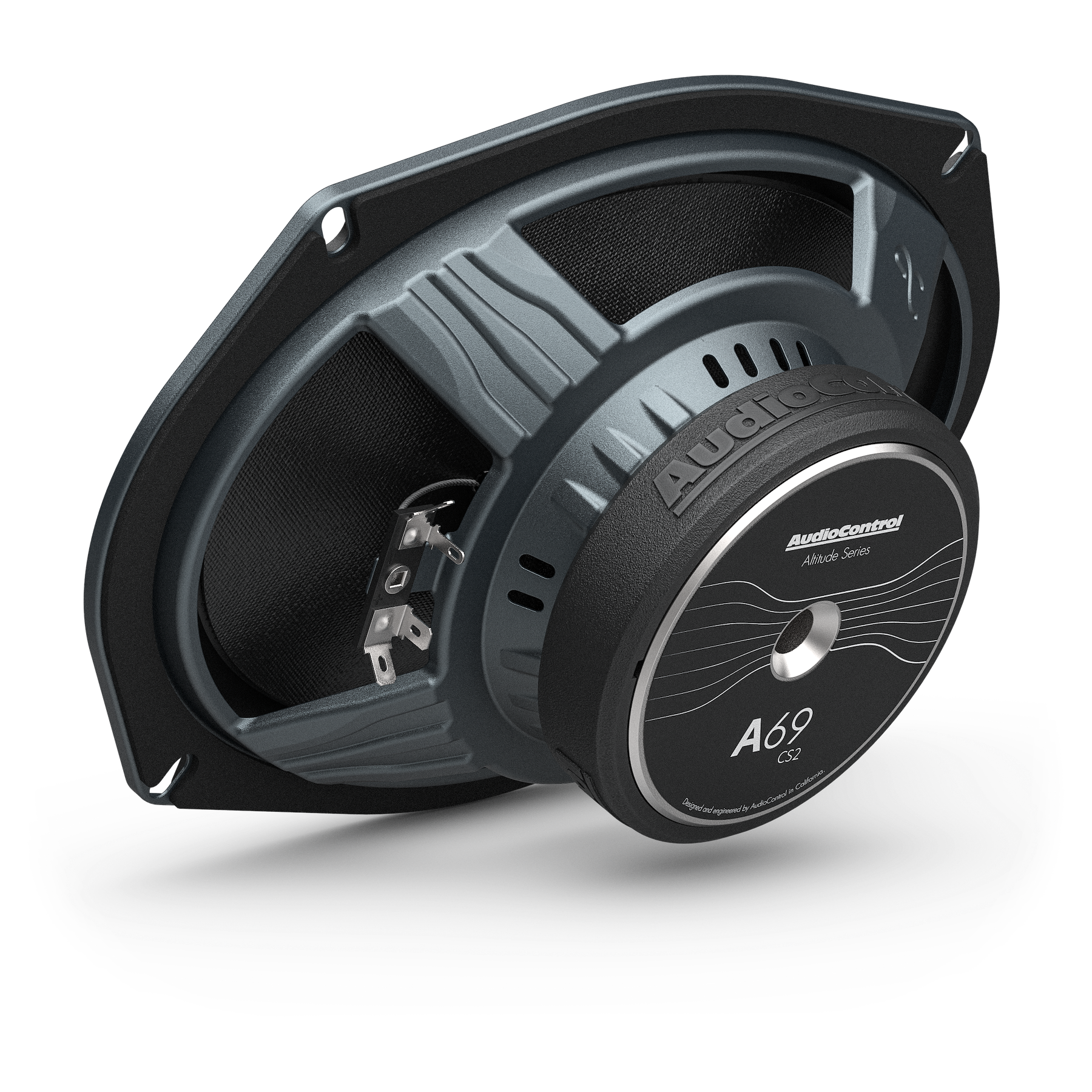

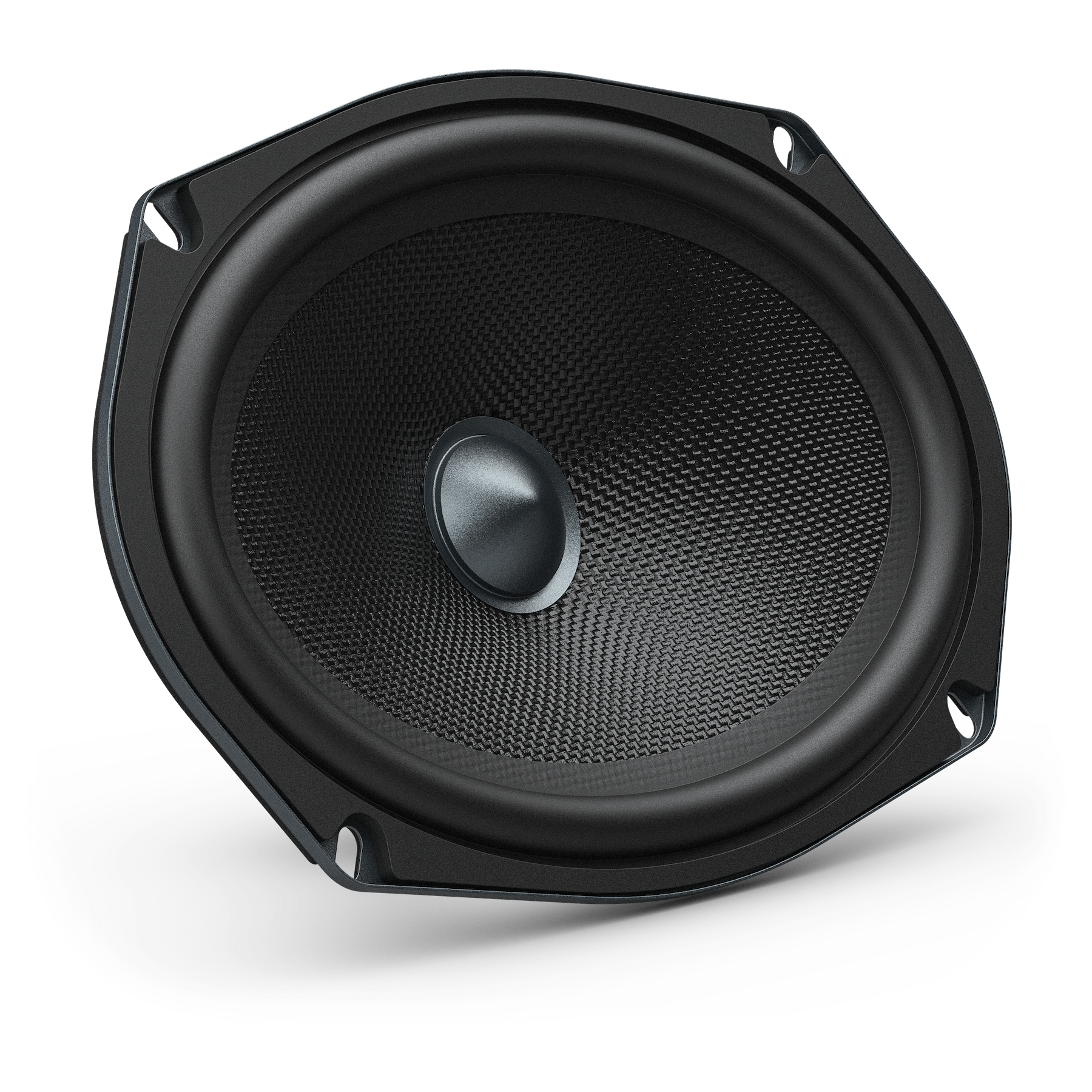

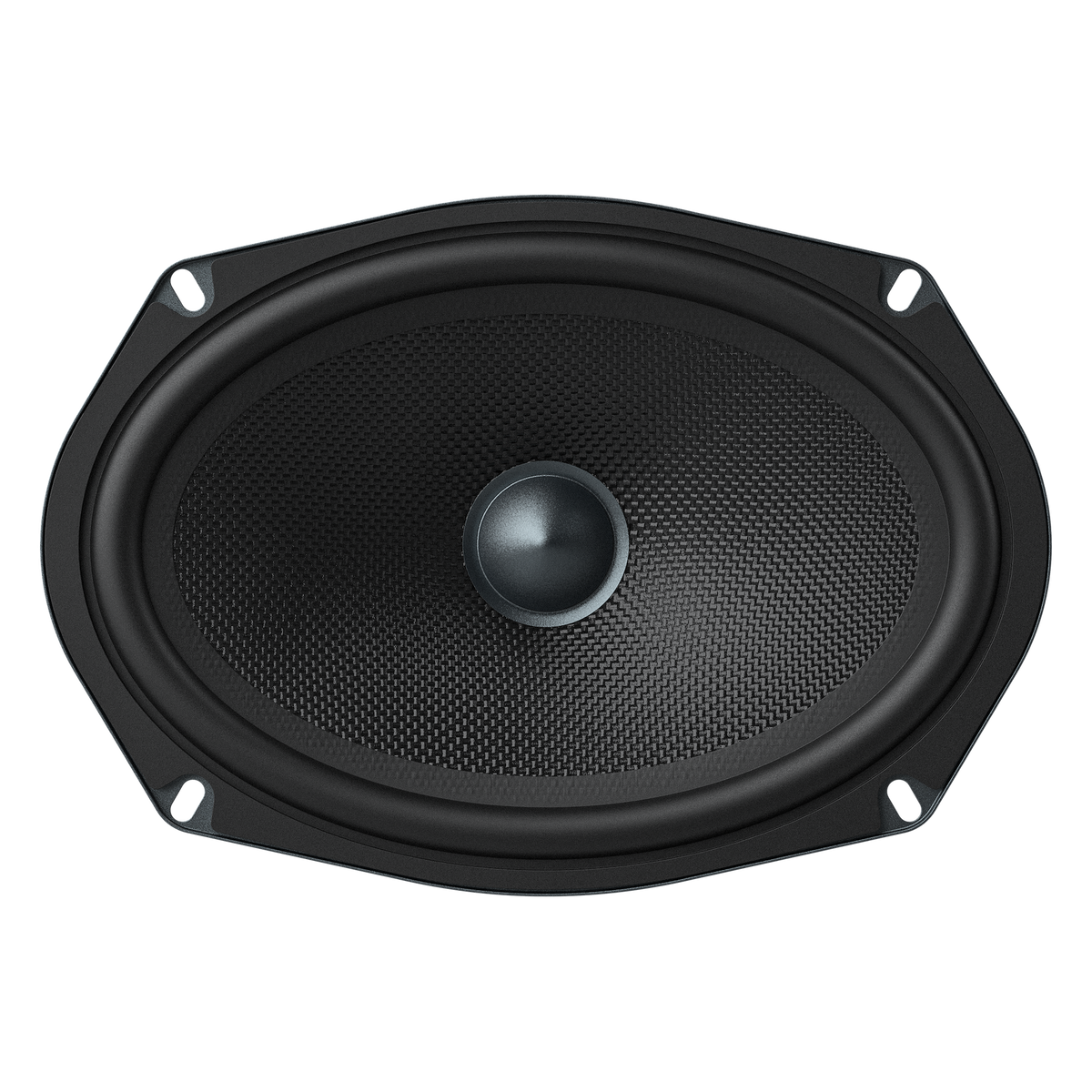

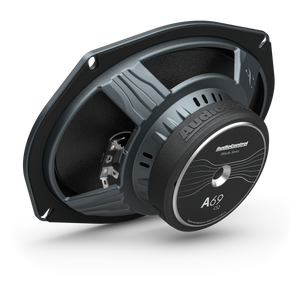

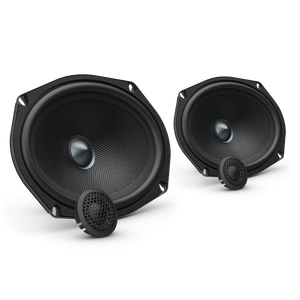

A69CS2 Altitude Series 6x9" Component Speakers with 1" Tweeters, 100W RMS, 4 Ohms (Pair)
A69CS2 Altitude Series 6x9" Component Speakers with 1" Tweeters, 100W RMS, 4 Ohms (Pair)
A69CS2 Altitude Series 6x9" Component Speakers with 1" Tweeters, 100W RMS, 4 Ohms (Pair)
Description
Altitude Series speakers are built for those who crave more than just music - they’re for the ones chasing the perfect soundtrack to every mile, every moment.

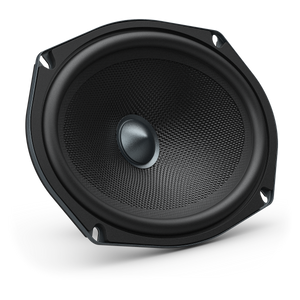

The Altitude Series Speakers are crafted for clarity, control, and depth, starting with a precision-molded glass fiber cone that delivers warm, accurate sound. An anti-phasing aluminum dust cap enhances sensitivity and extends frequency response, ensuring your music stays sharp and immersive. A durable butyl rubber surround keeps low-frequencies responsive, while a silk dome tweeter adds a smooth, detailed finish to every high note. The result? Performance that holds steady on every journey.
Features
-
Wide Frequency Response: Separate woofer and tweeter design
delivers balanced sound across the full audio spectrum -
Lightweight Aluminum Dust Cap: Enhances sensitivity and extends
frequency response - Precision-Molded Glass Fiber Cone: Delivers warm, accurate sound reproduction
- Durable Butyl Rubber Surround: Improves low-frequency performance and control
-
Silk Dome Tweeter: Ensures smooth, detailed high frequency response
Structurally - Enhanced Steel Slimline Basket: Allows for easy, space-saving Installation
-

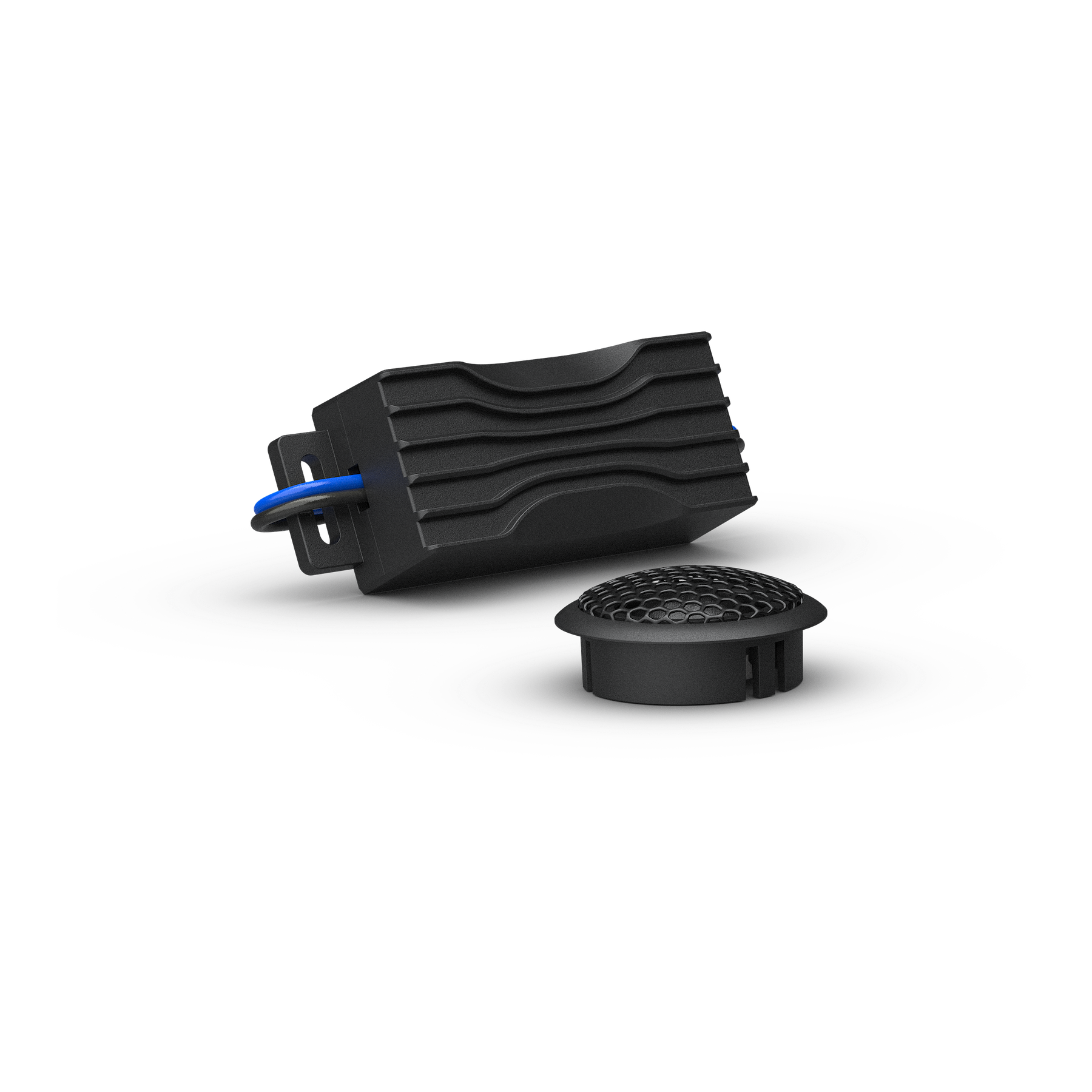

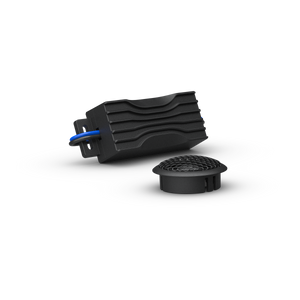

Improved System Efficiency: Matched drivers and included passive
crossovers ensure clean signal routing and power delivery -
Designed and Engineered in USA: Experience the excellence of American ingenuity
The Kaos Run Down
| Part Number | A69CS2 |
|---|---|
| UPC | 850038647957 |
| Power (RMS) | 100 Watts |
| Impedance | 4 Ohms |
| DC Resistance (Re) | 3.3 ohms |
| Voice Coil (Tw/Mid) | 0.8 / 1.2 in (20 / 30 mm) |
| System Frequency Response | 55 Hz to 20,000 Hz |
| Sensitivity* | 86.9 dB 1W / 1 M | 89.9 dB @ 2.83 V / 1 M |
| Specification | Woofer Dimensions |
| Overall Diameter (A) | 6.43 x 9.27 in / 163.5 x 235.5 mm |
| Cut Out Diameter (B) | 5.67 x 8.23 in / 144 x 209 mm |
| Mounting Depth (C) | 2.67 in / 68 mm |
| Total Depth (D) | 2.91 in / 74 mm |
| Specification | Tweeter Dimensions |
| Overall Diameter (with housing) (E) | 1.67 in / 42.5 mm |
| Cut Out Diameter (F) | 1.37 in / 35 mm |
| Mounting Depth (G) | 0.39 in / 10 mm |
| Overall Depth (with housing) (H) | 0.73 in / 18.5 mm |
| Specification | Crossover Dimensions |
| Length (I) | 3.6 in / 92 mm |
| Width (J) | 1.3 in / 34 mm |
| Height (K) | 0.94 in / 24 mm |

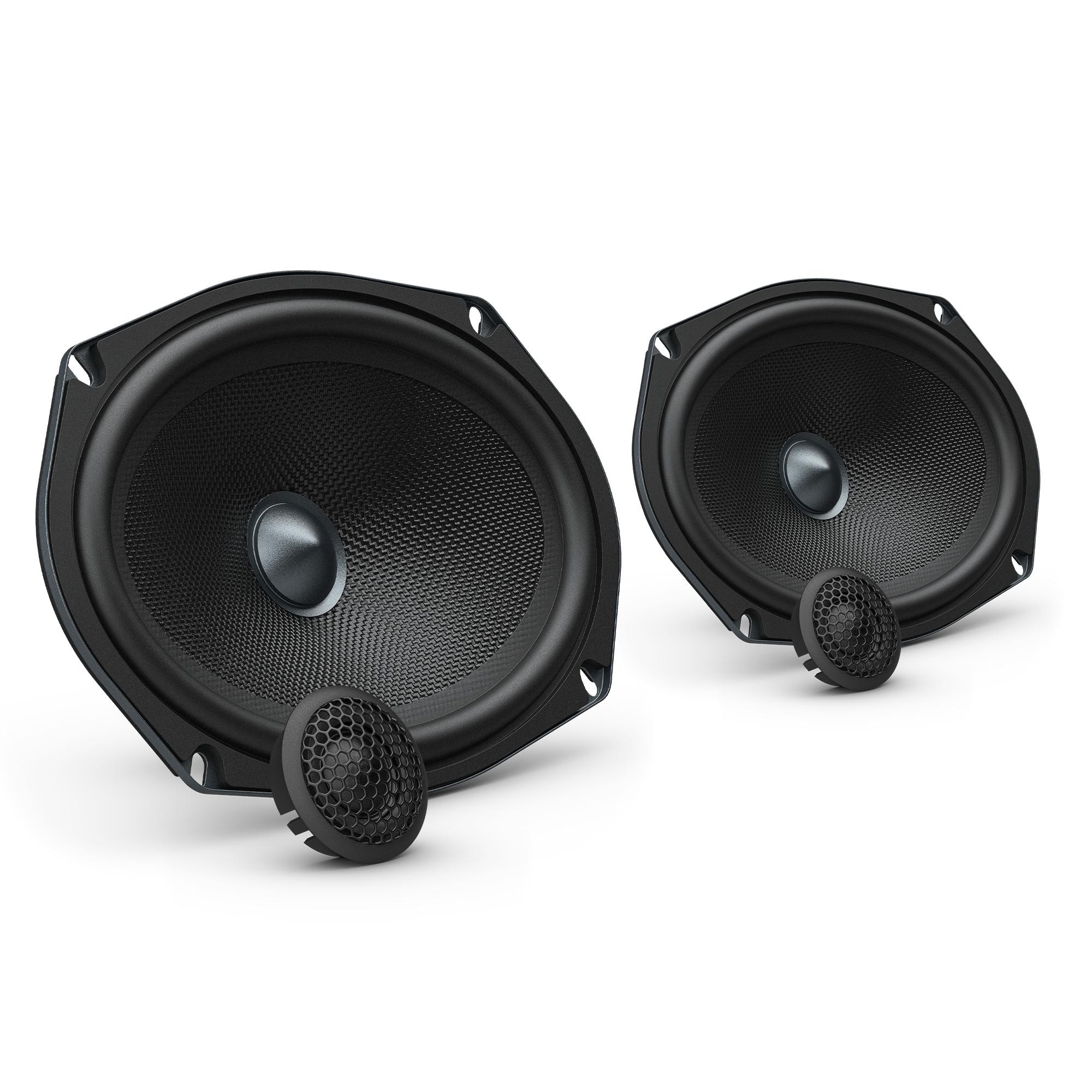

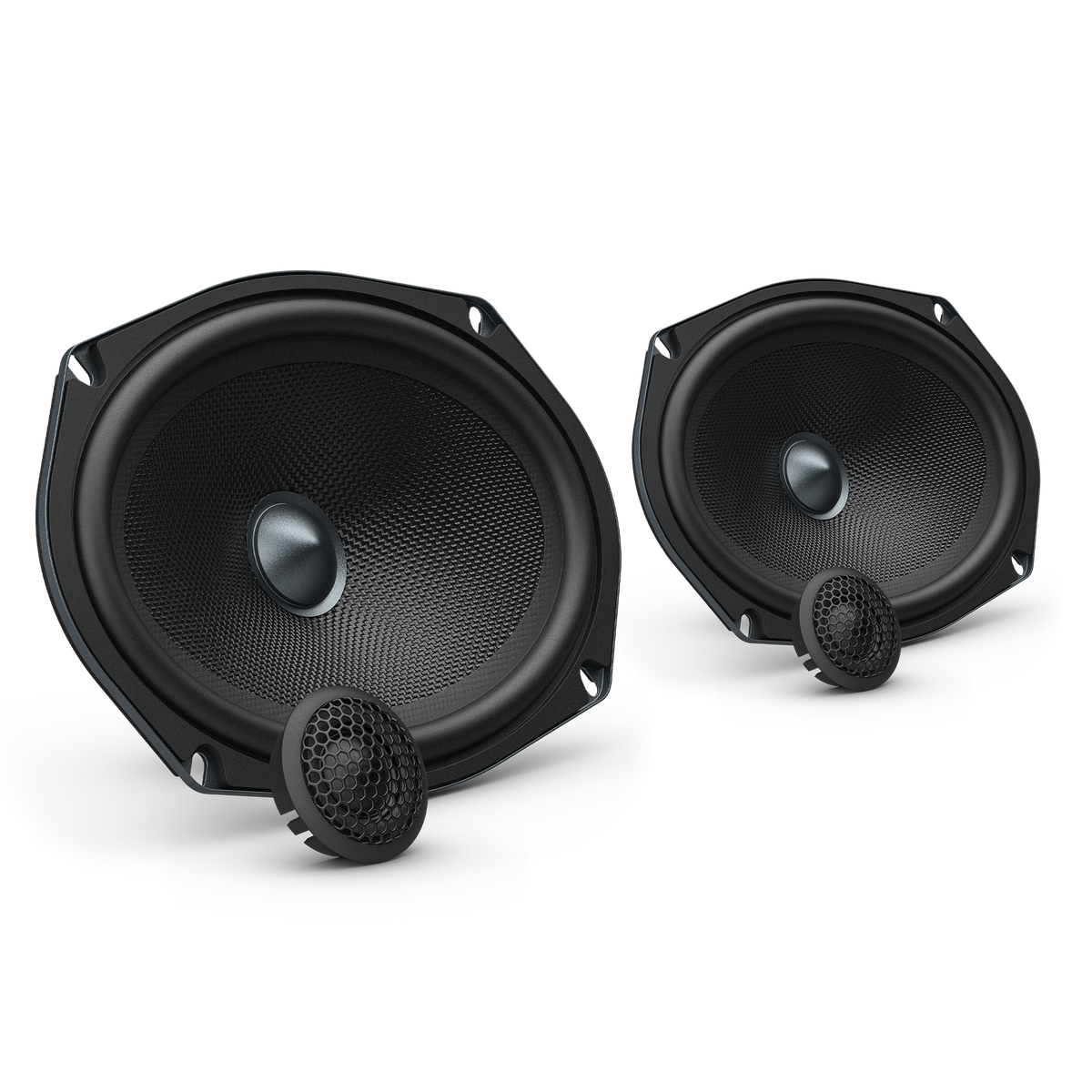

| IN THE BOX | (2) A69CS2 Speakers & Tweeters, Manual |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
