Product Overview

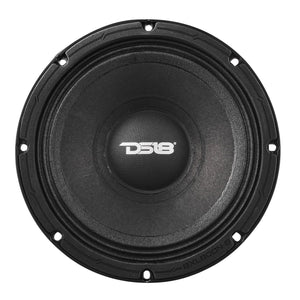

DS18 8XL800N-8
XL 8” Mid-Range Loudspeaker with Neodymium Magnet
DS18’s 8XL800N-8 is audio excellence personified. Designed for perfect reproduction during every session, this speaker is bound to change the way you experience your music.
DS18’s 8XL800N-8 stands head, shoulders and toes above other midrange speakers. This 8-inch loudspeaker comes in 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 100Hz-10kHz ensures an extensive range that captures every nuance of your favorite songs while the sensitivity rating of 100.7dB guarantees perfect reproduction, even in larger systems.
Crafted with precision, DS18’s 8XL800N-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The neodymium magnet weighing in at 7.5 ounces is just the cherry on top - guaranteeing powerful and accurate bass responses that will leave you amazed.
Get LOUD with DS18’s 8XL800N-8!
Key Features
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Specifications
| SKU | 8XL800N-8 |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 watts |
| MAX Power Handling | 800 watts |
| Sensitivity (1w/1m) | 100.7dB |
| Frequency Response | 100Hz-10KHz |
| Recommended High-Pass Crossover | 160Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |

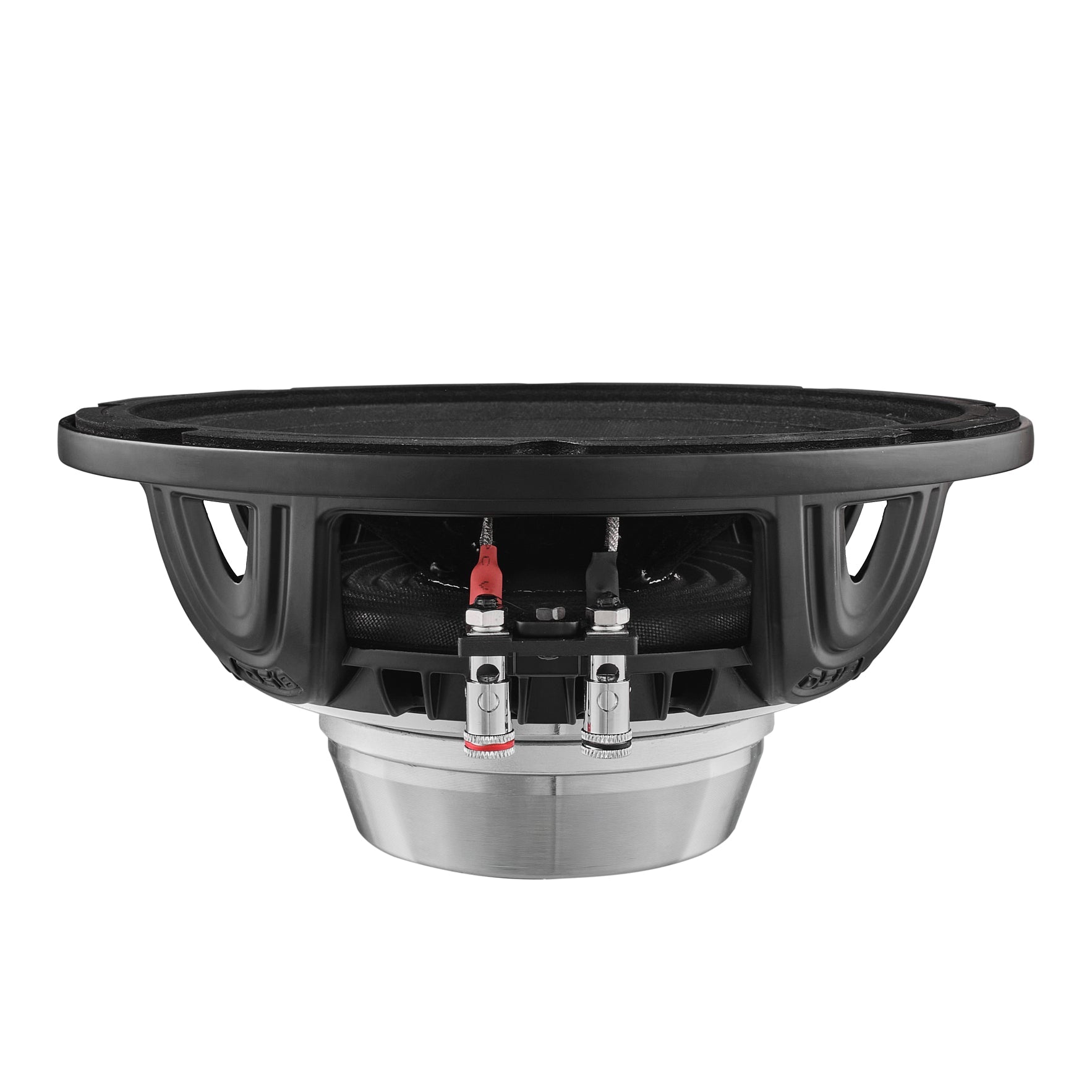

| Speaker Terminals | Push 12ga |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-pressed Paper |
| Dust Cap Material | Paper |
| Bullet Material | N/A |
| Bullet Color/Finish | N/A |
| Surround Material | Cloth |
| Spider Diameter | 5" / 127mm |
| Leads Type | Direct to Cone |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Weight | 7.5 Oz |
| Displacement Volume | 0.03L / 0.00105ft3 |
| Equivalent Volume Vas | 17.09L / 0.603ft3 |
| Excursion (one way) Xmax | 2.3mm |
| Free Air Resonance Fs | 87Hz |
| Mechanical Factor Qms | 5.68 |
| Electrical Factor Qes | 0.27 |
| Total Factor Qts | 0.26 |
| Mechanical Mass Mms | 12.66g |
| Mechanical Compliance Cms | 0.26mm/N |
| BL Factor BL | 12 |
| Voice Coil Inductance Le | 0.06mH |
| Cone Area Sd | 213.82cm2 |
| DC Resistance Re | 5.6 ohm |
| Mechanical Mass w/o air Mmd | 11g |

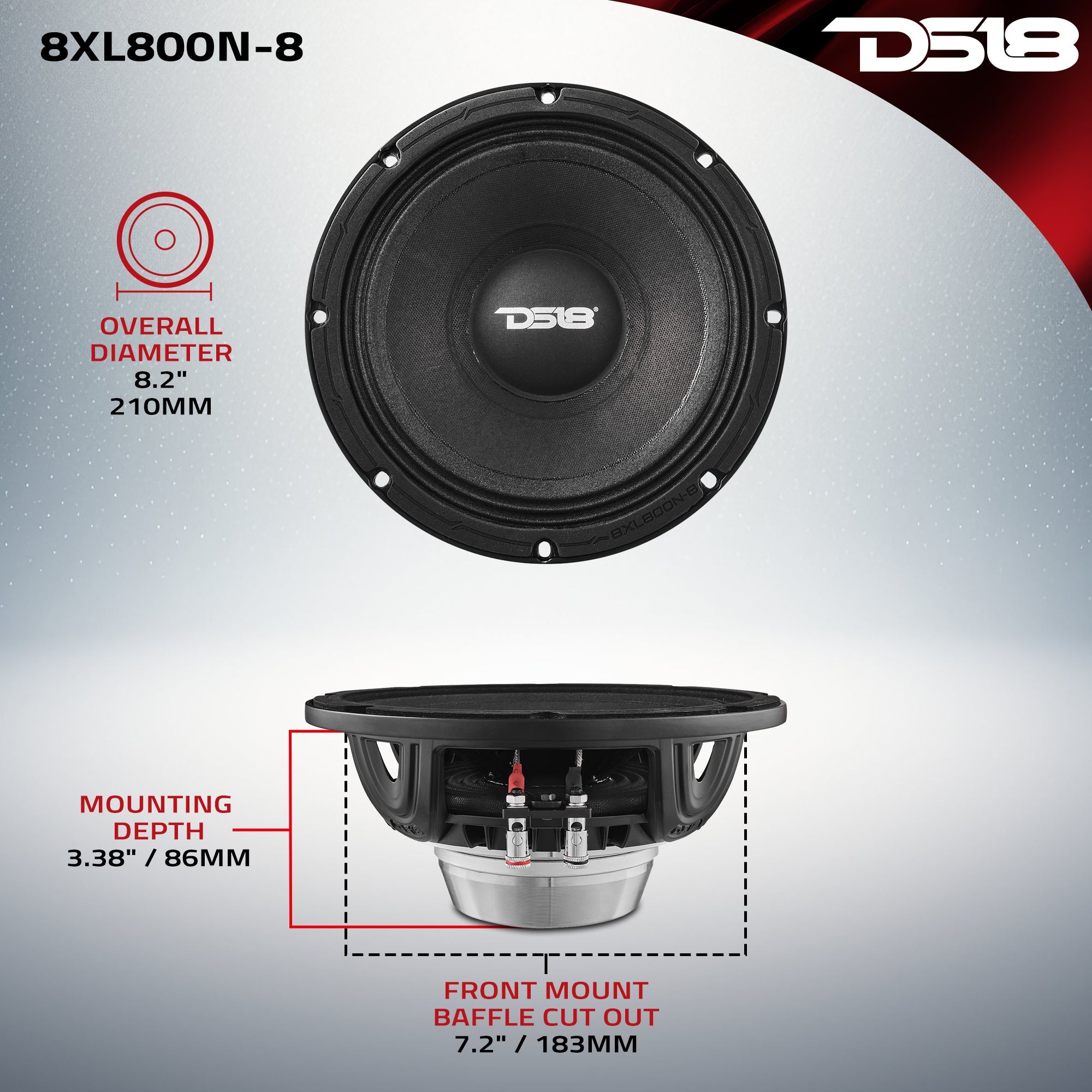

| Overall Diameter | 8.2" / 210mm |
| Overall Depth | 3.85" / 98mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 3.38" / 86mm |
| Motor Diameter | 4" / 102mm |
