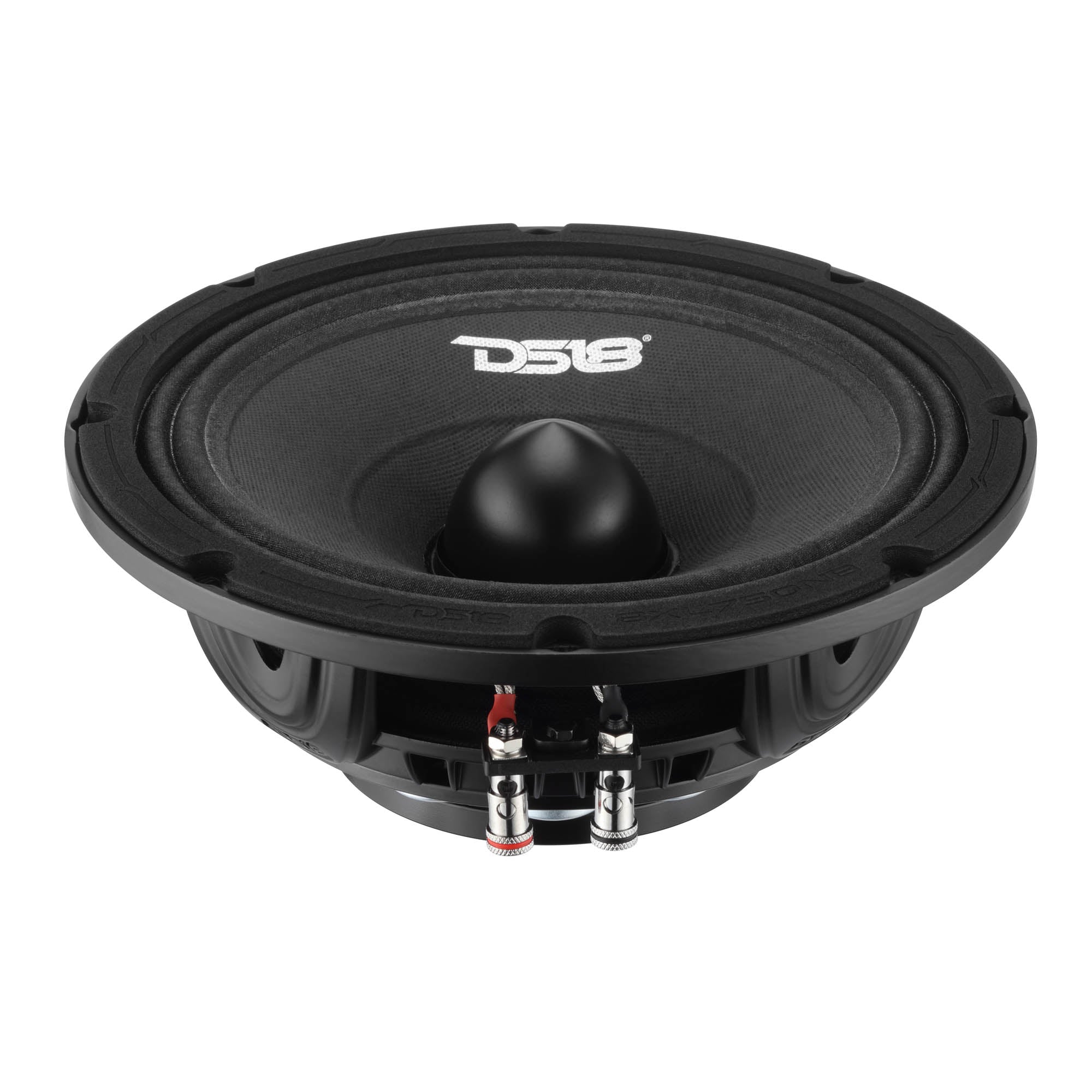

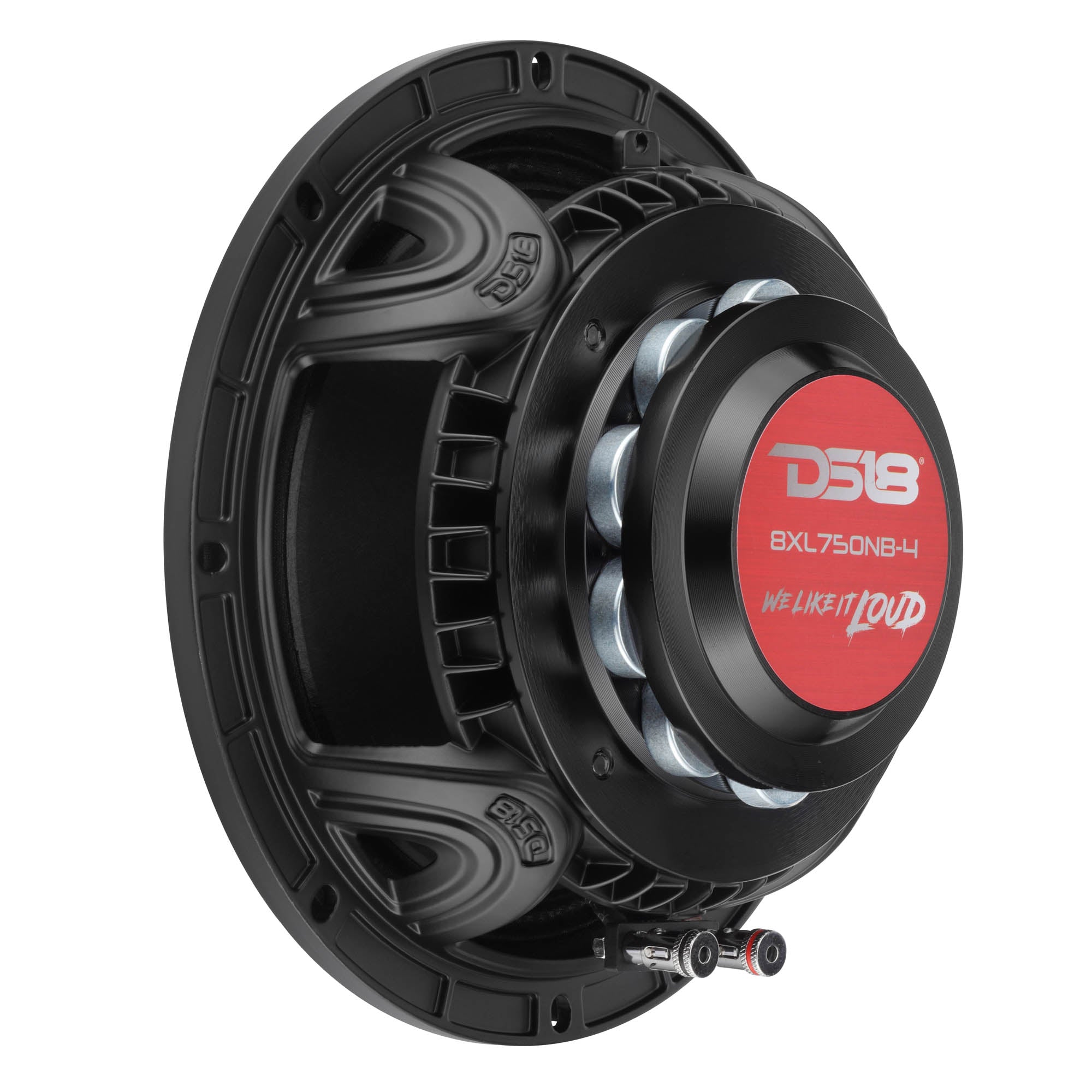

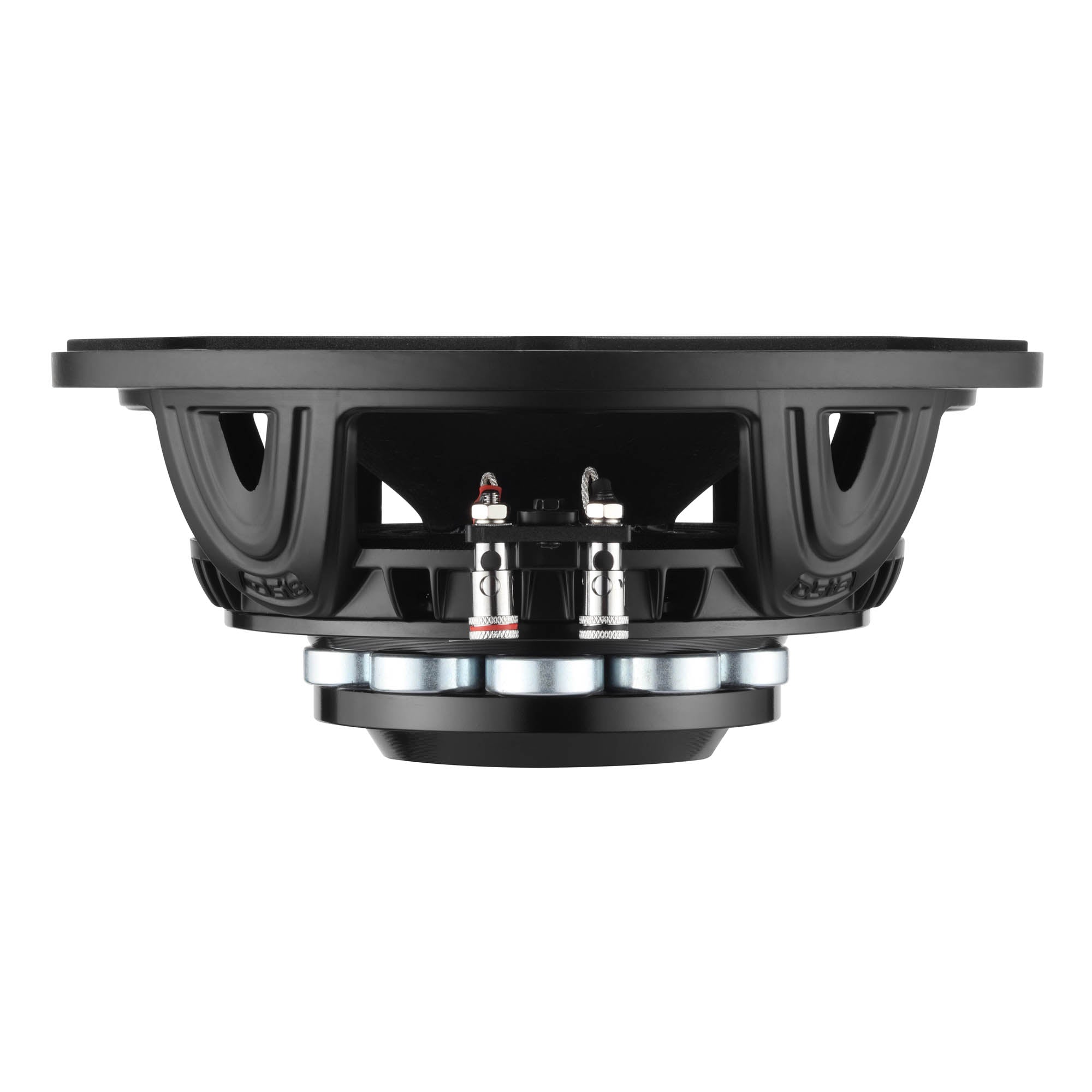

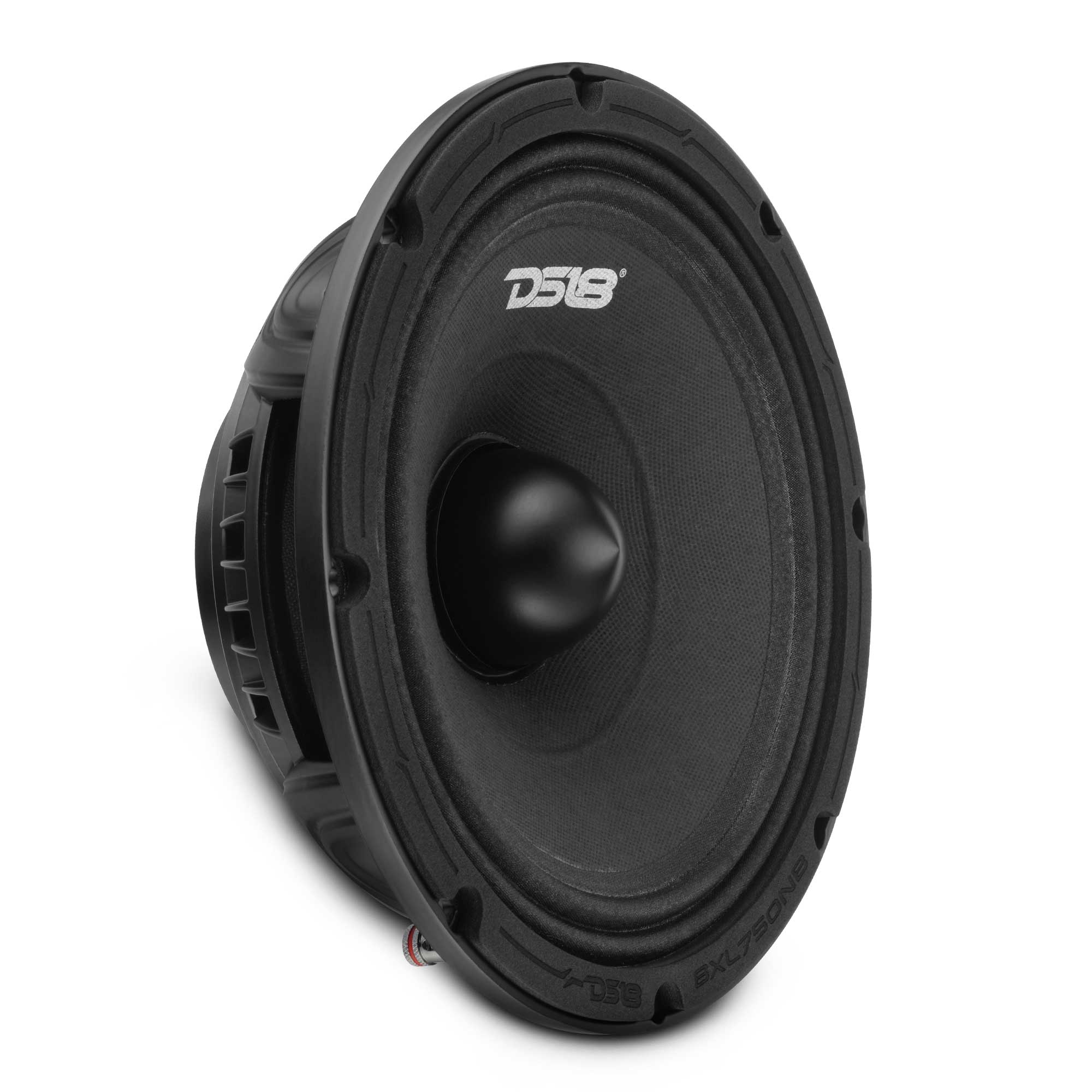

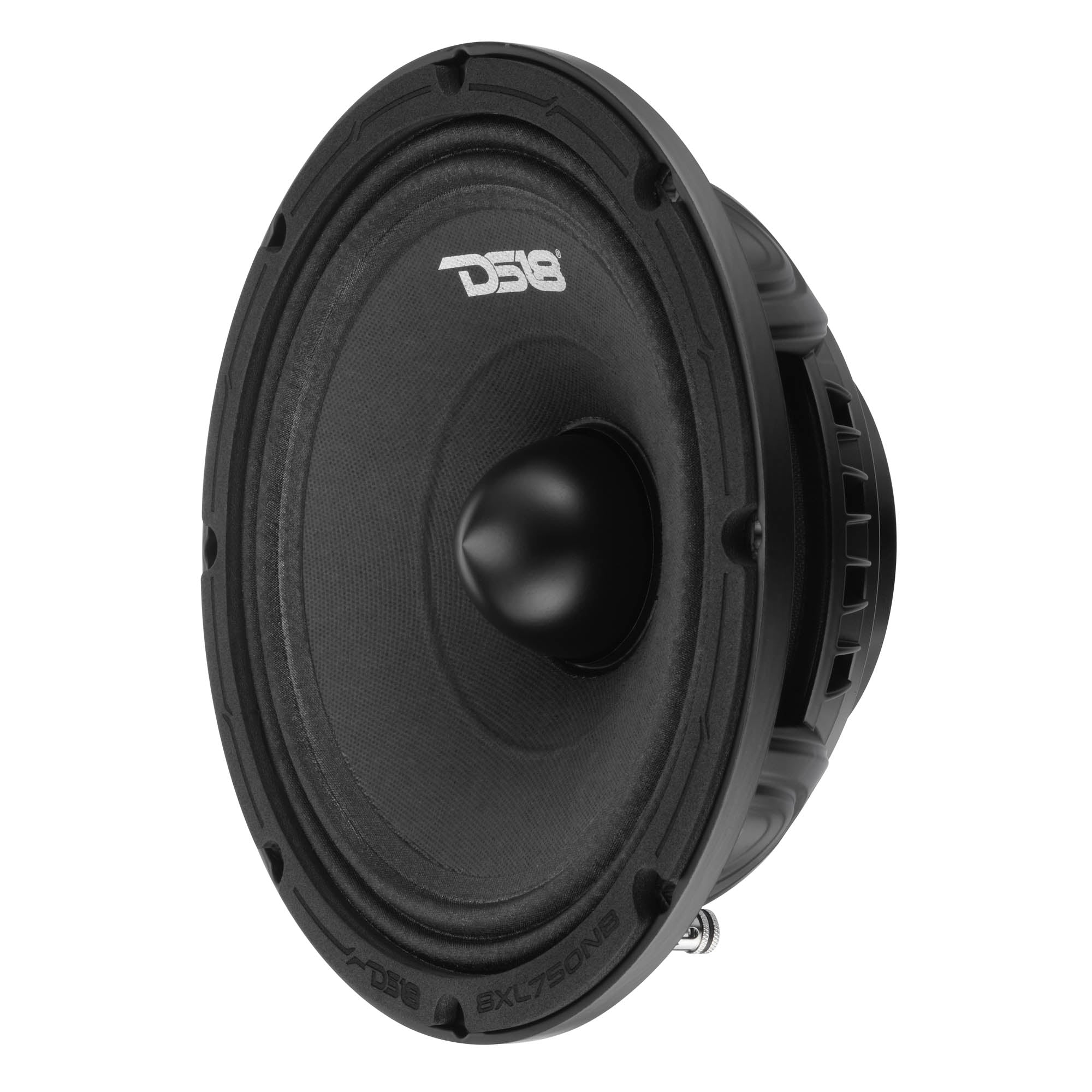

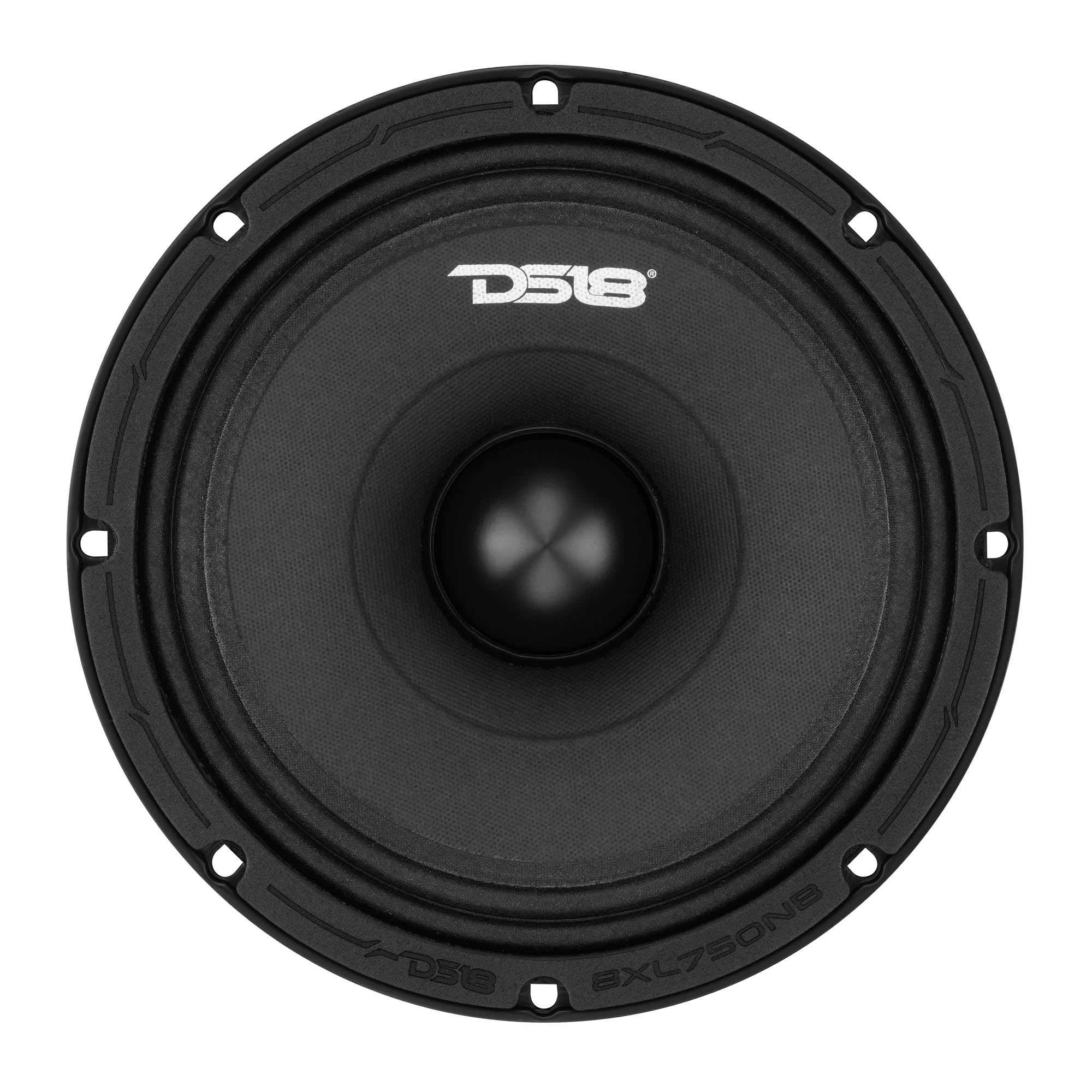

8" Midrange Loudspeaker with Neodymium Rings and Aluminum Bullet | 375 Watts RMS 4-Ohm
8" Midrange Loudspeaker with Neodymium Rings and Aluminum Bullet | 375 Watts RMS 4-Ohm
Product Overview
8” Midrange Loudspeaker with Neodymium Rings and Bullet
Engineered for Performance
The 8XL750NB-4 is an 8” midrange speaker engineered for pro audio performance. With a 4-ohm impedance, this speaker features 375W RMS power handling and 750W max power, ready to deliver exceptional volume and clarity.
The Best in Pro Audio
A wide frequency range of 60Hz – 16kHz makes this speaker dynamic and ready for professional performance. Its 97dB sensitivity helps boost loudness while maintaining audio quality. Neodymium ring magnets keep the speaker lightweight while improving efficiency and delivering higher dB output.
Bullet Design
This midrange is built with a large aluminum bullet, which helps with heat dissipation while enhancing upper frequencies. The black aluminum bullet also gives the speaker a sleek look that complements any build.
High-Quality Materials
A satin black DS18-tooled basket provides strength and stability, ensuring the speaker can handle the stress of high-performance audio. High-quality push terminals allow for secure and fast connections.
Setting the Standard
The 8XL750NB-4 is designed for true pro audio enthusiasts. At DS18, we prioritize durability and performance, and this speaker reflects our commitment to delivering the best for serious audio systems.
Key Features
- 375W RMS / 750W Max Power / 97.5dB Sensitivity
- Midrange Coaxial Design
- Neodymium Ring Motor
- Conical Paper Cone with Cloth Surround
- Perfect for Pro Audio and Motorcycle Builds
Specifications
| Nominal Diameter | 8" / 203mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 375 Watts |
| MAX Power Handling | 750 Watts |
| Sensitivity (1w/1m) | 97 dB |
| Frequency Response | 60Hz-16kHz |
| Recommended High-Pass Crossover | 80Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 12ga |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | N/A |
| Bullet Material | Aluminum |
| Bullet Color / Finish | Black |
| Surround Material | Cloth |
| Leads Type | Spider Crossed |
| Basket Material | Aluminum |
| Basket Color / Finish | Satin Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 11.4 Oz |
| Displacement Volume | 0.8L / 0.028ft3 |
| Equivalent Volume | 22.57L / 0.79ft3 |
| Excursion (one way) | 3.8mm |
| Free Air Resonance | 97Hz |
| Mechanical Factor | 5.73 |
| Electrical Factor | 0.32 |
| Total Factor | 0.3 |
| Mechanical Mass | 12.16g |
| Mechanical Compliance | 0.143mm/N |
| BL Factor | 9.646 |
| Voice Coil Inductance | 0.04mH |
| Cone Area | 213.82cm? |
| DC Resistance | 3.2 ohms |
| Mechanical Mass w/o air | 8.5g |

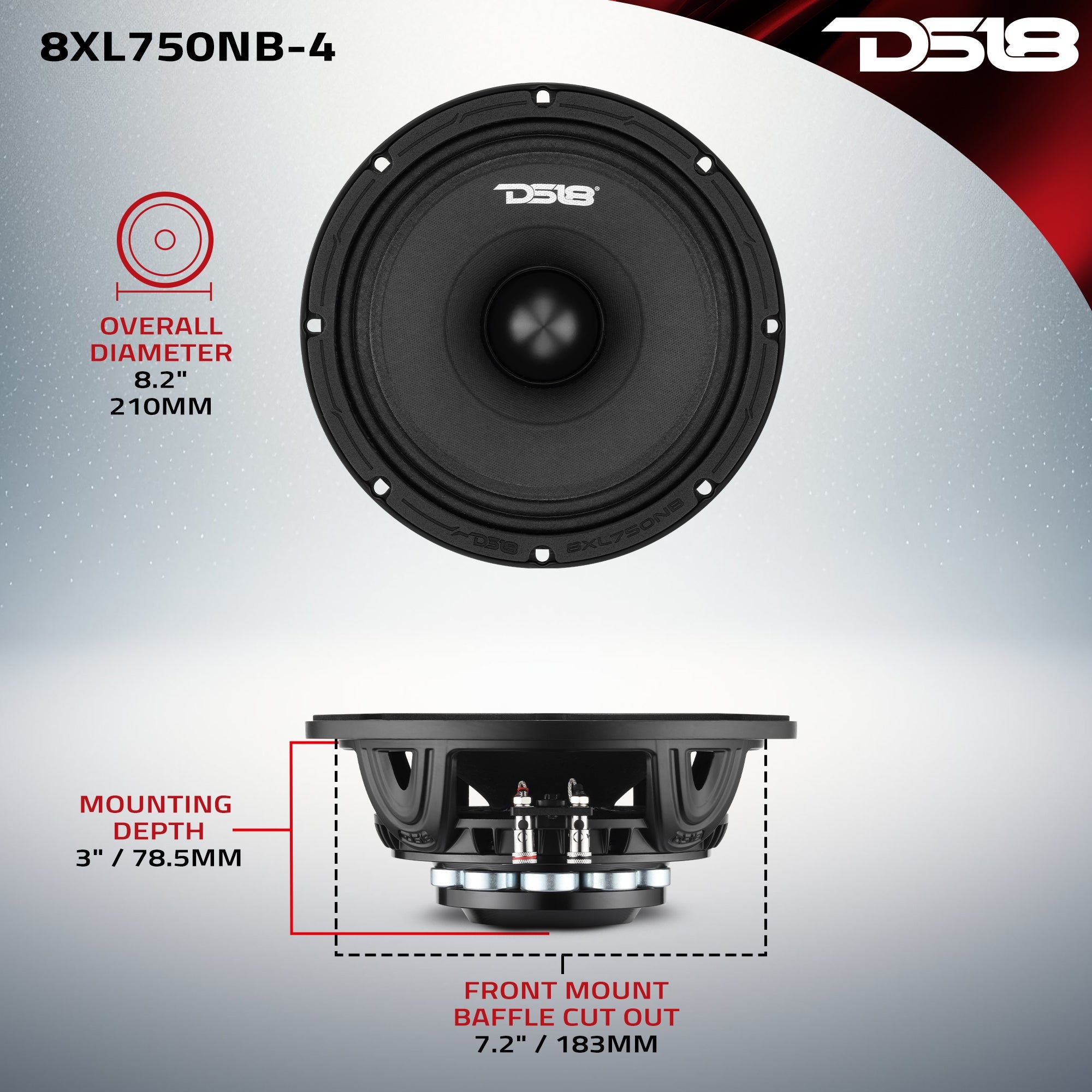

| Overall Diameter | 8.2" / 210mm |
| Overall Depth | 3.5" / 88.7mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 3" / 78.5mm |
| Motor Diameter | 4.13" / 105mm |
