6x9" Midrange Loudspeaker with Neodymium Rings and Aluminum Bullet | 375 Watts RMS 4-Ohm
Product Overview DS18 69XL750NB-46x9" Midrange Loudspeaker with Neodymium Rings and Bullet The 69XL750NB-4 is DS18’s answer to...
Vendor:
DS18
Manufacturer SKU
69XL750NB-4
Availability:
In Stock
Product Type:
Midrange Loudspeakers
- $224.95
- $224.95
- Unit price
- per
Subtotal:
$224.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 69XL750NB-4
6x9" Midrange Loudspeaker with Neodymium Rings and Bullet
The 69XL750NB-4 is DS18’s answer to riders and audio builders who want the loudest midrange in the harshest conditions.
Razor-Sharp Clarity
Rated at 97.5dB sensitivity and 750W MAX power handling, this midrange loudspeaker rips through noise with vibrant vocals and smooth mids from 80Hz to 12.5kHz.
Neodymium Power
We stacked this speaker with lightweight high-efficiency neodymium rings for easier mounting, a more controlled magnetic field, and unbelievably high output.
Ready for Battle
A conical paper cone, treated cloth surround, and spider-cross leads keep the 69XL750NB-4 solid and responsive under intense loads.
Go louder, cleaner, and sharper with the 69XL750NB-4 and let your system do the talking!
Key Features
- 375W RMS / 750W Max Power / 97.5dB Sensitivity
- Midrange Coaxial Design
- Neodymium Ring Motor
- Conical Paper Cone with Cloth Surround
- Perfect for Pro Audio and Motorcycle Builds
Specifications
| Nominal Diameter | 6x9" / 152 x 228mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 375 Watts |
| MAX Power Handling | 750 Watts |
| Sensitivity (1w/1m) | 97.5 dB |
| Frequency Response | 80Hz-12.5kHz |
| Recommended High-Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Interleaved Sandwich Voice Coil (ISV) | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Conical |
| Speaker Terminals | Push 12ga |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | N/A |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Black |
| Surround Material | Cloth |
| Leads Type | Spider Crossed |
| Basket Material | Aluminum |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 11.4 Oz |
| Displacement Volume | 0.8L / 0.028ft3 |
| Equivalent Volume | 16.3L / 0.57ft3 |
| Excursion (one way) | 3.8mm |
| Free Air Resonance | 90Hz |
| Mechanical Factor | 3.907 |
| Electrical Factor | 0.221 |
| Total Factor | 0.209 |
| Mechanical Mass | 12.194g |
| Mechanical Compliance | 0.249mm/N |
| BL Factor | 10.052 |
| Voice Coil Inductance | 0.04mH |
| Cone Area | 229.66cm2 |
| DC Resistance | 3.2 ohms |
| Mechanical Mass w/o air | 12g |

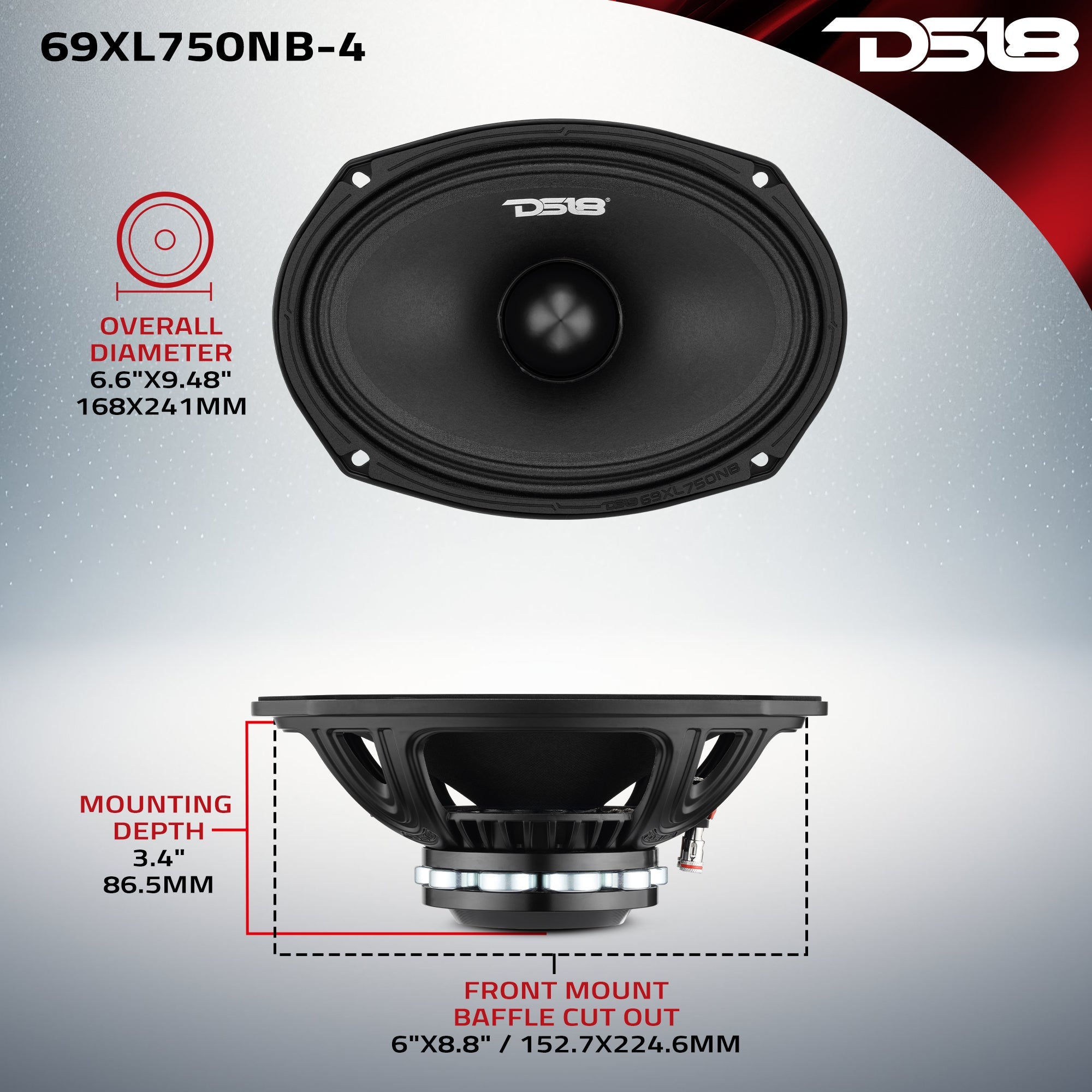

| Overall Diameter | 6.6"x9.48" / 168x241mm |
| Overall Depth | 3.73" / 95mm |
| Front Mount Baffle Cutout | 6"x8.8" / 152.7x224.6mm |
| Mounting Depth | 3.4" / 86.5mm |
| Motor Diameter | 4.13" / 105mm |
