6.9" Touchscreen Mechless Double-DIN Headunit with Bluetooth, USB and Mirror Link

Product Overview

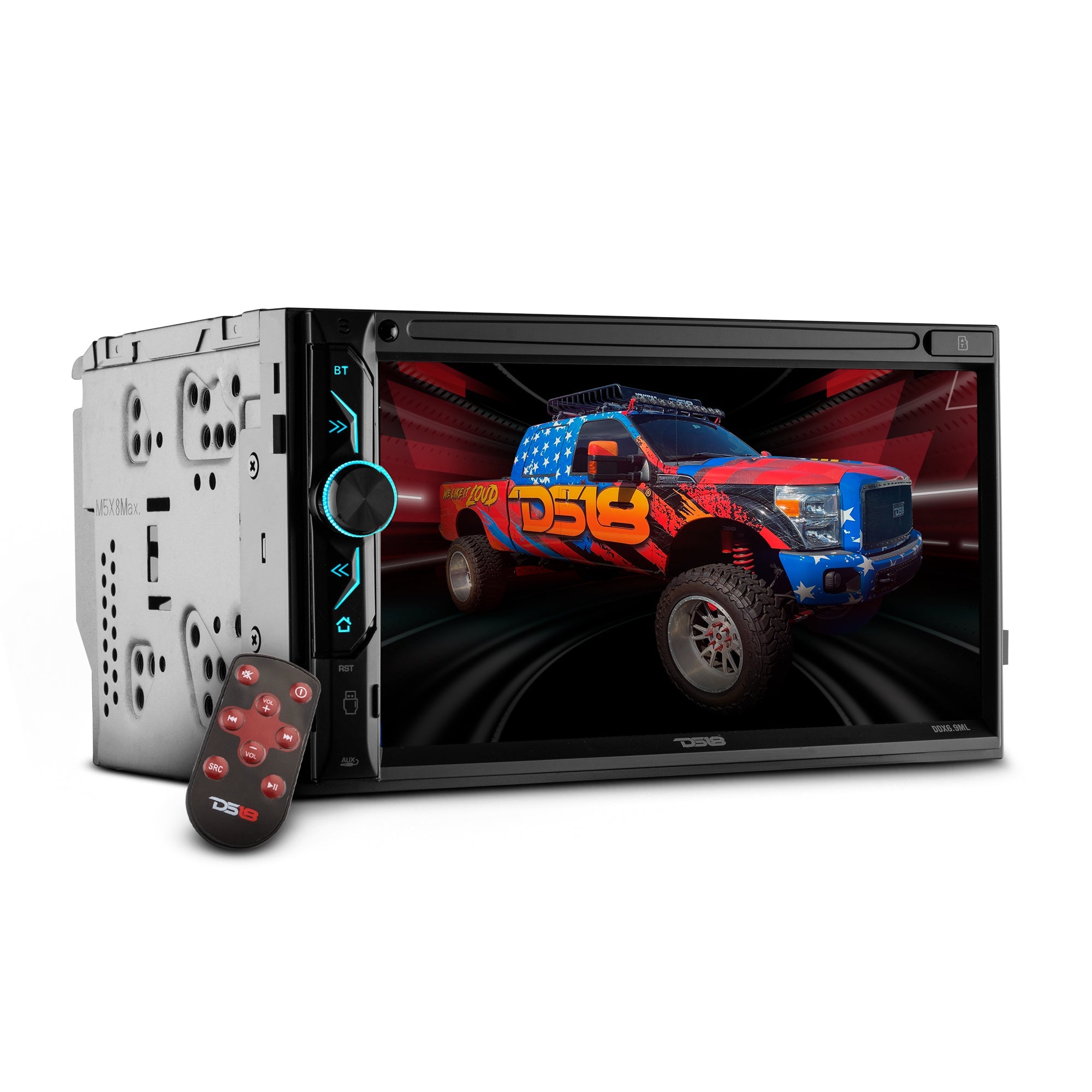

DS18 DDX6.9ML 6.9" Double DinH Digital Media Receiver Mech-Less Player, Touchscreen, Bluetooth, USB, Mirror Link

DDX 6.9ML Double DIN Multimedia Receiver with 6.9-inch touch screen 1080p
This receiver shares a lot of the characteristics that its little brothers share except one HUGE difference: We have upgraded the screen size from 6.2 inches to a whopping 6.9 inches with this huge screen! Now you and everyone in the vehicle can enjoy the crisp visuals along with goose bump worthy sound quality.

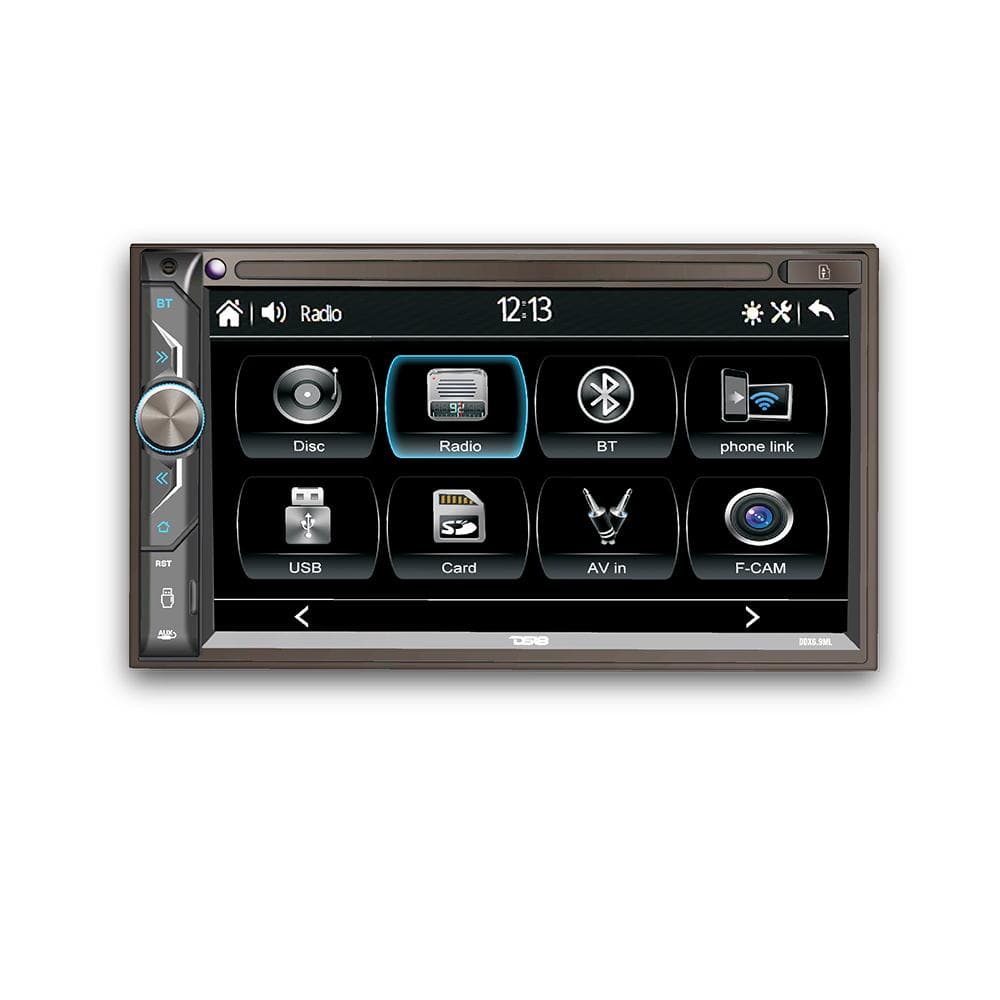

Maneuvering through the options is easy with the touch screen controls and will give you flawless and absolute control over all the media you are wanting to hear.

This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.

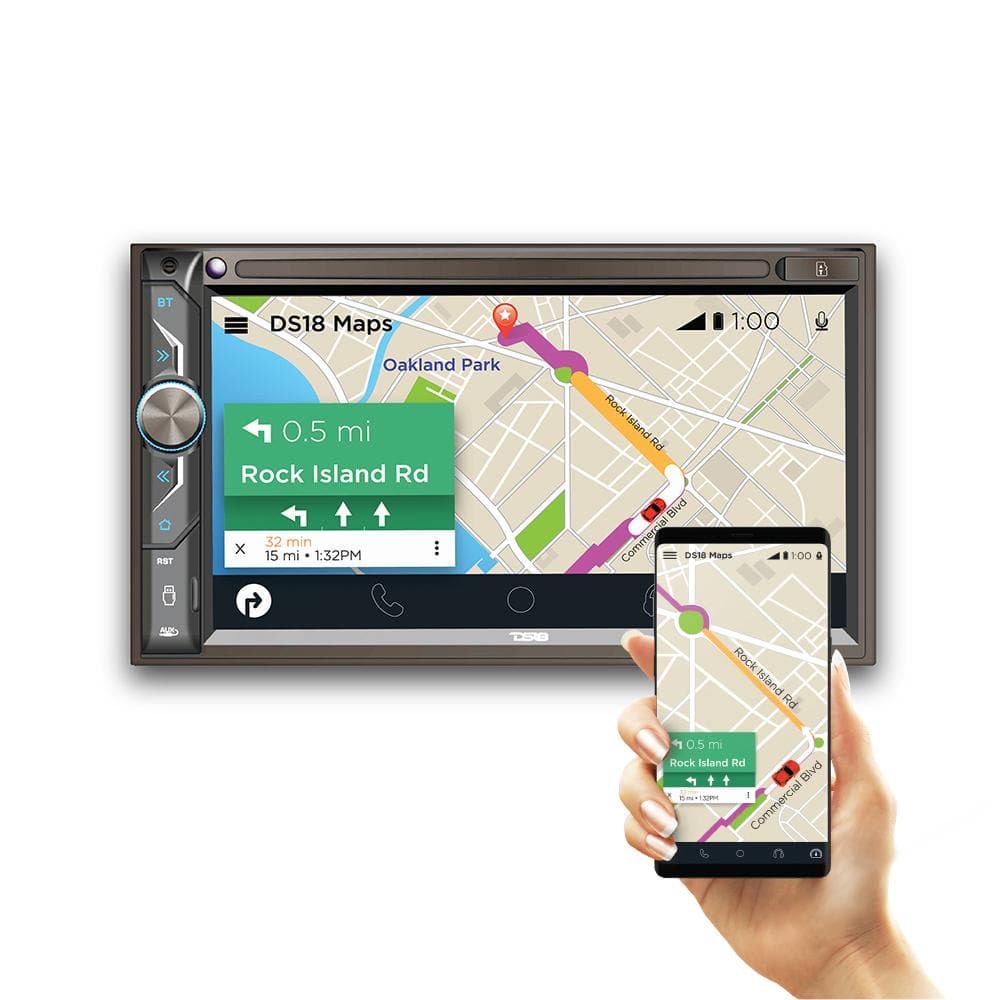

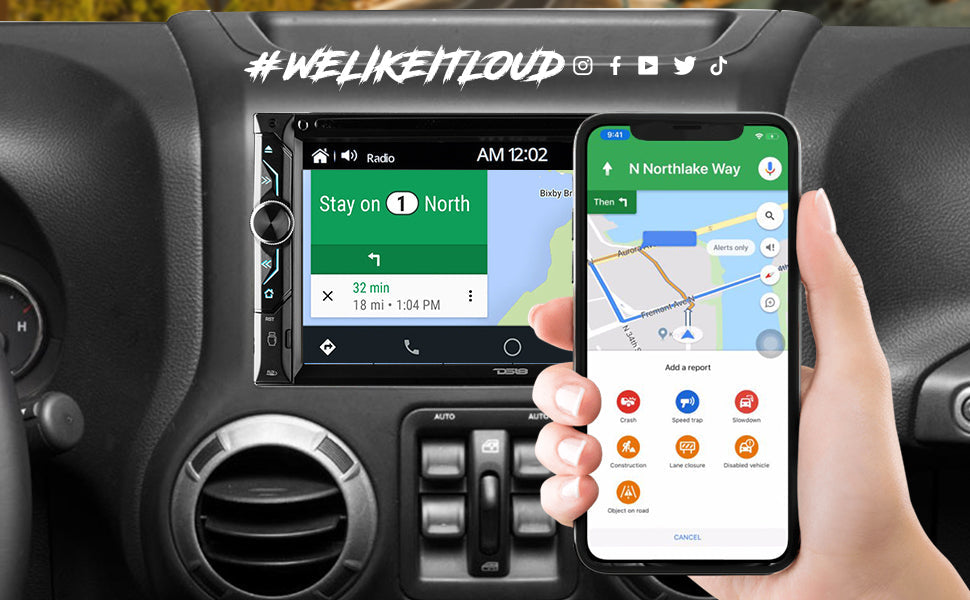

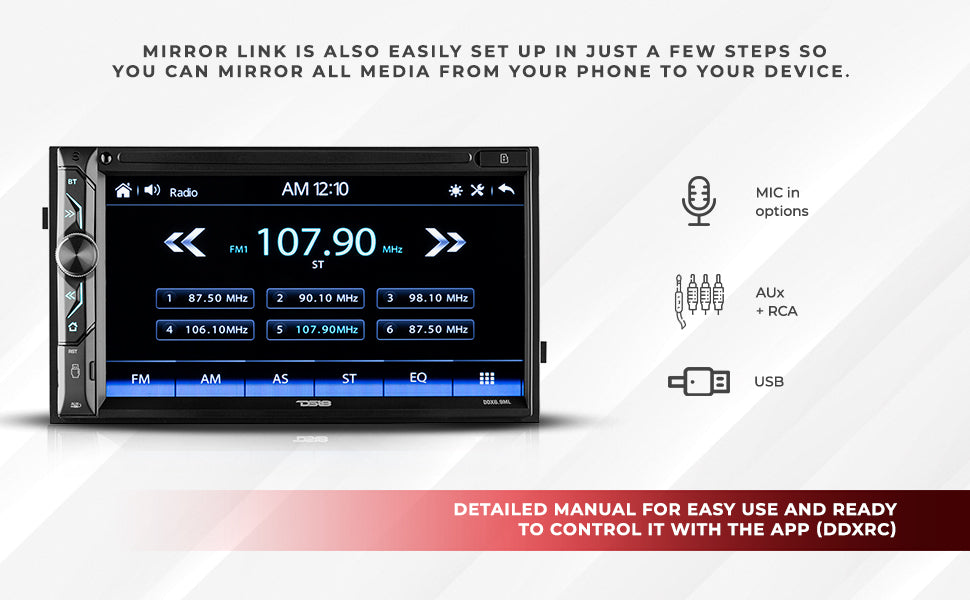

Apps are also easily downloadable when you hook your head unit up to your cellular hot spot. The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer can get you the sound that is specific to your tastes with easy access and settings. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.

(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTIL THE CAR IS PARKED)

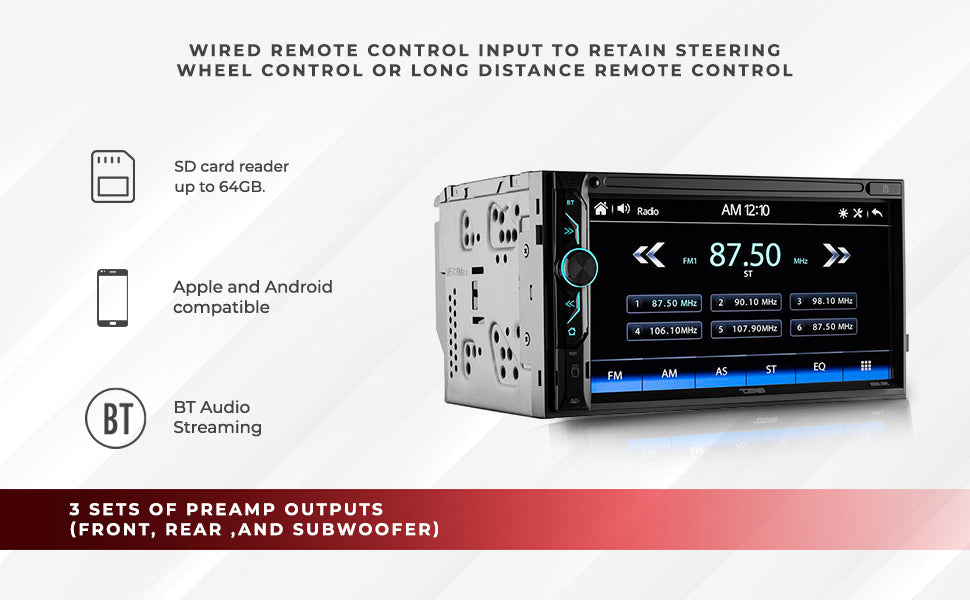

There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup

Highlights

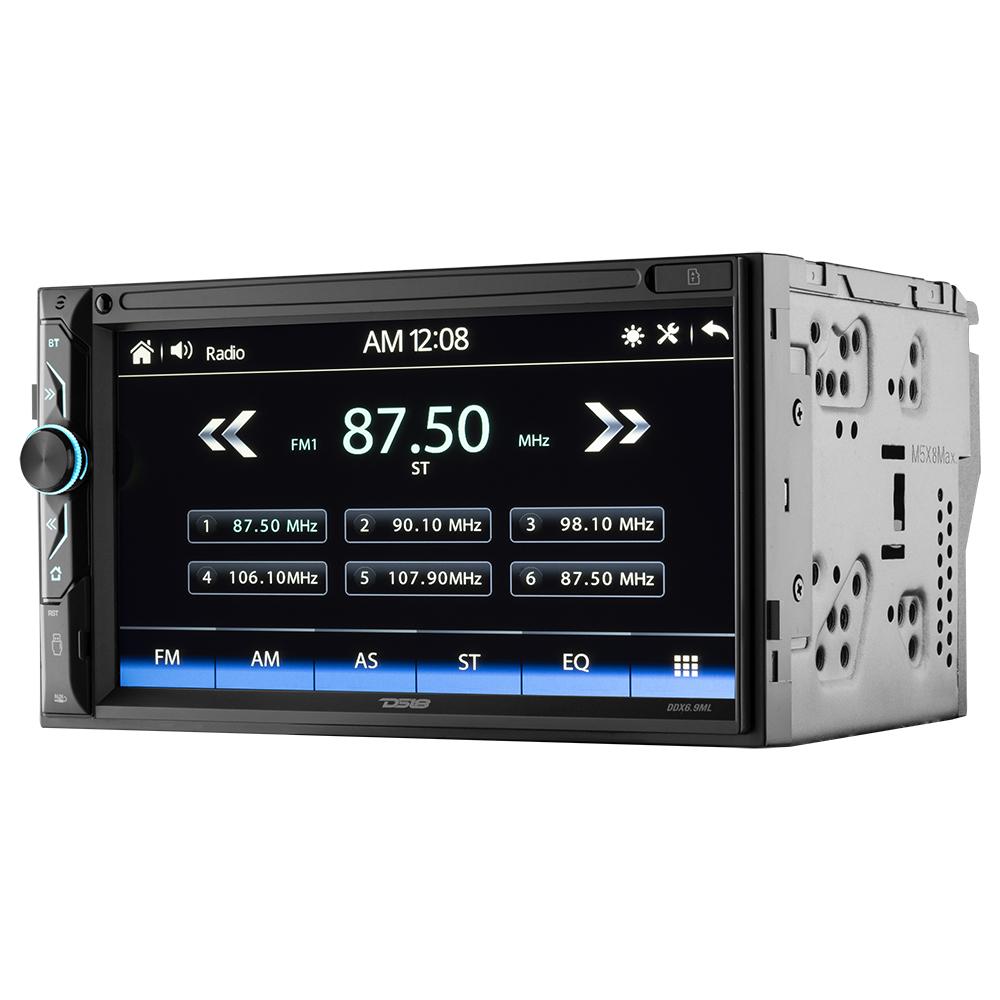

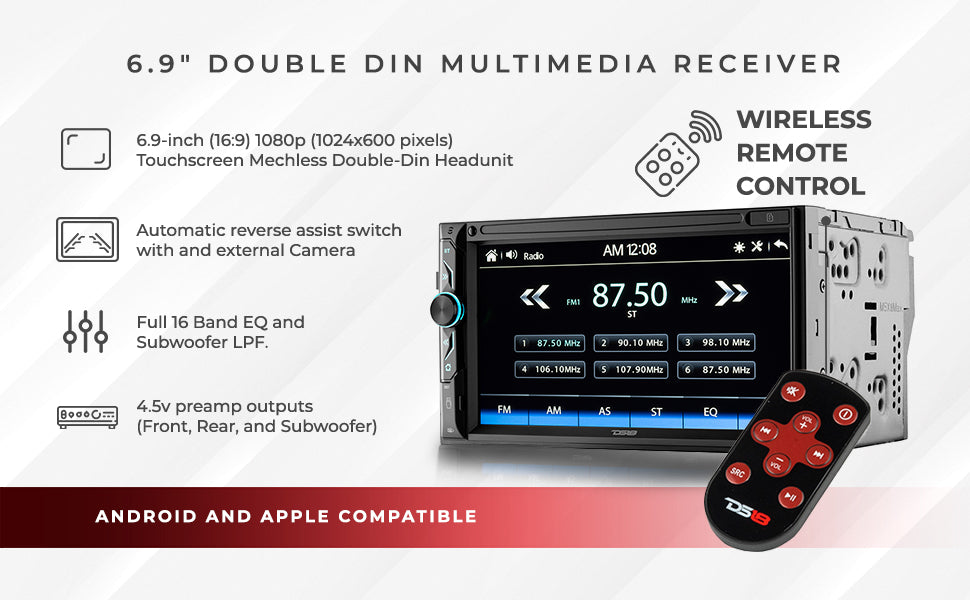

• 6.9-inch (16:9) 1080p (1024x600 pixels) double din touchscreen to maximize your viewing in a small space.

• Full 16 Band EQ and Subwoofer LPF accessible via our DS18 DDXRC app on google play.

• 4.5a preamp outputs (Front, and Rear)

• Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)

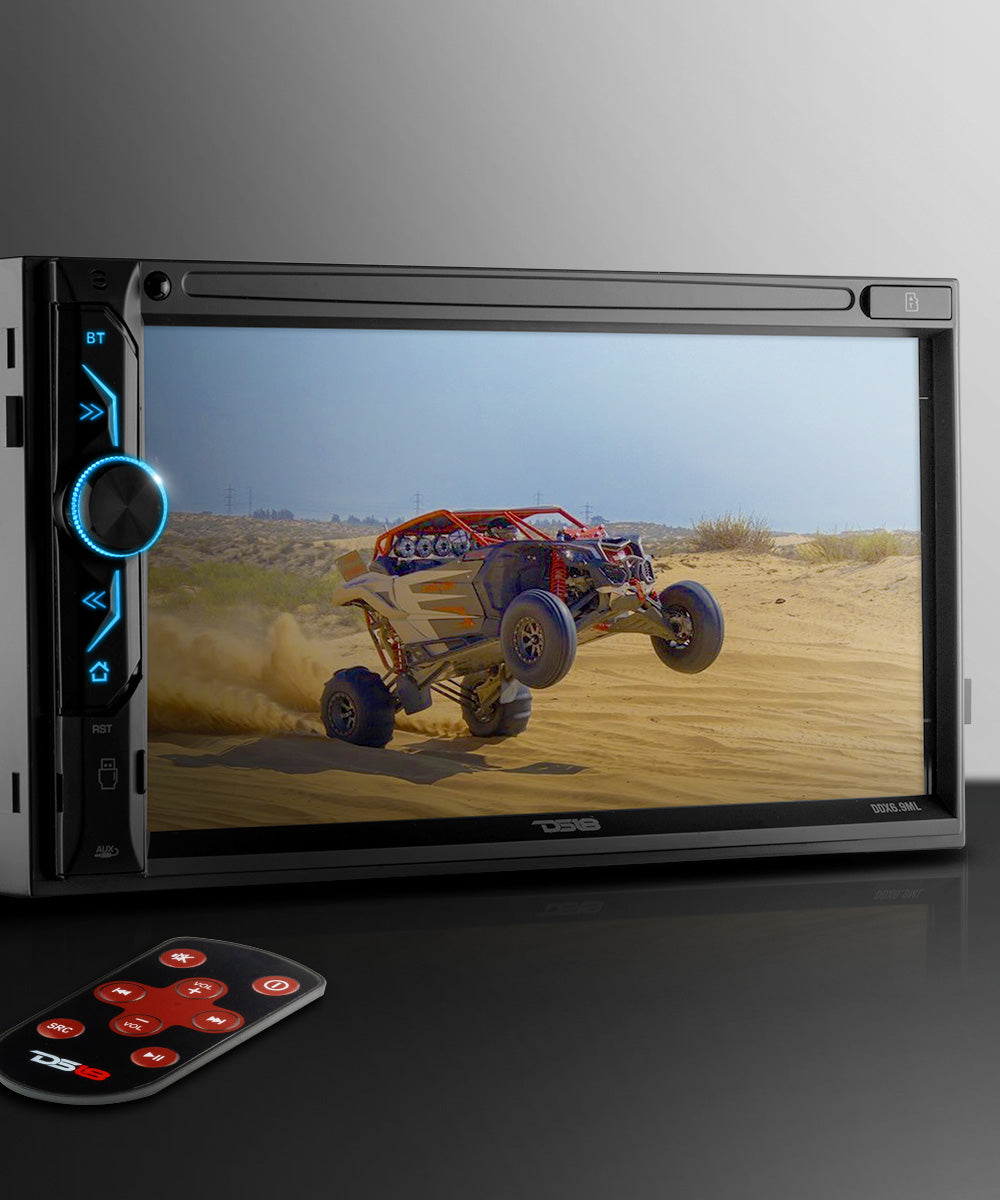

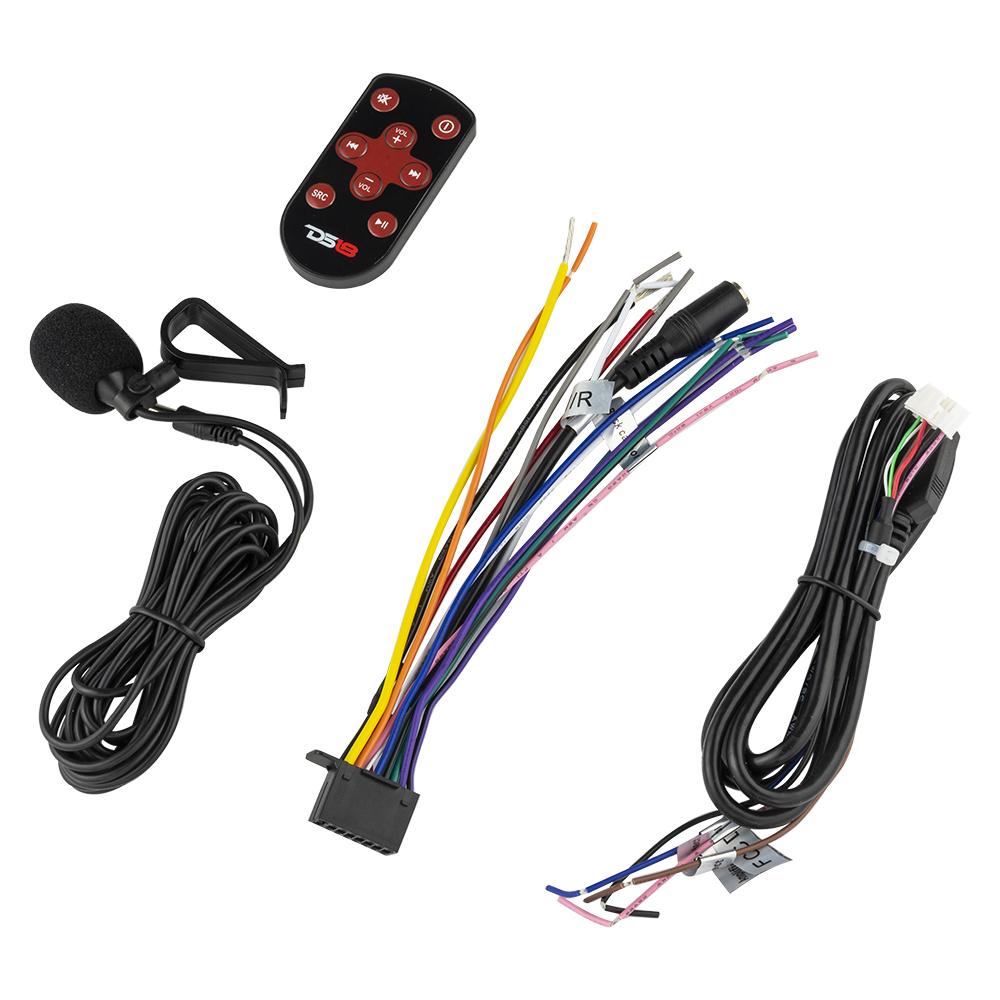

• Wireless remote control for easy operation.

• RCA inputs so you can view external sources video easily via source.

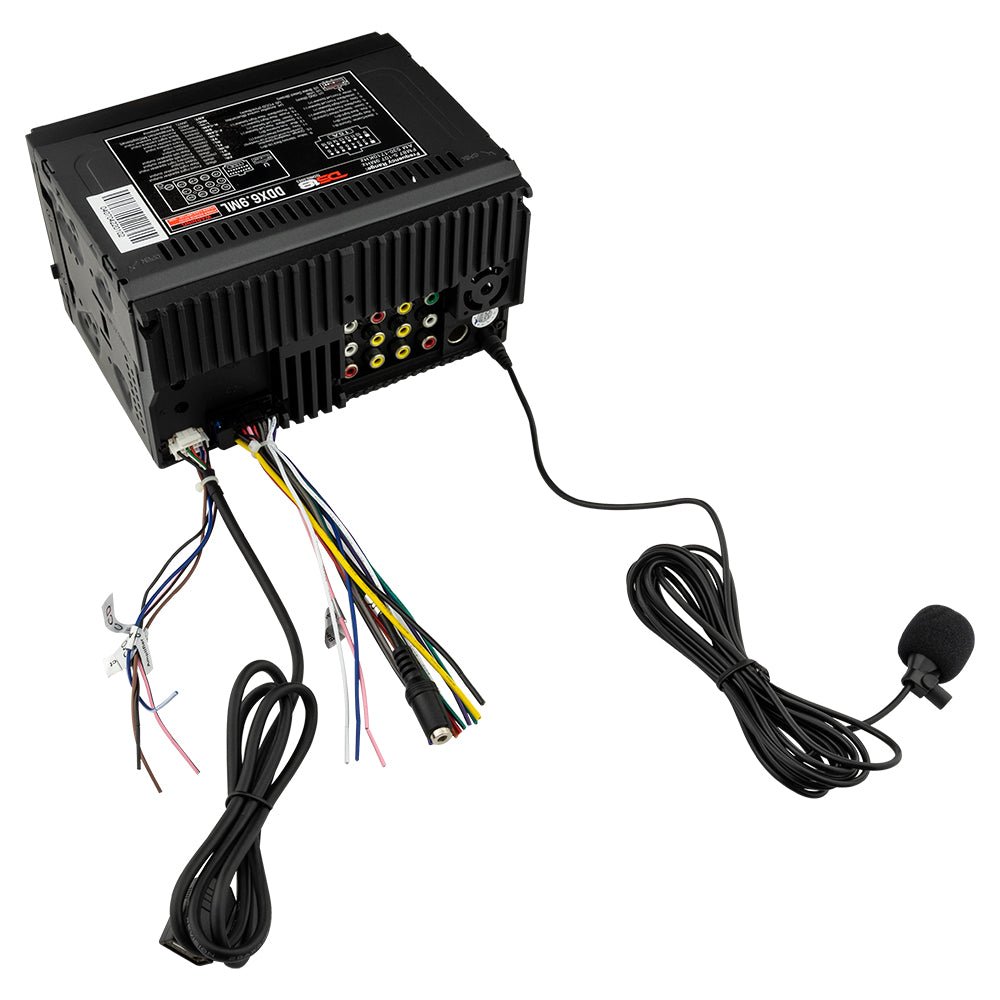

• MIC in options for easy phone operation and built in controls.

• APP control with the DS18 DDXRC app easily found on Google Play or the Apple store.

• Camera Inputs included so you can plug and play most types of back up cameras.

• Apple and Android compatible.

Technical Details

                                                      DDX6.9ML Product Manual

General
Rated power source:	14.4V DC (10.8V to 15V operation)
Maximum Current Consumption:	10 Amp
Dimensions (W x H x D):	Chassis: 178mm x 100mm x 135mm Bezel frame: 170mm x 96mm x 5mm Weight: 820 grams
Display
Screen Size / Aspect Ratio:	6.9 inch / Wide 16:9
Pixels	1024 x 600
Display Type:	TFT / WSVGA / Capacitive Touch Screen
Temperature Operation:	-20 °C to +60 °C (14 °F to 140 °F
Audio
Maximum Power Output:	40W x 4 Ch / 4 ohms
Continuous Power Output:	15W x 4 Ch / 4 ohms
Pre-output Level:	4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer:	16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz) +/- 12dB
Gain:	+/- 12dB
Audio Control:	Volume / Balance / Fader / Loudness
Tuner
Frequency Range:	FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory:	30 Stations (18 FM/12 AM)
Region:	Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment:	LOC (On/Off) / ST (On/Off)
USB / SD Player
Type / Class:	V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported:	RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported:	1080P Video
Memory Size Reader:	up to 64 Gb
Max Current Supply:	1.5 Amp (USB)
Number of USB Ports:	2 (1 x Front, 1 x Rear)
Connectivity
Bluetooth Version / Services:	V4.1 / Audio Streaming / Hands Free calls
Camera Input:	RCA Analog Video up to HD 720p (Front/Rear)
Video Output:	Dual RCA (1 Volt/75 ohm)

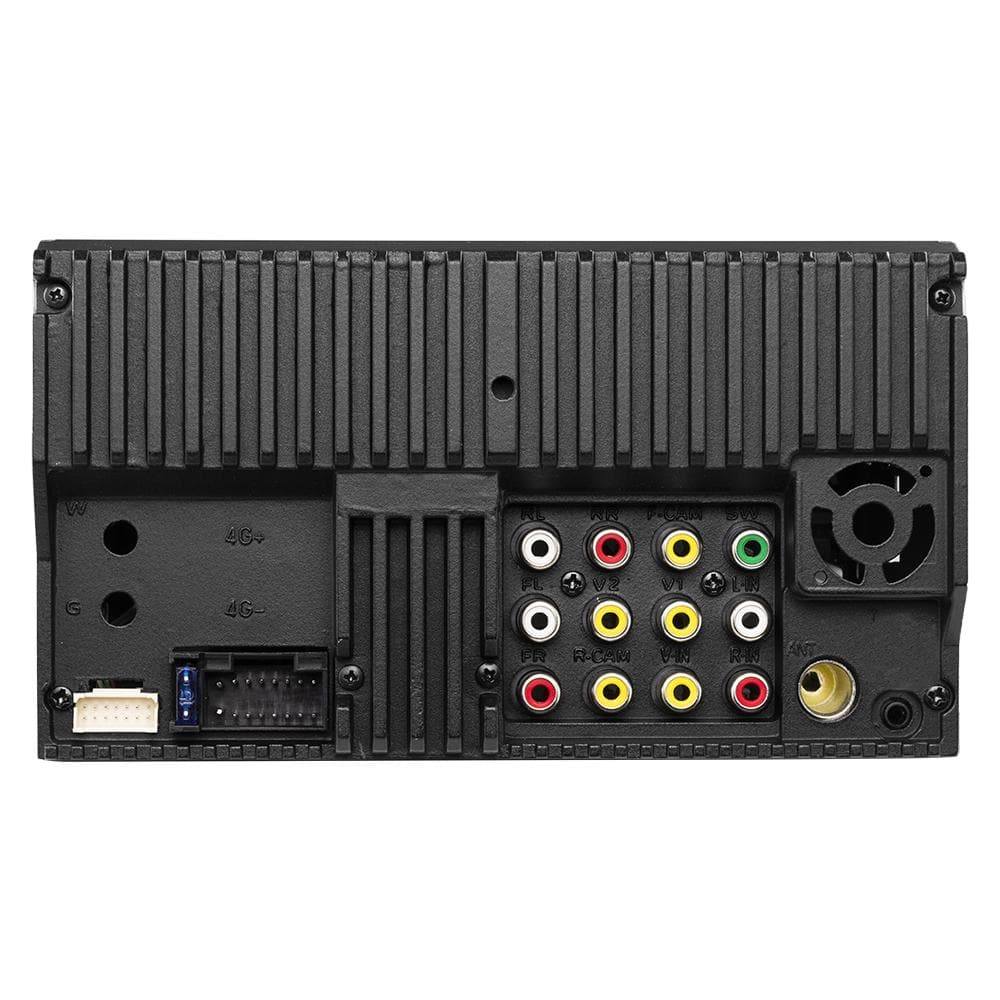

A/V Aux Input:	Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone:	3.5mm Jack external MIC Input
Remote Control:	Frontal IR Receptor / Wired (3.5mm jack) Input
