Product Overview

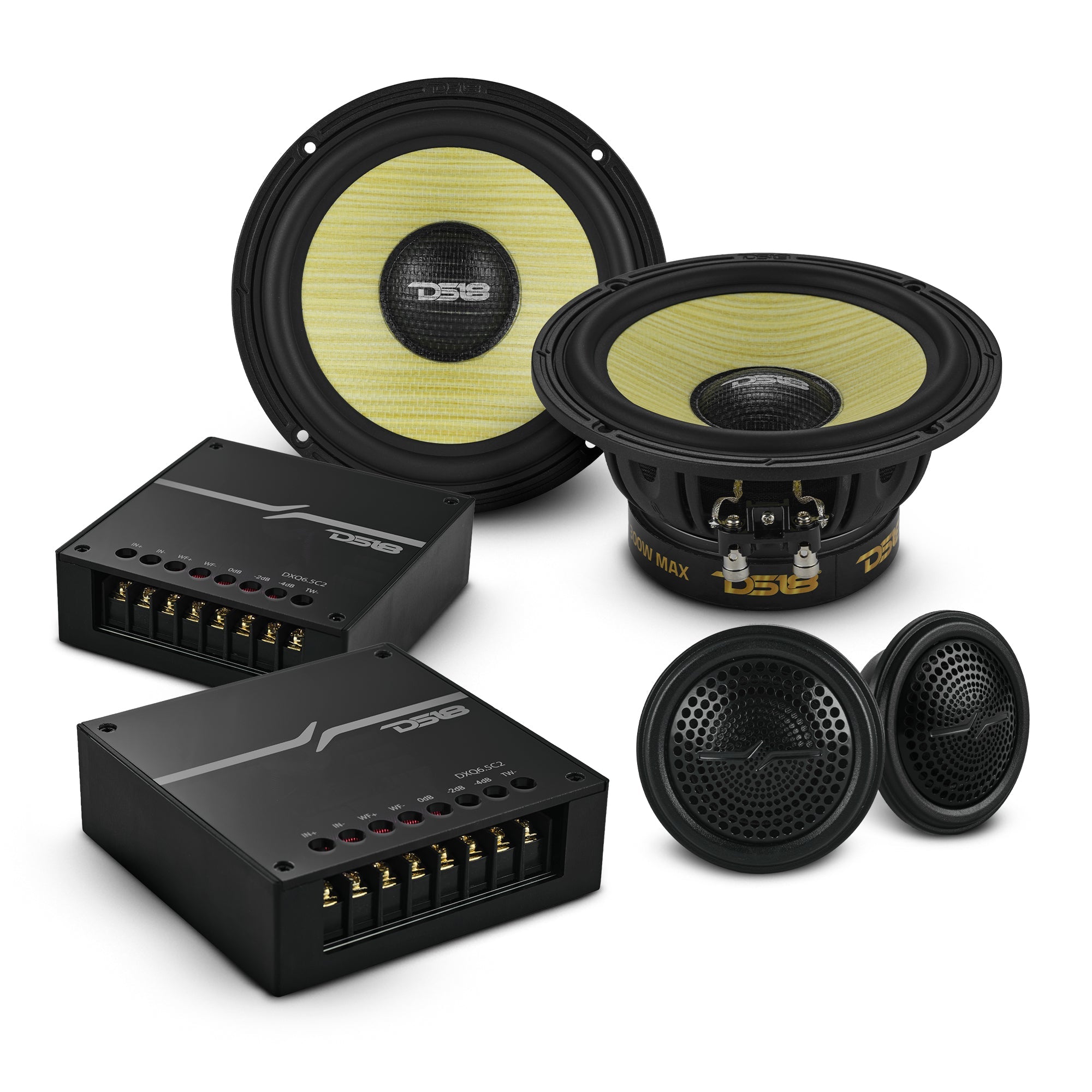

6.5" 2-Way Component Speaker Set with Yellow Straw + Composite Foam Cone
DS18’s DXQ6C2 brings crystal-clear, full spectrum sound to car audio enthusiasts looking for a quality boost! This component set offers a natural, distortion-free frequency response from 35Hz up to 20kHz. The DXQ6C2 handles 150W RMS and 300W MAX, rendering every sound with exceptional clarity and impact.
Engineered for Performance and Durability

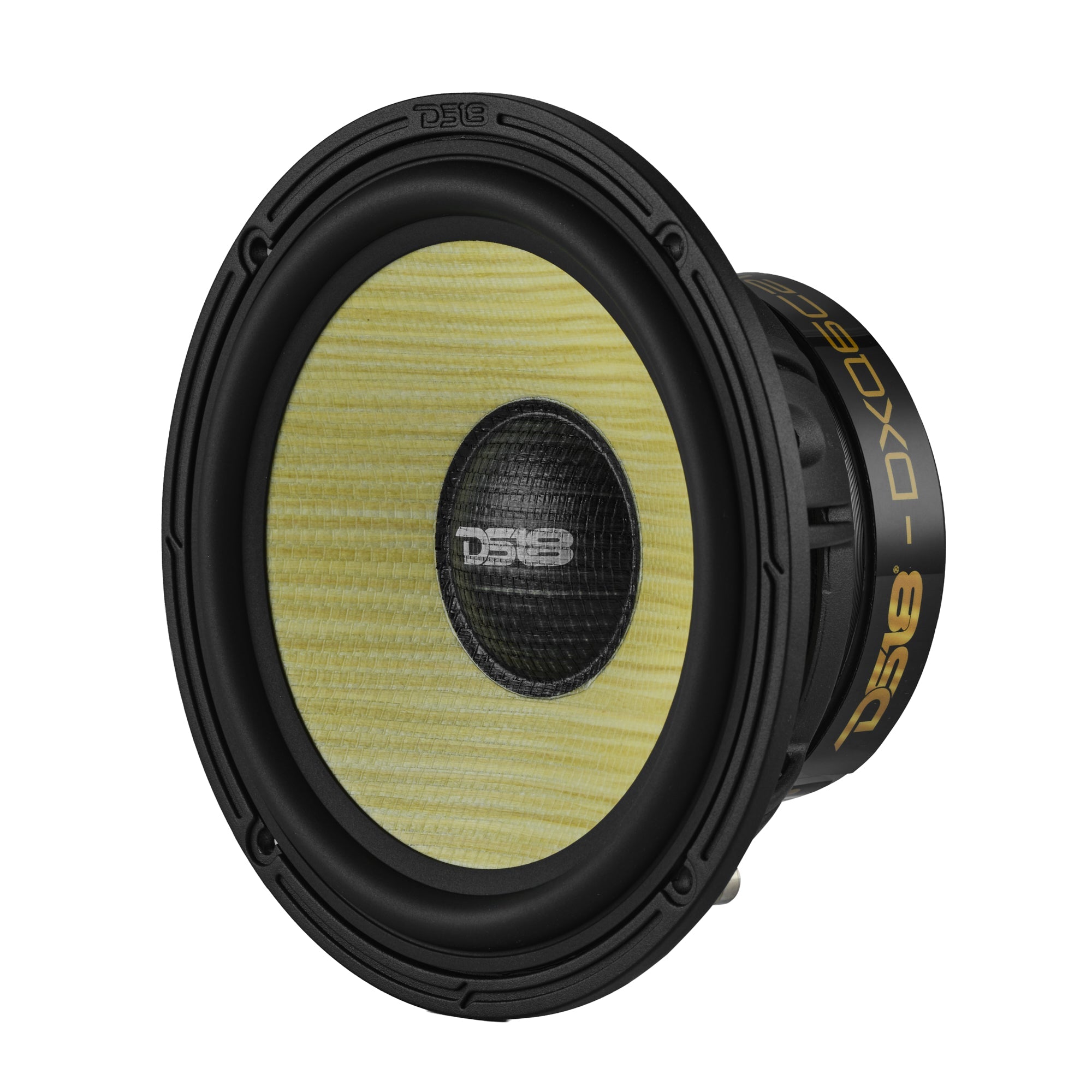

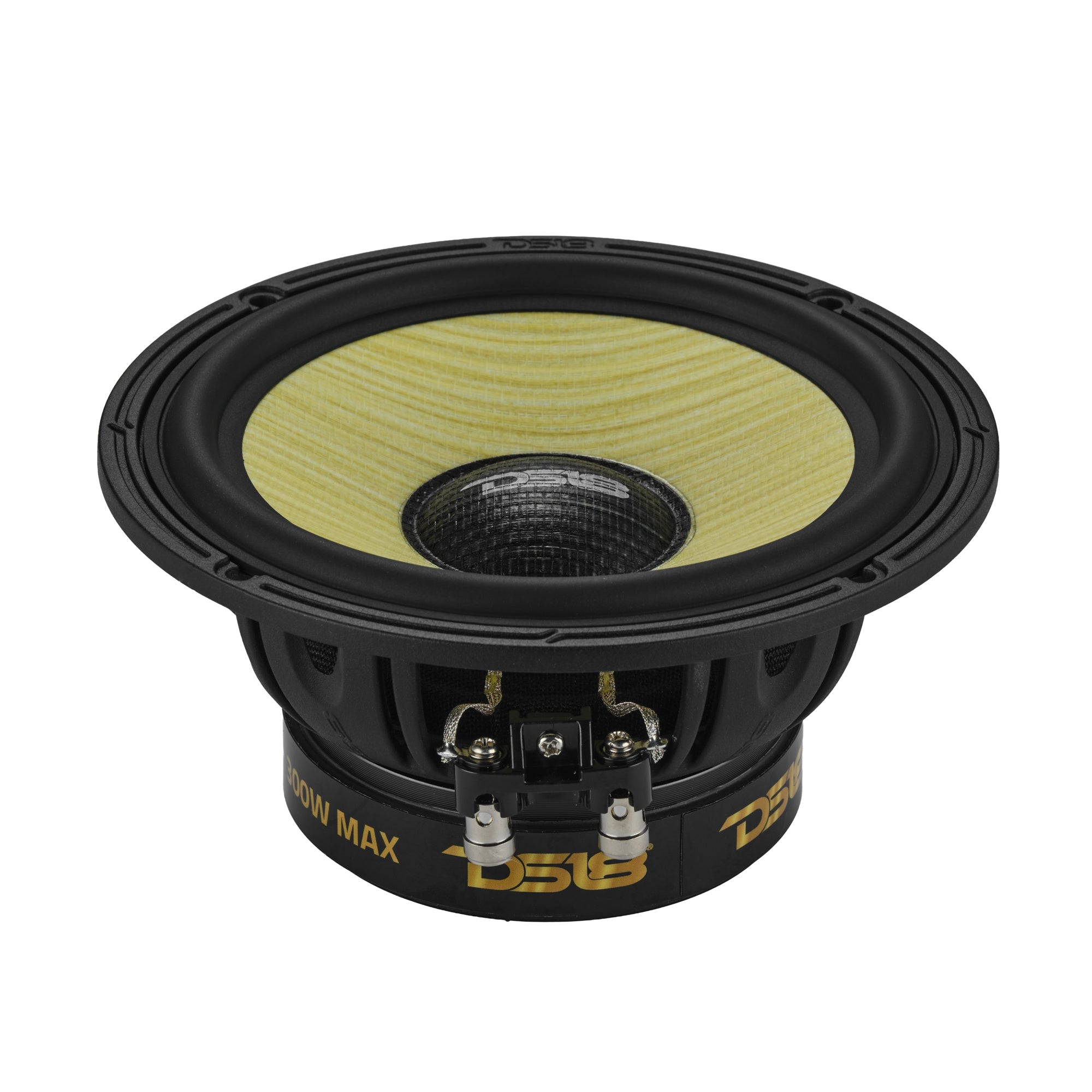

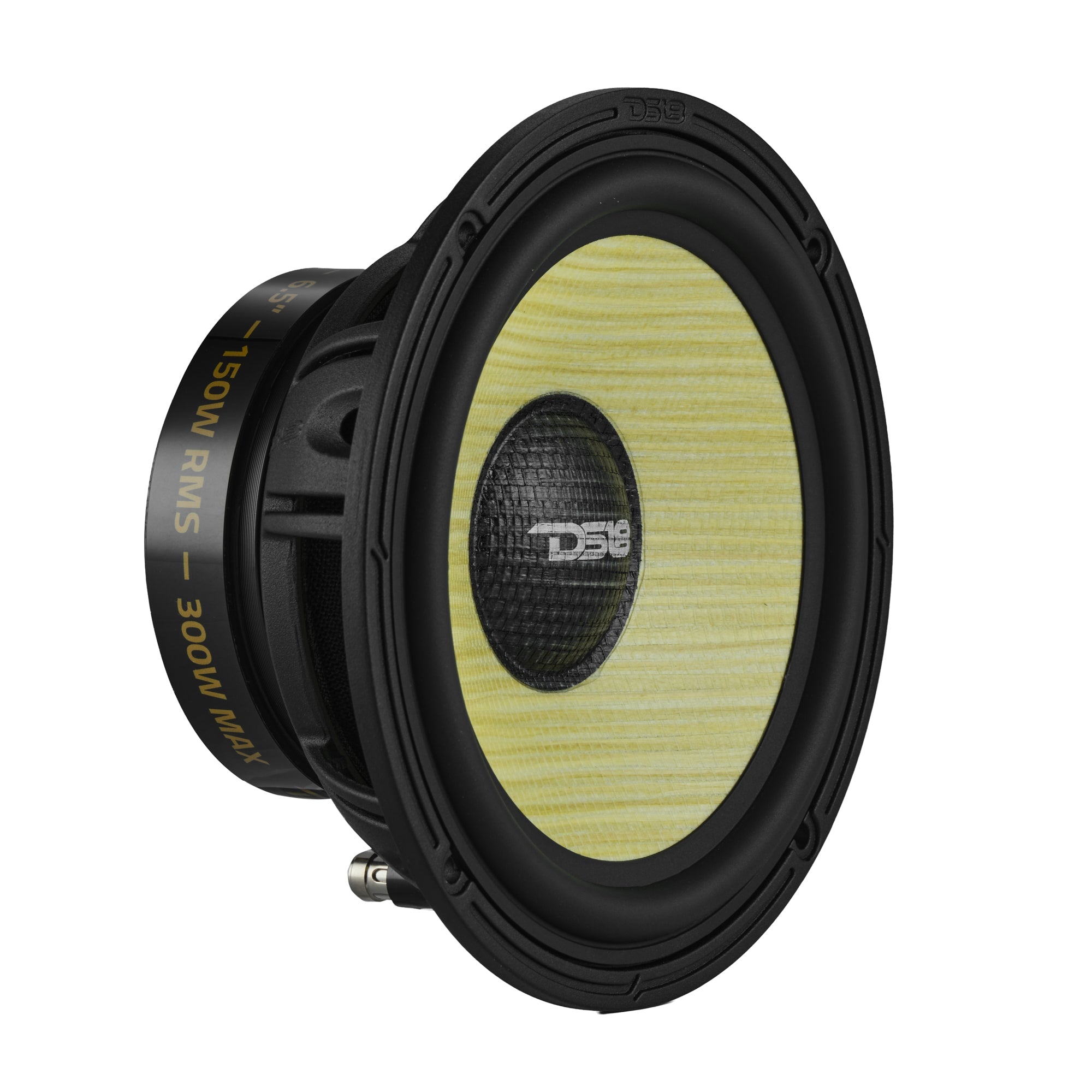

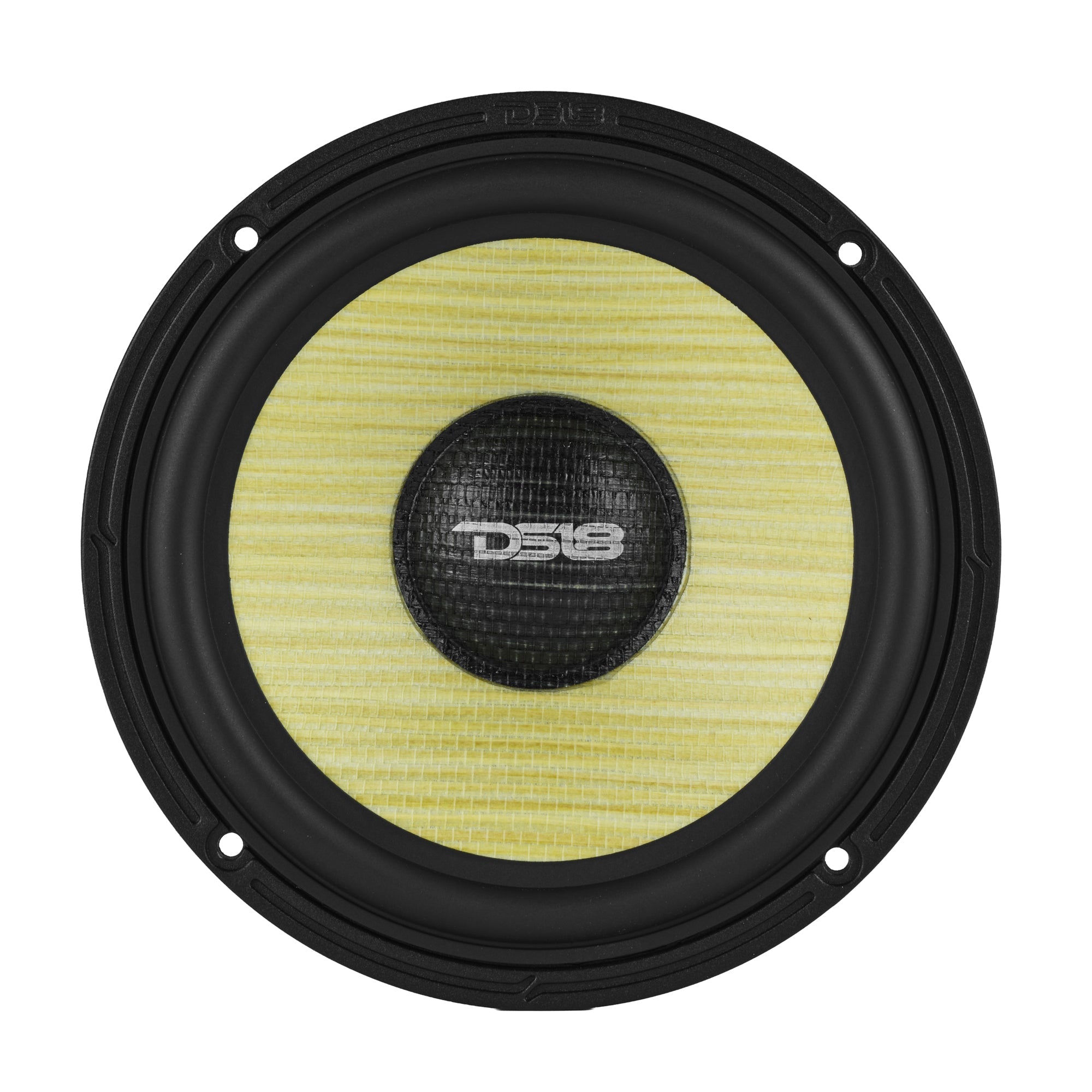

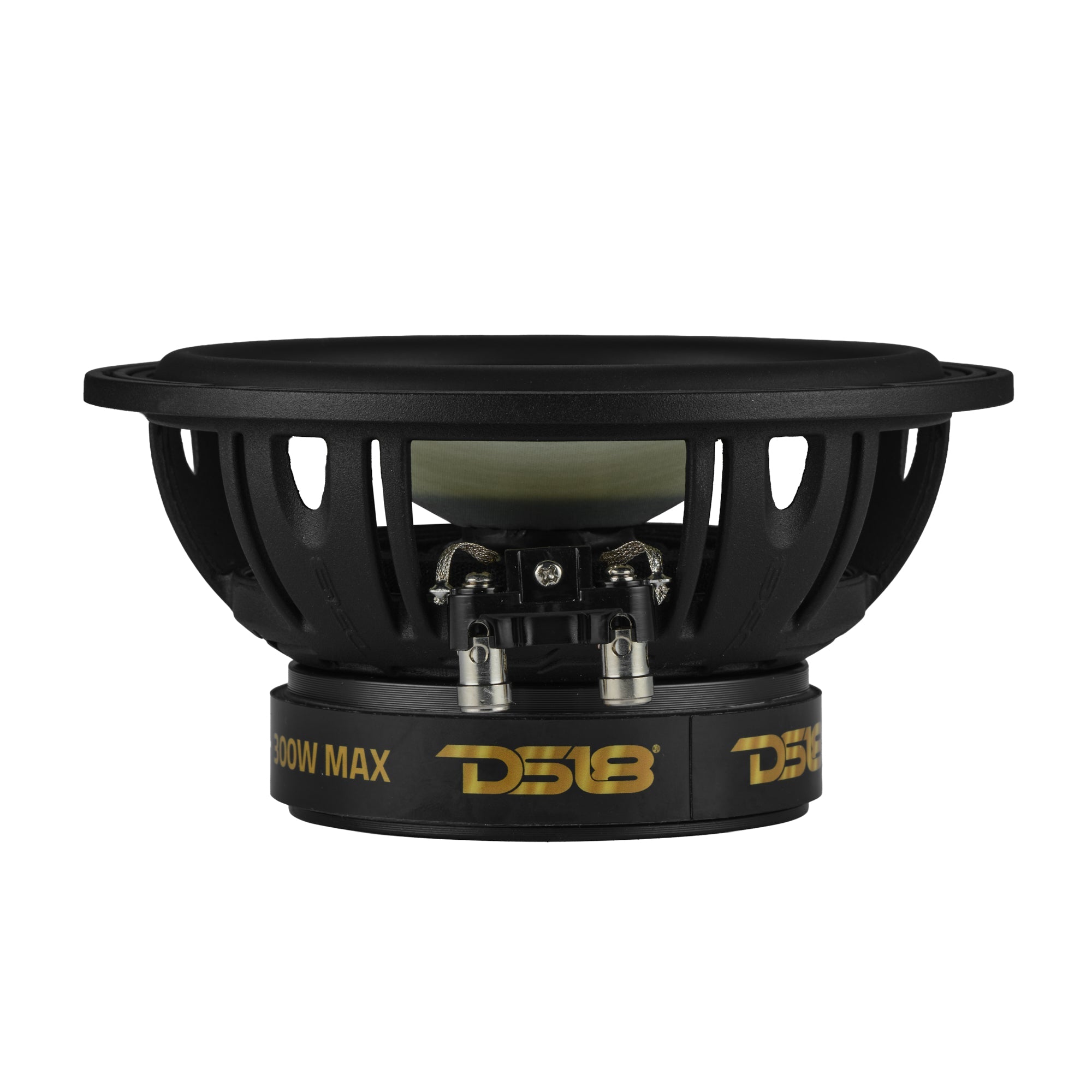

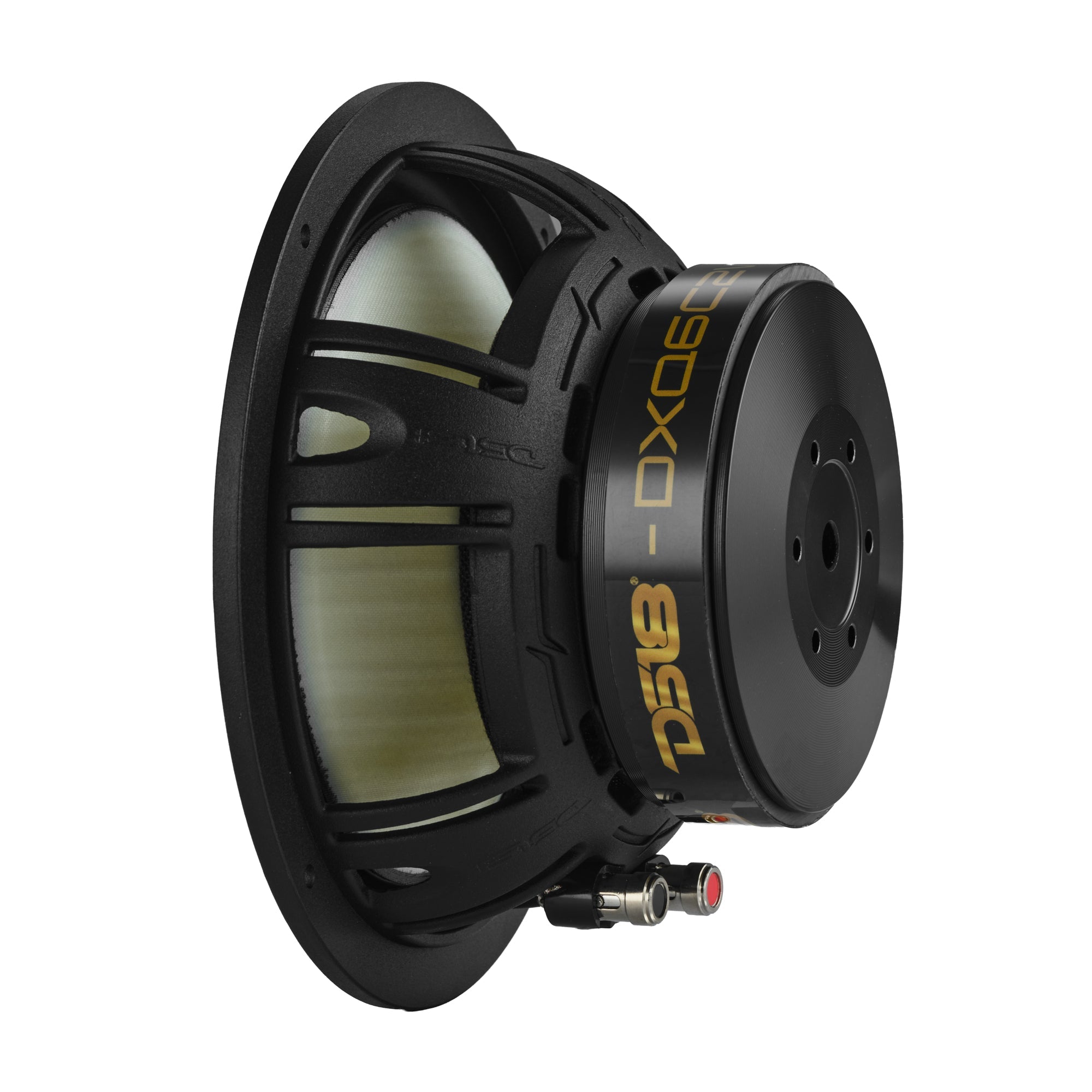

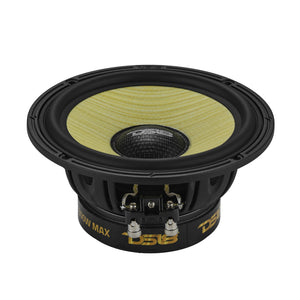

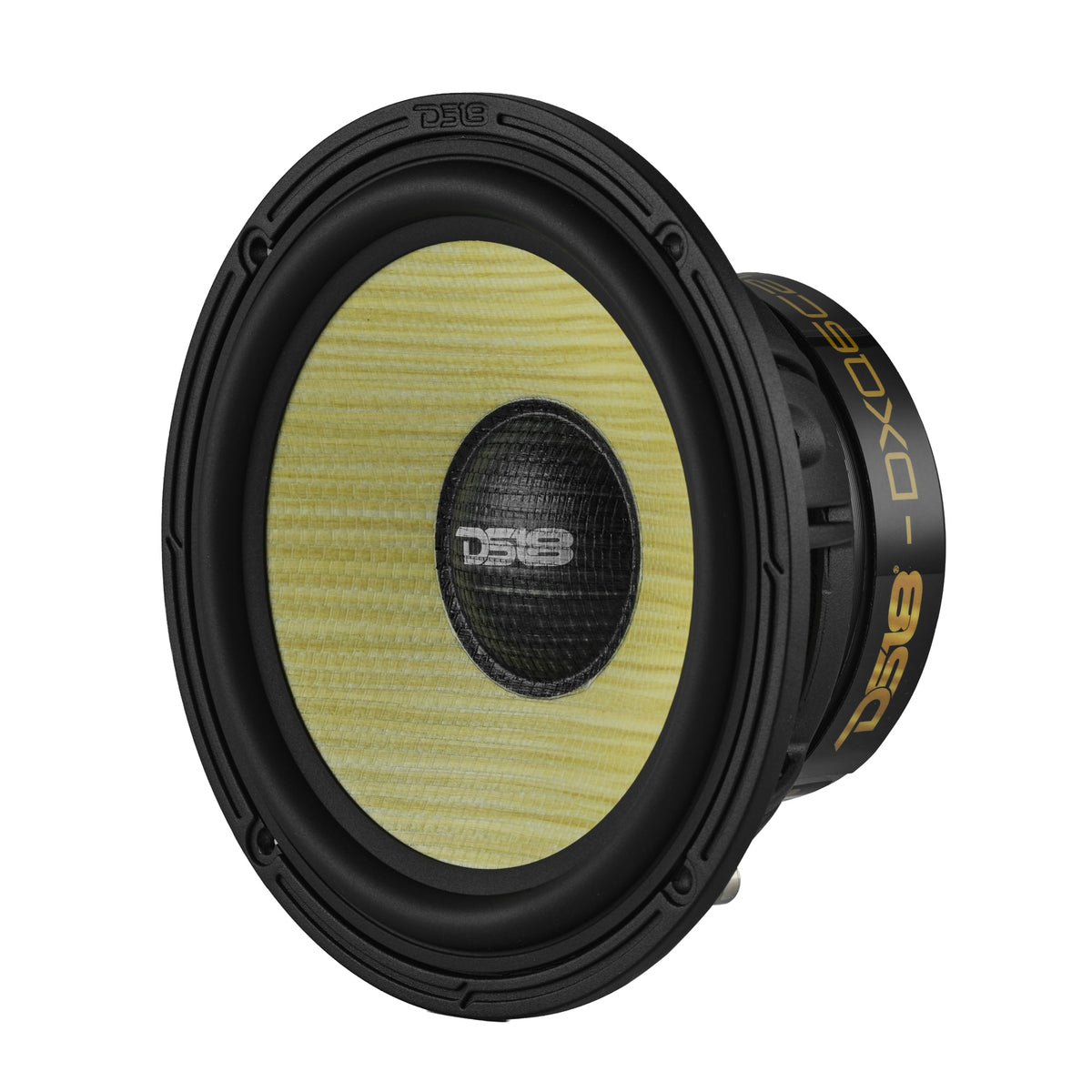

Built on a lightweight aluminum basket coated with a black finish, the woofer incorporates a 1.2" voice coil wound with superior SV wire, paired with a rubber surround to enhance durability and reduce resonance.
Smooth Highs, Rich Detail

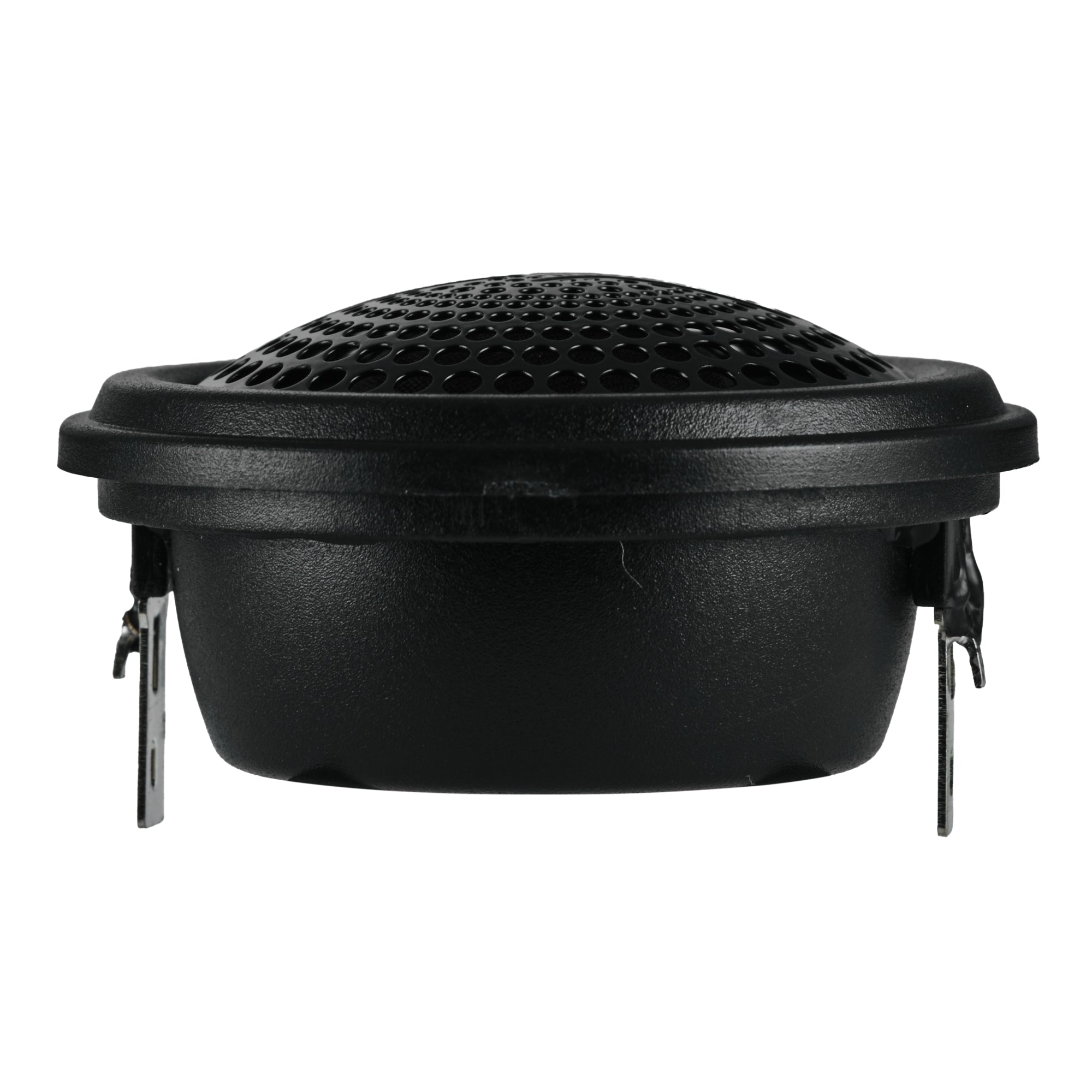

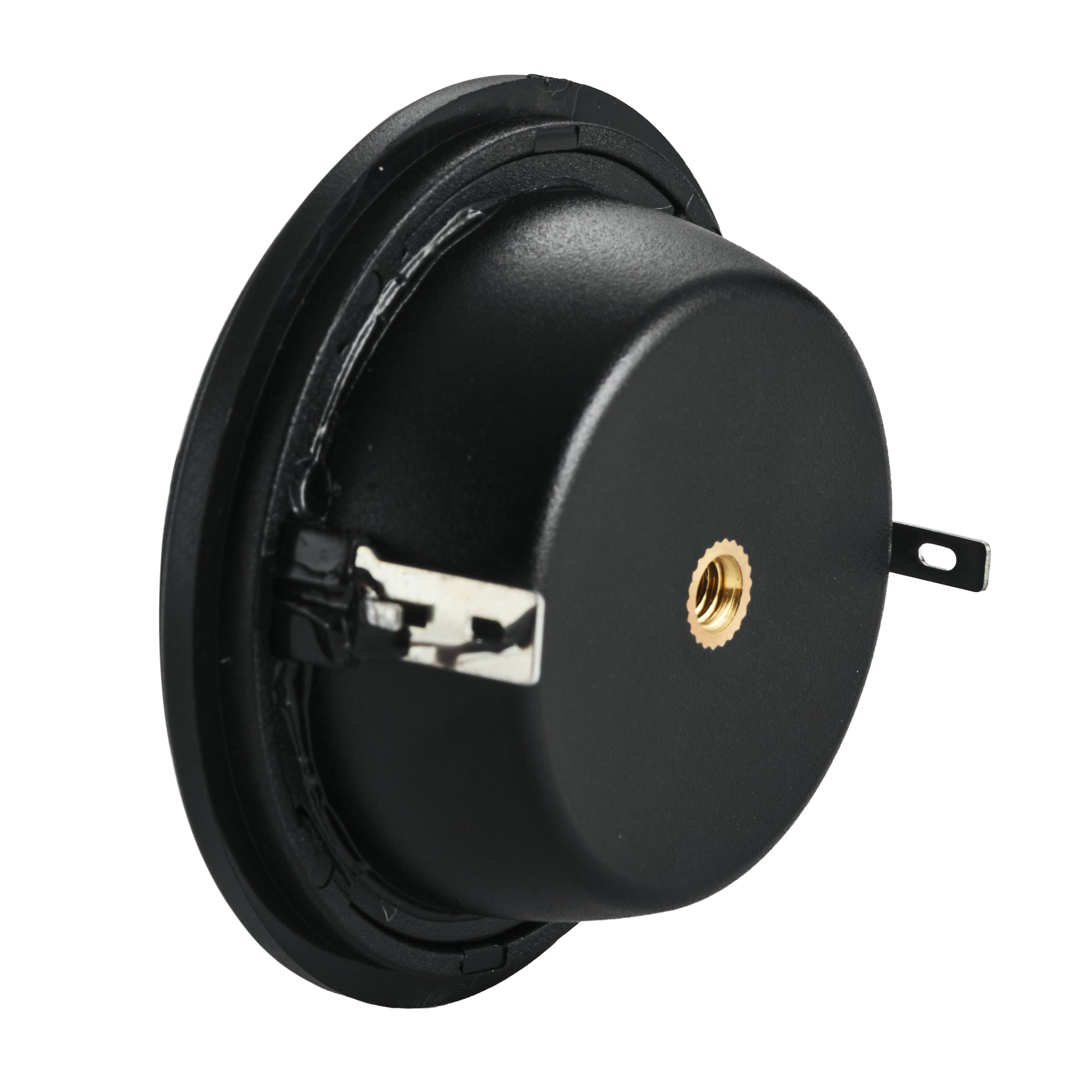

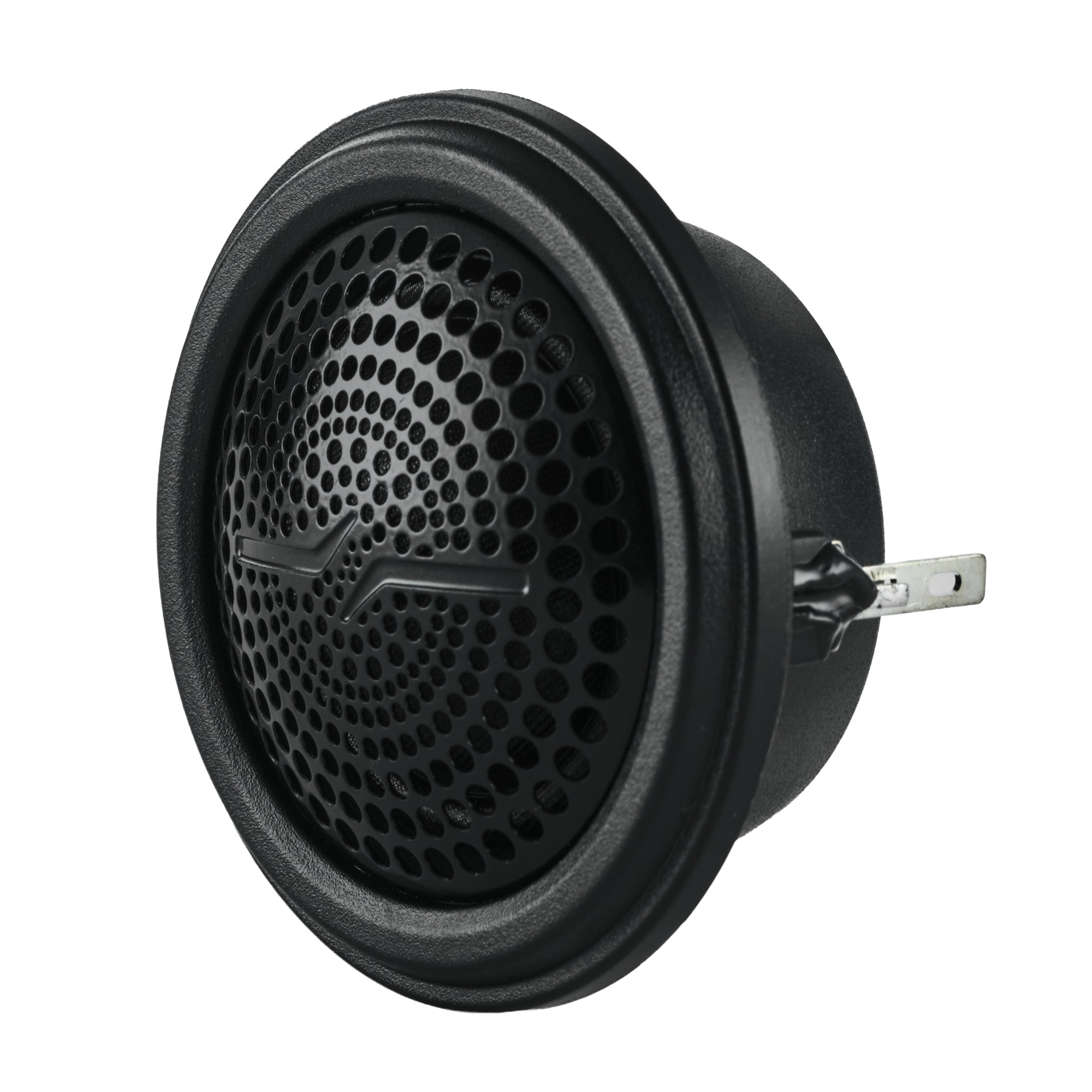

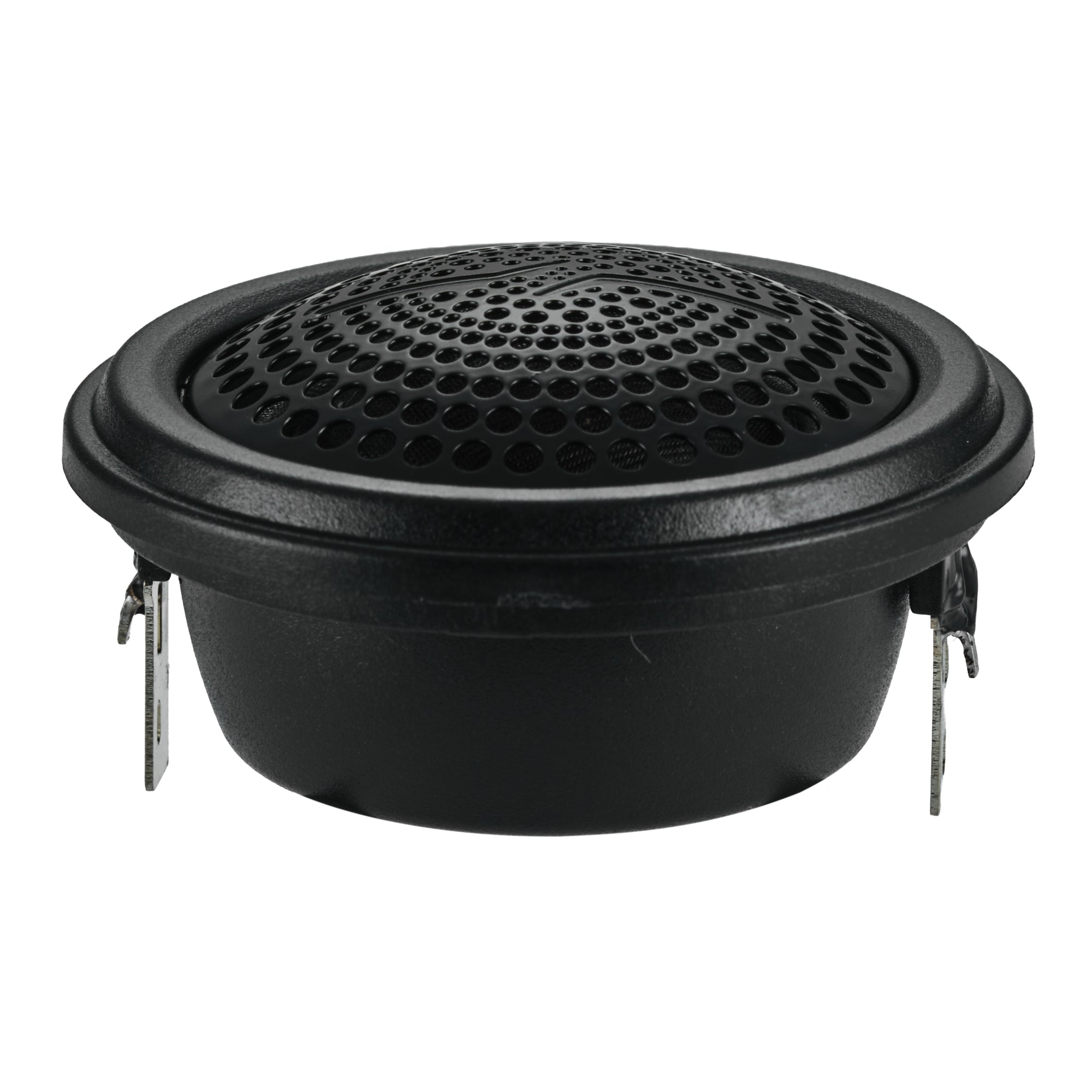

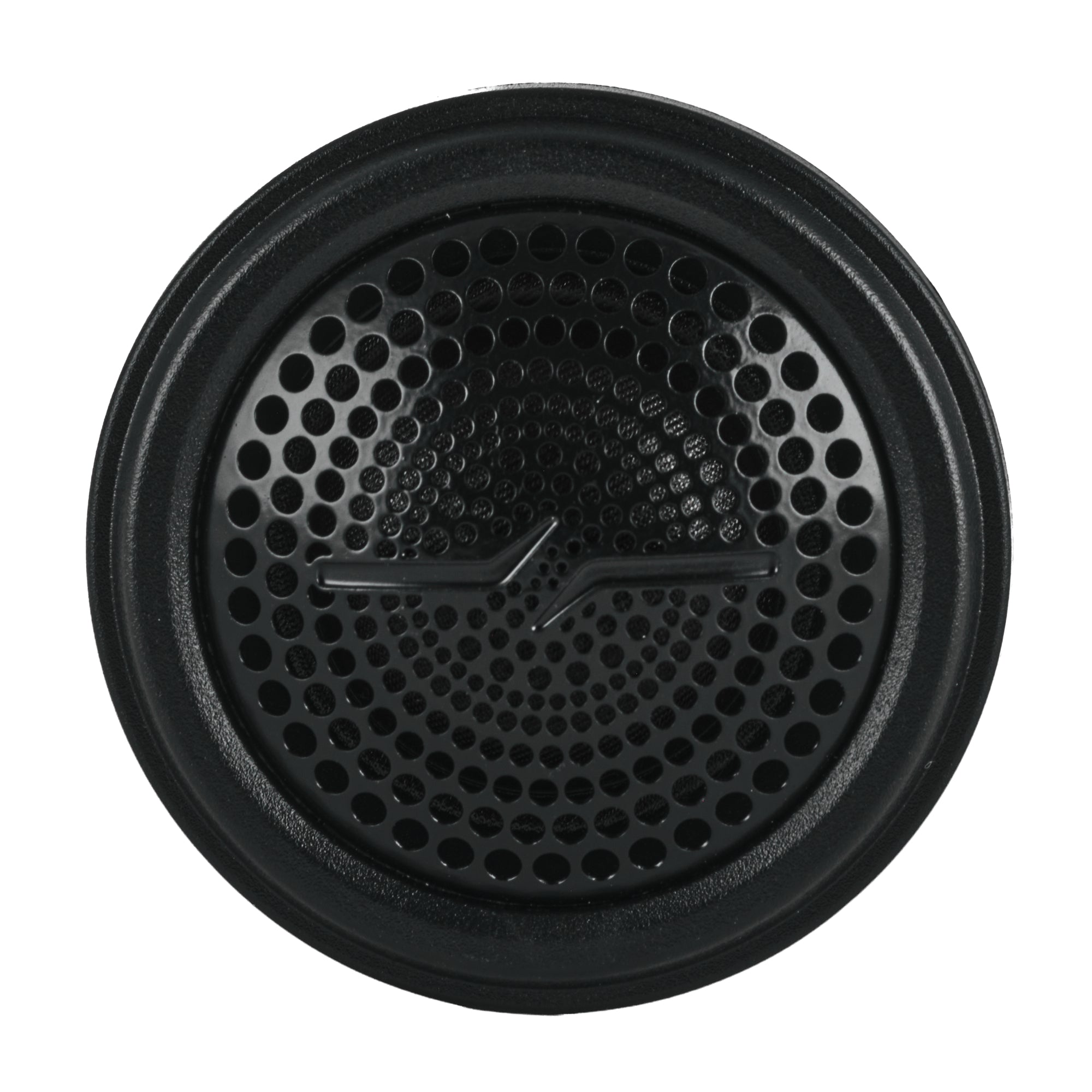

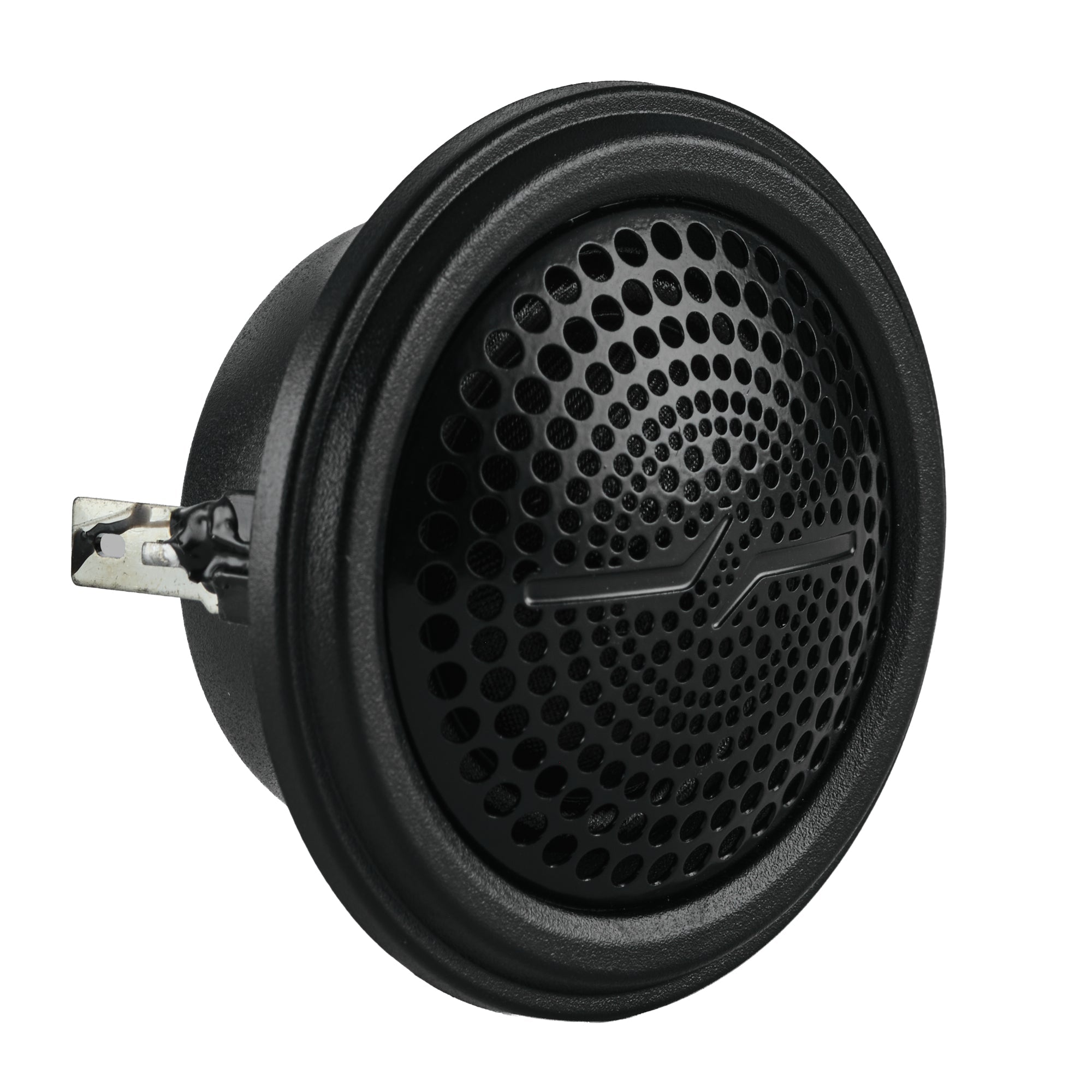

Complementing the woofer is a 2" silk dome tweeter, included for its sensitivity of 90 dB and clean frequency response from 800Hz to 20kHz. The silk diaphragm enhances smooth, natural tones and eliminates distortion.

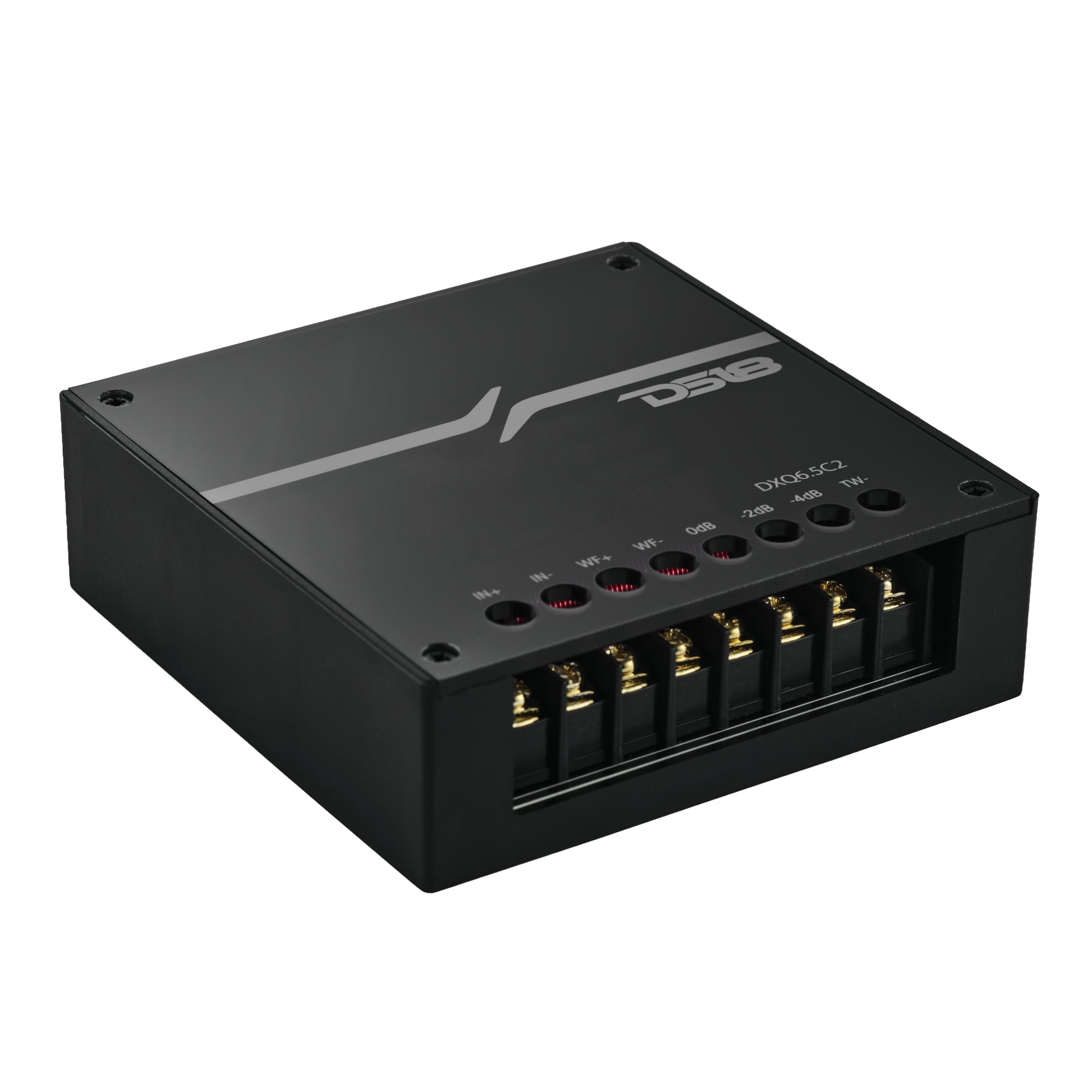

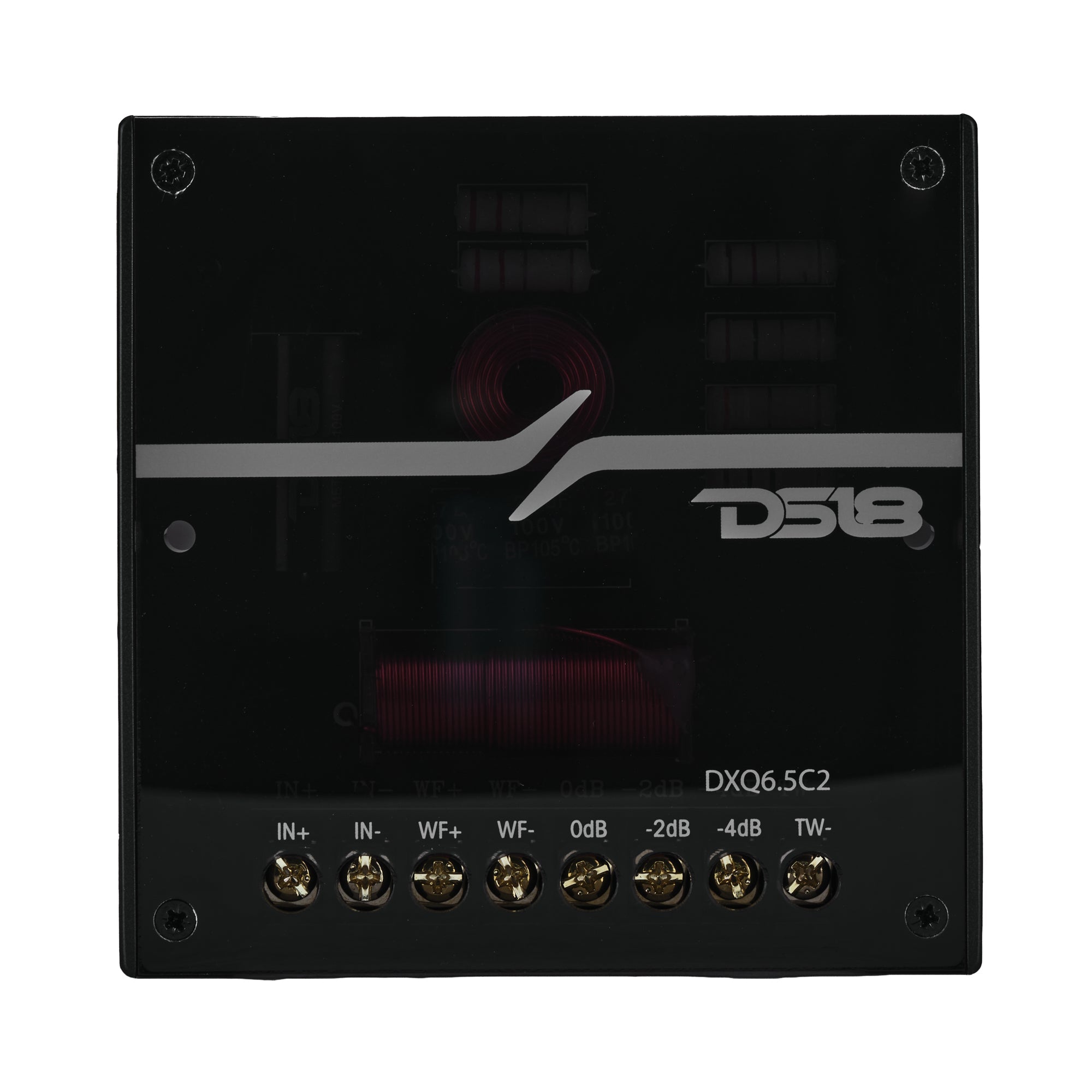

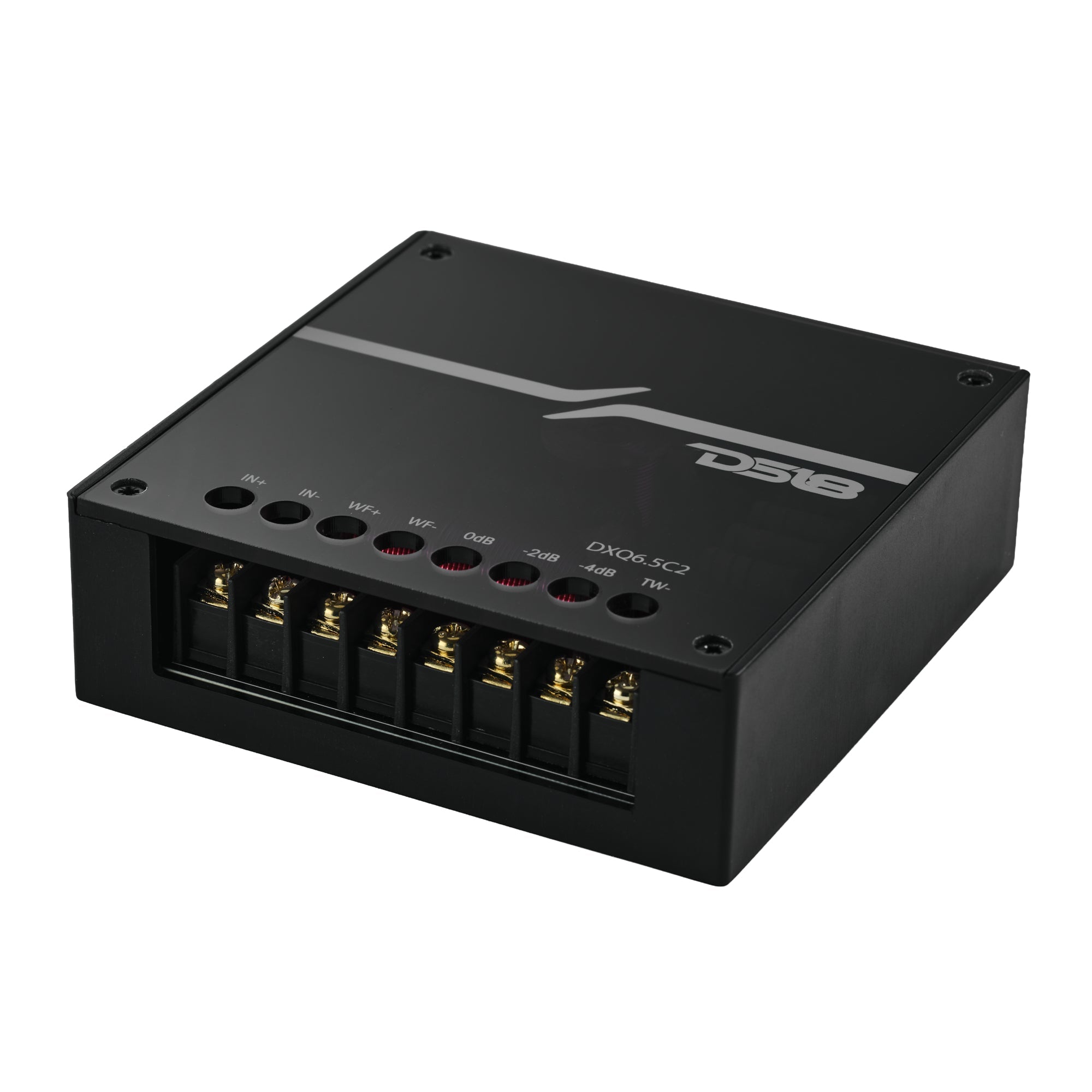

Precision Passive Crossover Included
A 2-way passive crossover set at 2kHz with a 12dB/octave slope is included, designed to protect the tweeter and balance frequencies perfectly for rich mids and highs. Tweeter attenuation is available at -4dB, -2dB, and 0dB to customize the tonal balance to your system.
Installation Made Simple
The speaker set comes with push-type 14 gauge speaker terminals and fits in a standard 5.7” baffle cutout with a shallow mounting depth of 3 inches. The included crossover features screw terminals housed in a compact ABS and acrylic casing, allowing for a clean, easy installation.
If you want a premium component system that blends power, precision, and durability: choose DS18’s DXQ6C2!
Key Features
- Premium Yellow Straw And Composite Foam Cone
- Ferrite + Neodymium Magnets
- High Power Handling 150W RMS / 300W Peak
- Wide Frequency Response
- 2x Woofers / 2x Tweeters / 2x Crossovers
Specifications
| Nominal Diameter | 6.5" / 165mm / 2" / 51mm |
|---|---|
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 300W / 60W |
| RMS Power Handling | 150W / 30W |
| Sensitivity (1w/1m) | 90dB |
| Frequency Response | 35Hz-20KHz / 35Hz-12KHz / 800Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Sold in Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25mm |
| Voice Coil Former Material | TL / ASV |
| Winding Material | SV / CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Dust Cap Material | Black Straw |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 20.2 oz / 0.5 oz / 14g |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14Ga |
| Equivalent Volume | 18.29L |
| Excursion (one way) | 5mm |
| Free Air Resonance | 46Hz |
| Mechanical Factor | 9.998 |
| Electrical Factor | 0.583 |
| Total Factor | 0.551 |
| Mechanical Mass | 19.008g |
| Mechanical Compliance | 0.631 mm/N |
| BL Factor | 5.853 |
| Voice Coil Inductance | 0.299 mH |
| Cone Area | 143.14 cm2 |
| DC Resistance | 3.64 ohms |
| Mechanical Mass w/o air | 17.073g |
| Overall Diameter (Without Grill) | 6.57" / 167mm |
| Overall Depth (Without Grill) | 3.4" / 85.4mm |
| Front Mount Baffle Cutout | 5.7" / 145mm / 1.85" / 47mm |
| Mounting Depth | 3" / 76.5mm / 0.6" / 15mm |
| Motor Diameter | 3.9" / 100mm |
| Diaphragm Material | Silk |
| Body Material / Color | ABS / Black |
| Overall Diameter | 2" / 51mm |
| Overall Depth | 1" / 25.5mm / 4.3" / 110mm |
| Passive Crossover Ways | 2-Ways |
| Frequency Crossover point | 2KHz |
| Power Handling | 300W |
| Cut-Off Slope | 12 dB/Oct |
| Tweeter Attenuation | 4dB |
| Capacitor Type | METAC Film |
| Coil Type | Inductor |
| Terminal Type | Screw Terminals |
| Housing Material | ABS + Acrylic |
| Adjustments | TW Att (by terminal) |
| Extra Features | No |
| Overall Length | 4.3" / 110mm |
| Overall Height | 1.37" / 35mm |
