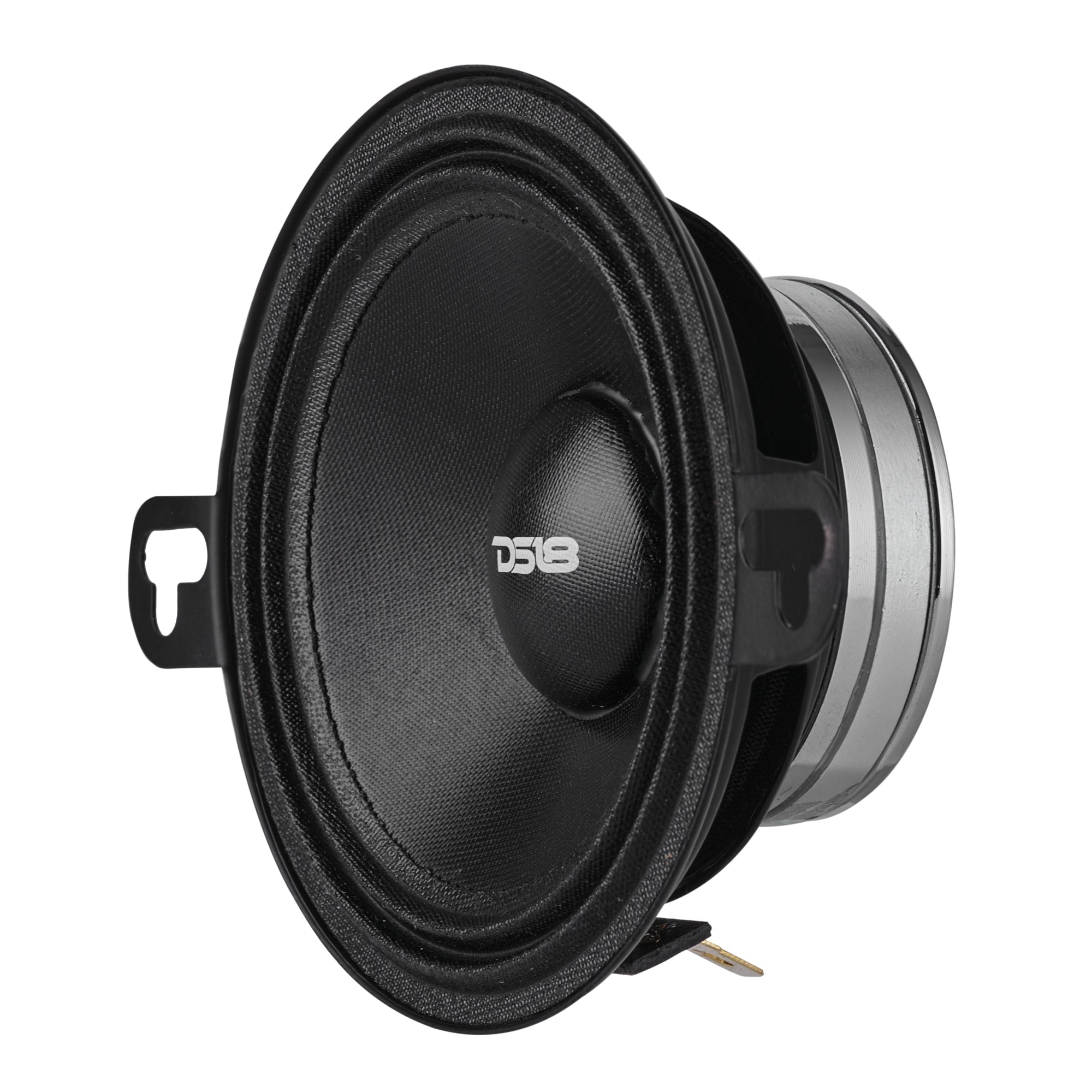

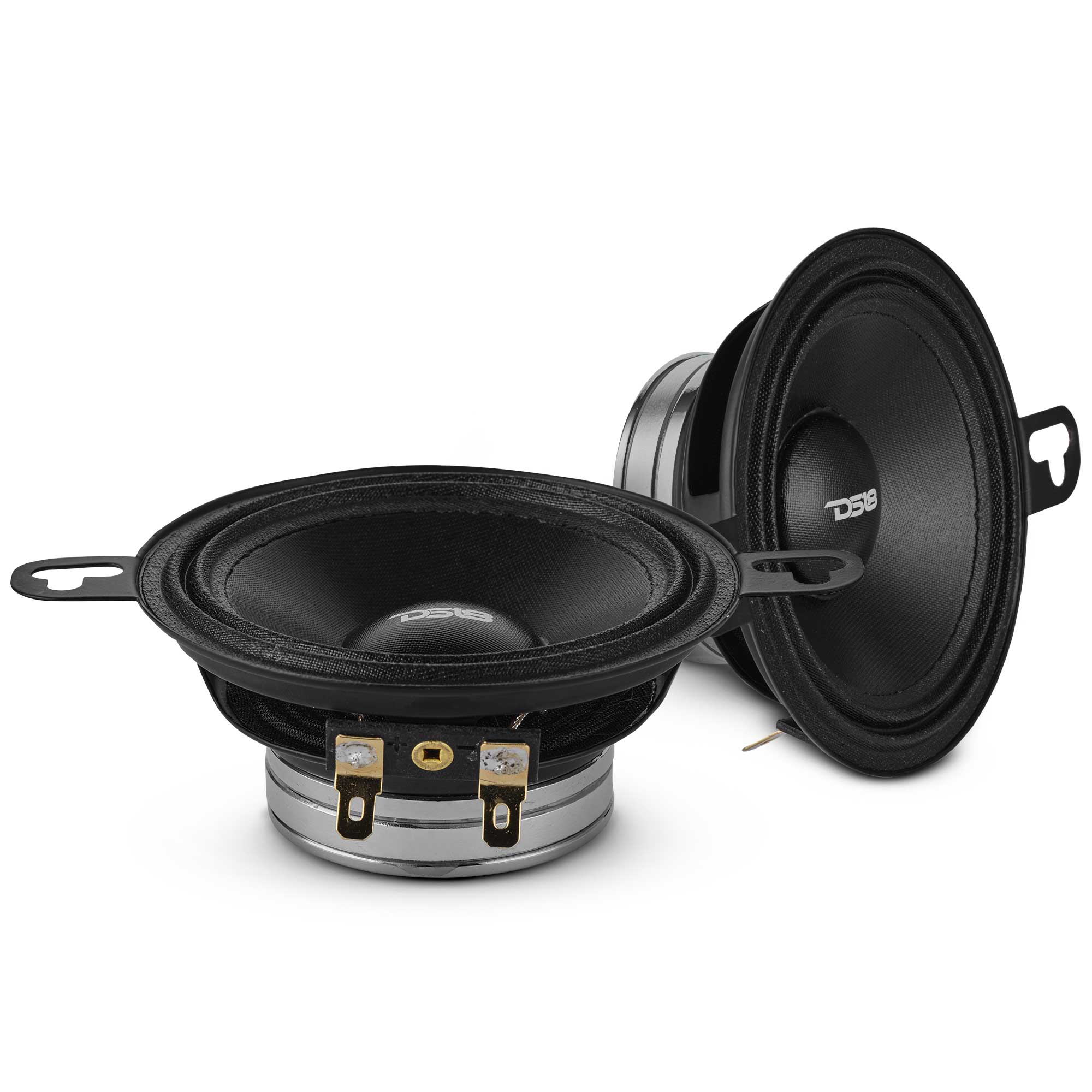

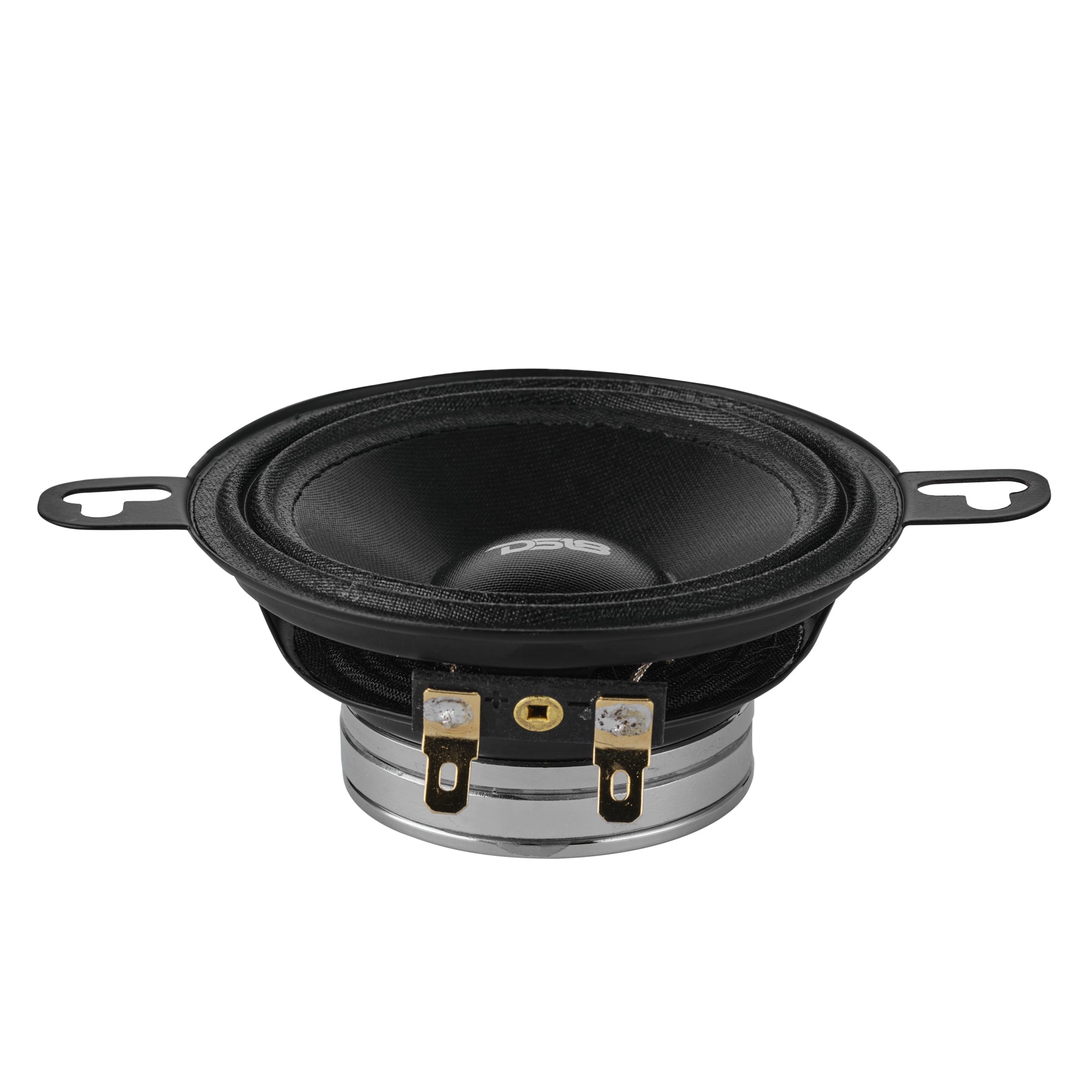

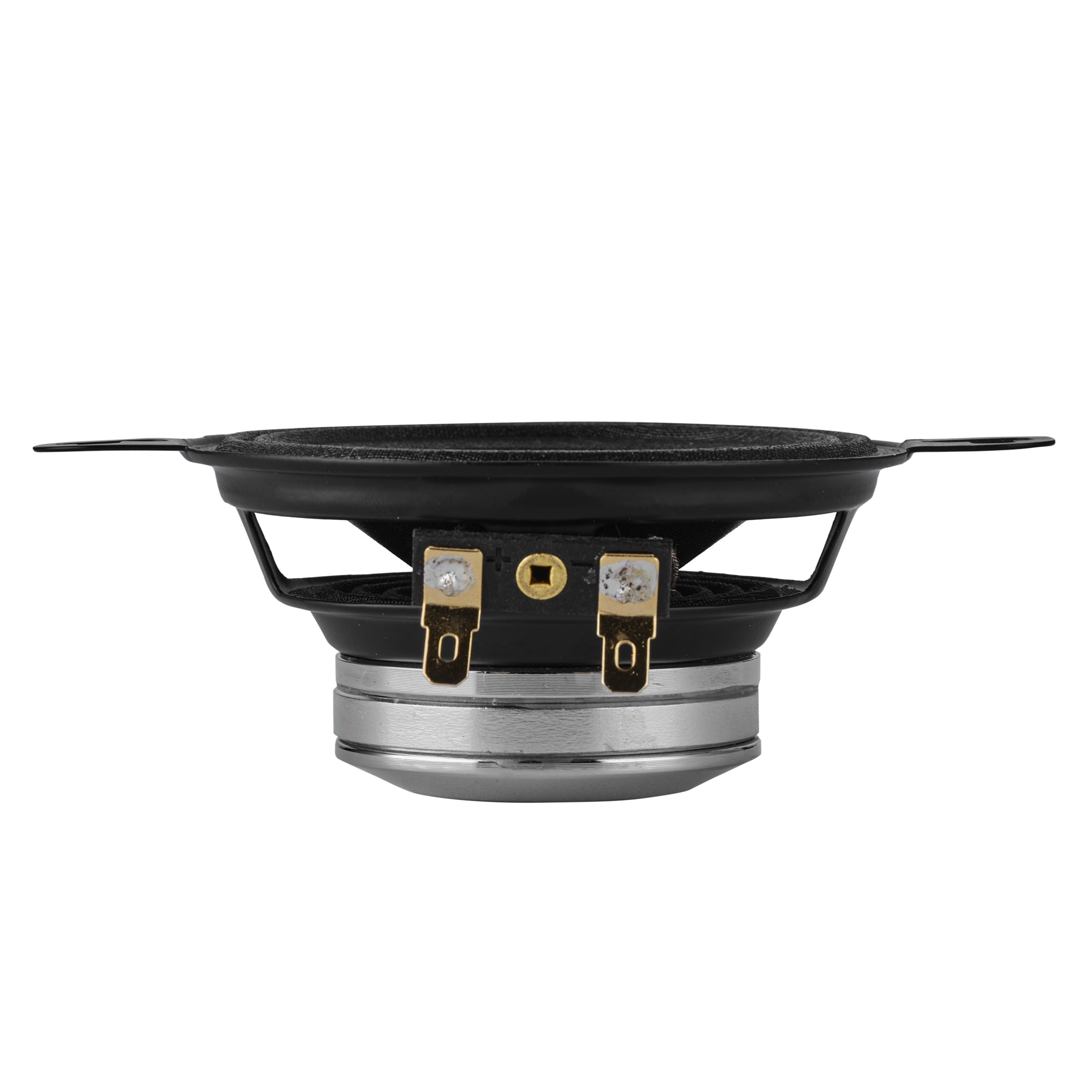

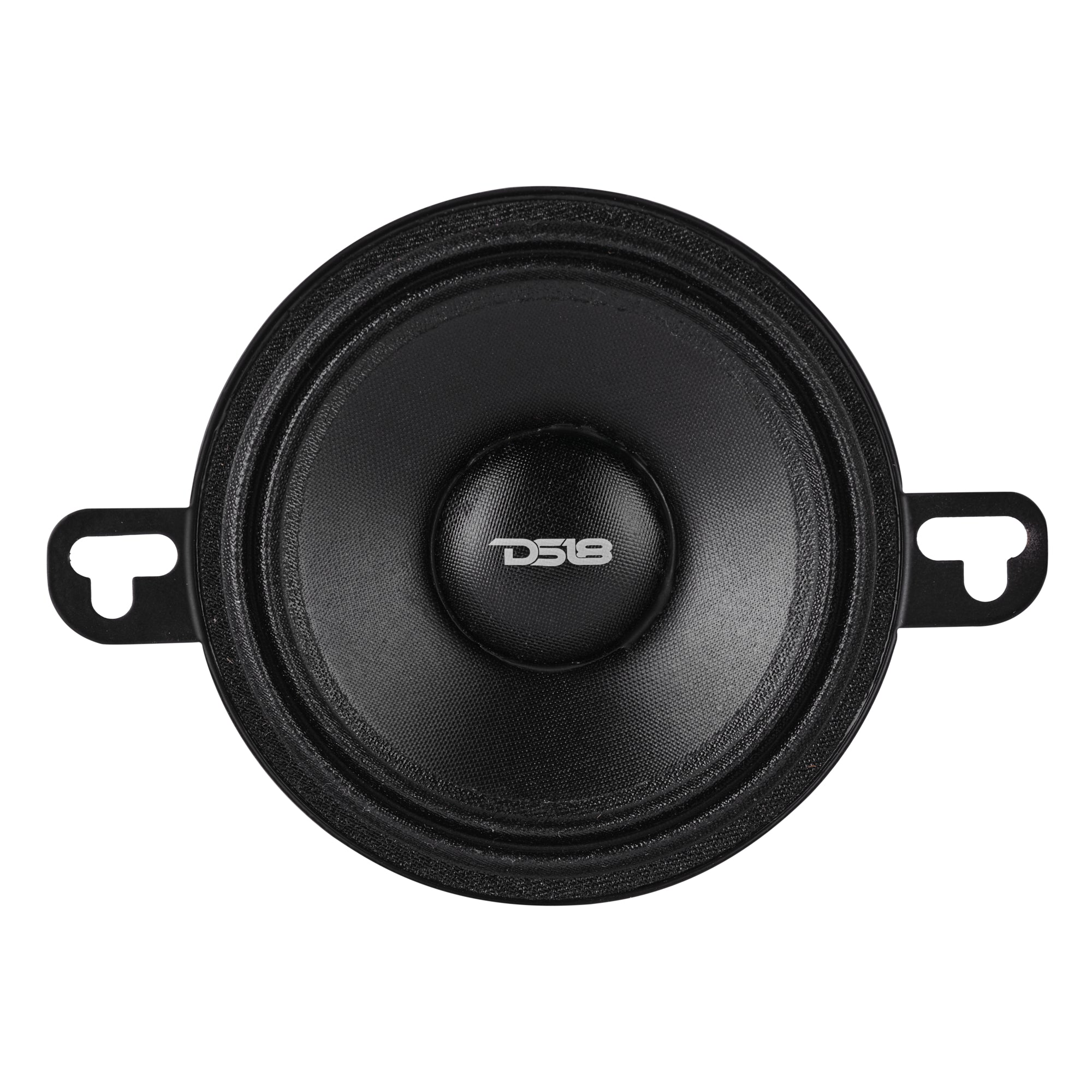

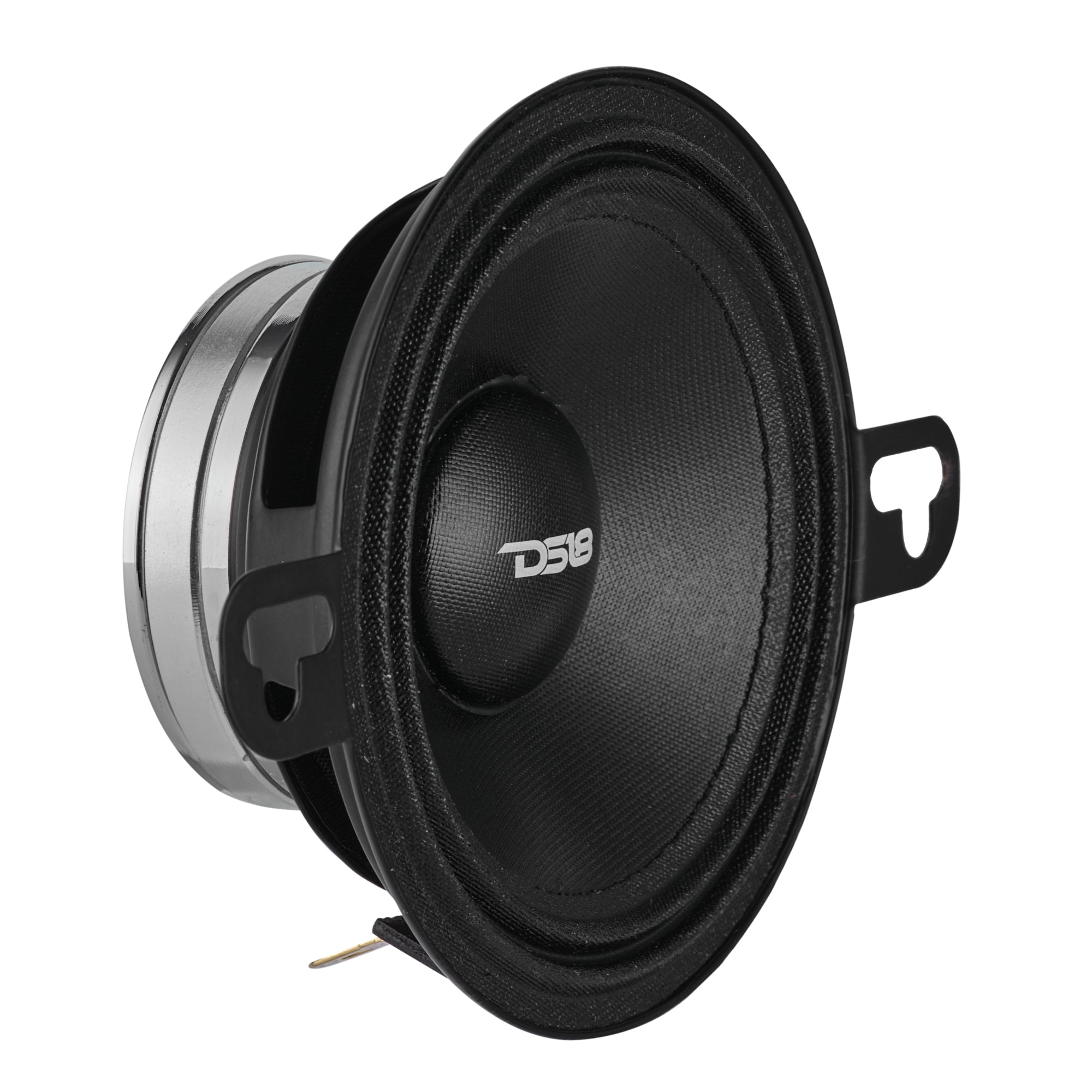

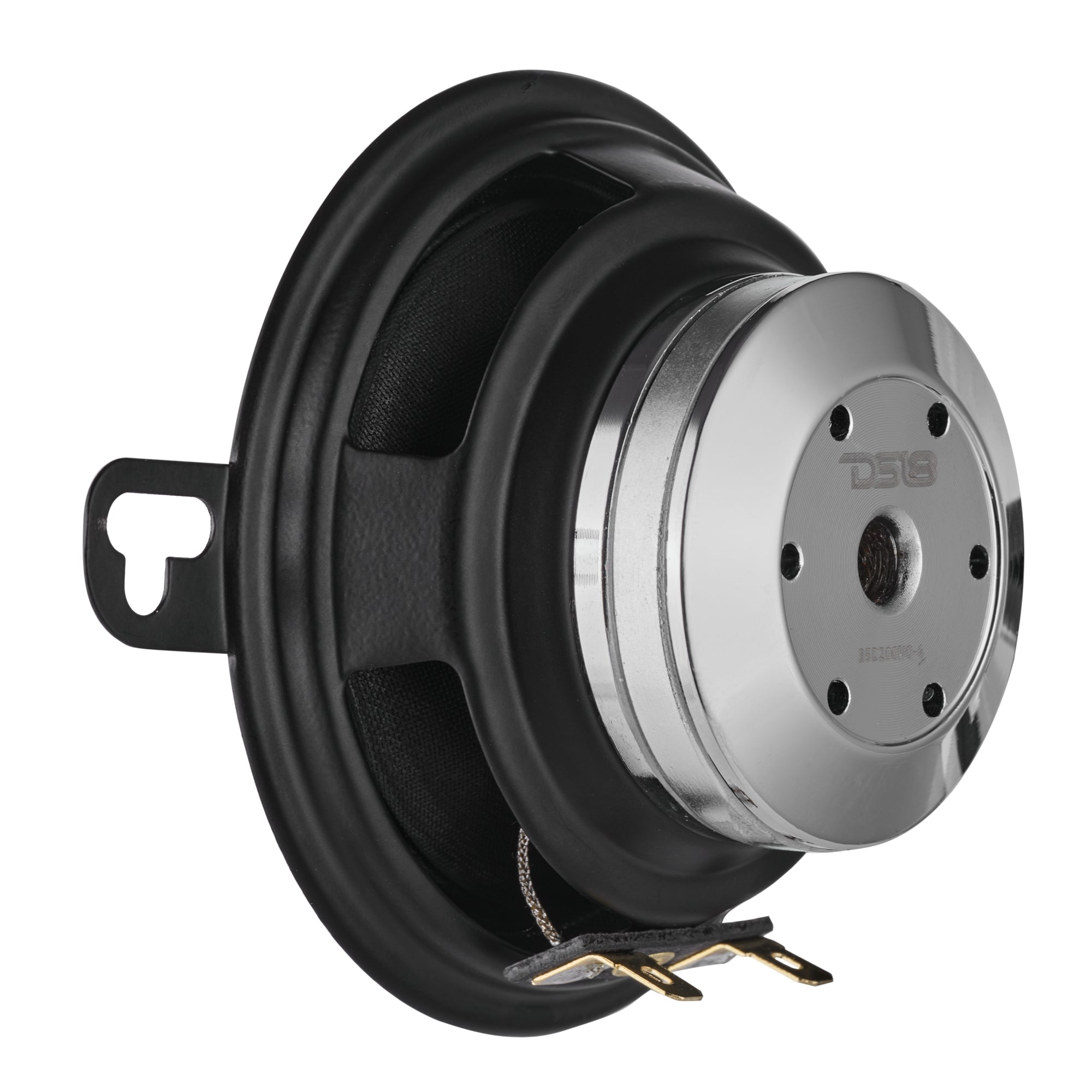

3.5” OEM Dashboard Loudspeaker with Neodymium Magnet | 100W RMS 4-Ohm
Product Overview 3.5” OEM Dashboard Loudspeaker with Neodymium Magnet The 35D200NO-4 is the perfect OEM dashboard speaker...
Vendor:
DS18
Manufacturer SKU
35D200NO-4
Availability:
Out Of Stock
Product Type:
Midrange Loudspeakers
- $199.95
- $199.95
- Unit price
- per
Subtotal:
$199.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
3.5” OEM Dashboard Loudspeaker with Neodymium Magnet
The 35D200NO-4 is the perfect OEM dashboard speaker replacement
Power and Sensitivity
This speaker handles 100W RMS and 200W MAX, offering clear sound at 88dB sensitivity. It reproduces frequencies between 120Hz and 20kHz, for crisp mids and highs ideal for factory system upgrades.
Durable Materials for Long Life
Built with a glass fiber and composite foam cone with resin finish, along with a cloth surround, this driver is both durable and accurate. The neodymium magnet offers strong magnetic force while keeping weight low.
Simple Installation
With regular spade terminals and a black steel basket, the 35D200NO-4 installs easily into most OEM dashboard openings.
Don’t settle for dull or weak OEM sound. Swap in DS18’s 35D200NO-4 for sharp, clear audio that will make your vehicles audio system feel brand new!
Key Features
- Installs easily in most factory dashboard locations
- Handles 100W RMS / 200W MAX power
- 120Hz–20kHz range for clear mids and detailed highs
- Lightweight neodymium magnet for strong output
- Durable steel basket construction
Specifications
| Nominal Diameter | 3.5" / 91.5mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 100W |
| MAX Power Handling | 200W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 120Hz-20Khz |
| Recommended HI Pass Crossover | 160Hz |
| Sold in Pair or Single | Pair |
| Improved Heat Dissipation | Yes |
| Cone Shape | Conic |
| Speaker Terminals | Spade |
| Voice Coil Diameter | 1" / 25mm |
| Voice Coil Former Material | TIL |
| Winding Material | Copper Ribbon |
| Cone Material | Glass Fiber + Foam Composite with Resin Finish |
| Dust Cap Material | Glass Fiber + Foam Composite with Resin Finish |
| Surround Material | Cloth |
| Leads Connection Type | Direct to Coil |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 1.4 Oz |
| Equivalent Volume | 0.36L / 0.0951ft3 |
| Excursion (one way) | 2mm |
| Free Air Resonance | 210Hz |
| Mechanical Factor | 7.51 |
| Electrical Factor | 2.22 |
| Total Factor | 1.71 |
| Mechanical Mass | 4.066g |
| Mechanical Compliance | 0.122mm/N |
| BL Factor | 2.74 |
| Voice Coil Inductance | 0.046mH |
| Cone Area | 38.48cm2 |
| DC Resistance | 3.77 Ohms |
| Mechanical Mass w/o air | 3.797g |
| Overall Diameter | 3.4" / 86.5mm |
| Overall Depth | 1.65" / 42.1mm |
| Front Mount Baffle Cutout | 3.0" / 78.4mm |
| Mounting Depth | 1.5" / 38.6mm |
| Motor Diameter | 1.96" / 50mm |
